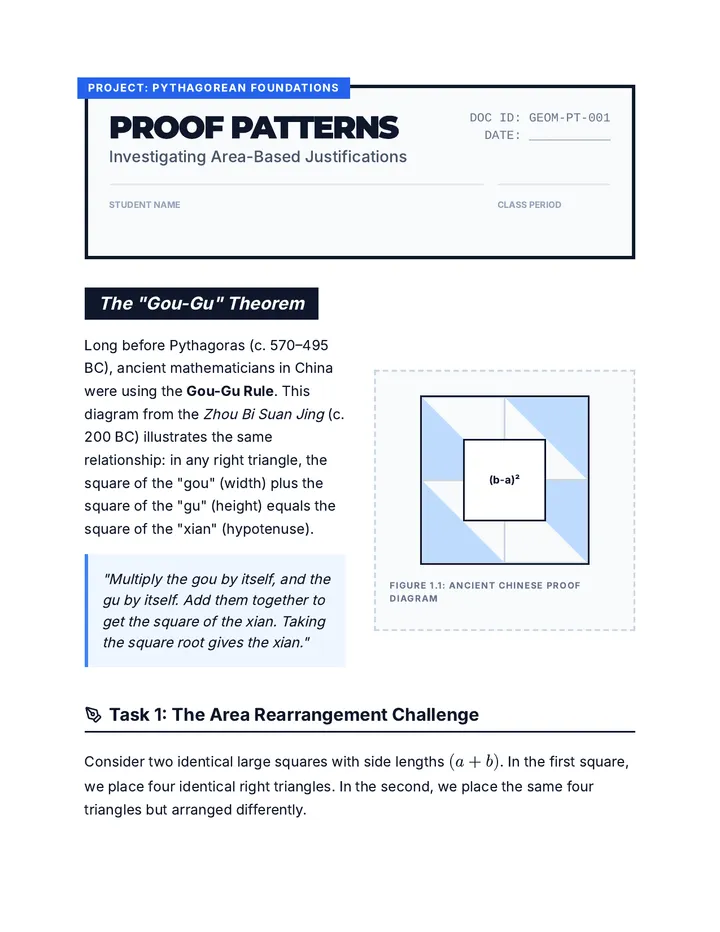

Proof Patterns Worksheet Project: Pythagorean Foundations
Proof Patterns
Investigating Area-Based Justifications
DOC ID: GEOM-PT-001
DATE: ___________
Student Name
Class Period
The "Gou-Gu" Theorem
Long before Pythagoras (c. 570–495 BC), ancient mathematicians in China were using the Gou-Gu Rule . This diagram from the Zhou Bi Suan Jing (c. 200 BC) illustrates the same relationship: in any right triangle, the square of the "gou" (width) plus the square of the "gu" (height) equals the square of the "xian" (hypotenuse).
"Multiply the gou by itself, and the gu by itself. Add them together to get the square of the xian. Taking the square root gives the xian."
(b-a)²
Figure 1.1: Ancient Chinese Proof Diagram
Task 1: The Area Rearrangement Challenge
Consider two identical large squares with side lengths \( (a + b) \). In the first square, we place four identical right triangles. In the second, we place the same four triangles but arranged differently.
Square A
Uncovered area = \( c^2 \)
Square B
Uncovered area = \( a^2 + b^2 \)
Prompt: Explain the logic of this proof in 3 steps.
1
2
3
Task 2: The Algebraic Derivation
Using the image of Square A from the previous page, we can write an equation for the total area in two different ways.
Method 1: Side Length
The total area of the large square using its outer dimensions is:
Area = \( (a + b)^2 \)
Method 2: Inner Parts
The sum of the areas of the 4 triangles and the inner square is:
Area = \( 4(\frac{1}{2}ab) + c^2 \)
Your Work: Expand and Simplify
Set Method 1 equal to Method 2 and solve for the relationship between \( a, b, \) and \( c \).
Result: \( a^2 + b^2 = c^2 \)
Task 3: Engineering Application
Verify the theorem with these "Drafting Specs." Solve for the missing dimension and justify why your answer makes sense geometrically.
a = 15 b = 20 c = ?
Calculation
Why is \( c \) always the longest side?
a = ? b = 24 c = 25
Calculation
Interpretation
If this were a ladder leaning against a wall, what does "a" represent?
Proof Patterns Slides Geometry Sequence 01
Proof
Patterns
Visualizing the logical foundations of the Pythagorean Theorem.
History Check
Who Owns the Theorem?
Pythagoras is the name on the box, but mathematicians in China were using the Gou-Gu Rule hundreds of years earlier.
"The square of the gou plus the square of the gu equals the square of the xian."
— Zhou Bi Suan Jing (c. 200 BC)
Hypotenuse Square
Visual Proof
Rearrangement Logic
c²
State A
4 Triangles + Empty Square \( c^2 \)
a² b²
State B
4 Triangles + Empty Squares \( a^2, b^2 \)
The Invariant: Since both large squares are identical and the four triangles haven't changed size, the white area must be equal in both.
Algebraic Proof
Expanding the Area
Total Area Expression
\( (a + b)^2 = c^2 + 4(\frac{1}{2}ab) \)
Step-by-Step Expansion:
1. \( a^2 + 2ab + b^2 = c^2 + 2ab \)
2. Subtract \( 2ab \) from both sides...
3. \( a^2 + b^2 = c^2 \)
Discussion Point
If the triangles weren't right triangles , would this proof still work? Why or why not? Think about the corners of the inner square.

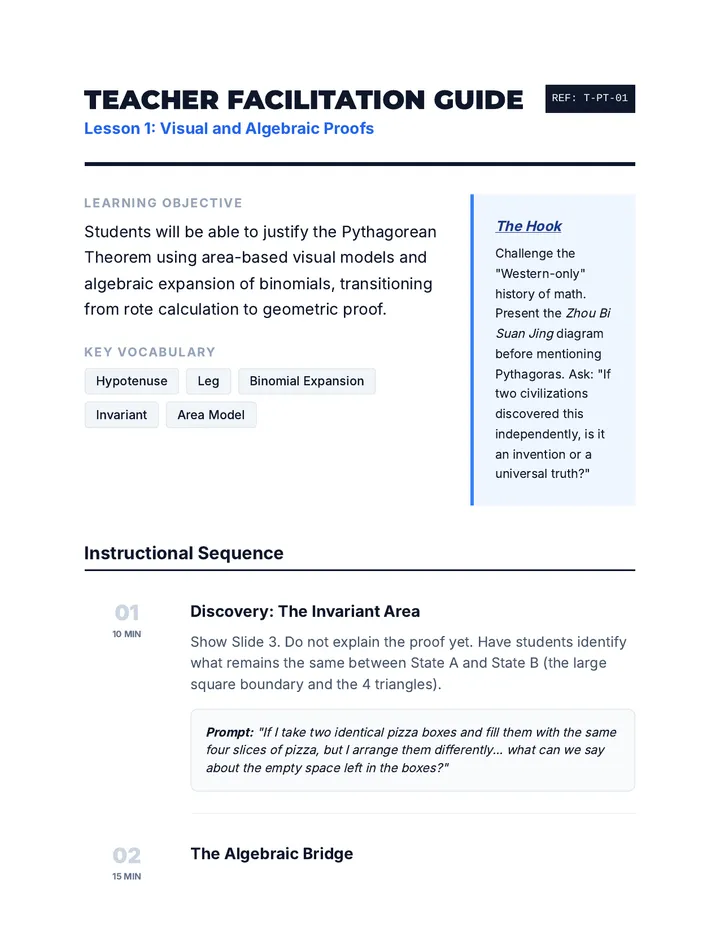

Proof Facilitation Guide Teacher Facilitation Guide
Lesson 1: Visual and Algebraic Proofs
REF: T-PT-01
Learning Objective
Students will be able to justify the Pythagorean Theorem using area-based visual models and algebraic expansion of binomials, transitioning from rote calculation to geometric proof.
Key Vocabulary
Hypotenuse Leg Binomial Expansion Invariant Area Model
The Hook
Challenge the "Western-only" history of math. Present the Zhou Bi Suan Jing diagram before mentioning Pythagoras. Ask: "If two civilizations discovered this independently, is it an invention or a universal truth?"
Instructional Sequence
01
10 MIN
Discovery: The Invariant Area
Show Slide 3. Do not explain the proof yet. Have students identify what remains the same between State A and State B (the large square boundary and the 4 triangles).
Prompt: "If I take two identical pizza boxes and fill them with the same four slices of pizza, but I arrange them differently... what can we say about the empty space left in the boxes?"
02
15 MIN
The Algebraic Bridge
Transition to Slide 4. Students often struggle with \( (a+b)^2 \). Use the "Proof Patterns Worksheet" Task 2 to bridge this.
Common Misconception
Students frequently write \( (a+b)^2 = a^2 + b^2 \). Use the geometry of the area model to show them the missing \( 2ab \) rectangles.
03
20 MIN
Application & Verification
Work through Task 3 on the worksheet. Focus on the "Drafting Specs" context.
Check for Understanding: "If \( a^2 + b^2 \) equals a value that isn't a perfect square (e.g., 50), is the theorem still true? Does the square of the hypotenuse still physically exist?"
Differentiation: For advanced students, ask them to research Garfield's Proof (using a trapezoid) and try to replicate it on the back of their sheet.
Teaching Notes / Reflection Similarity Shadows Slides Geometry Sequence 02
Similarity
Shadows
Deriving the Theorem through the lens of similar triangles.
Fractal Geometry
The "Identical Twins" Puzzle
If you take any right triangle and draw an altitude from the right angle to the hypotenuse, how many triangles do you see?
The Secret:
All three triangles (the original and the two new ones) are similar by the AA Similarity Postulate.
C (Right Angle) B A D (Altitude Base)
Original: \(\triangle ABC\)
Breakdown
One Triangle Becomes Three
Large
\(\triangle ABC \sim\)
Medium
\(\triangle ACD \sim\)
Small
\(\triangle CBD\)
Why are they similar?
Every triangle shares the original right angle (90°) or has a shared angle from the original \(\triangle ABC\). By AA Similarity, their sides are proportional .
Algebraic Proof
The Ratios Reveal the Truth
Proportion 1:
\( \frac{c}{a} = \frac{a}{x} \implies a^2 = cx \)
(Hypotenuse to Leg ratios)
Proportion 2:
\( \frac{c}{b} = \frac{b}{y} \implies b^2 = cy \)
(Hypotenuse to Leg ratios)
The Final Step:
Add them together:
\( a^2 + b^2 = cx + cy \)
\( a^2 + b^2 = c(x + y) \)
\( a^2 + b^2 = c^2 \)
Because \( x + y = c \)!

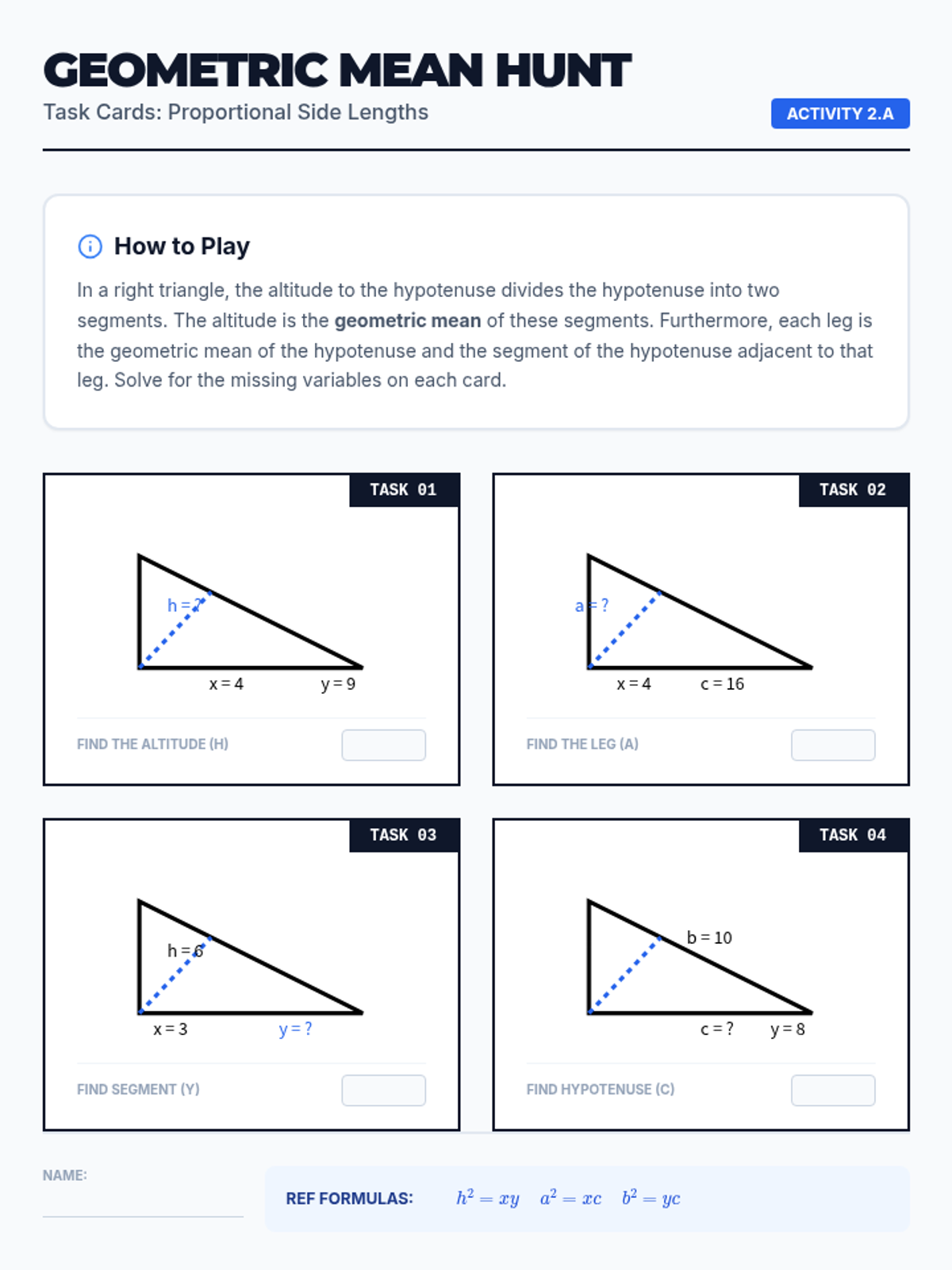

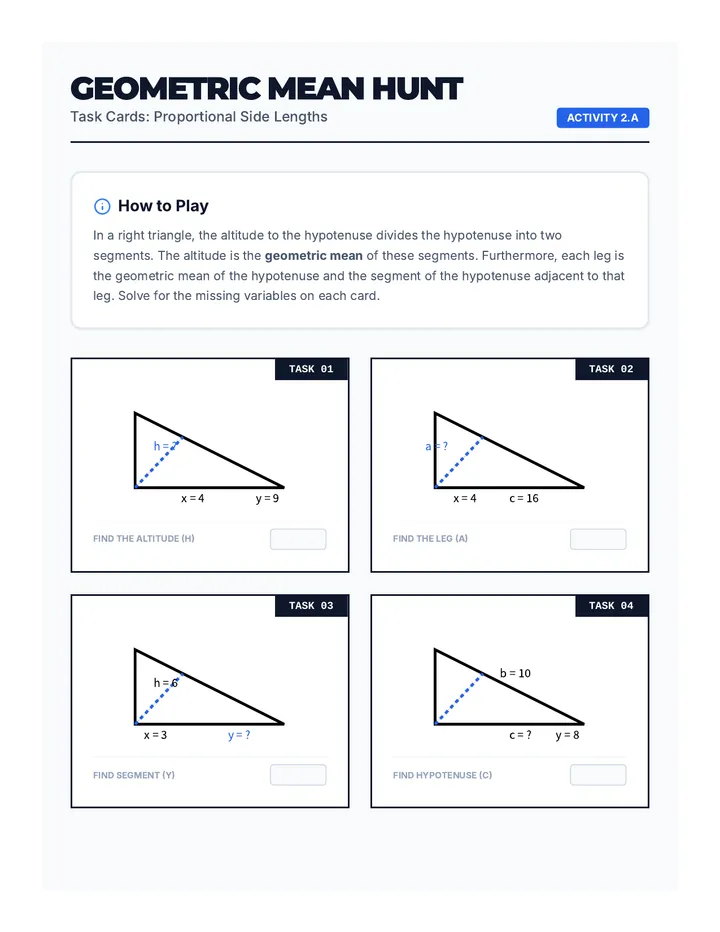

Geometric Mean Hunt Activity Geometric Mean Hunt
Task Cards: Proportional Side Lengths
ACTIVITY 2.A
How to Play
In a right triangle, the altitude to the hypotenuse divides the hypotenuse into two segments. The altitude is the geometric mean of these segments. Furthermore, each leg is the geometric mean of the hypotenuse and the segment of the hypotenuse adjacent to that leg. Solve for the missing variables on each card.
Task 01
x = 4 y = 9 h = ?
FIND THE ALTITUDE (H)
Task 02
c = 16 x = 4 a = ?
FIND THE LEG (A)
Task 03
h = 6 x = 3 y = ?
FIND SEGMENT (Y)
Task 04
c = ? b = 10 y = 8
FIND HYPOTENUSE (C)
Name:
REF FORMULAS:
\( h^2 = xy \) \( a^2 = xc \) \( b^2 = yc \)

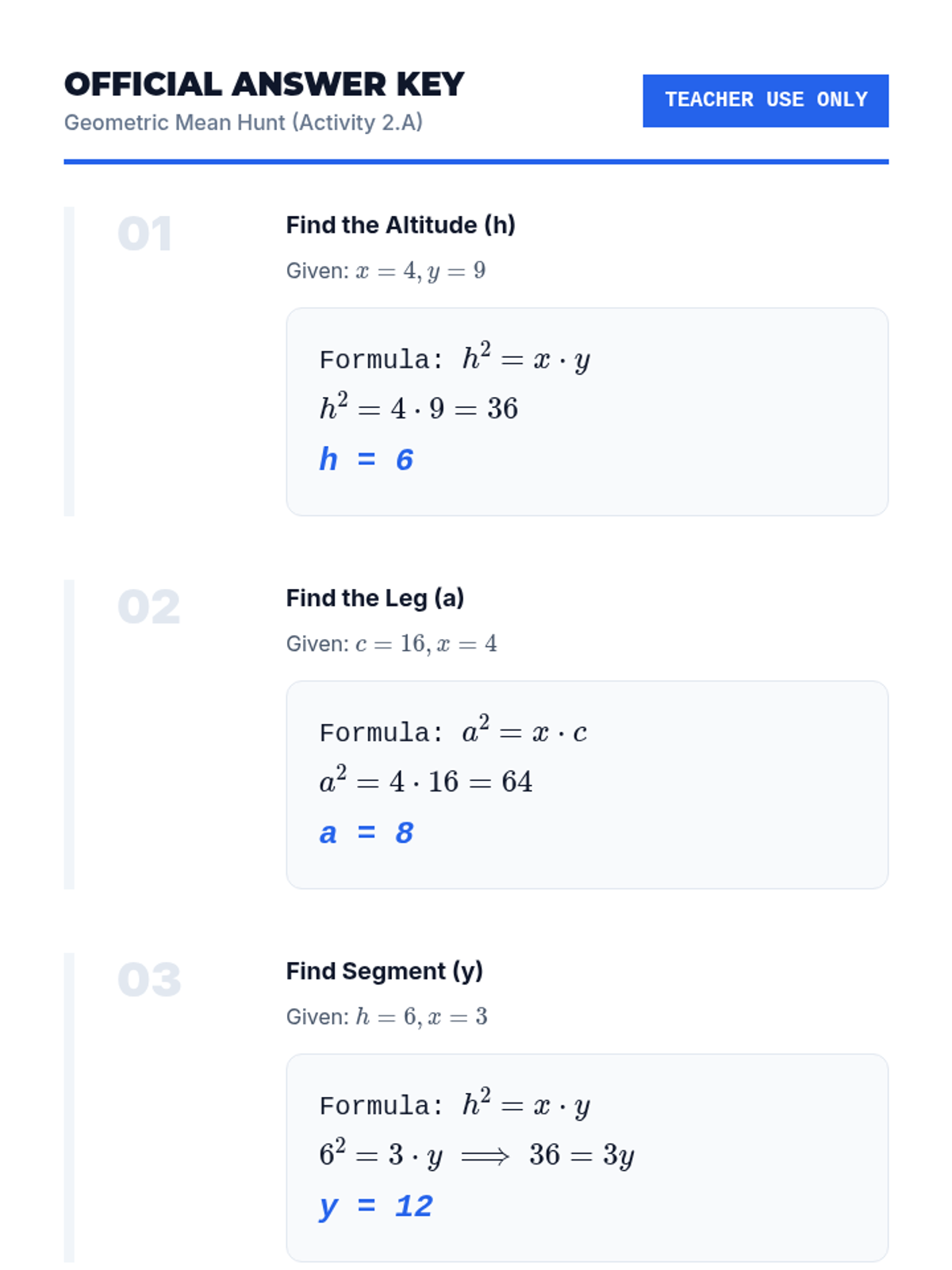

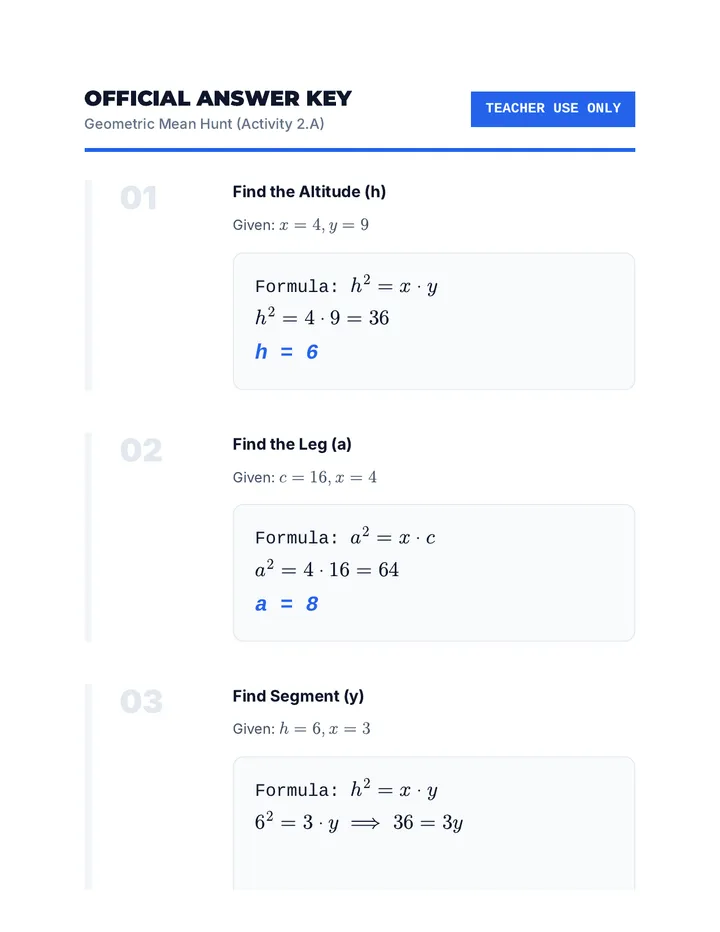

Geometric Mean Answer Key Official Answer Key
Geometric Mean Hunt (Activity 2.A)
TEACHER USE ONLY
01
Find the Altitude (h)
Given: \( x = 4, y = 9 \)
Formula: \( h^2 = x \cdot y \)
\( h^2 = 4 \cdot 9 = 36 \)
h = 6
02
Find the Leg (a)
Given: \( c = 16, x = 4 \)
Formula: \( a^2 = x \cdot c \)
\( a^2 = 4 \cdot 16 = 64 \)
a = 8
03
Find Segment (y)
Given: \( h = 6, x = 3 \)
Formula: \( h^2 = x \cdot y \)
\( 6^2 = 3 \cdot y \implies 36 = 3y \)
y = 12
04
Find Hypotenuse (c)
Given: \( b = 10, y = 8 \)
Formula: \( b^2 = y \cdot c \)
\( 10^2 = 8 \cdot c \implies 100 = 8c \)
c = 12.5
Pedagogical Note
These problems reinforce the "Geometric Mean" concept which is a precursor to deriving the full Pythagorean identity. Encourage students to visualize the three similar triangles if they get stuck on the formulas.
Point Value
5 pts / ea
Triangle Detectives Slides Geometry Sequence 03
Triangle
Detectives
Using side-length logic to classify triangles without measuring angles.
The Straw Challenge
Predicting the Corner
If I give you three straws of length 7cm , 10cm , and 12cm , can you predict if they will form a perfect "L" corner (90°)?
"We don't need a protractor. We have the Converse."
Is this 90°?
The Rules of the Game
The Inequality Tests
Acute
\( c^2 < a^2 + b^2 \)
The hypotenuse is "too short" to make a right angle, forcing the corner to squeeze shut.
Right
\( c^2 = a^2 + b^2 \)
The perfect balance. The sides perfectly support a 90° vertex.
Obtuse
\( c^2 > a^2 + b^2 \)
The hypotenuse is "too long," pushing the corner open wider than 90°.
* Note: Always ensure the three sides actually form a triangle first (Triangle Inequality Theorem).
Investigation
Detective Case #402
Evidence:
Side A = 6
Side B = 9
Side C = 11
1. Square 'em
\( 11^2 = 121 \)
\( 6^2 + 9^2 = 36 + 81 = 117 \)
2. Compare
\( 121 > 117 \)
Verdict: OBTUSE

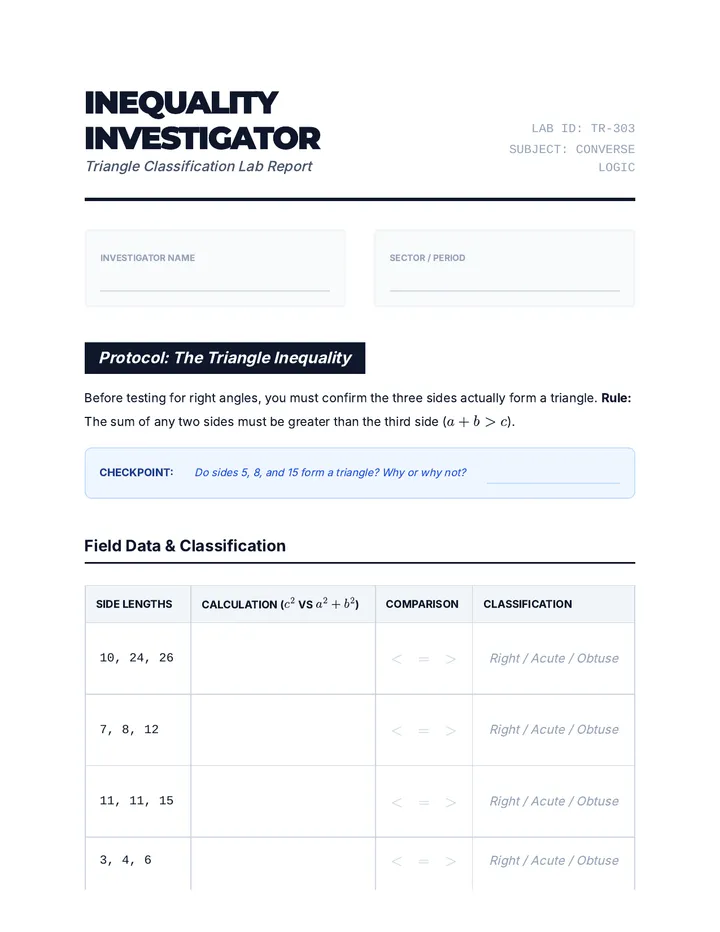

Inequality Investigator Worksheet Inequality Investigator
Triangle Classification Lab Report
LAB ID: TR-303
SUBJECT: CONVERSE LOGIC
Investigator Name
Sector / Period
Protocol: The Triangle Inequality
Before testing for right angles, you must confirm the three sides actually form a triangle. Rule: The sum of any two sides must be greater than the third side (\( a + b > c \)).
CHECKPOINT:
Do sides 5, 8, and 15 form a triangle? Why or why not?
Field Data & Classification
Side Lengths Calculation (\( c^2 \) vs \( a^2 + b^2 \)) Comparison Classification 10, 24, 26 \( < \quad = \quad > \) Right / Acute / Obtuse 7, 8, 12
| \( < \quad = \quad > \) | Right / Acute / Obtuse |
| 11, 11, 15 |
| \( < \quad = \quad > \) | Right / Acute / Obtuse |
| 3, 4, 6 |
| \( < \quad = \quad > \) | Right / Acute / Obtuse |
Critical Thinking: The Limit of Logic
A triangle has sides of length x , x+1 , and x+2 . If the triangle is RIGHT , solve for the value of x . Show your algebraic work below.
Final Verdict x =

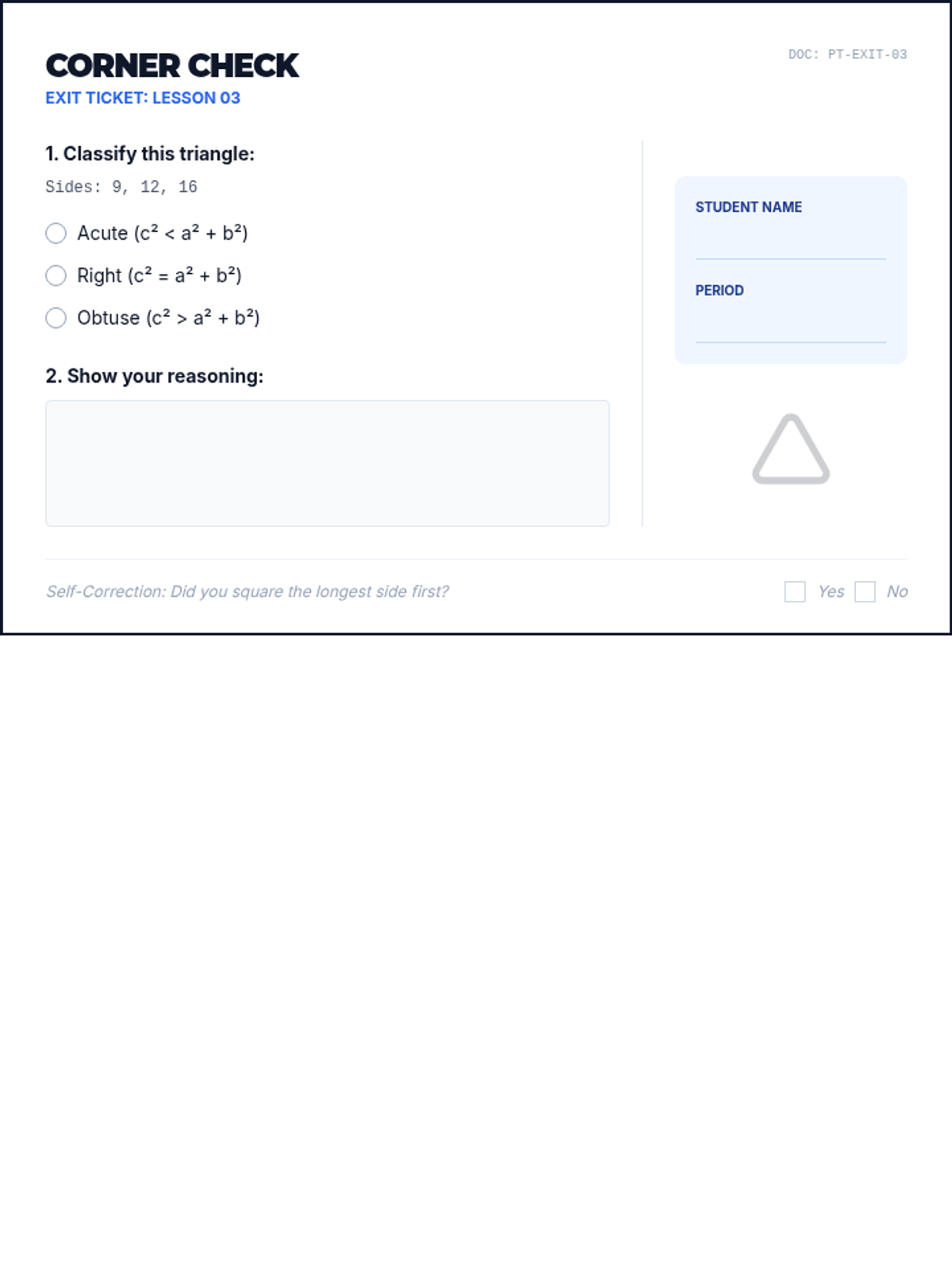

Corner Check Exit Ticket Corner Check
Exit Ticket: Lesson 03
DOC: PT-EXIT-03
1. Classify this triangle:
Sides: 9, 12, 16
Acute (c² < a² + b²)
Right (c² = a² + b²)
Obtuse (c² > a² + b²)
2. Show your reasoning:
Student Name
Period
Self-Correction: Did you square the longest side first?
Yes
No
Mapping Miles Slides Geometry Sequence 04
Mapping
Miles
Deriving the Distance Formula from the Pythagorean Theorem.
GPS Logic
As the Crow Flies
In a city with a grid system (like Manhattan), cars travel north-south and east-west. But how does your phone calculate the straight-line distance between two points?
"The shortest path is always the hypotenuse of the grid."
Distance (d)
The Transformation
From Geometry to Algebra
Pythagorean Version
\( a^2 + b^2 = c^2 \)
Where a and b are the lengths of the legs of a right triangle.
Coordinate Version
\( (x_2-x_1)^2 + (y_2-y_1)^2 = d^2 \)
\( d = \sqrt{(x_2-x_1)^2 + (y_2-y_1)^2} \)
The difference in x-values is leg a . The difference in y-values is leg b .
Application
Calculating Displacement
Coordinates
Point A (1, 2)
Point B (7, 10)
Step 1: Differences
\( \Delta x = 7 - 1 = 6 \)
\( \Delta y = 10 - 2 = 8 \)
Step 2: Pythagorean Check
\( 6^2 + 8^2 = d^2 \)
\( d = 10 \)

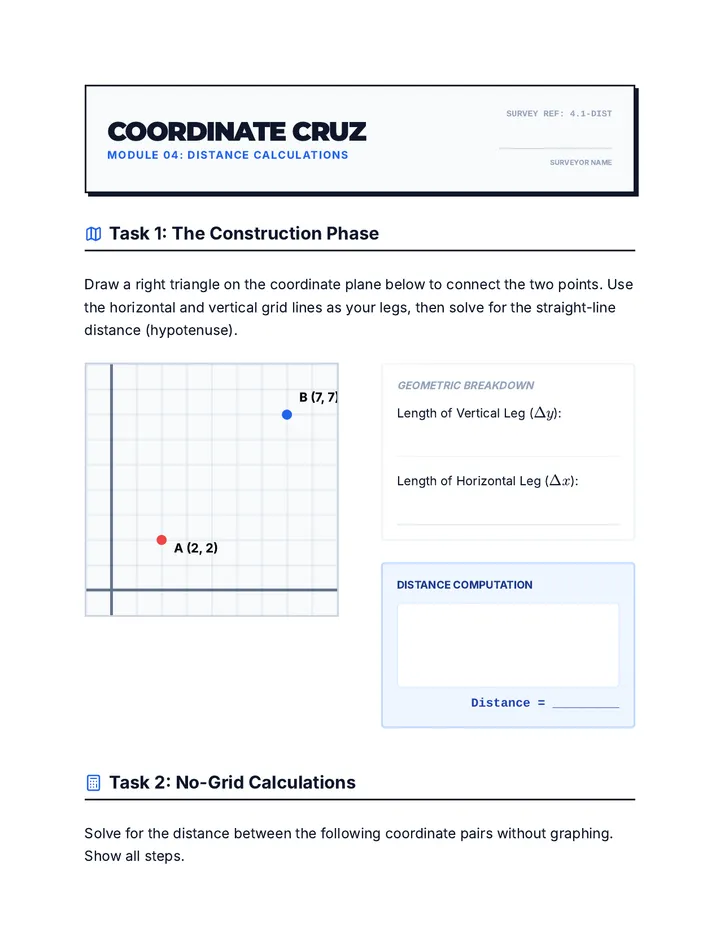

Coordinate Cruz Worksheet Coordinate Cruz
MODULE 04: DISTANCE CALCULATIONS
SURVEY REF: 4.1-DIST
Surveyor Name
Task 1: The Construction Phase
Draw a right triangle on the coordinate plane below to connect the two points. Use the horizontal and vertical grid lines as your legs, then solve for the straight-line distance (hypotenuse).
A (2, 2) B (7, 7)
Geometric breakdown
Length of Vertical Leg (\( \Delta y \)):
Length of Horizontal Leg (\( \Delta x \)):
Distance Computation
Distance = _________
Task 2: No-Grid Calculations
Solve for the distance between the following coordinate pairs without graphing. Show all steps.
01
(-3, 5) and (2, 17)
02
(1, -2) and (5, 1)
03
(-8, -4) and (0, 2)
Distance is the square root of the sum of the squares of the differences.
Infinite Triangles Slides Geometry Sequence 05
Infinite
Triangles
Deriving the Equation of a Circle as the ultimate Pythagorean application.
Radial Symmetry
A Circle is a Shadow
What happens if you take a right triangle and rotate it 360° around one of its vertices?
The Truth:
Every point on a circle is just the tip of a right triangle's hypotenuse, where the hypotenuse is the radius .
(h, k) (x, y) r
The Transformation
The Final Equation
From Distance Formula:
\( d = \sqrt{(x_2-x_1)^2 + (y_2-y_1)^2} \)
To Circle Form:
\( r = \sqrt{(x-h)^2 + (y-k)^2} \)
Standard Form
\( (x-h)^2 + (y-k)^2 = r^2 \)
Center
(h, k)
Radius
r

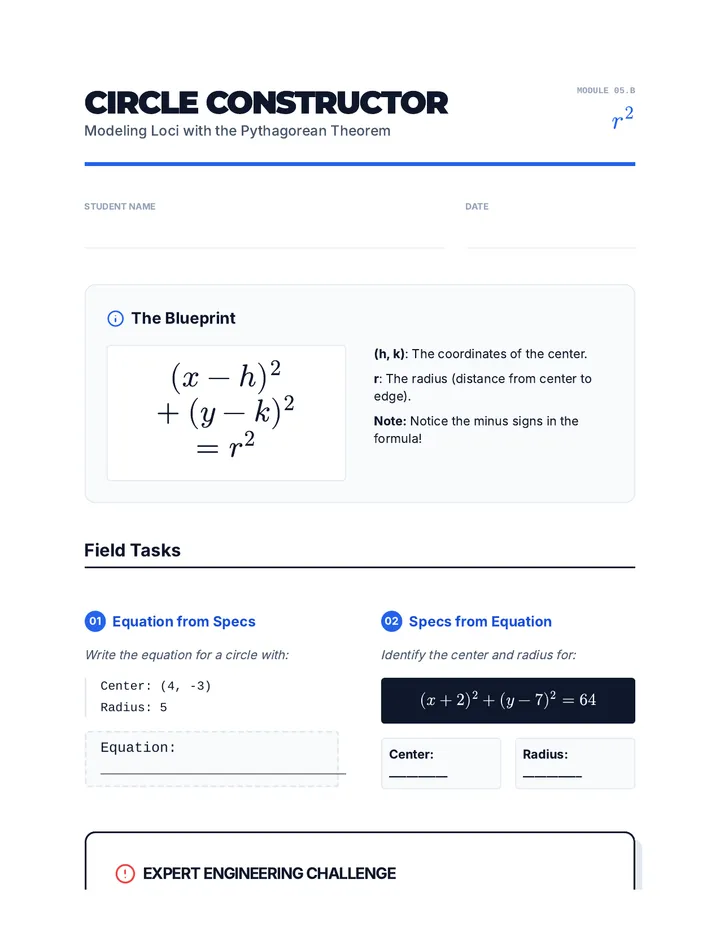

Circle Constructor Worksheet Circle Constructor
Modeling Loci with the Pythagorean Theorem
Module 05.B
\( r^2 \)
Student Name
Date
The Blueprint
\( (x - h)^2 + (y - k)^2 = r^2 \)
(h, k) : The coordinates of the center.
r : The radius (distance from center to edge).
Note: Notice the minus signs in the formula!
Field Tasks
01 Equation from Specs
Write the equation for a circle with:
Center: (4, -3)
Radius: 5
Equation: _____________________________
02 Specs from Equation
Identify the center and radius for:
\( (x + 2)^2 + (y - 7)^2 = 64 \)
Center: __________
Radius: __________
Expert Engineering Challenge
A circle has a center at (2, 5) and is tangent to the x-axis (meaning it just barely touches the line where y = 0).
(2, 5)
Show your reasoning:
Final Equation:

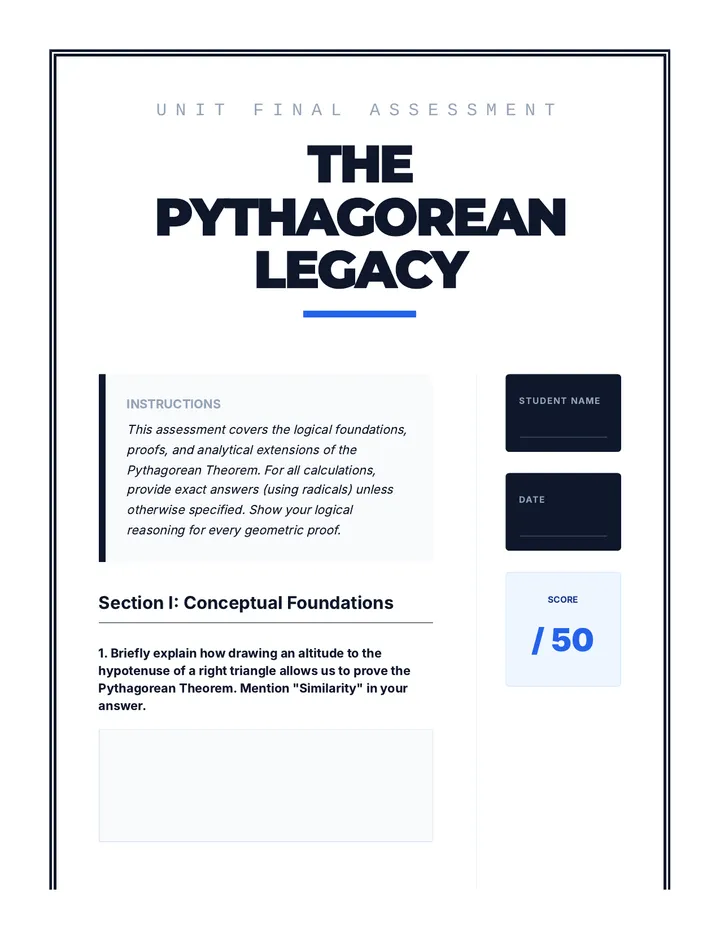

Pythagorean Legacy Quiz Unit Final Assessment
The Pythagorean Legacy
Instructions
This assessment covers the logical foundations, proofs, and analytical extensions of the Pythagorean Theorem. For all calculations, provide exact answers (using radicals) unless otherwise specified. Show your logical reasoning for every geometric proof.
Section I: Conceptual Foundations
1. Briefly explain how drawing an altitude to the hypotenuse of a right triangle allows us to prove the Pythagorean Theorem. Mention "Similarity" in your answer.
2. Which civilization discovered the "Gou-Gu" rule, and how does its visualization differ from the standard Western "square-on-sides" model?
Student Name
Date
Score
/ 50
Section II: Field Operations
3. Triangle Classification
A surveyor finds three side lengths: 12, 16, and 21. Classify this triangle as acute, right, or obtuse. Justify with an inequality test.
4. Distance on the Grid
A drone travels from coordinates (-2, 4) to (6, -2). Calculate the total distance of its flight path. (Round to 1 decimal place if needed).
Section III: Analytical Modeling
5. The Equation of a Circle Project
A radar station at the origin (0,0) detects an object moving in a perfect circle with a radius of 10 units .
A. Write the equation
________________________
B. Test a point
Is the point (6, -8) on the circle? Show the math.
C. Shift the center
If the radar station moves to (3, 2), what is the new equation?
Bonus Challenge (+5 pts)
Derive the distance between the center of the circle in part 5C and the origin (0,0). Is the origin inside or outside that circle?
