Triangle Truths Slides Triangle Sum Secrets
Building the Foundation of Polygon Geometry
Lesson 1
Polygon Architects
Unit 1: Shape Reasoning
The Blueprint Challenge
Can you design a triangle that has three right angles?
"If every corner is 90 degrees, wouldn't it just be a very sturdy shape? Why doesn't it work?"
Think about what happens to the sides as you try to close the shape.
Parallel lines never meet to form a vertex!
Inquiry Lab: Tear it Down
01
Trace & Label
Draw a triangle. Label the interior angles A, B, and C.
02
Tear Off
Carefully tear off each corner (angle) of the triangle.
03
Realign
Line up the vertices of the torn corners on a straight edge.
What do you observe?
Does the shape formed by the three angles look familiar?
180°
Proving the Theorem
We can use Parallel Lines to prove this for ANY triangle.
Draw line l parallel to the base of the triangle.
Identify Alternate Interior Angles.
Notice that angles along a line sum to 180°.
Key Vocabulary:
Transversal
Alternate Interior
Supplementary
Straight Angle
1 2 3 2' 3'
Formal Rule
Triangle Sum Theorem
"The sum of the measures of the interior angles of a triangle is exactly 180 degrees."
\( m\angle 1 + m\angle 2 + m\angle 3 = 180^\circ \)
Architect's Quick Calc
Find the missing angle measure:
1 Angle A = 45°, Angle B = 75°. Angle C = ?
2 Right Triangle. One acute angle = 32°. Other acute angle = ?
3 Equilateral Triangle. Each angle = ?
Master Strategy:
1
Add the known angles together.
2
Subtract the sum from 180°.
3
Double check: Does it add up?
Angle Tear Worksheet Angle Tear Lab
Unit: Polygon Architects | Lesson 1
Name:
Date:
The Hook
Imagine you are an architect designing a structural support. Is it possible to build a triangle that has three right angles? Explain your reasoning below.
Inquiry Activity: Tear & Tell
1
Construct:
On a separate sheet of paper, draw a large triangle. It doesn't matter what kind! Label the inside corners A, B, and C.
2
Tear:
Carefully tear off each corner. Do not use scissors—the jagged edges help you see where the angles were!
3
Align:
Line up the points (vertices) of your three angles on a straight line. Tape or glue them into the box below.
Attach Torn Angles Here
Architect's Observations
When you placed the angles together, what shape did they form along the bottom? (e.g., a circle, a straight line, a right angle?)
Based on your observation, what must be the sum of \( \angle A + \angle B + \angle C \)?
Blueprinting Practice
Use the Triangle Sum Theorem (\( 180^\circ \)) to find the missing angle in each design.
Design A Acute
Angle 1: \( 52^\circ \)
Angle 2: \( 68^\circ \)
Angle 3: _________
Show Work
Design B Right
Angle 1: \( 90^\circ \)
Angle 2: \( 24^\circ \)
Angle 3: _________
Show Work
Design C Obtuse
Angle 1: \( 115^\circ \)
Angle 2: \( 15^\circ \)
Angle 3: _________
Show Work
Design D Isosceles
Vertex Angle: \( 40^\circ \)
Base Angles are equal.
Each Base Angle: _________
Show Work
Algebraic Extension
A triangle has angle measures of \( (2x)^\circ \), \( (3x)^\circ \), and \( (5x)^\circ \). Set up an equation and find the value of \( x \).
Triangle Sum Teacher Guide Teacher Guide
Triangle Sum Secrets
Lesson 1
Objective
Students will derive the Triangle Sum Theorem through physical inquiry and apply the theorem to find missing interior angles in both geometric and algebraic contexts.
Standards
8.G.A.5: Use informal arguments to establish facts about the angle sum and exterior angle of triangles...
Suggested Agenda (50-60 min)
<table class="w-full text-sm"><tbody><tr class="border-b border-stone-100"><td class="py-3 font-bold w-24">10 min</td><td class="py-3"><span class="font-bold">Hook: Impossibility Task.</span> Attempt to draw a triangle with three right angles. Discuss why it fails (parallel lines).</td></tr><tr class="border-b border-stone-100"><td class="py-3 font-bold">20 min</td><td class="py-3"><span class="font-bold">Inquiry Lab: Tear & Tell.</span> Students perform the physical manipulation on the worksheet. Circulate to ensure angles are aligned on a straight edge.</td></tr><tr class="border-b border-stone-100"><td class="py-3 font-bold">15 min</td><td class="py-3"><span class="font-bold">Formalization.</span> Use the slides to connect the lab to parallel line properties (Alternate Interior Angles).</td></tr><tr><td class="py-3 font-bold">15 min</td><td class="py-3"><span class="font-bold">Practice & Closure.</span> Complete the blueprinting problems and the algebraic extension.</td></tr></tbody></table>
Materials & Prep
Scrap paper (for drawing triangles to tear)
Straight edges/Rulers
Glue sticks or clear tape
Angle Tear Worksheet (1 per student)
Triangle Truths Slides
Facilitation Tips
Misconception Alert:
Students often misalign the angles when tearing. Remind them that the vertices must meet at a single point on the line, and the edges must be adjacent without overlapping.
Scaffolding:
For the algebraic challenge, remind students that "the sum is 180" means they should add the three expressions and set the total equal to 180.
Answer Key: Angle Tear Worksheet
Architect's Observations
Shape formed: A straight line (or straight angle / semi-circle).
Sum: 180 degrees.
Design A
180 - (52 + 68)
Answer: 60°
Design B
180 - (90 + 24)
Answer: 66°
Design C
180 - (115 + 15)
Answer: 50°
Design D
(180 - 40) / 2
Answer: 70°
Algebraic Extension Solution
\( 2x + 3x + 5x = 180 \)
\( 10x = 180 \)
External Perspectives Slides External Perspectives
Looking Outside the Polygon Walls
Lesson 2
Polygon Architects
Exterior Angle Theorem
The Perimeter Spin
If you walk around the perimeter of any polygon and turn at every corner to return to where you started...
How many degrees did you rotate in total?
Does it matter if the shape is a triangle? A square? A 100-sided shape?
360°?
Outside the Interior
What is an Exterior Angle?
It is formed by extending one side of a polygon past the vertex.
The Straight Line Connection:
Interior + Exterior = 180°
They are "Linear Pairs" (Supplementary).
Int Ext
Remote Interior Angles
Inside a triangle, every exterior angle has two remote interior angles.
Remote: "At a distance"
These are the two interior angles that do not share a vertex with the exterior angle.
Master Blueprint
Exterior Angle Theorem
"The measure of an exterior angle of a triangle is equal to the SUM of its two remote interior angles."
\( \text{Ext} = \text{Int}_1 + \text{Int}_2 \)
Rapid Calculation
Example A
Inside: \( 40^\circ \) and \( 70^\circ \)
Exterior Angle = ?
Example B
Exterior: \( 110^\circ \)
One Remote Interior: \( 65^\circ \)
Other Remote Interior = ?
Algebraic Preview
The Theorem allows us to create equations:
\( 3x + 10 = 50 + 80 \)
Can we solve for \( x \)?

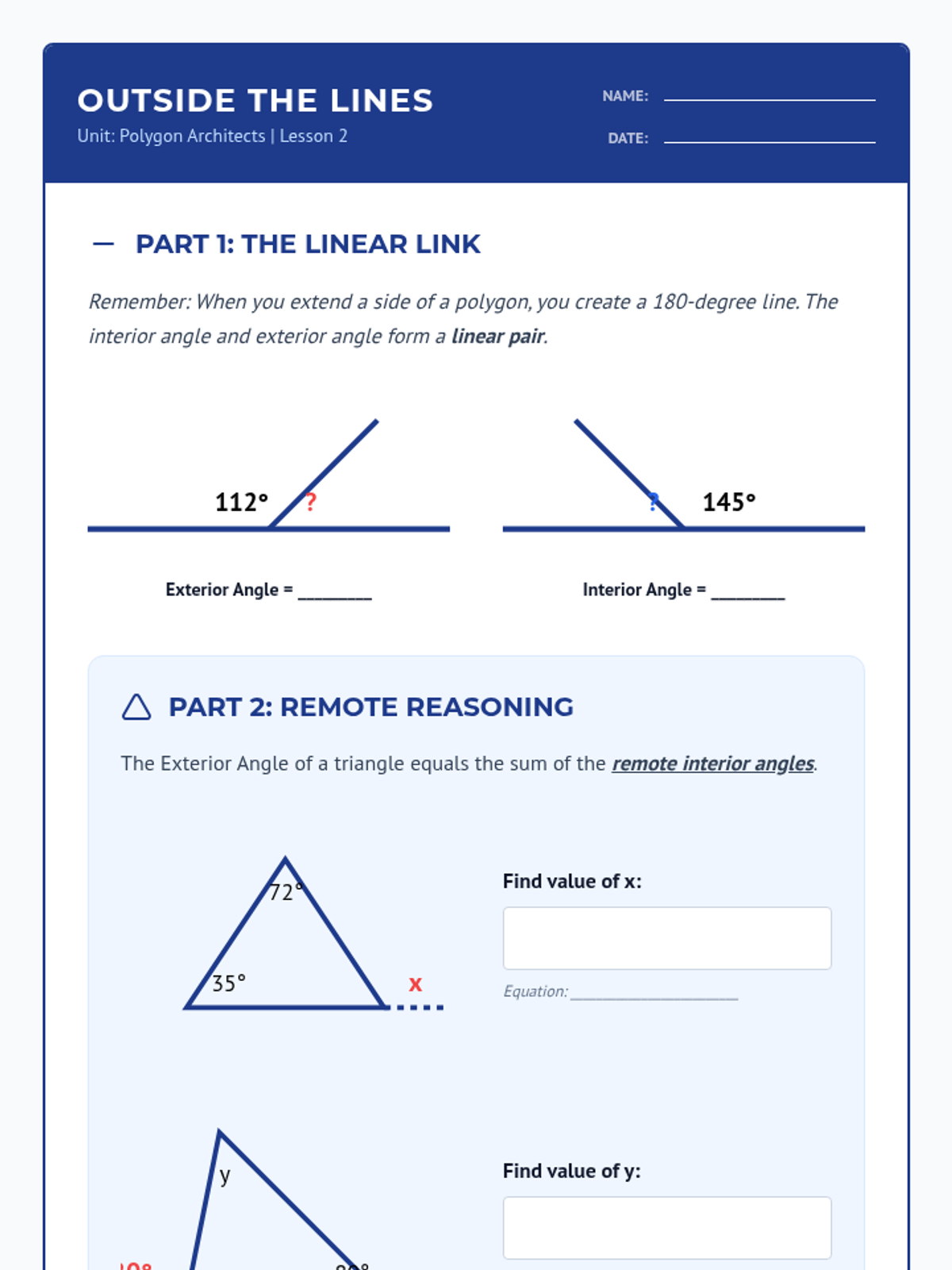

Outside the Lines Worksheet Outside the Lines
Unit: Polygon Architects | Lesson 2
Name:
Date:
Part 1: The Linear Link
Remember: When you extend a side of a polygon, you create a 180-degree line. The interior angle and exterior angle form a linear pair.
112° ?
Exterior Angle = _________
145° ?
Interior Angle = _________
Part 2: Remote Reasoning
The Exterior Angle of a triangle equals the sum of the remote interior angles.
35° 72° x
Find value of x:
Equation: __________________________
120° y 80°
Find value of y:
Equation: __________________________
Part 3: The Perimeter Spin
For each polygon below, calculate the sum of all its exterior angles (one at each vertex).
Equilateral Triangle
Interior: 60, 60, 60
Exterior: 120 + 120 + 120
Sum: _________
Square
Interior: 90, 90, 90, 90
Exterior: 90 + 90 + 90 + 90
Sum: _________
Regular Pentagon
Interior: 108 each
Exterior: 72 x 5
Sum: _________
The Architectural Rule
The sum of exterior angles for any convex polygon is always _________°.
Part 4: Variable Visions
Find the value of n if the remote interior angles are 3n - 5 and 45, and the exterior angle is 115.
Step 1: Set up Equation
Step 2: Solve for n
n = _________

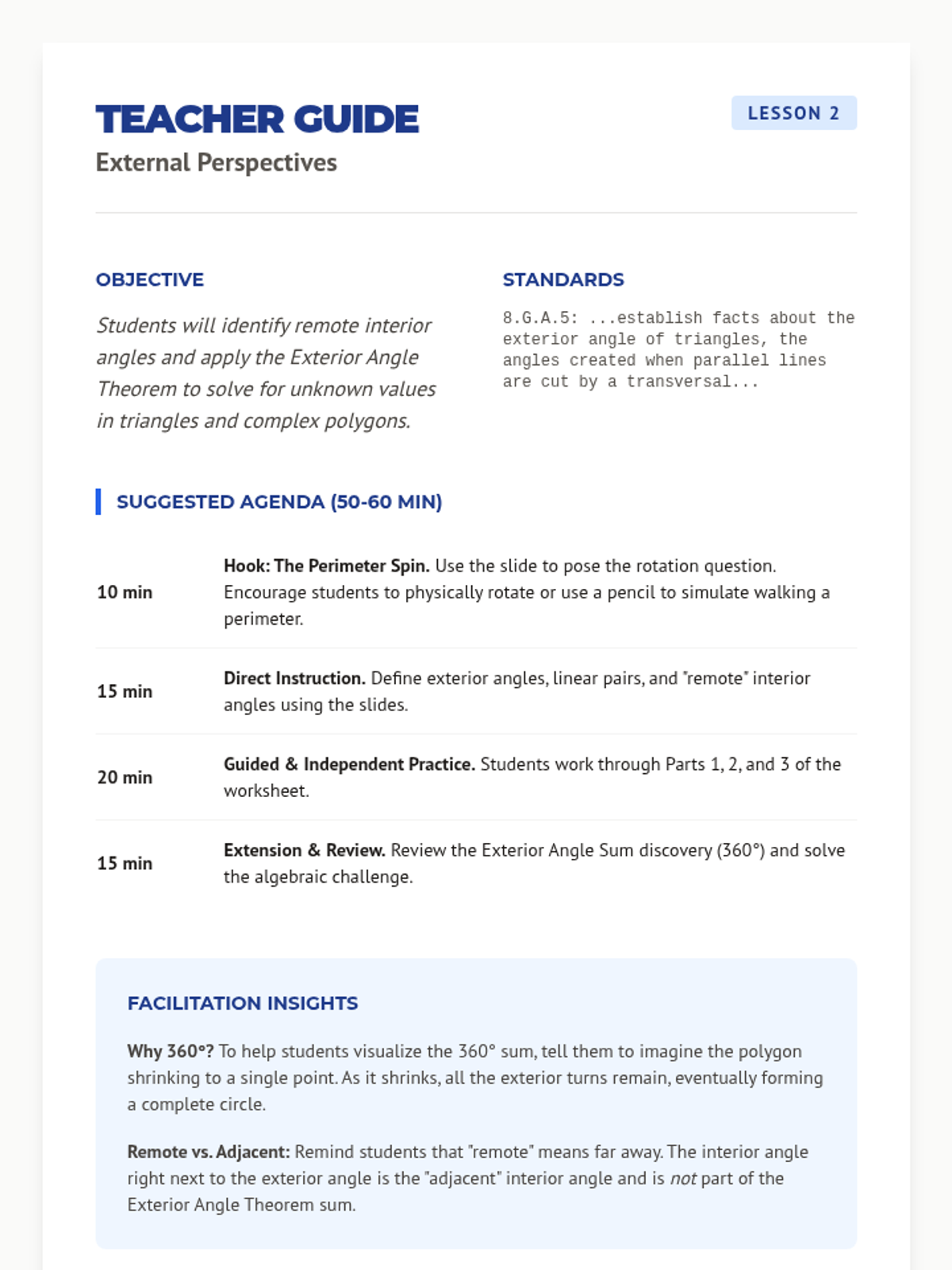

External Perspectives Teacher Guide Teacher Guide
External Perspectives
Lesson 2
Objective
Students will identify remote interior angles and apply the Exterior Angle Theorem to solve for unknown values in triangles and complex polygons.
Standards
8.G.A.5: ...establish facts about the exterior angle of triangles, the angles created when parallel lines are cut by a transversal...
Suggested Agenda (50-60 min)
<table class="w-full text-sm"><tbody><tr class="border-b border-stone-100"><td class="py-3 font-bold w-24">10 min</td><td class="py-3"><span class="font-bold">Hook: The Perimeter Spin.</span> Use the slide to pose the rotation question. Encourage students to physically rotate or use a pencil to simulate walking a perimeter.</td></tr><tr class="border-b border-stone-100"><td class="py-3 font-bold">15 min</td><td class="py-3"><span class="font-bold">Direct Instruction.</span> Define exterior angles, linear pairs, and "remote" interior angles using the slides.</td></tr><tr class="border-b border-stone-100"><td class="py-3 font-bold">20 min</td><td class="py-3"><span class="font-bold">Guided & Independent Practice.</span> Students work through Parts 1, 2, and 3 of the worksheet.</td></tr><tr><td class="py-3 font-bold">15 min</td><td class="py-3"><span class="font-bold">Extension & Review.</span> Review the Exterior Angle Sum discovery (360°) and solve the algebraic challenge.</td></tr></tbody></table>
Facilitation Insights
Why 360°? To help students visualize the 360° sum, tell them to imagine the polygon shrinking to a single point. As it shrinks, all the exterior turns remain, eventually forming a complete circle.
Remote vs. Adjacent: Remind students that "remote" means far away. The interior angle right next to the exterior angle is the "adjacent" interior angle and is not part of the Exterior Angle Theorem sum.
Answer Key: Outside the Lines Worksheet
Part 1: The Linear Link
Exterior Angle: 68° (180 - 112)
Interior Angle: 35° (180 - 145)
Part 2: Remote Reasoning
Problem 3: \( x = 35 + 72 \) → x = 107°
Problem 4: \( 120 = y + 80 \) → y = 40°
Part 3: The Perimeter Spin
All sums in the table are 360°.
The Architectural Rule: 360°
Part 4: Variable Visions Solution
Equation: \( (3n - 5) + 45 = 115 \)
Combine: \( 3n + 40 = 115 \)
Subtract: \( 3n = 75 \)
Answer: \( n = 25 \)
The Sum Search Slides The Sum Search
Decomposing Complexity into Simplicity
Lesson 3
Polygon Architects
Interior Angle Sum Formula
The Triangle Hunt
How many non-overlapping triangles can you draw inside a hexagon starting from exactly one vertex?
"If we know one triangle is 180°, can we use that to calculate the total sum of a hexagon? Or an octagon?"
T1 T2 T3 T4
Architectural Pattern
Triangle
3
Sides
1
Triangle
Quadrilateral
4
Sides
2
Triangles
Pentagon
5
Sides
3
Triangles
Hexagon
6
Sides
4
Triangles
What is the relationship?
Sides
n
→
Triangles
n - 2
Architectural Equation
Interior Angle Sum Formula
To find the sum of all interior angles for a polygon with n sides:
(n - 2) × 180°
Where n is the number of sides (or vertices).
Large Scale Calculation
The Dodecahedron (12 sides)
1. Identify n: n = 12
2. Substitute: (12 - 2) × 180
3. Simplify: 10 × 180
Result: 1,800°
Mental Math Check
8
Octagon Sum = ?
10
Decagon Sum = ?
20
Icosagon Sum = ?
Architectural Teaser
If all sides and angles are Equal, how do we find just ONE angle?
Think about sharing that total sum equally among all the corners.
Preview of Lesson 4
REGULARITY
Equal Sides, Equal Angles, Perfect Balance.
Triangle Hunt Worksheet Triangle Hunt
Unit: Polygon Architects | Lesson 3
Name:
Date:
Part 1: Decomposing Polygons
In each shape below, choose ONE vertex. Draw diagonals from that vertex to every other possible vertex to create non-overlapping triangles.
Quadrilateral
Sides: 4 | Triangles: ____
Pentagon
Sides: 5 | Triangles: ____
Hexagon
Sides: 6 | Triangles: ____
Octagon
Sides: 8 | Triangles: ____
Part 2: Finding the Formula
Polygon Sides (n) Number of Triangles Total Angle Sum Triangle 3 1 180° Quadrilateral 4 2 360° Pentagon 5 3 _________° Hexagon 6 4 _________° Any Polygon n n - 2 (n - 2) × 180°
Part 3: Large Scale Calculation
Calculate the interior angle sum for a Heptagon (7 sides):
Show Work
Sum = _________°
Calculate the interior angle sum for a 15-gon:
Show Work
Sum = _________°
Part 4: Reverse Engineering
A fellow architect sends you a blueprint, but doesn't tell you how many sides the shape has. They only tell you that the sum of the interior angles is 1,440°.
Architect's Calculation
How many sides?
?

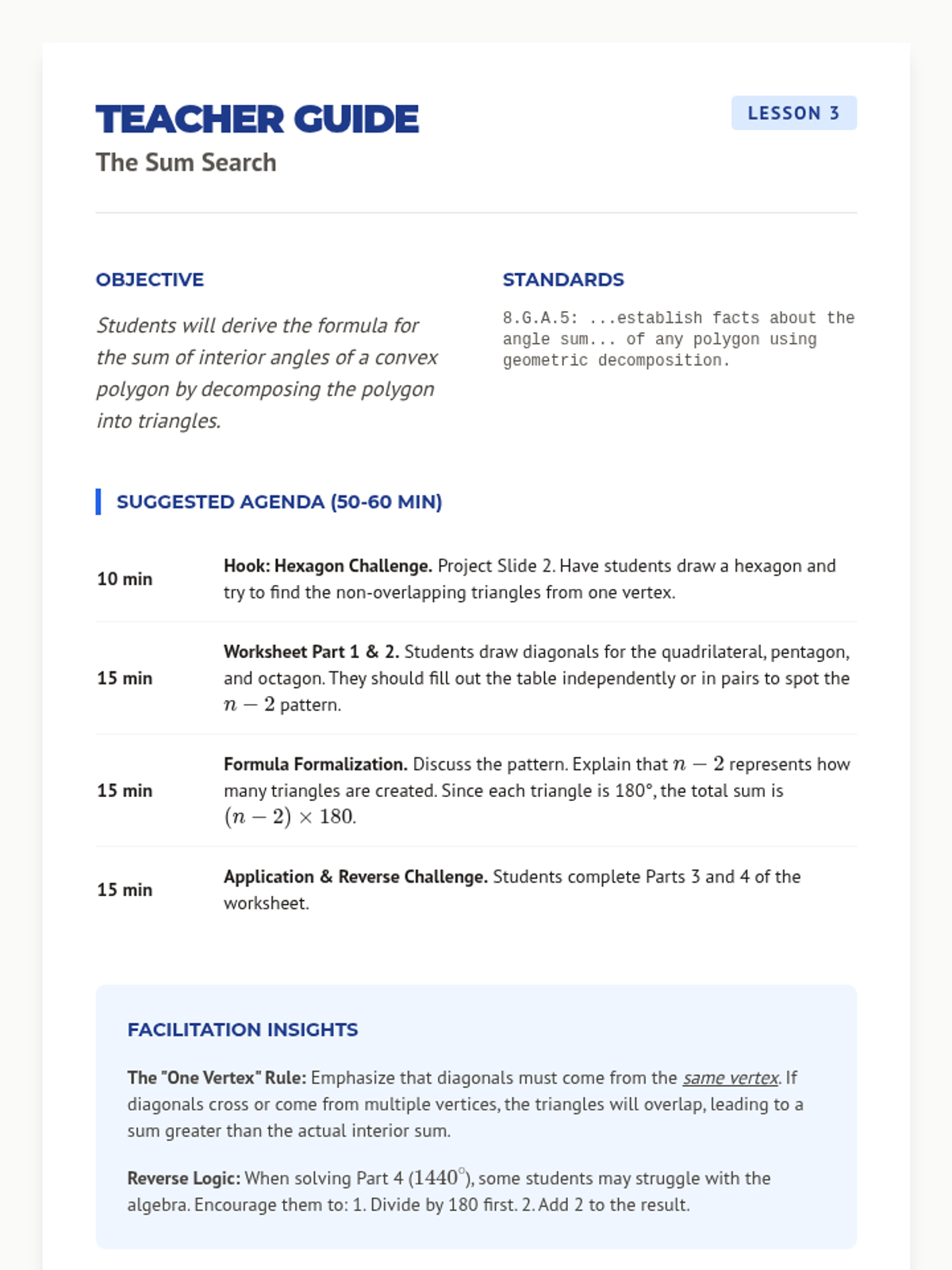

The Sum Search Teacher Guide Teacher Guide
The Sum Search
Lesson 3
Objective
Students will derive the formula for the sum of interior angles of a convex polygon by decomposing the polygon into triangles.
Standards
8.G.A.5: ...establish facts about the angle sum... of any polygon using geometric decomposition.
Suggested Agenda (50-60 min)
<table class="w-full text-sm"><tbody><tr class="border-b border-stone-100"><td class="py-3 font-bold w-24">10 min</td><td class="py-3"><span class="font-bold">Hook: Hexagon Challenge.</span> Project Slide 2. Have students draw a hexagon and try to find the non-overlapping triangles from one vertex.</td></tr><tr class="border-b border-stone-100"><td class="py-3 font-bold">15 min</td><td class="py-3"><span class="font-bold">Worksheet Part 1 & 2.</span> Students draw diagonals for the quadrilateral, pentagon, and octagon. They should fill out the table independently or in pairs to spot the \( n-2 \) pattern.</td></tr><tr class="border-b border-stone-100"><td class="py-3 font-bold">15 min</td><td class="py-3"><span class="font-bold">Formula Formalization.</span> Discuss the pattern. Explain that \( n-2 \) represents how many triangles are created. Since each triangle is 180°, the total sum is \( (n-2) \times 180 \).</td></tr><tr><td class="py-3 font-bold">15 min</td><td class="py-3"><span class="font-bold">Application & Reverse Challenge.</span> Students complete Parts 3 and 4 of the worksheet.</td></tr></tbody></table>
Facilitation Insights
The "One Vertex" Rule: Emphasize that diagonals must come from the same vertex. If diagonals cross or come from multiple vertices, the triangles will overlap, leading to a sum greater than the actual interior sum.
Reverse Logic: When solving Part 4 (\( 1440^\circ \)), some students may struggle with the algebra. Encourage them to: 1. Divide by 180 first. 2. Add 2 to the result.
Answer Key: Triangle Hunt Worksheet
Part 2: Table Data
Polygon Sides (n) Triangles Total Sum Triangle 3 1 180° Quadrilateral 4 2 360° Pentagon 5 3 540° Hexagon 6 4 720° Octagon 8 6 1080°
Part 3: Heptagon
\( (7-2) \times 180 = 5 \times 180 \)
Sum: 900°
Part 3: 15-gon
Regularity Rules Slides Regularity Rules
The Power of Perfect Symmetry
Lesson 4
Polygon Architects
Regular Polygons
Nature's Architect
Why do bees build hexagons in their honeycombs instead of squares or pentagons?
"Is there something special about the angles of a regular hexagon that lets them fit together without any gaps?"
This is called Tessellation, and it depends entirely on angle measures.
120°
What makes it "Regular"?
Equilateral
All sides are the same length.
Equiangular
All interior angles are the same measure.
If a polygon is BOTH, it is considered Regular.
Irregular Regular
Squares are regular. Rectangles are not!
Individual Angle formula
The Equality Share
To find the measure of EACH interior angle in a regular polygon:
\( \frac{(n - 2) \times 180}{n} \)
Total Sum divided by number of corners.
The Exterior Shortcut
Remember: All exterior angles of ANY polygon sum to 360°.
One Exterior Angle:
\( \frac{360}{n} \)
Architect's Trick
It is often much faster to find the exterior angle first, then subtract from 180 to find the interior angle!
Example: Octagon (n=8)
Tessellation
Shapes fit together if their interior angles can sum to 360° around a single vertex.
Square
90 + 90 + 90 + 90
WORKS!
Hexagon
120 + 120 + 120
WORKS!
Pentagon
108 + 108 + 108 = 324
GAPS!

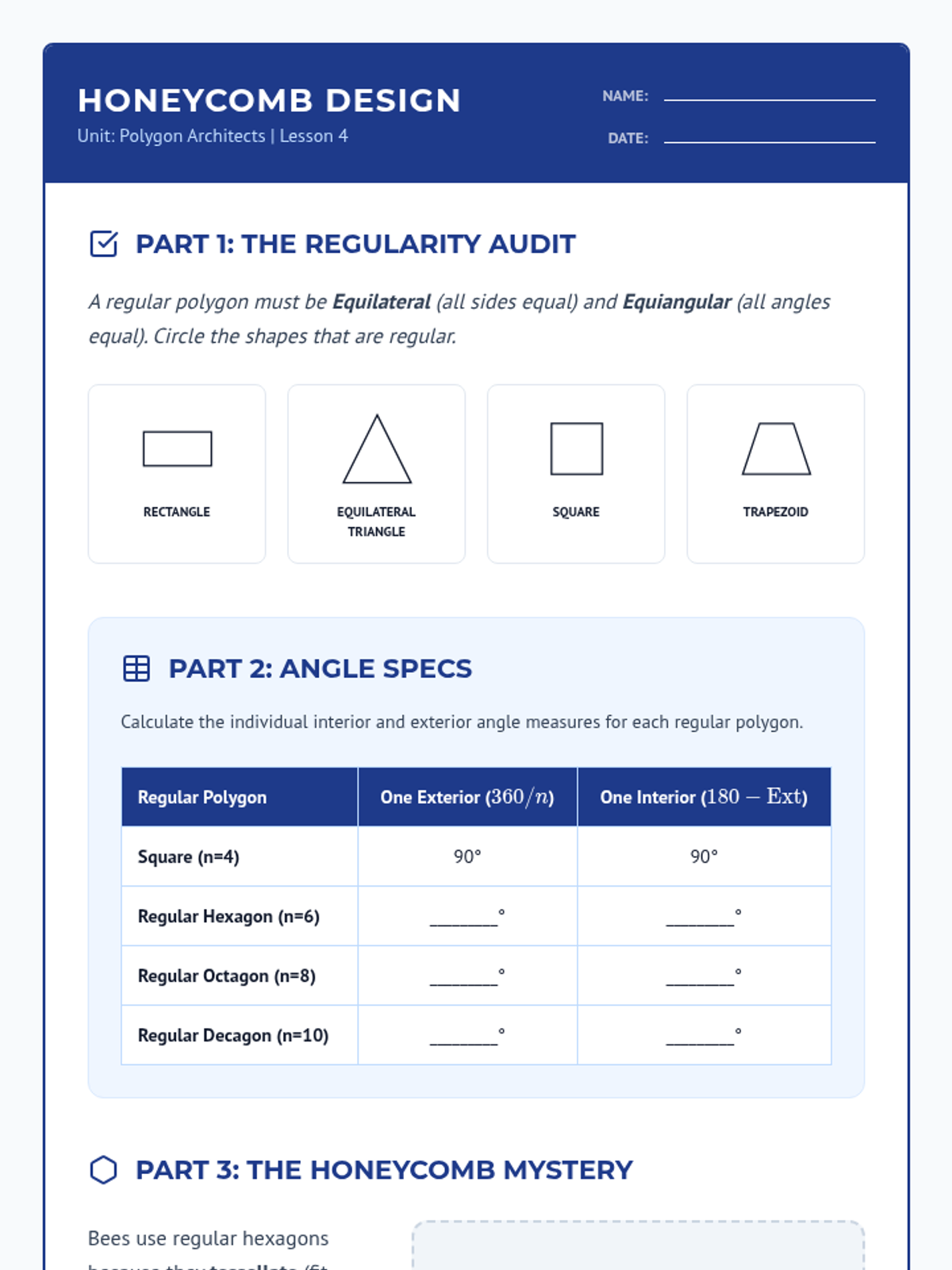

Honeycomb Design Worksheet Honeycomb Design
Unit: Polygon Architects | Lesson 4
Name:
Date:
Part 1: The Regularity Audit
A regular polygon must be Equilateral (all sides equal) and Equiangular (all angles equal). Circle the shapes that are regular.
Rectangle
Equilateral Triangle
Square
Trapezoid
Part 2: Angle Specs
Calculate the individual interior and exterior angle measures for each regular polygon.
Regular Polygon One Exterior (\( 360/n \)) One Interior (\( 180 - \text{Ext} \)) Square (n=4) 90° 90° Regular Hexagon (n=6) _________° _________° Regular Octagon (n=8) _________° _________° Regular Decagon (n=10) _________° _________°
Part 3: The Honeycomb Mystery
Bees use regular hexagons because they tessellate (fit together with no gaps).
For a shape to tessellate, the interior angles meeting at a point must sum to exactly 360°.
3 Hexagons meet at the red point.
Calculate the proof:
Measure of one hexagon interior angle: _________°
Sum of 3 angles at the vertex: _________° + _________° + _________° = 360°
"This is why nature chooses the hexagon—it is the most efficient use of space and wax!"
Part 4: The Architect's Choice
Will a Regular Octagon tessellate on its own? Prove it below by calculating the sum of 3 octagons meeting at a point.
Calculation
Will it tessellate?
Yes
No
Regularity Rules Teacher Guide Teacher Guide
Regularity Rules
Lesson 4
Objective
Students will define regular polygons and apply interior/exterior angle formulas to find the measure of individual angles. They will evaluate tessellation feasibility based on vertex angle sums.
Standards
8.G.A.5: ...establish facts about the angle sum... of any polygon. (Extended to include properties of regular polygons).
Suggested Agenda (50-60 min)
<table class="w-full text-sm"><tbody><tr class="border-b border-stone-100"><td class="py-3 font-bold w-24">10 min</td><td class="py-3"><span class="font-bold">Hook: Nature's Architect.</span> Discuss why bees use hexagons. Use Slide 2 to introduce the concept of "fitting together" without gaps (tessellation).</td></tr><tr class="border-b border-stone-100"><td class="py-3 font-bold">15 min</td><td class="py-3"><span class="font-bold">Defining Regularity.</span> Ensure students understand that a shape <span class="italic">must</span> have both equal sides and equal angles to be regular. Use Slide 3 for examples.</td></tr><tr class="border-b border-stone-100"><td class="py-3 font-bold">20 min</td><td class="py-3"><span class="font-bold">The Formulas.</span> Introduce the "One Angle" formulas. Show the exterior angle shortcut (\( 360/n \)) as a preferred method for speed.</td></tr><tr><td class="py-3 font-bold">15 min</td><td class="py-3"><span class="font-bold">Worksheet & Proof.</span> Students complete the Honeycomb Design worksheet. Facilitate the octagon proof at the end.</td></tr></tbody></table>
Nature's Math: Hexagons
Why not circles? Circles tessellate, but they leave gaps (wasted space/wax). Why not squares or triangles? They tessellate, but hexagons provide the maximum area for the minimum perimeter, making them the most efficient for building storage cells.
Tessellation Rule: A single regular polygon tessellates if its interior angle is a factor of 360. (Triangle: 60°, Square: 90°, Hexagon: 120°).
Answer Key: Honeycomb Design Worksheet
Part 1: Regularity Audit
Circled: Equilateral Triangle, Square.
Part 2: Angle Specs
Polygon One Exterior One Interior Hexagon (6) 60° 120° Octagon (8) 45° 135° Decagon (10) 36° 144°
Part 3 & 4: Tessellation Proofs
Proof 1 (Hexagon):
One angle = 120°. Three hexagons meeting: \( 120 + 120 + 120 = 360^\circ \). Result: Tessellates perfectly.
Variable Visions Slides Variable Visions
Algebra Meets Geometry
Lesson 5
Polygon Architects
Algebraic Geometry Synthesis
Solving for Reality
In architecture, we often have constraints.
"What happens when we know the rule of the shape, but we don't know the actual measures yet?"
We use variables to represent what we're looking for and equations to find them.
\( 2x \) \( 3x \) \( 5x \)
\( 2x + 3x + 5x = 180 \)
Architect's Algebraic Toolkit
Interior Sums
Triangle = 180°
\( \sum \text{Angles} = \text{Rule} \)
Exterior Angle
Remote Sum:
\( \text{Ext} = \text{Int}_1 + \text{Int}_2 \)
Exterior Sum
Any Polygon:
\( \sum \text{Ext} = 360 \)
The Strategy:
1. Identify the Rule → 2. Build the Equation → 3. Solve for x → 4. Plug back in.
Case Study: Complex Quad
The Challenge:
A quadrilateral has angles of:
Find x.
1
Rule: Sum = 360°
2
\( (x+10) + (2x-5) + 3x + 95 = 360 \)
3
\( 6x + 100 = 360 \)
4
\( x = 43.33... \)
Master Challenge
Regular Polygon Algebraic Link
A regular polygon has an exterior angle of \( (4x + 12)^\circ \).
If the polygon is a Regular Hexagon, find x.
Step 1: One Ext Angle
360 / 6 = 60°
→
Step 2: Equation
4x + 12 = 60
→
Step 3: Solve
x = 12
The Architect's Code
You have mastered the language of polygons.
Triangle Sum (180°)
Exterior Angles (Remote Sum)
General Sum (n-2)180°
Regular Polygons (Equality)
"Geometry is the foundation of architecture, and Algebra is the tool that builds it."
Sequence Complete

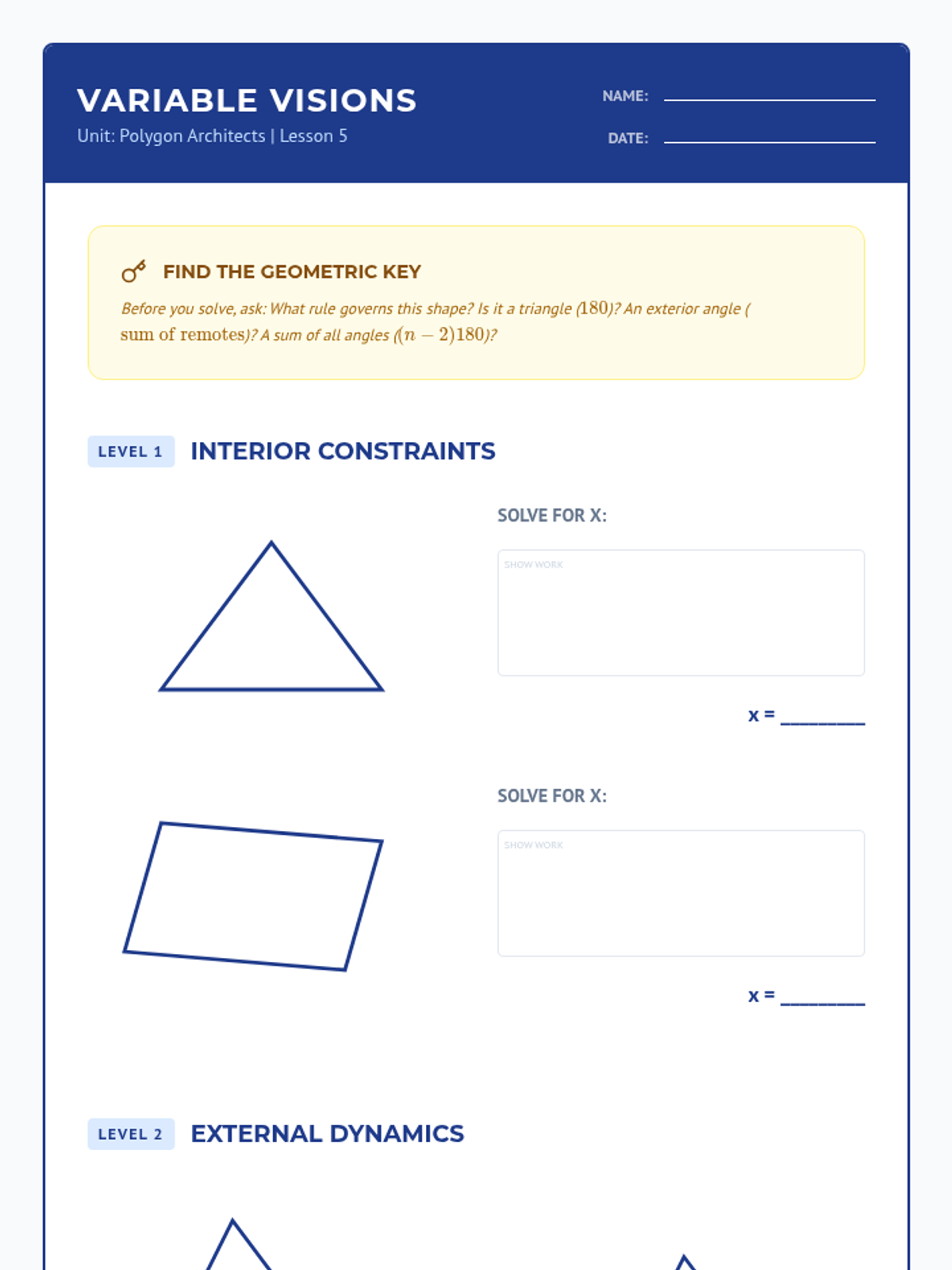

Variable Visions Worksheet Variable Visions
Unit: Polygon Architects | Lesson 5
Name:
Date:
Find the Geometric Key
Before you solve, ask: What rule governs this shape? Is it a triangle (\( 180 \))? An exterior angle (\( \text{sum of remotes} \))? A sum of all angles (\( (n-2)180 \))?
Level 1
Interior Constraints
\( 50^\circ \) \( (2x + 10)^\circ \) \( 40^\circ \)
Solve for x:
Show Work
x = _________
\( 80^\circ \) \( 110^\circ \) \( (3x + 5)^\circ \) \( 90^\circ \)
Solve for x:
Show Work
x = _________
Level 2
External Dynamics
\( 55^\circ \) \( (x + 10)^\circ \) \( 115^\circ \)
x = _________
\( (4x)^\circ \) \( 70^\circ \) \( 50^\circ \)
x = _________
Level 3
Regular Constraints
A regular Octagon (n=8) has an interior angle measurement of \( (10x + 15)^\circ \).
Step 1: Calculate Interior Angle
135°
Step 2: Set up Equation & Solve
x = _________
The Architect's Final Test
"In a certain polygon, the sum of the interior angles is \( 2,160^\circ \). Each interior angle is \( (x + 10)^\circ \). If the polygon is REGULAR, find the value of x."
Strategic Planning Area
x = _________

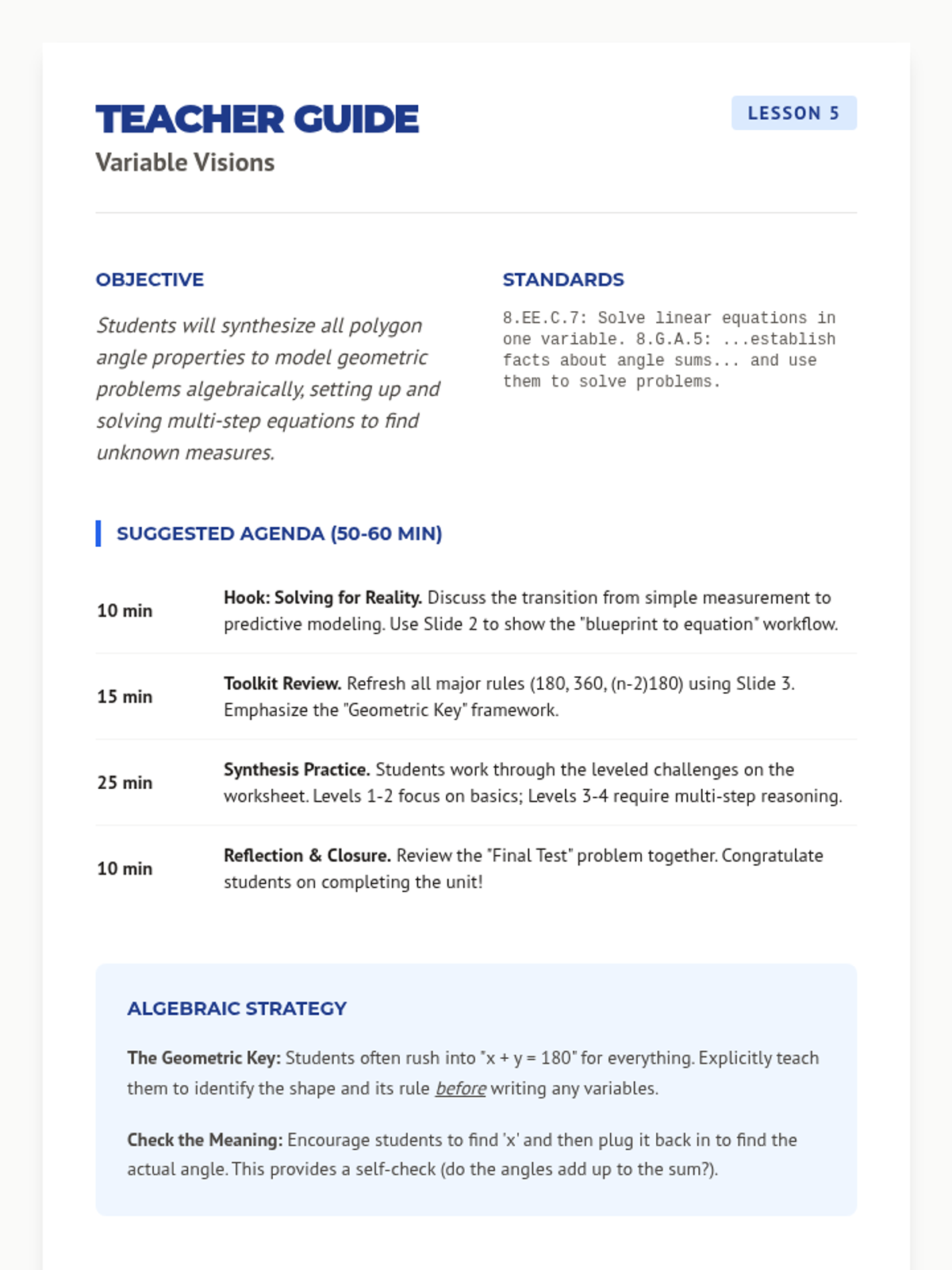

Variable Visions Teacher Guide Teacher Guide
Variable Visions
Lesson 5
Objective
Students will synthesize all polygon angle properties to model geometric problems algebraically, setting up and solving multi-step equations to find unknown measures.
Standards
8.EE.C.7: Solve linear equations in one variable. 8.G.A.5: ...establish facts about angle sums... and use them to solve problems.
Suggested Agenda (50-60 min)
<table class="w-full text-sm"><tbody><tr class="border-b border-stone-100"><td class="py-3 font-bold w-24">10 min</td><td class="py-3"><span class="font-bold">Hook: Solving for Reality.</span> Discuss the transition from simple measurement to predictive modeling. Use Slide 2 to show the "blueprint to equation" workflow.</td></tr><tr class="border-b border-stone-100"><td class="py-3 font-bold">15 min</td><td class="py-3"><span class="font-bold">Toolkit Review.</span> Refresh all major rules (180, 360, (n-2)180) using Slide 3. Emphasize the "Geometric Key" framework.</td></tr><tr class="border-b border-stone-100"><td class="py-3 font-bold">25 min</td><td class="py-3"><span class="font-bold">Synthesis Practice.</span> Students work through the leveled challenges on the worksheet. Levels 1-2 focus on basics; Levels 3-4 require multi-step reasoning.</td></tr><tr><td class="py-3 font-bold">10 min</td><td class="py-3"><span class="font-bold">Reflection & Closure.</span> Review the "Final Test" problem together. Congratulate students on completing the unit!</td></tr></tbody></table>
Algebraic Strategy
The Geometric Key: Students often rush into "x + y = 180" for everything. Explicitly teach them to identify the shape and its rule before writing any variables.
Check the Meaning: Encourage students to find 'x' and then plug it back in to find the actual angle. This provides a self-check (do the angles add up to the sum?).
Answer Key: Variable Visions Worksheet
Level 1: Interior Constraints
Prob 1: \( 50 + (2x + 10) + 40 = 180 \rightarrow 2x + 100 = 180 \rightarrow 2x = 80 \rightarrow \) x = 40
Prob 2: \( 80 + 110 + (3x + 5) + 90 = 360 \rightarrow 3x + 285 = 360 \rightarrow 3x = 75 \rightarrow \) x = 25
Level 2: External Dynamics
Left Prob: \( 55 + (x + 10) = 115 \rightarrow x + 65 = 115 \rightarrow \) x = 50
Right Prob: \( 70 + 50 = 4x \rightarrow 120 = 4x \rightarrow \) x = 30
Level 3: Regular Constraints
Int Angle of Octagon = 135°
\( 10x + 15 = 135 \rightarrow 10x = 120 \rightarrow \) x = 12
Final Master Challenge Solution
1. Find n: (n-2)180 = 2160 → n-2 = 12 → n = 14
2. Find one Int angle: 2160 / 14 ≈ 154.28... (Wait, let's use easier numbers for students?)
