Polar Navigator Slides Polar Navigator
Lesson 1: Navigating the Polar Coordinate System
Why Polar?
Rectangular (Cartesian)
Describes position as Left/Right and Up/Down. Great for boxes, but what about circles?
Polar
Describes position as Distance and Direction. The natural language of rotation.
\( (r, \theta) \)
The Coordinates \( (r, \theta) \)
\( r \) : The Radius
Directed distance from the pole (origin).
If \( r > 0 \), move along the terminal ray.
If \( r < 0 \), move opposite the terminal ray.
\( \theta \) : The Angle
Angle measured from the polar axis (positive x-axis).
Positive \( \theta \) : Counter-clockwise.
Negative \( \theta \) : Clockwise.
Example: \( (3, \frac{\pi}{4}) \)
Face \( 45^\circ \), walk forward 3 steps.
The Identity Crisis
Unlike rectangular coordinates, every point in polar form has infinite representations.
Method A: Adding Loops
\( (r, \theta + 2\pi n) \)
Just spin around the circle and land in the same spot.
Method B: The Flip
\( (-r, \theta + \pi) \)
Turn 180 degrees, then walk backward.
"Find three other ways to write \( (2, 60^\circ) \)..."
Polar Battleship Activity Polar Battleship
Navigating the Radial Grid
Name:
Date:
Mission Briefing
Your fleet is stationed in the Radial Sea. Unlike standard combat, coordinates are given as \( (r, \theta) \).
1. Deploy: Mark 5 "ships" (points) on your grid. Each ship is a single point.
Recall
\( r > 0 \): Forward along ray
\( r < 0 \): Opposite direction
\( \theta > 0 \): Counter-clockwise
\( \theta < 0 \): Clockwise
MY FLEET (Defensive)
\( \frac{\pi}{2} \) \( \frac{3\pi}{2} \) \( 0 \) \( \pi \)
Mark your ships here.
ENEMY TARGETS (Offensive)
\( \frac{\pi}{2} \) \( \frac{3\pi}{2} \) \( 0 \) \( \pi \)
Mark hits (X) and misses (O) here.
Mission Logs: Multi-Representation Bonus
To earn a "Strike Back" (an extra shot), provide three alternate polar representations for the following target:
Target Alpha: \( (4, \frac{\pi}{3}) \)
Representation 1 (\( r > 0 \))
Representation 2 (\( r < 0 \))
Representation 3 (\( \theta < 0 \))
RADIAL BLUEPRINT SYSTEMS • UNIT 1.1 • POLAR NAVIGATOR
Navigation Tactics Teacher Guide Teacher Resource
Navigation Tactics
Lesson 1: Polar Navigator Facilitation Guide
Unit 1.1
Learning Objectives
Plot polar coordinates \( (r, \theta) \) with both positive and negative radii.
Identify multiple polar representations for the same physical point.
Understand the fundamental differences between Cartesian and Polar grids.
Suggested Pacing
0-15 MIN
Introduction & Slides
15-45 MIN
Polar Battleship Game
45-55 MIN
Multiple Reps Practice
55-60 MIN
Synthesis/Exit Ticket
Misconception Alert
Negative Radius
"Students often think \( -r \) means 'reflect across the y-axis' or 'move down'. Emphasize that it is a 180-degree reversal from the facing direction."
The Origin
"In polar, the origin is the 'pole'. Remind students that at the pole, \( r = 0 \) but \( \theta \) can be anything."
Facilitation Notes
Polar Battleship Gameplay
Students should sit back-to-back. Encourage them to use coordinates like \( (-2, \frac{7\pi}{6}) \) instead of just positive ones. This forces their opponent to think critically about the 180-degree flip rule.
Guiding Questions
"If I rotate \( 360^\circ \), am I in a new spot or the same spot?"
"How can I reach the point \( (3, 0) \) using a negative radius?"
Answer Key: Strike Back Bonus
Target Alpha: \( (4, \frac{\pi}{3}) \)
Rep 1 (\( r > 0 \))
\( (4, \frac{7\pi}{3}) \) or \( (4, \frac{13\pi}{3}) \)
Rep 2 (\( r < 0 \))
\( (-4, \frac{4\pi}{3}) \) or \( (-4, -\frac{2\pi}{3}) \)
Rep 3 (\( \theta < 0 \))
\( (4, -\frac{5\pi}{3}) \)
System Shift Slides System Shift
Lesson 2: Coordinate & Equation Conversion
The Conversion Bridge
Conversion Keys
x = r \cos \theta
y = r \sin \theta
r^2 = x^2 + y^2
\tan \theta = \frac{y}{x}
Everything boils down to a Right Triangle inside the circle.
SOH CAH TOA
Transforming Equations
Rectangular to Polar
Replace every \( x \) and \( y \) with their trig counterparts.
\( x^2 + y^2 = 25 \)
\( \downarrow \)
\( r^2 = 25 \implies r = 5 \)
Polar to Rectangular
Look for patterns like \( r^2 \), \( r\cos\theta \), or \( r\sin\theta \).
\( r = 6 \sin \theta \)
Multiply both sides by \( r \)
\( r^2 = 6 r \sin \theta \implies x^2 + y^2 = 6y \)
Complexity vs. Simplicity
The Rectangular Nightmare
\( (x^2 + y^2)^2 = 2xy \)
The Polar Solution
\( r^2 = \sin(2\theta) \)
Some shapes are simply built differently.

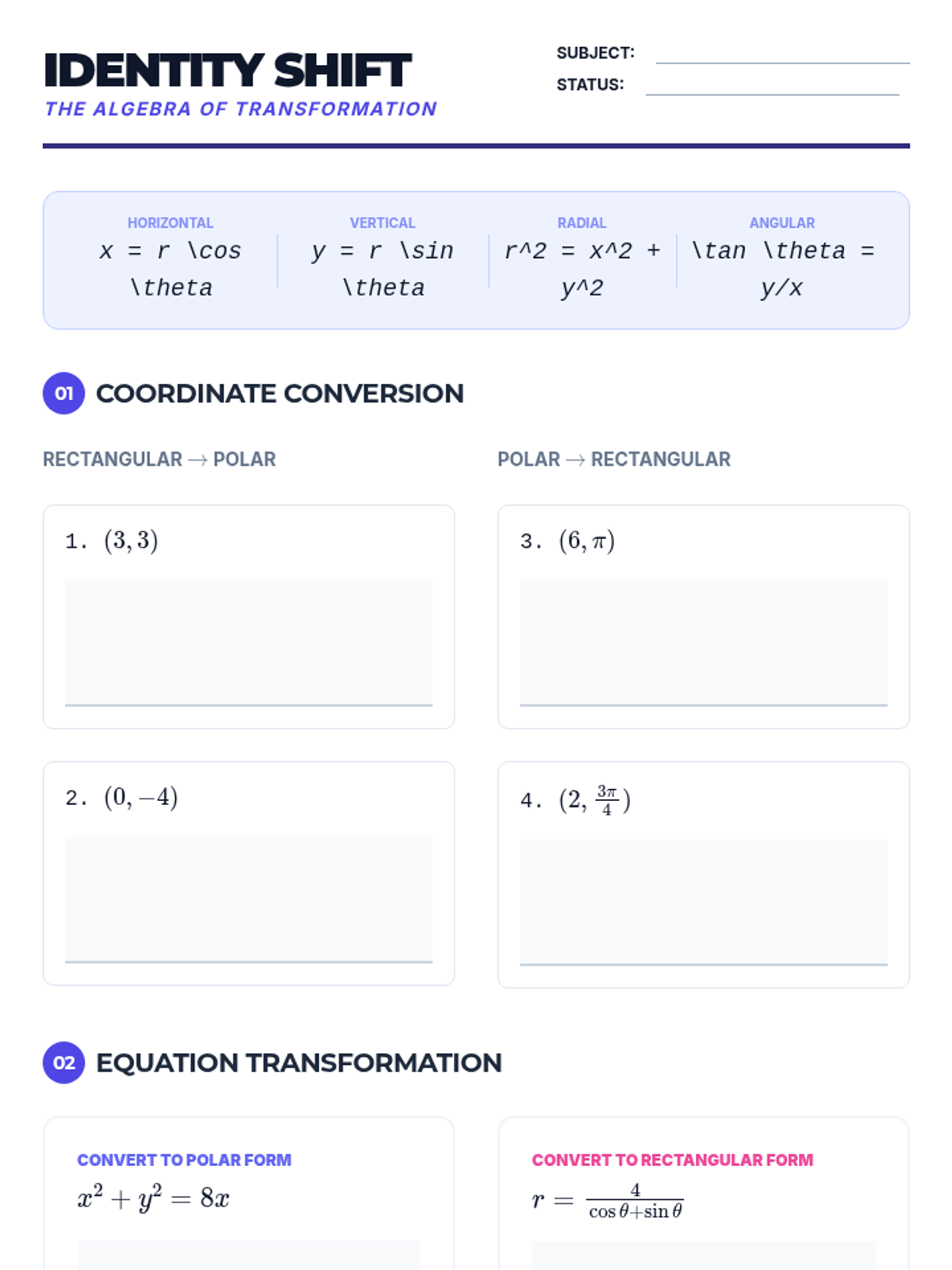

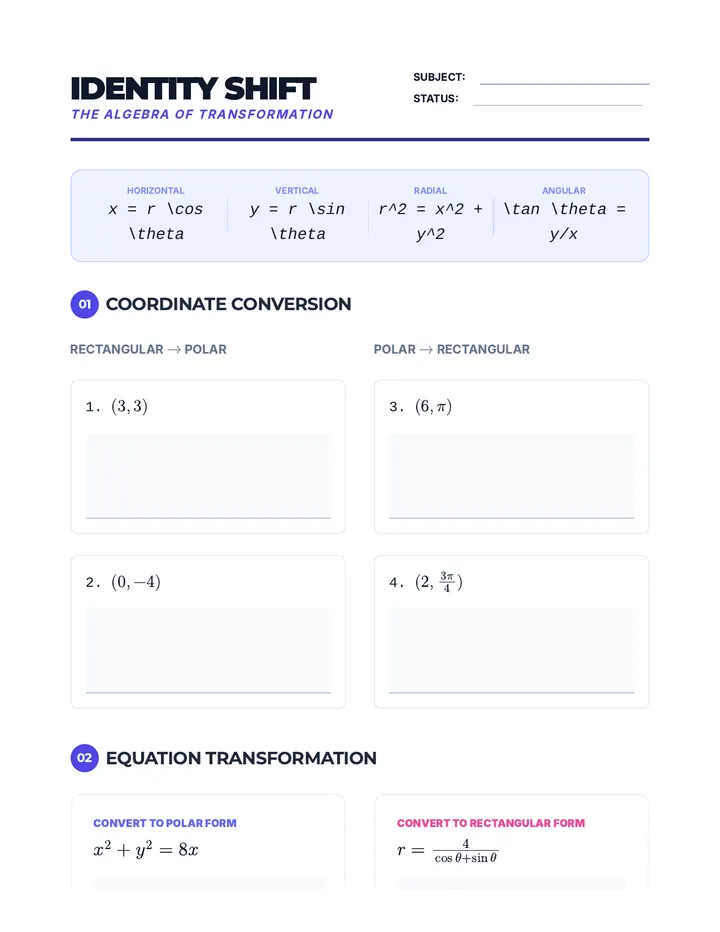

Identity Shift Worksheet Identity Shift
The Algebra of Transformation
Subject:
Status:
Horizontal
x = r \cos \theta
Vertical
y = r \sin \theta
Radial
r^2 = x^2 + y^2
Angular
\tan \theta = y/x
01 Coordinate Conversion
Rectangular \( \rightarrow \) Polar
1. \( (3, 3) \)
2. \( (0, -4) \)
Polar \( \rightarrow \) Rectangular
3. \( (6, \pi) \)
4. \( (2, \frac{3\pi}{4}) \)
02 Equation Transformation
Convert to Polar Form
\( x^2 + y^2 = 8x \)
Convert to Rectangular Form
\( r = \frac{4}{\cos \theta + \sin \theta} \)
Master Challenge
Show that the polar equation \( r = a \sin \theta \) represents a circle centered at \( (0, \frac{a}{2}) \) with radius \( \frac{a}{2} \).
Blueprint Serial: L2-CONV Radial Blueprints Unit 1.2

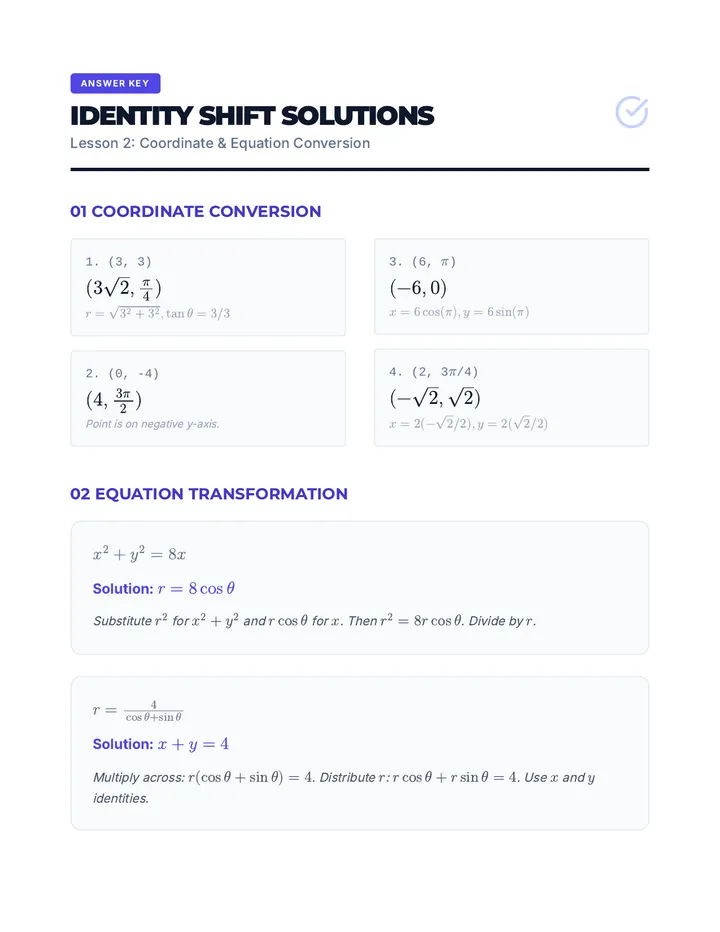

Identity Shift Answer Key Answer Key
Identity Shift Solutions
Lesson 2: Coordinate & Equation Conversion
01 Coordinate Conversion
1. (3, 3)
\( (3\sqrt{2}, \frac{\pi}{4}) \)
\( r = \sqrt{3^2+3^2}, \tan\theta = 3/3 \)
2. (0, -4)
\( (4, \frac{3\pi}{2}) \)
Point is on negative y-axis.
3. (6, \(\pi\))
\( (-6, 0) \)
\( x = 6\cos(\pi), y = 6\sin(\pi) \)
4. (2, 3\(\pi\)/4)
\( (-\sqrt{2}, \sqrt{2}) \)
\( x = 2(-\sqrt{2}/2), y = 2(\sqrt{2}/2) \)
02 Equation Transformation
\( x^2 + y^2 = 8x \)
Solution: \( r = 8 \cos \theta \)
Substitute \( r^2 \) for \( x^2+y^2 \) and \( r\cos\theta \) for \( x \). Then \( r^2 = 8r\cos\theta \). Divide by \( r \).
\( r = \frac{4}{\cos \theta + \sin \theta} \)
Solution: \( x + y = 4 \)
Multiply across: \( r(\cos\theta + \sin\theta) = 4 \). Distribute \( r \): \( r\cos\theta + r\sin\theta = 4 \). Use \( x \) and \( y \) identities.
Challenge Breakdown
1. Start with \( r = a \sin \theta \)
2. Multiply by \( r \): \( r^2 = a r \sin \theta \)
3. Convert: \( x^2 + y^2 = ay \)
4. Subtract \( ay \): \( x^2 + y^2 - ay = 0 \)
5. Complete the square for \( y \): \( x^2 + (y^2 - ay + (a/2)^2) = (a/2)^2 \)
6. Result: \( x^2 + (y - a/2)^2 = (a/2)^2 \)
This is the standard equation for a circle centered at \( (0, a/2) \) with radius \( a/2 \).
Curve Families Slides Curve Catalog
Lesson 3: Families of Polar Curves
The Anatomy of a Function
\( r = a + b \cos \theta \)
How do the values of \( a \) and \( b \) define the shape?
\( a = 0 \) \( \rightarrow \) Pure Circle
\( a = b \) \( \rightarrow \) Cardioid (Heart)
\( a < b \) \( \rightarrow \) Inner Loop
The Rose Pattern
\( r = a \sin(n\theta) \)
\( r = a \cos(n\theta) \)
n
The number of petals depend on \( n \).
a
The length of each petal.
Petal Rule
n
if \( n \) is ODD
2n
if \( n \) is EVEN
Dynamic Geometry
Observe the transformation as we move the sliders.
Does the shape "grow" from the center or "wrap" around?

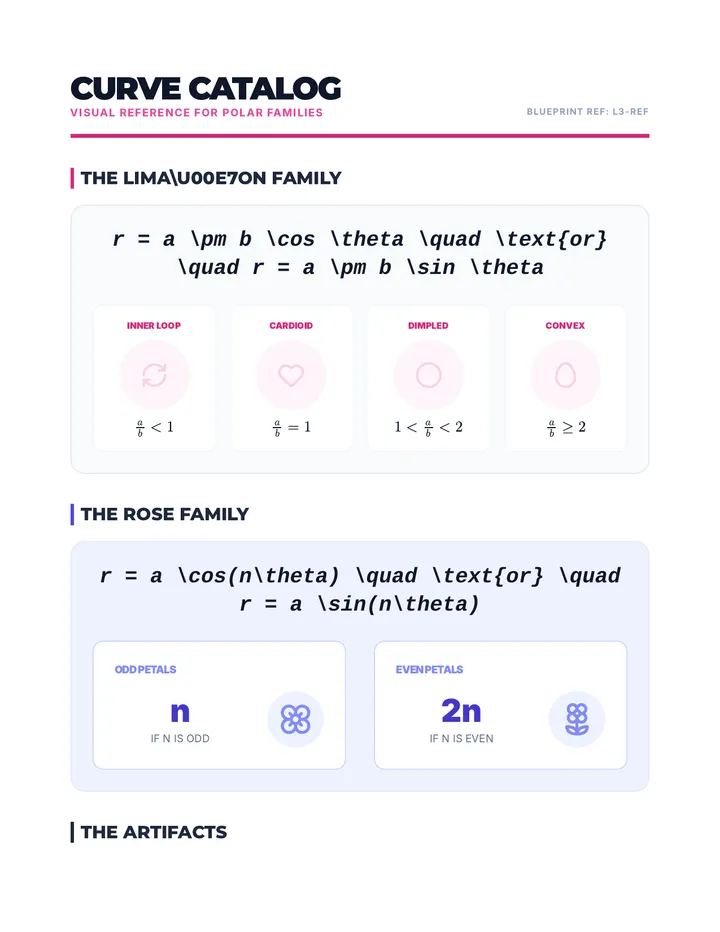

Curve Catalog Handout Curve Catalog
Visual Reference for Polar Families
Blueprint Ref: L3-REF
The Lima\u00e7on Family
r = a \pm b \cos \theta \quad \text{or} \quad r = a \pm b \sin \theta
Inner Loop
\( \frac{a}{b} < 1 \)
Cardioid
\( \frac{a}{b} = 1 \)
Dimpled
\( 1 < \frac{a}{b} < 2 \)
Convex
\( \frac{a}{b} \ge 2 \)
The Rose Family
r = a \cos(n\theta) \quad \text{or} \quad r = a \sin(n\theta)
Odd Petals
n
If n is odd
Even Petals
2n
If n is even
The Artifacts
Circle
\( r = a \sin \theta \) (vertical)
Passes through the pole and has diameter \( |a| \).
Lemniscate (Infinity)
\( r^2 = a^2 \sin(2\theta) \)
Resembles a figure-eight or infinity symbol.
Radial Blueprint Visual Systems • Standard Polar Catalog v1.0
Reflective Beauty Slides Mirror Math
Lesson 4: Symmetry in the Polar System
The Efficiency of Mirroring
"If I know what's happening on the right, and the graph is symmetric, do I need to plot the left?"
Symmetry allows us to plot half (or a quarter) of a function and mirror the rest. In polar form, we test for three specific types of symmetry.
1/2 Work
The Symmetry Tests
Polar Axis
Symmetry over the x-axis
\( \theta \rightarrow -\theta \)
Cosine functions usually pass.
Line \( \theta = \frac{\pi}{2} \)
Symmetry over the y-axis
\( \theta \rightarrow \pi - \theta \)
Sine functions usually pass.
The Pole
Symmetry over the Origin
\( r \rightarrow -r \)
Square terms \( r^2 \) often pass.
"A function is symmetric if the equation remains unchanged after substitution."
\( r = 4 \cos \theta \)
Replace \( \theta \) with \( -\theta \):
\( r = 4 \cos(-\theta) = 4 \cos \theta \)
Symmetric about Polar Axis!
\( r = 2 \sin(3\theta) \)
Test for polar axis (\( \theta \rightarrow -\theta \)):
\( r = 2 \sin(-3\theta) = -2 \sin(3\theta) \)
Test Failed.

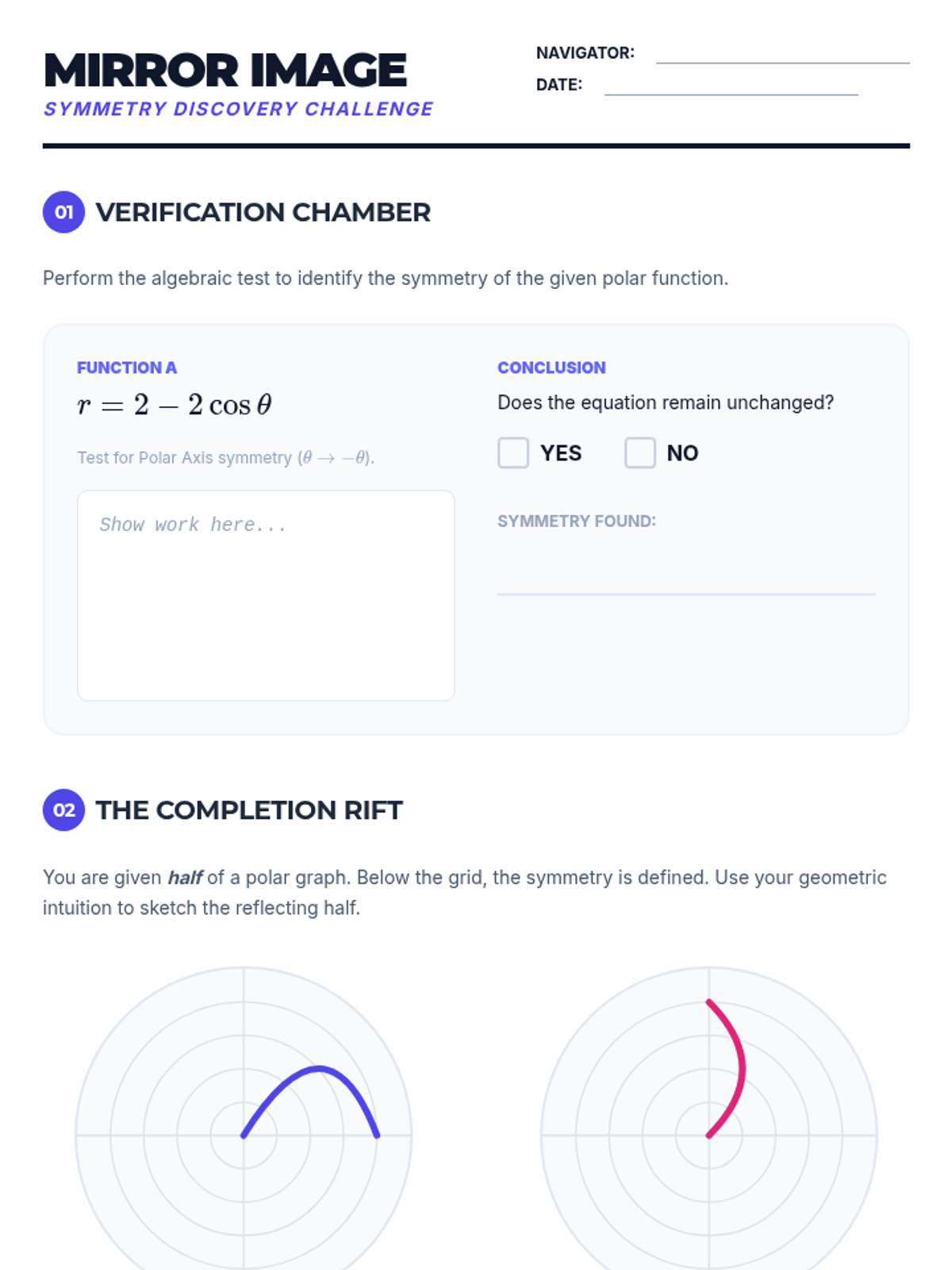

Mirror Image Challenge Mirror Image
Symmetry Discovery Challenge
Navigator:
Date:
01 Verification Chamber
Perform the algebraic test to identify the symmetry of the given polar function.
Function A
\( r = 2 - 2 \cos \theta \)
Test for Polar Axis symmetry (\( \theta \rightarrow -\theta \)).
Show work here...
Conclusion
Does the equation remain unchanged?
YES
NO
Symmetry Found:
02 The Completion Rift
You are given half of a polar graph. Below the grid, the symmetry is defined. Use your geometric intuition to sketch the reflecting half.
Mirror Type
Polar Axis
Mirror Type
Line \( \theta = \pi/2 \)
Radial Blueprint • Unit 1.4 Mirror Logic

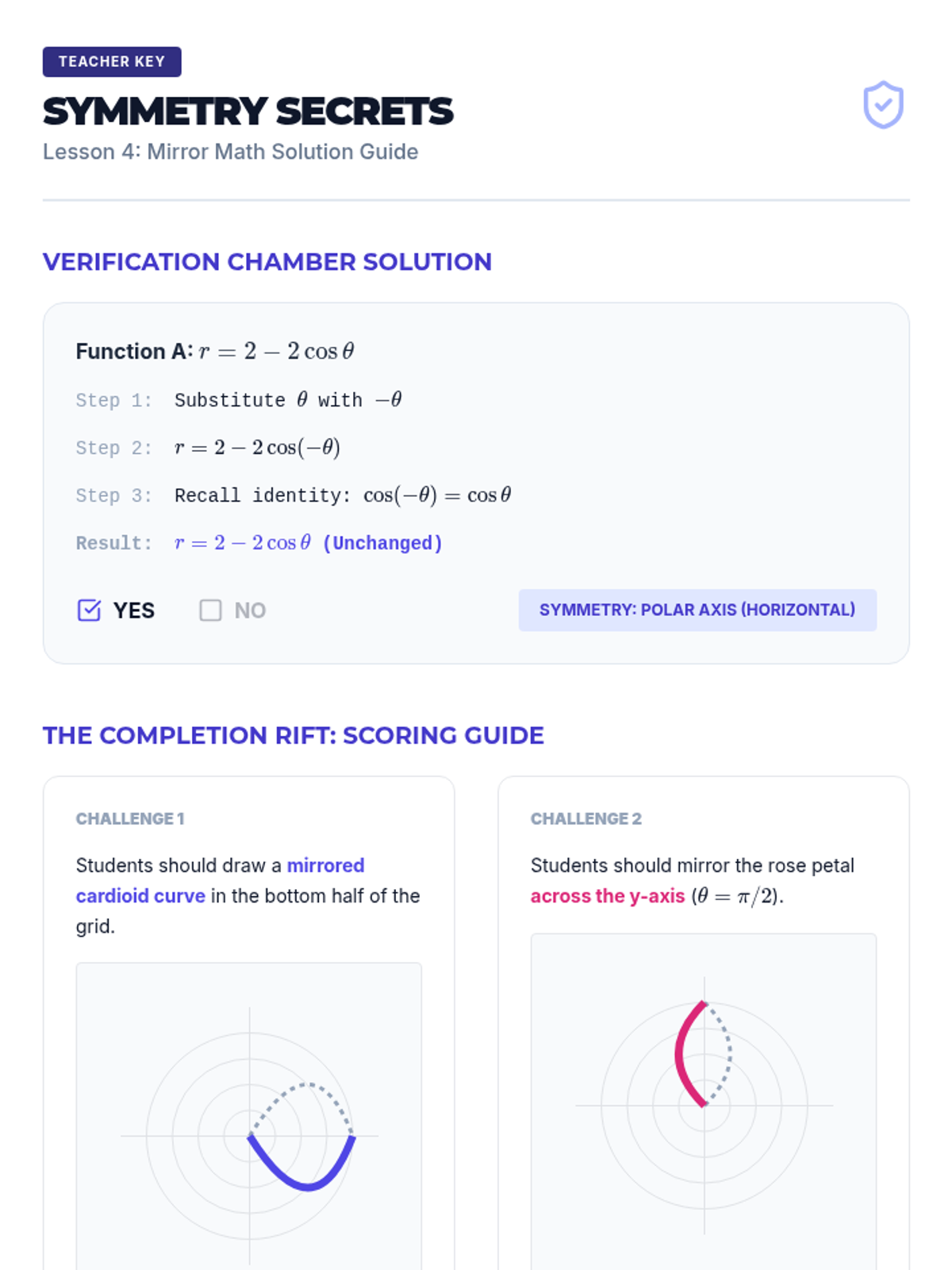

Symmetry Secrets Teacher Guide Teacher Key
Symmetry Secrets
Lesson 4: Mirror Math Solution Guide
Verification Chamber Solution
Function A: \( r = 2 - 2 \cos \theta \)
Step 1:
Substitute \( \theta \) with \( -\theta \)
Step 2:
\( r = 2 - 2 \cos(-\theta) \)
Step 3:
Recall identity: \( \cos(-\theta) = \cos \theta \)
Result:
\( r = 2 - 2 \cos \theta \) (Unchanged)
YES
NO
Symmetry: Polar Axis (Horizontal)
The Completion Rift: Scoring Guide
Challenge 1
Students should draw a mirrored cardioid curve in the bottom half of the grid.
Challenge 2
Students should mirror the rose petal across the y-axis (\( \theta = \pi/2 \)).
Facilitation Insight
A common student error is confusing Symmetry over the Pole with Symmetry over Pi/2.
Demonstrate this by rotating a sheet of paper 180 degrees (Pole) vs folding it vertically (Pi/2). Algebraic testing is their "safety net" when visual intuition fails.
Collision Points Slides Collision Points
Lesson 5: Intersections of Polar Curves
The Algebra Gap
Scenario
You solve a system of polar equations algebraically and find two solutions.
Then you look at the graph and see THREE intersection points.
"Where did the third point come from? And why didn't the algebra find it?"
?
Non-Uniqueness of Polar Forms
The Protocol
Step 1: Set \( r_1 = r_2 \)
Solve for \( \theta \) using trigonometric identities. This finds points where the curves meet at the same angle.
Step 2: Check the Pole
Set \( r_1 = 0 \) and \( r_2 = 0 \) separately. If both curves pass through the pole (even at different angles), the pole is an intersection.
Step 3: Graph It
Visual inspection is mandatory. Multiple representations mean some points only "meet" when viewed geometrically.
System Conflict
Equation 1
\( r = 1 + \cos \theta \)
Equation 2
\( r = 1 - \cos \theta \)
Setting them equal gives \( \theta = \pi/2, 3\pi/2 \).
Intersection Points: (1, \(\pi/2\)), (1, 3\(\pi/2\)), and the Pole!
Point of Contact Worksheet Point of Contact
Investigating Polar Intersections
Researcher:
Session:
The Solution Protocol
1. Set \( r_1 = r_2 \)
2. Check Pole (\( r = 0 \))
3. Visual Graph Check

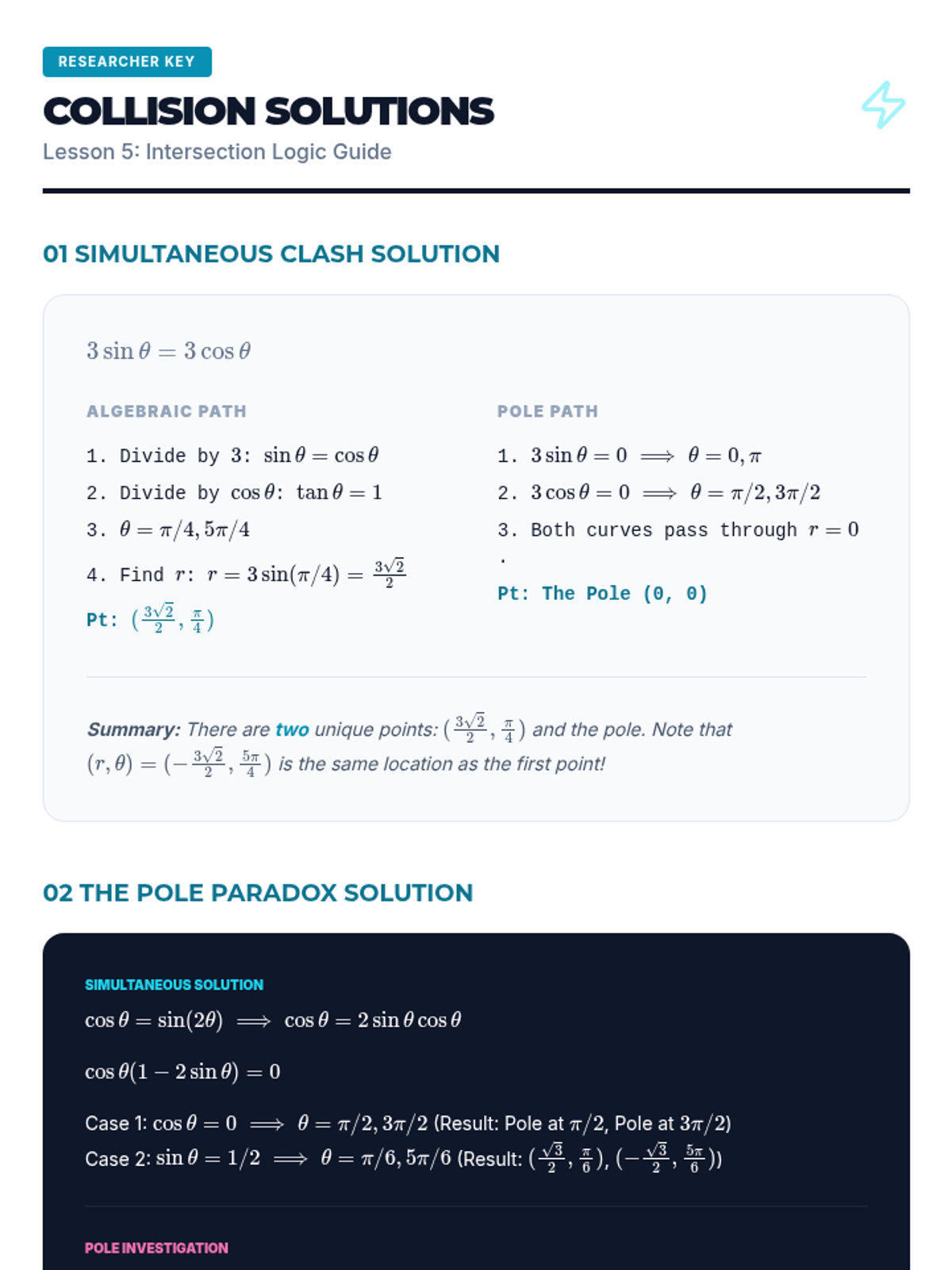

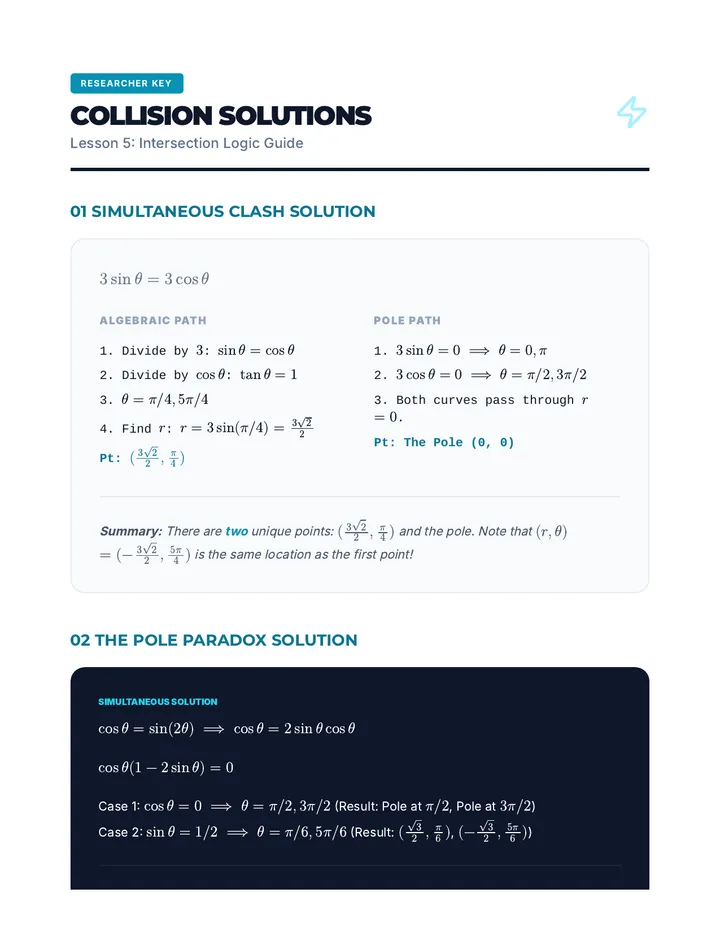

01 Simultaneous Clash
Find all intersection points for the following curves by setting the radii equal to each other.
\( r = 3 \sin \theta \)
vs
\( r = 3 \cos \theta \)
Algebraic Solutions
Pole Check
02 The Pole Paradox
Given the system \( r = \cos \theta \) and \( r = \sin(2\theta) \).
Calculation Zone
Critical Thinking
Do both equations ever equal zero? If so, at what angles?
If they both pass through the pole, but at different angles (e.g., \( \theta = \pi/2 \) vs \( \theta = 0 \)), is the pole still an intersection point?
RADIAL COLLISION LOG: UNIT 1.5 FOR RESEARCH USE ONLY
Point of Contact Answer Key Researcher Key
Collision Solutions
Lesson 5: Intersection Logic Guide
01 Simultaneous Clash Solution
\( 3 \sin \theta = 3 \cos \theta \)
Algebraic Path
1. Divide by \( 3 \): \( \sin \theta = \cos \theta \)
2. Divide by \( \cos \theta \): \( \tan \theta = 1 \)
3. \( \theta = \pi/4, 5\pi/4 \)
4. Find \( r \): \( r = 3 \sin(\pi/4) = \frac{3\sqrt{2}}{2} \)
Pt: \( (\frac{3\sqrt{2}}{2}, \frac{\pi}{4}) \)
Pole Path
1. \( 3 \sin \theta = 0 \implies \theta = 0, \pi \)
2. \( 3 \cos \theta = 0 \implies \theta = \pi/2, 3\pi/2 \)
3. Both curves pass through \( r = 0 \).
Pt: The Pole (0, 0)
Summary: There are two unique points: \( (\frac{3\sqrt{2}}{2}, \frac{\pi}{4}) \) and the pole. Note that \( (r, \theta) = (-\frac{3\sqrt{2}}{2}, \frac{5\pi}{4}) \) is the same location as the first point!
02 The Pole Paradox Solution
Simultaneous Solution
\( \cos \theta = \sin(2\theta) \implies \cos \theta = 2 \sin \theta \cos \theta \)
\( \cos \theta (1 - 2 \sin \theta) = 0 \)
Case 1: \( \cos \theta = 0 \implies \theta = \pi/2, 3\pi/2 \) (Result: Pole at \( \pi/2 \), Pole at \( 3\pi/2 \))
Pole Investigation
Curve 1: \( r = \cos \theta \). Zero at \( \theta = \pi/2, 3\pi/2 \).
Since they both have an \( r=0 \) value (even if they occur at different \( \theta \)), the Pole is a point of intersection.
Key Facilitation Takeaway
"The pole is the 'phantom' intersection. Because \( (0, \theta) \) refers to the same point for all \( \theta \), curves don't have to meet at the same angle to intersect at the pole. This is why graph checking is critical."
