Pattern Machine Slides Pattern Machine Slides
Lesson 1: Generating Numerical Patterns from Rules
"Architecture begins when you put two bricks together. Patterns begin when you follow a rule."
The Pattern Machine
Imagine a machine. You put a Starting Number in, and it applies a Rule over and over to create a Sequence .
Example Machine:
Start: 0
Rule: Add 3
Sequence: 0, 3, 6, ?
3+
The "Add 3" Machine
Can You Crack the Code?
Observe the sequence and find the hidden rule.
Sequence A
5
9
13
17
Rule: ________________
Sequence B
20
18
16
14
Rule: ________________

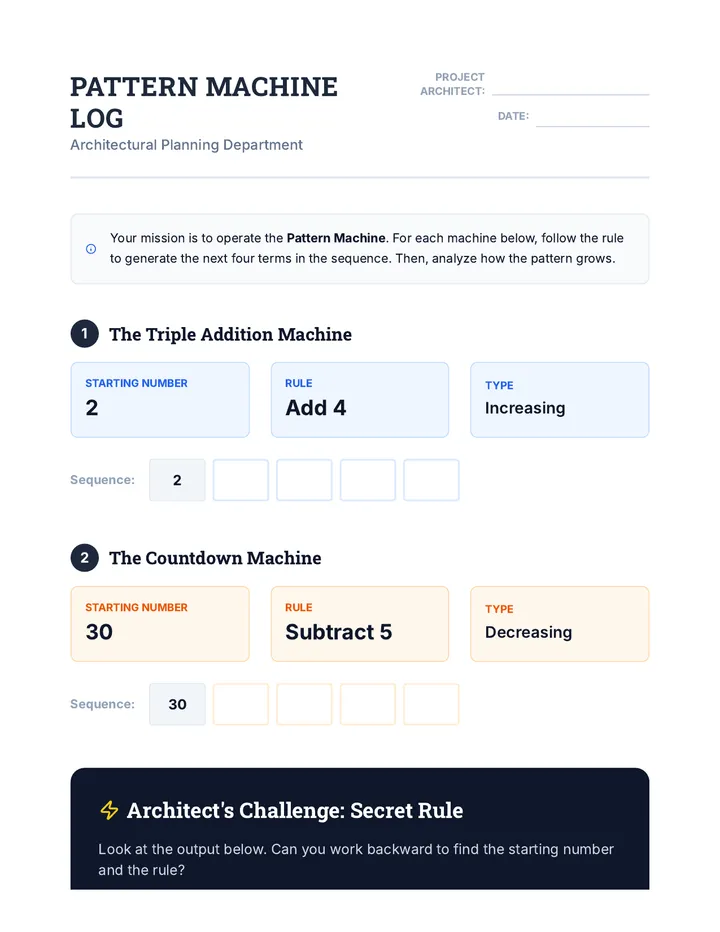

Pattern Machine Log Worksheet Pattern Machine Log
Architectural Planning Department
Project Architect:
Date:
Your mission is to operate the Pattern Machine . For each machine below, follow the rule to generate the next four terms in the sequence. Then, analyze how the pattern grows.
1
The Triple Addition Machine
Starting Number
2
Rule
Add 4
Type
Increasing
Sequence:
2
2
The Countdown Machine
Starting Number
30
Rule
Subtract 5
Type
Decreasing
Sequence:
30
Architect's Challenge: Secret Rule
Look at the output below. Can you work backward to find the starting number and the rule?
Output:
12
19
26
33
What is the rule?
What is the next number?
Rule Master Teacher Guide Teacher Resource
Rule Master Guide
Lesson 1: Pattern Machine Start
Pattern Architects Sequence
Grade 5 Math
Learning Objectives
Generate numerical patterns using given rules (addition/subtraction).
Identify rules within a given sequence of numbers.
Understand how starting numbers influence the outcome of a pattern.
Key Discussion Prompts
"If we have the rule 'Add 5', will the numbers in our sequence always be larger than the previous number? Why?"
"What happens if two different machines have the same rule but start with different numbers? Will their sequences ever meet?"
At a Glance
Duration
45-60 Minutes
Standards
CCSS.MATH.5.OA.B.3
Key Vocab
Sequence, Rule, Term, Pattern, Starting Number
Instructional Flow
10 min
The Hook: Mystery Machine
Use Slide 3 to play "Guess the Rule." Provide 3-4 terms and let students suggest the rule and the next term.
15 min
Direct Instruction
Model generating a sequence with a subtraction rule. Emphasize that rules must be applied consistently to every term.
20 min
Student Activity
Distribute the Pattern Machine Log. Monitor students as they calculate terms for Machine 1 and 2.
Answer Key: Pattern Machine Log
Machine 1 (Start 2, Add 4)
2, 6, 10, 14, 18
Machine 2 (Start 30, Sub 5)
30, 25, 20, 15, 10
Architect's Challenge
Rule: Add 7. Next Number: 40
Challenge Start Number
Starting number was 12
Pattern Race Slides The Great Pattern Race
Comparing Corresponding Terms
The Tortoise vs. The Hare
🐢
Tortoise (Rule X)
Starts at 0 miles.2 miles every hour.
0, 2, 4, 6, 8, ...
🐇
Hare (Rule Y)
Starts at 0 miles.6 miles every hour.
0, 6, 12, 18, 24, ...
Spot the Relationship
Look at the terms side-by-side.
Hour Tortoise (X) Hare (Y) 1 2 6 2 4 12 3 6 18
The Big Question:
"What is the mathematical relationship between the Hare's distance (Y) and the Tortoise's distance (X)?"

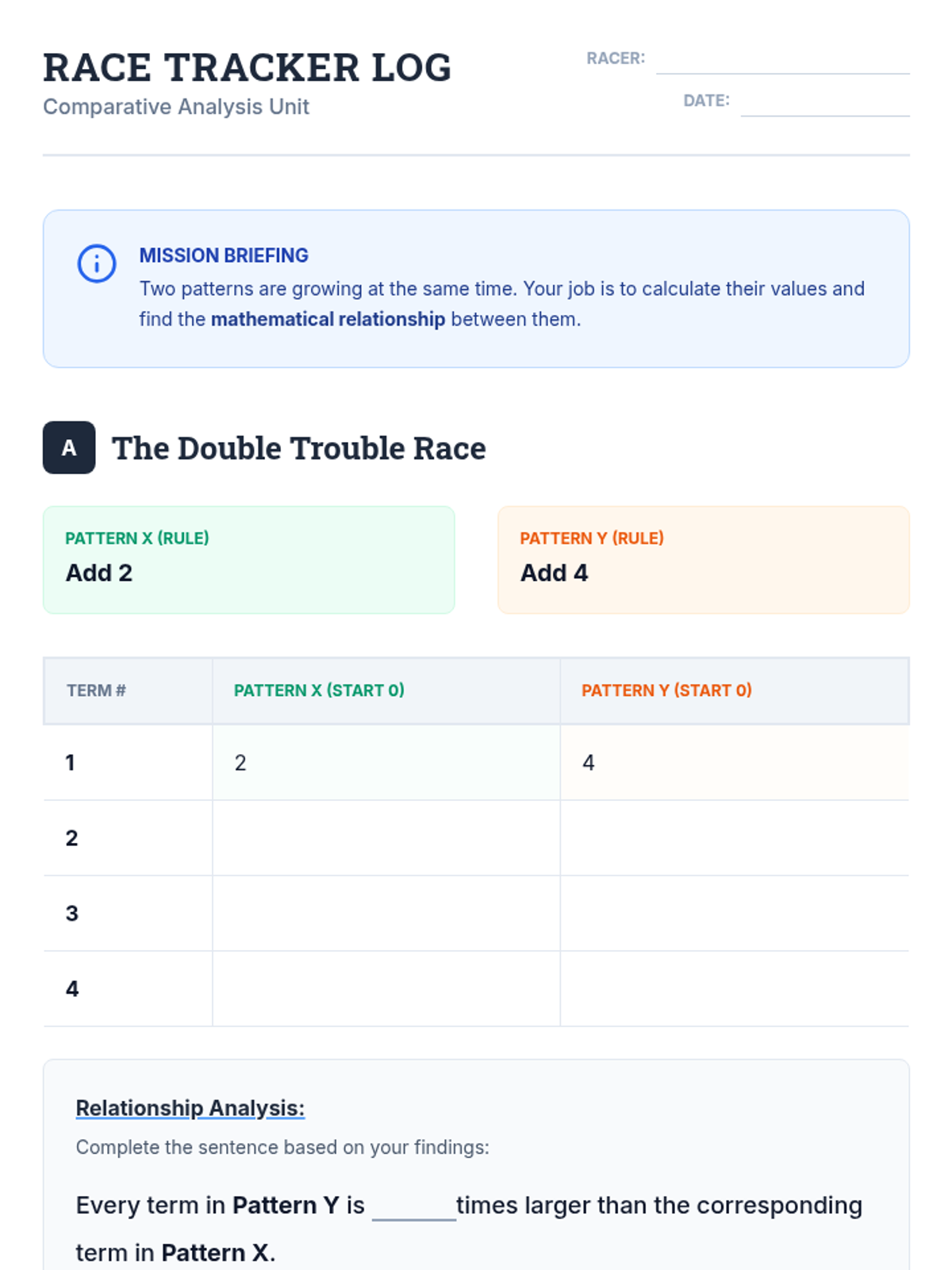

Race Tracker Worksheet Race Tracker Log
Comparative Analysis Unit
Racer:
Date:
Mission Briefing
Two patterns are growing at the same time. Your job is to calculate their values and find the mathematical relationship between them.
A
The Double Trouble Race
Pattern X (Rule)
Add 2
Pattern Y (Rule)
Add 4
Term # Pattern X (Start 0) Pattern Y (Start 0) 1 2 4 2 3 4
Relationship Analysis:
Complete the sentence based on your findings:
Every term in Pattern Y is times larger than the corresponding term in Pattern X .
B
The Triple Leap
Pattern X Rule:
Add 3 (Start at 0)
Pattern Y Rule:
Add 9 (Start at 0)
Identify the Relationship
Without filling in a full table, can you predict the relationship? If Pattern X has the term 15, what will be the corresponding term in Pattern Y?

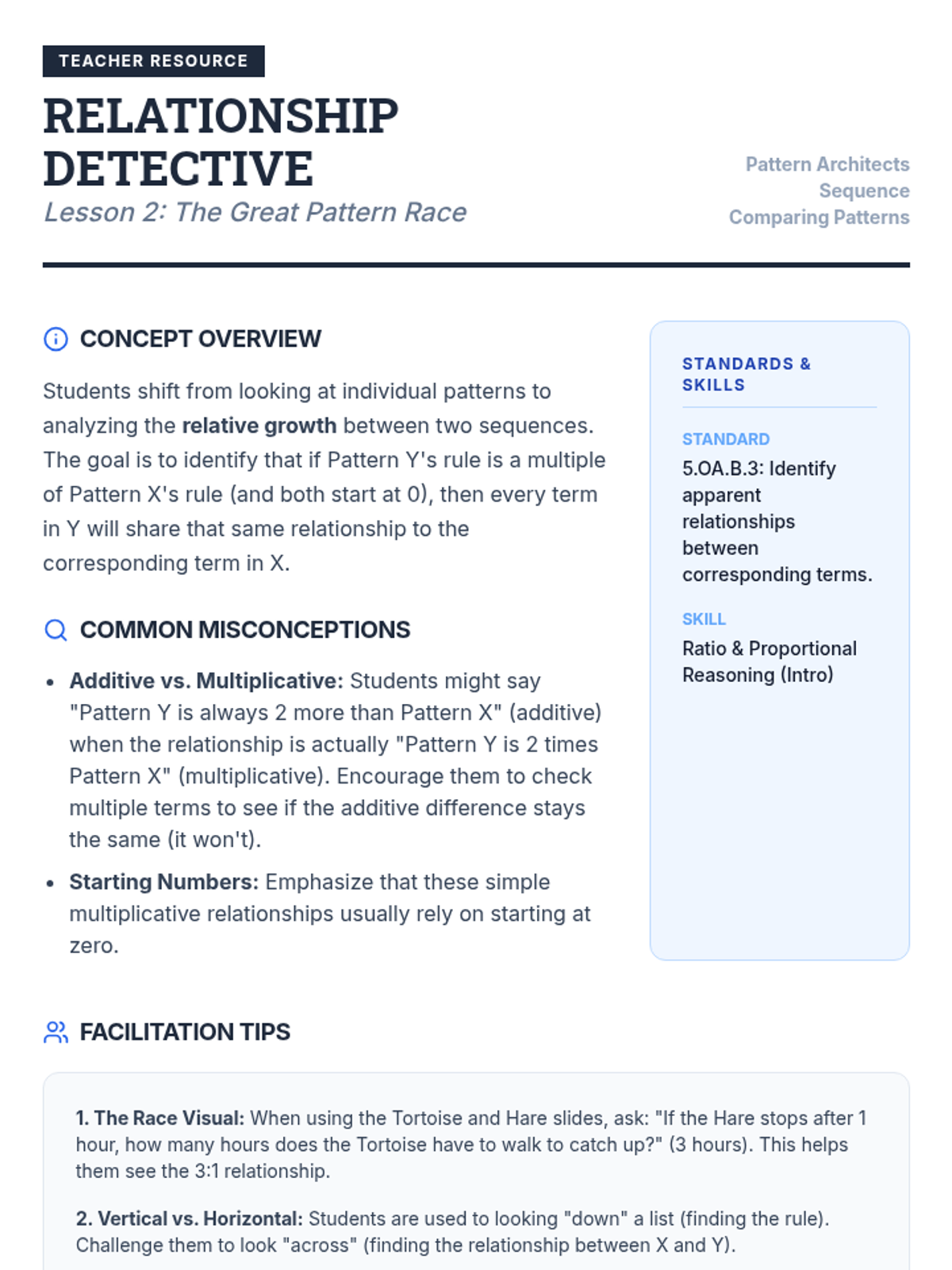

Relationship Detective Teacher Guide Teacher Resource
Relationship Detective
Lesson 2: The Great Pattern Race
Pattern Architects Sequence
Comparing Patterns
Concept Overview
Students shift from looking at individual patterns to analyzing the relative growth between two sequences. The goal is to identify that if Pattern Y's rule is a multiple of Pattern X's rule (and both start at 0), then every term in Y will share that same relationship to the corresponding term in X.
Common Misconceptions
Additive vs. Multiplicative: Students might say "Pattern Y is always 2 more than Pattern X" (additive) when the relationship is actually "Pattern Y is 2 times Pattern X" (multiplicative). Encourage them to check multiple terms to see if the additive difference stays the same (it won't).Starting Numbers: Emphasize that these simple multiplicative relationships usually rely on starting at zero.
Standards & Skills
Standard
5.OA.B.3: Identify apparent relationships between corresponding terms.
Skill
Ratio & Proportional Reasoning (Intro)
Facilitation Tips
1. The Race Visual: When using the Tortoise and Hare slides, ask: "If the Hare stops after 1 hour, how many hours does the Tortoise have to walk to catch up?" (3 hours). This helps them see the 3:1 relationship.
2. Vertical vs. Horizontal: Students are used to looking "down" a list (finding the rule). Challenge them to look "across" (finding the relationship between X and Y).
Answer Key: Race Tracker Log
Race A: Double Trouble
<table class="w-full text-xs text-left text-slate-300"><tbody><tr><th class="pb-2">Term 1</th><td>X: 2, Y: 4</td></tr><tr><th class="pb-2">Term 2</th><td>X: 4, Y: 8</td></tr><tr><th class="pb-2">Term 3</th><td>X: 6, Y: 12</td></tr><tr><th class="pb-2">Term 4</th><td>X: 8, Y: 16</td></tr></tbody></table>
Relationship: Every term in Y is 2 times larger than X.
Race B: The Triple Leap
Relationship: Pattern Y is 3 times Pattern X (since 9 is 3 times 3). If X is 15, Y must be 45 (15 × 3).
Patterns to Points Slides Coordinate Code Cracking
Turning Patterns into Points
The Translation Rule
Pattern X
0 2 4
Pattern Y
0 6 12
Ordered Pairs (x, y)
( 0 , 0 )
( 2 , 6 )
( 4 , 12 )
Coordinate Components
X
The Abscissa
The first number in the pair. Tells us how far to move Horizontal (right).
Y
The Ordinate
The second number in the pair. Tells us how far to move Vertical (up).
O
The Origin
The starting point of our graph: (0, 0) . Everything begins here!

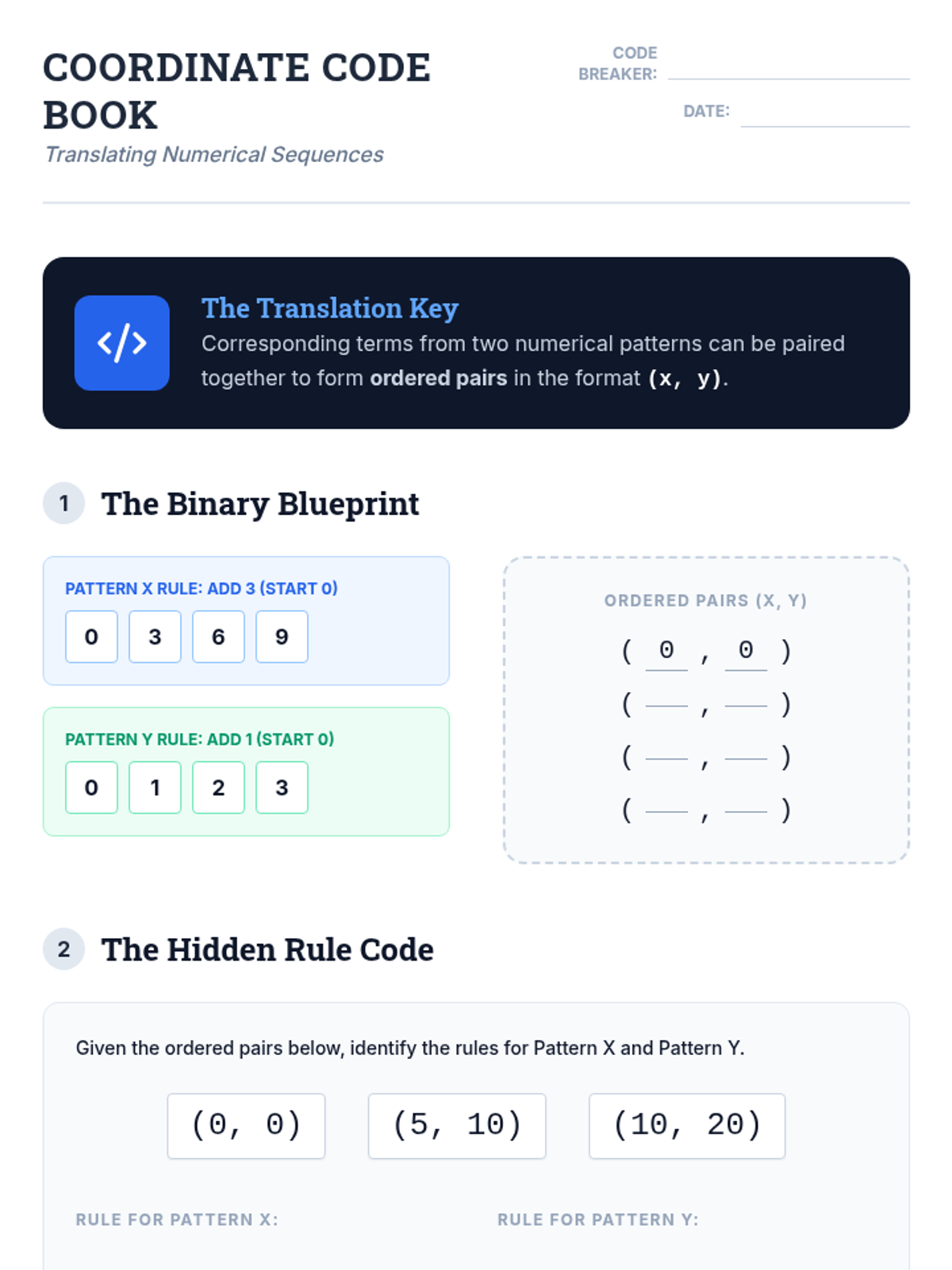

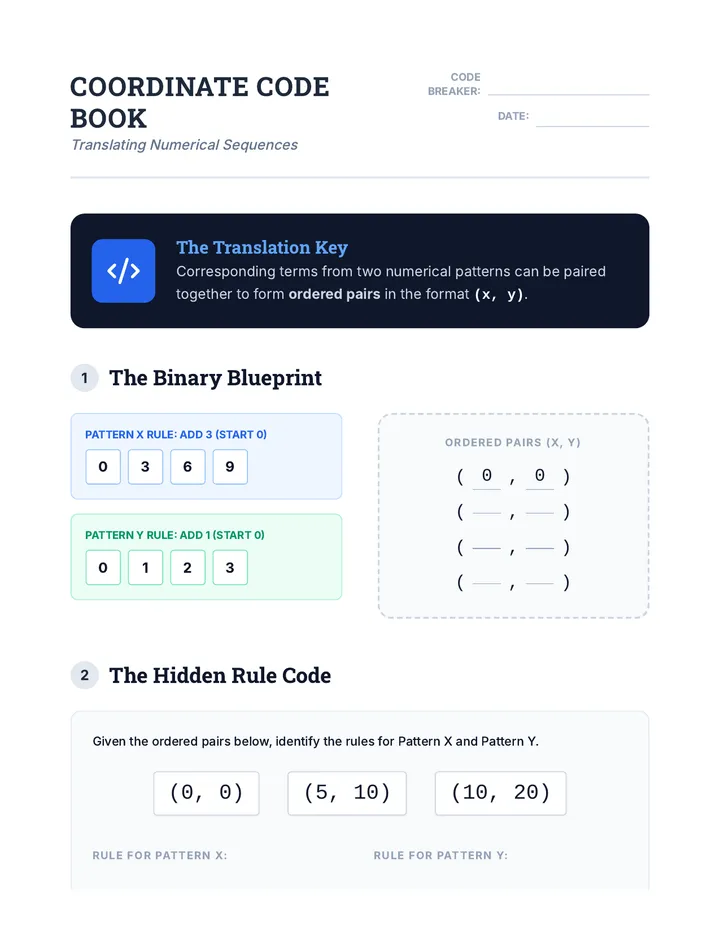

Coordinate Code Worksheet Coordinate Code Book
Translating Numerical Sequences
Code Breaker:
Date:
The Translation Key
Corresponding terms from two numerical patterns can be paired together to form ordered pairs in the format (x, y).
1
The Binary Blueprint
Pattern X Rule: Add 3 (Start 0)
0 3 6 9
Pattern Y Rule: Add 1 (Start 0)
0 1 2 3
Ordered Pairs (x, y)
(
0
,
0
)
(
,
)
(
,
)
(
,
)
2
The Hidden Rule Code
Given the ordered pairs below, identify the rules for Pattern X and Pattern Y.
(0, 0)
(5, 10)
(10, 20)
Rule for Pattern X:
Rule for Pattern Y:
Terminology Check
In (4, 12), which number is the Y-coordinate ?
In (4, 12), which number is the X-coordinate ?

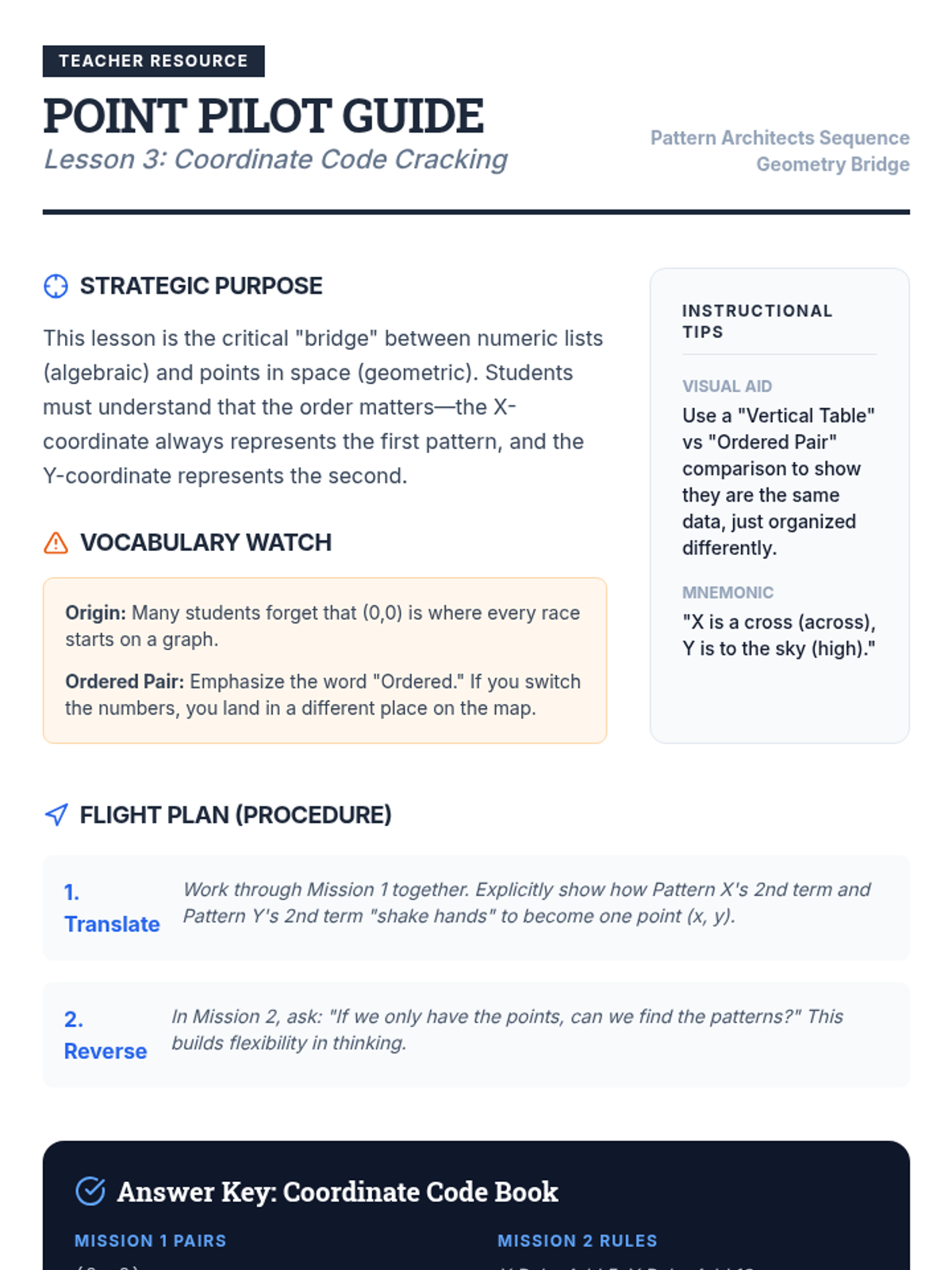

Point Pilot Teacher Guide Teacher Resource
Point Pilot Guide
Lesson 3: Coordinate Code Cracking
Pattern Architects Sequence
Geometry Bridge
Strategic Purpose
This lesson is the critical "bridge" between numeric lists (algebraic) and points in space (geometric). Students must understand that the order matters—the X-coordinate always represents the first pattern, and the Y-coordinate represents the second.
Vocabulary Watch
Origin: Many students forget that (0,0) is where every race starts on a graph.
Ordered Pair: Emphasize the word "Ordered." If you switch the numbers, you land in a different place on the map.
Instructional Tips
Visual Aid
Use a "Vertical Table" vs "Ordered Pair" comparison to show they are the same data, just organized differently.
Mnemonic
"X is a cross (across), Y is to the sky (high)."
Flight Plan (Procedure)
1. Translate
Work through Mission 1 together. Explicitly show how Pattern X's 2nd term and Pattern Y's 2nd term "shake hands" to become one point (x, y).
2. Reverse
In Mission 2, ask: "If we only have the points, can we find the patterns?" This builds flexibility in thinking.
Answer Key: Coordinate Code Book
Mission 1 Pairs
(0, 0)
(3, 1)
(6, 2)
(9, 3)
Mission 2 Rules
X Rule: Add 5. Y Rule: Add 10.
Bonus: Y is always 2 times X.
Terminology
X-coord: 4. Y-coord: 12.
Visualizing Growth Slides Visualizing Growth
Plotting Patterns on the Coordinate Plane
The Plotting Process
1
Start at the Origin
Put your pencil on (0, 0).
2
Slide Right (X)
Move horizontal for the first number.
3
Climb Up (Y)
Move vertical for the second number.
( 4 , 8 )
"Over 4, then Up 8"
What do you notice?
When we follow a constant rule, something special happens.
Pattern
(0,0), (2,4), (4,8)
Linear Growth
"If the rule stays the same, the dots will form a perfectly straight line !"

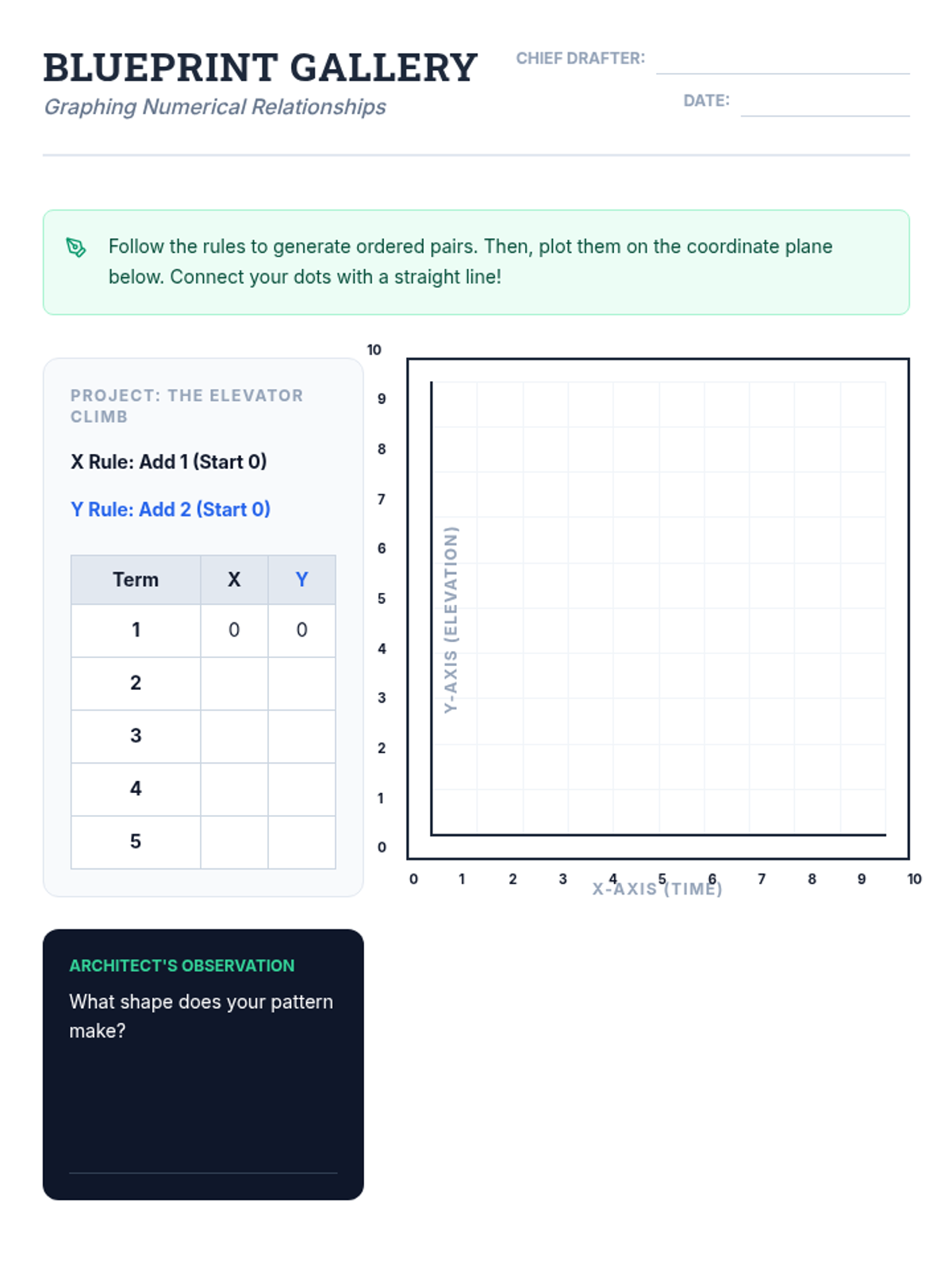

Blueprint Gallery Worksheet Blueprint Gallery
Graphing Numerical Relationships
Chief Drafter:
Date:
Follow the rules to generate ordered pairs. Then, plot them on the coordinate plane below. Connect your dots with a straight line!
Project: The Elevator Climb
X Rule: Add 1 (Start 0)
Y Rule: Add 2 (Start 0)
Architect's Observation
What shape does your pattern make?
Y-Axis (Elevation)
X-Axis (Time)
0
1
2
3
4
5
6
7
8
9
10
0
1
2
3
4
5
6
7
8
9
10

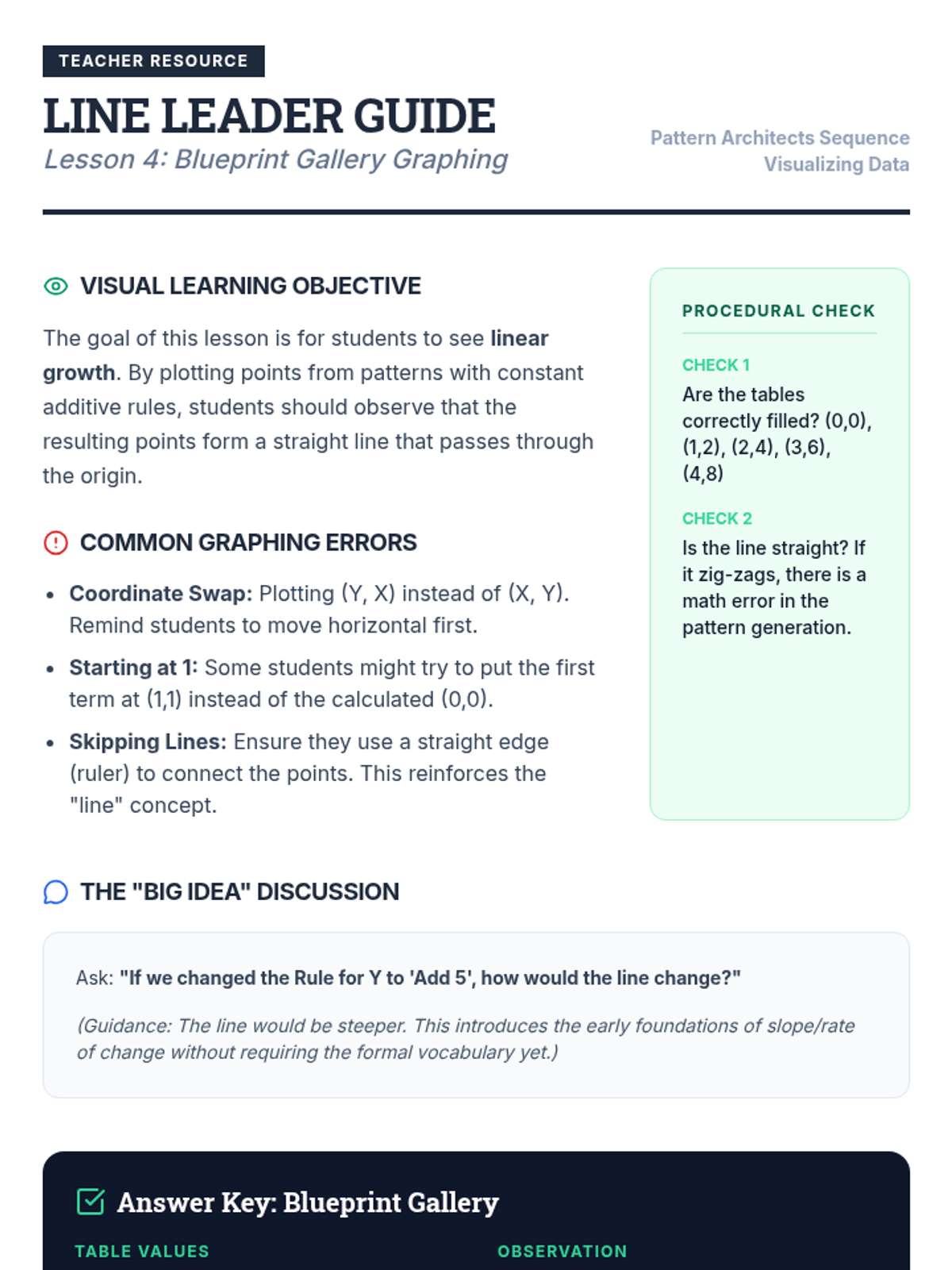

Line Leader Teacher Guide Teacher Resource
Line Leader Guide
Lesson 4: Blueprint Gallery Graphing
Pattern Architects Sequence
Visualizing Data
Visual Learning Objective
The goal of this lesson is for students to see linear growth . By plotting points from patterns with constant additive rules, students should observe that the resulting points form a straight line that passes through the origin.
Common Graphing Errors
Coordinate Swap: Plotting (Y, X) instead of (X, Y). Remind students to move horizontal first.Starting at 1: Some students might try to put the first term at (1,1) instead of the calculated (0,0).Skipping Lines: Ensure they use a straight edge (ruler) to connect the points. This reinforces the "line" concept.
Procedural Check
Check 1
Are the tables correctly filled? (0,0), (1,2), (2,4), (3,6), (4,8)
Check 2
Is the line straight? If it zig-zags, there is a math error in the pattern generation.
The "Big Idea" Discussion
Ask: "If we changed the Rule for Y to 'Add 5', how would the line change?"
(Guidance: The line would be steeper. This introduces the early foundations of slope/rate of change without requiring the formal vocabulary yet.)
Answer Key: Blueprint Gallery
Table Values
Term 1: (0, 0)
Term 2: (1, 2)
Term 3: (2, 4)
Term 4: (3, 6)
Term 5: (4, 8)
Observation
"The dots form a straight line that goes up and to the right."
Pattern Forecast Slides Future Pattern Forecast
Predicting Values Without the Math
The Power of the Line
Once you have a Line on your graph, you have a Map for the future.
You can find any point on that line without having to do the repeated addition!
Look "Over" (X) Look "Up" (Y)
The Future?
Trend Analyst Challenge
Use your graph eyes!
"If the pattern follows the rule Add 3 to Y for every 1 in X , and we are at X = 10... where is Y?"
Calculation Way
3 + 3 + 3 ... (10 times)
Graphing Way
Look at the line above X=10!

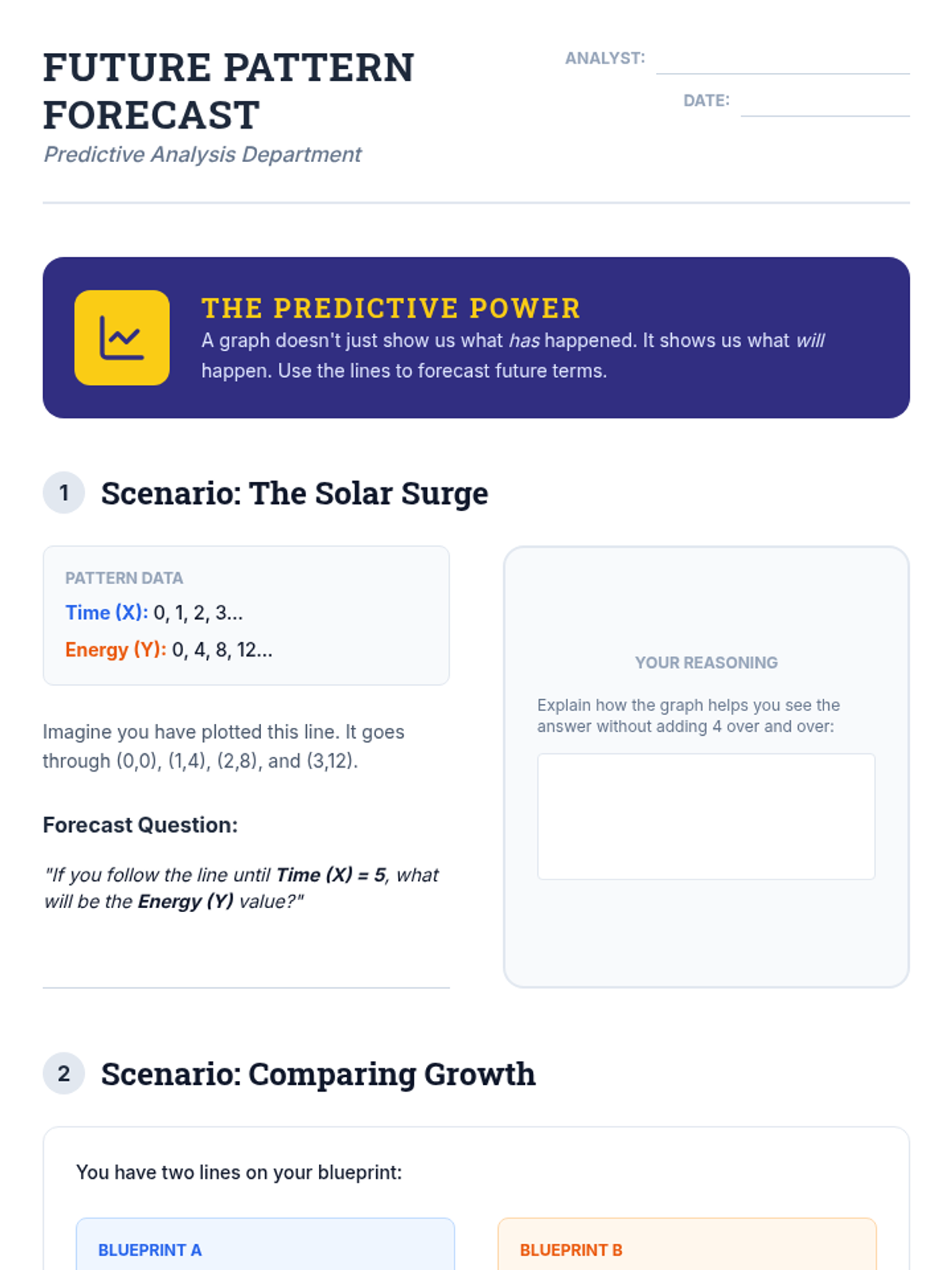

Future Forecast Worksheet Future Pattern Forecast
Predictive Analysis Department
Analyst:
Date:
The Predictive Power
A graph doesn't just show us what has happened. It shows us what will happen. Use the lines to forecast future terms.
1
Scenario: The Solar Surge
Pattern Data
Time (X): 0, 1, 2, 3...
Energy (Y): 0, 4, 8, 12...
Imagine you have plotted this line. It goes through (0,0), (1,4), (2,8), and (3,12).
Forecast Question:
"If you follow the line until Time (X) = 5 , what will be the Energy (Y) value?"
Your Reasoning
Explain how the graph helps you see the answer without adding 4 over and over:
2
Scenario: Comparing Growth
You have two lines on your blueprint:
Blueprint A
Passes through (1, 3) and (2, 6)
Blueprint B
Passes through (1, 5) and (2, 10)
Which blueprint is growing faster? How do you know just by looking at the graph points?
Predict: What will Blueprint B's Y-value be when X = 10?
Final Reflection
"How did turning our math rules into pictures (graphs) change how you think about numbers?"

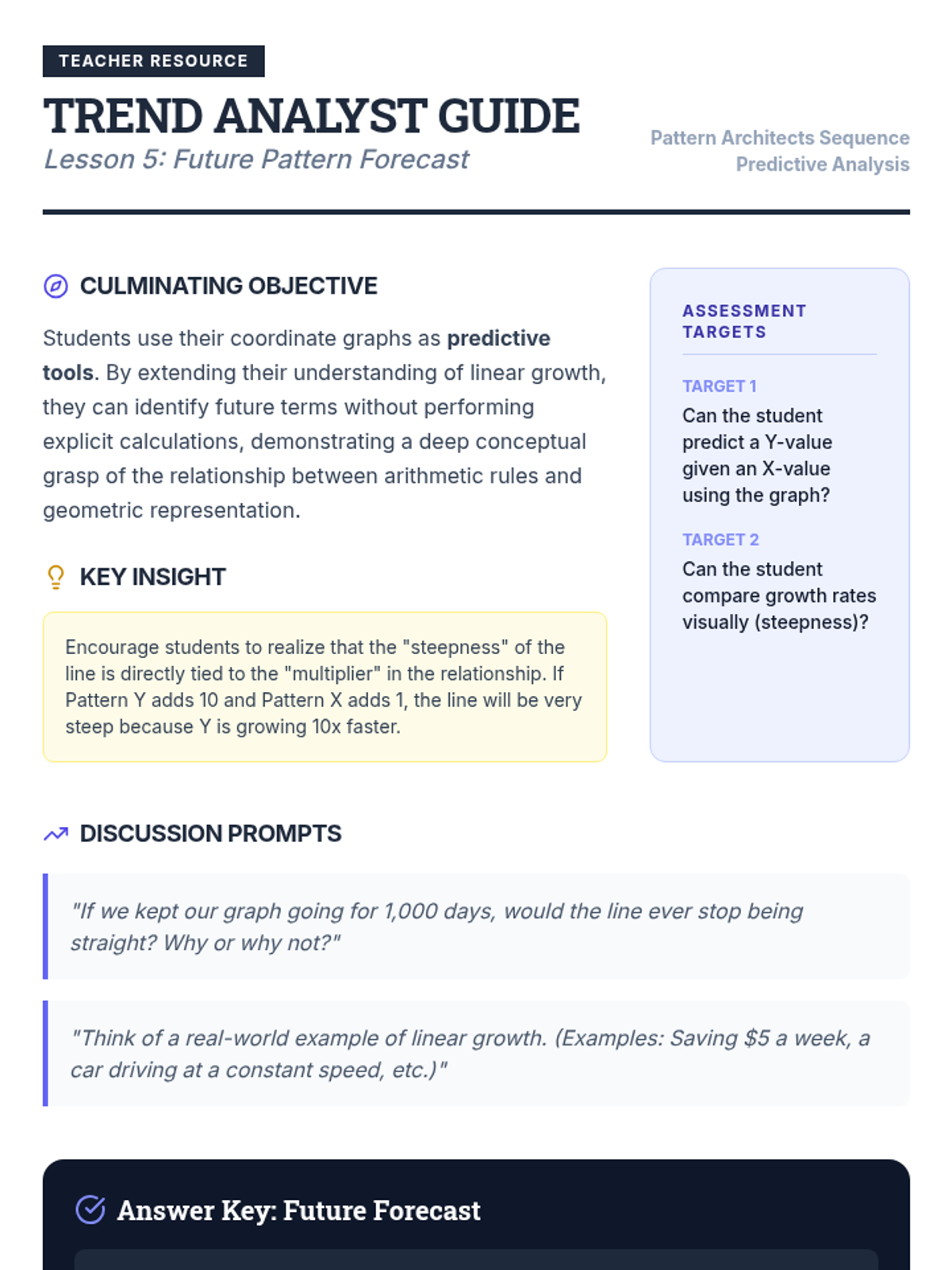

Trend Analyst Teacher Guide Teacher Resource
Trend Analyst Guide
Lesson 5: Future Pattern Forecast
Pattern Architects Sequence
Predictive Analysis
Culminating Objective
Students use their coordinate graphs as predictive tools . By extending their understanding of linear growth, they can identify future terms without performing explicit calculations, demonstrating a deep conceptual grasp of the relationship between arithmetic rules and geometric representation.
Key Insight
Encourage students to realize that the "steepness" of the line is directly tied to the "multiplier" in the relationship. If Pattern Y adds 10 and Pattern X adds 1, the line will be very steep because Y is growing 10x faster.
Assessment Targets
Target 1
Can the student predict a Y-value given an X-value using the graph?
Target 2
Can the student compare growth rates visually (steepness)?
Discussion Prompts
"If we kept our graph going for 1,000 days, would the line ever stop being straight? Why or why not?"
"Think of a real-world example of linear growth. (Examples: Saving $5 a week, a car driving at a constant speed, etc.)"
Answer Key: Future Forecast
Scenario 1: Solar Surge
Y-value at X=5: 20.
Reasoning: The rule is 'Add 4' for every 1. 5 × 4 = 20. On the graph, you just move to 5 and look up to find the line at 20.
Scenario 2: Comparing Growth
Faster: Blueprint B (adds 5 per step, while A adds 3). Visually, it would be steeper.
Prediction: At X=10, Blueprint B's Y-value will be 50.
