Regression Roadmap Slides Regression Roadmap
Fitting Polynomial Models to Real-World Data
PolyLab Series | Lesson 01
Predicting Progress
In 1950, the population of Tech-City was 50,000. By 2020, it reached 850,000.
"How can we predict the population in 2050?"
Is it growing at a constant rate? (Linear)
Is it accelerating? (Quadratic/Cubic)
[Historical Census Data Scatter Plot]
The Math Behind the Curve
Regression
The statistical process of finding the best-fit equation for a set of data points.
Residuals
The distance between the actual data point and the predicted value on the regression curve.
Correlation (\(R^2\))
A statistical measure of how close the data are to the fitted regression line.
"Our goal isn't just to touch every point, but to model the overall trend while avoiding overfitting."
Degree Selection
Degree 2
Quadratic
\(y = ax^2 + bx + c\)
"The Simple Arc"
Degree 3
Cubic
\(y = ax^3 + bx^2 + ...\)
"The S-Curve"
Degree 4+
Quartic & Beyond
\(y = ax^4 + ...\)
"High Complexity"
Danger: Overfitting
The "Perfect" Trap
A 10th-degree polynomial might hit every point in your census data, but it will likely produce nonsense predictions for the future.
Parsimony
Use the simplest model that explains the trend.
Extrapolation
Polynomials get wild at the edges. Be careful!
Reliable Trend
Overfit (Chaotic)
Workshop Protocol
01
Import Data
02
Test Degrees
03
Evaluate \(R^2\)
04
Predict 2050
Let's build some models
Regression Analysis Worksheet Population Predictor
Lab 01: Polynomial Regression Analysis
Researcher:
Date:
Mission Parameters
As a Lead Demographic Analyst for Tech-City, you must use historical census data to model population growth. Your goal is to select the most reliable polynomial model to predict the city's infrastructure needs for the year 2050.
Dataset
"Historical_Census_1950_2020.csv"
Objective
Identify the optimal polynomial degree (2, 3, or 4).
Phase 1: Model Comparison
Model Degree Equation (Standard Form) Correlation (\(R^2\)) Degree 2 (Quadratic) Degree 3 (Cubic) Degree 4 (Quartic)
Phase 2: Reliability Analysis
1. Visual Inspection: Which model visually follows the data points most naturally? Explain why the \(R^2\) value might be misleading.
2. Extrapolation Risk: Compare the predictions for the year 2080 between the Cubic and Quartic models. Which one seems more "realistic" for a city's growth? Why?
The Final Verdict
Select your chosen model and calculate the predicted population for 2050 (where \(x = 100\), if \(x=0\) is 1950).
Predicted Pop. (2050):
Confidence Level (1-10):
Phase 3: Residual Check
Sketch the residual plot for your chosen model. Does the pattern look random or structured?
Error (Actual - Predicted) Time (Years)
Zero Milestones Slides Zero Milestones
Interpreting Polynomial Roots in the Real World
PolyLab Series | Lesson 02
Defining the Moment
The Math
The values of \(x\) where \(P(x) = 0\). These are the x-intercepts on a graph.
The Context
The specific points in time or quantity where a system reaches a critical threshold.
THE ZERO
Scenario A: The Break-Even Point
A startup launches a new app. Their profit function \(P(t)\) is modeled by a polynomial where \(t\) is months since launch.
Below Zero: Burning Cash (Loss)
Above Zero: Making Bank (Profit)
THE ZERO: Break-Even Point
At the zero, Revenue = Expenses.
Scenario B: Time of Impact
A rocket is launched with height function \(h(t)\).
Finding the Roots
One root is at \(t = 0\) (The Launch).
Height = 0 means it's on the ground.
Negative roots are "before launch" (often ignored).
IMPACT
Multiplicity: Behavior at the Zero
1 Crosses Axis
Odd Multiplicity (e.g., 1, 3, 5...)
(x - 2)^1
The value changes signs. (e.g., Loss to Profit)
2 Touches & Bounces
Even Multiplicity (e.g., 2, 4, 6...)
(x - 2)^2
The value reaches zero but doesn't change signs.
Ready for Analysis?
Next, you will receive two real-world datasets. Your task: find the zeros and explain what they mean for the business and the pilot.
Case 1: Profit Logic
Case 2: Ballistic Flight

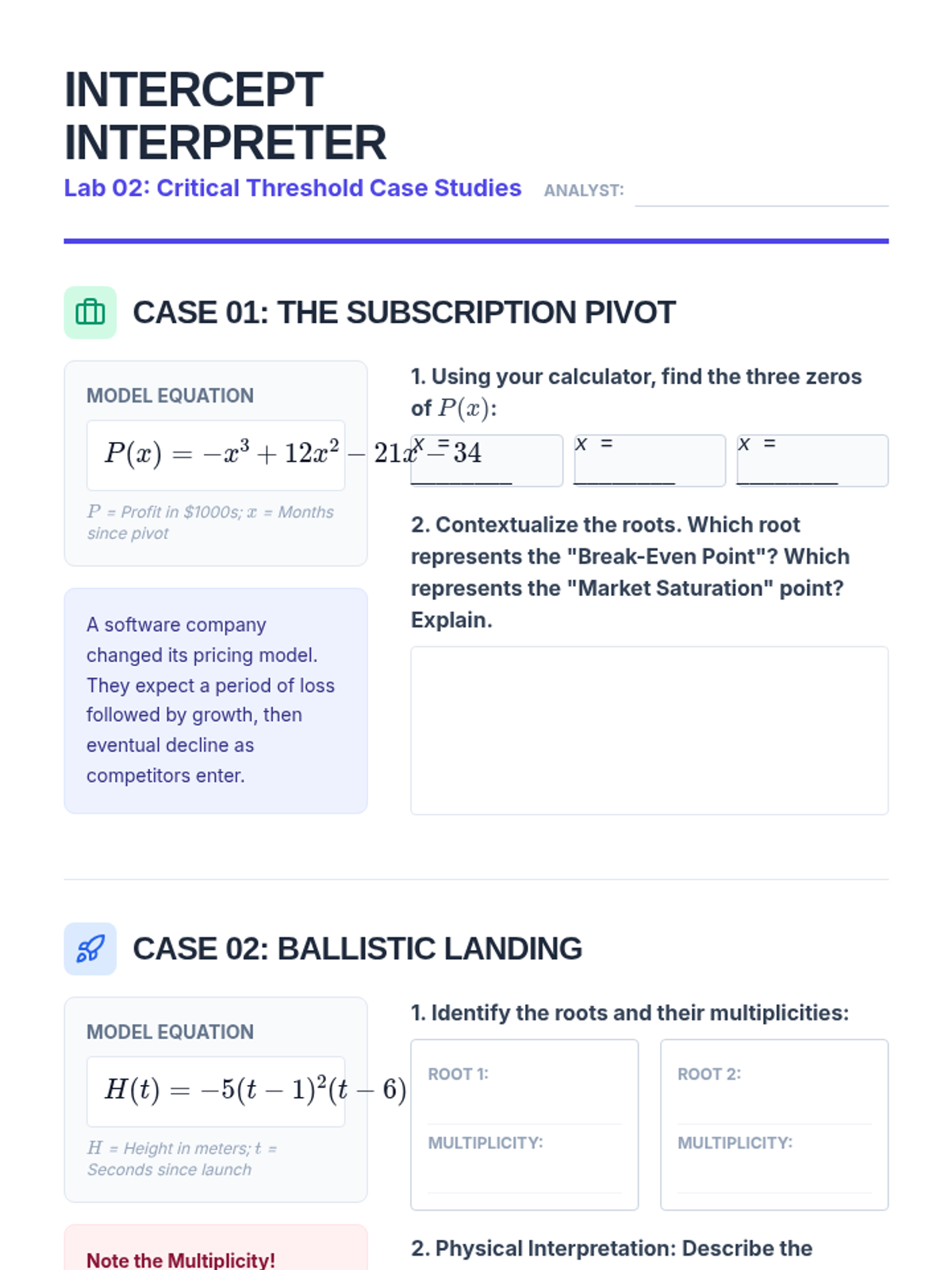

Intercept Interpreter Case Study Intercept Interpreter
Lab 02: Critical Threshold Case Studies
Analyst:
Case 01: The Subscription Pivot
Model Equation
\(P(x) = -x^3 + 12x^2 - 21x - 34\)
\(P\) = Profit in $1000s; \(x\) = Months since pivot
A software company changed its pricing model. They expect a period of loss followed by growth, then eventual decline as competitors enter.
1. Using your calculator, find the three zeros of \(P(x)\):
x = ________
x = ________
x = ________
2. Contextualize the roots. Which root represents the "Break-Even Point"? Which represents the "Market Saturation" point? Explain.
Case 02: Ballistic Landing
Model Equation
\(H(t) = -5(t - 1)^2(t - 6)\)
\(H\) = Height in meters; \(t\) = Seconds since launch
Note the Multiplicity!
How does the object behave at \(t = 1\)?
1. Identify the roots and their multiplicities:
Root 1:
Multiplicity:
Root 2:
Multiplicity:
2. Physical Interpretation: Describe the object's journey at \(t = 1\). Does it hit the ground and stop, or does it do something else?
The Multiplicity Rule
In your own words, explain how the multiplicity of a zero affects the real-world interpretation of the data. Use an example from either case study above.
Box Builder Slides Box Builder
Optimizing Volume with Cubic Functions
PolyLab Series | Lesson 03
The Design Constraint
You have a single sheet of material measuring 20cm by 30cm.
"To make an open-top box, you must cut congruent squares from each corner."
The variable \(x\) represents the side length of the cut-out square.
x x
Deriving the Function
Height
\(x\)
Width
\(20 - 2x\)
Length
\(30 - 2x\)
Volume Function \(V(x)\)
\(V(x) = x(20 - 2x)(30 - 2x)\)
The Realistic Domain
Mathematically, polynomials go forever. But in engineering, dimensions must be positive.
\(x > 0\)
\(20 - 2x > 0 \implies x < 10\)
Domain: \(0 < x < 10\)
"Why 10?"
If \(x=10\), you've cut the paper in half!
Local Maximum
Optimal Cut x ≈ 3.92
Cut Size (x)
Volume
Optimization Goal
Find the exact \(x\) value that yields the highest peak on our graph within the domain.
PolyLab Tip:
"The peak happens where the slope is zero."
Blueprint Phase
Grab your sheets and rulers. We're going to build, measure, and calculate to see who can achieve the Maximum Volume.
Model
Calculate
Validate

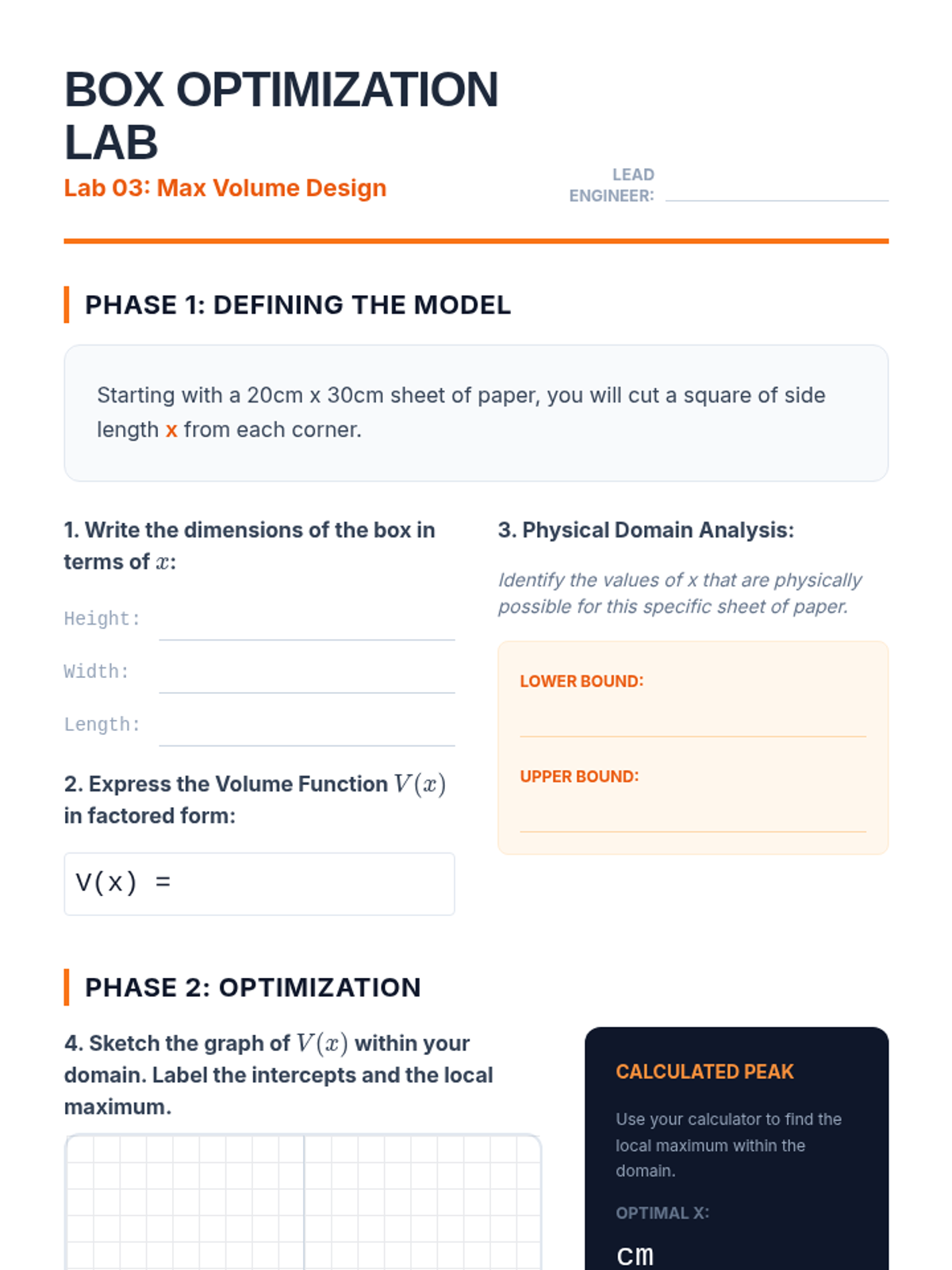

Box Volume Lab Sheet Box Optimization Lab
Lab 03: Max Volume Design
Lead Engineer:
Phase 1: Defining the Model
Starting with a 20cm x 30cm sheet of paper, you will cut a square of side length x from each corner.
1. Write the dimensions of the box in terms of \(x\):
Height:
Width:
Length:
2. Express the Volume Function \(V(x)\) in factored form:
V(x) =
3. Physical Domain Analysis:
Identify the values of x that are physically possible for this specific sheet of paper.
Lower Bound:
Upper Bound:
Phase 2: Optimization
4. Sketch the graph of \(V(x)\) within your domain. Label the intercepts and the local maximum.
Calculated Peak
Use your calculator to find the local maximum within the domain.
Optimal x:
cm
Max Volume:
cm³
Design Justification
Why is the local maximum the only point we care about for this project?
Phase 3: Prototype Test
Actual Measurement
Build your box using your optimal \(x\) value. Fill it with material (e.g., rice or sand) and record the measured volume if possible, or verify dimensions.
Pass/Fail
Coaster Blueprint Slides Coaster Blueprint
Engineering Thrills with Polynomial Multiplicity
Project Code R-COASTER-04
Status Authorized
Technical Specs
Your firm has been hired to design the vertical profile of a new hyper-coaster.
Requirement
"The track must start at a height of 100m, hit ground level exactly 3 times, and remain smooth throughout."
// Design Constraints
Must be a polynomial function.
Degree must be exactly 5 or 6.
Use multiplicities to define 'thrill moments'.
The Engineering of Zeros
Multiplicity 1
"The Tunnel Dash"
The track cuts straight through the ground. High-speed transition.
Multiplicity 2
"The Ground Hugger"
The track kisses the ground and bounces back up. Weightless moment.
Multiplicity 3
"The Flatline Glide"
The track flattens out significantly at ground level before crossing.
Factored Form Protocol
Don't start with standard form. Engineers build from the Components (Factors).
\(f(x) = a(x - r_1)^{m_1}(x - r_2)^{m_2}...\)
r The Ground Location (The Zero)
m The Shape of the Moment (Multiplicity)
a The Scale (Stretch/Compression)
Pro-Tip: Solving for \(a\)
Use your starting height of 100m.
The "G-Force" Factor
High degrees (quartic/quintic) allow for more complex loops and drops.
Excitement
Steep slopes and sharp turns.
Safety
Smooth multiplicity transitions.
MODEL_VIEW: SIMULATION_ACTIVE
Enter the Lab
Open your design sheets. You have 45 minutes to draft your polynomial track and solve for your scaling constant.
Equation
Sketch
Simulate

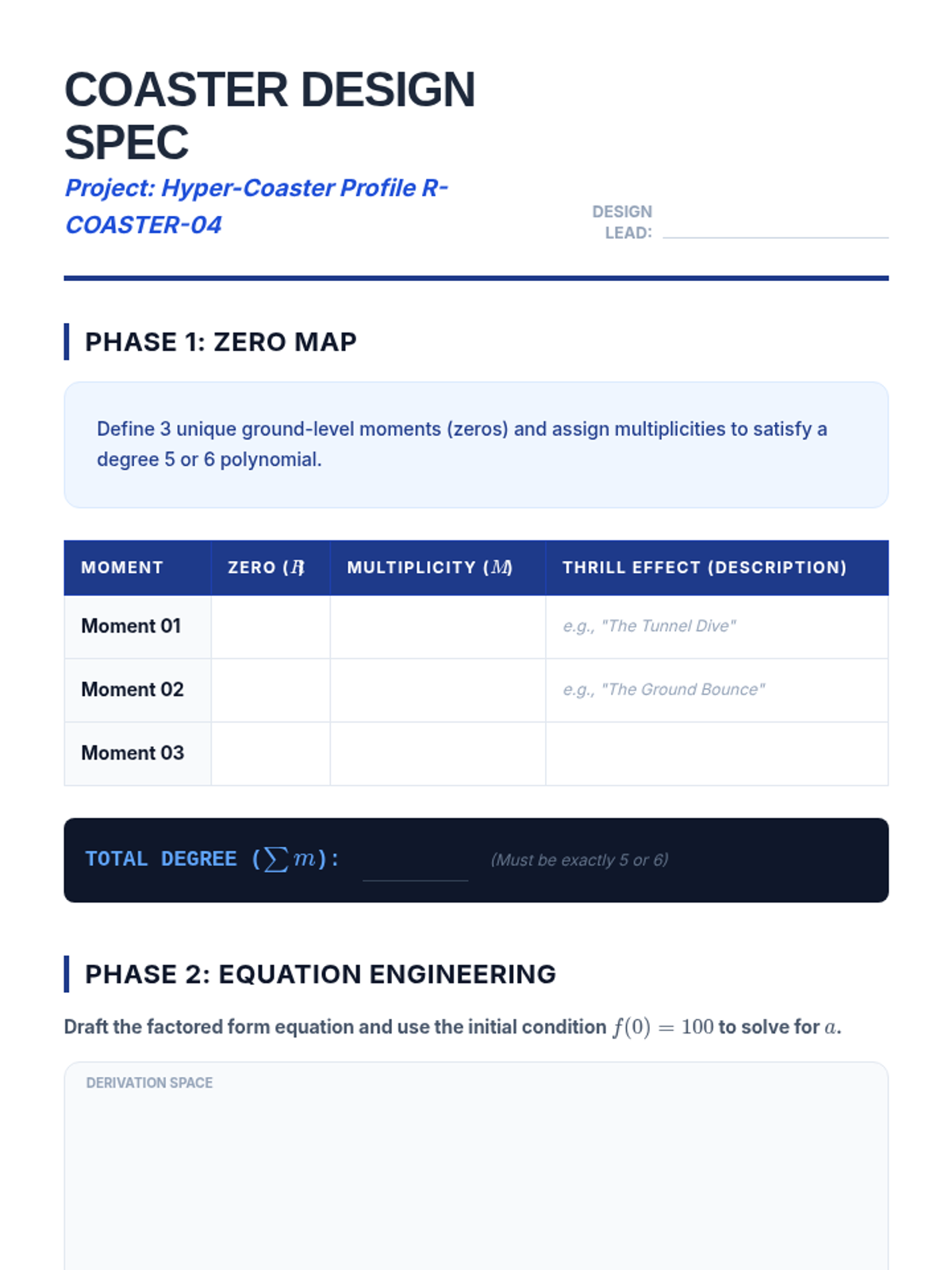

Coaster Design Spec Sheet Coaster Design Spec
Project: Hyper-Coaster Profile R-COASTER-04
Design Lead:
Phase 1: Zero Map
Define 3 unique ground-level moments (zeros) and assign multiplicities to satisfy a degree 5 or 6 polynomial.
Moment Zero (\(r\)) Multiplicity (\(m\)) Thrill Effect (Description) Moment 01 e.g., "The Tunnel Dive" Moment 02 e.g., "The Ground Bounce" Moment 03
TOTAL DEGREE (\(\sum m\)):
(Must be exactly 5 or 6)
Phase 2: Equation Engineering
Draft the factored form equation and use the initial condition \(f(0) = 100\) to solve for \(a\).
Derivation Space
f(x) =
Phase 3: Vertical Profile Blueprint
Sketch the track profile from \(x=0\) to your final zero. Ensure heights are labeled.
Track Distance (m) Height (m)
0
100
Max Height Moment
Lowest Depth Moment
Safety Certification PolyLab Pitch Slides Final Presentation
THE PITCH
Defending Your Mathematical Models
Logic
Precision
Impact
The Arena
You are not just presenting math. You are selling a solution.
"The Sharks want to know: Why this degree? What do the zeros tell us? Is your model reliable?"
3min
The Pitch Delivery
2min
Shark Q&A (Defense)
Final Funding Verdict
Presentation Checklist
The Hook
Visual proof of the real-world problem you're solving.
The Model
Your polynomial equation (Factored or Standard).
The Zeros
Contextual meaning of the roots and multiplicity.
The Max
Optimization results and justification of degree.
The "Why" Question
The Sharks will drill down on your choice of Complexity vs. Simplicity.
Defense Script:
"While a cubic model provided an \(R^2\) of 0.94, we selected the quadratic model to avoid overfitting during long-term extrapolation..."
Crucial Justifications
Reliability of \(R^2\) value
End Behavior vs. Reality
Domain Constraints
Killer Delivery
01
Simplify Visuals
One graph per slide. Large font sizes. Don't hide your equation in a corner.
02
The Narrative
Tell a story. The math is the "how", but the situation is the "why".
03
Eye Contact
Talk to the Sharks, not the screen. Your confidence sells the model.
Prepare for Impact
Review your regression residuals, your multiplicities, and your optimization peaks.

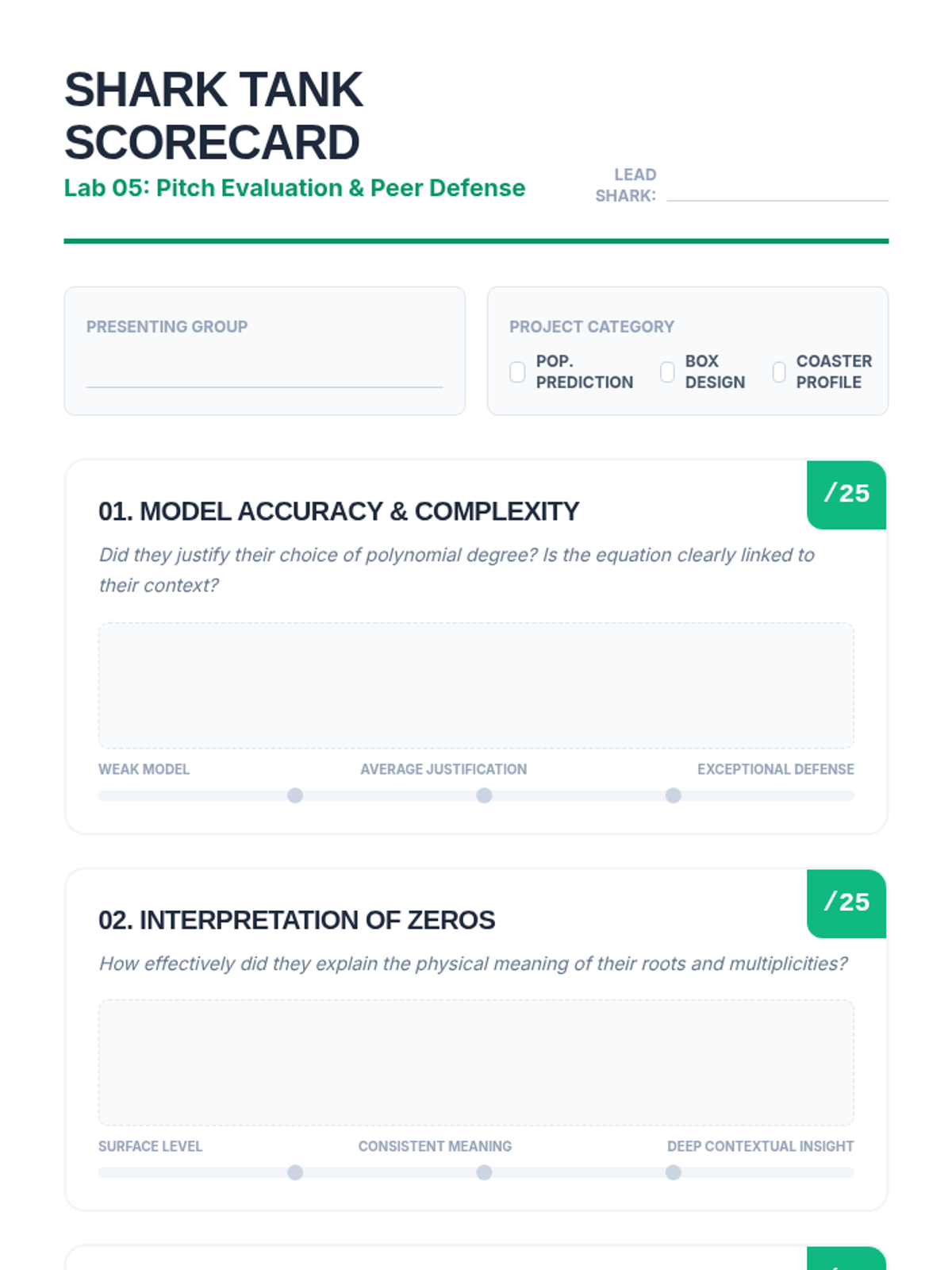

Pitch Evaluation Scorecard Shark Tank Scorecard
Lab 05: Pitch Evaluation & Peer Defense
Lead Shark:
Presenting Group
Project Category
Pop. Prediction
Box Design
Coaster Profile
/25
01. Model Accuracy & Complexity
Did they justify their choice of polynomial degree? Is the equation clearly linked to their context?
Weak Model Average Justification Exceptional Defense
/25
02. Interpretation of Zeros
How effectively did they explain the physical meaning of their roots and multiplicities?
Surface Level Consistent Meaning Deep Contextual Insight
/25
03. Response to Shark Q&A
Did the group maintain mathematical integrity when grilled on residuals, domain, or overfitting?
Fumbled Logic Solid Defense Unshakable Professionalism
The Funding Verdict
Total Investment Score
/ 75
One Question for this group:
I
I'm In (Full Funding)
O
I'm Out (Reject)
