Decision Logic Worksheet Diagnostic Decision Map
L1: The Integration Decision Tree • Calculus II
Engineer Name: __________________________
Date: __________________________________
The Toolkit Recap
Basic Form: Power rule, trig identities, or direct recognition.
U-Substitution: Look for a function and its derivative (composition).
Integration by Parts: Product of unrelated functions (L-I-A-T-E).
Partial Fractions: Rational functions where the denominator factors.
Trig Sub: Radical forms like \(\sqrt{a^2 - x^2}\), \(\sqrt{a^2 + x^2}\), or \(\sqrt{x^2 - a^2}\).
Long Division: Rational functions where Degree(Num) \(\ge\) Degree(Denom).
Start: Examine the Integrand
Is it a simple power, trig, or log form?
YES
Apply Direct Rules
NO
Is there an inner function \(u\) whose derivative \(du\) is present?
OTHER
Rational Function? Trig Power?
Your Turn: Build the Rest of the Logic Tree
The Strategy Gauntlet
Diagnosis Workshop: Do Not Solve!
Efficiency is the hallmark of an expert. For each integral below, identify the primary technique required. Justify your choice by identifying the specific feature of the integrand that "triggers" the method.
1
\[ \int x^2 e^x \, dx \]
Method:
Trigger:
2
\[ \int \frac{x+1}{x^2-5x+6} \, dx \]
Method:
Trigger:
3
\[ \int \frac{\sin(\ln x)}{x} \, dx \]
Method:
Trigger:
4
\[ \int \frac{1}{\sqrt{4-x^2}} \, dx \]
Method:
Trigger:
5
\[ \int x \sec^2(x) \, dx \]
Method:
Trigger:
The "Stop & Think" Rule
Before putting pen to paper, ask: "Can I simplify this algebraically?" Sometimes a simple foil or expansion turns a complex 'Parts' problem into a basic 'Power Rule' problem.
Decision Logic Slides Unit: Strategic Integration
The Decision
Tree
Moving from "How to Solve" to "How to Choose"
REF_NUM: CALC_L1
STRATEGY_MAP
The 20-Second Challenge
In 3 minutes, you will look at 10 integrals.
DO NOT SOLVE THEM.
Simply identify the first step or method required for each.
\[ \int x \ln(x) \, dx \]
Method?
Pattern Recognition
1
Novices dive into algebra immediately.
2
Experts analyze the anatomy of the integrand first.
3
Every technique has a "trigger" form.
Diagnostic Question #1:
"Is this a
(Power Rule, Trig identities, simple log...)
Our Logic Framework
The Integrand
Complex
Simple
U-Substitution
"Is there a \(u\) and a \(du\)?"
By Parts
"Product of two types?" (L-I-A-T-E)
Partial Fractions
"Rational function? Factorable denominator?"
Open your worksheet to build the rest of this map.
Don't Forget...
Trig Substitution
When you see: \(a^2 - x^2\), \(a^2 + x^2\), or \(x^2 - a^2\).
Long Division
When Degree(Top) \(\ge\) Degree(Bottom).
Strategy
Strategy Facilitation Guide Strategy Facilitation Guide
Lesson 1: The Integration Decision Tree
Pacing
60m
Instructional Objective
Students will shift from procedural execution to diagnostic thinking. By the end of this lesson, students will be able to categorize complex integrands based on structural "triggers" and justify their choice of integration method using a self-constructed logic flowchart.
Essential Question
"How do we determine the most efficient strategy for solving an unfamiliar integration problem?"
The "No-Solve" Hook (10 mins)
Execution Steps:
Display Slide 2. Give students 3 minutes to look at a list of 10 integrals (provided in the slides or on the board).
Rule: They are strictly forbidden from writing any math. They can only write the name of a method.After 3 minutes, have them compare with a partner. If they disagree, they must debate why their "trigger" is the correct one.
Teacher Tip: Watch for students who start trying to find \(u\) and \(du\) immediately. Encourage them to look at the "big picture" shape (e.g., "It's a rational function, so I'm thinking Partial Fractions").
Construction Phase (25 mins)
Distribute the Decision Logic Worksheet . Students should work in pairs to build their diagnostic flowchart.
Common Misconceptions
Confusing \(u\)-sub with By Parts when both functions are polynomials.
Missing a basic Trig Identity that would make the integral trivial.
Forgetting to check the degree of the numerator in rational functions.
Probing Questions
"Is the derivative of the inner function 'swimming' around outside?"
"Could we split this fraction into two simpler ones?"
"Is there a radical that looks like a Pythagorean identity?"
Exit Ticket: The Justification
Ask students to pick the "hardest" looking integral from Page 2 of the worksheet and write one sentence explaining exactly why they chose the method they did.
Homework
Complete "The Strategy Gauntlet" on Page 2.
Preparation for L2
Students will need colored pens/highlighters for the Speed Dating challenge.

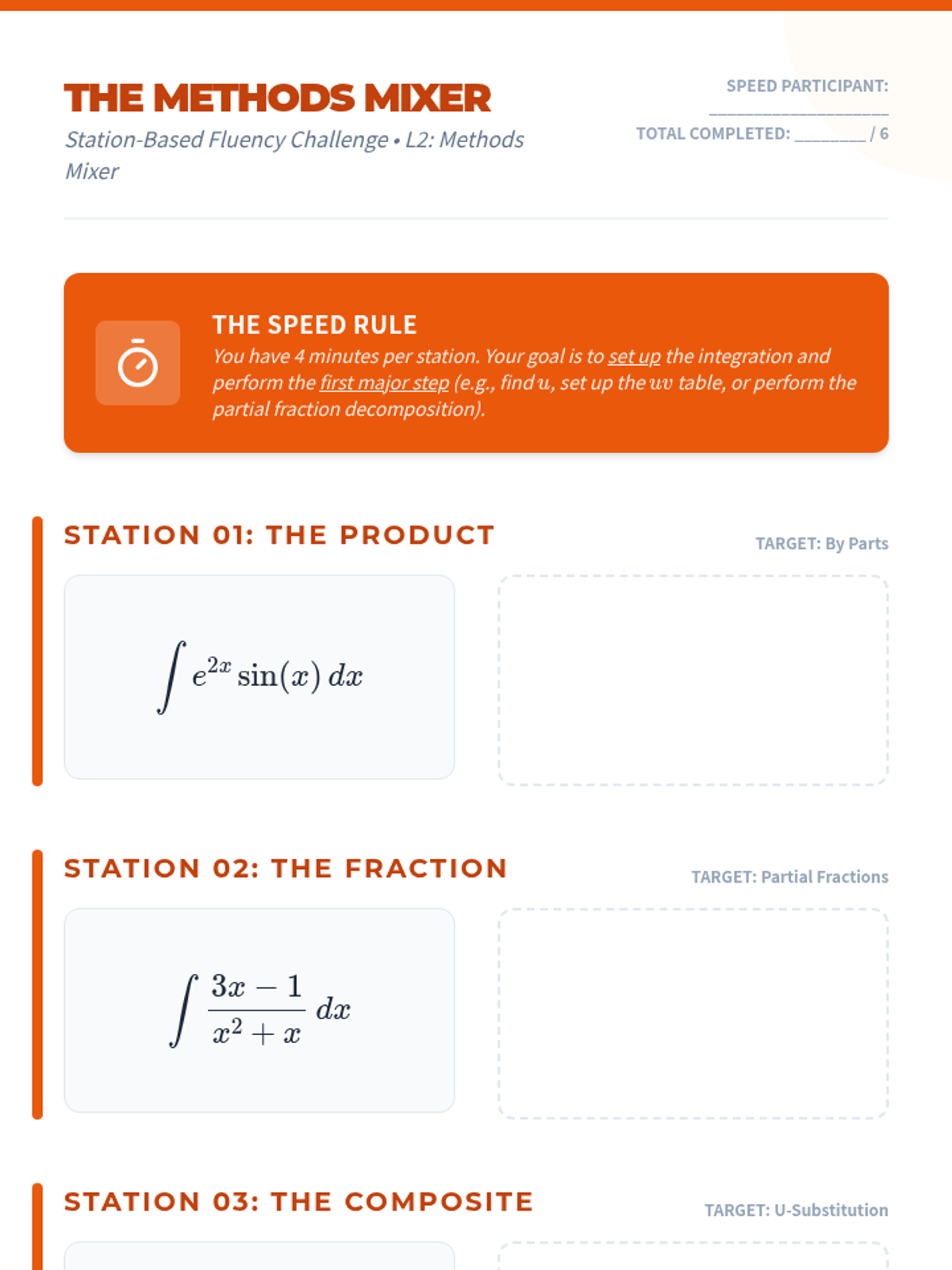

Methods Mixer Worksheet The Methods Mixer
Station-Based Fluency Challenge • L2: Methods Mixer
Speed Participant: ____________________
Total Completed: ________ / 6
The Speed Rule
You have 4 minutes per station. Your goal is to set up the integration and perform the first major step (e.g., find \(u\), set up the \(uv\) table, or perform the partial fraction decomposition).
Station 01: The Product
TARGET: By Parts
\[ \int e^{2x} \sin(x) \, dx \]
Station 02: The Fraction
TARGET: Partial Fractions
\[ \int \frac{3x - 1}{x^2 + x} \, dx \]
Station 03: The Composite
TARGET: U-Substitution
\[ \int \frac{\sec^2(\sqrt{x})}{\sqrt{x}} \, dx \]
Station 04: The Radical
TARGET: Trig Substitution
\[ \int \sqrt{9 - x^2} \, dx \]
Station 05: The Improper Power
TARGET: Long Division
\[ \int \frac{x^3 + 1}{x^2 + 1} \, dx \]
Station 06: The Hybrid
TARGET: Multi-Step
\[ \int x^3 e^{x^2} \, dx \]
Self-Reflection Gauntlet
Which station caused the most "mental friction" when switching gears?
Identify one station where you initially misidentified the method.
Methods Mixer Slides Workshop Challenge
Methods
Mixer
High-Speed Integration Gauntlet
Station Rules
1
The 4-Minute Limit
When the buzzer sounds, you MUST move to the next station. No exceptions.
2
The "Set-Up" Goal
Complete the 1st major step (U-selection, Partial Decomp, By-Parts choice).
Why are we doing this?
"Fluency is the ability to change lanes without crashing."
Shifting Mental Gears
\[ \int x e^{x^2} \, dx \]
Mental Gear: U-SUB
\[ \int x^2 e^x \, dx \]
Mental Gear: BY PARTS
The Friction Point
Notice the tiny difference? A simple exponent change forces a total technique reversal.
Our job today is to detect these Structural Triggers instantly.
Battle Station Active
04:00
Diagnose
Set-Up
Next Station

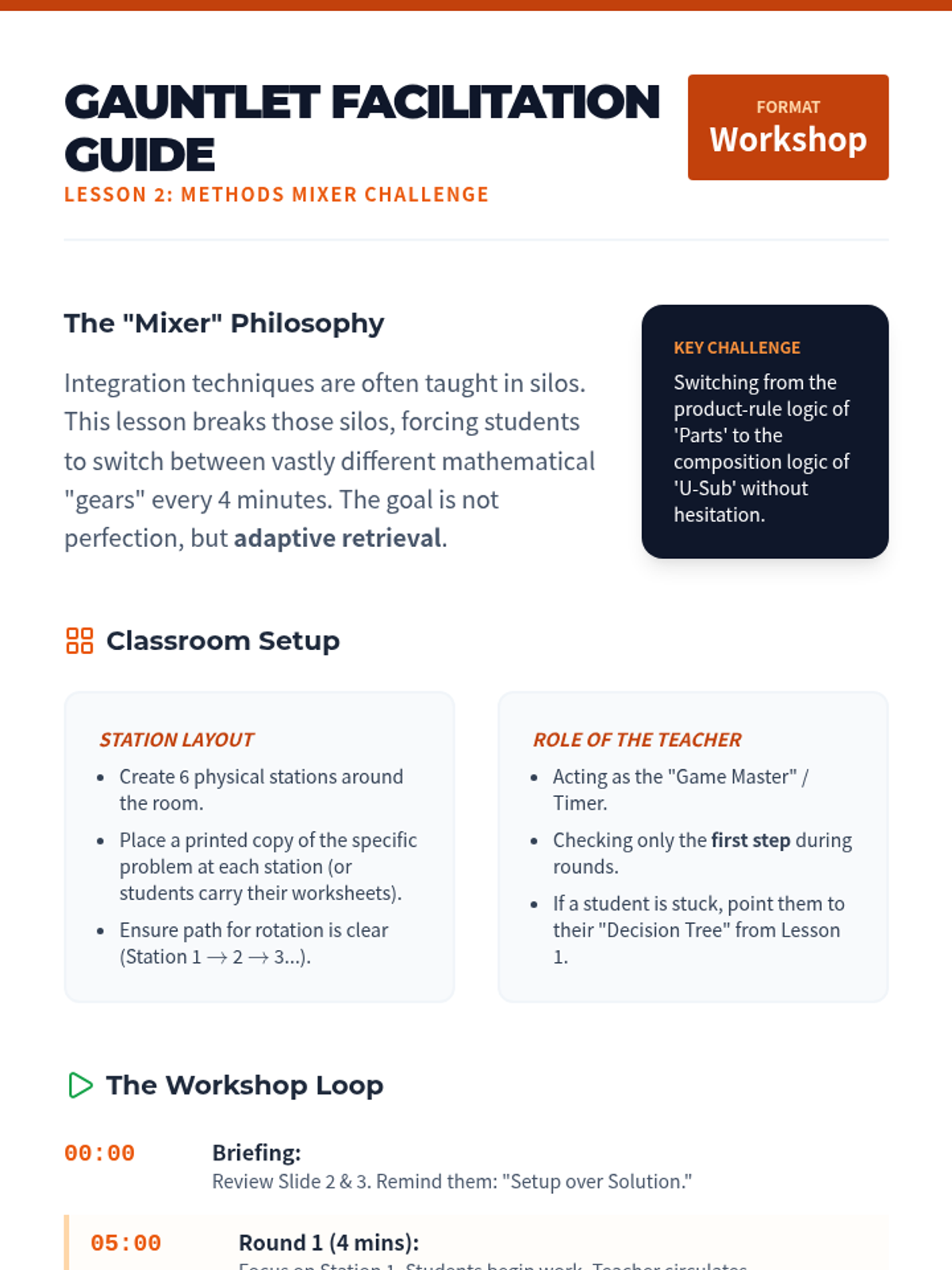

Game Master Guide Gauntlet Facilitation Guide
Lesson 2: Methods Mixer Challenge
Format
Workshop
The "Mixer" Philosophy
Integration techniques are often taught in silos. This lesson breaks those silos, forcing students to switch between vastly different mathematical "gears" every 4 minutes. The goal is not perfection, but adaptive retrieval .
Key Challenge
Switching from the product-rule logic of 'Parts' to the composition logic of 'U-Sub' without hesitation.
Classroom Setup
Station Layout
Create 6 physical stations around the room.
Place a printed copy of the specific problem at each station (or students carry their worksheets).
Ensure path for rotation is clear (Station 1 \(\rightarrow\) 2 \(\rightarrow\) 3...).
Role of the Teacher
Acting as the "Game Master" / Timer.
Checking only the first step during rounds.
If a student is stuck, point them to their "Decision Tree" from Lesson 1.
The Workshop Loop
00:00
Briefing:
Review Slide 2 & 3. Remind them: "Setup over Solution."
05:00
Round 1 (4 mins):
Focus on Station 1. Students begin work. Teacher circulates.
09:00
Rotation (1 min):
Move to Station 2!
... Repeat for 6 Rounds ...
Station Troubleshooting
Student is "Frozen":
Have them identify the degree of the numerator/denominator. Usually, this unlocks the logic for Partial Fractions vs. Long Division.
Student is "Rushing":
Challenge them to write out the formal \(u\) and \(dv\) selection clearly. Speed shouldn't sacrifice mathematical notation.

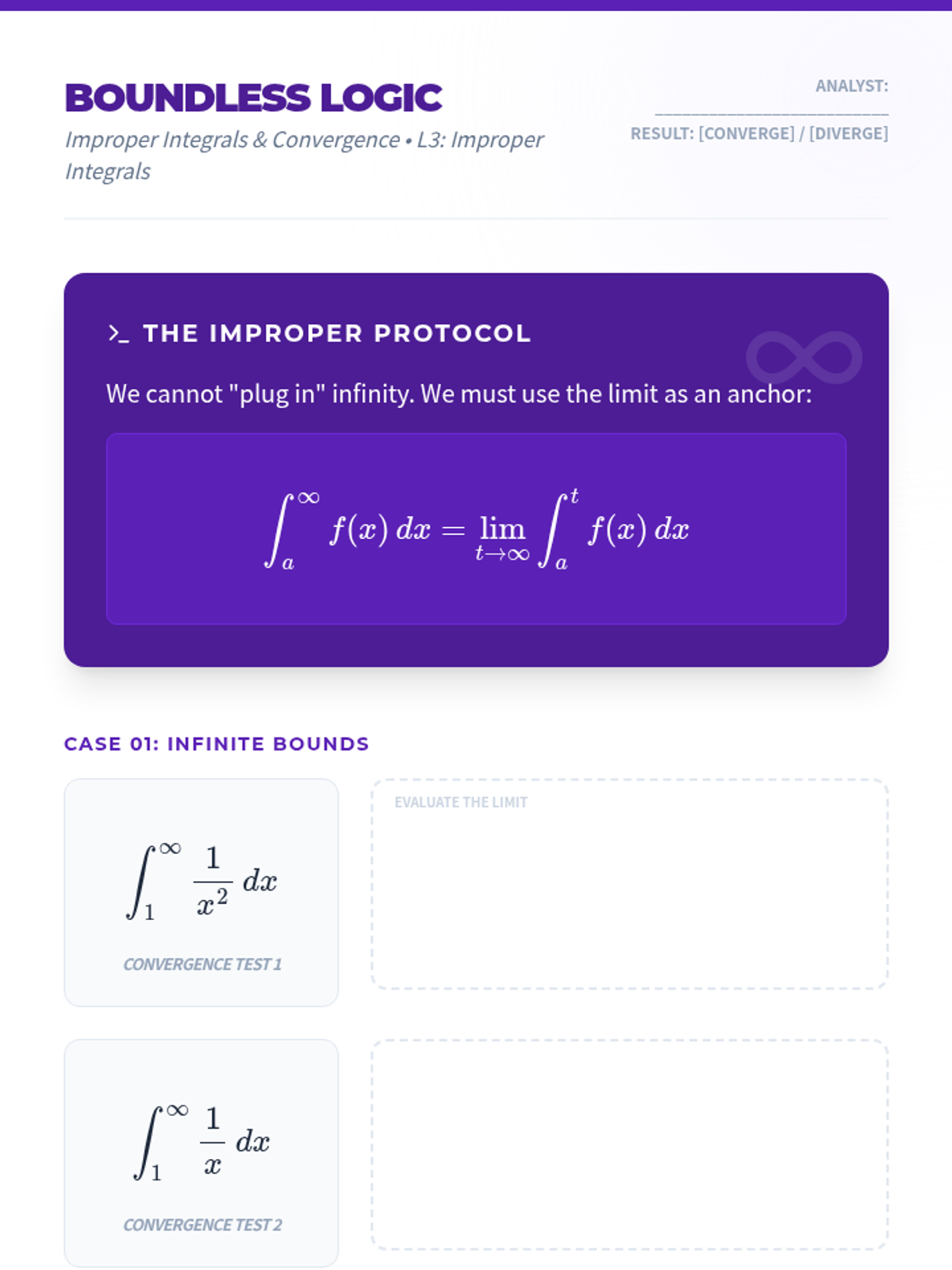

Gabriel's Paradox Worksheet Boundless Logic
Improper Integrals & Convergence • L3: Improper Integrals
Analyst: __________________________
Result: [Converge] / [Diverge]
The Improper Protocol
We cannot "plug in" infinity. We must use the limit as an anchor:
\[ \int_{a}^{\infty} f(x) \, dx = \lim_{t \to \infty} \int_{a}^{t} f(x) \, dx \]
Case 01: Infinite Bounds
\[ \int_{1}^{\infty} \frac{1}{x^2} \, dx \]
Convergence Test 1
Evaluate the Limit
\[ \int_{1}^{\infty} \frac{1}{x} \, dx \]
Convergence Test 2
Case 02: Vertical Discontinuities
\[ \int_{0}^{1} \frac{1}{\sqrt{x}} \, dx \]
Warning: Asymptote at x=0
Gabriel's Paradox
Finite Volume vs. Infinite Surface Area
"Consider the solid formed by rotating \(y = 1/x\) from \(x = 1\) to \(x = \infty\) about the x-axis. This trumpet-like shape presents a physical impossibility."
The Challenge
1. Prove the volume is finite (Calculation A).
2. Prove the surface area is infinite (Calculation B).
Mathematical Rendering Area
Sketch the curve \(y = 1/x\) and the resulting solid of revolution.
Calculation A: Volume of Gabriel's Horn
Formula: \(V = \int_{1}^{\infty} \pi [f(x)]^2 \, dx\)
Calculation B: Surface Area (Approximate)
Observe: Surface Area \(S > \int_{1}^{\infty} 2\pi f(x) \, dx\)
The Painter's Paradox
"You can fill the horn with a finite amount of paint, but you could never paint its entire surface." How does the behavior of the integrals explain this physical impossibility?
Infinite Bounds Slides Unit: Infinite Extensions
Boundless
Integrals
Taming the Infinite with Limits
Type I: Infinite Bounds
Integration usually calculates the area over a finite interval \([a, b]\).
What happens when \(b \to \infty\)?
The "Anchor" Method
\[ \lim_{t \to \infty} \int_{a}^{t} f(x) \, dx \]
Does the area grow forever?
Converge
Finite Sum
Diverge
Infinite Sum
Type II: Asymptotes
The "Hidden" Danger
Some integrals look normal but contain a vertical asymptote within the bounds.
\[ \int_{0}^{1} \frac{1}{x} \, dx \]
Explodes at x = 0
The Fix:
Replace the discontinuity with a variable and approach it using a one-sided limit.
\[ \lim_{t \to 0^+} \int_{t}^{1} \dots \]
Gabriel's
Horn
Rotate \(y = 1/x\) from \(1\) to \(\infty\) about the x-axis.
Volume
Finite
Converges to \(\pi\)
Surface Area
Infinite
Diverges
"You can fill it with paint, but you can't paint its surface."

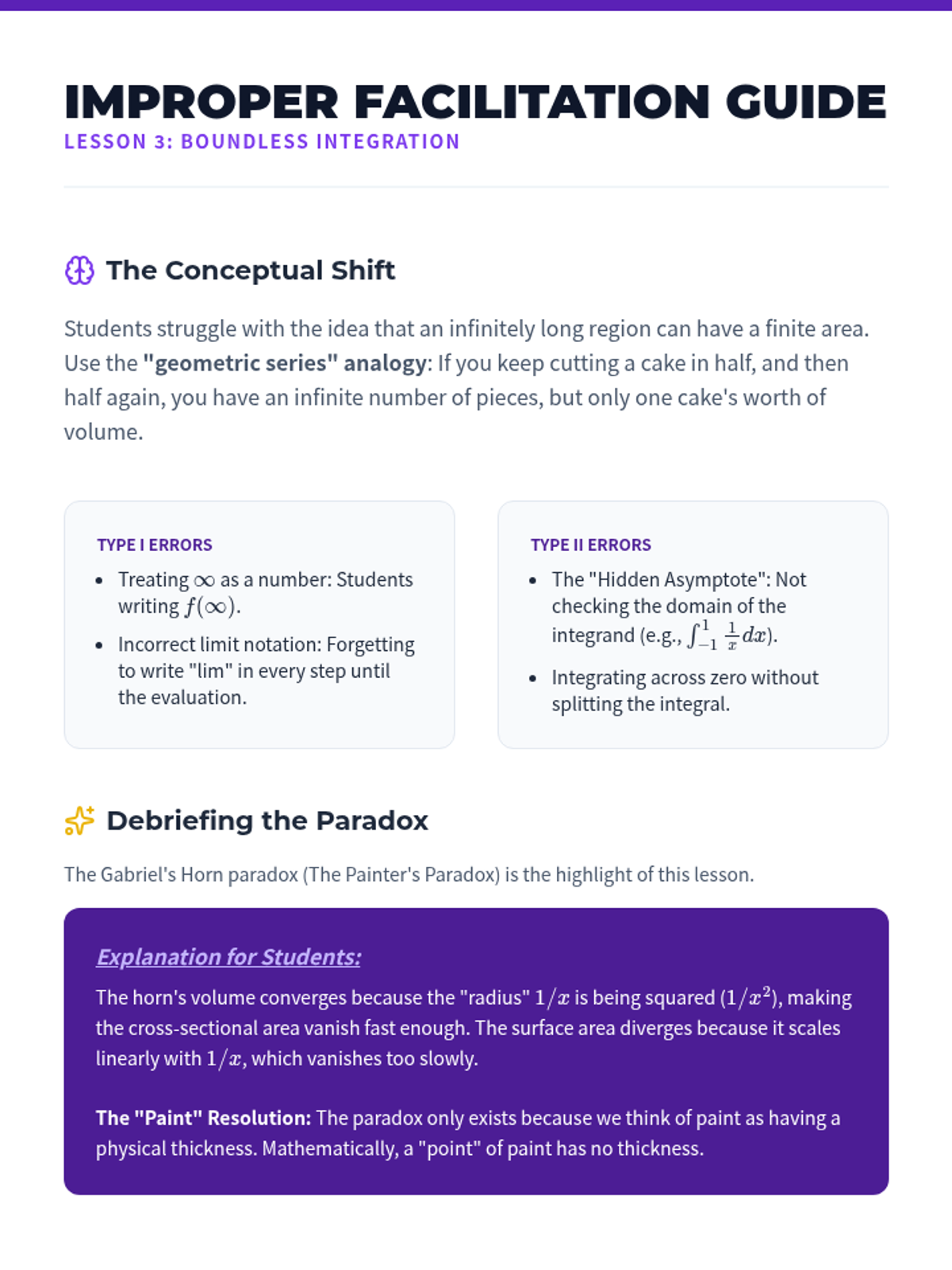

Improper Exploration Guide Improper Facilitation Guide
Lesson 3: Boundless Integration
The Conceptual Shift
Students struggle with the idea that an infinitely long region can have a finite area. Use the "geometric series" analogy : If you keep cutting a cake in half, and then half again, you have an infinite number of pieces, but only one cake's worth of volume.
Type I Errors
Treating \(\infty\) as a number: Students writing \(f(\infty)\).
Incorrect limit notation: Forgetting to write "lim" in every step until the evaluation.
Type II Errors
The "Hidden Asymptote": Not checking the domain of the integrand (e.g., \(\int_{-1}^1 \frac{1}{x} dx\)).
Integrating across zero without splitting the integral.
Debriefing the Paradox
The Gabriel's Horn paradox (The Painter's Paradox) is the highlight of this lesson.
Explanation for Students:
The horn's volume converges because the "radius" \(1/x\) is being squared (\(1/x^2\)), making the cross-sectional area vanish fast enough. The surface area diverges because it scales linearly with \(1/x\), which vanishes too slowly.
The "Paint" Resolution: The paradox only exists because we think of paint as having a physical thickness. Mathematically, a "point" of paint has no thickness.

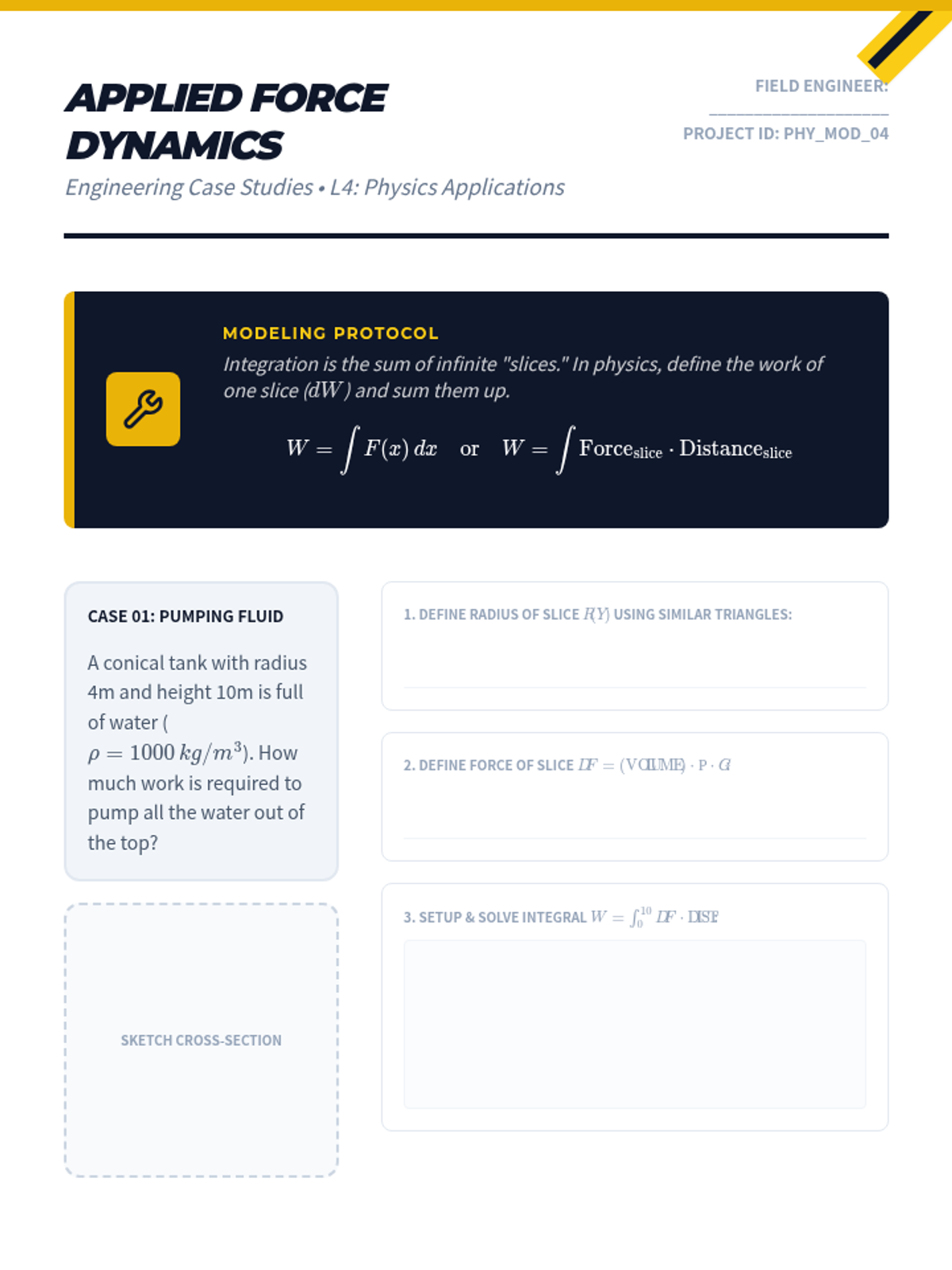

Physics Apps Worksheet Applied Force Dynamics
Engineering Case Studies • L4: Physics Applications
Field Engineer: ____________________
Project ID: PHY_MOD_04
Modeling Protocol
Integration is the sum of infinite "slices." In physics, define the work of one slice (\(dW\)) and sum them up.
\[ W = \int F(x) \, dx \quad \text{or} \quad W = \int \text{Force}_{\text{slice}} \cdot \text{Distance}_{\text{slice}} \]
Case 01: Pumping Fluid
A conical tank with radius 4m and height 10m is full of water (\(\rho = 1000 \, kg/m^3\)). How much work is required to pump all the water out of the top?
Sketch Cross-Section
1. Define Radius of Slice \(r(y)\) using similar triangles:
2. Define Force of Slice \(dF = (\text{Volume}) \cdot \rho \cdot g\):
3. Setup & Solve Integral \(W = \int_{0}^{10} dF \cdot \text{dist}\):
Hydrostatic Fluid Force
Pressure Under Load • Case Study 02
"Pressure at depth \(h\) is \(P = \rho g h\). Because pressure varies with depth, the total force on a vertical surface must be found by integrating over strips of area."
Case 02: Submerged Semicircle
A vertical dam wall in the shape of a semicircle of radius 5m is submerged in water such that its top diameter is at the surface. Calculate the total fluid force on one side of the dam.
Strip Width \(w(y)\):
\(w(y) = 2\sqrt{25 - y^2}\)
Pressure at depth \(y\):
\(P(y) = \rho g y\)
Final Force Calculation Area
Analytical Summary
Why is integration necessary for these physics problems? Discuss with a partner how the "Variable" nature of Force (in springs) or Pressure (in fluid) differs from the "Constant" physics models you learned in previous years.

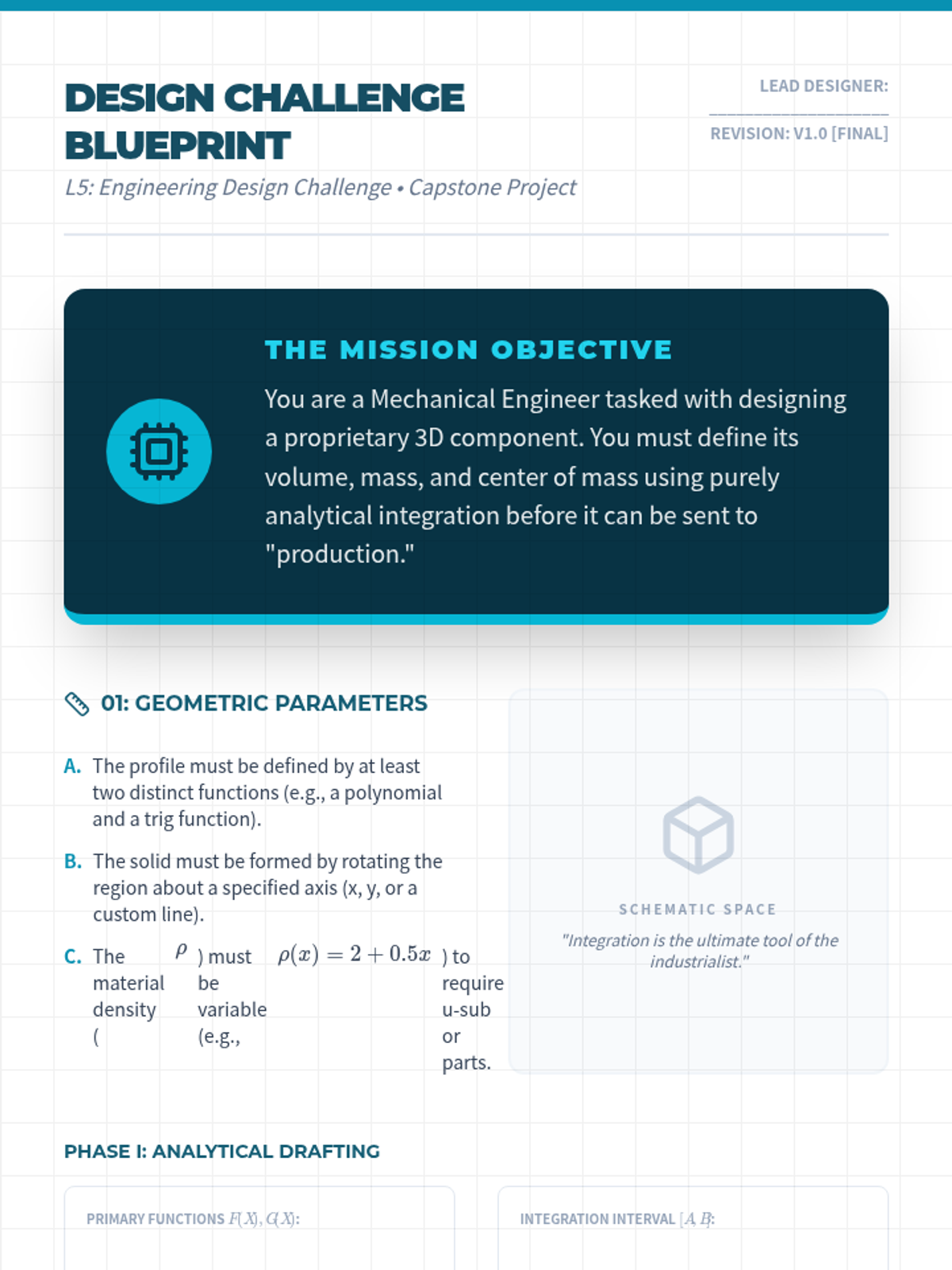

Design Blueprint Project Pack Design Challenge Blueprint
L5: Engineering Design Challenge • Capstone Project
Lead Designer: ____________________
Revision: v1.0 [Final]
The Mission Objective
You are a Mechanical Engineer tasked with designing a proprietary 3D component. You must define its volume, mass, and center of mass using purely analytical integration before it can be sent to "production."
01: Geometric Parameters
A. The profile must be defined by at least two distinct functions (e.g., a polynomial and a trig function).
B. The solid must be formed by rotating the region about a specified axis (x, y, or a custom line).
C. The material density (\(\rho\)) must be variable (e.g., \(\rho(x) = 2 + 0.5x\)) to require u-sub or parts.
Schematic Space
"Integration is the ultimate tool of the industrialist."
Phase I: Analytical Drafting
Primary Functions \(f(x), g(x)\):
Integration Interval \([a, b]\):
Coordinate Grid for Profile Draft
Phase II: Production Specs
01. Volume Determination
Disk/Washer/Shell Method Required
02. Mass Analysis (Variable \(\rho\))
Requires Advanced Integration Technique
Designer Certification
I certify that the strategies used (U-sub, Parts, etc.) are the most efficient choices for these integrands.
Seal of Approval
Project Launch Slides Final Protocol: Integration Capstone
Design
Challenge
Analytical Fabrication
Your Objective
Design a proprietary component that meets specific geometric and physical requirements.
"Calculus is the bridge between a sketch and a functional reality."
Deliverables:
Mathematical Blueprint
Volume Analysis
Mass & Center Profile
Engineering Constraints
Complexity
Must use at least 2 distinct types of functions to define the profile.
Geometry
Rotate about a custom axis. Use Disks, Washers, or Shells.
Material
Density must be variable. This requires advanced integration strategies.
The Strategy
Defense
You must defend your choice of integration technique.
Why use Parts?
Why use U-Sub?
Efficiency is the metric of success.
Design.
Engineering Rubric Guide Project Facilitation & Rubric
Lesson 5: Engineering Design Challenge
Instructional Facilitation
Day 1: Design & Drafting
Students select their functions. Encourage them to use a graphing tool (like Desmos) to ensure their functions intersect to create a closed region. Remind them: the more complex the functions, the harder the "Defense" will be.
Day 2: The Integration Lab
Students perform the analytical integration. This is where you monitor for "efficiency." If a student is doing 3 pages of By-Parts, ask them if there's a U-sub that simplifies it.
Engineering Rubric
Criteria Exceptional (4) Proficient (3) Developing (2) Mathematical Model Functions meet all complexity constraints; region is clearly bounded and defined. Functions meet most constraints; minor issues in region definition. Functions are basic power rules only; region is poorly defined. Integration Execution Flawless execution of advanced techniques (U-sub, Parts, Trig Sub). Technically correct with minor arithmetic errors; correct method choice. Conceptual errors in setting up the integral (e.g., wrong radius). Strategic Defense Clearly justifies method choice based on efficiency and integrand anatomy. Justifies choice but focus is on "how" rather than "why this choice." Weak or no justification provided for the chosen method. Technical Precision All units are correct; mass and volume calculations are logically sound. Most units correct; final specs are within reasonable physical bounds. Incorrect units or physically impossible results (e.g., negative volume).
The Production Audit
Before "Manufacturing" (final grading), students swap blueprints with a partner. The "Auditor" must verify one calculation and sign off on the method choice.
Auditor Signature: ____________________
Date: _______________
