Flower of Life Slides The Flower of Life
Hexagons, Triangles, and Circular Symmetry
Construction
Polygons
The Radius Mystery
"Why does a compass radius fit exactly six times around its own circle?"
This simple geometric fact is the foundation for some of history's most beautiful art—from the floors of Roman villas to the "Flower of Life" in ancient Egyptian temples.
Think: If the distance from the center to the edge is 'r', why is the distance between points also 'r'?
Radius (r) Side (s) = r
Essential Vocabulary
Inscribed
A polygon is inscribed if all of its vertices lie on the circumference of a circle.
Regular Polygon
A polygon where all sides and all interior angles are equal (congruent).
Chord
A line segment connecting two points on a circle. In our construction, the side of the polygon is a chord.
Radius
The distance from the center to the edge. For a hexagon, the radius = side length.
The Hexagon Algorithm
Draw a circle with a fixed radius. DO NOT CHANGE YOUR COMPASS SETTING!
Mark a starting point anywhere on the circumference.
Place the needle on your starting point and swing an arc that crosses the circle.
Move the needle to the intersection and swing another arc.
Repeat until you have 6 points.
Connect all 6 points with a straightedge.
Keep the radius locked!
From 6 to 3: The Triangle
If we connect every other point from our hexagon construction, what do we get?
An Equilateral Triangle
All interior angles = 60°
Perfect 3-part symmetry
Recursive Beauty: The Flower
What happens if we draw full circles instead of just arcs at each of the 6 points?
We create the Seed of Life, which expands into the Flower of Life.
"Geometry is the archetype of the beauty of the world." — Johannes Kepler

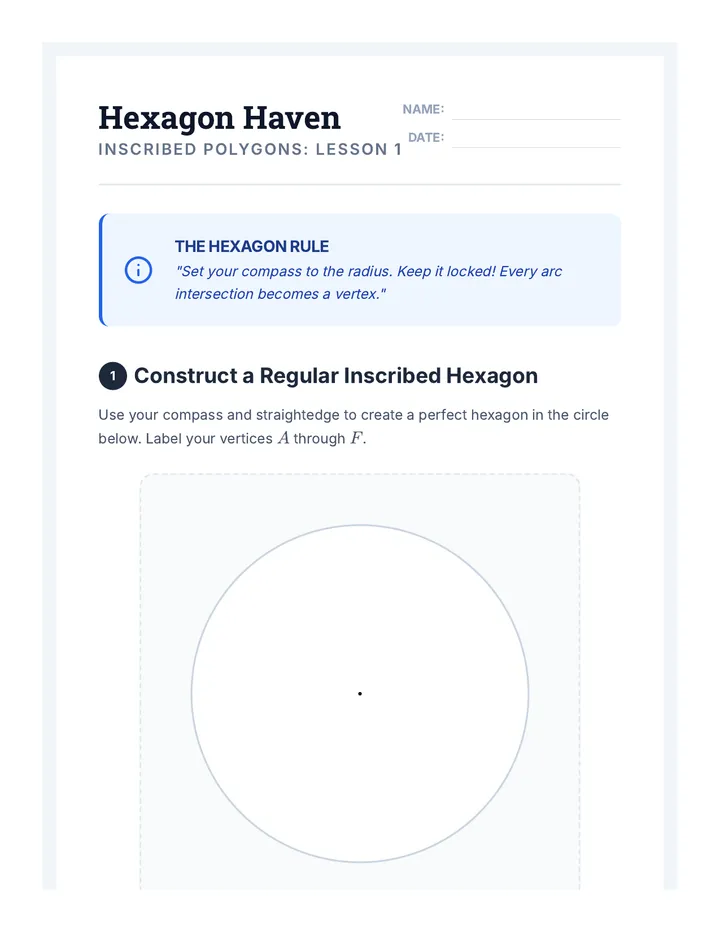

Hexagon Haven Worksheet Hexagon Haven
Inscribed Polygons: Lesson 1
Name:
Date:
The Hexagon Rule
"Set your compass to the radius. Keep it locked! Every arc intersection becomes a vertex."
1 Construct a Regular Inscribed Hexagon
Use your compass and straightedge to create a perfect hexagon in the circle below. Label your vertices \(A\) through \(F\).
2 Construct an Equilateral Triangle
Construct an inscribed triangle by using every other vertex from the hexagon method. Shading the final triangle is encouraged!
Geometrical Analysis
Question A:
A regular hexagon is composed of six identical triangles that meet at the center. What type of triangles are these, and what is their interior angle sum?
Question B:
If the radius of the circle is \(10 \text{ cm}\), what is the total perimeter of the inscribed hexagon? Explain your reasoning.
Creative Challenge: The Seed of Life
Using the same circle size from the previous page, create the "Seed of Life" pattern. Instead of connecting the 6 points with straight lines, draw 6 full circles centered at each intersection point. Use a light pencil first!
Workspace
"Precision is the soul of geometry." — Construction Mantra

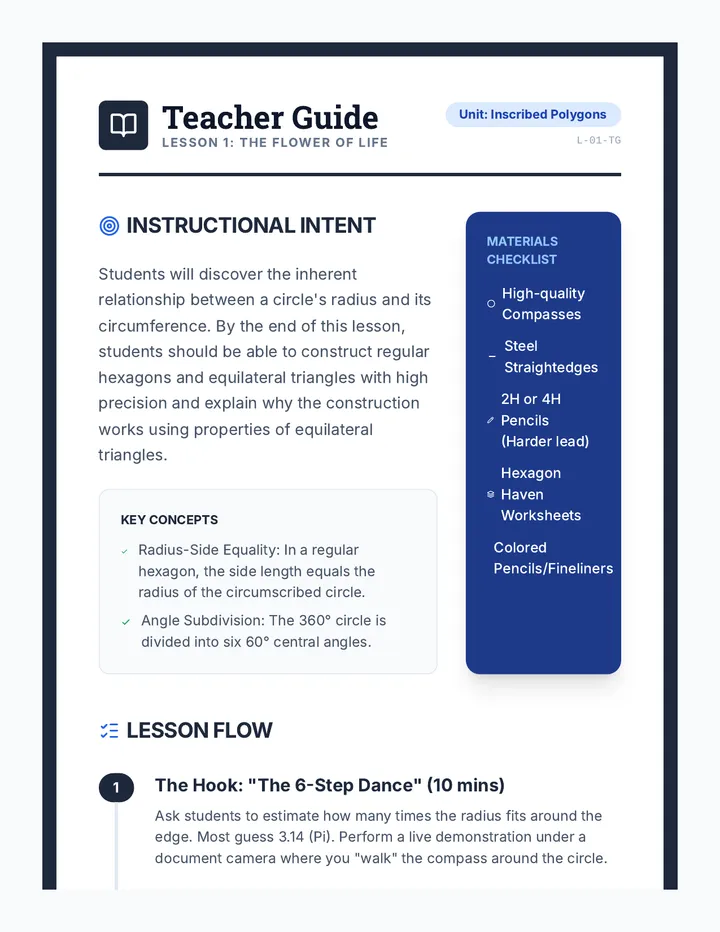

Flower of Life Teacher Guide Teacher Guide
Lesson 1: The Flower of Life
Unit: Inscribed Polygons
L-01-TG
Instructional Intent
Students will discover the inherent relationship between a circle's radius and its circumference. By the end of this lesson, students should be able to construct regular hexagons and equilateral triangles with high precision and explain why the construction works using properties of equilateral triangles.
Key Concepts
Radius-Side Equality: In a regular hexagon, the side length equals the radius of the circumscribed circle.
Angle Subdivision: The 360° circle is divided into six 60° central angles.
Materials Checklist
High-quality Compasses
Steel Straightedges
2H or 4H Pencils (Harder lead)
Hexagon Haven Worksheets
Colored Pencils/Fineliners
Lesson Flow
1
The Hook: "The 6-Step Dance" (10 mins)
Ask students to estimate how many times the radius fits around the edge. Most guess 3.14 (Pi). Perform a live demonstration under a document camera where you "walk" the compass around the circle. The reveal that it fits exactly 6 times is the lesson's central "Aha!" moment.
2
Guided Construction (15 mins)
Lead students through the hexagon construction. Teacher Tip: Emphasize "locking" the compass. Any shift in the compass hinge will cause the hexagon not to close properly at the end.
3
Synthesis & Extension (20 mins)
Transition to the Equilateral Triangle. Ask: "How can we modify our 6-point plan to make only 3 points?" Then, introduce the Seed of Life as an artistic extension.
Common Misconceptions
Students changing the compass radius after drawing the initial circle.
Not holding the compass at the handle (holding the legs changes the radius).
Misinterpreting the "Flower of Life" intersections as vertices.
Square Circle Slides Constructing the Square
Precision, Bisectors, and Right Angles
The "Box the Circle" Problem
In Lesson 1, we used the Radius to find 6 points.
The Problem: A square has 4 points. 4 does not divide evenly into our 6-point "radius walk."
How do we find 4 perfectly spaced points using only a compass and a straightedge?
The Secret: Perpendicular Bisector
To get a square, we need two things:
A Diameter (the first 2 points)
A Perpendicular Line through the center (the next 2 points)
This creates 4 right angles (\(90^\circ\)) at the center!
The Square Algorithm
Draw a circle and its diameter using your straightedge.
Label the intersections \(A\) and \(B\).
Open your compass wider than the radius.
Swing arcs from point \(A\) (above and below the center).
Swing same arcs from point \(B\).
Connect the arc intersections to find the vertical diameter.
Connect all 4 points on the circle!
90° Precision
"The perpendicular bisector is the architect's favorite tool."
The 45-45-90 Triangle
When we inscribe a square, we divide the circle into 4 identical right isosceles triangles.
The legs are the radii of the circle.
The hypotenuse is the side of the square.
Relationship: \( \text{side} = r\sqrt{2} \)
r r s = r\sqrt{2}

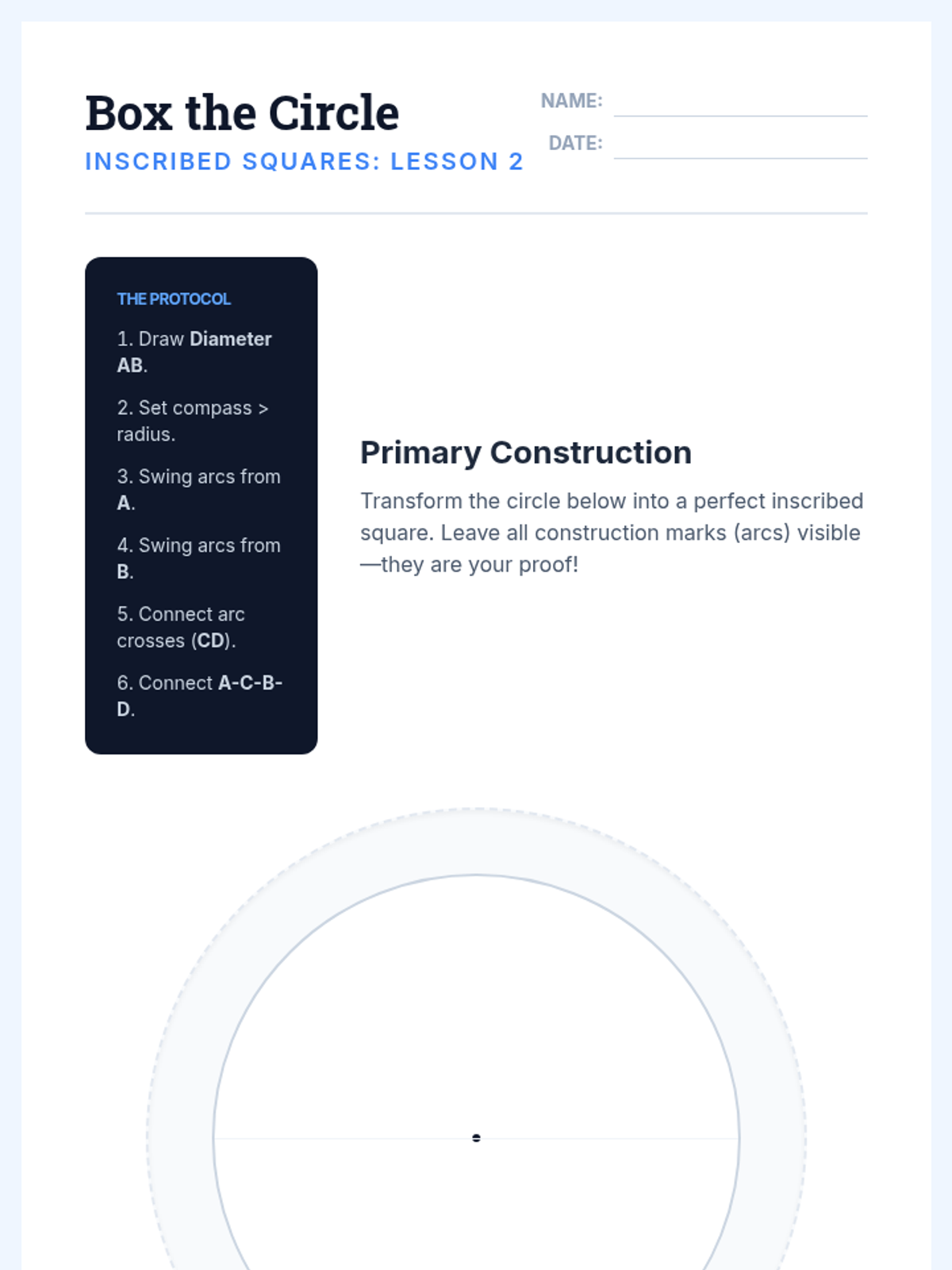

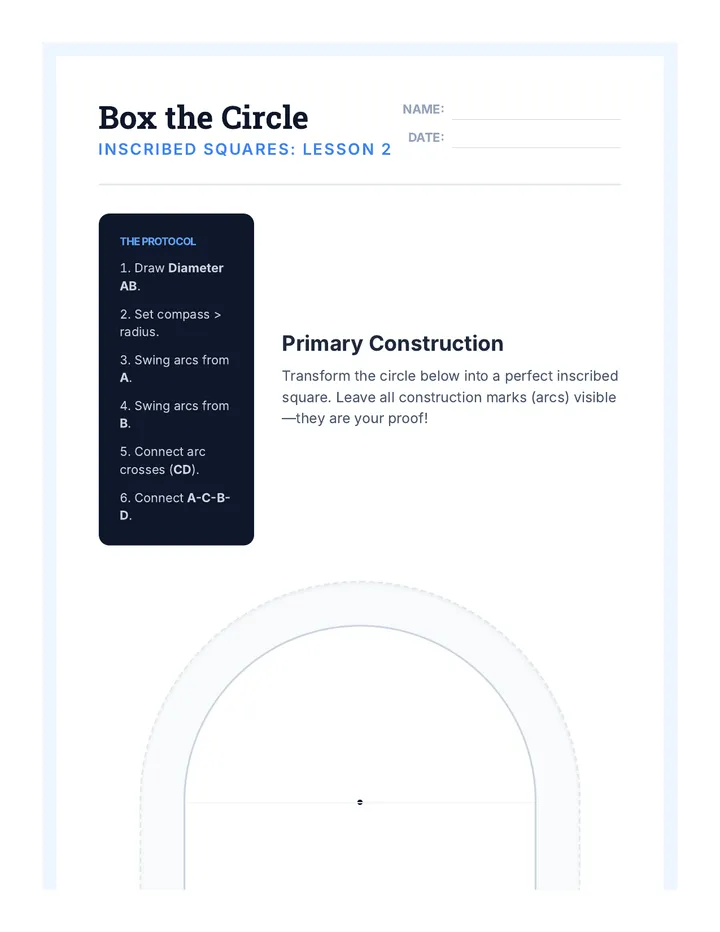

Box the Circle Worksheet Box the Circle
Inscribed Squares: Lesson 2
Name:
Date:
The Protocol
Draw Diameter AB .
Set compass > radius.
Swing arcs from A .
Swing arcs from B .
Connect arc crosses (CD ).
Connect A-C-B-D .
Primary Construction
Transform the circle below into a perfect inscribed square. Leave all construction marks (arcs) visible—they are your proof!
Workspace: 1:1 Scale
Mathematical Deep-Dive
1. Proof of Perpendicularity
Why do we need the compass set to a distance greater than the radius when swinging arcs for the perpendicular bisector? What would happen if the compass was set exactly to the radius?
2. Side Length Calculation
If the radius of your circle is \(r = 5 \text{ cm}\), use the Pythagorean Theorem to find the length of one side of your square. Round to the nearest hundredth.
Show your work below:
Calculated Side:
_________ cm
3. Geometric Patterns
Inside the circle below, construct your square. Then, use the midpoints of the square's sides to construct another square inside the first one. What is the relationship between the areas of the two squares?

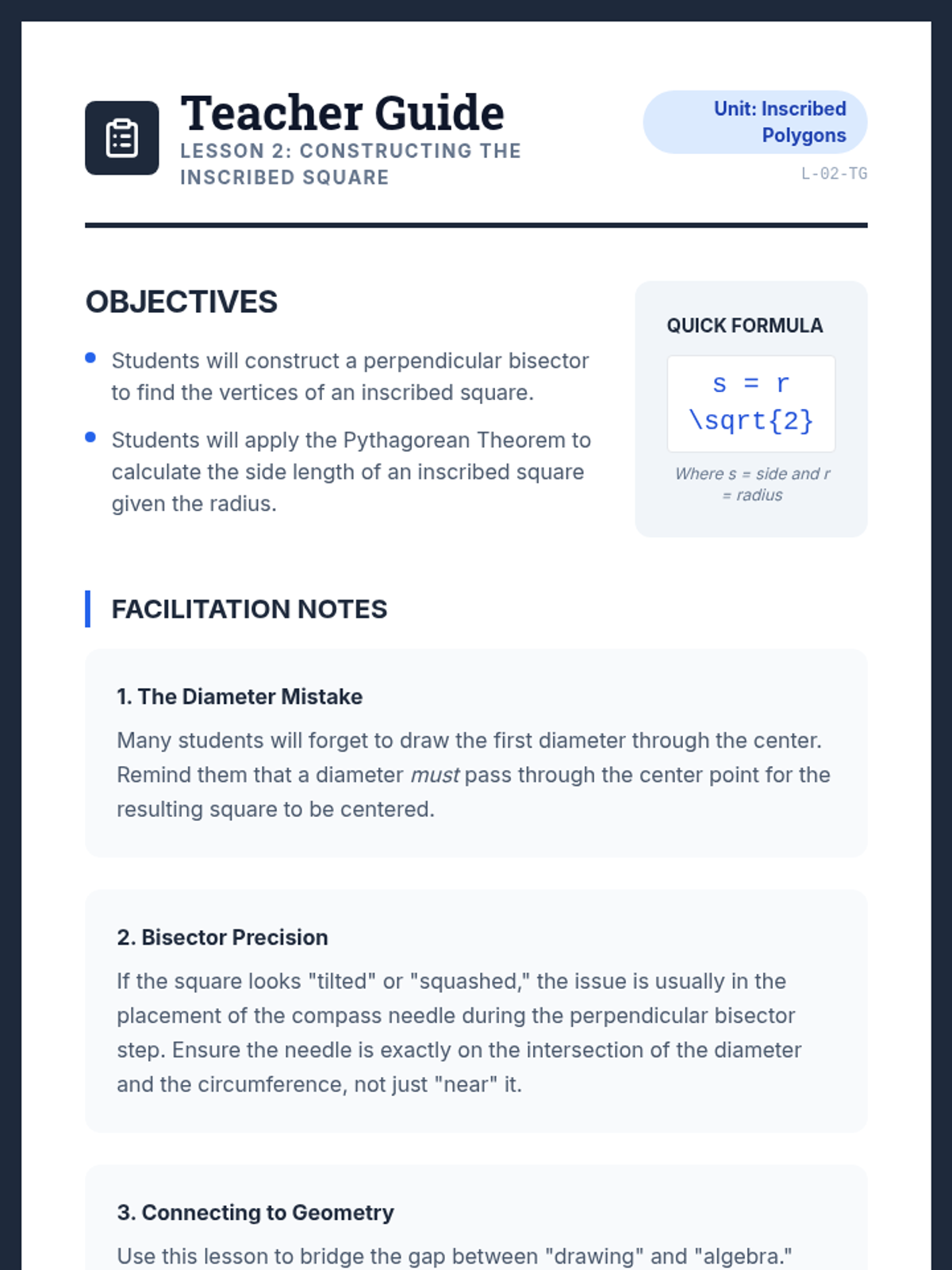

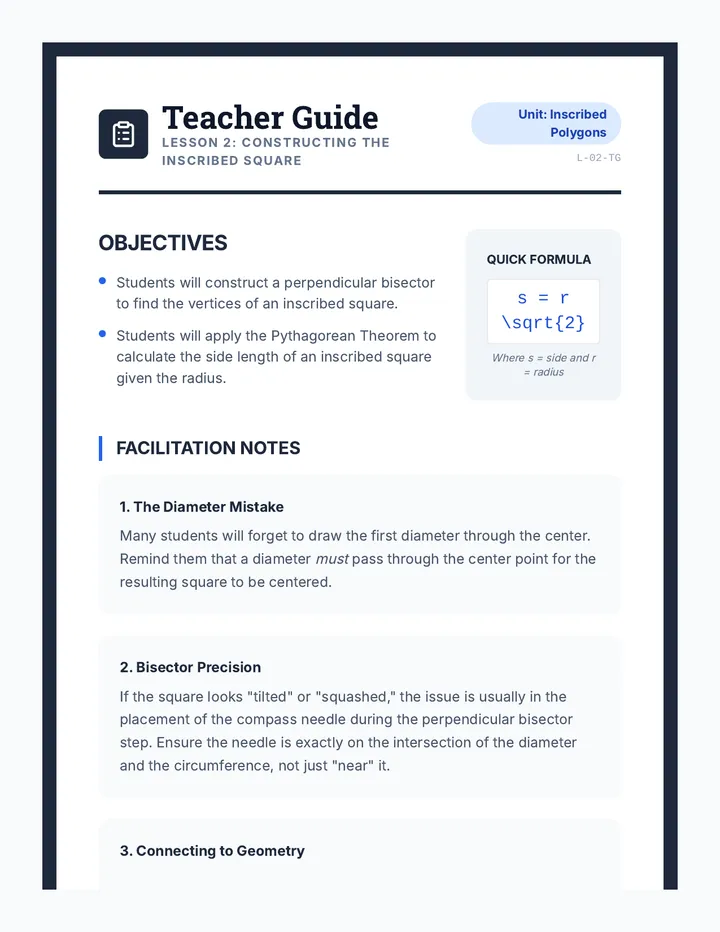

Inscribed Square Teacher Guide Teacher Guide
Lesson 2: Constructing the Inscribed Square
Unit: Inscribed Polygons
L-02-TG
Objectives
Students will construct a perpendicular bisector to find the vertices of an inscribed square.
Students will apply the Pythagorean Theorem to calculate the side length of an inscribed square given the radius.
Quick Formula
s = r \sqrt{2}
Where s = side and r = radius
Facilitation Notes
1. The Diameter Mistake
Many students will forget to draw the first diameter through the center. Remind them that a diameter must pass through the center point for the resulting square to be centered.
2. Bisector Precision
If the square looks "tilted" or "squashed," the issue is usually in the placement of the compass needle during the perpendicular bisector step. Ensure the needle is exactly on the intersection of the diameter and the circumference, not just "near" it.
3. Connecting to Geometry
Use this lesson to bridge the gap between "drawing" and "algebra." The worksheet asks students to calculate the side length. This is a perfect opportunity to review \( \sqrt{2} \) and irrational numbers.
Discussion Prompts
"How does the area of the inscribed square compare to the area of the circle?"
Encourage students to see that the square covers about 63.7% of the circle's area (\( \frac{2}{\pi} \)).
"Can we use this method to construct a regular octagon?"
This bridges to Lesson 3: doubling the sides by bisecting the arcs.
Answer Key Highlights
Worksheet Q1: If compass = radius, the arcs from A and B will not intersect (they meet exactly at the center), making a vertical line impossible to define.
Worksheet Q2: \( 5^2 + 5^2 = s^2 \rightarrow 50 = s^2 \rightarrow s \approx 7.07 \text{ cm}\).

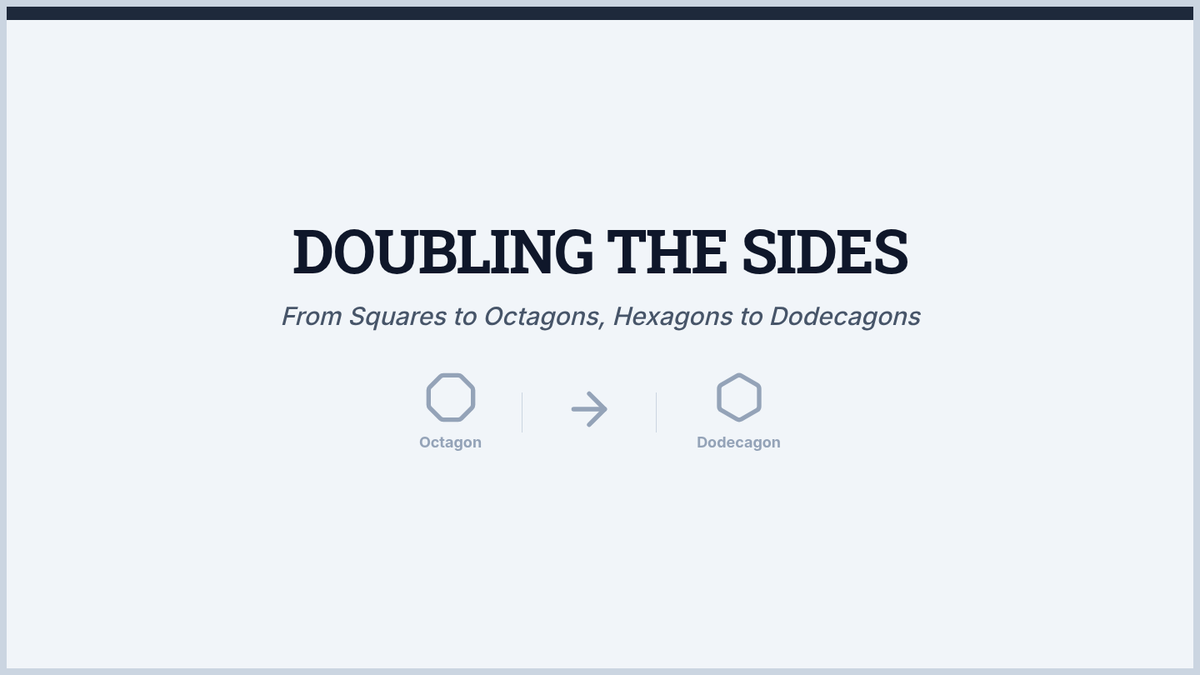

Side Doubler Slides Doubling the Sides
From Squares to Octagons, Hexagons to Dodecagons
Octagon
Dodecagon
The Stop Sign Problem
"If you can make a square, can you make a stop sign?"
A stop sign is a regular Octagon (8 sides).
Geometry is recursive. If we have a polygon with \(n\) sides, we can almost always double it to \(2n\) sides by bisecting the arcs.
Stop
The Power of the Arc Bisector
To double the sides of any polygon:
Identify the arc between two existing vertices.
Construct the perpendicular bisector of the chord between them.
Extend that line to the circle.
That point is your new vertex!
This works for 3 → 6, 4 → 8, 6 → 12, and 8 → 16.
New Vertex
The Octagon Workflow
Phase 1: The Square
Construct your vertical and horizontal diameters (4 points).
Phase 2: Bisecting
Bisect the 90° angles at the center. Use your compass to swing arcs from the square's vertices. These new lines find the 4 "midpoint" vertices.
Infinite Doubling
4
Square
8
Octagon
16
Hexadecagon
"As we continue to double the sides, the polygon looks more and more like a circle. This is how Archimedes calculated the value of Pi!"

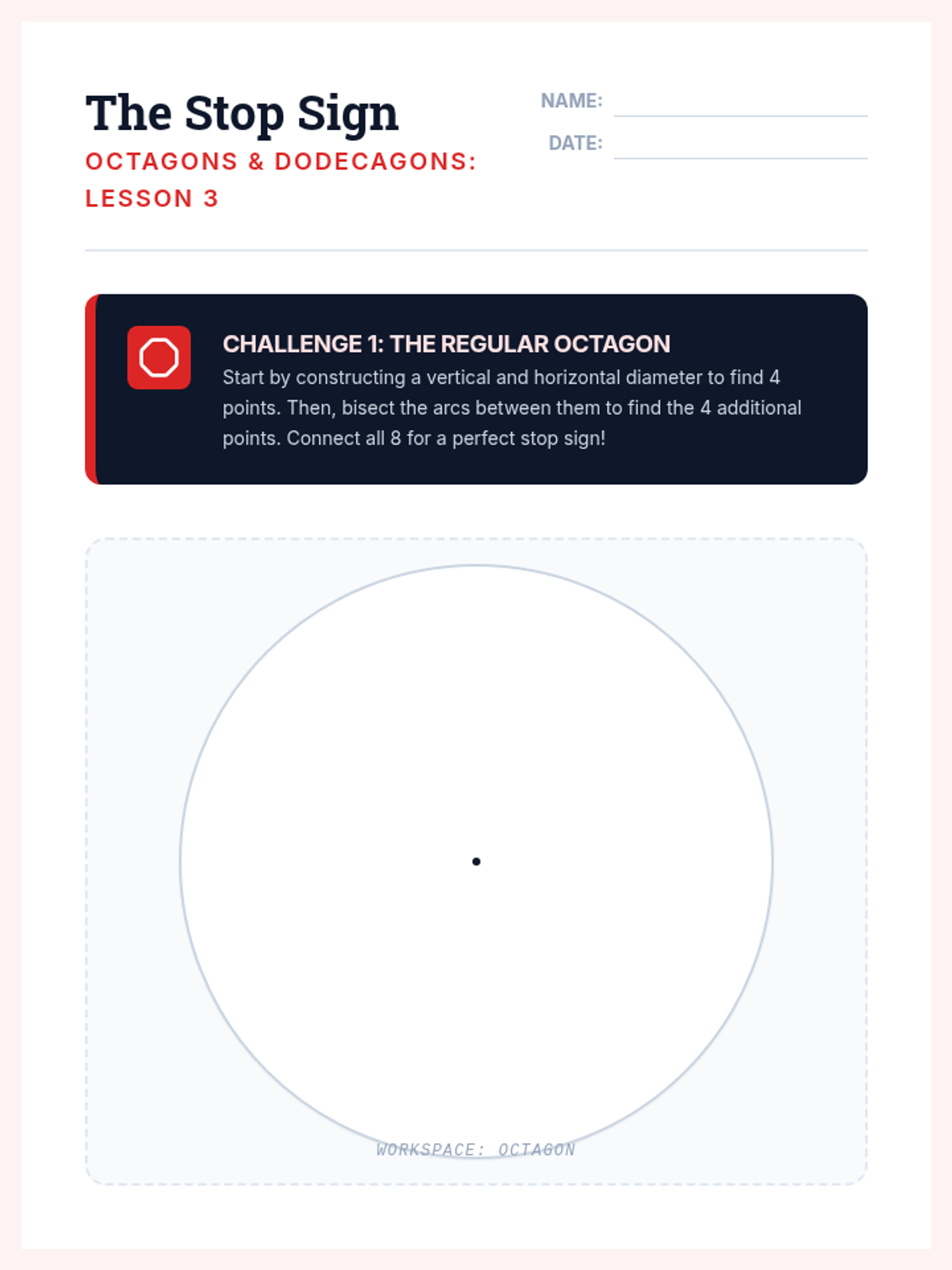

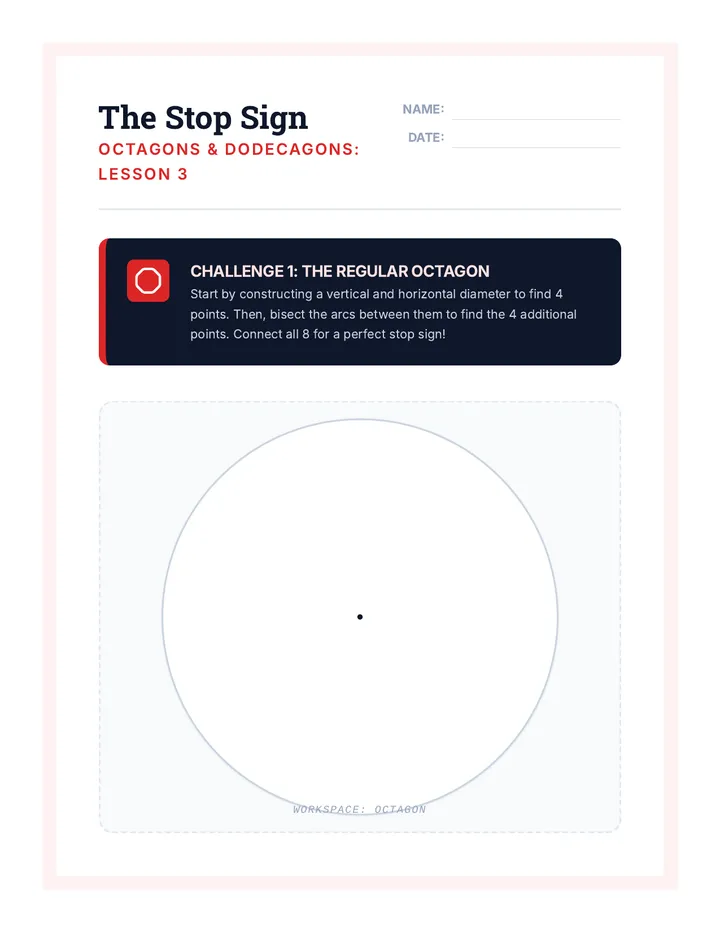

Stop Sign Worksheet The Stop Sign
Octagons & Dodecagons: Lesson 3
Name:
Date:
Challenge 1: The Regular Octagon
Start by constructing a vertical and horizontal diameter to find 4 points. Then, bisect the arcs between them to find the 4 additional points. Connect all 8 for a perfect stop sign!
Workspace: Octagon
Challenge 2: The Dodecagon
A dodecagon has 12 sides. Construct a hexagon first (using the radius method), then bisect each of the 6 arcs to find 6 more vertices. Precision is key!
Workspace: Dodecagon
Geometrical Reflection
Interior Angles
As the number of sides doubles, what happens to the measure of each interior angle? Use the formula \( (n-2)180 / n \) to compare a square, an octagon, and a 16-gon.
Square 90°
Octagon
16-Gon
The Limiting Shape
Imagine we repeat the "doubling" process 100 times. Describe the visual and mathematical appearance of the resulting polygon. What does it become?
Write your response here...
Inscribed Polygons Series

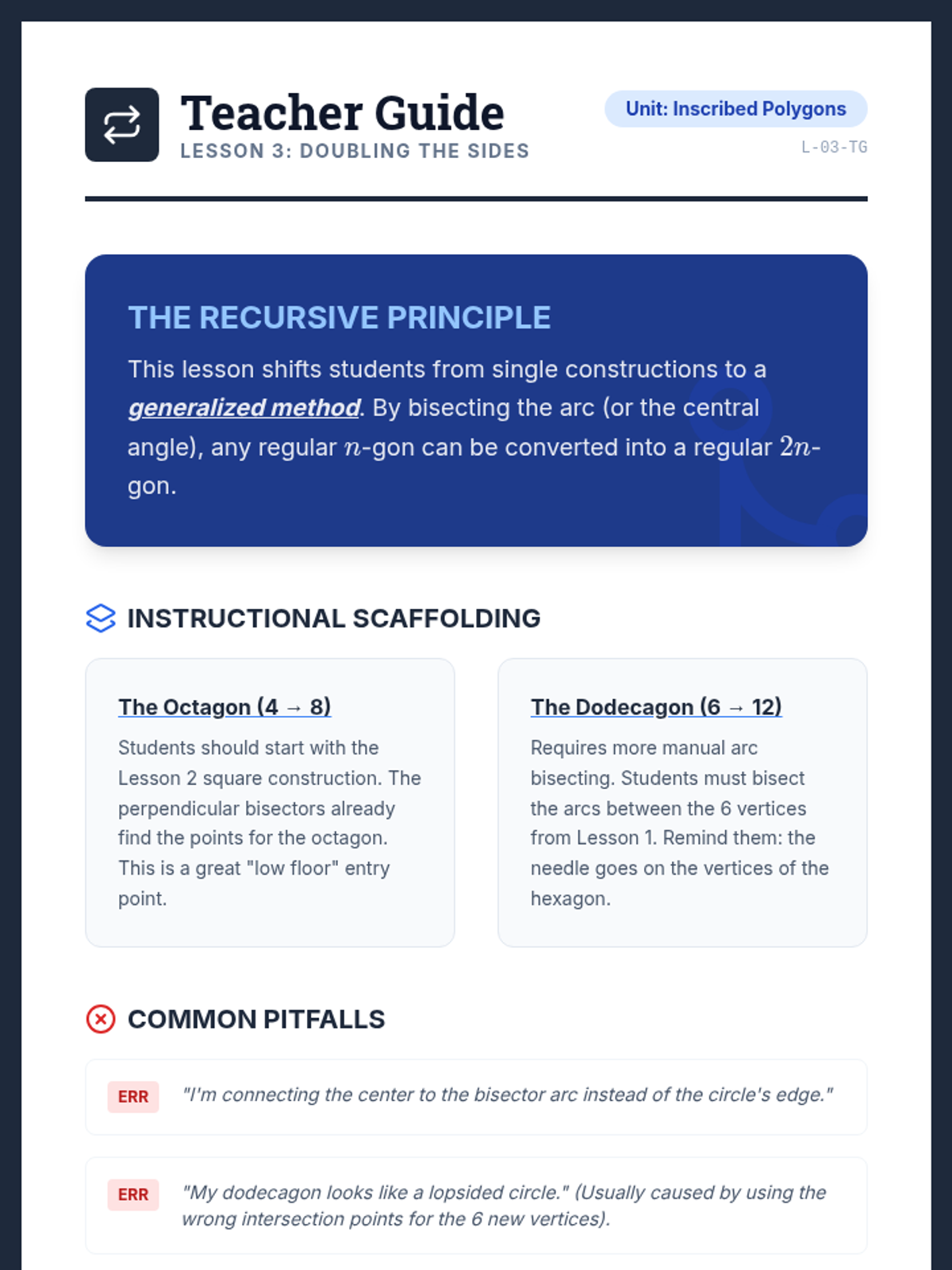

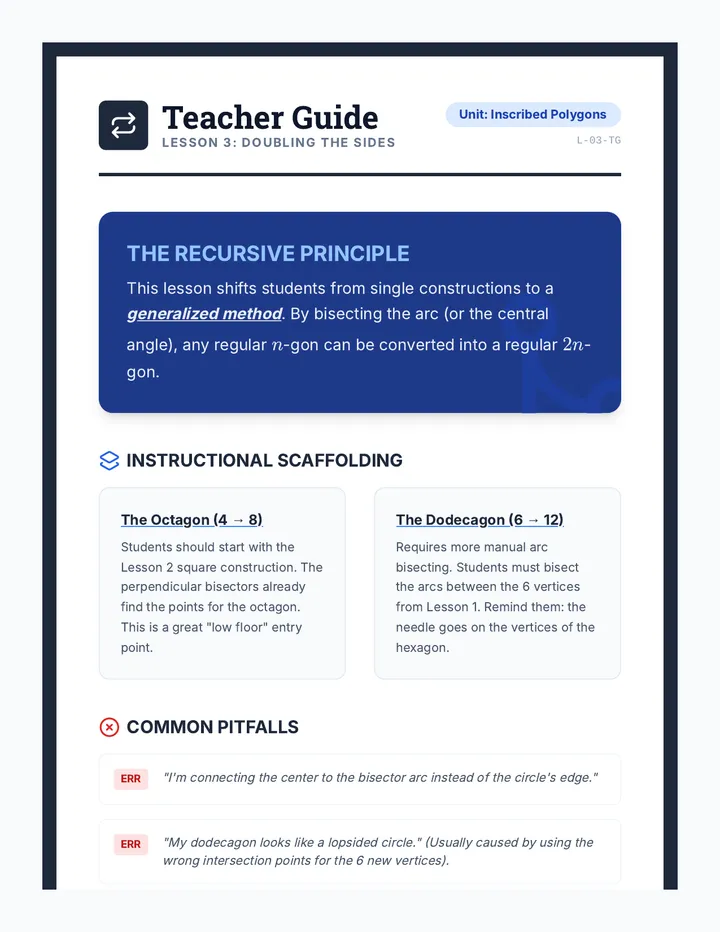

Side Doubler Teacher Guide Teacher Guide
Lesson 3: Doubling the Sides
Unit: Inscribed Polygons
L-03-TG
The Recursive Principle
This lesson shifts students from single constructions to a generalized method. By bisecting the arc (or the central angle), any regular \(n\)-gon can be converted into a regular \(2n\)-gon.
Instructional Scaffolding
The Octagon (4 → 8)
Students should start with the Lesson 2 square construction. The perpendicular bisectors already find the points for the octagon. This is a great "low floor" entry point.
The Dodecagon (6 → 12)
Requires more manual arc bisecting. Students must bisect the arcs between the 6 vertices from Lesson 1. Remind them: the needle goes on the vertices of the hexagon.
Common Pitfalls
ERR
"I'm connecting the center to the bisector arc instead of the circle's edge."
ERR
"My dodecagon looks like a lopsided circle." (Usually caused by using the wrong intersection points for the 6 new vertices).
Calculus Connection (Archimedes)
Mention that Archimedes used a 96-gon to estimate Pi. He calculated the perimeter of the inscribed and circumscribed 96-gons to find a range for the circle's circumference. Lower Bound < Pi < Upper Bound
Answer Key Highlights
Octagon Angle: 135°
16-Gon Angle: 157.5°
Star Power Slides Star Power
The Mysterious Pentagon & The Golden Ratio
\phi \approx 1.618
The Pentagon Puzzle
The 5-pointed star is everywhere—on flags, in nature, in art.
The Challenge: A circle has 360°. 360 divided by 5 is 72°.
Unlike 60° (radius method) or 90° (bisector method), 72° is notoriously difficult to "lock in" with just a compass.
Cracking the Code: The Algorithm
Draw circle with perpendicular diameters.
Bisect the radius \(OA\) to find point \(M\).
Draw a line from \(M\) to the top vertex \(V\).
Bisect the angle \(\angle VMA\) to find point \(Q\).
Draw a vertical line from \(Q\) to the circle. This is your second vertex!
Use that distance to step around the circle.
Complex Logic →
\phi
The Golden Connection
The regular pentagon is the geometric home of the Golden Ratio (\phi).
The ratio of a diagonal to a side is exactly \(\phi\).
This ratio appears in seashells, galaxies, and human faces.
\frac{\text{Diagonal}}{\text{Side}} = \frac{1 + \sqrt{5}}{2}
DIAGONAL SIDE
Can You Crack the Code?
The pentagon construction is the "Master Class" of geometric drawings. One millimeter of error at the start will leave your star broken at the end.
Begin Construction Protocol

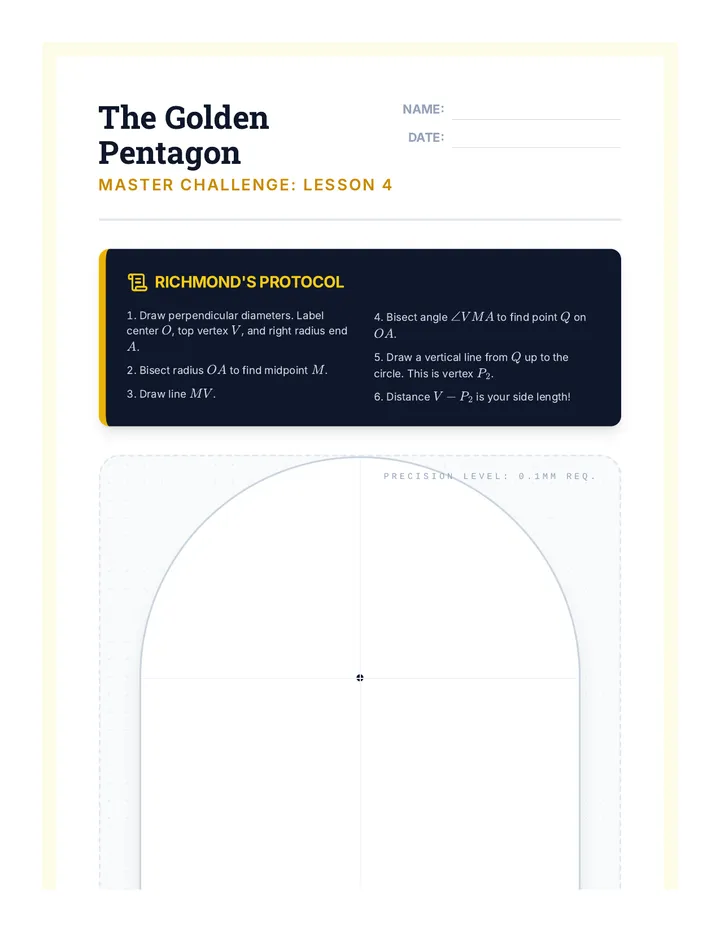

Pentagon Puzzle Worksheet The Golden Pentagon
Master Challenge: Lesson 4
Name:
Date:
Richmond's Protocol
Draw perpendicular diameters. Label center \(O\), top vertex \(V\), and right radius end \(A\).
Bisect radius \(OA\) to find midpoint \(M\).
Draw line \(MV\).
Bisect angle \(\angle VMA\) to find point \(Q\) on \(OA\).
Draw a vertical line from \(Q\) up to the circle. This is vertex \(P_2\).
Distance \(V-P_2\) is your side length!
Precision Level: 0.1mm Req.
The Anatomy of \(\phi\)
1. Construct the Pentagram
Once your pentagon is complete on Page 1, transfer the 5 vertices to the circle on the right and connect them to form a 5-pointed star (Pentagram). Shading is encouraged.
2. The Golden Ratio Measurement
Using a metric ruler, measure the following segments from your pentagram on the first page:
Length of Diagonal (d):
Length of Side (s):
Calculate the Ratio
d / s = ?
__________
Ideal Result: 1.618...
3. Philosophical Geometry
Historically, the Pythagoreans were obsessed with the pentagram, keeping it as a secret symbol. Based on your construction today, why do you think this shape was considered more "mystical" or "advanced" than a simple square or hexagon?

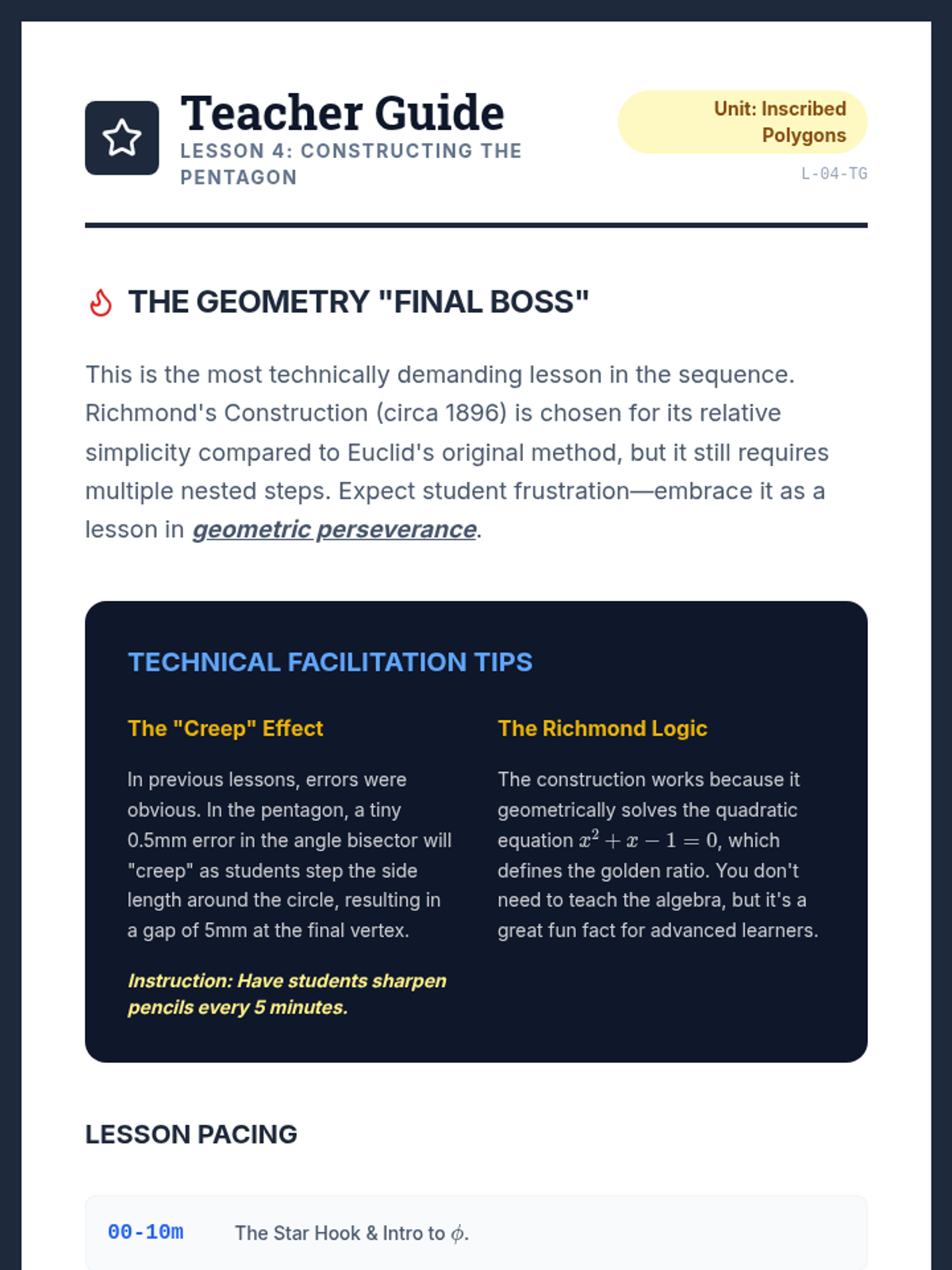

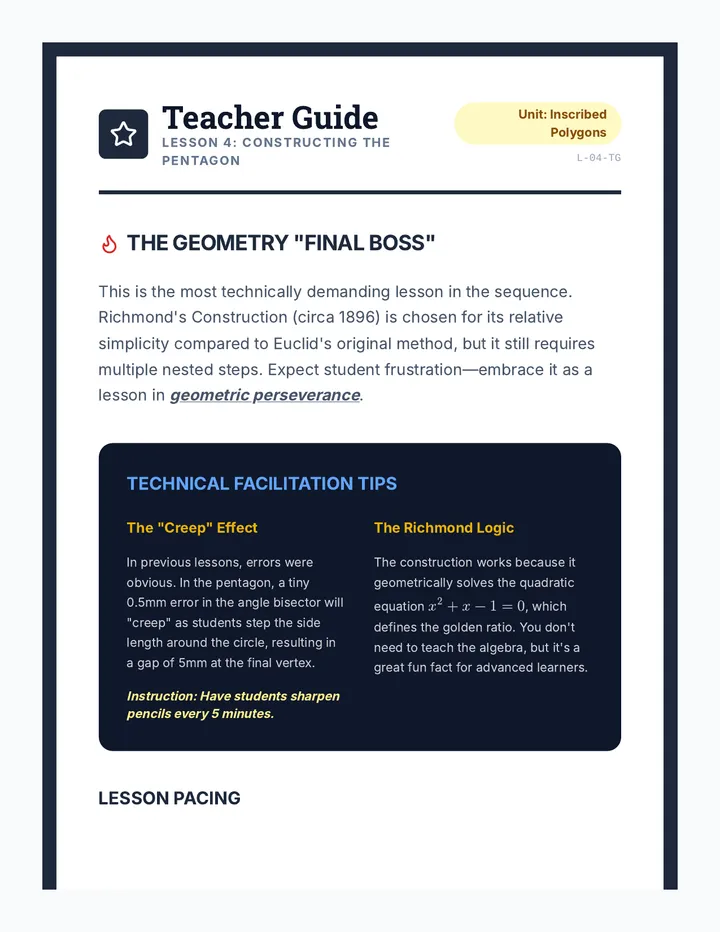

Pentagon Teacher Guide Teacher Guide
Lesson 4: Constructing the Pentagon
Unit: Inscribed Polygons
L-04-TG
The Geometry "Final Boss"
This is the most technically demanding lesson in the sequence. Richmond's Construction (circa 1896) is chosen for its relative simplicity compared to Euclid's original method, but it still requires multiple nested steps. Expect student frustration—embrace it as a lesson in geometric perseverance.
Technical Facilitation Tips
The "Creep" Effect
In previous lessons, errors were obvious. In the pentagon, a tiny 0.5mm error in the angle bisector will "creep" as students step the side length around the circle, resulting in a gap of 5mm at the final vertex.
Instruction: Have students sharpen pencils every 5 minutes.
The Richmond Logic
The construction works because it geometrically solves the quadratic equation \( x^2 + x - 1 = 0 \), which defines the golden ratio. You don't need to teach the algebra, but it's a great fun fact for advanced learners.
Lesson Pacing
00-10m
The Star Hook & Intro to \(\phi\).
10-35m
Step-by-Step Guided Construction (Teacher leads under camera).
35-50m
Independent Practice & measurement of the Golden Ratio.
Support
Provide a pre-bisected radius and perpendicular diameters to save time. Focus on the final "stepping" phase.
Challenge
Ask students to construct a Decagon (10 sides) by bisecting the 5 arcs of their pentagon.
Master Mandala Slides Mastering the Mandala
Synthesis, Symmetry, and Sacred Geometry
The Rose Window Inspiration
In the Middle Ages, architects designed Rose Windows without computers.
They used the exact same tools we've been using: a compass and a straightedge. By layering inscribed polygons, they created complex, multi-layered symmetries.
"Geometry is not just a subject; it is a language of visual harmony."
Project Requirements
Geometric Layers
At least 3 different polygon types.
At least 1 arc-bisecting layer (Octagon or Dodecagon).
Perfect central alignment.
Artistic Finish
High-precision ink or fine-liner finish.
Symmetry-based color scheme.
Erased construction lines (except final shapes).
Evaluation Rubric
Criteria Distinguished (4) Proficient (3) Precision All intersections meet exactly; lines are sharp and clear. Minor alignment errors (<2mm); mostly sharp lines. Complexity Integration of 4+ polygons; nested radial designs. Integration of 3 polygons; standard layered design. Symmetry Flawless rotational and reflective symmetry. Mostly symmetrical; minor inconsistencies in color/spacing.
Design Your Destiny
Today is about the fusion of math and imagination. Use your compass as a paintbrush and your straightedge as a guide.
START SKETCHING
Mandala Maker Project Guide Mandala Maker
Project Guide: Lesson 5
Student:
The Objective
You are commissioned to design a geometric medallion for a new architectural landmark. Your design must be constructed entirely using compass and straightedge techniques learned in this unit. The beauty of your mandala comes from the layered precision of nested polygons.
Polygon Menu
Equilateral Triangle (3)
Inscribed Square (4)
Regular Hexagon (6)
Regular Octagon (8)
Regular Pentagon (5)
Dodecagon (12)
Required Elements
3 different inscribed polygons.
1 central starting circle.
Minimum 2 colors used to highlight symmetry.
All construction marks erased.
Design Sketchpad
Concept A
Concept B
Proceed to the next page for your final drafting canvas.
Final Drafting Canvas
"Precision is the foundation of beauty."
DRAFT
FINAL
Self-Check Checklist:
☐ COMPASS LOCKED? ☐ PENCIL SHARP? ☐ 3+ POLYGONS?
SEQ-GEOM-MANDALA-V1.0

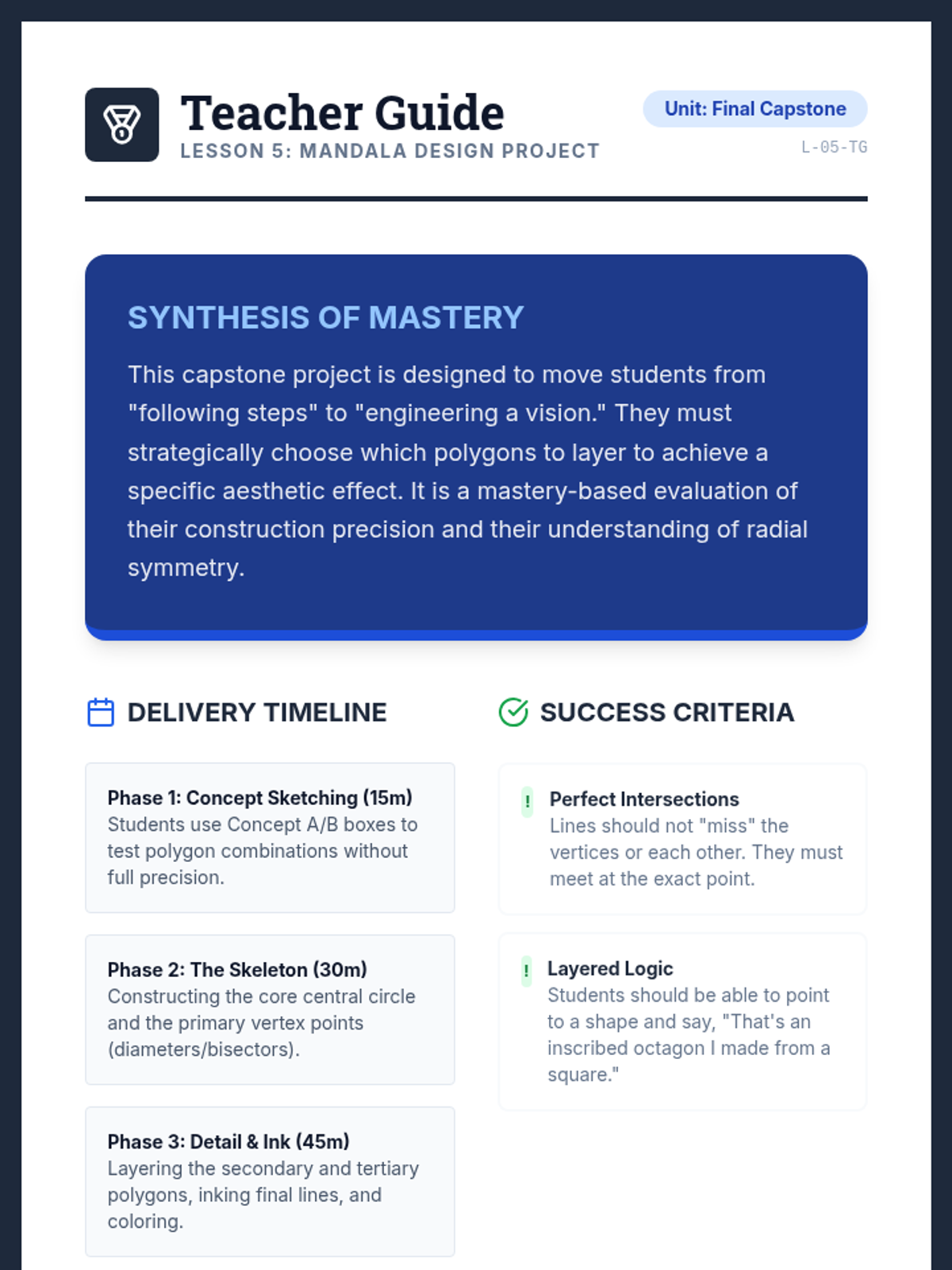

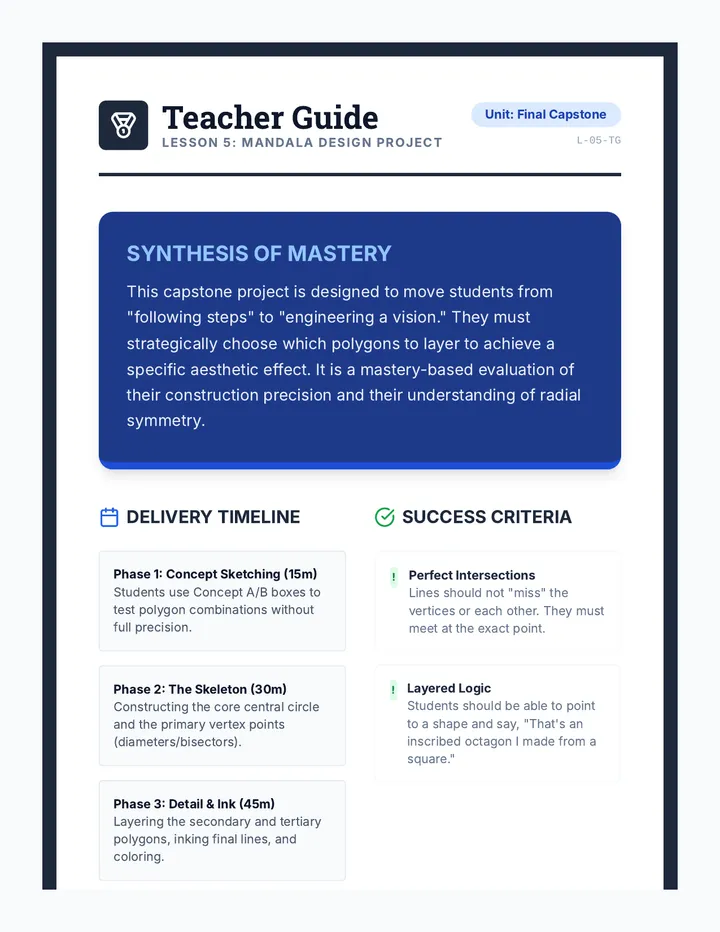

Mandala Teacher Guide Teacher Guide
Lesson 5: Mandala Design Project
Unit: Final Capstone
L-05-TG
Synthesis of Mastery
This capstone project is designed to move students from "following steps" to "engineering a vision." They must strategically choose which polygons to layer to achieve a specific aesthetic effect. It is a mastery-based evaluation of their construction precision and their understanding of radial symmetry.
Delivery Timeline
Phase 1: Concept Sketching (15m) Students use Concept A/B boxes to test polygon combinations without full precision.
Phase 2: The Skeleton (30m) Constructing the core central circle and the primary vertex points (diameters/bisectors).
Phase 3: Detail & Ink (45m) Layering the secondary and tertiary polygons, inking final lines, and coloring.
Success Criteria
!
Perfect Intersections
Lines should not "miss" the vertices or each other. They must meet at the exact point.
!
Layered Logic
Students should be able to point to a shape and say, "That's an inscribed octagon I made from a square."
The "Challenge" Tier
Encourage advanced students to use the **Inscribed Pentagon** (Lesson 4) as their primary base. Its 72° symmetry creates much more complex intersections with the 60°/90° polygons.
Exhibition Idea
Once finished, have students display their mandalas on the wall. Ask peers to "reverse-engineer" a classmate's mandala by identifying which polygons were used to build it.
