Fence The Field Worksheet Fence The Field
Geometric Optimization // Lesson 1: Isoperimetric Inequality
Student Record
DATE
THE SCENARIO
You have exactly 120 feet of high-durability fencing. You need to enclose a garden area to maximize the amount of planting space. Your task is to investigate which regular polygon shape provides the greatest area for this fixed perimeter.
Phase 1: The Rectangular Constraint
Complete the table for rectangles with a fixed perimeter of 120 ft.
Width (w) Length (l) Perimeter (P) Area (A) 10 ft 50 ft 120 ft 500 ft² 20 ft 40 ft 120 ft 30 ft (Square) 30 ft 120 ft 40 ft 20 ft 120 ft 50 ft 10 ft 120 ft
Initial Observation:
Phase 2: Expanding the Geometry
Calculate the area for regular polygons with Perimeter = 120 ft. Use the formula: \( A = \frac{P^2}{4n \tan(\pi/n)} \) where \( n \) is the number of sides.
Shape (n) Side Length (s) Total Area (A) Equilateral Triangle (n=3) 40 ft Square (n=4) 30 ft 900 ft² Regular Hexagon (n=6) 20 ft Regular Octagon (n=8) 15 ft Circle (\( n \to \infty \)) Circumference = 120
Synthesis & Inquiry
1. The Trend Analysis
As the number of sides (\(n\)) of the regular polygon increases while the perimeter remains constant, what happens to the area? Why does this occur geometrically?
2. The Circle's Edge
Calculate the area of the circle with a circumference of 120 ft. Then, calculate how much "extra" area the circle provides compared to the square garden.
Work Area: Circle Area
Work Area: Difference
3. Real-World Constraints
If circles are the most "efficient" for area, why aren't all gardens or building footprints circular? List two practical or structural reasons a builder might choose a square over a circle despite the area loss.
1
2
The Challenge Problem
Suppose you must build your 120 ft garden against a straight stone wall (meaning you only need to fence three sides if it's a rectangle). Does the "Square is best" rule still apply? Sketch and calculate the dimensions that would maximize your area in this new constraint.
Fence The Field Slides Lesson 01 // Geometry
Fence The Field
Investigating the Isoperimetric Inequality and the search for geometric perfection.
The Dilemma
You are given exactly 120 feet of fencing.
"Which shape allows for the absolute maximum planting area?"
Think quickly: Is it a long skinny rectangle? A perfect square? A triangle? A circle?
The Math of Efficiency
Fixed Perimeter
When the boundary length is limited, the "efficiency" of a shape is measured by its Area-to-Perimeter ratio .
\( E = \frac{4\pi A}{P^2} \)
The Isoperimetric Inequality
Mathematically states that for any closed curve with perimeter \( P \) and area \( A \):
\( 4\pi A \le P^2 \)
Equality holds only when the shape is a circle.
If Circles are Best...
// Why Square Boxes?
01
Space Utility
Round shapes leave "dead space" when packed together or against walls.
02
Complexity
Straight lines are easier and cheaper to manufacture, cut, and assemble.
03
Human Interface
Our world—roads, furniture, property lines—is built on a 90-degree grid.
Fence The Field Teacher Guide Teacher Guide
Lesson 1: Isoperimetric Inequality
GEOM-OPT-01-TG
Lesson Goal
Students will identify that among all regular polygons with a fixed perimeter, the shape with the most sides (approaching a circle) maximizes the area.
Key Concepts
Isoperimetric Inequality: For a given perimeter, the circle encloses the maximum area.Efficiency Ratio: Understanding that \( 4\pi A / P^2 \) is a measure of geometric compactness.Limit Behavior: Exploring how area changes as \( n \to \infty \) for regular n-gons.
Pacing (60 min)
Hook/Slides10 min
Phase 1 (Rects)10 min
Phase 2 (Polys)15 min
Synthesis15 min
Debrief10 min
Required Tools
• Scientific Calculators
• "Fence the Field" Worksheet
• Projection for Slides
Discussion Scaffolding
Misconception Alert
Students often assume that any rectangle with the same perimeter has the same area. Reference the first table to debunk this immediately. Highlight that as the dimensions get "longer and skinnier," area is lost.
The "n-gon" Connection
Encourage students to look at the vertices. As sides increase, the "corners" are pushed further out relative to the center, filling more of the space that the perimeter encompasses.
Quick Key (P = 120 ft)
Rectangles:
• 10x50 = 500 ft²
• 20x40 = 800 ft²
• 30x30 = 900 ft² (MAX RECT)
Regular Polygons:
• Triangle: ~692.8 ft²
• Hexagon: ~1039.2 ft²
• Circle: ~1145.9 ft²
Challenge Problem Strategy (The Wall Problem)
In the challenge problem, students are fencing 3 sides of a rectangle against a wall. Let the side perpendicular to the wall be \( x \) and the side parallel to the wall be \( y \).
Perimeter: \( 2x + y = 120 \)
Substituting \( y = 120 - 2x \):
The maximum occurs at the vertex of the parabola:
Optimal Dimensions: 30 ft x 60 ft
Wall
30 x 60 x 30
Exit Ticket Question:
Flatness Factor Slides Lesson 02 // 3D Geometry
The Flatness Factor
Analyzing Surface Area to Volume ratios in Prisms and the Biology of Scale.
The Cell Problem
Why don't we have single-cell organisms the size of basketballs?
As a cell grows, its Volume (demand for nutrients) grows faster than its Surface Area (ability to absorb nutrients).
Eventually, the cell starves from the inside out.
1000x Volume
Scaling Crisis
The Efficiency Metric
SA:V Ratio
The amount of Surface Area available per unit of Volume.
\( R = \frac{SA}{V} \)
Higher Ratio = More "Surface" per "Stuff"
High Ratio (Flat)
Excellent for cooling/exchange. Bad for storage efficiency.
Low Ratio (Compact)
Excellent for heat retention and material saving.
The Prism Challenge
Case A
The Cube
Dimensions: 4x4x4
Ratio: 1.5
Case B
The Slab
Dimensions: 8x8x1
Ratio: 2.5
Case C
The Needle
Dimensions: 16x2x2
Ratio: 2.125
Conclusion: To minimize material cost (Surface Area) for a fixed volume, we must drive the shape toward Perfect Cubism.

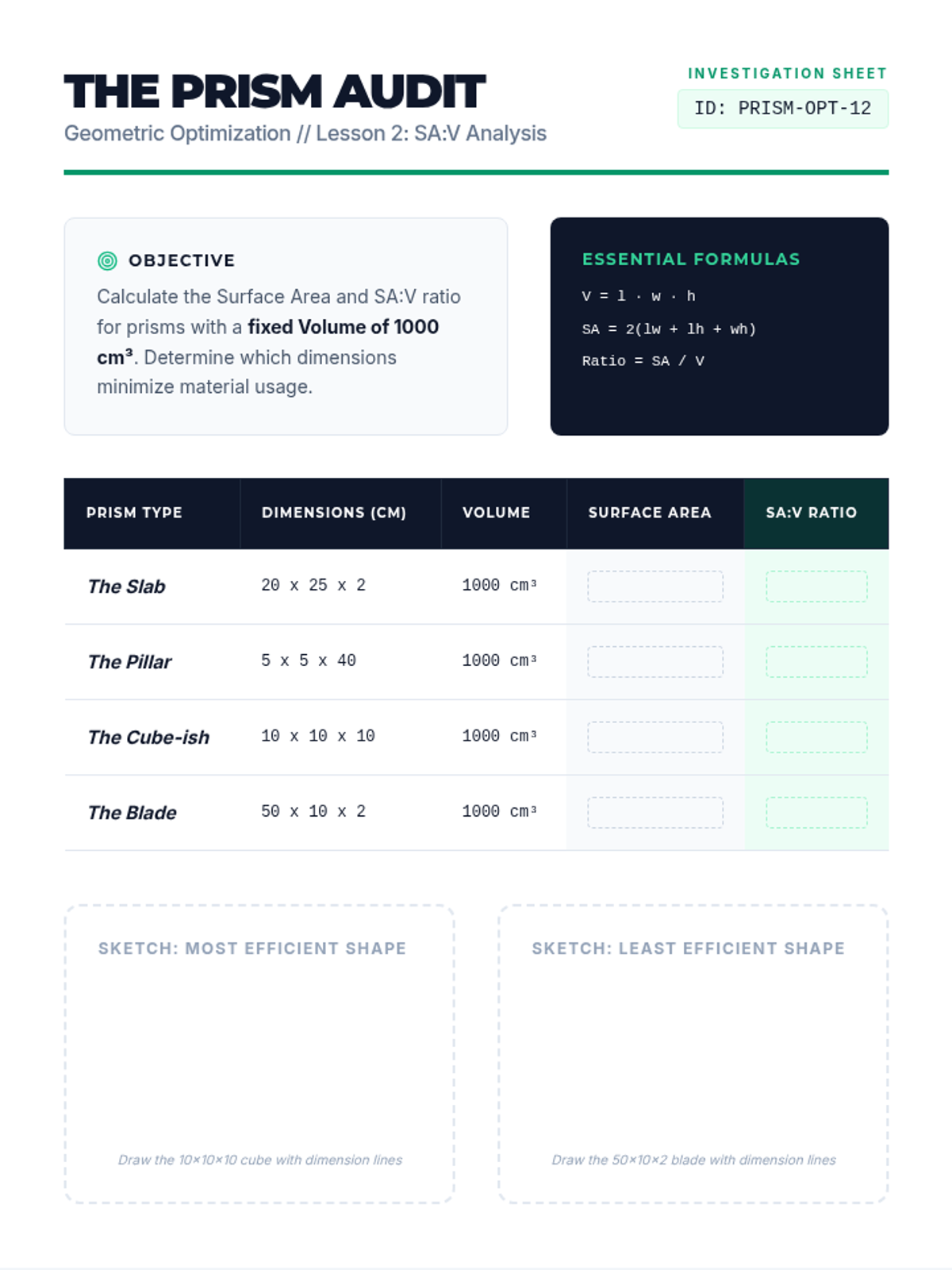

Prism Audit Worksheet The Prism Audit
Geometric Optimization // Lesson 2: SA:V Analysis
Investigation Sheet
ID: PRISM-OPT-12
Objective
Calculate the Surface Area and SA:V ratio for prisms with a fixed Volume of 1000 cm³. Determine which dimensions minimize material usage.
Essential Formulas
V = l · w · h
SA = 2(lw + lh + wh)
Ratio = SA / V
Prism Type Dimensions (cm) Volume Surface Area SA:V Ratio The Slab 20 x 25 x 2 1000 cm³
|
| The Pillar | 5 x 5 x 40 | 1000 cm³ |
|
|
| The Cube-ish | 10 x 10 x 10 | 1000 cm³ |
|
|
| The Blade | 50 x 10 x 2 | 1000 cm³ |
|
|
Sketch: Most Efficient Shape
Draw the 10x10x10 cube with dimension lines
Sketch: Least Efficient Shape
Draw the 50x10x2 blade with dimension lines
Critical Analysis
1. Identifying the Trend
Based on your data, what happens to the SA:V ratio as the prism becomes more elongated or "stretched"? How does this correlate with the amount of cardboard needed to package the 1000 cm³ product?
2. Packaging Strategy
If you were a manufacturing manager tasked with reducing costs, which of the four prism types from Page 1 would you choose? Justify your answer using the numerical data you calculated.
3. The Sphere Comparison
The volume of a sphere is \( V = \frac{4}{3}\pi r^3 \). Calculate the radius of a sphere with a volume of 1000 cm³. Then find its Surface Area (\( 4\pi r^2 \)) and its SA:V ratio. How does it compare to the most efficient prism?
Efficiency Rule of Thumb:
The closer a 3D solid is to a Sphere, the lower its SA:V ratio will be. In the world of prisms, this means a Cube is always the most material-efficient rectangular prism.
Soup Can Optimization Slides Lesson 03 // Optimization
The Soup Can Problem
Modeling surface area as a function of radius to find the most cost-effective cylinder.
The Design Quest
You need to manufacture a cylinder that holds exactly 400 mL of soup.
Metal costs money. To maximize profit, you must use the least amount of metal possible.
What is the optimal Radius (\(r\)) and Height (\(h\))?
V = 400
Building the Model
Step 1: The Constraint
Volume of a cylinder:
\( V = \pi r^2 h = 400 \)
Solve for \(h\):
\( h = \frac{400}{\pi r^2} \)
Step 2: The Target
Surface Area to minimize:
\( SA = 2\pi r^2 + 2\pi r h \)
Substitute \(h\):
\( SA(r) = 2\pi r^2 + \frac{800}{r} \)
The Reveal
By finding the minimum of the function \( SA(r) = 2\pi r^2 + 800/r \), we discover a universal geometric truth for cylinders:
H = 2R
Height = Diameter
A cylinder is most efficient when its profile is a square.
Soup Can Optimization Lab Optimal Cylinder Lab
Geometric Optimization // Lesson 3: Modeling & Calculus
Student Engineering Log
1 Function Derivation
Goal: Create a function for the Surface Area (\(SA\)) of a cylinder in terms of only the radius (\(r\)), given a fixed Volume (\(V\)).
A. Write the constraint equation (Volume):
B. Solve for height (h) in terms of V and r:
C. Substitute h into the Surface Area formula:
2 Data Points (V = 500 cm³)
Calculate SA for specific radii to find the approximate minimum.
Radius (r) Height (\(h = 500/\pi r^2\)) Surface Area (SA) 2 cm 39.79 cm 4 cm 9.95 cm 4.3 cm 8.61 cm 6 cm 4.42 cm 8 cm 2.49 cm
3. The Efficiency Ratio
Look at the optimal row (r = 4.3 cm). Compare the radius (\(r\)) to the height (\(h\)). What is the approximate relationship between them?
Mathematical Proof Hint:
Set the derivative of \( SA(r) = 2\pi r^2 + 2V/r \) to zero.
4. Real-World Deviation
A standard 12oz soda can has \( r \approx 3.25 \text{ cm} \) and \( h \approx 12.2 \text{ cm} \). This is NOT the mathematical optimum. Propose two reasons why a company might make a can taller and thinner than the ideal efficient shape.
1
2
5. Plotting the Optimum
Sketch the general curve of \( SA(r) \). Mark the local minimum.
Radius (r) Surface Area (SA)
Summary Reflection:
Why does the Surface Area go to infinity as \(r\) approaches zero? Why does it go to infinity as \(r\) approaches infinity?
Net Loss Packaging Slides Lesson 04 // Applied Geometry
The Net Loss
Analyzing overlapping flaps, tabs, and manufacturing waste in real-world packaging.
Theory vs. Reality
Geometric Ideal
SA = 2(lw + lh + wh)
Manufacturing Reality
Boxes need Flaps for glue, Tabs for locking, and Nesting room on a sheet.
THE BLUEPRINT (NET)
Measuring Waste
1. Theoretical SA
The area of the 6 faces of the final box.
Aideal
2. Blueprint Area
Total cardboard used, including tabs, flaps, and overlap.
Aactual
3. Efficiency %
How much of the material is actually functional?
\( \frac{A_{ideal}}{A_{actual}} \times 100 \)
The "Cereal Box" Trick
Cereal boxes are famously inefficient. They are tall and wide, but very thin.
Increases "Shelf Presence" (Marketing)
Maximizes Surface Area for Logos
Wastes ~25% more material than a cube
Low SA:V Ratio

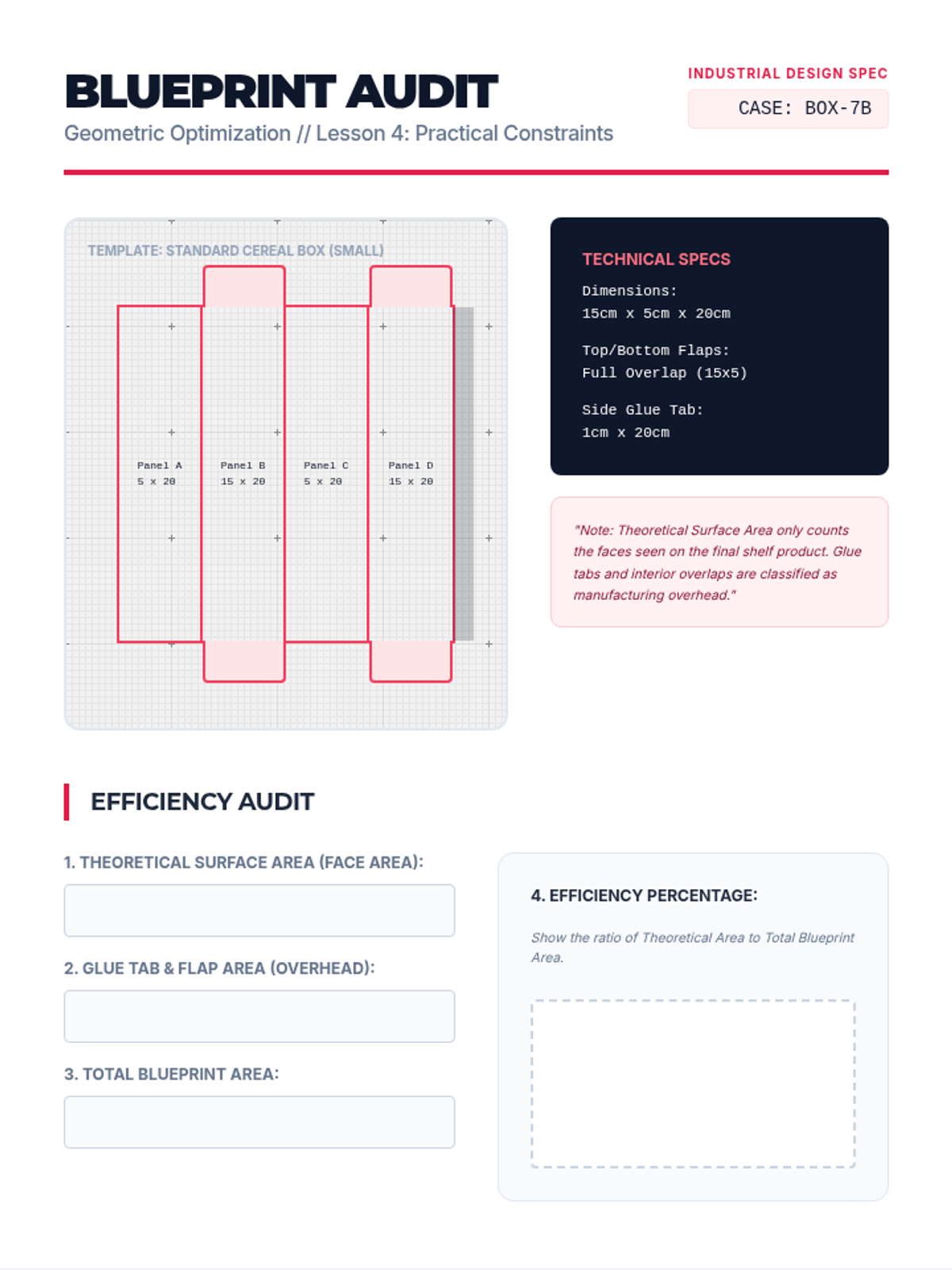

Blueprint Audit Worksheet Blueprint Audit
Geometric Optimization // Lesson 4: Practical Constraints
Industrial Design Spec
Case: Box-7B
Template: Standard Cereal Box (Small)
Panel A
Panel B
Panel C
Panel D
Technical Specs
Dimensions:
Top/Bottom Flaps:
Side Glue Tab:
"Note: Theoretical Surface Area only counts the faces seen on the final shelf product. Glue tabs and interior overlaps are classified as manufacturing overhead."
Efficiency Audit
1. Theoretical Surface Area (Face Area):
2. Glue Tab & Flap Area (Overhead):
3. Total Blueprint Area:
4. Efficiency Percentage:
Show the ratio of Theoretical Area to Total Blueprint Area.
Redesign Challenge
Internal Optimization Directive // Priority High
The current box holds a volume of 1,500 cm³. Our marketing team insists on a 20cm height for visibility, but our finance team wants to reduce material waste.
Task A: Geometric Alternative
Calculate the surface area of a Cube that holds the same 1,500 cm³ volume. How does its surface area compare to the current 15x5x20 box (Theoretical SA only)?
Task B: The Marketing Compromise
If we keep the Height at 20cm but change the base to a square (x by x) to hold 1,500 cm³, what are the new dimensions? Is this new "Square-Base Pillar" more efficient than the 15x5x20 "Slab"?
Task C: Executive Summary
In 2-3 sentences, provide your recommendation to the board. Should we switch to a more efficient shape, or is the "marketing surface area" of the current slab worth the extra cost? Support your argument with one specific data point from your audit.
Efficiency Audit Project Slides Capstone // Final Project
Efficiency Audit
Culminating Project: Analyzing, critiquing, and redesigning real-world consumer packaging.
The Mission
You are an Efficiency Consultant hired by a major retailer.
Your goal is to select one consumer product, calculate its geometric efficiency, and present a mathematically superior redesign.
Is the brand prioritizing efficiency or marketing deception? You decide.
1. Audit
Measure and calculate current SA:V and Waste %
2. Model
Find the mathematical optimum for the volume.
3. Design
Sketch a redesign that balances math & marketing.
4. Pitch
Present findings using area/volume evidence.
Success Criteria
Mathematical Accuracy
Does the data hold up?
Precise volume & SA calcs
Correct use of SA:V ratios
Optimization derivation
Geometric Synthesis
Can you apply the theory?
Realistic net diagrams
Accounting for flaps/tabs
Justified redesign shape
Persuasive Delivery
Can you sell the math?
Professional visual deck
Addressing marketing needs
Clear efficiency conclusion
What will you audit?
Perfume
Electronics
Food
Beauty
Phase 1: Measure current packaging dimensions today.

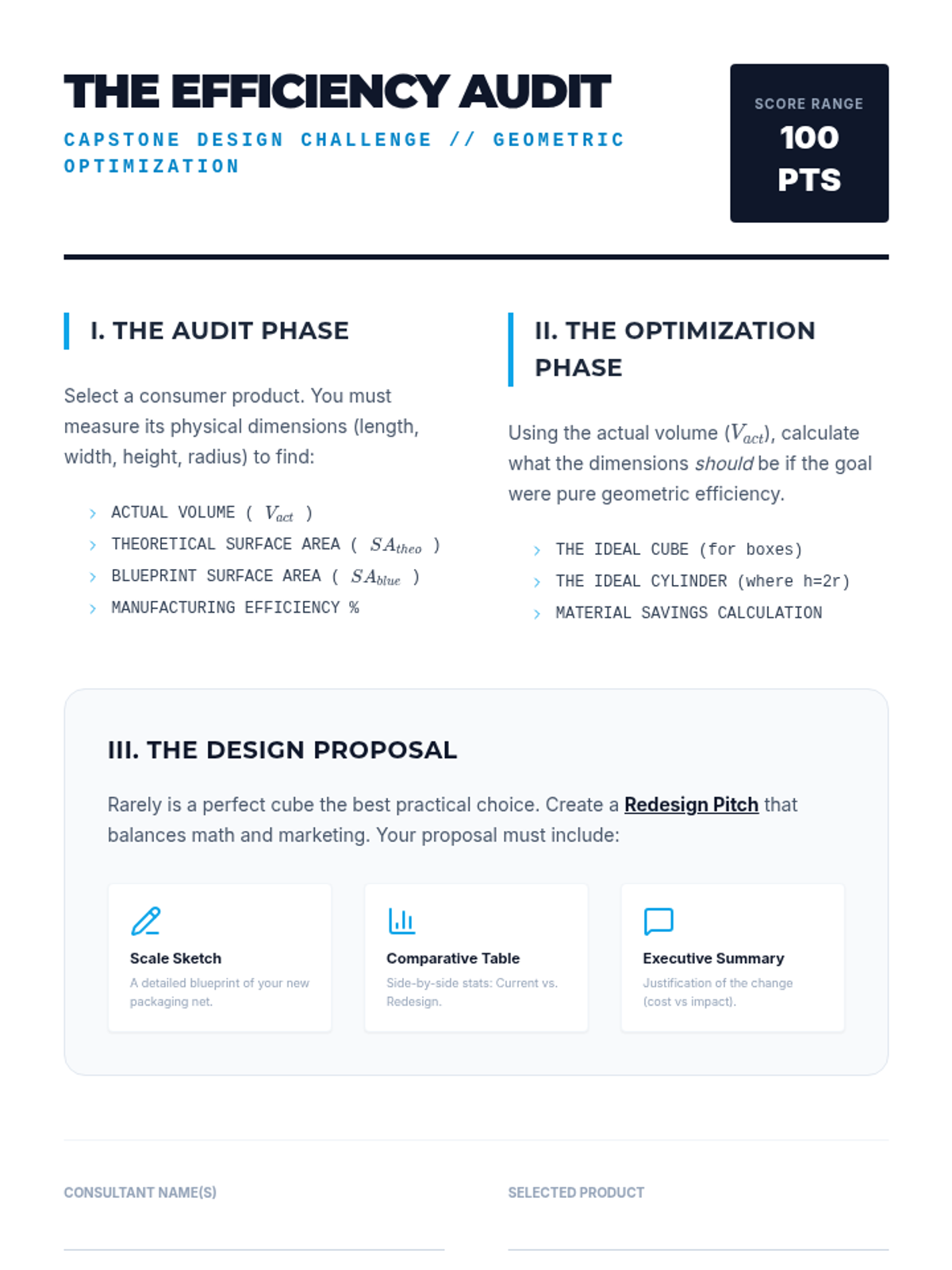

Efficiency Audit Project Guide The Efficiency Audit
CAPSTONE DESIGN CHALLENGE // GEOMETRIC OPTIMIZATION
Score Range
100 PTS
I. The Audit Phase
Select a consumer product. You must measure its physical dimensions (length, width, height, radius) to find:
ACTUAL VOLUME (\(V_{act}\))
THEORETICAL SURFACE AREA (\(SA_{theo}\))
BLUEPRINT SURFACE AREA (\(SA_{blue}\))
MANUFACTURING EFFICIENCY %
II. The Optimization Phase
Using the actual volume (\(V_{act}\)), calculate what the dimensions should be if the goal were pure geometric efficiency.
THE IDEAL CUBE (for boxes)
THE IDEAL CYLINDER (where h=2r)
MATERIAL SAVINGS CALCULATION
III. The Design Proposal
Rarely is a perfect cube the best practical choice. Create a Redesign Pitch that balances math and marketing. Your proposal must include:
Scale Sketch
A detailed blueprint of your new packaging net.
Comparative Table
Side-by-side stats: Current vs. Redesign.
Executive Summary
Justification of the change (cost vs impact).
Consultant Name(s)
Selected Product
Efficiency Audit Rubric
Criterion Proficient (20 pts) Emerging (10 pts) Score Data Accuracy All measurements and calculations for current packaging are precise and labeled correctly. Calculations are mostly correct but contain minor unit errors or labeling lapses. /20 Geometric Modeling Identifies the mathematical optimum (cube/cylinder) with correct derivation. Identifies a more efficient shape but fails to prove it is the mathematical optimum. /20 Net/Blueprint Design Redesign blueprint accounts for realistic constraints (tabs, flaps, thickness). Blueprint is a basic geometric net without practical manufacturing features. /20 Analytical Reasoning Deep critique of current design's marketing intent vs. mathematical efficiency. Brief mention of marketing goals with little synthesis of mathematical data. /20 Presentation Quality Professional visual delivery with clear graphs/tables supporting the pitch.
