Parent Recon Slides Function Families
Mission 01: Parent Function Recon
Targeting the Base Code
The Base Code
DEFINITION
A Parent Function is the simplest version of a function family.
No shifts, no stretches, no extra terms.
The "genetic template" for all function variations.
Family Registry
Linear
Quadratic
Cubic
Quartic
Absolute Value
Square Root
01. Linear & Quadratic
Linear
\(f(x) = x\)
Shape: Straight Line
Quadratic
\(f(x) = x^2\)
Shape: Parabola (U-Shape)
02. Cubic & Quartic
Cubic
\(f(x) = x^3\)
Shape: S-Curve
Quartic
\(f(x) = x^4\)
Shape: Flat-Base Parabola
03. Absolute & Square Root
Abs Value
\(f(x) = |x|\)
Shape: V-Shape
Square Root
\(f(x) = \sqrt{x}\)
Shape: Shooting Curve
Function Family Notes Function Family Recon
Mission 01 // Parent Functions
Agent ID:
RECON LOG
A Parent Function is the simplest version of a function family. Use this log to identify the "Base Code" and visual profile for each family.
Linear
\(f(x) = x\)
x
y
Mission Data:
Constant slope. Power of \(x\) is: ________
Quadratic
\(f(x) = x^2\)
Mission Data:
U-Shape. Power of \(x\) is: ________
Cubic
\(f(x) = x^3\)
Mission Data:
S-Curve. Power of \(x\) is: ________
Quartic
\(f(x) = x^4\)
Mission Data:
Flat base. Power of \(x\) is: ________
Abs Value
\(f(x) = |x|\)
Mission Data:
V-Shape. Domain includes: ________
Square Root
\(f(x) = \sqrt{x}\)
Mission Data:
Side curve. Domain starts at: ________
Mission Debrief: Pattern Analysis
Even powers (2, 4) generate curves that are symmetric across the y-axis, while odd powers (1, 3) pass through the origin from opposite quadrants. These are the foundations of all complex curves.
Symmetry
Does the visual profile mirror across an axis?
Intensity
How fast does the curve escape the origin?
Domain
Are there restricted zones for input values?
Identification Grid Worksheet Identification Grid
Practice Set 01 // Parent Functions
Recon Lead
Mission Objective: Profile Match
Identify the name and equation for each profile. Consistency is key for unit success.
01
Family Name
Equation
f(x) =
02
Family Name
Equation
f(x) =
03
Family Name
Equation
f(x) =
04
Family Name
Equation
f(x) =
05
Family Name
Equation
f(x) =
06
Family Name
Equation
f(x) =
Combat Analysis
Mission Critical: Compare the Quadratic profile to the Quartic profile. What visual shift occurs at the base of the curve as the exponent increases (2 to 4)?
Function Recon Check System Check 01
Module: Function Recon
Agent Identification
Verification Date
1 Match the Base Code to the Family Name:
f(x) = x3
f(x) = √x
f(x) = |x|
f(x) = x
A. Absolute Value
B. Cubic
C. Linear
D. Square Root
2 Target Analysis: Profile the function \(f(x) = x^4\)
f(x) = x4
Family Designation
Visual Profile (Shape)
3 Contrast Evaluation: Why is Absolute Value distinct from Quadratic in its sharp vs smooth curve?
Transmission Log: Secure-Sky-01 Status: Recon Complete
Vertex and Vitals Slides Vertex & Vitals
Mission 02: Standard Form Profile
The Standard Profile
\(f(x) = ax^2 + bx + c\)
a
Determines the direction and width.
b
Influences the horizontal position of the center.
c
The y-intercept. The point (0, c) is the start.
The Vertical Anchor
The Axis of Symmetry (AoS) is the line that splits the parabola perfectly in half.
Calculation Protocol:
\(x = \frac{-b}{2a}\)
Targeting the Vertex
1 Phase 1
Solve for x using the AoS formula.
2 Phase 2
Plug that x back into the function to find y.
Example Log
\(f(x) = x^2 - 6x + 8\)
1. \(x = \frac{-(-6)}{2(1)} = 3\)
2. \(y = (3)^2 - 6(3) + 8 = -1\)
Vertex: (3, -1)
Intercept Intelligence
y-intercept
Where the curve crosses the y-axis.
Set x = 0
Point: (0, c)
x-intercepts
Where the curve crosses the x-axis.
Set y = 0
Also called: Roots / Zeros

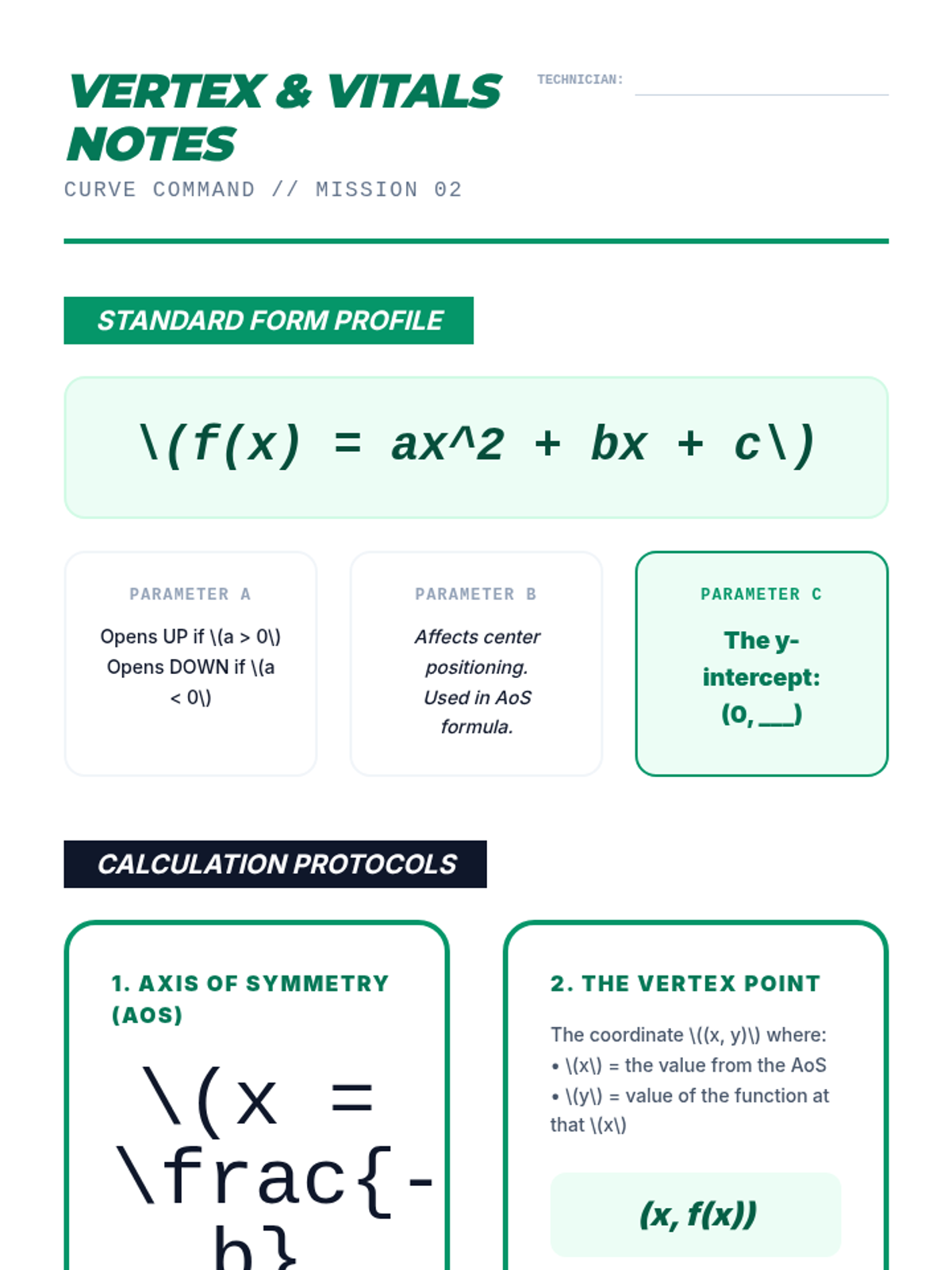

Vertex and Vitals Notes Vertex & Vitals Notes
CURVE COMMAND // MISSION 02
Technician:
Standard Form Profile
\(f(x) = ax^2 + bx + c\)
Parameter a
Opens UP if \(a > 0\)
Parameter b
Affects center positioning.
Parameter c
The y-intercept:
Calculation Protocols
1. Axis of Symmetry (AoS)
\(x = \frac{-b}{2a}\)
Vertical line through the vertex
2. The Vertex Point
The coordinate \((x, y)\) where:
(x, f(x))
Mission Rehearsal: Graph Analysis
\(f(x) = x^2 - 4x + 3\)
1
Identify Parameters
a = ____
b = ____
c = ____
2
Calculate AoS
\(x = \frac{-(____)}{2(____)} = ____\)
3
Target Vertex
Substitute your x back into the equation:
\(y = (____)^2 - 4(____) + 3 = ____\)
Vertex: (____, ____)
4
Execution: Find x-intercepts
Solve \(x^2 - 4x + 3 = 0\) (Factor it!)
[Workspace for Factoring]
\(x_1\) = ____
\(x_2\) = ____

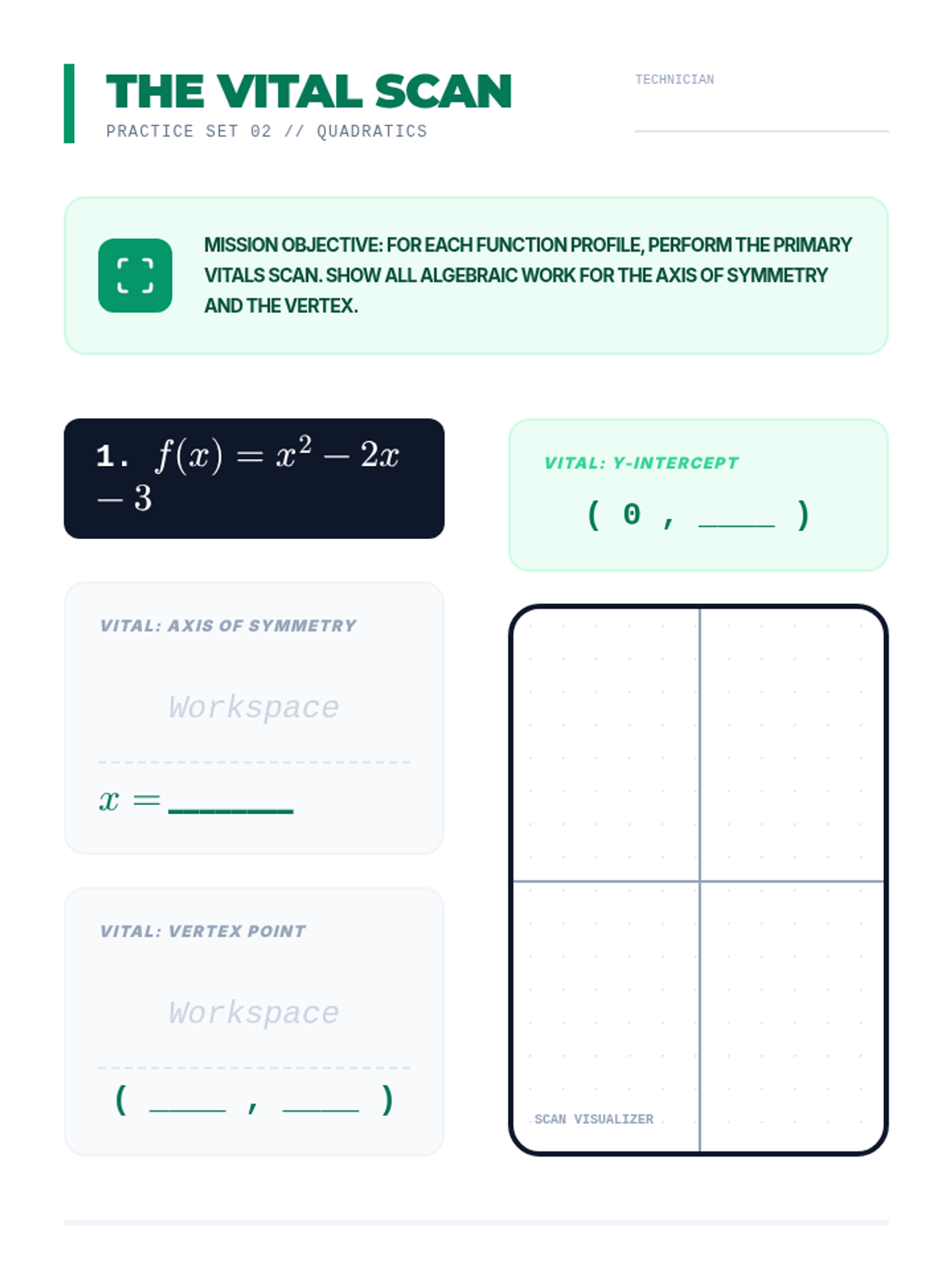

Vital Scan Worksheet The Vital Scan
Practice Set 02 // Quadratics
Technician
Mission Objective: For each function profile, perform the primary vitals scan. Show all algebraic work for the Axis of Symmetry and the Vertex.
1. \(f(x) = x^2 - 2x - 3\)
Vital: Axis of Symmetry
Workspace
\(x = \) ________
Vital: Vertex Point
Workspace
( ____ , ____ )
Vital: Y-Intercept
( 0 , ____ )
Scan Visualizer
2. \(f(x) = -x^2 + 6x - 5\)
Vital: Axis of Symmetry
Workspace
\(x = \) ________
Vital: Vertex Point
Workspace
( ____ , ____ )
Vital: Y-Intercept
( 0 , ____ )
Scan Visualizer
3. \(f(x) = 2x^2 + 8x + 6\)
Vital: Axis of Symmetry
Workspace
\(x = \) ________
Vital: Vertex Point
Workspace
( ____ , ____ )
Vital: Y-Intercept
( 0 , ____ )
Scan Visualizer

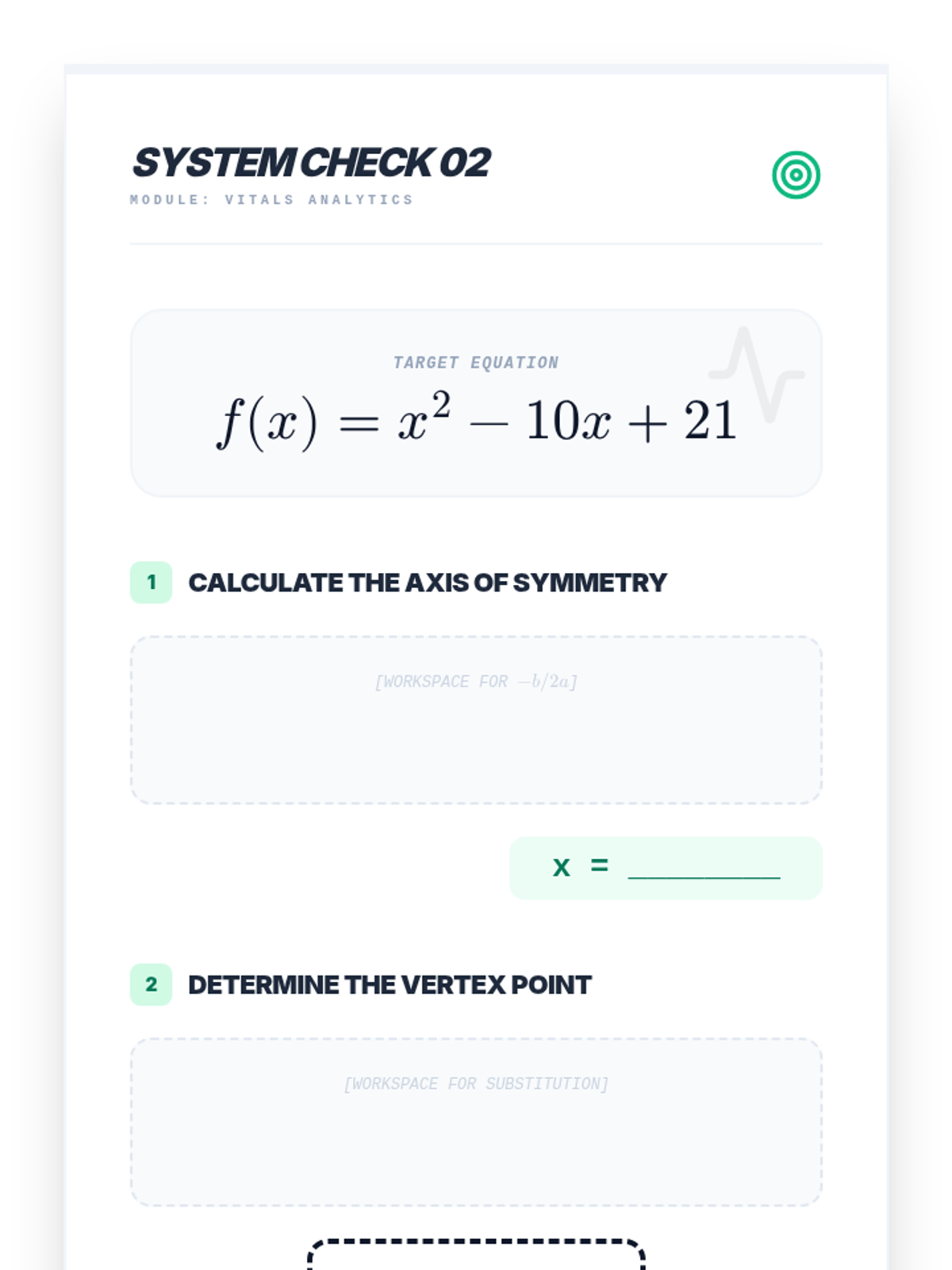

Vertex Vitals Check System Check 02
Module: Vitals Analytics
Target Equation
\(f(x) = x^2 - 10x + 21\)
1 Calculate the Axis of Symmetry
[Workspace for \(-b/2a\)]
x = ________
2 Determine the Vertex Point
[Workspace for substitution]
( ____ , ____ )
3. Y-Intercept
( 0 , ____ )
4. Orientation
UP
DOWN
SYSTEM STATUS: ANALYTICS VERIFIED
Curve Logic Secured
Factoring Fast Track Slides Factoring Fast Track
Mission 03: The Power of Zeros
The Secret Weapon
Zero Product Property
If \(A \cdot B = 0\), then either A = 0 or B = 0.
Applied Logic:
\((x - 2)(x + 5) = 0\)
Solutions: \(x = 2\) or \(x = -5\)
1
Set the entire equation to zero.
2
Factor the quadratic expression completely.
3
Set each factor to zero and solve for x.
The Factoring Toolbox
Trinomials (a = 1)
"What multiplies to c and adds to b?"
Example: \(x^2 + 5x + 6\) → \((x + 2)(x + 3)\)
Difference of Squares
Two perfect squares subtracted from each other.
Example: \(x^2 - 16\) → \((x + 4)(x - 4)\)
GCF (Greatest Common Factor)
The cardinal rule: Check for GCF first!
Example: \(2x^2 + 8x\) → \(2x(x + 4)\)
Connecting the Curves
Solving for x using factoring reveals the exact points where the curve hits the ground.
Roots = Zeros = Intercepts = Solutions
Mission Status
Equation: \(f(x) = x^2 - 4\)
Factors: (x - 2)(x + 2)
Roots: x = 2, -2
The graph crosses the x-axis at (2, 0) and (-2, 0)

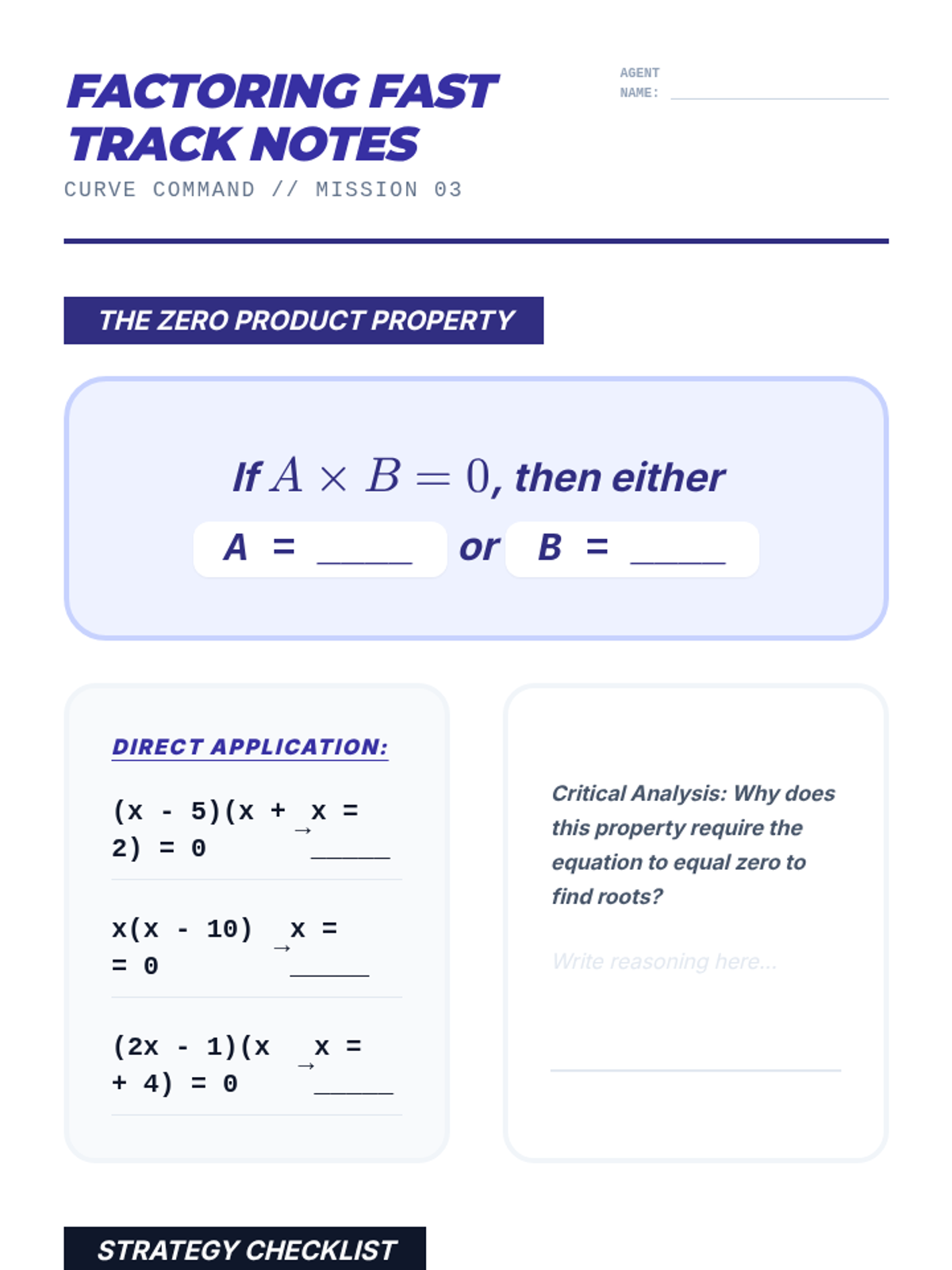

Factoring Fast Track Notes Factoring Fast Track Notes
CURVE COMMAND // MISSION 03
Agent Name:
The Zero Product Property
If \(A \times B = 0\), then either
Direct Application:
(x - 5)(x + 2) = 0 → x = _____
x(x - 10) = 0 → x = _____
(2x - 1)(x + 4) = 0 → x = _____
Critical Analysis: Why does this property require the equation to equal zero to find roots?
Write reasoning here...
Strategy Checklist
1. GCF First
Extract common numbers or variables shared by ALL terms before anything else.
2. Trinomials
Find two numbers that multiply to C and add to B. Format: \((x + p)(x + q)\).
3. Square Diff
Pattern: \(a^2 - b^2\).
Mission Protocol: Solve \(x^2 + 6x + 8 = 0\)
STEP 1
Factor the trinomial: (x + ____)(x + ____) = 0
STEP 2
Set each factor to zero: x + ____ = 0 and x + ____ = 0
STEP 3
Solve for x: x = _____ , x = _____
These values are the exact points where the curve hits the X-AXIS.

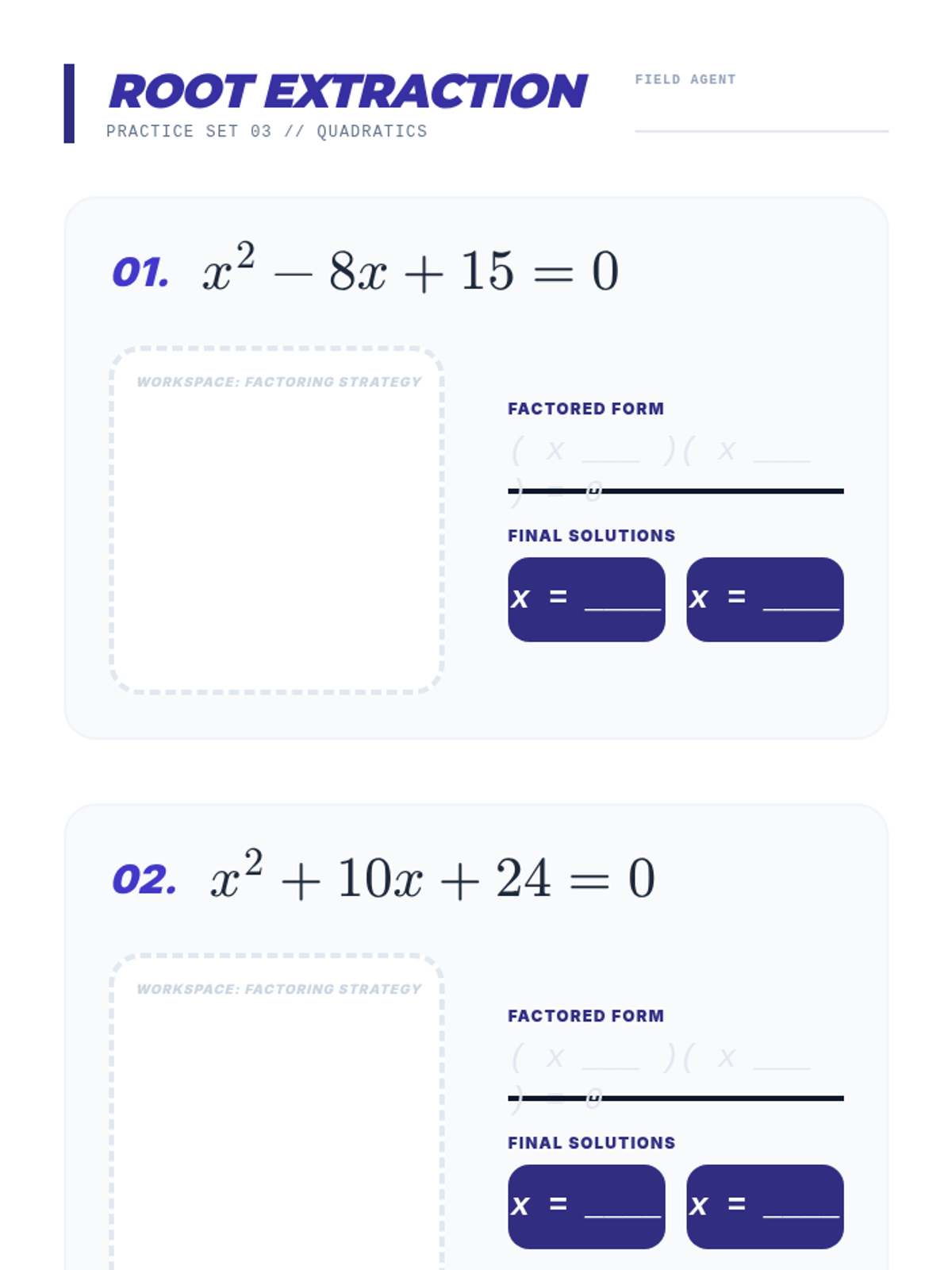

Root Extraction Worksheet Root Extraction
Practice Set 03 // Quadratics
Field Agent
\(x^2 - 8x + 15 = 0\)
Workspace: Factoring Strategy
Factored Form
( x ___ )( x ___ ) = 0
Final Solutions
x = ____
x = ____
\(x^2 + 10x + 24 = 0\)
Workspace: Factoring Strategy
Factored Form
( x ___ )( x ___ ) = 0
Final Solutions
x = ____
x = ____
\(x^2 - 49 = 0\)
Workspace
Factored Form
( x ___ )( x ___ ) = 0
Final Solutions
x = ____
x = ____
Visual Interpretation Scan
Plot the roots found for problem #01 on the coordinate segment below. Mark the intersections clearly.
0
10
These points represent the real zeros of the function.

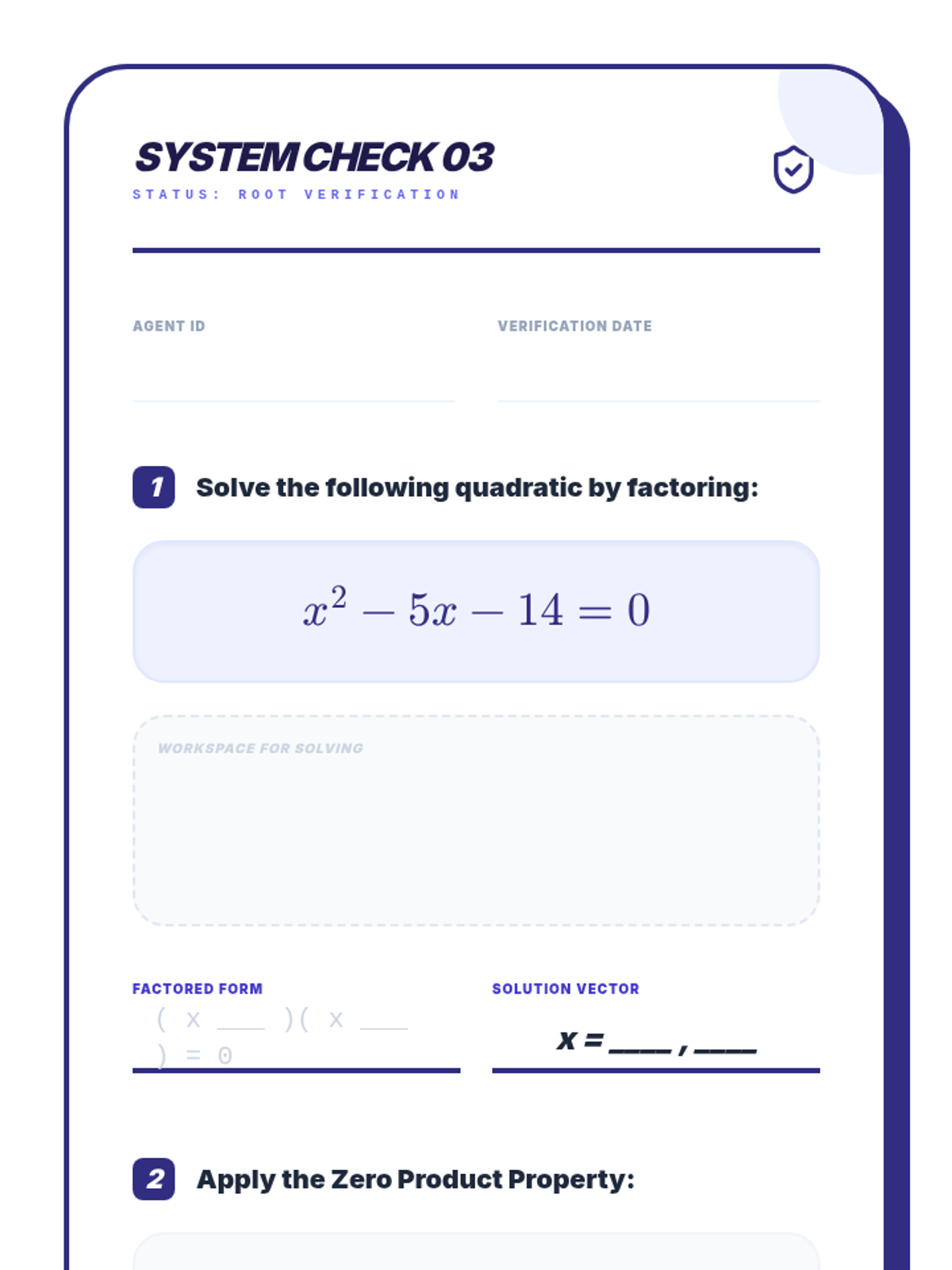

Factoring Fast Track Check System Check 03
Status: Root Verification
Agent ID
Verification Date
1 Solve the following quadratic by factoring:
\(x^2 - 5x - 14 = 0\)
Workspace for solving
Factored Form
( x ___ )( x ___ ) = 0
Solution Vector
x = ____ , ____
2 Apply the Zero Product Property:
\(3x(x + 9) = 0\)
x = ____
x = ____
3 Synthesis: If a quadratic has roots at \(x = 3\) and \(x = -3\), construct the factored form:
( x ___ )( x ___ ) = 0
Transmission Log: Secure-Indigo-03 Bit-Depth: 64-Quadratic
Formula Finesse Slides Formula Finesse
Mission 04: The Global Solution
The Master Key
Universal Solver
\(x = \frac{-b \pm \sqrt{b^2 - 4ac}}{2a}\)
"When factoring fails and graphing is a guess, the formula will always find the rest."
Recon Tool: The Discriminant
Scan Pattern:
\(b^2 - 4ac\)
This calculation tells us how many and what type of solutions exist before we even start.
D > 0
2 Real Zeros
D = 0
1 Real Zero
D < 0
0 Real Zeros
The Perfect Solution
If the discriminant is a Perfect Square (1, 4, 9, 16, 25...), your answers will be Rational.
Zero radicals remain after simplification!
Simulation: D = 16
\(x = \frac{-(-4) \pm \sqrt{16}}{2(1)}\)
\(x = \frac{4 \pm 4}{2}\)
x = 4, 0
Execution Protocol
Step 01
Zero State
Align equation to ax² + bx + c = 0
Step 02
Identify
Isolate a, b, and c with signs intact.
Step 03
Check D
Calc b² - 4ac first to forecast roots.
Step 04
Solve
Substitute into formula & simplify fully.

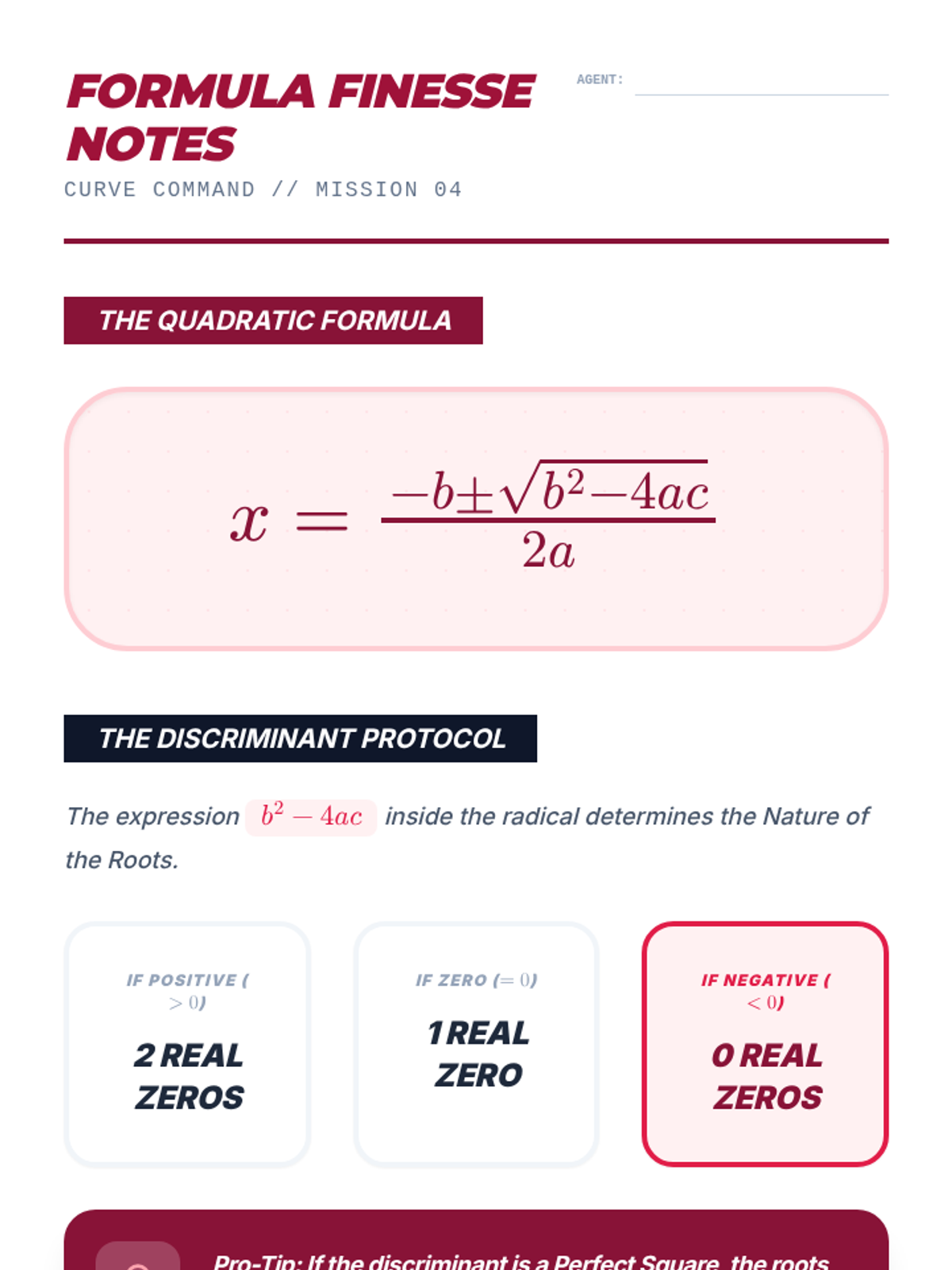

Formula Finesse Notes Formula Finesse Notes
CURVE COMMAND // MISSION 04
Agent:
The Quadratic Formula
\(x = \frac{-b \pm \sqrt{b^2 - 4ac}}{2a}\)
The Discriminant Protocol
The expression \(b^2 - 4ac\) inside the radical determines the Nature of the Roots.
If Positive (\(>0\))
2 Real Zeros
If Zero (\(=0\))
1 Real Zero
If Negative (\(<0\))
0 Real Zeros
Pro-Tip: If the discriminant is a Perfect Square, the roots will be Rational (no roots in the final answer!).
Guided Calculation: Solve \(x^2 - 6x + 5 = 0\)
1. ID Parameters
a = ___
b = ___
c = ___
2. Calculate Discriminant
\(D = (____)^2 - 4(____)(____)\)
\(D = \) ________
3. Formula Plug & Simplify
\(x = \frac{-(-6) \pm \sqrt{____}}{2(1)}\)
4. Final Root Vector
x = ____
x = ____

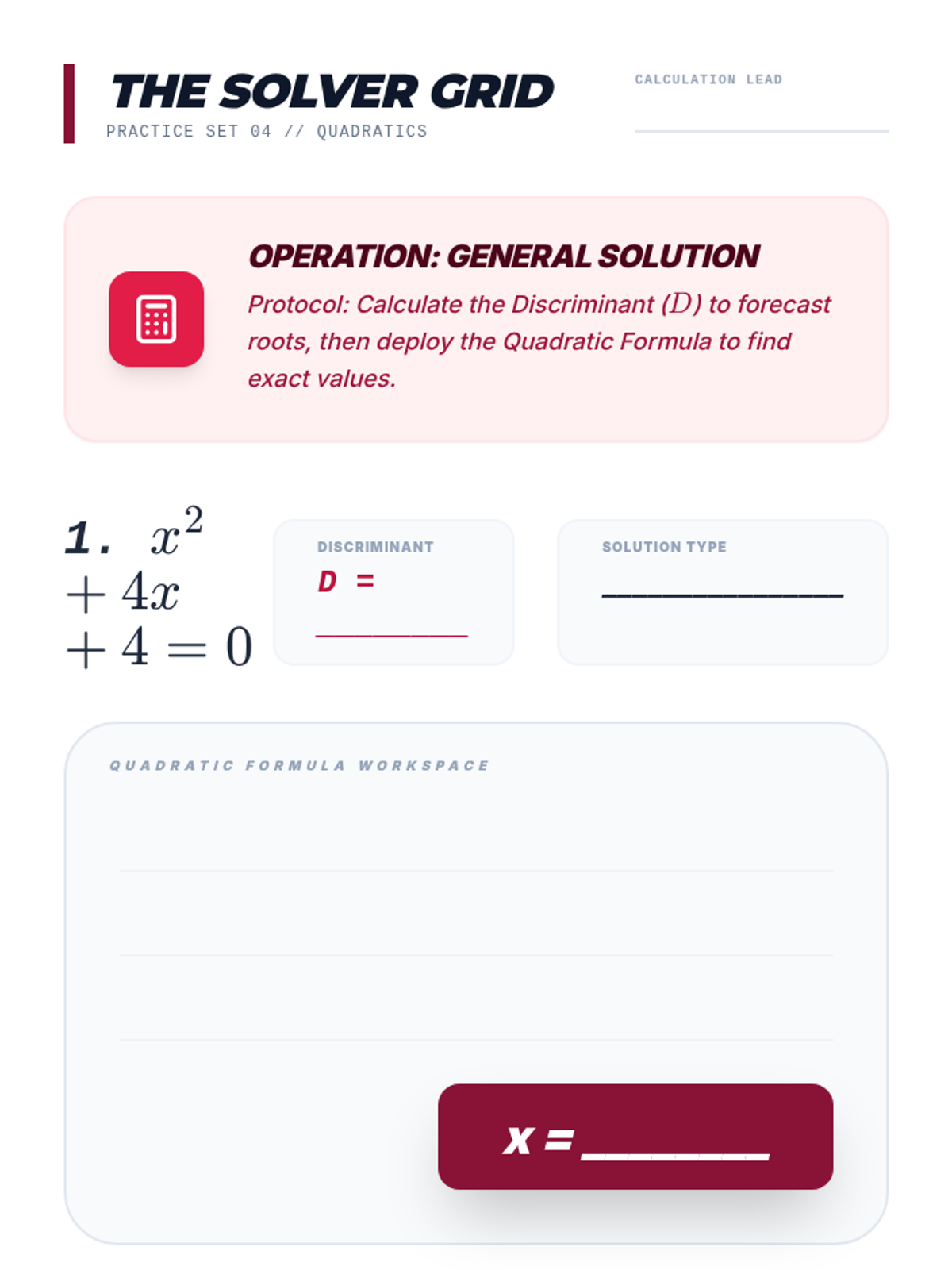

Solver Grid Worksheet The Solver Grid
Practice Set 04 // Quadratics
Calculation Lead
Operation: General Solution
Protocol: Calculate the Discriminant (\(D\)) to forecast roots, then deploy the Quadratic Formula to find exact values.
1. \(x^2 + 4x + 4 = 0\)
Discriminant
D = ________
Solution Type
________________
Quadratic Formula Workspace
x = ________
2. \(x^2 - 5x + 6 = 0\)
Discriminant
D = ________
Solution Type
________________
Quadratic Formula Workspace
x = ________
3. \(2x^2 - 7x + 3 = 0\)
Discriminant
D = ________
Solution Type
________________
Quadratic Formula Workspace
x = ________
4. \(x^2 + 6x + 9 = 0\)
Discriminant
D = ________
Solution Type
________________
Quadratic Formula Workspace
x = ________

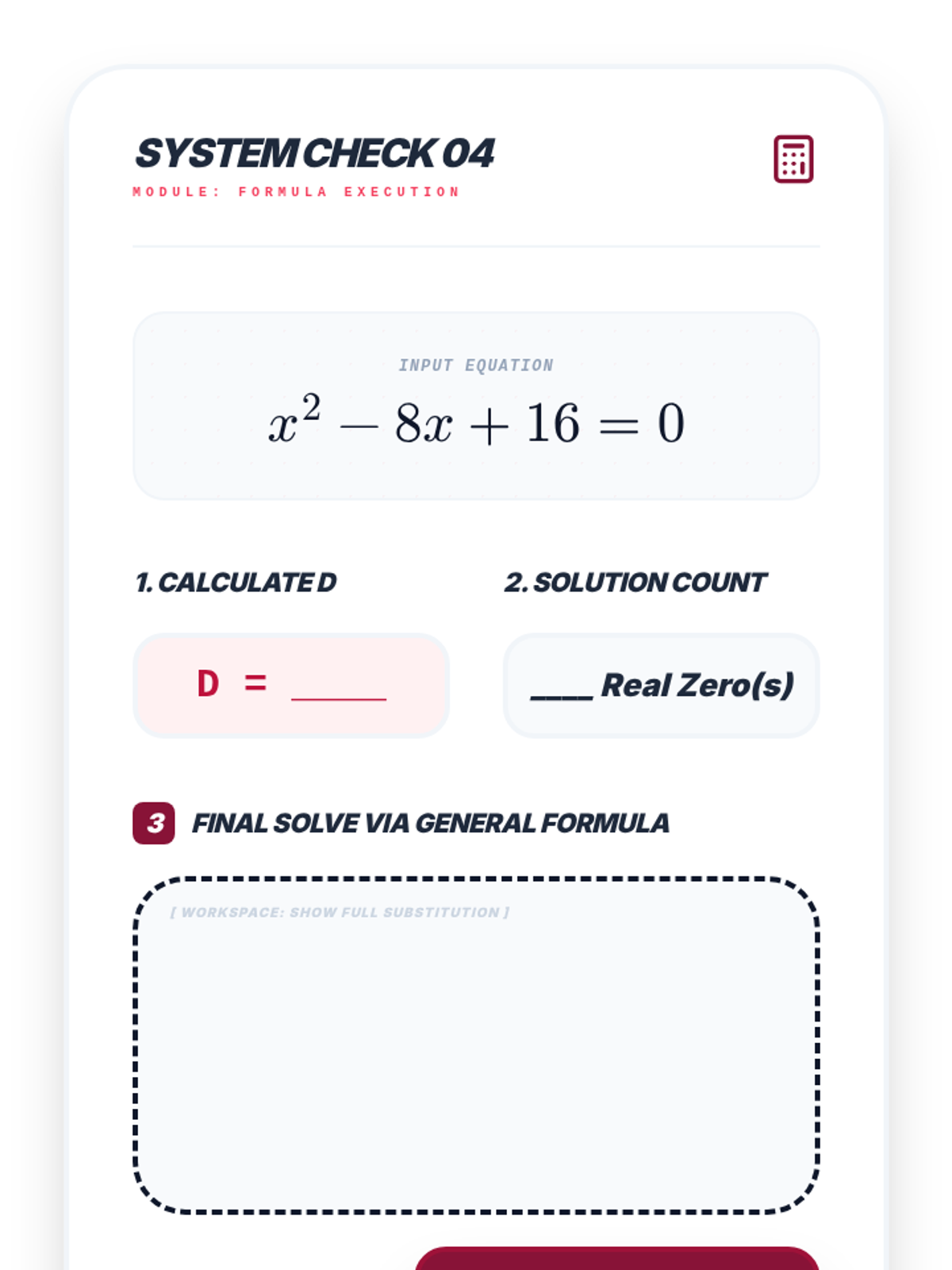

Formula Finesse Check System Check 04
Module: Formula Execution
Input Equation
\(x^2 - 8x + 16 = 0\)
1. Calculate D
D = ____
2. Solution Count
____ Real Zero(s)
3 Final Solve via General Formula
[ Workspace: Show full substitution ]
x = ________
Transmission Log: Secure-Rose-04 Bit-Depth: Formula-Standard
Solving Showdown Slides Solving Showdown
Mission 05: Selection & Strategy
The Tactical Arsenal
Graphing
Fastest for simple visuals.
Clear integer zeros
Quick approximations
Finding the vertex
Factoring
The efficient choice.
Simple trinomials
Diff of squares
Quick rational roots
The Formula
The universal weapon.
Non-factorable eq
Complex decimals
The "Safe Bet"
Strategic Protocol
Start Solve
Is a graph
Use Graphing
Simple numbers?
Use Factoring
Ugly numbers?
Use Formula
Combat Scenarios: Pick Your Tool
\(x^2 - 100 = 0\)
Recommended Strategy:
Factoring (Diff of Squares)
\(2x^2 - 5x + 1 = 0\)
Recommended Strategy:
The Quadratic Formula

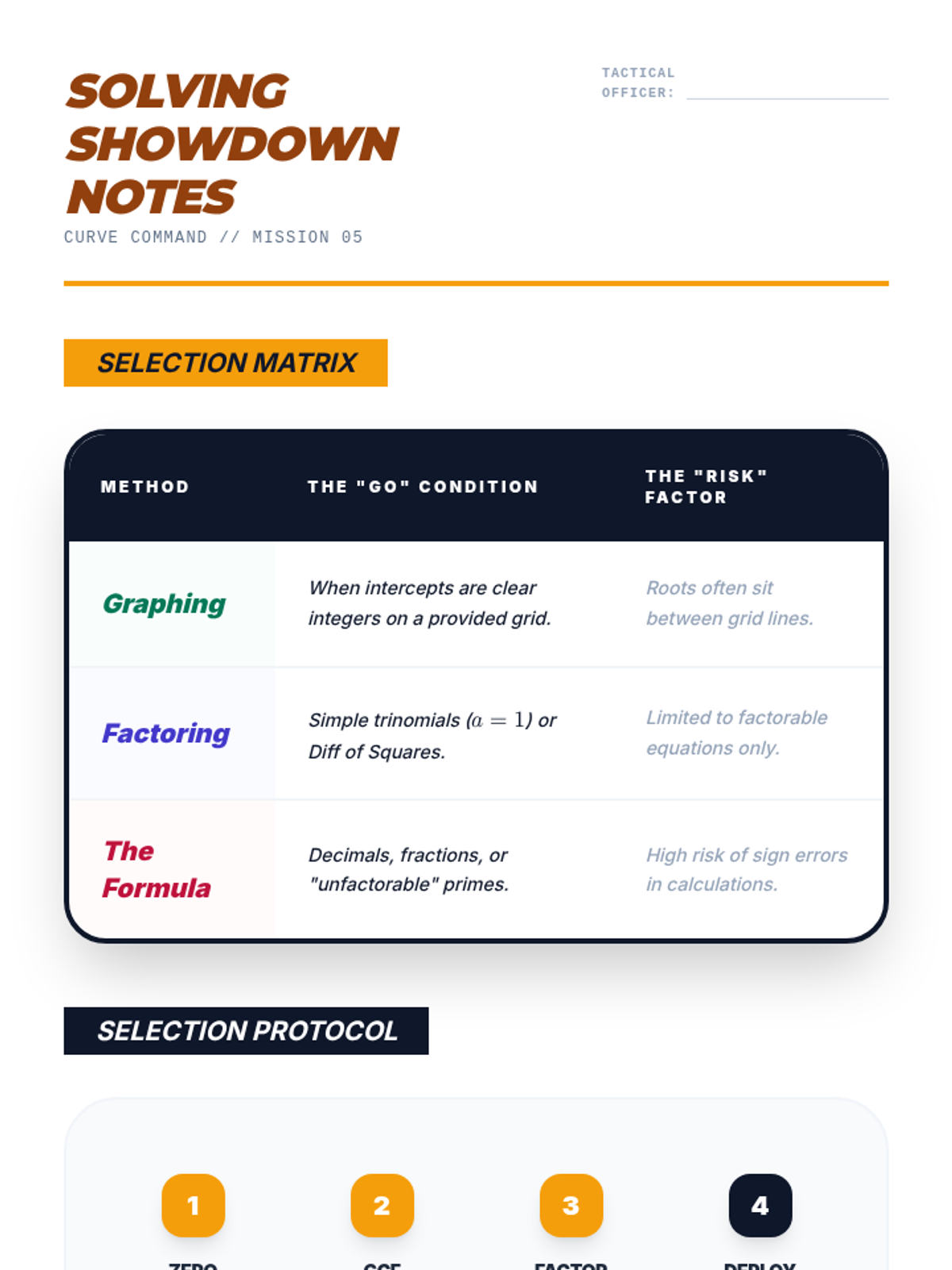

Solving Showdown Notes Solving Showdown Notes
CURVE COMMAND // MISSION 05
Tactical Officer:
Selection Matrix
Method The "Go" Condition The "Risk" Factor Graphing When intercepts are clear integers on a provided grid. Roots often sit between grid lines. Factoring Simple trinomials (\(a=1\)) or Diff of Squares. Limited to factorable equations only. The Formula Decimals, fractions, or "unfactorable" primes. High risk of sign errors in calculations.
Selection Protocol
1
Zero State
\(ax^2 + bx + c = 0\)
2
GCF Sweep
Factor it out first!
3
Factor Scan
Can I find the numbers quickly?
4
Deploy Code
Use formula if Step 3 fails.
Live Showdown Practice
\(x^2 - 14x + 49 = 0\)
Targeting Method: FACTORING
Selection Logic:
[ Combat Zone: Show all algebraic work ]
x = ________
\(3x^2 - 5x + 1 = 0\)
Targeting Method: THE FORMULA
Selection Logic:
[ Combat Zone: Show all formula steps ]
x = ________

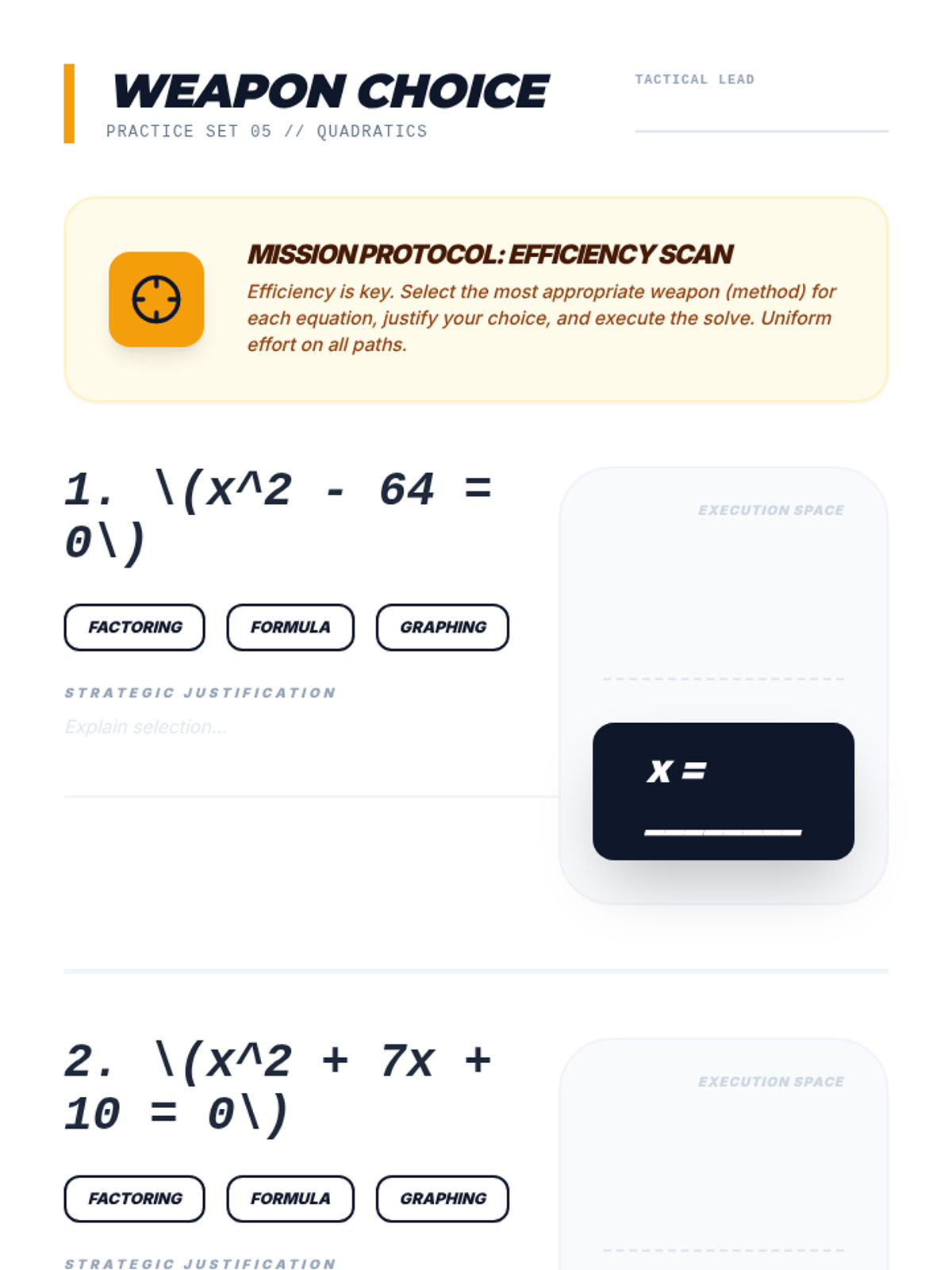

Weapon Choice Worksheet Weapon Choice
Practice Set 05 // Quadratics
Tactical Lead
Mission Protocol: Efficiency Scan
Efficiency is key. Select the most appropriate weapon (method) for each equation, justify your choice, and execute the solve. Uniform effort on all paths.
1. \(x^2 - 64 = 0\)
FACTORING
FORMULA
GRAPHING
Strategic Justification
Explain selection...
Execution Space
x = ________
2. \(x^2 + 7x + 10 = 0\)
FACTORING
FORMULA
GRAPHING
Strategic Justification
Explain selection...
Execution Space
x = ________
3. \(3x^2 - 2x - 5 = 0\)
FACTORING
FORMULA
GRAPHING
Strategic Justification
Explain selection...
Execution Space
x = ________

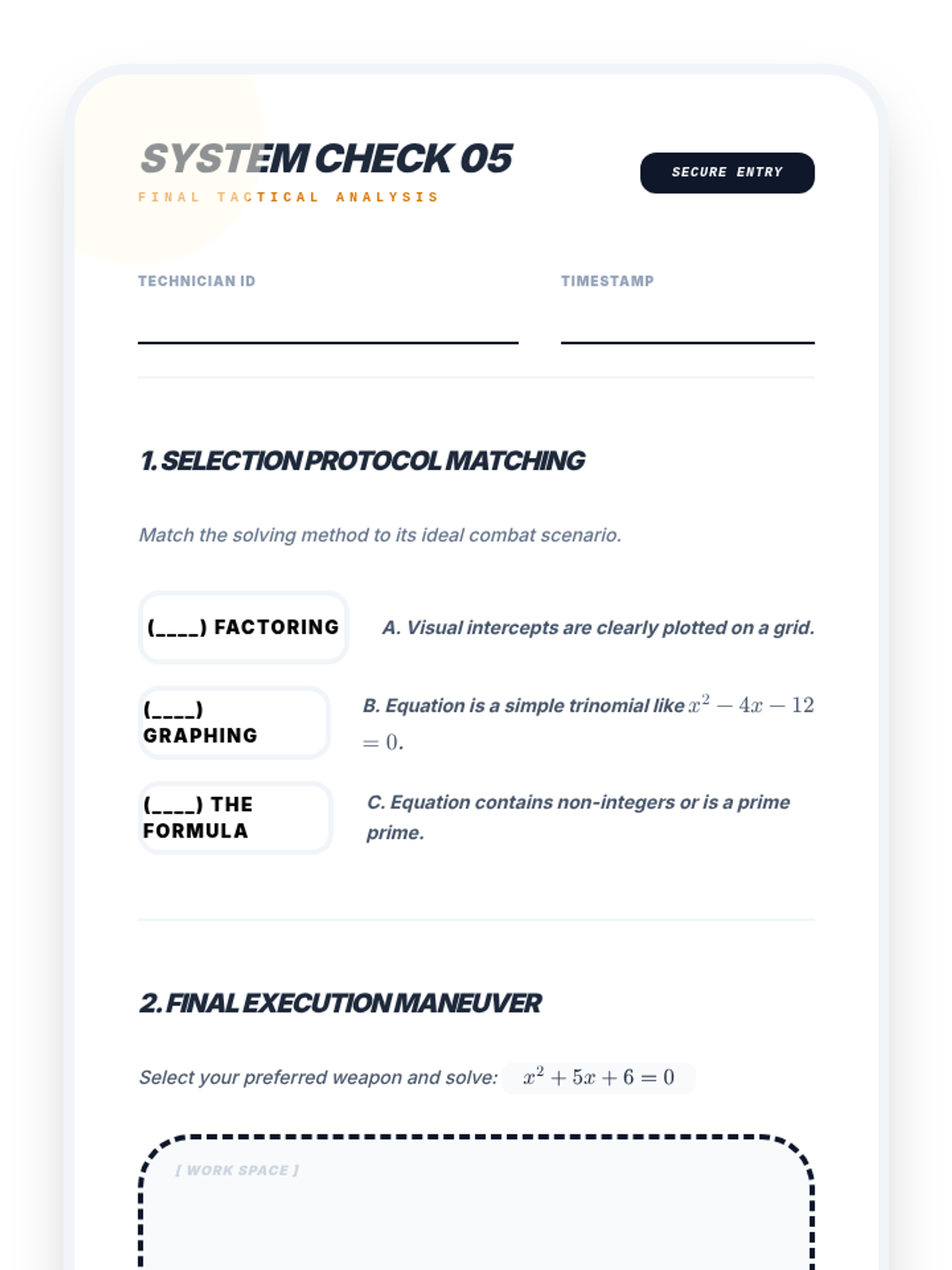

Solving Showdown Check System Check 05
Final Tactical Analysis
Secure Entry
Technician ID
Timestamp
1. Selection Protocol Matching
Match the solving method to its ideal combat scenario.
(____) FACTORING
A. Visual intercepts are clearly plotted on a grid.
(____) GRAPHING
B. Equation is a simple trinomial like \(x^2 - 4x - 12 = 0\).
(____) THE FORMULA
C. Equation contains non-integers or is a prime prime.
2. Final Execution Maneuver
Select your preferred weapon and solve: \(x^2 + 5x + 6 = 0\)
[ Work Space ]
Extraction Target: Rational Roots
x = ________

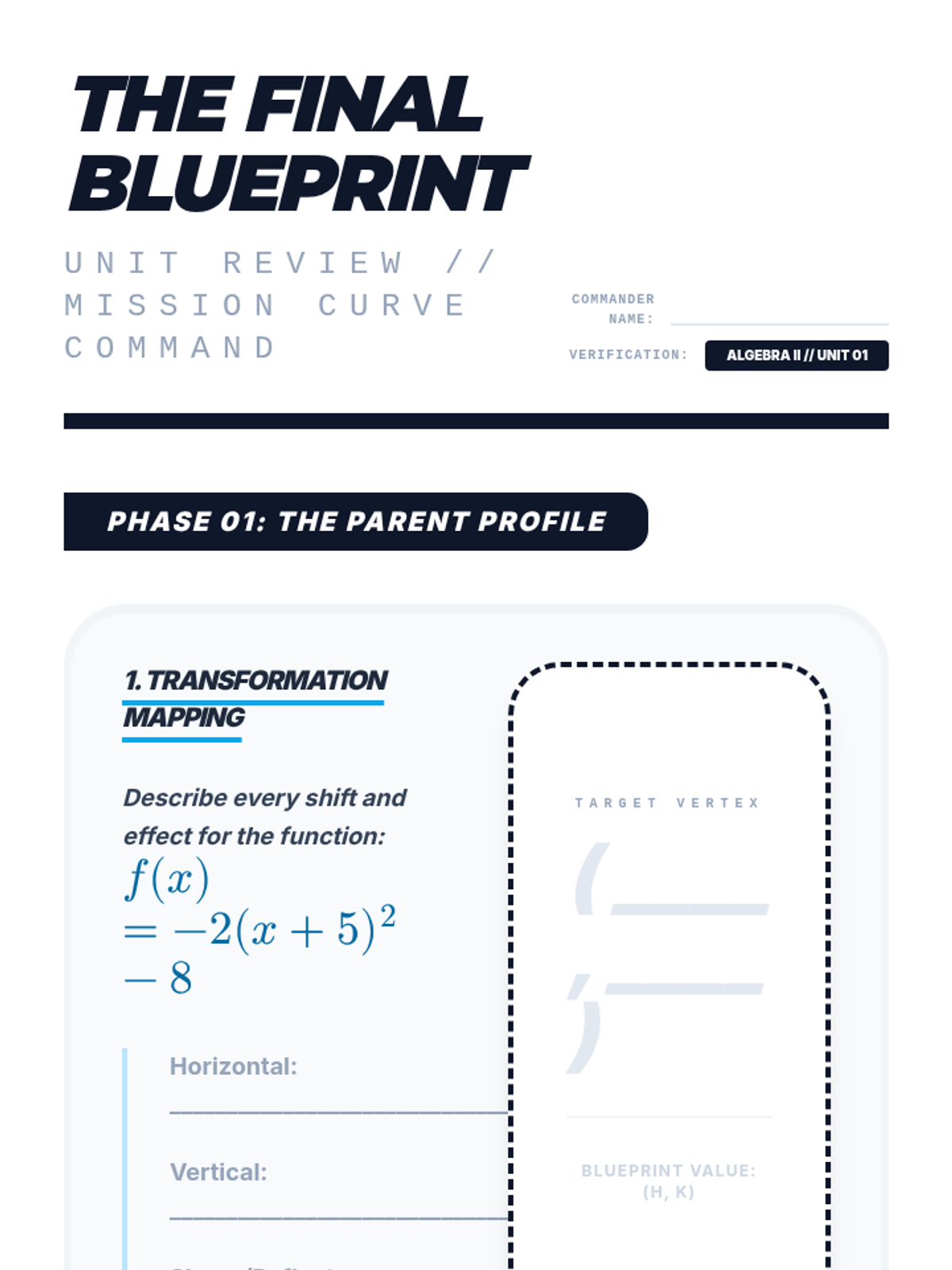

Final Blueprint Review The Final Blueprint
Unit Review // Mission Curve Command
Commander Name:
Verification:
ALGEBRA II // UNIT 01
Phase 01: The Parent Profile
1. Transformation Mapping
Describe every shift and effect for the function:
Horizontal: ________________________________
Vertical: __________________________________
Shape/Reflect: _____________________________
Target Vertex
( ____ , ____ )
Blueprint Value: (h, k)
Phase 02: Standard Form Vitals
Scan Input
\(f(x) = x^2 - 6x + 8\)
a = 1
b = -6
c = 8
1. Axis of Symmetry (AoS)
Work: -b/2a
x = ________
2. Determine Vertex
Work: Substitute x
( ____ , ____ )
3. Y-Intercept Coordinate
( 0 , ____ )
Phase 03: The Solver Duel
Duel A: Factoring Efficiency
\(x^2 + 9x + 20 = 0\)
[ Factor Combat Zone ]
x = ________ , ________
Duel B: Formula Precision
\(x^2 - 4x - 1 = 0\)
[ Formula Combat Zone ]
x = ________ , ________
Phase 04: The Recon Scan
Execute discriminant analysis to forecast the solution landscape for each equation profile.
\(x^2 - 2x + 1 = 0\)
D = ________
Solution Forecast
\(x^2 + 5x + 10 = 0\)
D = ________
Solution Forecast
END UNIT REVIEW // MISSION DATA LOGGED

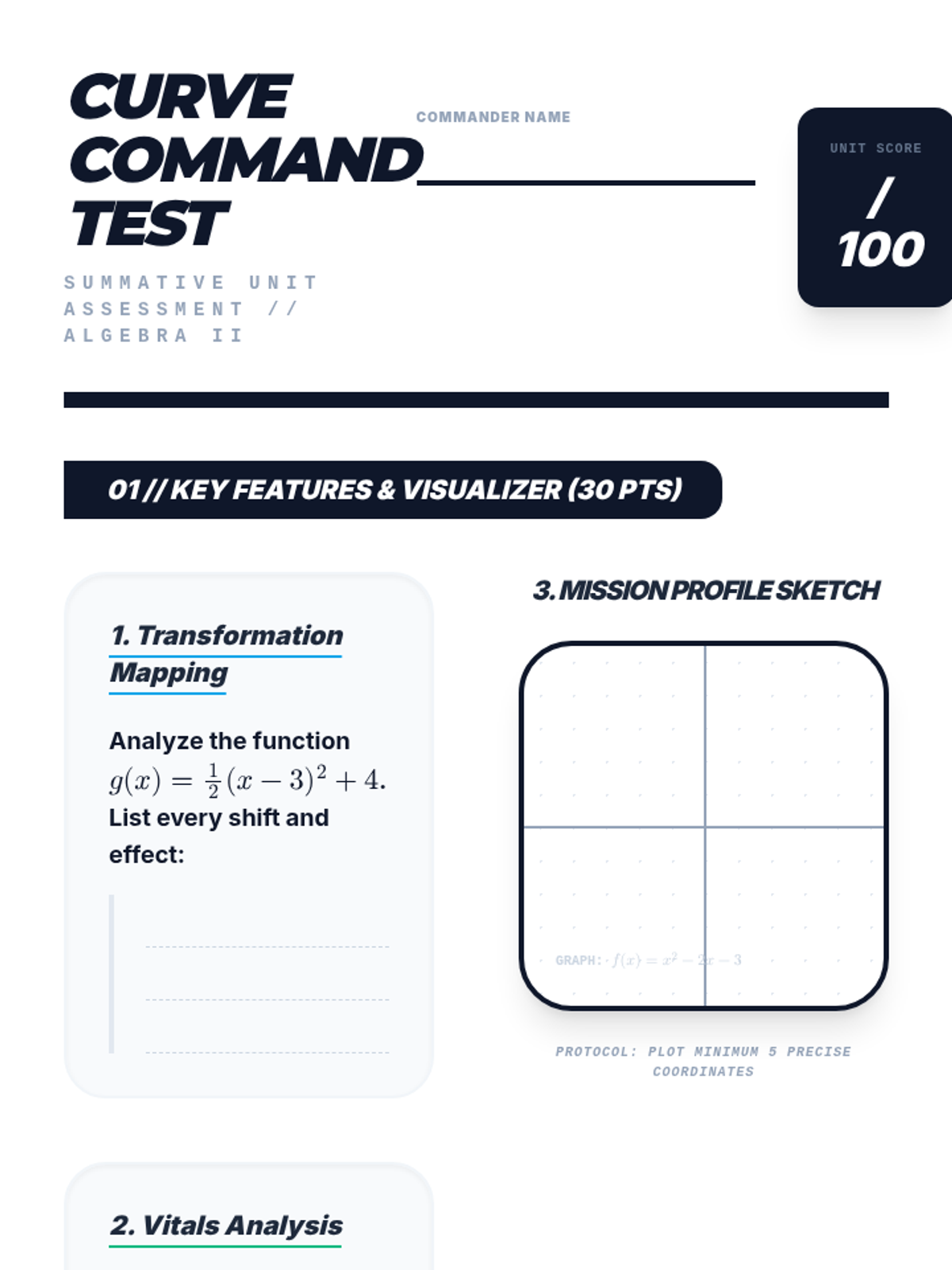

Curve Command Test Doc Curve Command Test
Summative Unit Assessment // Algebra II
Commander Name
Unit Score
/ 100
01 // Key Features & Visualizer (30 pts)
1. Transformation Mapping
Analyze the function \(g(x) = \frac{1}{2}(x - 3)^2 + 4\). List every shift and effect:
2. Vitals Analysis
Find the Axis and Vertex for \(f(x) = x^2 + 8x + 12\)
AOS x = ________
VERTEX ( ____ , ____ )
3. Mission Profile Sketch
Graph: \(f(x) = x^2 - 2x - 3\)
Protocol: Plot minimum 5 precise coordinates
02 // The Solver Duel (40 pts)
Select the weapon. Execute the solve. Show complete algebraic trails.
[ Combat Zone A: Factoring Choice ]
\(x^2 - 11x + 24 = 0\)
x = ________ , ________
[ Full algebraic factoring work required here ]
[ Combat Zone B: Formula Choice ]
\(x^2 - 6x - 2 = 0\)
x = ________ , ________
[ Full quadratic formula substitution work required here ]
[ Combat Zone C ]
\(x^2 - 16 = 0\)
x = ________
Workspace...
[ Combat Zone D ]
\(2x^2 + 7x + 3 = 0\)
x = ________
Workspace...
03 // Tactical Analysis (30 pts)
4. Forecast the number of real solutions for the equation profile below using the discriminant:
\(3x^2 - 4x + 5 = 0\)
Discriminant Calculation
D = ________
Solution Forecast
2 Real Zeros
1 Real Zero
0 Real Zeros
Bonus Protocol: Flight Path
A projectile is launched following the path \(h(t) = -t^2 + 4t\), where \(h\) is height and \(t\) is time in seconds. At what times will the projectile impact the ground? Solve for \(h(t) = 0\).
[ Bonus Workspace ]
t = ________ sec
End Unit Test // Curve Command // Secure Final Output
