Tangent Slopes Worksheet Tangent Slopes
Parametric Differentiation & Tangent Analysis
Section 01
Blueprint Series: Calculus III
Engineer:
Date:
Mission Objective
Derive the first derivative \(\frac{dy}{dx}\) directly from parametric components \(x(t)\) and \(y(t)\) to find slopes and identify critical tangency points.
The First Derivative Rule
If \(x(t)\) and \(y(t)\) are differentiable functions of \(t\), and \(\frac{dx}{dt} \neq 0\), then:
\[ \frac{dy}{dx} = \frac{\frac{dy}{dt}}{\frac{dx}{dt}} \]
01
Slope at a Point
Find the slope of the tangent line to the curve defined by \(x = \sqrt{t}\) and \(y = t^2 - 4t\) at the point where \(t = 4\).
02
Tangent Equation
Find an equation of the tangent line to the cycloid \(x = t - \sin(t)\), \(y = 1 - \cos(t)\) at \(t = \frac{\pi}{3}\).
03
Horizontal and Vertical Tangents
Given the curve \(x = t^3 - 3t\), \(y = t^2 - 4\):
A) Find all points \((x, y)\) where the tangent is horizontal.
B) Find all points \((x, y)\) where the tangent is vertical.
04
Application Hook
A particle moves along a path defined by \(x = \cos(3t)\) and \(y = \sin(2t)\). Determine the velocity components \(\frac{dx}{dt}\) and \(\frac{dy}{dt}\) at \(t = \frac{\pi}{4}\), and use them to find the direction of motion (the slope).
Tangent Slopes Slides Calculus III: Lesson 01
Tangent
Slopes
Differentiation of curves in parametric form without Cartesian conversion.
The Rollercoaster Problem
Imagine a rollercoaster car moving along a track defined by:
\(x = f(t)\)
At what exact moment \(t\) does the car experience zero vertical change while still moving horizontally?
We need the slope of the path relative to the ground.
Deriving the Parametric Slope
By the Chain Rule, we know that \(\frac{dy}{dt} = \frac{dy}{dx} \cdot \frac{dx}{dt}\).
Solving for the slope \(\frac{dy}{dx}\):
\[ \frac{dy}{dx} = \frac{\frac{dy}{dt}}{\frac{dx}{dt}} \]
Requirement: \(\frac{dx}{dt} \neq 0\)
Identifying Special Points
Horizontal Tangents
Occur when the "rise" is zero but the "run" is not.
\(\frac{dy}{dt} = 0\) AND \(\frac{dx}{dt} \neq 0\)
Vertical Tangents
Occur when the "run" is zero but the "rise" is not.
\(\frac{dx}{dt} = 0\) AND \(\frac{dy}{dt} \neq 0\)
If BOTH are zero, the limit must be investigated (L'Hôpital's Rule or geometric analysis).
Guided Practice
Given the curve: \(x = t^2\), \(y = t^3 - 3t\)
Find the slope \(\frac{dy}{dx}\) in terms of \(t\).
Find the equation of the tangent line at \(t = 2\).
Identify any horizontal tangent points.
"Work through the components first: \(dx/dt = 2t\) and \(dy/dt = 3t^2 - 3\)..."

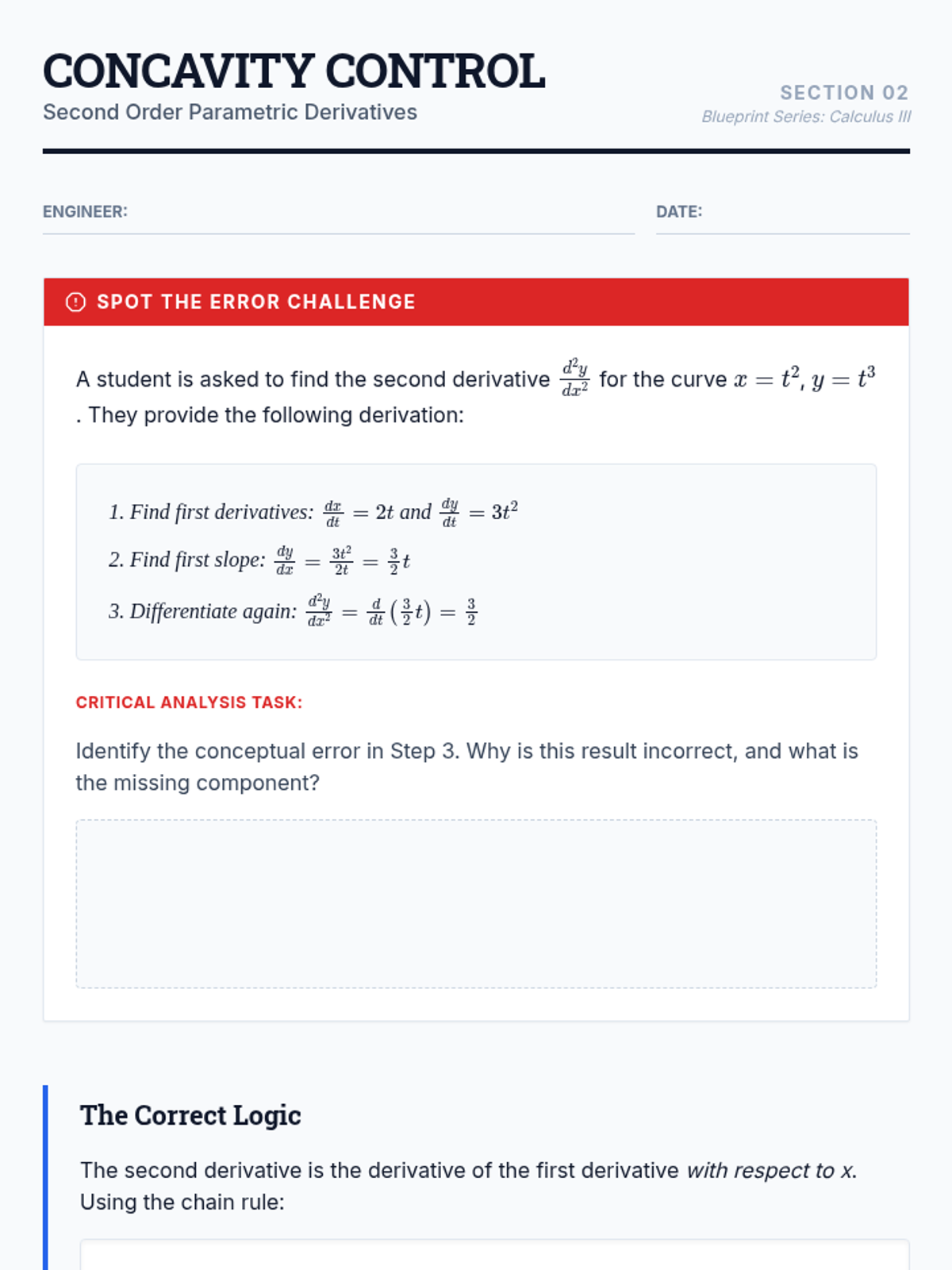

Concavity Error Analysis Worksheet Concavity Control
Second Order Parametric Derivatives
Section 02
Blueprint Series: Calculus III
Engineer:
Date:
Spot the Error Challenge
A student is asked to find the second derivative \(\frac{d^2y}{dx^2}\) for the curve \(x = t^2\), \(y = t^3\). They provide the following derivation:
Find first derivatives: \(\frac{dx}{dt} = 2t\) and \(\frac{dy}{dt} = 3t^2\)
Find first slope: \(\frac{dy}{dx} = \frac{3t^2}{2t} = \frac{3}{2}t\)
Differentiate again: \(\frac{d^2y}{dx^2} = \frac{d}{dt} \left( \frac{3}{2}t \right) = \frac{3}{2}\)
Critical Analysis Task:
Identify the conceptual error in Step 3. Why is this result incorrect, and what is the missing component?
The Correct Logic
The second derivative is the derivative of the first derivative with respect to x . Using the chain rule:
\[ \frac{d^2y}{dx^2} = \frac{\frac{d}{dt} \left( \frac{dy}{dx} \right)}{\frac{dx}{dt}} \]
01
Concavity Determination
Find \(\frac{d^2y}{dx^2}\) for the curve \(x = e^t\), \(y = t e^{-t}\). For which values of \(t\) is the curve concave upward?
02
Inflection Points
Identify any points of inflection for the curve defined by \(x = t - \sin(t)\), \(y = 1 - \cos(t)\) on the interval \(0 < t < 2\pi\).
Concavity Control Slides Calculus III: Lesson 02
Concavity
Control
Mastering the Second Derivative in Parametric Systems
The "Derivative of the Slope"
To find concavity, we need to know how the slope (\(dy/dx\)) changes as \(x\) changes.
\[ \frac{d^2y}{dx^2} = \frac{d}{dx} \left( y' \right) \]
But \(y'\) is a function of \(t\), so we must use the chain rule again!
The Master Formula
\[ \frac{d^2y}{dx^2} = \frac{\frac{d}{dt}(y')}{\frac{dx}{dt}} \]
Don't forget to divide by \(dx/dt\) again!
The Workflow
1
Calculate \(y' = \frac{dy/dt}{dx/dt}\)
2
Differentiate your result \(y'\) with respect to \(t\)
3
Divide that by the original \(dx/dt\)
4
Analyze sign for Concavity & Inflection
Interpreting Results
Positive Second Derivative
Curve is concave UP
Tangent lines lie below the curve
Indicates a local MINIMUM (if \(y' = 0\))
Negative Second Derivative
Curve is concave DOWN
Tangent lines lie above the curve
Indicates a local MAXIMUM (if \(y' = 0\))
Path Lengths Worksheet Path Lengths
Arc Length of Parametric Curves
Section 03
Blueprint Series: Calculus III
Engineer:
Date:
Arc Length Formula
\[ L = \int_{\alpha}^{\beta} \sqrt{\left(\frac{dx}{dt}\right)^2 + \left(\frac{dy}{dt}\right)^2} \, dt \]
Curve traversed exactly once for \(\alpha \leq t \leq \beta\)
Part 1: The Circle Verification
Consider the circle \(x = r \cos(t)\), \(y = r \sin(t)\) for \(0 \leq t \leq 2\pi\). Use the parametric arc length formula to prove that the circumference is \(2\pi r\).
Space for Derivation
Part 2: Complex Trajectories
01
The Astroid
Calculate the total length of the astroid given by \(x = \cos^3(t)\), \(y = \sin^3(t)\) for \(0 \leq t \leq 2\pi\). (Hint: Utilize symmetry and calculate length from \(t = 0\) to \(t = \pi/2\)).
02
A Parabolic Path
A particle moves along the path \(x = t^2\), \(y = t^3/3\). Find the distance traveled by the particle from \(t = 0\) to \(t = \sqrt{3}\).
03
Engineering Reflection
Explain why we must ensure the curve is traversed exactly once. What would happen to the result of our integral if we integrated the circle from \(0\) to \(4\pi\)?
Record your reasoning here...
Path Lengths Slides Calculus III: Lesson 03
Path
Lengths
Measuring distance along a parametric trajectory.
The Geometric Intuition
Consider a tiny segment of the curve \(ds\). By the Pythagorean Theorem:
\(ds^2 = dx^2 + dy^2\)
Dividing by \(dt\) and summing up all tiny segments (\(\int\)) gives us the total length.
dx
dy
ds
Summing the infinitesimals.
The Arc Length Formula
Total Distance
\[ L = \int_{\alpha}^{\beta} \sqrt{\left( \frac{dx}{dt} \right)^2 + \left( \frac{dy}{dt} \right)^2} \, dt \]
Requirement 1
Differentiable Components
Requirement 2
Traversed Exactly Once
Symmetry Strategies
The Astroid: \(x = \cos^3 t\), \(y = \sin^3 t\)
Evaluating this for \(0 \to 2\pi\) involves messy absolute values as signs change.
The Blueprint Trick:
Use symmetry! Calculate for ONE quadrant (\(0 \to \pi/2\)) and multiply by 4.
Identify symmetry before you integrate!

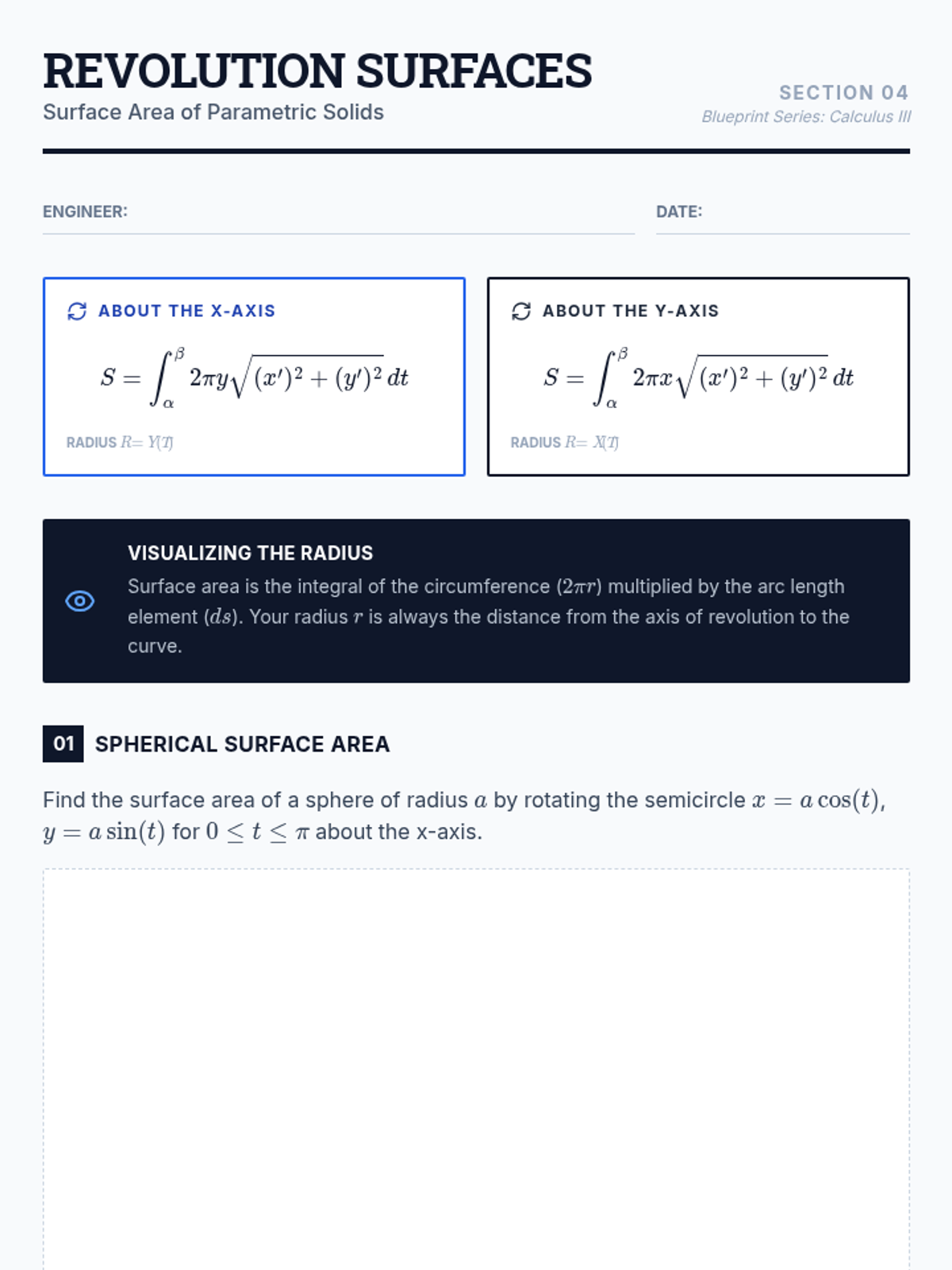

Revolution Surfaces Worksheet Revolution Surfaces
Surface Area of Parametric Solids
Section 04
Blueprint Series: Calculus III
Engineer:
Date:
About the X-Axis
\[ S = \int_{\alpha}^{\beta} 2\pi y \sqrt{(x')^2 + (y')^2} \, dt \]
Radius \(r = y(t)\)
About the Y-Axis
\[ S = \int_{\alpha}^{\beta} 2\pi x \sqrt{(x')^2 + (y')^2} \, dt \]
Radius \(r = x(t)\)
Visualizing the Radius
Surface area is the integral of the circumference (\(2\pi r\)) multiplied by the arc length element (\(ds\)). Your radius \(r\) is always the distance from the axis of revolution to the curve.
01
Spherical Surface Area
Find the surface area of a sphere of radius \(a\) by rotating the semicircle \(x = a \cos(t)\), \(y = a \sin(t)\) for \(0 \leq t \leq \pi\) about the x-axis.
02
The Cycloid Arch
One arch of the cycloid \(x = t - \sin(t)\), \(y = 1 - \cos(t)\) is rotated around the x-axis. Set up the integral for the surface area of this solid (\(0 \leq t \leq 2\pi\)).
Final Evaluation
(Optional Challenge: Evaluate the integral to find the exact area.)
03
Axis Shift Challenge
If we rotate the curve \(x = t\), \(y = t^2\) about the line \(y = -1\), how would our radius \(r\) in the formula change? Write the new radius component.
New Radius \(r(t) = \) _________________________________
Revolution Surfaces Slides Calculus III: Lesson 04
Revolution
Surfaces
Generating 3D surface area from 2D parametric paths.
Circumference × Arc Length
Imagine rotating a tiny segment of length \(ds\) around an axis. It sweeps out a circular ribbon.
Ribbon Area (\(dS\)):
\[ dS = 2\pi r \cdot ds \]
The total surface area \(S\) is the integral of all these ribbons.
"Think of it as painting the outer skin of the solid."
Mastering the Radius
X
Rotation about X-Axis
Radius is the vertical distance from the x-axis to the curve:
\[ S = \int 2\pi \mathbf{y(t)} \sqrt{...} \, dt \]
Y
Rotation about Y-Axis
Radius is the horizontal distance from the y-axis to the curve:
\[ S = \int 2\pi \mathbf{x(t)} \sqrt{...} \, dt \]
The Industrial Vase
A designer creates a ceramic vase by rotating the spline:
\(x = e^t\)
If the glaze costs $0.05 per unit squared, how much will it cost to coat the vase?
Strategy Guide
Identify axis of revolution (Y-axis here).
Set \(r = x(t) = e^t\).
Calculate \(\sqrt{(x')^2 + (y')^2}\).
Set up the integral with \(2\pi\).
Compute and multiply by cost factor.

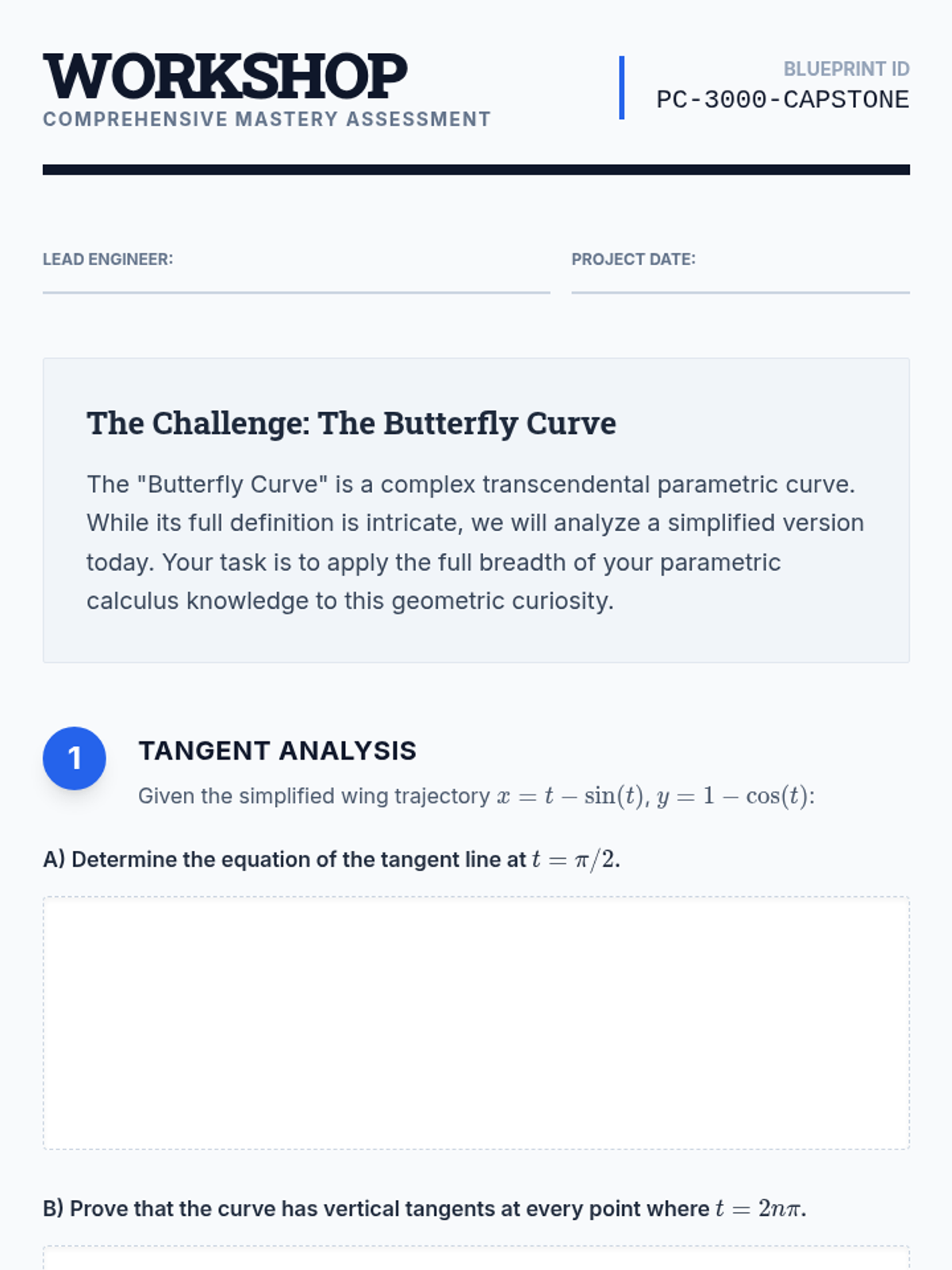

Parametric Mastery Workshop Assessment Workshop
Comprehensive Mastery Assessment
Blueprint ID
PC-3000-CAPSTONE
Lead Engineer:
Project Date:
The Challenge: The Butterfly Curve
The "Butterfly Curve" is a complex transcendental parametric curve. While its full definition is intricate, we will analyze a simplified version today. Your task is to apply the full breadth of your parametric calculus knowledge to this geometric curiosity.
1
Tangent Analysis
Given the simplified wing trajectory \(x = t - \sin(t)\), \(y = 1 - \cos(t)\):
A) Determine the equation of the tangent line at \(t = \pi/2\).
B) Prove that the curve has vertical tangents at every point where \(t = 2n\pi\).
2
Concavity & Geometry
Analyze the curvature of the path.
A) Find \(\frac{d^2y}{dx^2}\) for the curve above.
B) Identify the intervals of concavity for \(0 < t < 2\pi\).
3
Spatial Metrics
Integrating the path.
A) Calculate the total arc length of one arch of the cycloid (\(0 \leq t \leq 2\pi\)).
B) If this arch is rotated about the x-axis, set up (but do not evaluate) the integral for the resulting surface area.
End of Engineering Assessment
CALCULUS III // PARAMETRIC UNIT

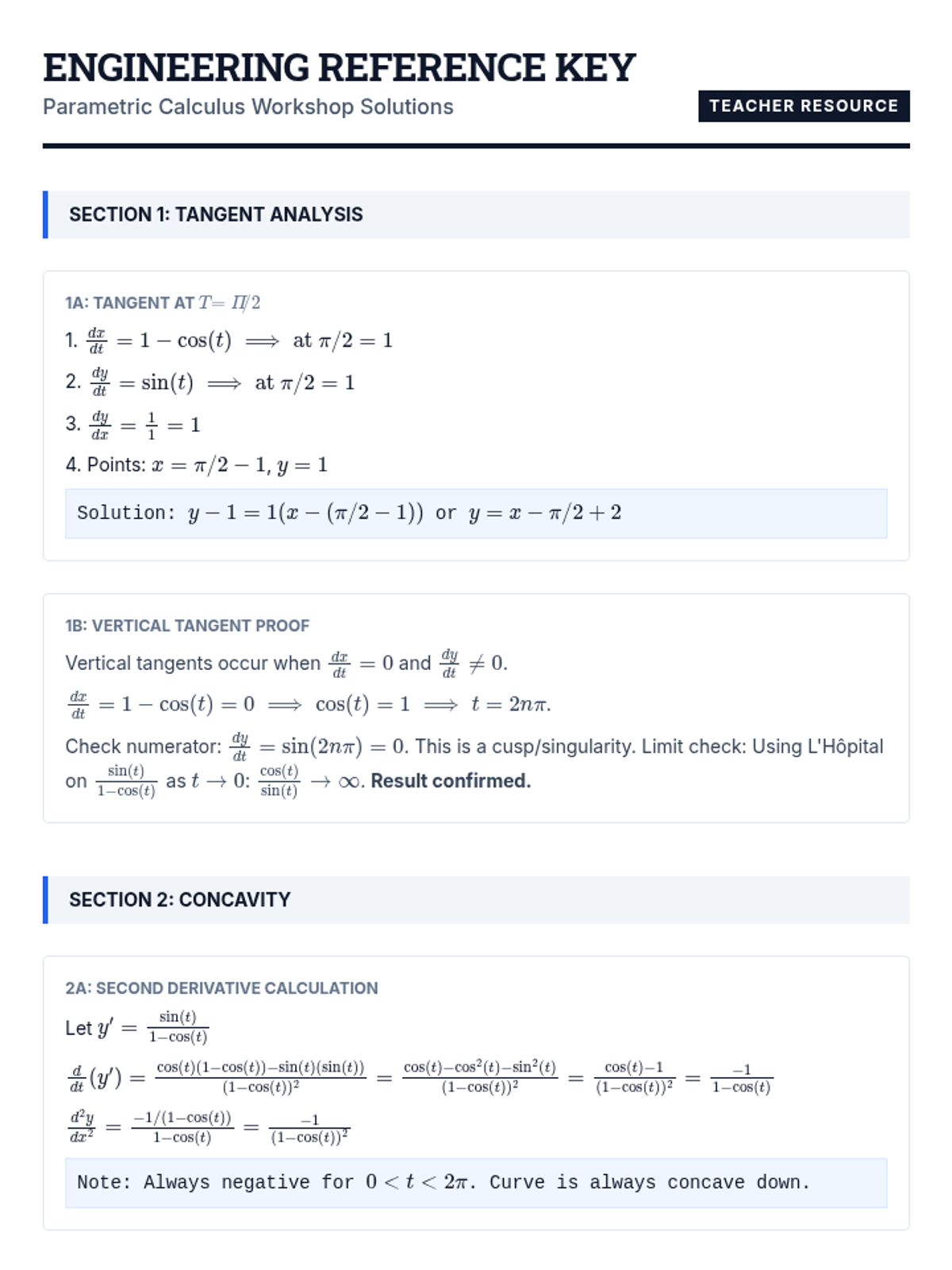

Workshop Answer Key Resource Engineering Reference Key
Parametric Calculus Workshop Solutions
Teacher Resource
Section 1: Tangent Analysis
1A: Tangent at \(t = \pi/2\)
1. \(\frac{dx}{dt} = 1 - \cos(t) \implies \text{at } \pi/2 = 1\)
2. \(\frac{dy}{dt} = \sin(t) \implies \text{at } \pi/2 = 1\)
3. \(\frac{dy}{dx} = \frac{1}{1} = 1\)
4. Points: \(x = \pi/2 - 1\), \(y = 1\)
Solution: \(y - 1 = 1(x - (\pi/2 - 1))\) or \(y = x - \pi/2 + 2\)
1B: Vertical Tangent Proof
Vertical tangents occur when \(\frac{dx}{dt} = 0\) and \(\frac{dy}{dt} \neq 0\).
\(\frac{dx}{dt} = 1 - \cos(t) = 0 \implies \cos(t) = 1 \implies t = 2n\pi\).
Check numerator: \(\frac{dy}{dt} = \sin(2n\pi) = 0\). This is a cusp/singularity. Limit check: Using L'Hôpital on \(\frac{\sin(t)}{1-\cos(t)}\) as \(t \to 0\): \(\frac{\cos(t)}{\sin(t)} \to \infty\). Result confirmed.
Section 2: Concavity
2A: Second Derivative Calculation
Let \(y' = \frac{\sin(t)}{1-\cos(t)}\)
\(\frac{d}{dt}(y') = \frac{\cos(t)(1-\cos(t)) - \sin(t)(\sin(t))}{(1-\cos(t))^2} = \frac{\cos(t) - \cos^2(t) - \sin^2(t)}{(1-\cos(t))^2} = \frac{\cos(t) - 1}{(1-\cos(t))^2} = \frac{-1}{1-\cos(t)}\)
\(\frac{d^2y}{dx^2} = \frac{-1/(1-\cos(t))}{1-\cos(t)} = \frac{-1}{(1-\cos(t))^2}\)
Note: Always negative for \(0 < t < 2\pi\). Curve is always concave down.
Section 3: Spatial Metrics
3A: Cycloid Arc Length
\((x')^2 + (y')^2 = (1-\cos t)^2 + (\sin t)^2\)
\(= 1 - 2\cos t + \cos^2 t + \sin^2 t = 2 - 2\cos t\)
Using identity \(1 - \cos t = 2\sin^2(t/2)\):
\(\sqrt{4\sin^2(t/2)} = 2\sin(t/2)\)
\(L = \int_0^{2\pi} 2\sin(t/2) dt = [-4\cos(t/2)]_0^{2\pi} = 4 - (-4)\)
Final Answer: 8 units
3B: Surface Area Setup
Radius \(r = y = 1 - \cos(t)\)
\(ds = \sqrt{2 - 2\cos(t)} \, dt\)
\[ S = \int_0^{2\pi} 2\pi(1-\cos t)\sqrt{2-2\cos t} \, dt \]
Confidential Teacher Guide // Unit 12 // Parametric Calculus
