Radar Navigation Slides Radar Navigation
Mastering the Polar Coordinate System
Lesson 1 Calculus
The Polar System
1 The Coordinate Pair
P(r, \(\theta\))
r: Directed distance from the pole.\(\theta\): Directed angle from polar axis.
2 Key Terms
• Pole: The origin (fixed point).
• Polar Axis: The initial ray (typically the positive x-axis).
Polar Axis Pole
Mission Step 1: Positive Radius
Procedure
Find the angle \(\theta\) on the polar grid.
Move out \(r\) units from the pole along the terminal ray of \(\theta\).
Example
Plot: P(3, \(\pi/4\))
Locate the line for 45 degrees. Travel 3 concentric rings out from the center.
P(3, \pi/4)
Mission Step 2: Negative Radius
When \(r < 0\), the point is located opposite the terminal ray of \(\theta\).
(-r, \(\theta\))
(r, \(\theta + \pi\))
Mental Strategy:
Locate the terminal side of \(\theta\).
Look "backwards" through the pole.
Travel \(|r|\) units in that opposite direction.
Plot: Q(-2, 2\(\pi/3\))
Go to 120°, then step 2 units backwards into the 4th quadrant (300°).
The "Infinite Identity" Problem
Unlike Cartesian points, a single point in the polar plane has infinitely many coordinates.
Rule 1: Coterminal Angles
(r, \(\theta\)) = (r, \(\theta + 2n\pi\))
Rule 2: Negative Reflections
(r, \(\theta\)) = (-r, \(\theta + \pi\))
Find three other names for (2, 30°):
A (2, 390°) (Add 360°)
B (2, -330°) (Subtract 360°)
C (-2, 210°) (Add 180°, switch sign)
Radar Lock
Which of these pairs represents the same point as (-3, \(\pi/4\))?
(3, 5\(\pi\)/4)
(-3, 9\(\pi\)/4)
(3, -3\(\pi\)/4)
All of the Above

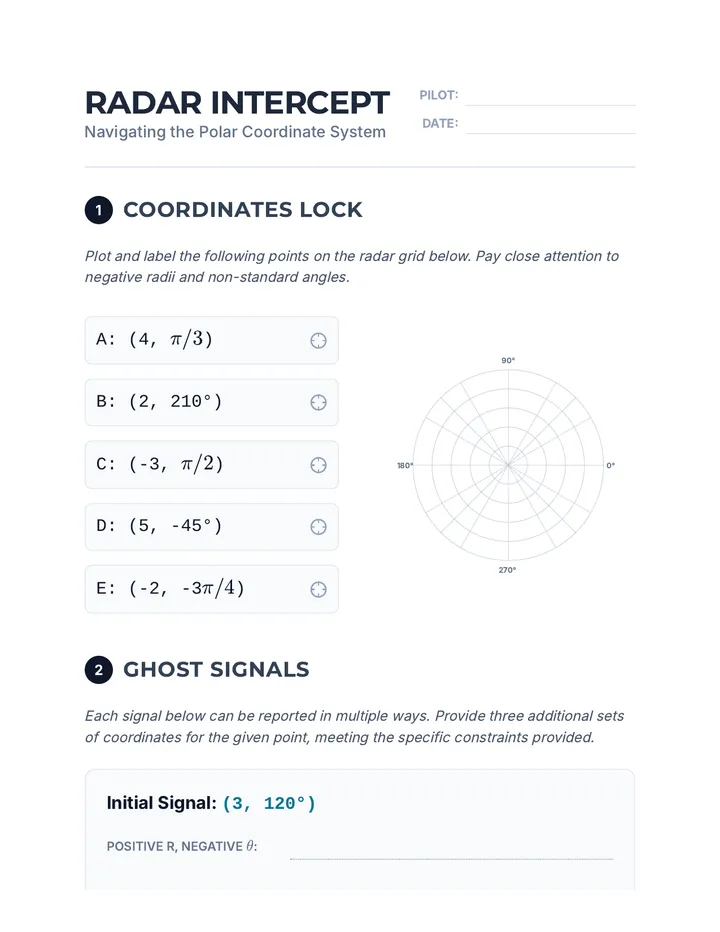

Radar Intercept Worksheet Radar Intercept
Navigating the Polar Coordinate System
Pilot:
Date:
1
Coordinates Lock
Plot and label the following points on the radar grid below. Pay close attention to negative radii and non-standard angles.
A: (4, \(\pi/3\))
B: (2, 210°)
C: (-3, \(\pi/2\))
D: (5, -45°)
E: (-2, -3\(\pi/4\))
0° 90° 180° 270°
2
Ghost Signals
Each signal below can be reported in multiple ways. Provide three additional sets of coordinates for the given point, meeting the specific constraints provided.
Initial Signal: (3, 120°)
Positive r, negative \(\theta\):
Negative r, positive \(\theta\):
Negative r, negative \(\theta\):
Initial Signal: (-4, -\(\pi\)/6)
Positive r, positive \(\theta\):
Positive r, negative \(\theta\):
Negative r, positive \(\theta\):
3
Radar Logic
Explain why the point (0, 45°) and (0, 180°) are the same location. What is this point called in the polar system?
A radar operator claims that any point (r, \(\theta\)) can be written with a positive radius and an angle such that \(0 \le \theta < 2\pi\). Is this always true? Justify your answer.
System Switch Slides System Switch
Converting Polar & Cartesian Systems
Lesson 2 Calculus
The Efficiency Gap
Cartesian View
\(x^2 + y^2 = 9\)
A beautiful circle, but requires squares, addition, and constants to define every point.
Polar View
\(r = 3\)
Simple. Elegant. Directly describes the geometric property: "All points distance 3 from center."
"The right tool for the right curve."
The Bridge: Trigonometry
By superimposing the systems, we create a right triangle with:
Hypotenuse
r
Angle
\(\theta\)
Adjacent
x
Opposite
y
r \theta x y (x,y) or (r,\theta)
The Toolset
Polar \(\rightarrow\) Cartesian
\(x = r \cos \theta\)
\(y = r \sin \theta\)
Cartesian \(\rightarrow\) Polar
\(r^2 = x^2 + y^2\)
\(\tan \theta = y/x\)
Caution: Check the quadrant for \(\theta\)!
Equation Translation
Strategy
Look for terms like \(x^2 + y^2\) to replace with \(r^2\).
Replace single \(x\) or \(y\) with their trig equivalents.
Multiply through by \(r\) to create \(r^2\), \(r\cos\theta\), or \(r\sin\theta\) terms.
Practice Case
Convert to Polar Form:
\(x^2 + y^2 = 6x\)
\(r^2 = 6(r \cos \theta)\)
\(r = 6 \cos \theta\)
System Challenge
Convert the Cartesian point (-1, 1) to polar coordinates with \(r > 0\) and \(0 \le \theta < 2\pi\).
(\(\sqrt{2}\), 45°)
(\(\sqrt{2}\), 135°)
(2, 3\(\pi\)/4)
(\(\sqrt{2}\), 3\(\pi\)/4)
Hint: Which quadrant is (-1, 1) in?

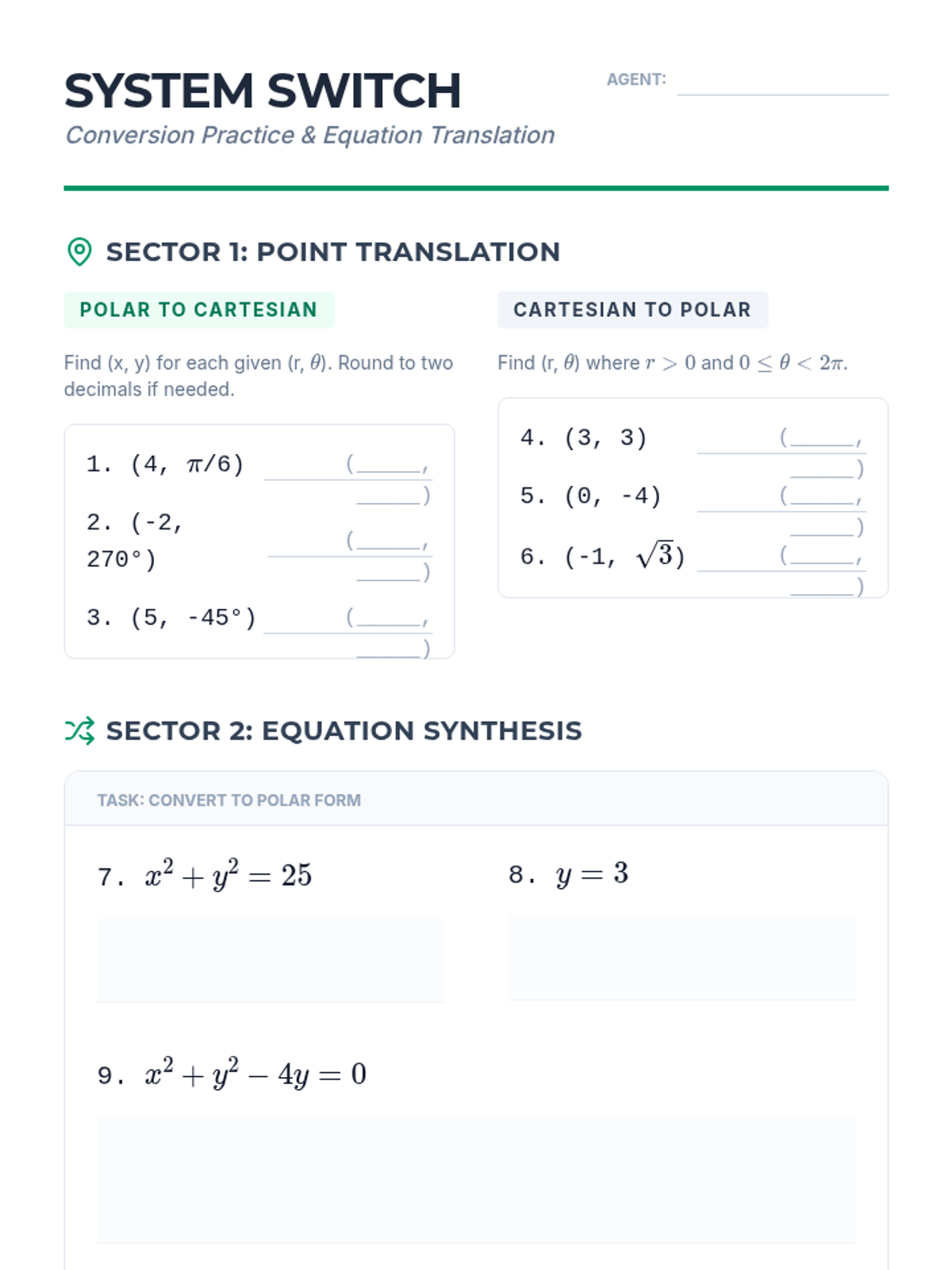

System Switch Worksheet System Switch
Conversion Practice & Equation Translation
Agent:
Sector 1: Point Translation
Polar to Cartesian
Find (x, y) for each given (r, \(\theta\)). Round to two decimals if needed.
1. (4, \(\pi\)/6)
(_____, _____)
2. (-2, 270°)
(_____, _____)
3. (5, -45°)
(_____, _____)
Cartesian to Polar
Find (r, \(\theta\)) where \(r > 0\) and \(0 \le \theta < 2\pi\).
4. (3, 3)
(_____, _____)
5. (0, -4)
(_____, _____)
6. (-1, \(\sqrt{3}\))
(_____, _____)
Sector 2: Equation Synthesis
Task: Convert to Polar Form
7. \(x^2 + y^2 = 25\)
8. \(y = 3\)
9. \(x^2 + y^2 - 4y = 0\)
Task: Convert to Cartesian Form
10. \(r = 4 \csc \theta\)
11. \(\theta = \frac{3\pi}{4}\)
12. \(r = 2 \cos \theta\)
Sector 3: Tactical Report
Which system is more efficient for representing a line passing through the origin? Why? Use examples from your work above to support your claim.
Basic Curves Slides Basic Curves
Circles & Lines in the Polar Plane
Lesson 3 Calculus
Predict the Path
Equation A
\(r = 4\)
"The distance from the pole is constant."
What do you see?
If \(\theta\) can be anything, but \(r\) must be 4, what shape is traced?
A Circle Centered at the Pole
Predict the Path
Equation B
\(\theta = \pi/3\)
"The direction is constant, the distance is variable."
The Logic
Include both positive \(r\) (forward) and negative \(r\) (backward).
A Line Through the Pole
The Off-Center Shift
Vertical Shift
\(r = a \sin \theta\)
Circle on the y-axis.
Passes through pole, diameter = |a|.
Horizontal Shift
\(r = a \cos \theta\)
Circle on the x-axis.
Passes through pole, diameter = |a|.
r = a sin\theta r = a cos\theta
Variable Analysis
What happens when we change "a"?
Growth
Large |a| creates a larger circle.
Polarity
Negative a flips the circle to the opposite side.
Trig
Cos vs Sin controls the axis of symmetry.
"The amplitude 'a' is the diameter of the circle."
Sketch Check
Describe the graph of r = -6 \sin \theta without plotting points.
"A circle centered on the negative y-axis with a diameter of 6, passing through the pole."
Diameter: 6
Axis: Vertical
Pole: Intersection
Simple Shapes Worksheet Simple Shapes
Investigation into Basic Polar Curves
Researcher:
1
Constant Analysis
Sketch the following equations. Predict the shape before you plot any points.
\(r = 3\)
Shape Prediction:
\(\theta = \frac{5\pi}{6}\)
Shape Prediction:
2
Trigonometric Investigation
Complete the table of values for the equation \(r = 4\cos\theta\) and sketch the result.
\(\theta\) \(r = 4\cos\theta\) 0 \(\pi\)/6 \(\pi\)/3 \(\pi\)/2 2\(\pi\)/3 5\(\pi\)/6 \(\pi\)
Key Finding:
Where is the center of this circle? What is the diameter?
3
Rapid Identification
Describe each curve in words (center, radius/diameter, axis) without graphing.
13. \(r = -8\sin\theta\)
14. \(r = 10\cos\theta\)
15. \(r = 5\)
16. \(\theta = 2\pi/3\)
Complex Curves Slides Space Snail and Roses Complex Curves
The Anatomy of Roses & Lima\u00e7ons
Lesson 4 Calculus
Rose Curves: r = a \cos(n\theta)
The "n" Rule
If n is ODD: n petals
If n is EVEN: 2n petals
The coefficient a determines the length of each petal.
n = 3 (Odd)
2n petals
n = 2 (Even)
Lima\u00e7ons: r = a \pm b \cos\theta
The ratio of a/b determines the shape of the "snail" (lima\u00e7on).
a/b < 1
Inner Loop
a/b = 1
Cardioid (Heart)
1 < a/b < 2
Dimpled
"When the constant 'a' equals the coefficient 'b', the inner loop collapses into a single sharp point at the pole."
a = b \rightarrow Cardioid
Parameter Morphing
Rose Growth
Increasing n adds complexity and petals.
Lima\u00e7on Loop
As a gets smaller than b, the loop appears.
Symmetry
Cos curves align with polar axis. Sin curves align with \(\pi/2\).
Curve Reconnaissance
Classify the following polar equation and describe its features:
r = 3 + 5 \cos \theta
Type
Lima\u00e7on with Inner Loop
Reason
a/b = 3/5 < 1
Symmetry
Polar Axis (x-axis)
Max Radius
8 units (at \(\theta=0\))

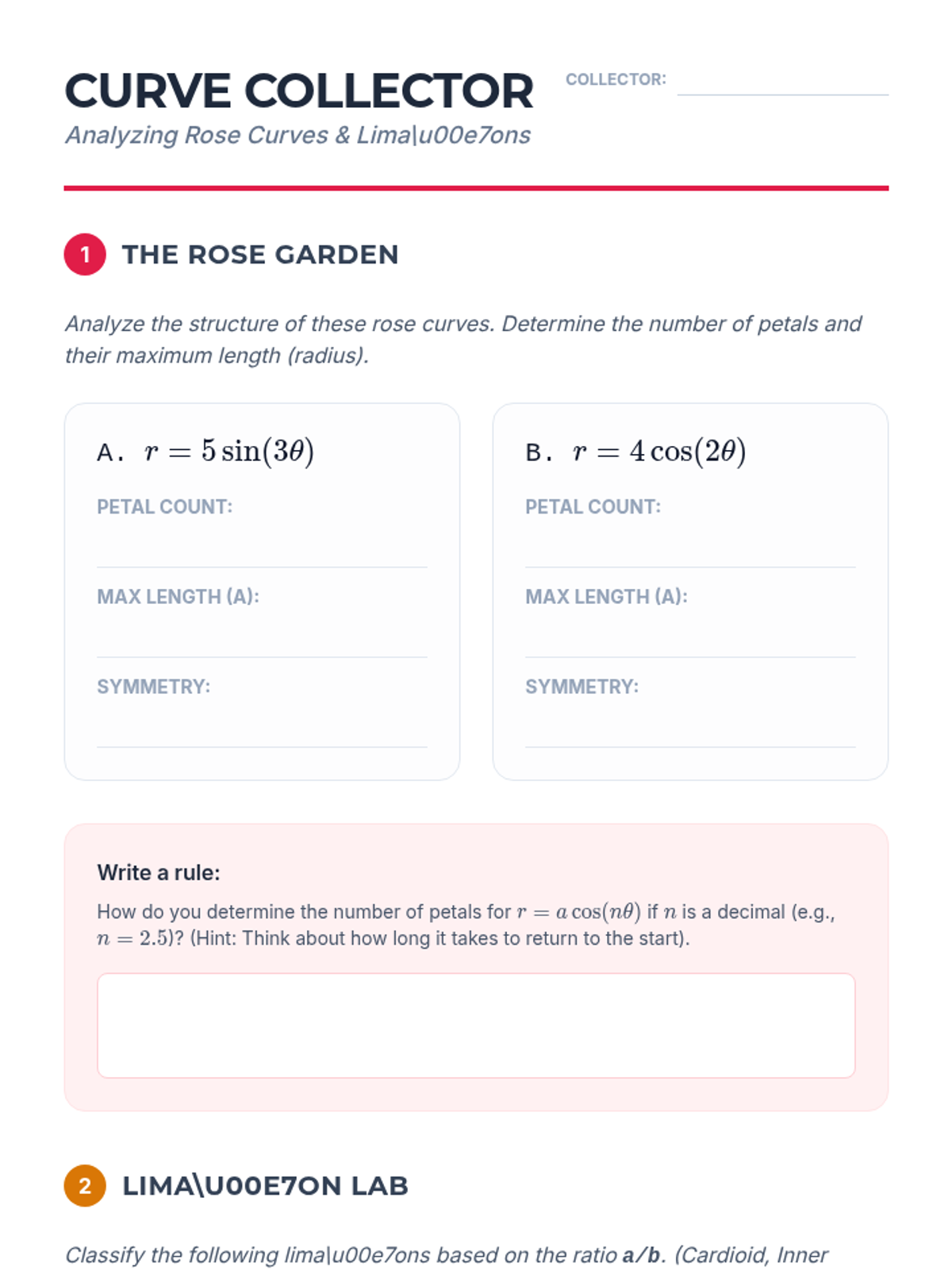

Curve Collector Worksheet Curve Collector
Analyzing Rose Curves & Lima\u00e7ons
Collector:
1
The Rose Garden
Analyze the structure of these rose curves. Determine the number of petals and their maximum length (radius).
A. \(r = 5 \sin(3\theta)\)
Petal Count:
Max Length (a):
Symmetry:
B. \(r = 4 \cos(2\theta)\)
Petal Count:
Max Length (a):
Symmetry:
Write a rule:
How do you determine the number of petals for \(r = a \cos(n\theta)\) if \(n\) is a decimal (e.g., \(n=2.5\))? (Hint: Think about how long it takes to return to the start).
2
Lima\u00e7on Lab
Classify the following lima\u00e7ons based on the ratio a/b. (Cardioid, Inner Loop, Dimpled, or Convex).
\(r = 2 + 2 \sin\theta\)
a/b = _______
\(r = 1 + 2 \cos\theta\)
a/b = _______
\(r = 3 + 2 \sin\theta\)
a/b = _______
The "Loop" Threshold:
Explain why an inner loop occurs when \(a < b\). What happens to the value of \(r\) for certain angles?
Challenge
What is the radius when the cardioid hits the pole?
3
Synthesis Sketch
Sketch: \(r = 2 - 4 \cos\theta\)
Identify the symmetry.
Identify the max radius.
Identify the inner loop existence.
Collision Course Slides Collision Course
Symmetry & Intersections
Lesson 5 Calculus
Symmetry Tests
Polar Axis
(x-axis symmetry)
Replace \(\theta\) with \(-\theta\)
If the equation is unchanged, it is symmetric across the polar axis.
Line \(\theta = \pi/2\)
(y-axis symmetry)
Replace \(\theta\) with \(\pi - \theta\)
If the equation is unchanged, it is symmetric across the vertical line.
The Pole
(Origin symmetry)
Replace \(r\) with \(-r\)
If the equation is unchanged, it is symmetric about the center.
Finding Intersections
To find where two curves cross, we set the equations r_1 = r_2 and solve for \(\theta\).
The Polar Trap!
Algebra alone may not find all intersection points.
Why?
A point has multiple names (representations).
The Pole often doesn't appear in the algebra because it can be represented by \(r=0\) at any \(\theta\).
Conclusion: Always graph to verify intersections!
Orbit Analysis
Path A (Circle)
\(r = 1\)
Path B (Cardioid)
\(r = 1 - \cos \theta\)
Solving Algebraically:
\(1 = 1 - \cos \theta\)
\(\cos \theta = 0\)
\(\theta = \pi/2, 3\pi/2\)
Collision!
"The visuals confirm our algebra... but did we miss the pole?"
The Missing Pole
An intersection at the pole occurs if both equations equal 0 for any values of \(\theta\).
Equation 1: \(r = 0\) at \(\theta_1\)
Equation 2: \(r = 0\) at \(\theta_2\)
Note: \(\theta_1\) and \(\theta_2\) do not have to be the same!
Mission Complete
"A polar intersection is more than just an equation; it's a meeting of paths across time and direction."
The Final Check
Test for Symmetry.
Solve Algebraically.
Check the Pole (r=0).
Verify with a Graph.
Collision Course Worksheet Collision Course
Symmetry & Intersections Case Study
Analyst:
S
Symmetry Protocol
Perform the appropriate algebraic tests to determine the symmetry of the following equations. State your conclusion clearly.
1. \(r = 2 - 2 \cos\theta\)
Test (\(\theta \rightarrow -\theta\)):
Symmetry Found:
2. \(r = 3 \sin(2\theta)\)
Test (\(r \rightarrow -r\)):
Symmetry Found:
X
Satellite Intercept
Two satellites are traveling in the same plane with paths defined by:
Satellite Alpha
\(r = 1\)
Satellite Beta
\(r = 1 + \cos\theta\)
Task A: Algebraic Solution
Find the intersection points by setting the equations equal.
Task B: The Pole Check
Do these paths cross at the origin (pole)? Justify.
Task C: Radar Verification
Sketch both paths above to confirm your findings.
Final Report:
Number of total intersections: ________
?
Post-Collision Brief
"In polar graphing, an algebraic intersection doesn't always tell the whole story." Explain this statement using the concept of multiple representations and the nature of the pole.
