Composite Construction Slides Composite Construction
Mastering the Art of Decomposing Complex Solids
The Capsule Challenge
A medical capsule consists of a cylinder capped by two hemispheres.
Critical Question:
How do we calculate the precise amount of medicine held inside this shape?
Model: Hemisphere + Cylinder + Hemisphere
The Strategy: Breakdown
1
Identify
Scan the object for familiar "parent" solids: Prisms, Cylinders, Cones, Spheres.
2
Analyze
Determine dimensions for each part. Look for shared radii or height offsets.
3
Calculate
Compute volumes individually, then sum them up: \[ V_{total} = V_1 + V_2 + \dots \]
Case Study: The Grain Silo
Components:
Cylinder (Body)
Cone (Roof)
Dimensions:
Radius (shared): 10 ft
Cylinder Height: 40 ft
Cone Height: 8 ft
h = 40'
h = 8'
r = 10'
Mastery Check
Imagine a shape made of a cube with a side length of 6cm, topped with a square pyramid of the same base and a height of 4cm.
Step 1
Calculate the Cube Volume
Step 2
Calculate the Pyramid Volume
Be ready to explain your sum!

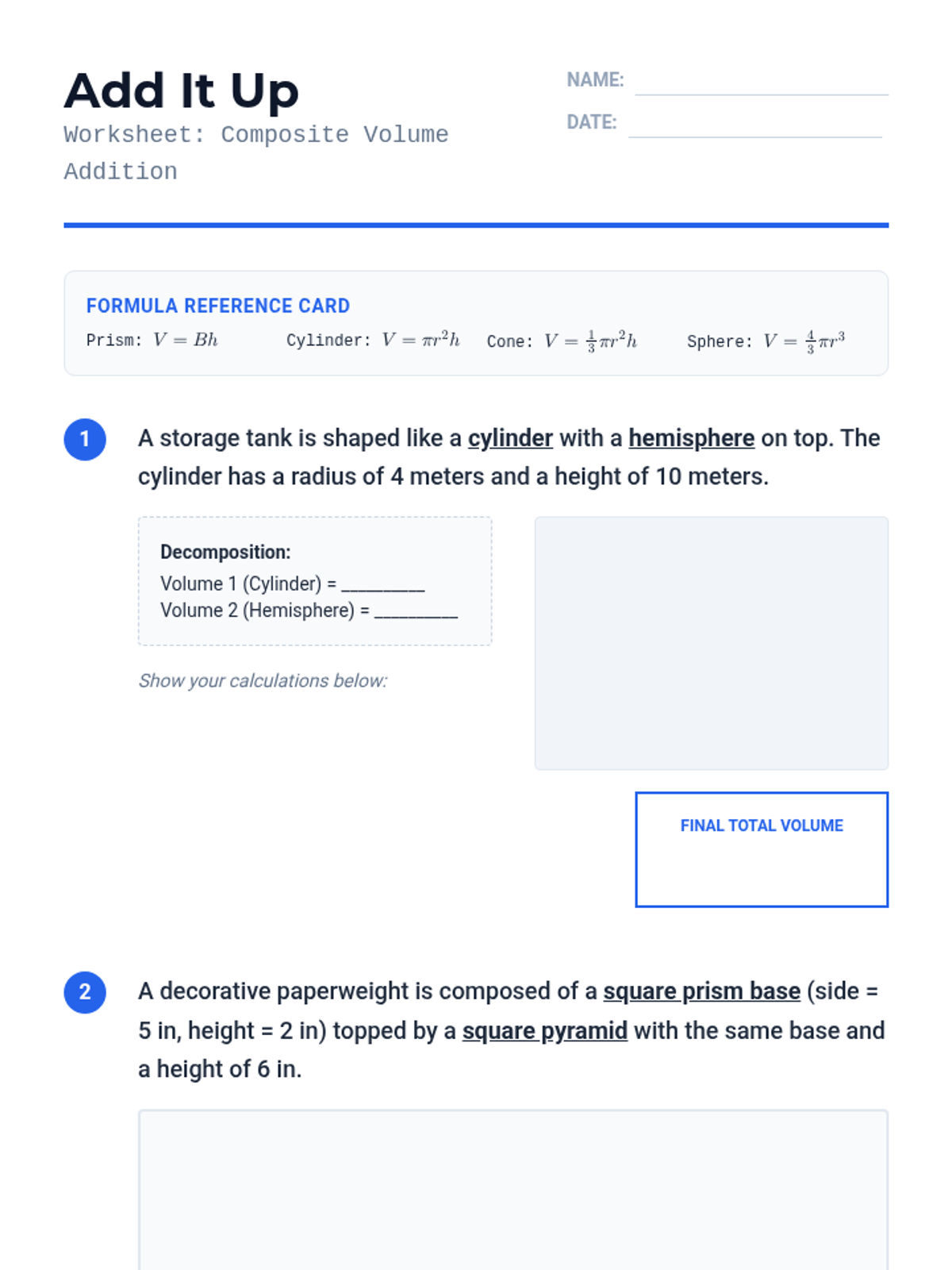

Add It Up Worksheet Add It Up
Worksheet: Composite Volume Addition
NAME:
DATE:
Formula Reference Card
Prism: \(V = Bh\)
Cylinder: \(V = \pi r^2 h\)
Cone: \(V = \frac{1}{3} \pi r^2 h\)
Sphere: \(V = \frac{4}{3} \pi r^3\)
1
A storage tank is shaped like a cylinder with a hemisphere on top. The cylinder has a radius of 4 meters and a height of 10 meters.
Decomposition:
Volume 1 (Cylinder) = __________
Volume 2 (Hemisphere) = __________
Show your calculations below:
Final Total Volume
2
A decorative paperweight is composed of a square prism base (side = 5 in, height = 2 in) topped by a square pyramid with the same base and a height of 6 in.
Total Volume (in³):
3
An ice cream cone is made of a cone with a diameter of 6 cm and a height of 12 cm, topped with a perfect sphere of ice cream (radius 3 cm).
Note: The sphere sits
Total Volume (cm³)
The Architect's Challenge
Design a composite solid made of two different solids that has a total volume between 500 and 600 cubic units. Sketch your design below and provide the dimensions that prove your calculation.
Shape 1: _________________
Shape 2: _________________

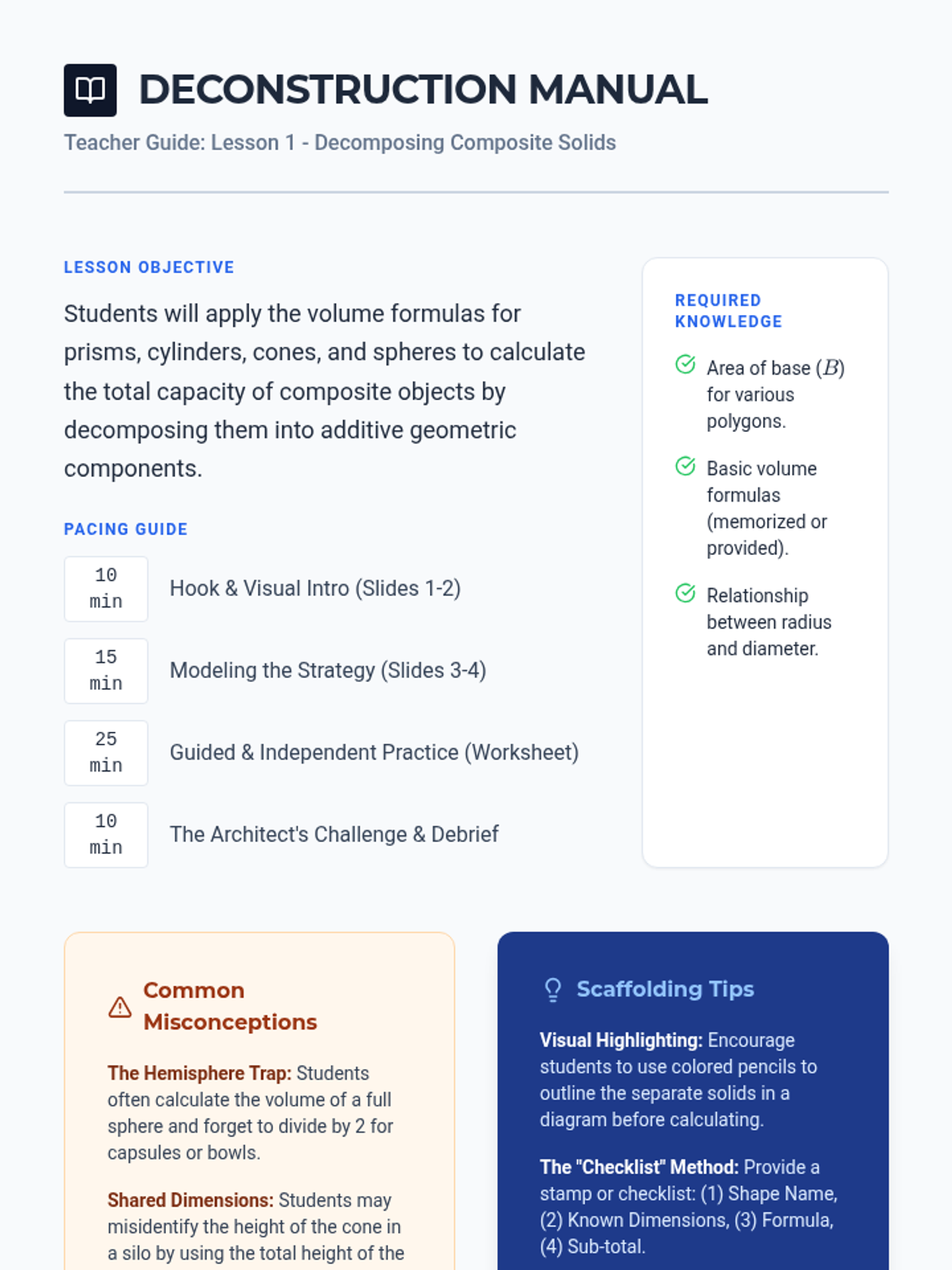

Deconstruction Manual Teacher Guide Deconstruction Manual
Teacher Guide: Lesson 1 - Decomposing Composite Solids
Lesson Objective
Students will apply the volume formulas for prisms, cylinders, cones, and spheres to calculate the total capacity of composite objects by decomposing them into additive geometric components.
Pacing Guide
10 min Hook & Visual Intro (Slides 1-2)
15 min Modeling the Strategy (Slides 3-4)
25 min Guided & Independent Practice (Worksheet)
10 min The Architect's Challenge & Debrief
Required Knowledge
Area of base (\(B\)) for various polygons.
Basic volume formulas (memorized or provided).
Relationship between radius and diameter.
Common Misconceptions
The Hemisphere Trap: Students often calculate the volume of a full sphere and forget to divide by 2 for capsules or bowls.
Shared Dimensions: Students may misidentify the height of the cone in a silo by using the total height of the structure instead of subtracting the cylinder height.
Units: Forgetting to label answers in cubic units (\(u^3\)).
Scaffolding Tips
Visual Highlighting: Encourage students to use colored pencils to outline the separate solids in a diagram before calculating.
The "Checklist" Method: Provide a stamp or checklist: (1) Shape Name, (2) Known Dimensions, (3) Formula, (4) Sub-total.
Estimation: Before calculating, ask "Is it bigger or smaller than the cylinder alone?"
Strategic Discussion Prompts
DURING THE SILO CASE STUDY:
"If the grain only fills the cylinder part, but the roof is a cone, how much 'empty air' is at the top of the silo?"
DURING THE WORKSHEET:
"Problem 3 (Ice Cream) - Why is the sphere sitting 'perfectly' on the cone important for our radius measurements?"
Hollow Core Slides Hollow Core
Mastering the Geometry of Voids and Spaces
The Infrastructure Question
A concrete storm drain pipe is 10 feet long. It has an outer radius of 2 feet and an inner radius of 1.5 feet.
The Problem:
How much concrete is actually used in its construction?
VOID
The Subtraction Rule
\[ V_{Solid} = V_{Outer} - V_{Inner} \]
Outer Volume
The volume of the entire object as if it were solid.
Inner Volume
The volume of the "hole" or "void" inside.
Case Study: The Steel Nut
Fasteners like hex nuts are perfect examples of subtractive geometry.
Decomposition Checklist:
Calculate volume of Hexagonal Prism (Outer)
Calculate volume of Cylinder (Inner)
Subtract: \( V_{Hex} - V_{Cyl} \)
Quick Mental Math
A wooden cube has a volume of 100 in³.
What is the volume of the wood remaining?
120 in³
80 in³
50 in³
Explain why subtraction is the correct operation here.

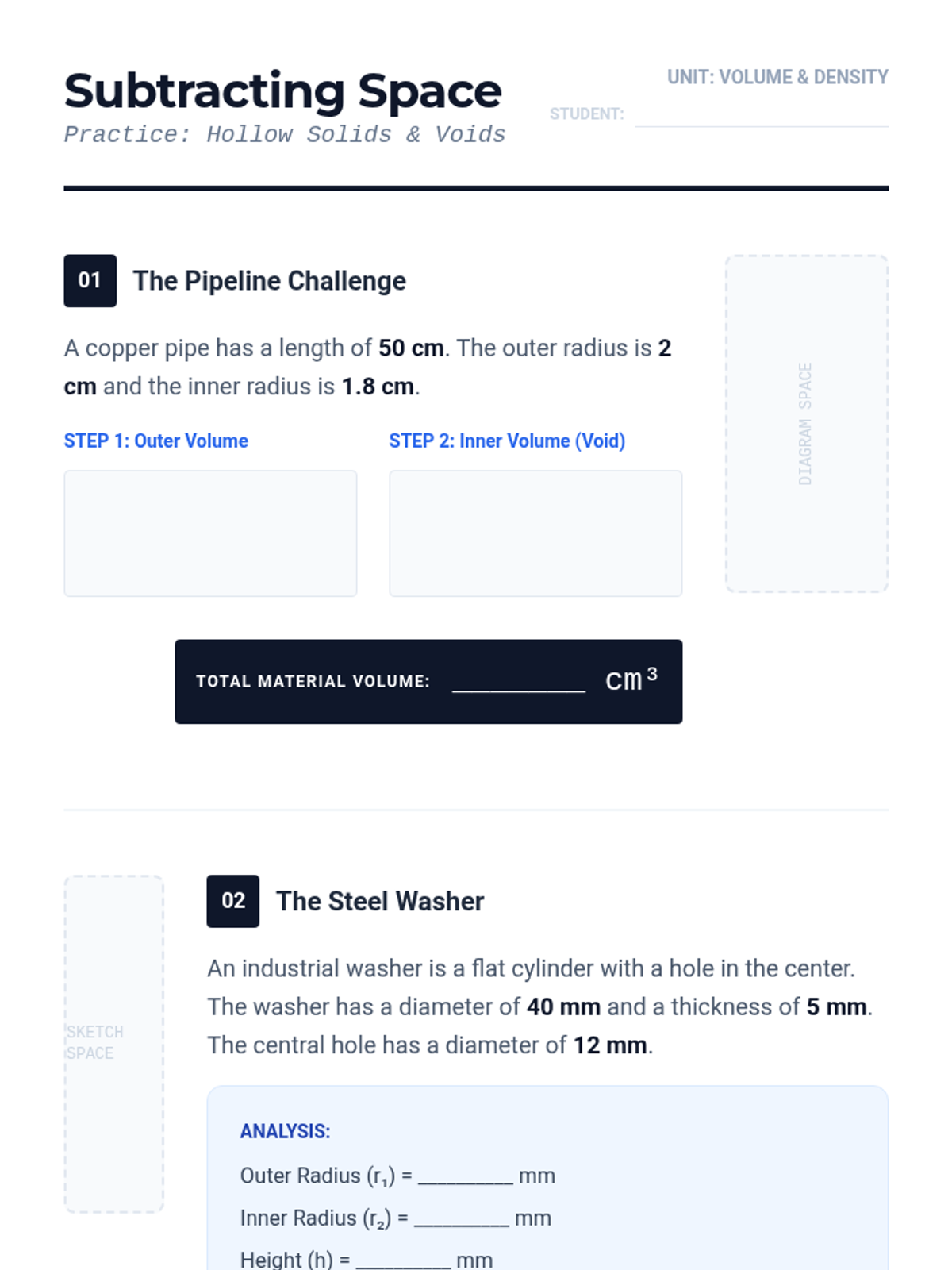

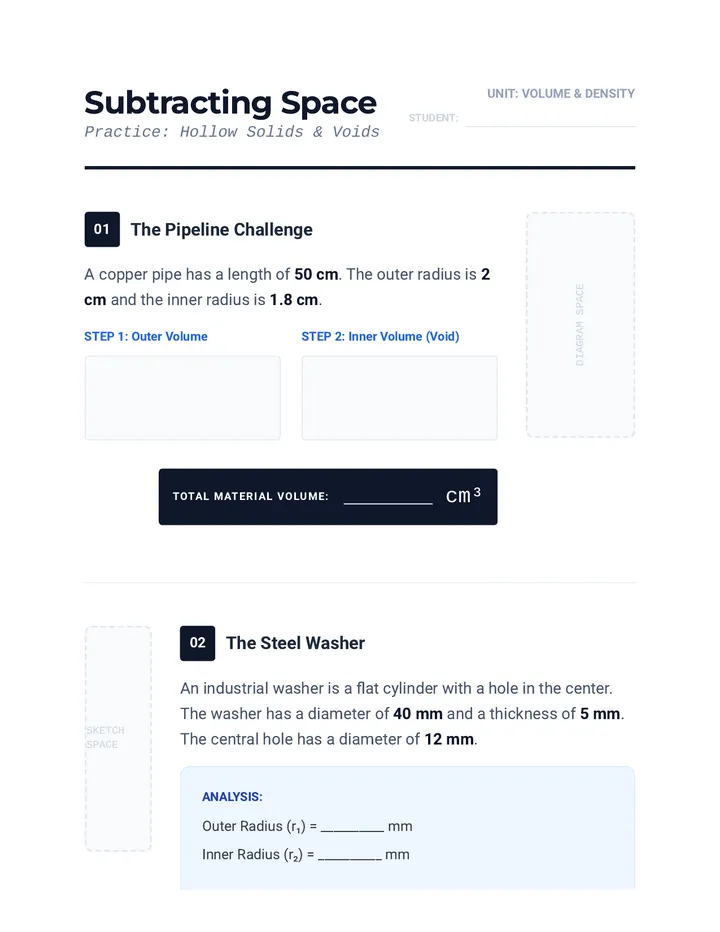

Subtracting Space Worksheet Subtracting Space
Practice: Hollow Solids & Voids
UNIT: VOLUME & DENSITY
STUDENT:
01
The Pipeline Challenge
A copper pipe has a length of 50 cm. The outer radius is 2 cm and the inner radius is 1.8 cm.
STEP 1: Outer Volume
STEP 2: Inner Volume (Void)
Total Material Volume: _______ cm³
DIAGRAM SPACE
SKETCH SPACE
02
The Steel Washer
An industrial washer is a flat cylinder with a hole in the center. The washer has a diameter of 40 mm and a thickness of 5 mm. The central hole has a diameter of 12 mm.
Analysis:
Outer Radius (r₁) = __________ mm
Total Volume: _______ mm³
03
The Modern Architecture Block
A decorative concrete block is a rectangular prism with dimensions 12" x 12" x 8". It has two identical square holes cut through the 8" depth to allow for airflow. Each hole is 4" x 4".
Strategy Tip:
Volume = Total Block - (2 x Hole Volume)
Show all work steps:
[ Workspace ]
12"
12"
"Don't forget to subtract BOTH voids!"
Final Volume (in³)

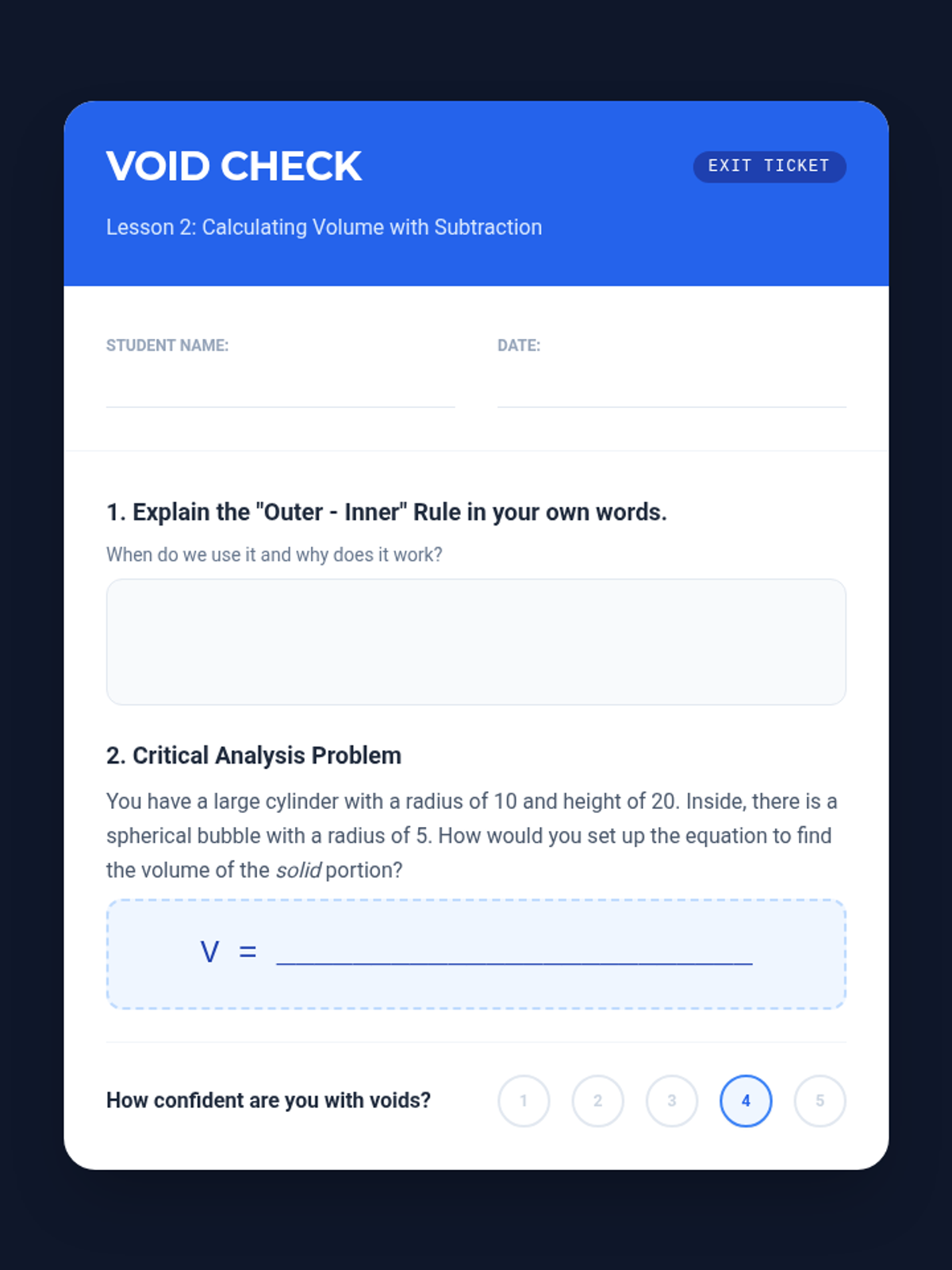

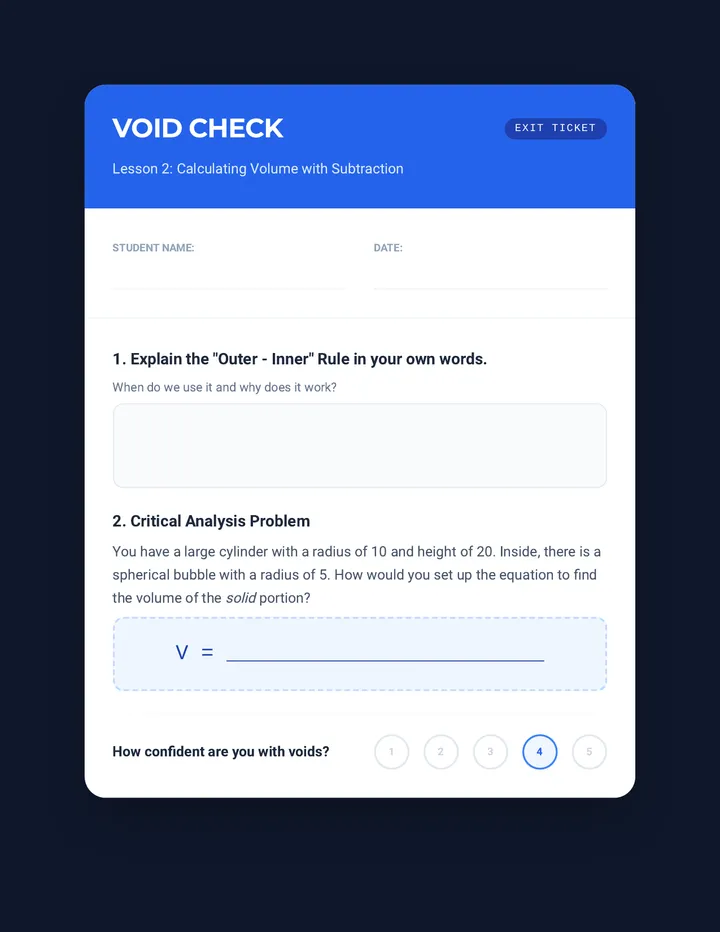

Void Check Exit Ticket Void Check
Exit Ticket
Lesson 2: Calculating Volume with Subtraction
Student Name:
Date:
1. Explain the "Outer - Inner" Rule in your own words.
When do we use it and why does it work?
2. Critical Analysis Problem
You have a large cylinder with a radius of 10 and height of 20. Inside, there is a spherical bubble with a radius of 5. How would you set up the equation to find the volume of the solid portion?
V = _________________________
How confident are you with voids?
1
2
3
4
5

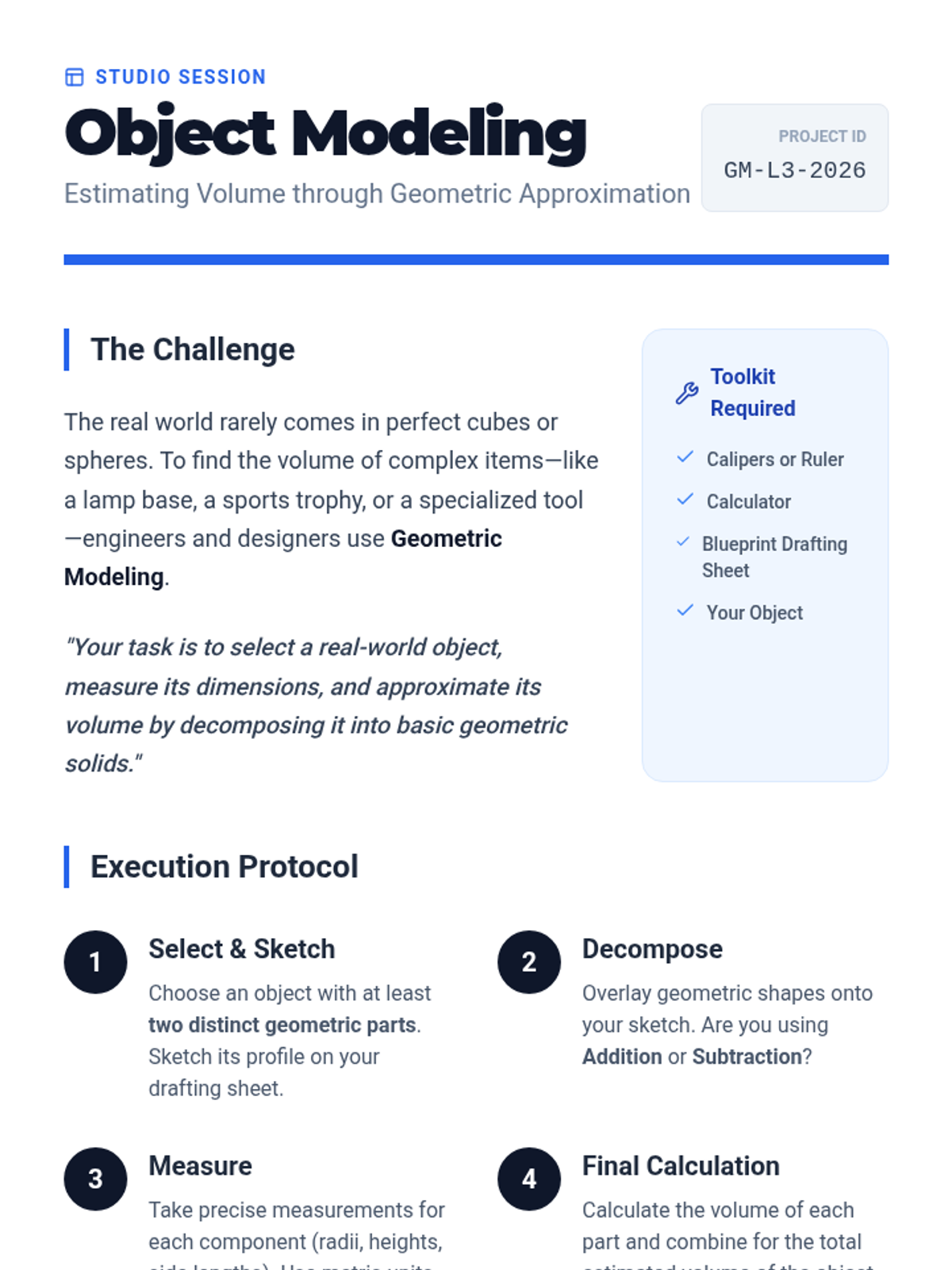

Object Modeling Project Guide Studio Session
Object Modeling
Estimating Volume through Geometric Approximation
PROJECT ID
GM-L3-2026
The Challenge
The real world rarely comes in perfect cubes or spheres. To find the volume of complex items—like a lamp base, a sports trophy, or a specialized tool—engineers and designers use Geometric Modeling.
"Your task is to select a real-world object, measure its dimensions, and approximate its volume by decomposing it into basic geometric solids."
Toolkit Required
Calipers or Ruler
Calculator
Blueprint Drafting Sheet
Your Object
Execution Protocol
1
Select & Sketch
Choose an object with at least two distinct geometric parts. Sketch its profile on your drafting sheet.
2
Decompose
Overlay geometric shapes onto your sketch. Are you using Addition or Subtraction?
3
Measure
Take precise measurements for each component (radii, heights, side lengths). Use metric units (cm/mm).
4
Final Calculation
Calculate the volume of each part and combine for the total estimated volume of the object.
Modeling Inspiration
Laboratory Flask
Cone + Cylinder
Hand Dumbbell
Cylinder + Cylinder + Cylinder
Case Study: Glasses Case
Hollow Prism

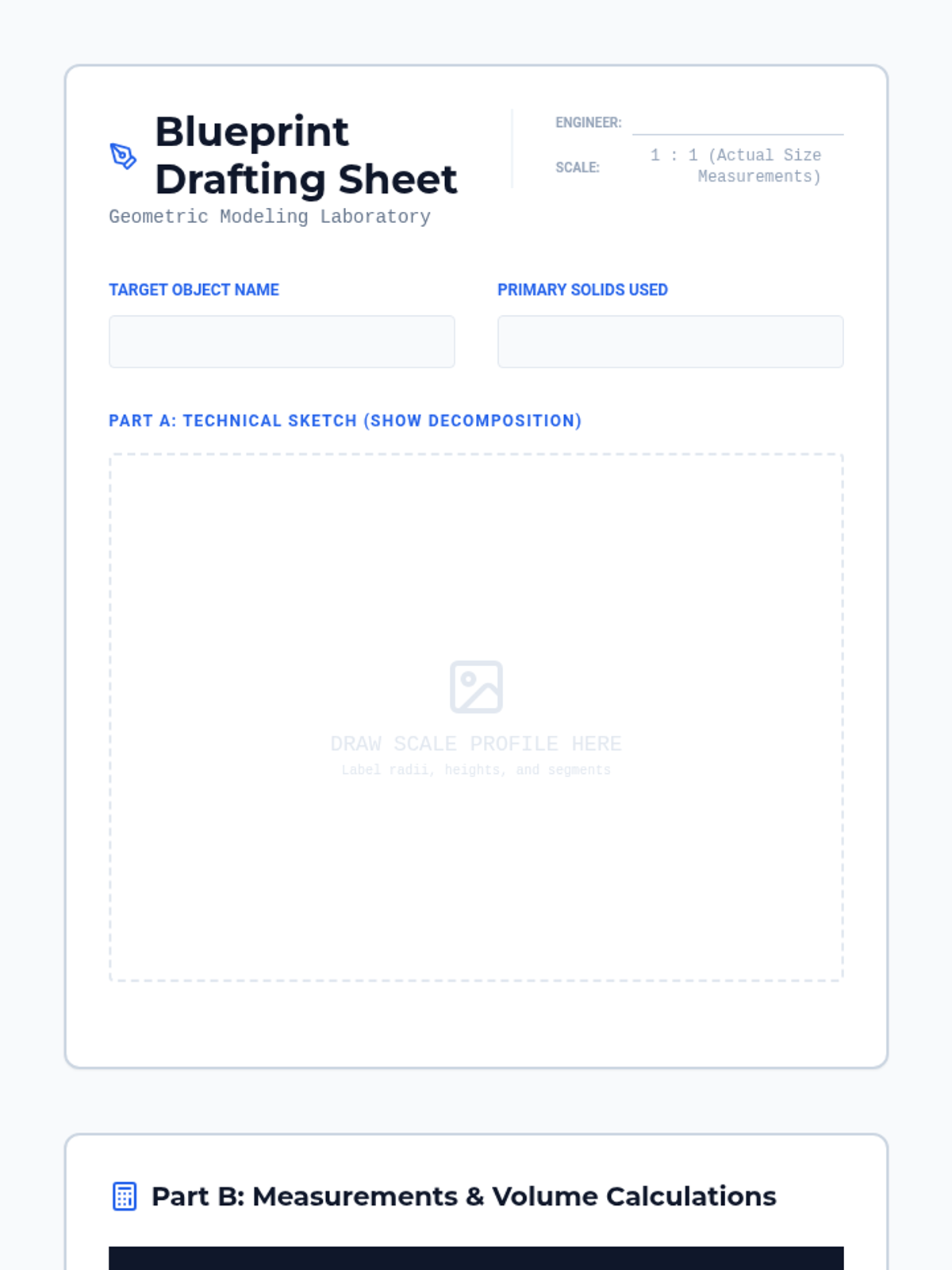

Blueprint Drafting Sheet Blueprint Drafting Sheet
Geometric Modeling Laboratory
Engineer:
Scale:
1 : 1 (Actual Size Measurements)
Target Object Name
Primary Solids Used
Part A: Technical Sketch (Show Decomposition)
DRAW SCALE PROFILE HERE Label radii, heights, and segments
Part B: Measurements & Volume Calculations
Geometric Component Required Dimensions (cm/mm) Formula Used Sub-Volume
Estimated Total Volume
(Sum of Sub-Volumes or Subtraction Result)
Reflection & Accuracy
Where is the biggest source of error in your model? (e.g., parts that didn't perfectly fit a cylinder, rounded edges ignored, etc.)

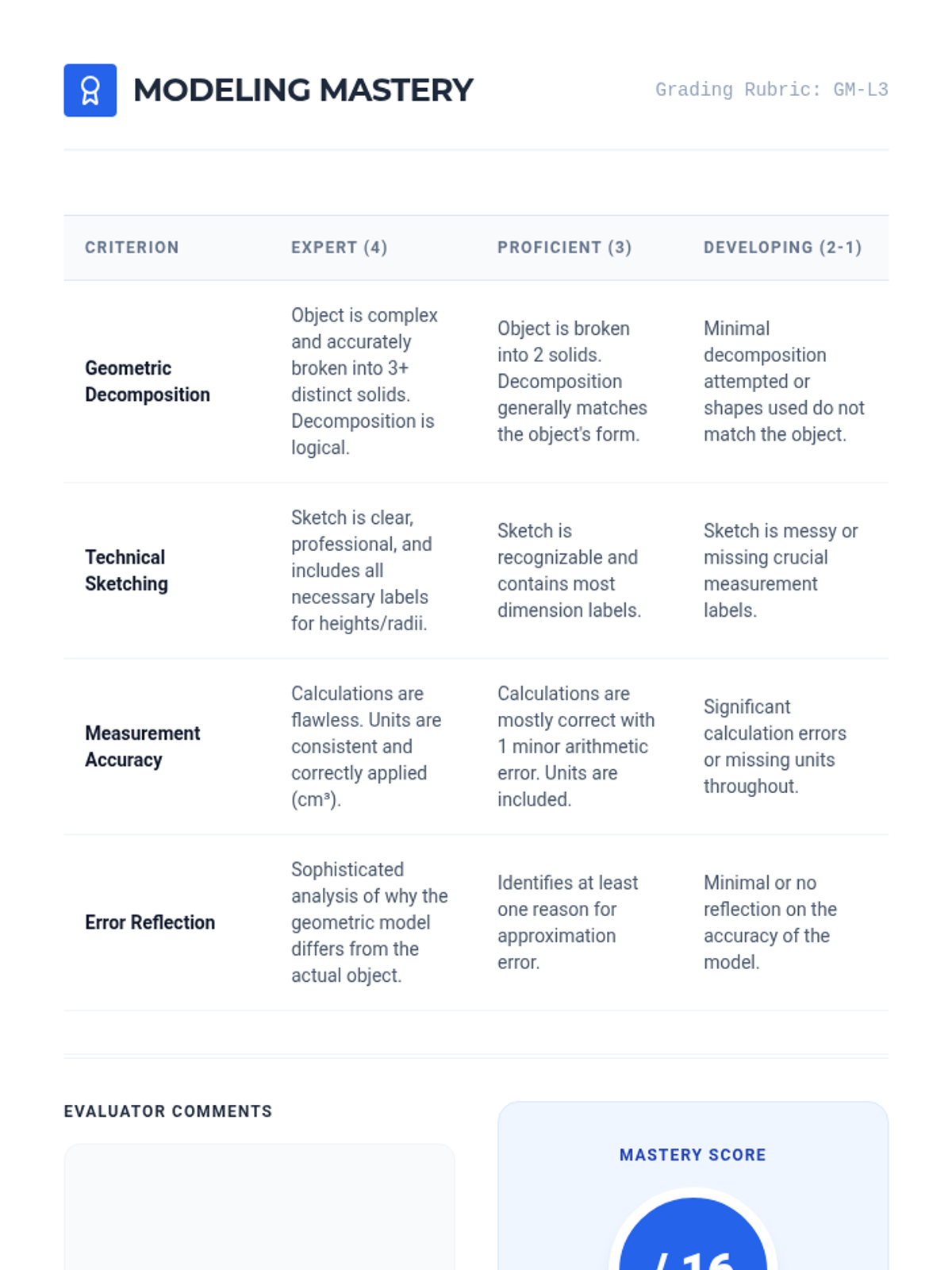

Modeling Mastery Rubric Modeling Mastery
Grading Rubric: GM-L3
Criterion Expert (4) Proficient (3) Developing (2-1) Geometric Decomposition Object is complex and accurately broken into 3+ distinct solids. Decomposition is logical. Object is broken into 2 solids. Decomposition generally matches the object's form. Minimal decomposition attempted or shapes used do not match the object. Technical Sketching Sketch is clear, professional, and includes all necessary labels for heights/radii. Sketch is recognizable and contains most dimension labels. Sketch is messy or missing crucial measurement labels. Measurement Accuracy Calculations are flawless. Units are consistent and correctly applied (cm³). Calculations are mostly correct with 1 minor arithmetic error. Units are included. Significant calculation errors or missing units throughout. Error Reflection Sophisticated analysis of why the geometric model differs from the actual object. Identifies at least one reason for approximation error. Minimal or no reflection on the accuracy of the model.
Evaluator Comments
Mastery Score
/ 16
Gold Standard Slides The Gold Standard
Applying Density to Geometric Volume
The Italian Job Challenge
In the movie The Italian Job, the thieves load a fleet of Mini Coopers with massive bars of gold.
The Physics Reality Check:
Gold has a density of 19.3 grams per cm³. Could those tiny cars really handle that weight?
999.9 GOLD
Dimensions: 20cm x 8cm x 5cm
Mass = ?
Volume \(\times\) Density
The Density Formula
The Core Relationship
\[ \rho = \frac{m}{V} \]
"Density equals Mass divided by Volume"
Solving for Mass
\[ m = V \times \rho \]
Key Units
Mass: grams (g) or kg
Volume: cm³ or m³
Density: g/cm³ or kg/m³
Common Material Densities
Material Density (g/cm³) Context Gold 19.3 Extremely Heavy Iron/Steel 7.8 Standard Construction Aluminum 2.7 Lightweight Metal Pine Wood 0.5 Floats on Water Water 1.0 The Standard
Problem Solving Workflow
1
Model Shape
Decompose & Measure
2
Find Volume
Additive or Subtractive
3
Multiply
V \(\times\) Density Table
Final Mass

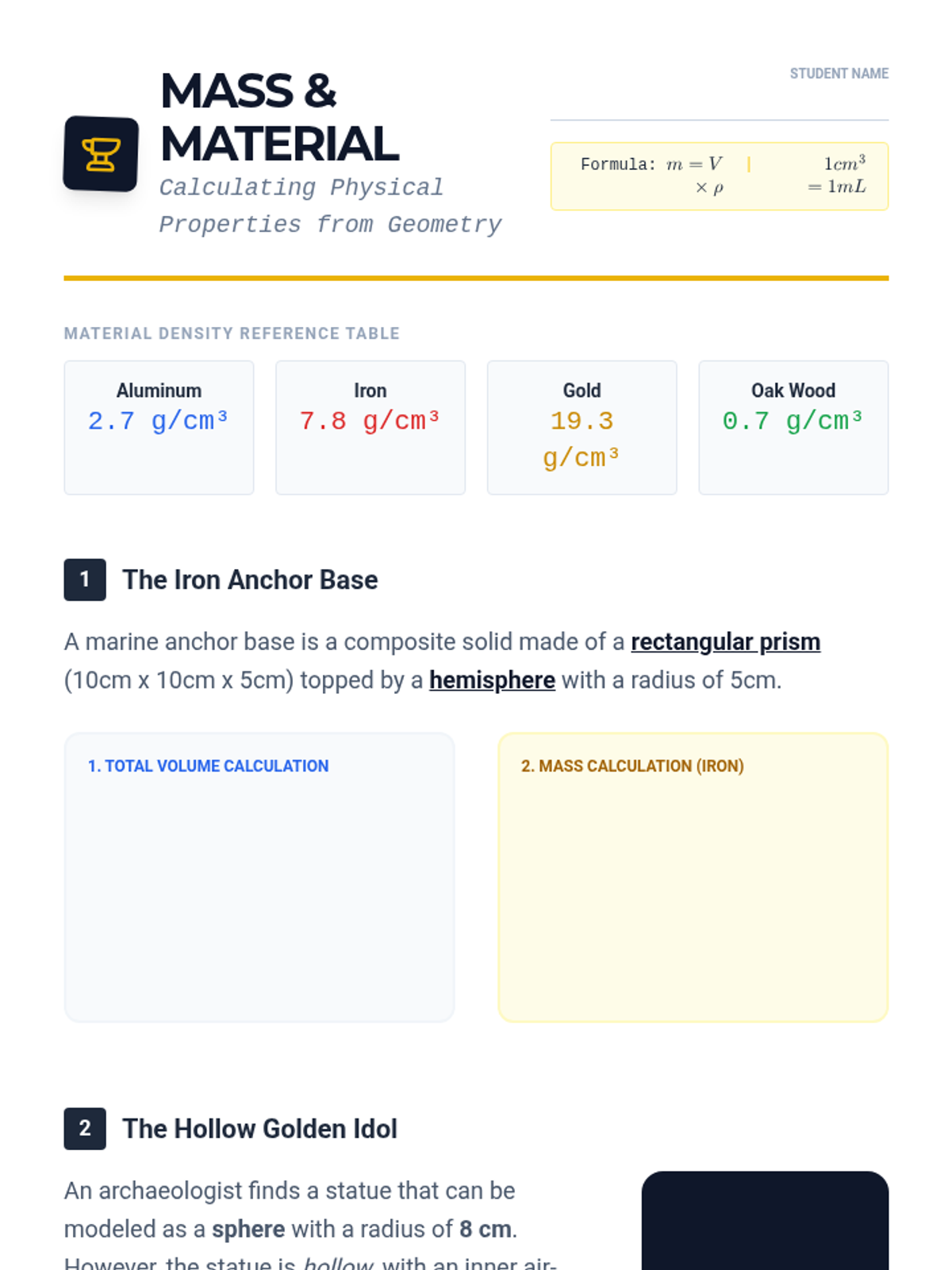

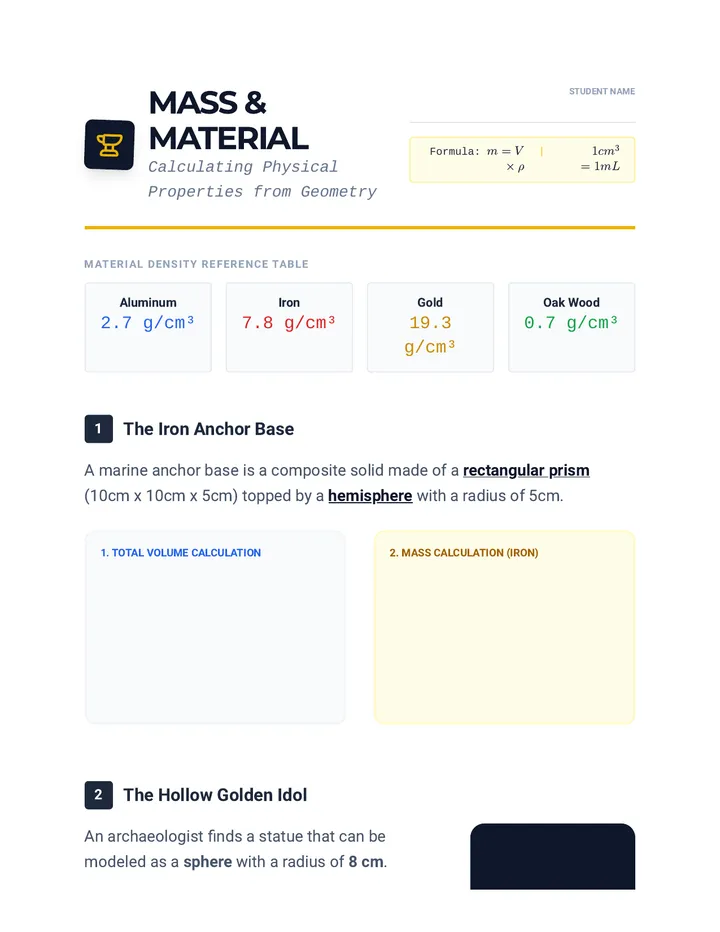

Mass and Material Worksheet Mass & Material
Calculating Physical Properties from Geometry
STUDENT NAME
Formula: \( m = V \times \rho \) | \( 1 cm^3 = 1 mL \)
Material Density Reference Table
Aluminum
2.7 g/cm³
Iron
7.8 g/cm³
Gold
19.3 g/cm³
Oak Wood
0.7 g/cm³
1
The Iron Anchor Base
A marine anchor base is a composite solid made of a rectangular prism (10cm x 10cm x 5cm) topped by a hemisphere with a radius of 5cm.
1. Total Volume Calculation
2. Mass Calculation (Iron)
2
The Hollow Golden Idol
An archaeologist finds a statue that can be modeled as a sphere with a radius of 8 cm. However, the statue is hollow, with an inner air-filled sphere of radius 6 cm. If the statue is made of Solid Gold, calculate its total mass.
Final Weight Estimate
_____ grams
Convert to kg: _______ kg
3
Cinema Reality Check: The Italian Job
A standard gold bar used in the heist measures 20 cm x 8 cm x 5 cm.
A) Volume of 1 Bar:
B) Mass of 1 Bar (Gold):
Did you know?
A typical Mini Cooper has a payload capacity of about 450 kg.
C) The Big Question:
If the thieves put 50 gold bars in one Mini Cooper, will the car be able to move? Support your answer with a final mass calculation.

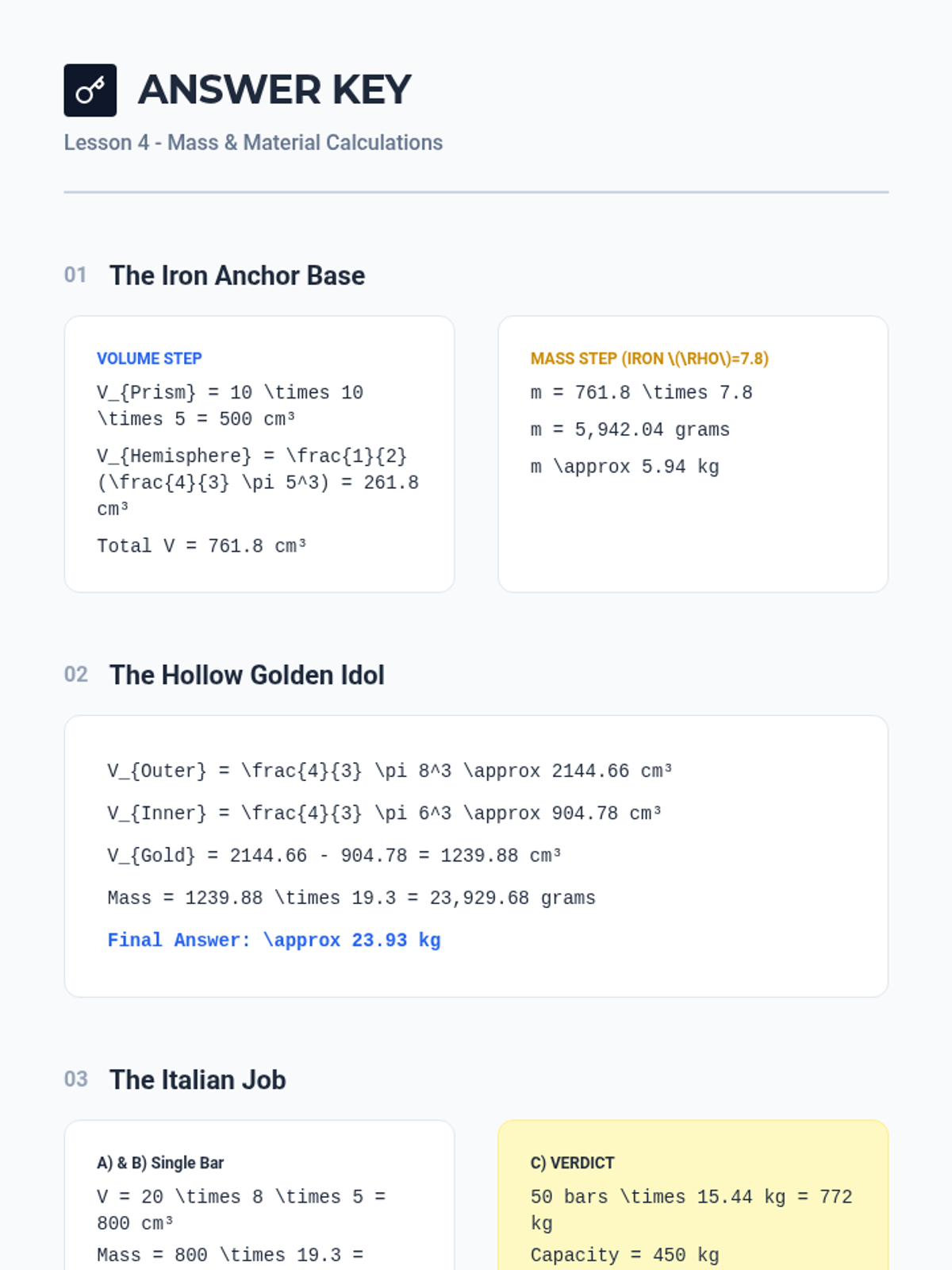

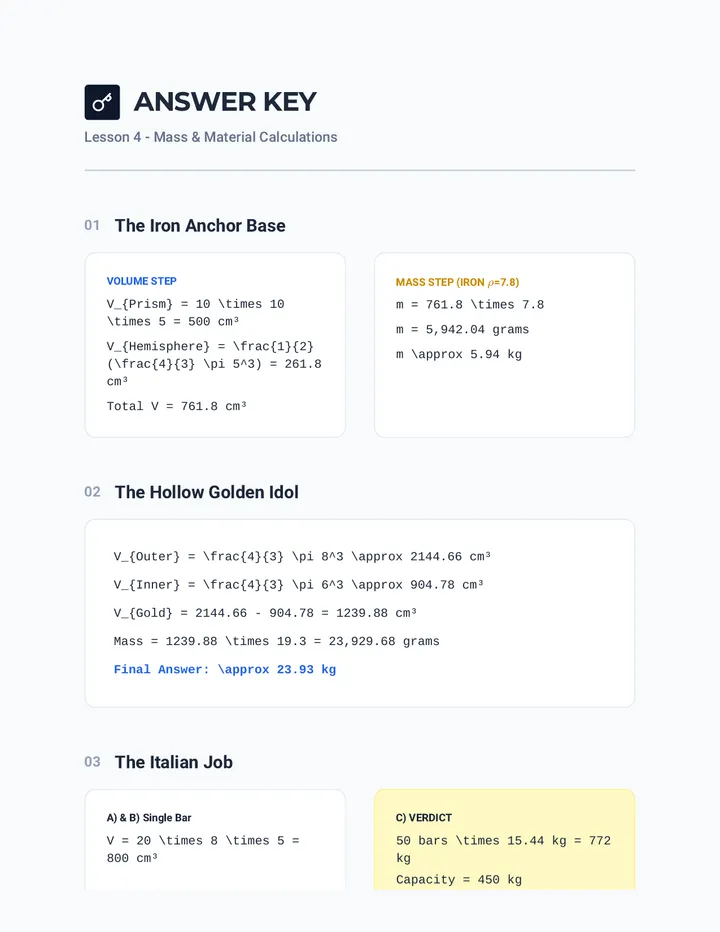

Mass and Material Answer Key Answer Key
Lesson 4 - Mass & Material Calculations
01
The Iron Anchor Base
Volume Step
V_{Prism} = 10 \times 10 \times 5 = 500 cm³
V_{Hemisphere} = \frac{1}{2} (\frac{4}{3} \pi 5^3) = 261.8 cm³
Total V = 761.8 cm³
Mass Step (Iron \(\rho\)=7.8)
m = 761.8 \times 7.8
m = 5,942.04 grams
m \approx 5.94 kg
02
The Hollow Golden Idol
V_{Outer} = \frac{4}{3} \pi 8^3 \approx 2144.66 cm³
V_{Inner} = \frac{4}{3} \pi 6^3 \approx 904.78 cm³
V_{Gold} = 2144.66 - 904.78 = 1239.88 cm³
Mass = 1239.88 \times 19.3 = 23,929.68 grams
Final Answer: \approx 23.93 kg
03
The Italian Job
A) & B) Single Bar
V = 20 \times 8 \times 5 = 800 cm³
Mass = 800 \times 19.3 = 15,440 g
Mass = 15.44 kg per bar
C) Verdict
50 bars \times 15.44 kg = 772 kg
Capacity = 450 kg
Result: The Mini Cooper fails.

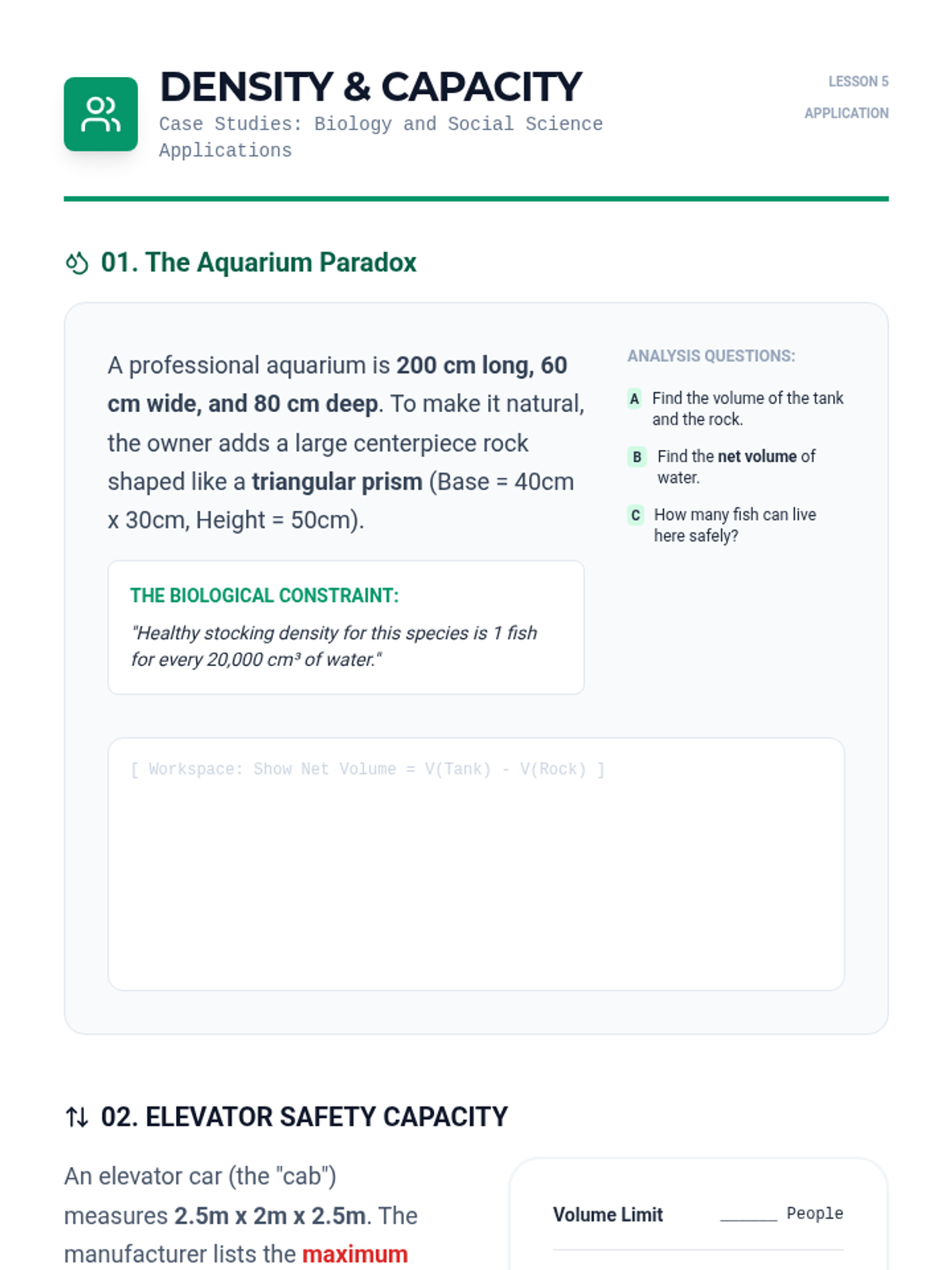

Density and Capacity Handout Density & Capacity
Case Studies: Biology and Social Science Applications
Lesson 5 Application
01. The Aquarium Paradox
A professional aquarium is 200 cm long, 60 cm wide, and 80 cm deep. To make it natural, the owner adds a large centerpiece rock shaped like a triangular prism (Base = 40cm x 30cm, Height = 50cm).
The Biological Constraint:
"Healthy stocking density for this species is 1 fish for every 20,000 cm³ of water."
Analysis Questions:
A
Find the volume of the tank and the rock.
B
Find the net volume of water.
C
How many fish can live here safely?
[ Workspace: Show Net Volume = V(Tank) - V(Rock) ]
02. Elevator Safety Capacity
An elevator car (the "cab") measures 2.5m x 2m x 2.5m. The manufacturer lists the maximum mass capacity as 1,500 kg.
The Human Variable
The average human has a volume of approximately 0.07 m³ and an average mass of 75 kg.
Task:
Which limit will be reached first: the physical volume (fitting people in) or the mass limit (weight capacity)?
Volume Limit ______ People
Weight Limit ______ People
Why is it dangerous to ignore the density of the load?
The Designer's Choice:
"If you were designing a stadium, how would volume and density calculations change if you were planning for a standing-room-only concert versus a seated orchestral performance?"

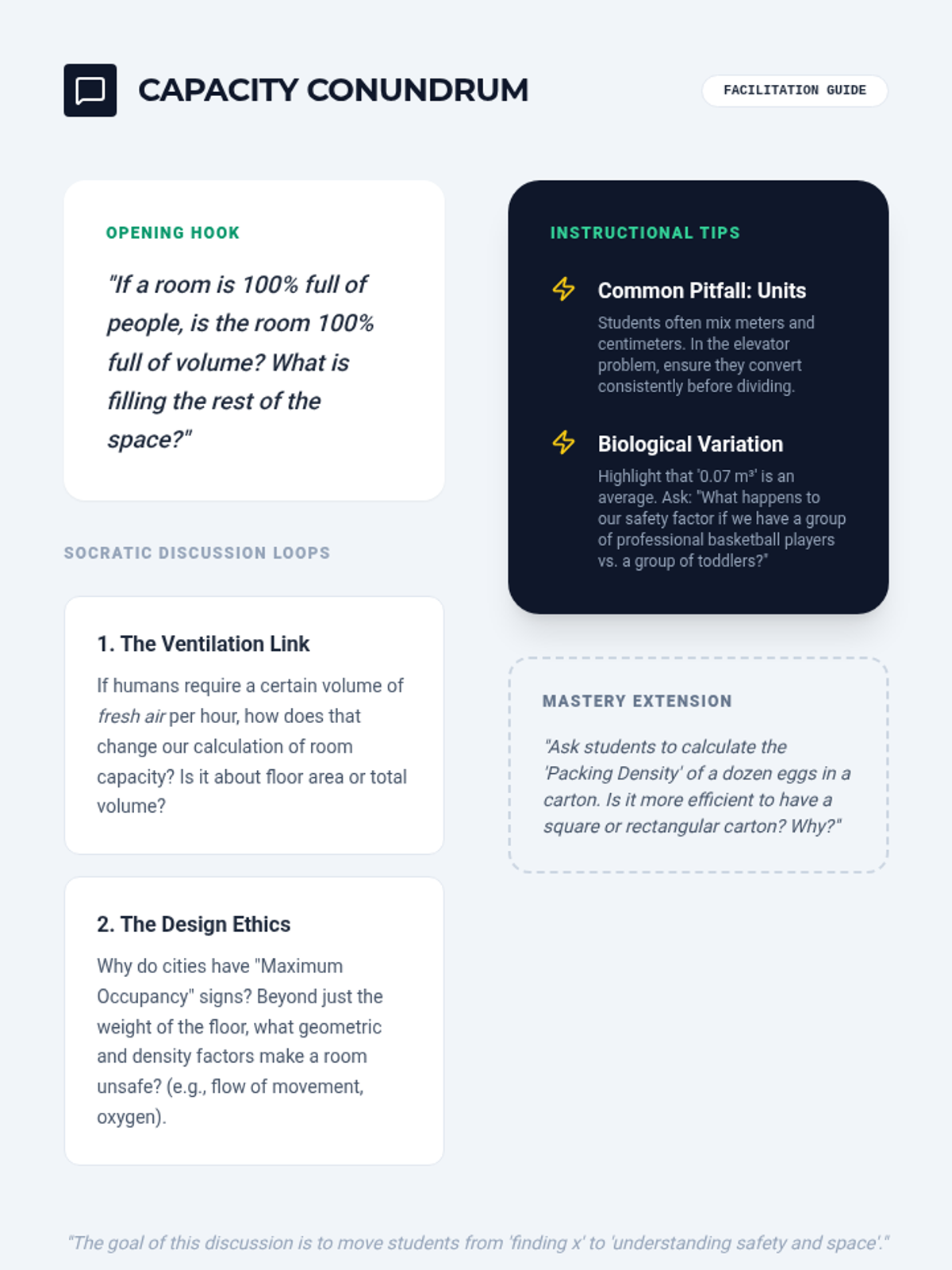

Capacity Conundrum Guide Capacity Conundrum
Facilitation Guide
Opening Hook
"If a room is 100% full of people, is the room 100% full of volume? What is filling the rest of the space?"
Socratic Discussion Loops
1. The Ventilation Link
If humans require a certain volume of fresh air per hour, how does that change our calculation of room capacity? Is it about floor area or total volume?
2. The Design Ethics
Why do cities have "Maximum Occupancy" signs? Beyond just the weight of the floor, what geometric and density factors make a room unsafe? (e.g., flow of movement, oxygen).
Instructional Tips
Common Pitfall: Units
Students often mix meters and centimeters. In the elevator problem, ensure they convert consistently before dividing.
Biological Variation
Highlight that '0.07 m³' is an average. Ask: "What happens to our safety factor if we have a group of professional basketball players vs. a group of toddlers?"
Mastery Extension
"Ask students to calculate the 'Packing Density' of a dozen eggs in a carton. Is it more efficient to have a square or rectangular carton? Why?"
"The goal of this discussion is to move students from 'finding x' to 'understanding safety and space'."

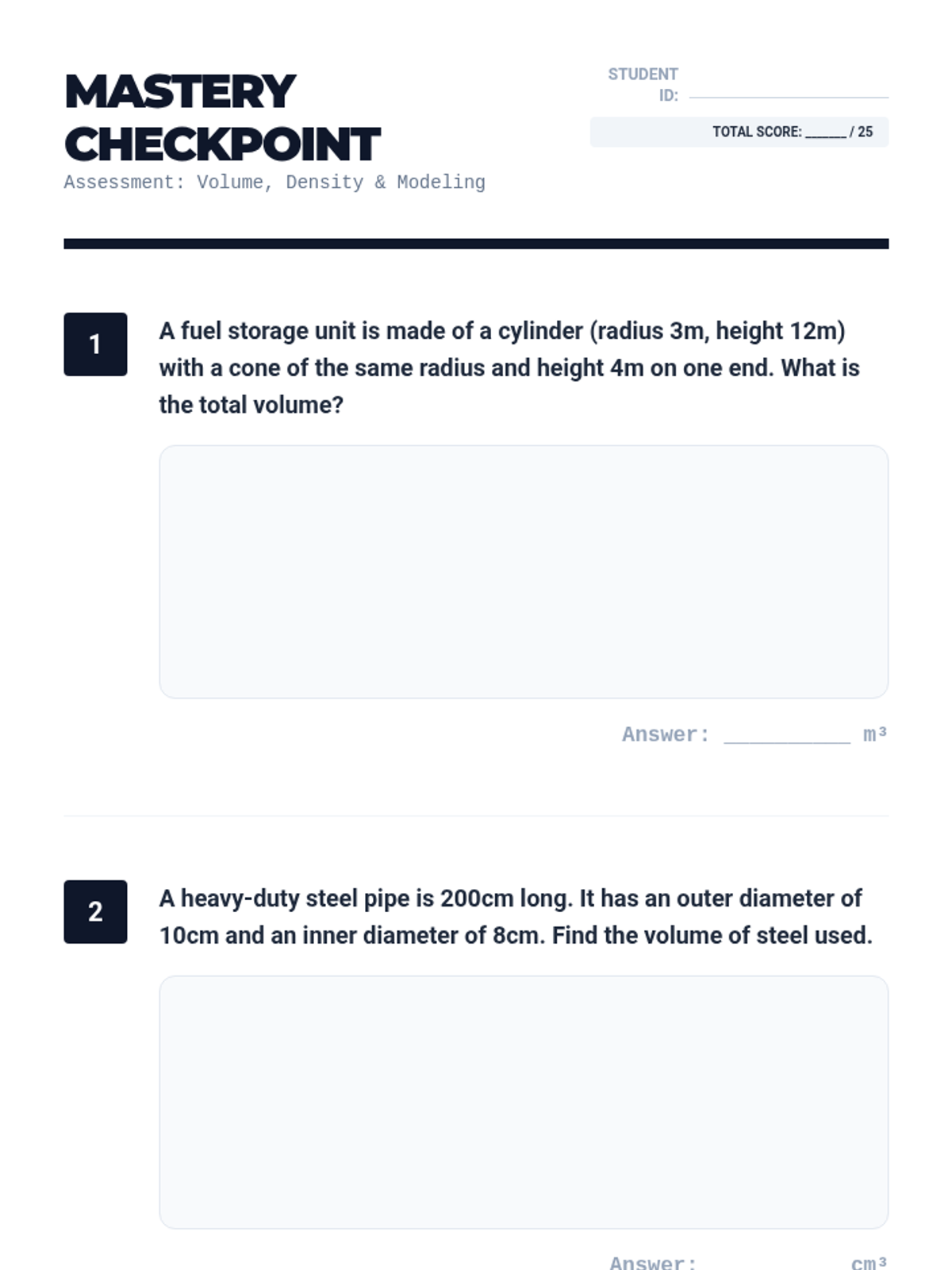

Volume Density Mastery Checkpoint Mastery Checkpoint
Assessment: Volume, Density & Modeling
STUDENT ID:
TOTAL SCORE: _______ / 25
1
A fuel storage unit is made of a cylinder (radius 3m, height 12m) with a cone of the same radius and height 4m on one end. What is the total volume?
Answer: __________ m³
2
A heavy-duty steel pipe is 200cm long. It has an outer diameter of 10cm and an inner diameter of 8cm. Find the volume of steel used.
Answer: __________ cm³
3
A cube of aluminum has a side length of 5cm. If the density of aluminum is 2.7 g/cm³, what is the mass of the cube in grams?
Answer: __________ g
4
Modeling Interpretation
Look at the diagram of the lamp base provided below (not to scale). List the geometric parent solids you would use to model this object and explain if you would use addition or subtraction.
[ DIAGRAM: Tapered Cylinder with Sphere center ]
5
A school pool measures 25m x 10m x 2m. If safety regulations require 10 m³ of volume per swimmer, what is the maximum capacity of the pool?
Answer: __________ Swimmers
