Circle Proportions Slides Circle Proportions
Unlocking the logic of central angles and whole circles.
Drafting Unit 01
The Pizza Paradox
You slice a large pizza into 8 equal pieces.
What is the angle of each slice at the center?
What percentage of the whole pizza is one slice?
🍕
The Full Rotation
360°
The Magic Number
Every circle, regardless of size, consists of 360 degrees of central rotation.
1/2 Circle
180°
1/4 Circle
90°
1/10 Circle
36°
Building the Ratio
If we want to find out what "part" of a circle we have, we compare our Central Angle (\(\theta\)) to the Whole (\(360^\circ\)) .
\(\theta\)
\(360^\circ\)
=
Fraction of Circle
This ratio is the "DNA" of arc length and area!
Predict & Pair
Situation A
A central angle is \(120^\circ\). What simple fraction does this represent?
Discuss with a neighbor
Situation B
You have exactly \(\frac{1}{5}\) of a circle. What is the central angle?
Discuss with a neighbor
Circle Fractions Worksheet Circle Fractions
Laboratory Record // 01
Engineer:
Date:
The Proportional Premise
"Every slice of a circle is just a fraction of its total 360-degree rotation. By establishing this ratio, we can unlock the secrets of its length and area."
Part 1: Mapping the Circle
Complete the table below to find the relationship between the central angle and the circle's total rotation.
Central Angle (\(\theta\)) The "Fraction" Ratio (\(\frac{\theta}{360}\)) Simplified Fraction Percentage (%) 90° \( \frac{90}{360} \) \( \frac{1}{4} \) 25% 180° 60° 45° 120°
Part 2: Visualization
For each description, draw the central angle and shade the resulting sector .
1. Central Angle = 30°
Calculate the ratio: \(\frac{30}{360} = \) __________
2. Central Angle = 270°
Calculate the ratio: \(\frac{270}{360} = \) __________
Critical Thought
If the radius of Circle 1 is 5cm and the radius of Circle 2 is 500m, does a 90° central angle represent the same percentage of the circle in both cases? Explain why or why not.
Circle Fractions Key Answer Key
Circle Fractions // Laboratory Record 01
Part 1: Mapping the Circle
Central Angle (\(\theta\)) The "Fraction" Ratio (\(\frac{\theta}{360}\)) Simplified Fraction Percentage (%) 90° \( \frac{90}{360} \) \( \frac{1}{4} \) 25% 180° \( \frac{180}{360} \) \( \frac{1}{2} \) 50% 60° \( \frac{60}{360} \) \( \frac{1}{6} \) 16.67% 45° \( \frac{45}{360} \) \( \frac{1}{8} \) 12.5% 120° \( \frac{120}{360} \) \( \frac{1}{3} \) 33.33%
Part 2: Visualization Notes
1. Central Angle = 30°
Ratio: \( \frac{30}{360} = \frac{1}{12} \). The student should shade exactly 1/12th of the circle (half of a 60° slice).
2. Central Angle = 270°
Ratio: \( \frac{270}{360} = \frac{3}{4} \). The student should shade 3/4ths of the circle (leaving one quadrant empty).
Critical Thought Response
Yes. The percentage of a circle represented by a central angle is dependent only on the angle, not the size (radius) of the circle. Since \( \frac{90}{360} = 25\% \) regardless of the radius, both circles will have 25% shaded. The actual area will be different, but the proportion remains identical.
Arc Distance Slides Arc Distance
Converting fractions of a circle into linear measurements.
Drafting Unit 02
The Circular Circuit
A race car drives along a circular track with a radius of 500 meters.
"If the car only completes a 45° turn, how far has it actually traveled in meters?"
We know the "fraction" of the circle is \( \frac{45}{360} \). Now we need the "length" of the whole circle.
\(r = 500\)m
Memory Check: Whole Circle Distance
Circumference Formula
\(C = 2\pi r\)
"The circumference is the total distance around the entire 360 degrees."
Arc Length is just a "slice" of this circumference.
The Logic Connects
The Ratio
\( \frac{\theta}{360} \)
×
The Whole
\( 2\pi r \)
=
The Arc
Length (s)
Therefore, the formula is:
\[ s = \left( \frac{\theta}{360} \right) \cdot 2\pi r \]
Example Run
Given:
Radius \((r) = 12\) inches
Angle \((\theta) = 60^\circ\)
"Calculate the length of the arc."
Work Log:
Step 1: Ratio \(= \frac{60}{360} = \frac{1}{6}\)
Step 2: Total \(C = 2\pi(12) = 24\pi\)
Result: \( \frac{1}{6} \cdot 24\pi = 4\pi \)
\(\approx 12.57\) inches

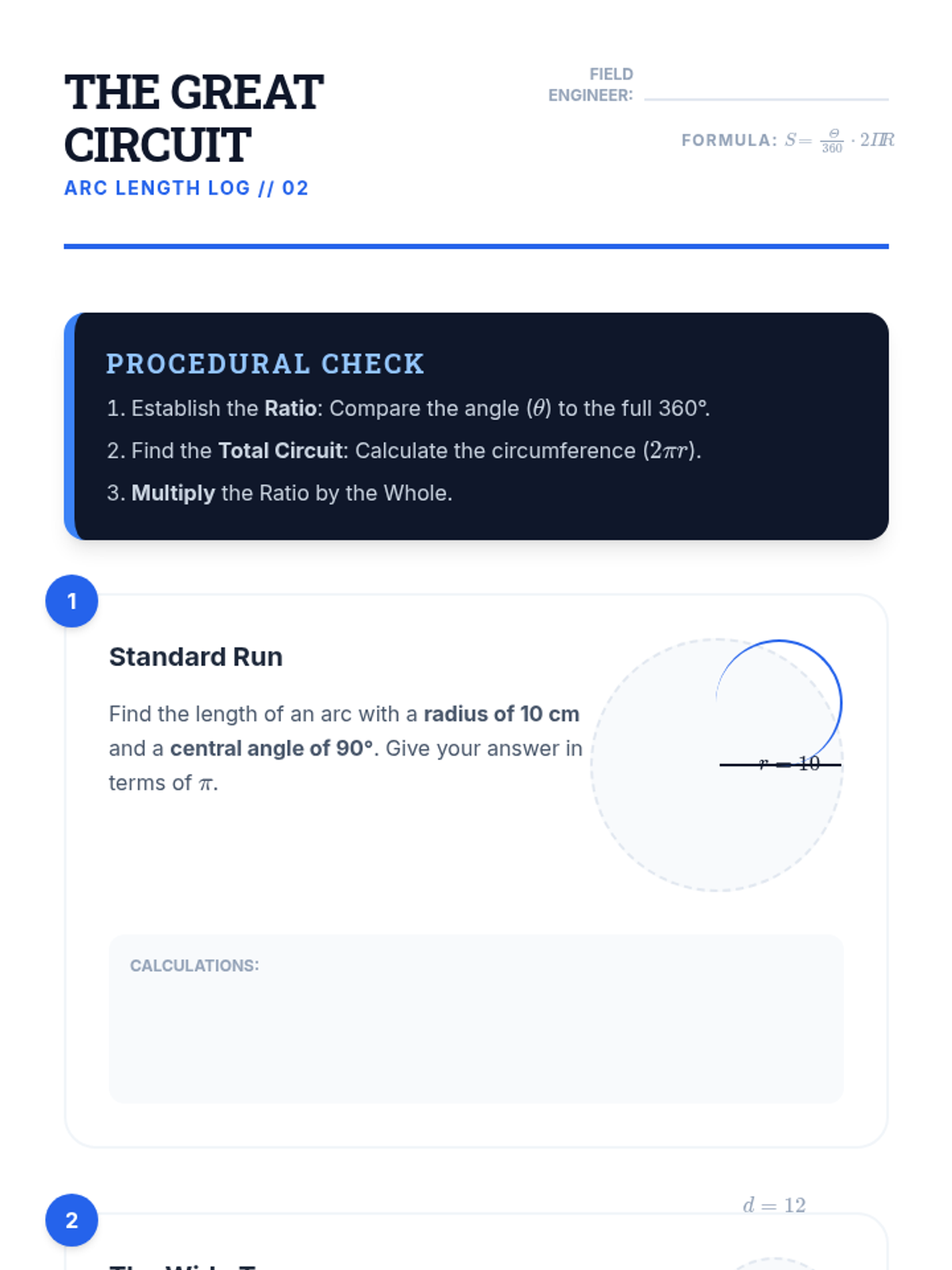

Arc Distance Worksheet The Great Circuit
Arc Length Log // 02
Field Engineer:
Formula: \( s = \frac{\theta}{360} \cdot 2\pi r \)
Procedural Check
Establish the Ratio : Compare the angle (\(\theta\)) to the full 360°.
Find the Total Circuit : Calculate the circumference (\(2\pi r\)).
Multiply the Ratio by the Whole.
1
Standard Run
Find the length of an arc with a radius of 10 cm and a central angle of 90° . Give your answer in terms of \(\pi\).
\(r = 10\)
Calculations:
2
The Wide Turn
A circular garden walk has a diameter of 12 meters . What is the distance of an arc that subtends a 120° angle ?
Caution: Watch your radius!
\(d = 12\)
Calculations:
3
Pendulum Swing
A clock pendulum is 15 inches long . It swings through an angle of 40° . How far does the tip of the pendulum travel in one swing? Round to the nearest tenth.
Think: Is the pendulum the radius or the diameter?
Show your work:
The Reverse Logic Challenge
If the length of an arc is exactly \(10\pi\) and the radius of the circle is 30 units , what must be the measure of the central angle (\(\theta\)) ?
Arc Distance Key Answer Key
Arc Length Log // 02
1
Standard Run
Steps:
Ratio: \( \frac{90}{360} = \frac{1}{4} \)
Circumference: \( 2\pi(10) = 20\pi \)
Arc Length: \( \frac{1}{4} \cdot 20\pi \)
Final Result
\( 5\pi \) cm
2
The Wide Turn
Steps:
Radius: \( d = 12 \implies r = 6 \)
Ratio: \( \frac{120}{360} = \frac{1}{3} \)
Circumference: \( 2\pi(6) = 12\pi \)
Arc Length: \( \frac{1}{3} \cdot 12\pi \)
Final Result
\( 4\pi \) m
3
Pendulum Swing
Steps:
Ratio: \( \frac{40}{360} = \frac{1}{9} \)
Circumference: \( 2\pi(15) = 30\pi \)
Arc Length: \( \frac{1}{9} \cdot 30\pi = \frac{10}{3}\pi \)
Decimal: \( \approx 10.4719... \)
Final Result (Nearest Tenth)
10.5 inches
Reverse Logic Challenge
Total Circumference: \( 2\pi(30) = 60\pi \)
Proportion: \( \frac{10\pi}{60\pi} = \frac{1}{6} \)
Central Angle: \( \frac{1}{6} \cdot 360^\circ = 60^\circ \)
\(\theta = 60^\circ\)
Sector Space Slides Sector Space
Measuring two-dimensional regions within a circle.
Drafting Unit 03
The Big Bite
Which option gives you more pizza?
Option A
Two 45° slices from a 12" pizza
Option B
One 45° slice from an 18" pizza
To solve this, we need to measure Area , not just arc length.
Memory Check: Whole Circle Space
Circle Area Formula
\(A = \pi r^2\)
"The area represents the total 2D space inside the entire 360-degree boundary."
Sector Area is just a "fraction" of this space.
Same Logic, Different Dimension
The Ratio
\( \frac{\theta}{360} \)
×
The Whole
\( \pi r^2 \)
=
The Sector
Area (A)
Therefore, the formula is:
\[ A_{sector} = \left( \frac{\theta}{360} \right) \cdot \pi r^2 \]
Linear vs. Square
Why does the radius matter so much more in the Area formula than in the Arc Length formula?
"In arc length, doubling the radius doubles the distance. In sector area, doubling the radius quadruples the space."
1r
2r
Scale Comparison

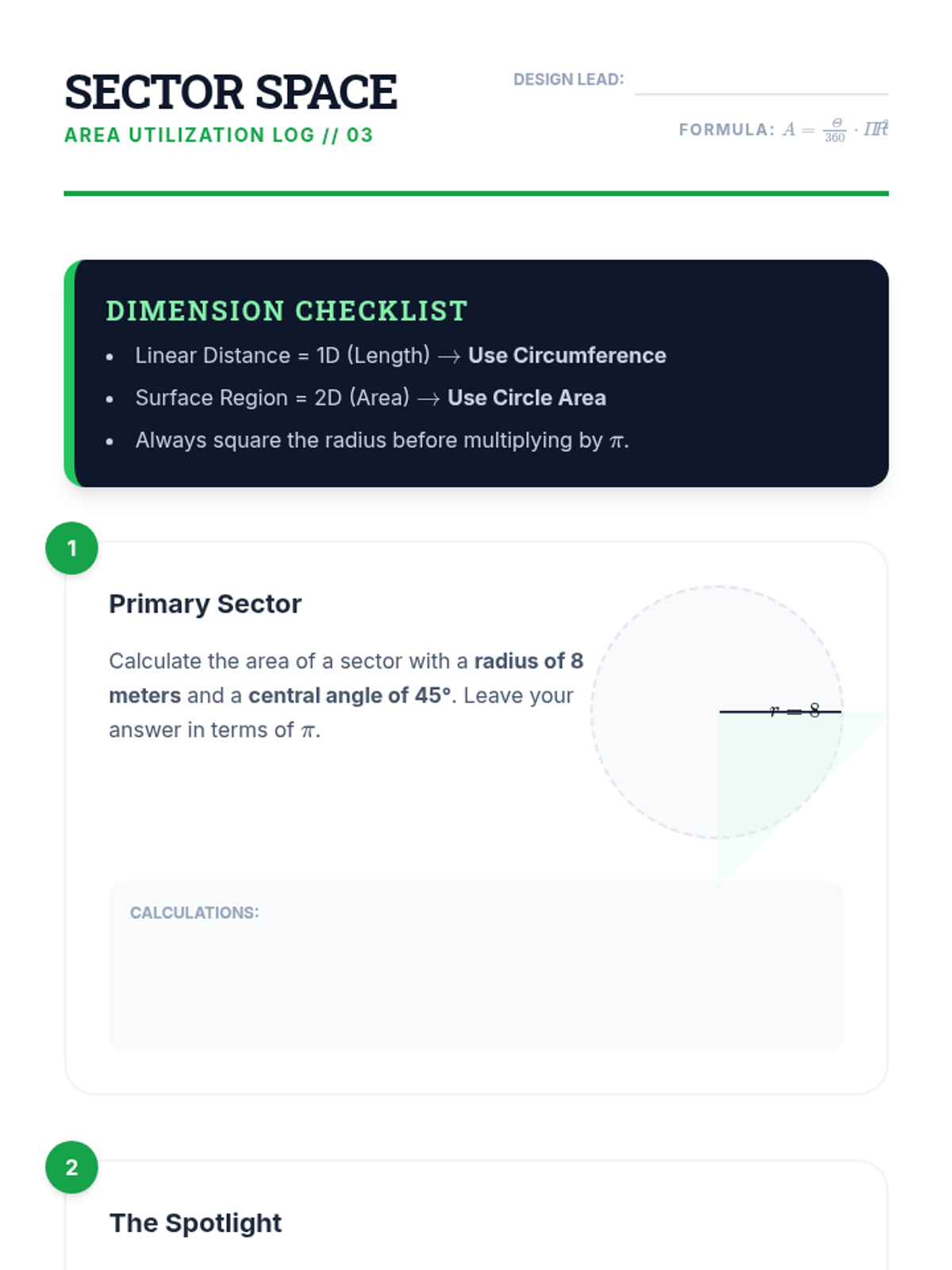

Sector Space Worksheet Sector Space
Area Utilization Log // 03
Design Lead:
Formula: \( A = \frac{\theta}{360} \cdot \pi r^2 \)
Dimension Checklist
Linear Distance = 1D (Length) \(\rightarrow\) Use Circumference
Surface Region = 2D (Area) \(\rightarrow\) Use Circle Area
Always square the radius before multiplying by \(\pi\).
1
Primary Sector
Calculate the area of a sector with a radius of 8 meters and a central angle of 45° . Leave your answer in terms of \(\pi\).
\(r = 8\)
Calculations:
2
The Spotlight
A theater spotlight has a beam range of 30 feet . If the light rotates through an angle of 60° , what is the total floor area illuminated by the light?
Hint: The range is your radius.
Calculations:
3
The Pizza Paradox Solved
Let's revisit the hook! Use your knowledge of area to compare these two options:
Option A
Two 45° slices from a pizza with a 12-inch diameter.
Option B
One 45° slice from a pizza with an 18-inch diameter.
Show the comparison area for both:
Final Decision: Option _______ provides more pizza.
Sector Space Key Answer Key
Area Utilization Log // 03
1
Primary Sector
Steps:
Ratio: \( \frac{45}{360} = \frac{1}{8} \)
Whole Area: \( \pi(8)^2 = 64\pi \)
Sector Area: \( \frac{1}{8} \cdot 64\pi \)
Final Result
\( 8\pi \) m\(^2\)
2
The Spotlight
Steps:
Ratio: \( \frac{60}{360} = \frac{1}{6} \)
Whole Area: \( \pi(30)^2 = 900\pi \)
Sector Area: \( \frac{1}{6} \cdot 900\pi \)
Final Result
\( 150\pi \) ft\(^2\)
\(\approx 471.24\) ft\(^2\)
3
The Pizza Paradox Solved
Option A:
Two 45° slices = 90° total
Radius = 6 inches
Area = \( \frac{90}{360} \cdot \pi(6)^2 = \frac{1}{4} \cdot 36\pi = \mathbf{9\pi}\)
Option B:
One 45° slice
Radius = 9 inches
Area = \( \frac{45}{360} \cdot \pi(9)^2 = \frac{1}{8} \cdot 81\pi = \mathbf{10.125\pi}\)
Decision: Option B provides more pizza!
(\(10.125\pi > 9\pi\))
Arc or Sector Sorting Cards The Big Sort: Arc vs. Sector
Classroom Sorting Activity
Cut out these scenario cards. Sort them into two categories: Arc Length (Linear Distance) or Sector Area (Two-Dimensional Region).
Fencing a Garden
You need to find the amount of wire mesh needed to go around the curved edge of a circular flower bed.
Painting a Stage
A stage is shaped like a wedge of a circle. You need to know how many gallons of paint to buy to cover the floor.
Driving a Curve
Calculating the mileage a truck puts on its tires as it navigates a 90-degree turn on a circular off-ramp.
Sprinkler Coverage
A lawn sprinkler rotates 120 degrees. You want to know the total area of grass that will actually get wet.
Quilting Fabric
Cutting a piece of silk in the shape of a circle slice to be used as a patch on a larger quilt design.
Walking the Track
A hiker walks exactly one-quarter of the way around a circular lake. How many steps did they take?
Arc Length
Linear Measurements (\(s\))
Sector Area
Square Measurements (\(A\))

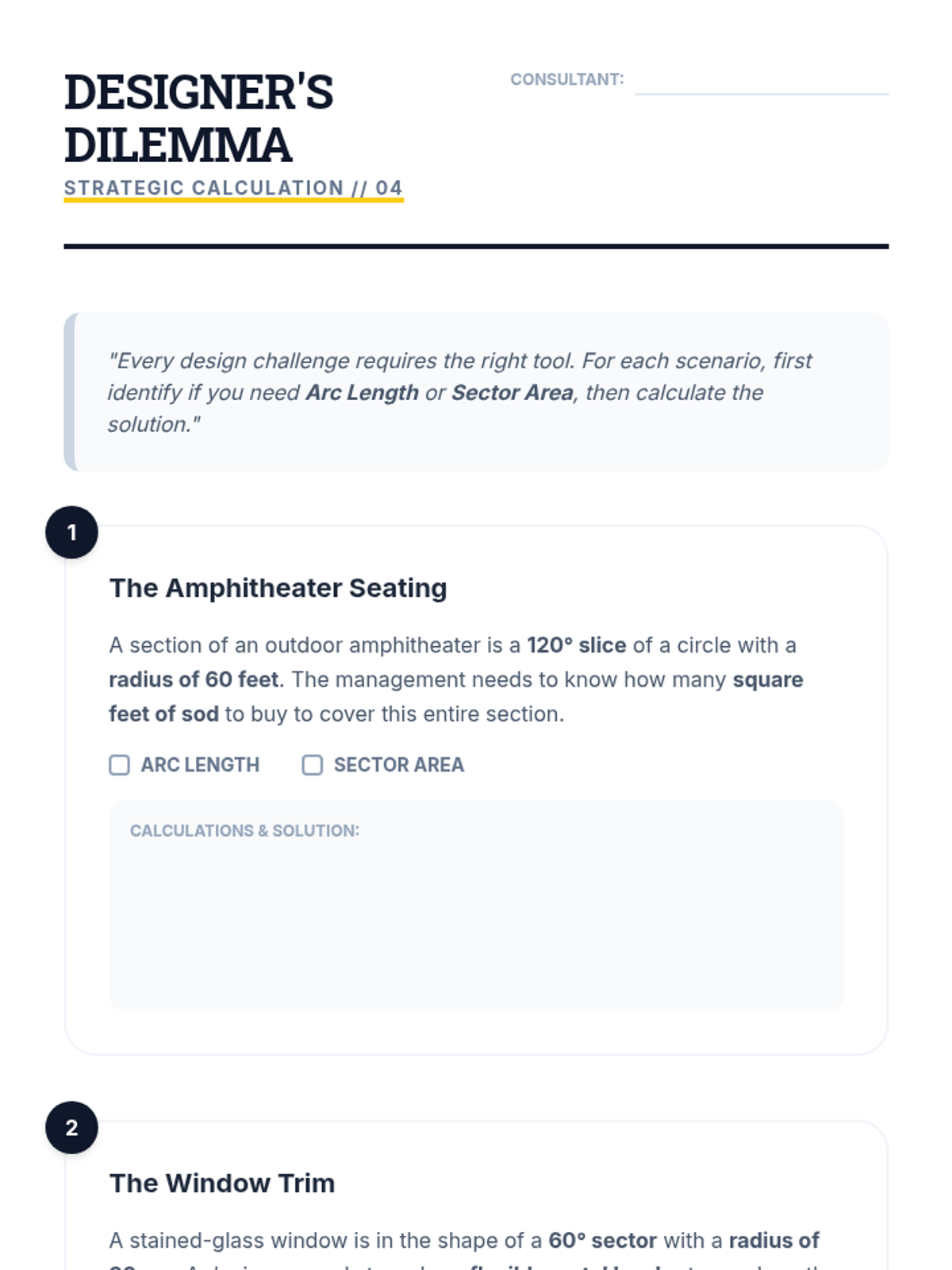

Designer Dilemma Worksheet Designer's Dilemma
Strategic Calculation // 04
Consultant:
"Every design challenge requires the right tool. For each scenario, first identify if you need Arc Length or Sector Area , then calculate the solution."
1
The Amphitheater Seating
A section of an outdoor amphitheater is a 120° slice of a circle with a radius of 60 feet . The management needs to know how many square feet of sod to buy to cover this entire section.
Arc Length
Sector Area
Calculations & Solution:
2
The Window Trim
A stained-glass window is in the shape of a 60° sector with a radius of 30 cm . A designer needs to order a flexible metal border to go along the curved top of the window.
Arc Length
Sector Area
Calculations & Solution:
3
The Park Sprinkler
A circular park has a radius of 100 meters . A sprinkler is set to water a 90° portion of the park. How much walking path (distance) is located along the outer curved edge of this watered section?
Arc Length
Sector Area
Calculations & Solution:

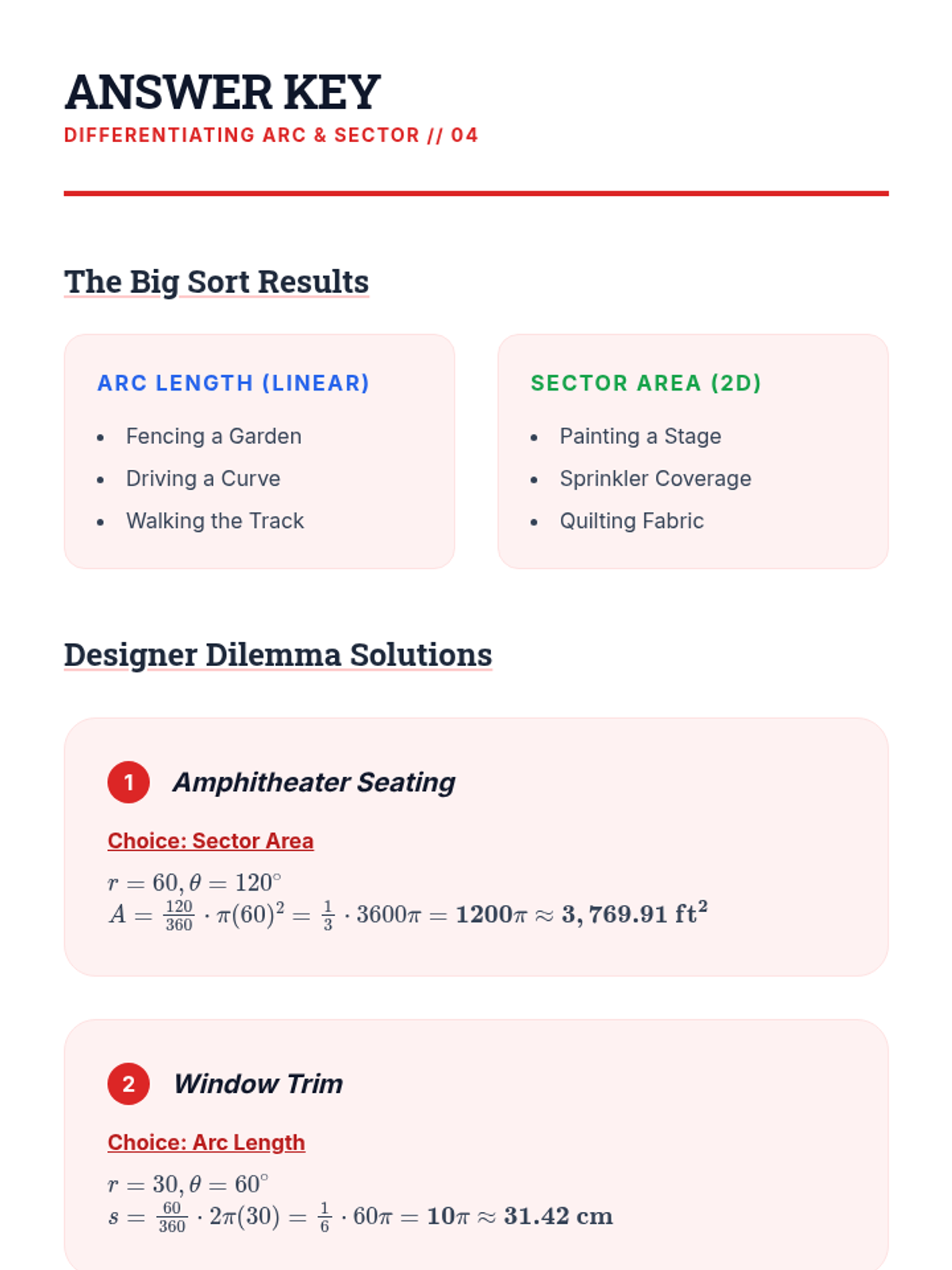

Designer Dilemma Key Answer Key
Differentiating Arc & Sector // 04
The Big Sort Results
Arc Length (Linear)
Fencing a Garden
Driving a Curve
Walking the Track
Sector Area (2D)
Painting a Stage
Sprinkler Coverage
Quilting Fabric
Designer Dilemma Solutions
1
Amphitheater Seating
Choice: Sector Area
\( r = 60, \theta = 120^\circ \)
\( A = \frac{120}{360} \cdot \pi(60)^2 = \frac{1}{3} \cdot 3600\pi = \mathbf{1200\pi} \approx \mathbf{3,769.91 \text{ ft}^2} \)
2
Window Trim
Choice: Arc Length
\( r = 30, \theta = 60^\circ \)
\( s = \frac{60}{360} \cdot 2\pi(30) = \frac{1}{6} \cdot 60\pi = \mathbf{10\pi} \approx \mathbf{31.42 \text{ cm}} \)
3
Park Sprinkler
Choice: Arc Length
\( r = 100, \theta = 90^\circ \)
\( s = \frac{90}{360} \cdot 2\pi(100) = \frac{1}{4} \cdot 200\pi = \mathbf{50\pi} \approx \mathbf{157.08 \text{ meters}} \)
Circular Logic Mastery Slides Circular Mastery
Synthesis, Application, and Backward Logic.
Drafting Unit 05 - FINAL
The Architect's Toolkit
Arc Length (\(s\))
\[ s = \frac{\theta}{360} \cdot 2\pi r \]
Sector Area (\(A\))
\[ A = \frac{\theta}{360} \cdot \pi r^2 \]
"Remember: Both formulas are built on the same proportional ratio (\(\theta/360\)). They just look at different circle components."
The Reverse Engineering Case
You know the result , but need the input .
Scenario:
Sector Area = \(24\pi\)
Radius (\(r\)) = \(12\)
Find the Angle (\(\theta\))
Execution Plan:
1. Set up the equation:
2. Simplify:
3. Isolate \(\theta\):
\(\theta = 60^\circ\)
The Complex Curve
The Tunnel Problem
A tunnel entrance is a semicircle with a 20ft radius. We want to paint a stripe along the top arch.
Question: Is the stripe Arc Length or Sector Area?
Arc Sector
Civil Engineering Project 09
Ready for Assessment?
Formulas
Memorized & Understood
Context
Arc vs Sector
Algebra
Working Backwards

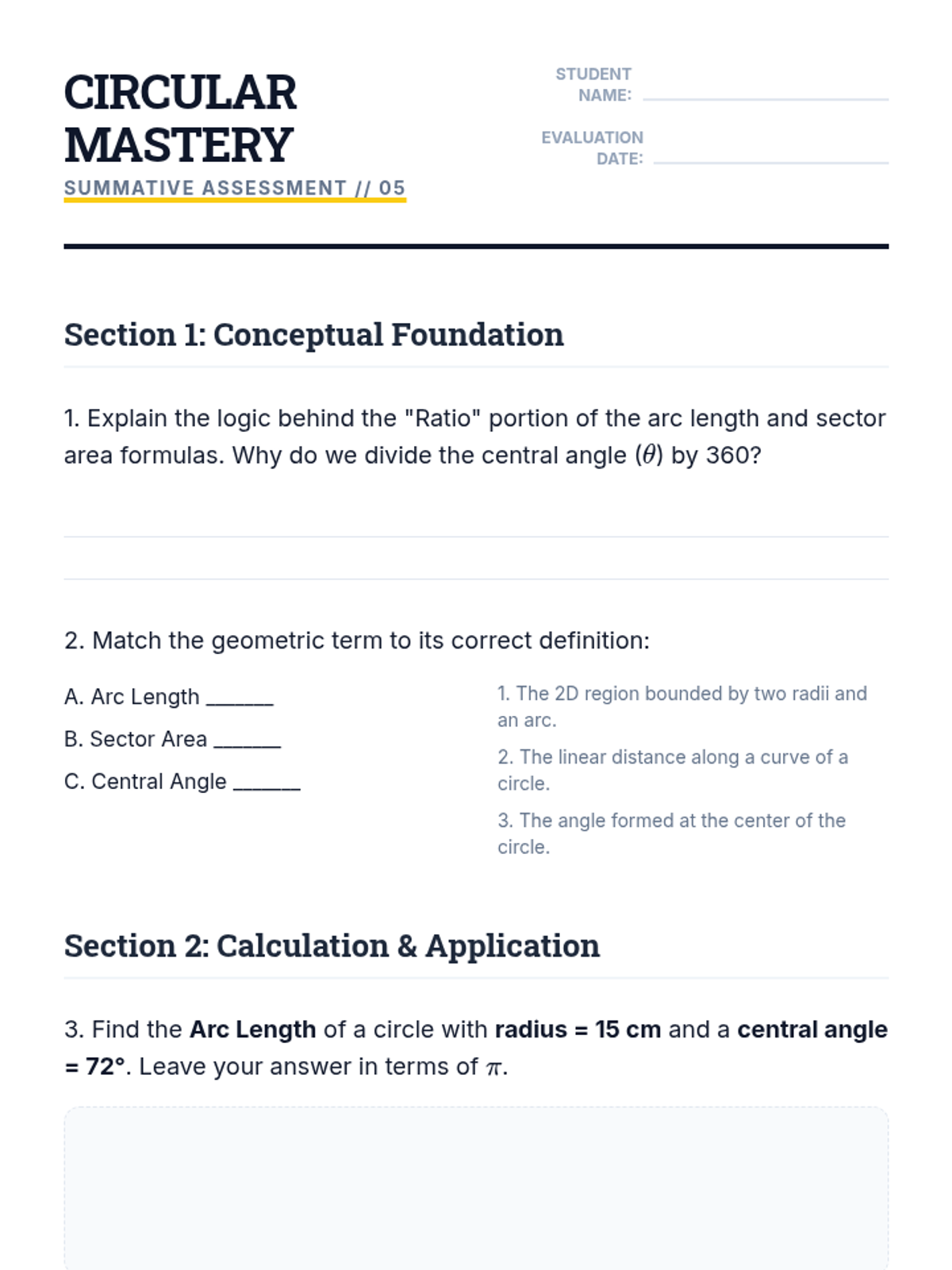

Circular Mastery Assessment Circular Mastery
Summative Assessment // 05
Student Name:
Evaluation Date:
Section 1: Conceptual Foundation
1. Explain the logic behind the "Ratio" portion of the arc length and sector area formulas. Why do we divide the central angle (\(\theta\)) by 360?
2. Match the geometric term to its correct definition:
A. Arc Length _______
B. Sector Area _______
C. Central Angle _______
1. The 2D region bounded by two radii and an arc.
2. The linear distance along a curve of a circle.
3. The angle formed at the center of the circle.
Section 2: Calculation & Application
3. Find the Arc Length of a circle with radius = 15 cm and a central angle = 72° . Leave your answer in terms of \(\pi\).
4. Find the Sector Area of a circle with diameter = 20 inches and a central angle = 45° . Round to the nearest tenth.
Section 3: Engineering (Working Backwards)
5. The Arc Length of a circle is \(8\pi\) meters. The radius of the circle is 16 meters . Calculate the central angle (\(\theta\)) .
Show algebraic steps:
6. A 90° sector has an area of \(100\pi\) square units. Determine the radius of the circle.
Show algebraic steps:

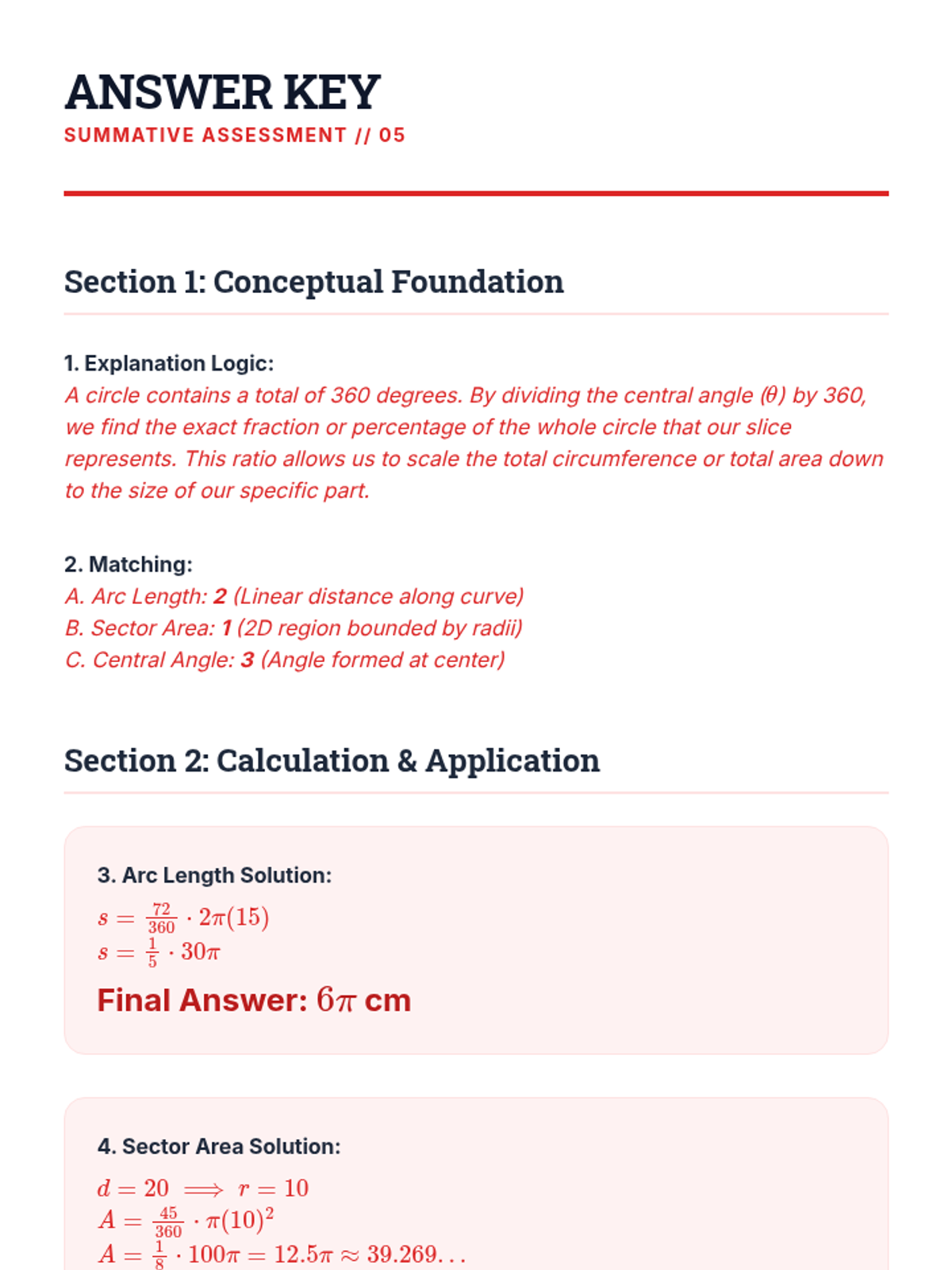

Final Mastery Answer Key Answer Key
Summative Assessment // 05
Section 1: Conceptual Foundation
1. Explanation Logic:
A circle contains a total of 360 degrees. By dividing the central angle (\(\theta\)) by 360, we find the exact fraction or percentage of the whole circle that our slice represents. This ratio allows us to scale the total circumference or total area down to the size of our specific part.
2. Matching:
A. Arc Length: 2 (Linear distance along curve)
B. Sector Area: 1 (2D region bounded by radii)
C. Central Angle: 3 (Angle formed at center)
Section 2: Calculation & Application
3. Arc Length Solution:
\( s = \frac{72}{360} \cdot 2\pi(15) \)
\( s = \frac{1}{5} \cdot 30\pi \)
Final Answer: \( 6\pi \) cm
4. Sector Area Solution:
\( d = 20 \implies r = 10 \)
\( A = \frac{45}{360} \cdot \pi(10)^2 \)
\( A = \frac{1}{8} \cdot 100\pi = 12.5\pi \approx 39.269... \)
Final Answer: 39.3 in\(^2\)
Section 3: Backward Logic
5. Finding the Angle:
\( 8\pi = \frac{\theta}{360} \cdot 2\pi(16) \)
\( 8\pi = \frac{\theta}{360} \cdot 32\pi \)
\( \frac{8}{32} = \frac{\theta}{360} \implies \frac{1}{4} = \frac{\theta}{360} \)
Final Answer: \( \theta = 90^\circ \)
6. Finding the Radius:
\( 100\pi = \frac{90}{360} \cdot \pi r^2 \)
\( 100\pi = \frac{1}{4} \cdot \pi r^2 \)
\( 400 = r^2 \implies r = \sqrt{400} \)
Final Answer: \( r = 20 \) units
