Chord Crossings Slides Geometry Unit: Circles
Chord Crossings
Exploring the Intersecting Chords Theorem through the lens of similarity and engineering.
The Crossing Tunnels
Imagine two straight tunnels crossing inside a circular mountain.
"If the first tunnel is split into segments of 4km and 9km at the crossing point, and the second tunnel has one segment of 6km... how long is the other segment?"
Is there a hidden pattern in these products?
4 km 9 km 6 km x km?
Why does it work?
Step 1: Similar Triangles
By drawing auxiliary lines (chords AC and BD), we create two triangles: \(\triangle APC\) and \(\triangle DPB\).
1 \(\angle A\) and \(\angle D\) intercept the same arc \(BC\). Therefore, \(\angle A \cong \angle D\).
2 Vertical angles at \(P\) are congruent.
3 By AA Similarity, \(\triangle APC \sim \triangle DPB\).
A C B D P
\(\frac{AP}{DP} = \frac{CP}{BP} \implies AP \cdot BP = CP \cdot DP\)
Intersecting Chords Theorem
If two chords intersect in the interior of a circle, then the product of the lengths of the segments of one chord is equal to the product of the lengths of the segments of the other chord.
\(a \cdot b = c \cdot d\)
The Algebraic Edge
Chords aren't always simple integers. Engineering requires solving for variables.
Example Problem:
Chord 1 has segments: \(x\) and \(x + 5\)
Set up equation: \(x(x + 5) = 6 \cdot 4\)
Expand: \(x^2 + 5x = 24\)
Standard Form: \(x^2 + 5x - 24 = 0\)
Solve: \((x+8)(x-3) = 0 \implies x = 3\)
*Note: We reject \(x = -8\) because length cannot be negative.
x x + 5 6 4
Checking Point
Level 1
10 x 8 15
Find x.
Level 2
x x 4 16
Find the length of the horizontal chord.
Level 3
x+2 3 x 8
Determine the value of x.
Chord Discovery Worksheet Chord Discovery Lab
Geometry Unit: Circle Power Theorems
NAME: ____________________________________
DATE: __________________
1
The Proof of Power
Given circle \(O\) with chords \(\overline{AB}\) and \(\overline{CD}\) intersecting at point \(P\). Draw auxiliary segments \(\overline{AC}\) and \(\overline{BD}\).
A C B D P
Complete the similarity proof:
A.
\(\angle CAP \cong \angle BDP\) because they intercept...
B.
\(\angle APC \cong \angle DPB\) because...
C.
Therefore, \(\triangle APC \sim \triangle\) _________ by _________ similarity.
D.
Write the proportion of corresponding sides:
2
Linear & Quadratic Applications
1. Find the value of \(w\).
w 8 12 6
SHOW WORK:
2. Solve for \(x\). Round to hundredths.
x x+4 3 7
SHOW WORK:
3
The Tunnel Blueprint
A circular park has two walkways that cross each other. Walkway A is divided into segments of \(x+2\) and \(x-2\) meters. Walkway B is divided into segments of \(5\) and \(3\) meters.
A. Diagram the problem:
(Sketch walkways here)
B. Solve for \(x\):
C. Determine total length of Walkway A:
Length = ___________ meters
Reference Document: POAP-001 Chord Segments & Proportions Rev: 2026.01
Chord Discovery Answer Key Answer Key
Lesson 1: Chord Discovery Lab [TEACHER VERSION]
Reference: POAP-001-KEY
1. The Proof of Power
A. ...the same arc \(\text{BC}\). (Inscribed angles intercepting the same arc are congruent).
B. ...they are vertical angles.
C. \(\triangle APC \sim \triangle DPB\) by AA Similarity.
D. Proportion: \(\frac{AP}{DP} = \frac{CP}{BP}\)
Teacher Tip:
Ensure students correctly match corresponding vertices. \(A\) corresponds to \(D\), and \(C\) corresponds to \(B\). The order of vertices in the similarity statement matters for the proportion.
2. Linear & Quadratic Applications
Problem 1 (\(w\)):
\(6 \cdot 12 = 8 \cdot w\)
\(72 = 8w\)
w = 9
Problem 2 (\(x\)):
\(x(x + 4) = 3 \cdot 7\)
\(x^2 + 4x = 21\)
\(x^2 + 4x - 21 = 0\)
\((x+7)(x-3) = 0\)
\(x = 3\) (Reject \(x = -7\))
x = 3.00
3. The Tunnel Blueprint
Solving for x:
\((x + 2)(x - 2) = 5 \cdot 3\)
\(x^2 - 4 = 15\)
\(x^2 = 19\)
\(x = \sqrt{19} \approx 4.36\)
Walkway A Segments:
\(4.36 + 2 = 6.36\)
\(4.36 - 2 = 2.36\)
Total Length = 8.72 meters
Common Misconceptions:
Adding segments instead of multiplying: Students might try \(a+b = c+d\).
Forgetting to Reject Negative Roots: In quadratics, always remind them distance is positive.
Misidentifying Segments: Ensure they use parts of the *same* chord as the product.
Secant Stretches Slides Circle Power Theorems
Secant Stretches
The Geometry of External Intersections
Module 02: Secants
The Secant-Secant Power
"When two secants meet at an external point, the product of the Whole secant and its External segment is constant."
\(W_1 \cdot E_1 = W_2 \cdot E_2\)
Danger: Don't just multiply the segments!
P A B C D E₁ E₂
PA · PB = PC · PD
The Similarity Link
Why does this ratio hold? It’s all about overlapping similar triangles: \(\triangle PAD \sim \triangle PCB\).
Both triangles share \(\angle P\).
\(\angle PAD\) and \(\angle PCB\) intercept the same arc \(BD\).
By AA Similarity, we get the ratio: \(\frac{PA}{PC} = \frac{PD}{PB}\).
P C D A B
Linear vs. Quadratic Challenge
Case A: The Whole Unfolded
If external is 5 and chord is 7, the WHOLE is 12.
\(5(5 + 7) = 4(4 + x)\)
Case B: The Quadratic Trap
Variable in both external and whole parts.
\(x(x + 9) = 10(10 + 8)\)
Wait! Check your radar...
In the diagram below, which segments represent the product for Secant PR?
P Q R
PQ · PR
Drafting Challenges
Spec 01
4 8 6 x
Solve for x.
Spec 02
x x+2 3 5
Find the value of x.
Spec 03
A secant from P has an external part of 5 and a total length of 15. Another secant from P has a chord length of 10. Find its external segment.
??

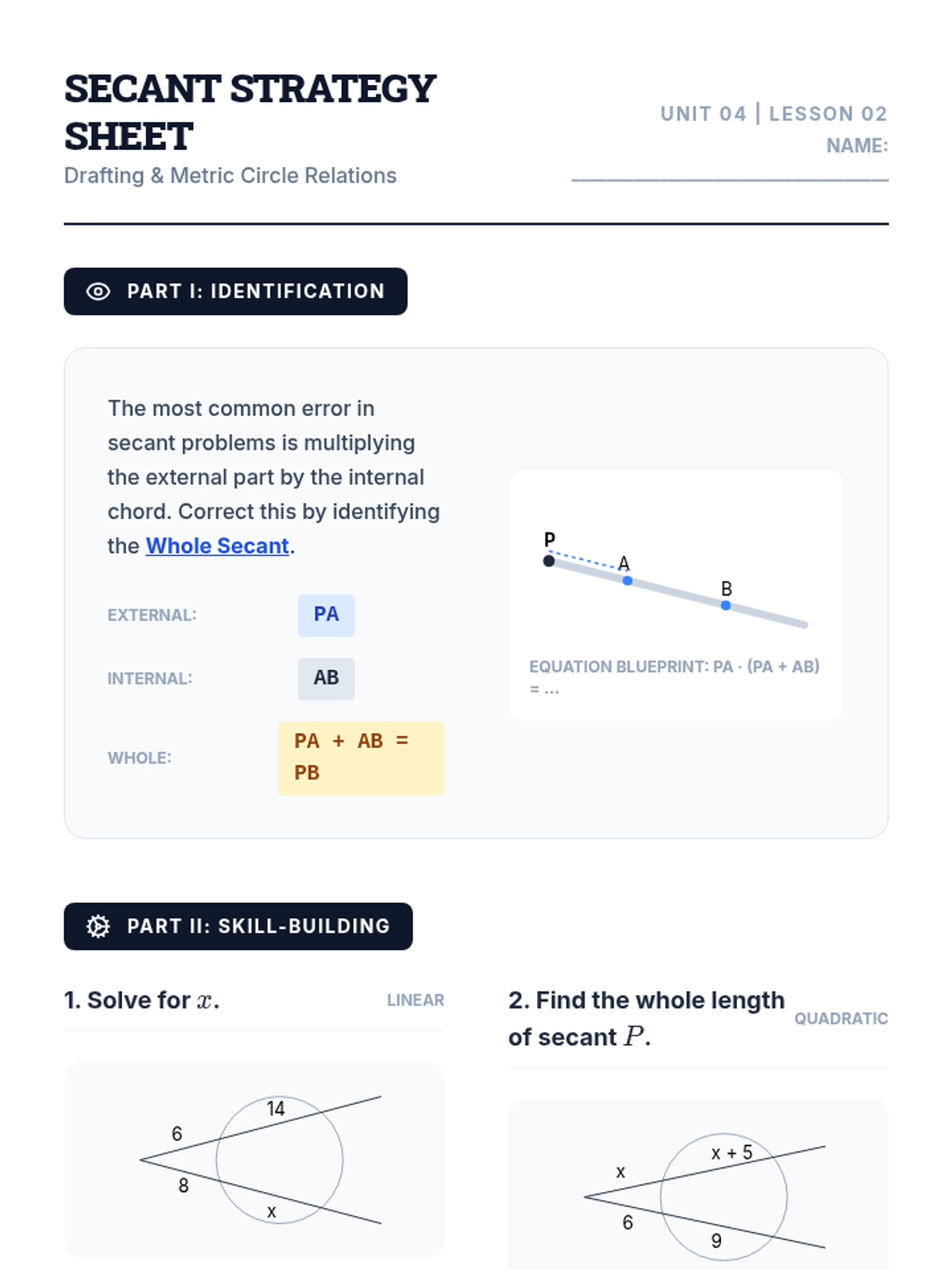

Secant Strategy Worksheet Secant Strategy Sheet
Drafting & Metric Circle Relations
UNIT 04 | LESSON 02
NAME: ____________________________________
Part I: Identification
The most common error in secant problems is multiplying the external part by the internal chord. Correct this by identifying the Whole Secant.
External: PA
Internal: AB
WHOLE: PA + AB = PB
P A B
Equation Blueprint: PA · (PA + AB) = ...
Part II: Skill-Building
1. Solve for \(x\).
LINEAR
6 14 8 x
CALCULATIONS:
2. Find the whole length of secant \(P\).
QUADRATIC
x x + 5 6 9
CALCULATIONS:
Part III: Signal Propagation
A satellite at point S broadcasts a signal that grazes the Earth's atmosphere (circular). Two paths are analyzed: Path 1 has an external segment of 1,200km and passes through 800km of atmosphere. Path 2 has an external segment of \(d\) and passes through 1,500km of atmosphere.
Data Analysis:
Path 1 Whole Length: ____________________
Path 2 Whole Length: ____________________
Equation Set-up:
S
Solve for distance \(d\): ____________ km

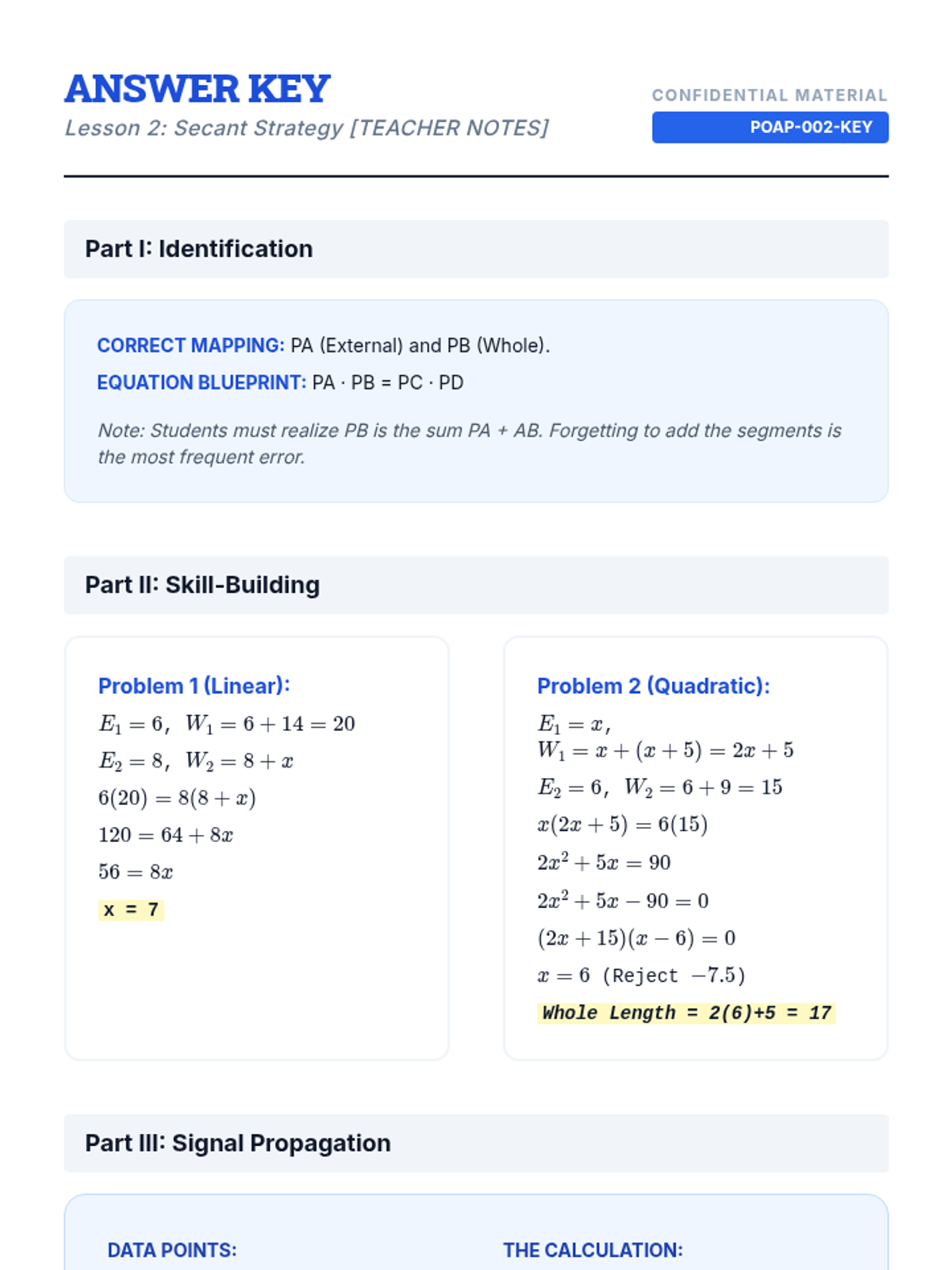

Secant Strategy Answer Key Answer Key
Lesson 2: Secant Strategy [TEACHER NOTES]
Confidential Material
POAP-002-KEY
Part I: Identification
Correct Mapping: PA (External) and PB (Whole).
Equation Blueprint: PA · PB = PC · PD
Note: Students must realize PB is the sum PA + AB. Forgetting to add the segments is the most frequent error.
Part II: Skill-Building
Problem 1 (Linear):
\(E_1 = 6\), \(W_1 = 6 + 14 = 20\)
\(E_2 = 8\), \(W_2 = 8 + x\)
\(6(20) = 8(8 + x)\)
\(120 = 64 + 8x\)
\(56 = 8x\)
x = 7
Problem 2 (Quadratic):
\(E_1 = x\), \(W_1 = x + (x + 5) = 2x + 5\)
\(E_2 = 6\), \(W_2 = 6 + 9 = 15\)
\(x(2x + 5) = 6(15)\)
\(2x^2 + 5x = 90\)
\(2x^2 + 5x - 90 = 0\)
\((2x + 15)(x - 6) = 0\)
\(x = 6\) (Reject \(-7.5\))
Whole Length = 2(6)+5 = 17
Part III: Signal Propagation
Data Points:
Path 1 Whole: \(1200 + 800 = 2000\)
Path 2 Whole: \(d + 1500\)
The Calculation:
\(1200(2000) = d(d + 1500)\)
\(2,400,000 = d^2 + 1500d\)
\(d^2 + 1500d - 2,400,000 = 0\)
Quadratic formula or Factoring:
\((d + 2400)(d - 900) = 0\)
d = 900 km
Instructional Advice:
In Problem 2, many students will incorrectly set up \(x(x+5) = 6(9)\). Emphasize that the segments inside the circle are not used as factors alone; they must be added to the external part to find the total length of the secant segment from the external point.
Tangent Transitions Slides Circle Power Theorems
Tangent Transitions
When Secants become Tangents: The Limiting Case
Module 03: Tangent-Secant
The "Limit" Case
Recall the Secant-Secant Theorem: W₁ · E₁ = W₂ · E₂
As the two intersection points of one secant move closer together, they eventually merge into one point of tangency.
"For a tangent, the 'whole' and the 'external' are the same segment. Therefore, we multiply the tangent by itself."
P T A B
\(t^2 = w \cdot e\)
Precision Proof: \(\triangle PTA \sim \triangle PBT\)
P T A B
1 \(\angle P\) is shared by both triangles.
2 \(\angle PTA \cong \angle PBT\) (The tangent-chord angle equals the inscribed angle).
3 Triangles are similar by AA. Ratio: \(\frac{PT}{PB} = \frac{PA}{PT}\)
PT · PT = PA · PB
The Horizon Calculation
How far can you see from an airplane at an altitude of 10km? (Earth's radius \(\approx 6371km\))
External (Altitude): 10 km
Diameter of Earth: 12,742 km
Whole Secant: 12,752 km
Distance to Horizon (t): t² = 10 · 12,752
Altitude Horizon (t)
t ≈ 357 km
Drafting Lab: Solve for x
12 x 8
12² = x(x+8)
x 4 5
x² = 4(4+5)
8 x x + 2
8² = x(x + x + 2)
Quick Recall:
Is a tangent segment longer or shorter than the whole secant from the same point?

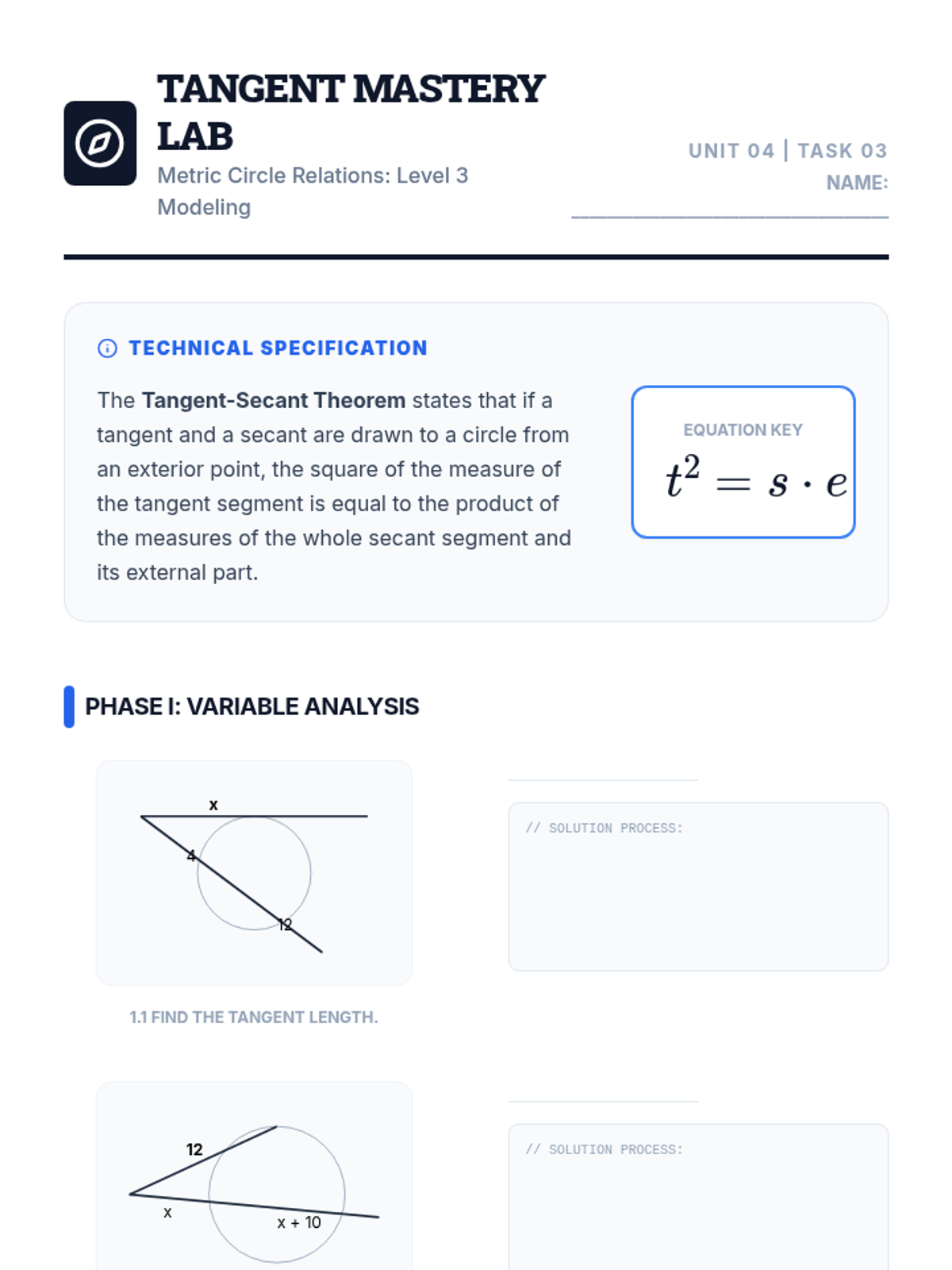

Secant-Tangent Modeling Task Tangent Mastery Lab
Metric Circle Relations: Level 3 Modeling
UNIT 04 | TASK 03
NAME: ____________________________________
Technical Specification
The Tangent-Secant Theorem states that if a tangent and a secant are drawn to a circle from an exterior point, the square of the measure of the tangent segment is equal to the product of the measures of the whole secant segment and its external part.
Equation Key
\(t^2 = s \cdot e\)
Phase I: Variable Analysis
x 4 12
1.1 Find the tangent length.
// SOLUTION PROCESS:
12 x x + 10
1.2 Solve for x (Quadratic Case).
// SOLUTION PROCESS:
Phase II: The "Observation Deck" Model
A new observation deck is built at point O, located 24 meters above the surface of a circular pool. A light beam from point O is tangent to the pool's edge at point T. A support cable is anchored from point O, through the pool, to the far edge at point B.
Problem Specs:
Distance \(OT\) (Tangent) = 40m
External segment \(OA\) = 20m
The cable \(OB\) is a diameter of the pool.
FIND THE RADIUS OF THE POOL.
(Sketch Diagram Here)
Fig 3.1 Structural Blueprint
Step 1: Set up the Power Equation
Step 2: Solve for Radius \(r\)
VERIFIED FOR 2026 STANDARDS
Precision Circle Metric Systems

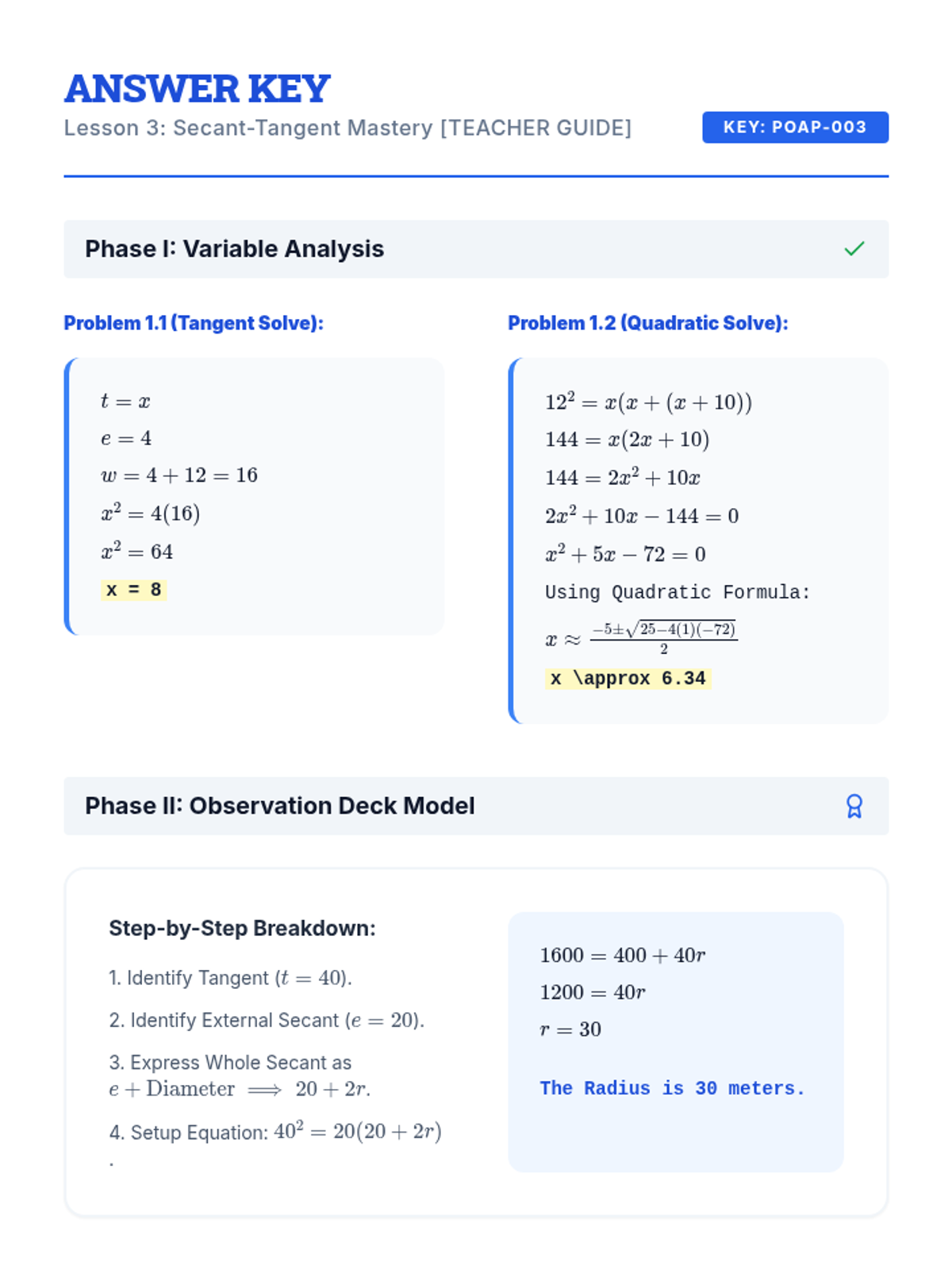

Tangent Transitions Answer Key Answer Key
Lesson 3: Secant-Tangent Mastery [TEACHER GUIDE]
KEY: POAP-003
Phase I: Variable Analysis
Problem 1.1 (Tangent Solve):
\(t = x\)
\(e = 4\)
\(w = 4 + 12 = 16\)
\(x^2 = 4(16)\)
\(x^2 = 64\)
x = 8
Problem 1.2 (Quadratic Solve):
\(12^2 = x(x + (x + 10))\)
\(144 = x(2x + 10)\)
\(144 = 2x^2 + 10x\)
\(2x^2 + 10x - 144 = 0\)
\(x^2 + 5x - 72 = 0\)
Using Quadratic Formula:
\(x \approx \frac{-5 \pm \sqrt{25 - 4(1)(-72)}}{2}\)
x \approx 6.34
Phase II: Observation Deck Model
Step-by-Step Breakdown:
1. Identify Tangent (\(t = 40\)).
2. Identify External Secant (\(e = 20\)).
3. Express Whole Secant as \(e + \text{Diameter}\) \(\implies 20 + 2r\).
4. Setup Equation: \(40^2 = 20(20 + 2r)\).
\(1600 = 400 + 40r\)
\(1200 = 40r\)
\(r = 30\)
The Radius is 30 meters.
Pedagogical Alert
The Square Root Error: Students often solve \(t^2 = s \cdot e\) and forget to take the final square root if they are finding \(t\). Remind them that the unit must match the physical length.
Internal Segment Trap: In the pool problem, students may use only the diameter instead of the whole secant. Emphasize that the secant begins at the external point \(O\).
Pulley Power Slides Mechanical Geometry
Pulley Power
Calculating Common Tangents in Dual-Circle Systems
Blueprint Series // 04
Common Tangent Anatomy
External Tangent
Length t
Does NOT intersect the segment joining the centers. Think of a conveyor belt.
Internal Tangent
Length t
Intersects the segment joining the centers. Think of a crossed belt drive.
The "Translation" Strategy
To solve for the length of a common tangent, we create an auxiliary right triangle by shifting the tangent segment.
Draw the radii to the points of tangency.
Shift the tangent parallel until it forms a right triangle with the centers.
Use Pythagorean Theorem: \(a^2 + b^2 = c^2\).
t (translated) Distance d R - r
\(t^2 + (R - r)^2 = d^2\)
Case Study: Drive Belt
The Specification:
Two circular gears have radii of 12cm and 5cm. The distance between their centers is 25cm.
Calculate the length of the external belt segment.
Calculation Path:
1. Leg 1 = \(12 - 5 = 7\text{ cm}\)
2. Hypotenuse = \(25\text{ cm}\)
3. \(t^2 + 7^2 = 25^2\)
4. \(t^2 = 625 - 49 = 576\)
5. t = 24 cm
t = ? 25 cm
The Internal Shift
For internal tangents, the radii point in opposite directions relative to the centers.
Internal Strategy:
When we translate the tangent, the radii lengths add together to form the vertical leg of the triangle.
\(t^2 + (R + r)^2 = d^2\)
t d R + r
Mechanical Rule of Thumb
External
R - r
Internal
R + r
Ready to build? Open your "Pulley Power" worksheet and solve for the gear ratios.

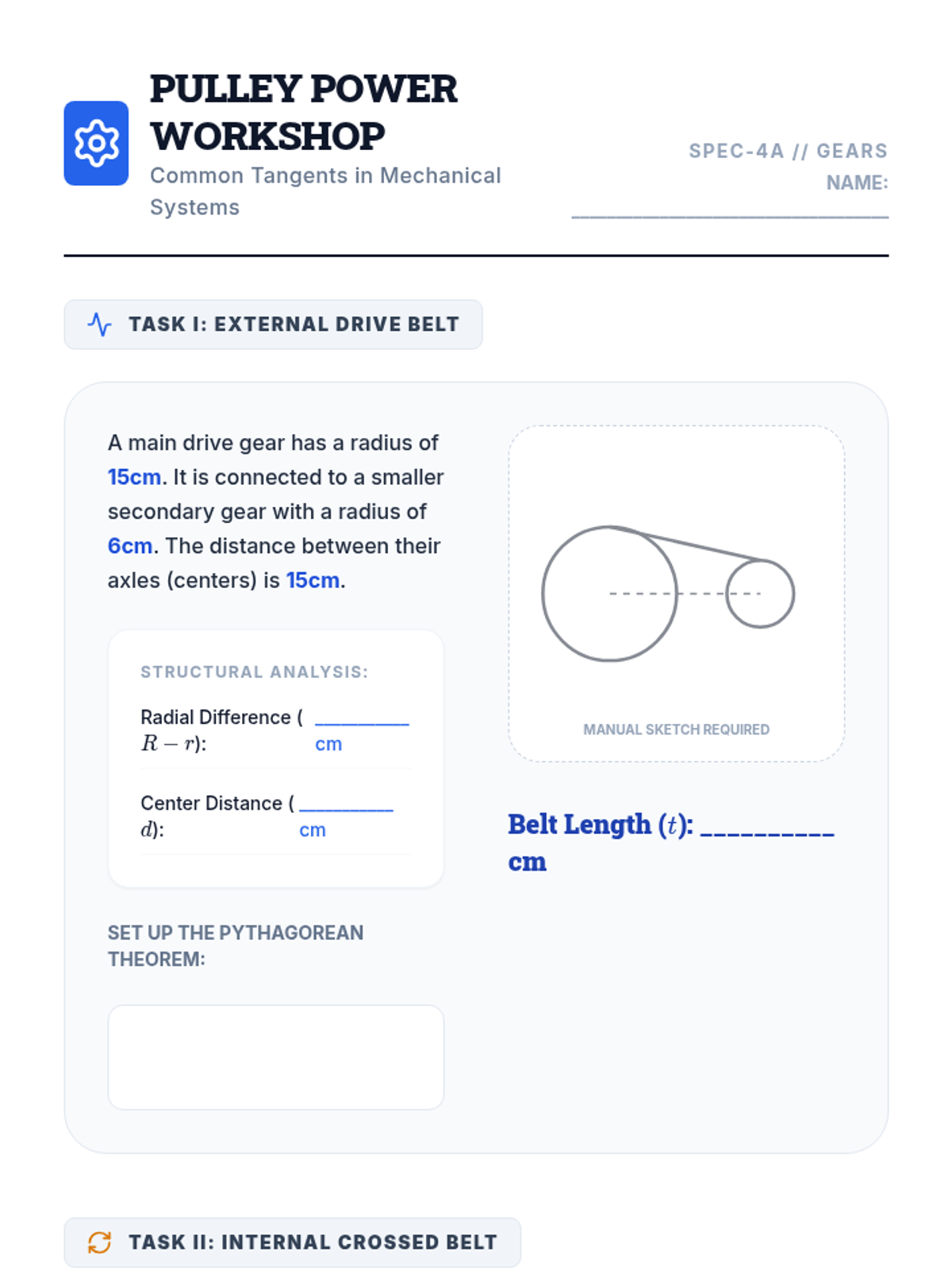

Pulley Power Worksheet Pulley Power Workshop
Common Tangents in Mechanical Systems
SPEC-4A // GEARS
NAME: ____________________________________
Task I: External Drive Belt
A main drive gear has a radius of 15cm. It is connected to a smaller secondary gear with a radius of 6cm. The distance between their axles (centers) is 15cm.
Structural Analysis:
Radial Difference (\(R - r\)): ___________ cm
Center Distance (\(d\)): ___________ cm
Set up the Pythagorean Theorem:
Manual Sketch Required
Belt Length (\(t\)): __________ cm
Task II: Internal Crossed Belt
Two identical pulleys, each with a radius of 5cm, are set 26cm apart (axle-to-axle). A belt crosses between them as an internal common tangent.
Internal Specs:
Combined Radii (\(R + r\)): ___________ cm
Center Distance (\(d\)): ___________ cm
Solve for Tangent Length:
Common Tangent = _________ cm
Engineering Challenge: The Center Query
An external common tangent has a length of 21cm. The larger circle has a radius of 30cm, and the smaller circle has a radius of 10cm.
WHAT IS THE DISTANCE BETWEEN THE CENTERS?
Working Radius:
Pythagorean Setup:
Solution Result
d = ___________ centimeters
CALCULATED FOR PRECISION GEARING
L4: Pulley Dynamics & Metric Relations

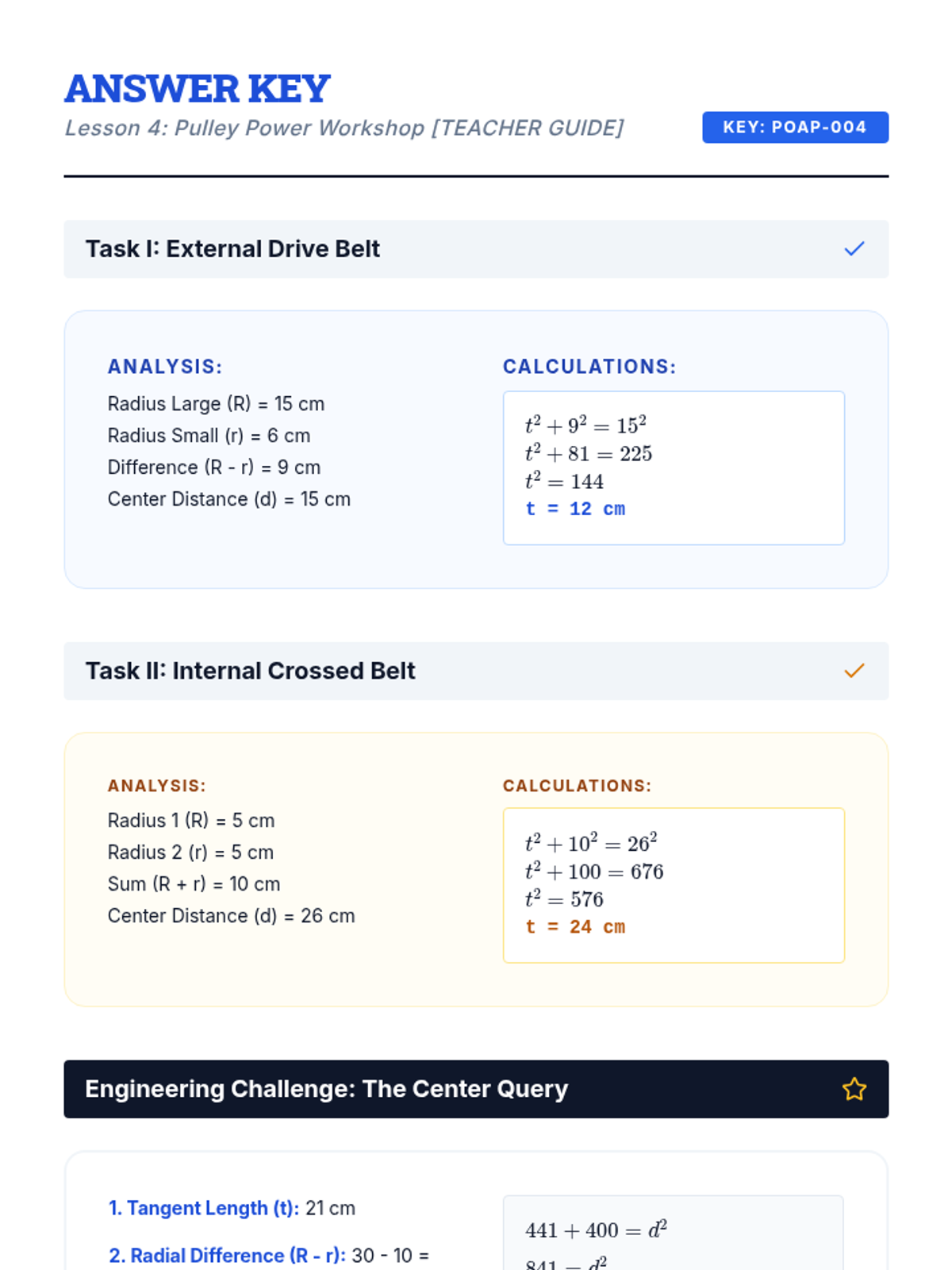

Pulley Power Answer Key Answer Key
Lesson 4: Pulley Power Workshop [TEACHER GUIDE]
KEY: POAP-004
Task I: External Drive Belt
Analysis:
Radius Large (R) = 15 cm
Radius Small (r) = 6 cm
Difference (R - r) = 9 cm
Center Distance (d) = 15 cm
Calculations:
\(t^2 + 9^2 = 15^2\)
\(t^2 + 81 = 225\)
\(t^2 = 144\)
t = 12 cm
Task II: Internal Crossed Belt
Analysis:
Radius 1 (R) = 5 cm
Radius 2 (r) = 5 cm
Sum (R + r) = 10 cm
Center Distance (d) = 26 cm
Calculations:
\(t^2 + 10^2 = 26^2\)
\(t^2 + 100 = 676\)
\(t^2 = 576\)
t = 24 cm
Engineering Challenge: The Center Query
1. Tangent Length (t): 21 cm
2. Radial Difference (R - r): 30 - 10 = 20 cm
3. Setup: \(21^2 + 20^2 = d^2\)
\(441 + 400 = d^2\)
\(841 = d^2\)
d = 29 cm
Instructional Scaffolding
The most common error for internal tangents is subtracting the radii instead of adding. Remind students that for internal tangents, the radii point in opposite directions to remain perpendicular to the tangent line, requiring their full combined length to form the vertical leg of the auxiliary right triangle.

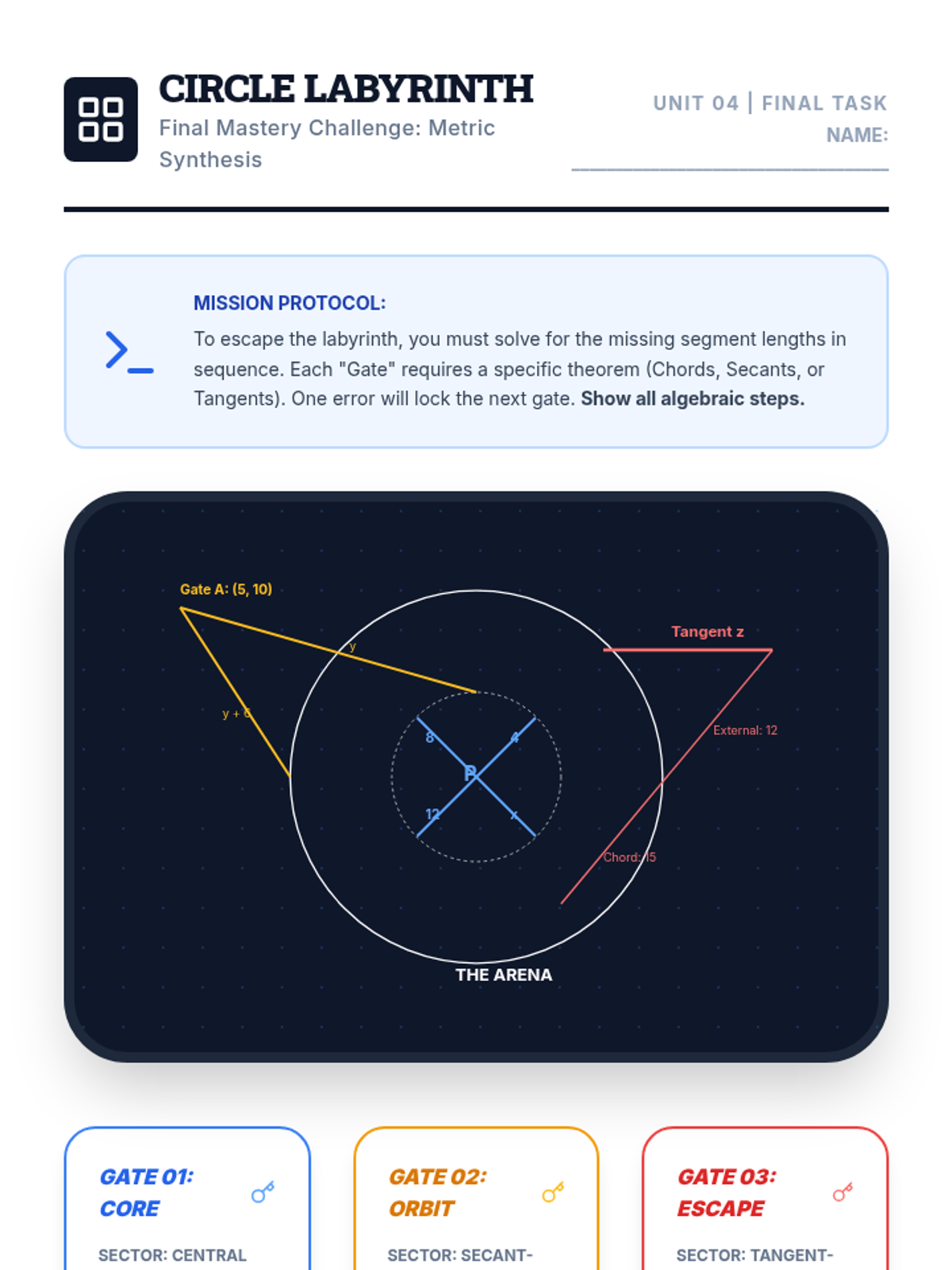

Circle Labyrinth Challenge Circle Labyrinth
Final Mastery Challenge: Metric Synthesis
UNIT 04 | FINAL TASK
NAME: ____________________________________
Mission Protocol:
To escape the labyrinth, you must solve for the missing segment lengths in sequence. Each "Gate" requires a specific theorem (Chords, Secants, or Tangents). One error will lock the next gate. Show all algebraic steps.
8 x 4 12 Gate A: (5, 10) y y + 6 Tangent z External: 12 Chord: 15 THE ARENA P
Gate 01: Core
Sector: Central Hub Chords
Solve for value of x:
x = _________
Gate 02: Orbit
Sector: Secant-Secant
Find segment y if external parts are 5 and y:
y = _________
Gate 03: Escape
Sector: Tangent-Secant
Calculate the exit vector z:
z = _________
SYSTEM OVERLOAD: Common Tangent
Two safety circles within the labyrinth have radii of 20m and 5m. If the distance between their centers is 25m, what is the length of their Internal Common Tangent?
Show Synthesis Calculations:
Final Answer: ___________ m
Secure Protocol Initiated Circle Segment Mastery // End of Sequence Classified Geo-Tech 2026
Circle Labyrinth Slides System Override
Labyrinth Strategy
Advanced Synthesis & Strategy Selection
Solution Path Matrix
Internal
Chords
Look for intersection inside the circle.
part · part = part · part
External
Secants
Look for two lines meeting at an exterior point.
whole · ext = whole · ext
External
Tangents
Look for a line that grazes the circle's edge.
tangent² = whole · ext
Master's Hint: The Quadratic Trap
When you see x and x + 10, you are likely heading for a Quadratic Equation.
Wrong Move:
Add segments instead of multiplying.
Right Move:
Whole = Part 1 + Part 2
"The labyrinth only opens for those who respect the WHOLE."
Review: Dual-Circle Auxiliaries
External Tangent
Leg = R - r
Internal Tangent
Leg = R + r
Pro-Tip:
"Always draw the auxiliary rectangle. The hypotenuse is ALWAYS the distance between the two centers."
Circle Labyrinth Answer Key Labyrinth Solution Key
Circle Segment Secrets // Sequence Mastery Key
KEY: POAP-FINAL
Navigation Logs
Gate 01: Core (Chords)
Applying Intersecting Chords Theorem at Point P.
\(8 \cdot x = 4 \cdot 12\)
\(8x = 48\)
x = 6
Gate 02: Orbit (Secant-Secant)
Caution: Whole lengths must be calculated correctly.
Secant 1: \(E = 5\), \(W = 5 + 10 = 15\)
Secant 2: \(E = y\), \(W = y + (y + 6) = 2y + 6\)
\(5(15) = y(2y + 6)\)
\(75 = 2y^2 + 6y\)
\(2y^2 + 6y - 75 = 0\)
y \approx 4.78
Gate 03: Escape (Tangent-Secant)
Calculating exit vector z using squaring.
\(t = z\)
\(e = 12\)
\(w = 12 + 15 = 27\)
\(z^2 = 12(27)\)
\(z^2 = 324\)
z = 18
Boss: Internal Common Tangent Solution
1. Radius Sum (\(R + r\)): \(20 + 5 = 25\)
2. Center Distance (\(d\)): \(25\)
Wait! The distance equals the sum of radii.
\(t^2 + 25^2 = 25^2 \implies t^2 + 625 = 625\)
Circles are tangent to each other
Assessment Criteria
1. Precision (40%)
Correct identification of whole vs. segment lengths across all gates.
2. Algebra (40%)
Success in solving quadratic forms without sign errors.
3. Logic (20%)
Realizing the internal tangent is zero when circles are externally tangent.
