Angle Discovery Worksheet Inscribed Angle Investigation
Project Ref: GEOM-CIRC-01 // Topic: Inscribed vs Central
NAME: _________________________
DATE: _________________________
The Movie Theater Dilemma
If you are watching a movie in a circular theater, does your viewing angle of the screen change depending on where you sit along the back wall? Let's use geometry to find the answer.
Part 1: Data Gathering
Use your geometry software to create a circle with center \(O\). Place two points \(A\) and \(B\) on the circle to create an arc. Place point \(P\) anywhere else on the major arc. Measure the central angle \(\angle AOB\) and the inscribed angle \(\angle APB\).
Trial Central Angle \(m\angle AOB\) Inscribed Angle \(m\angle APB\) Ratio (Central / Inscribed) 1 2 3
Part 2: The Conjecture
Based on your table, what is the relationship between the measure of the central angle and the measure of an inscribed angle that intercepts the same arc?
Drag point \(P\) along the circle. Does the measure of \(\angle APB\) change as long as it stays on the same arc? Why or why not?
The Inscribed Angle Theorem
The measure of an inscribed angle is exactly ___________ the measure of the central angle that intercepts the same arc.
\(m\angle \text{Inscribed} = \frac{1}{2} m\overparen{Arc}\)
Blueprint Practice
1. Solve for \(x\):
84° x
Value of \(x\): ___________
2. Solve for \(y\):
42° Arc y
Measure of Arc \(y\): ___________
Part 4: Algebraic Applications
In a circle, an inscribed angle is represented by the expression \((3x + 5)^\circ\). The central angle that intercepts the same arc is represented by \((8x - 10)^\circ\).
A. Set up an equation to find \(x\):
B. Solve for \(x\):
C. What is the measure of the inscribed angle?
Reflection: Why must the vertex of the inscribed angle be ON the circle for this theorem to work? What happens if the vertex moves inside or outside the circle?
Angle Discovery Slides Unit: Circle Geometry
CIRCLE SECRETS
Unlocking the Power of Inscribed Angles
Part 1 of 5
The circular theater dilemma
You and your friends are at a circular outdoor theater.
"Does your viewing angle of the screen change depending on where you sit along the back wall?"
SCREEN
The Player Profiles
Central Angle
Vertex is at the Center of the circle.
Inscribed Angle
Vertex is ON the edge of the circle.
Fundamental Theorem
The 1:2 Rule
An inscribed angle is HALF the measure of its intercepted arc (and central angle).
\[ \angle = \frac{1}{2} \text{ Arc} \]
? Quick Check: Find the Arc
If the inscribed angle measures 35°...
Calculation:
35° \(\times\) 2 = ?
35° X
Angle Discovery Key Answer Key
Inscribed Angle Investigation
Part 1 & 2: Investigation Findings
01
Ratio: Students should find the central angle is exactly 2 times the inscribed angle (Ratio 2:1).
02
The Conjecture: The measure of the inscribed angle is half the measure of the central angle subtending the same arc.
03
Constant Angle: The measure of \(\angle APB\) does not change as long as \(P\) stays on the major arc. This is because it continues to intercept the same arc length.
Part 3: Blueprint Practice
Problem 1
x = 42°
Reason: Inscribed angle is half the central angle (84 / 2).
Problem 2
y = 84°
Reason: Arc measure is twice the inscribed angle (42 * 2).
Part 4: Algebraic Solutions
A. Equation:
2(3x + 5) = 8x - 10
OR: 3x + 5 = 0.5(8x - 10)
B. Solve for x:
6x + 10 = 8x - 10
20 = 2x
x = 10
C. Angle Measure:
Inscribed Angle = 3(10) + 5 = 35°
(Check: Central = 8(10) - 10 = 70°. 70 / 2 = 35. Correct.)
Arc Sharing Slides Circle Secrets // Module 02
SHARING ARCS
The Power of the Bowtie Effect
The Bowtie Hook
Look at this "bowtie" shape inside the circle.
Without measuring, can you predict which angles MUST be equal?
Look for Shared Arcs
Theorem 2.1
Shared Arc = Shared Measure
If two inscribed angles intercept the same arc, then the angles are congruent.
Why is this true?
01 Inscribed Angle Theorem:
Every inscribed angle is exactly HALF of its intercepted arc.
02 The Substitution:
If \(\angle A = \frac{1}{2} \text{Arc}\) and \(\angle B = \frac{1}{2} \text{Arc}\), then \(\angle A = \angle B\).
ARC X Angle A Angle B
Ready to Practice?
We are looking for "Bowties" and "V-shapes" that land on the same spot. Open your Bowtie Angles Worksheet.

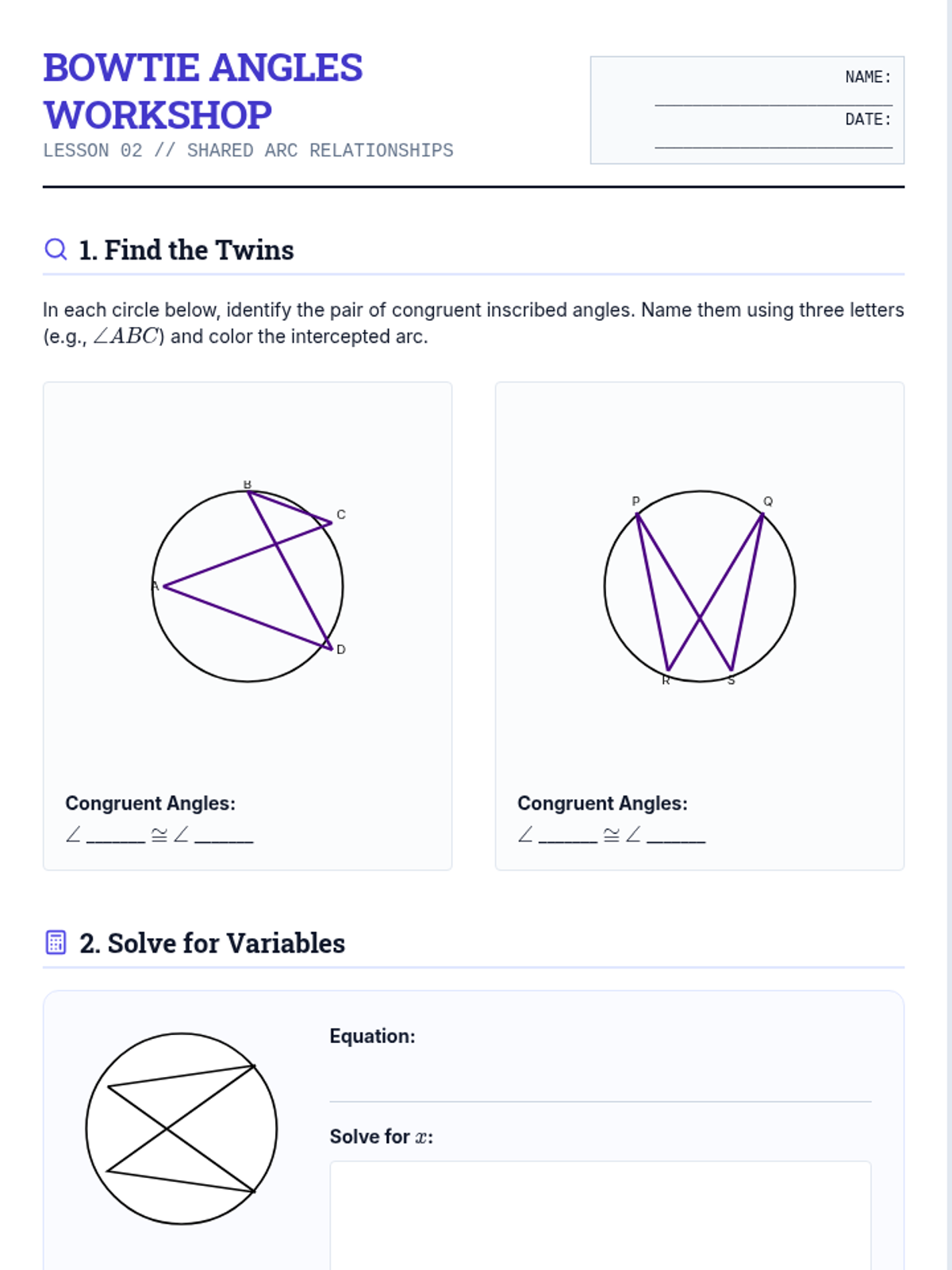

Bowtie Angles Worksheet Bowtie Angles Workshop
Lesson 02 // Shared Arc Relationships
NAME: _________________________
DATE: _________________________
1. Find the Twins
In each circle below, identify the pair of congruent inscribed angles. Name them using three letters (e.g., \(\angle ABC\)) and color the intercepted arc.
A B C D
Congruent Angles:
\(\angle\) _______ \(\cong\) \(\angle\) _______
P Q R S
Congruent Angles:
\(\angle\) _______ \(\cong\) \(\angle\) _______
2. Solve for Variables
\(3x-10\) \(2x+15\)
Equation:
Solve for \(x\):
The Challenge
In circle \(O\), arc \(AB\) measures \(110^\circ\). Points \(C, D, \text{ and } E\) are located on the circle such that they all intercept arc \(AB\). What are the measures of \(\angle ACB\), \(\angle ADB\), and \(\angle AEB\)? Justify your answer.

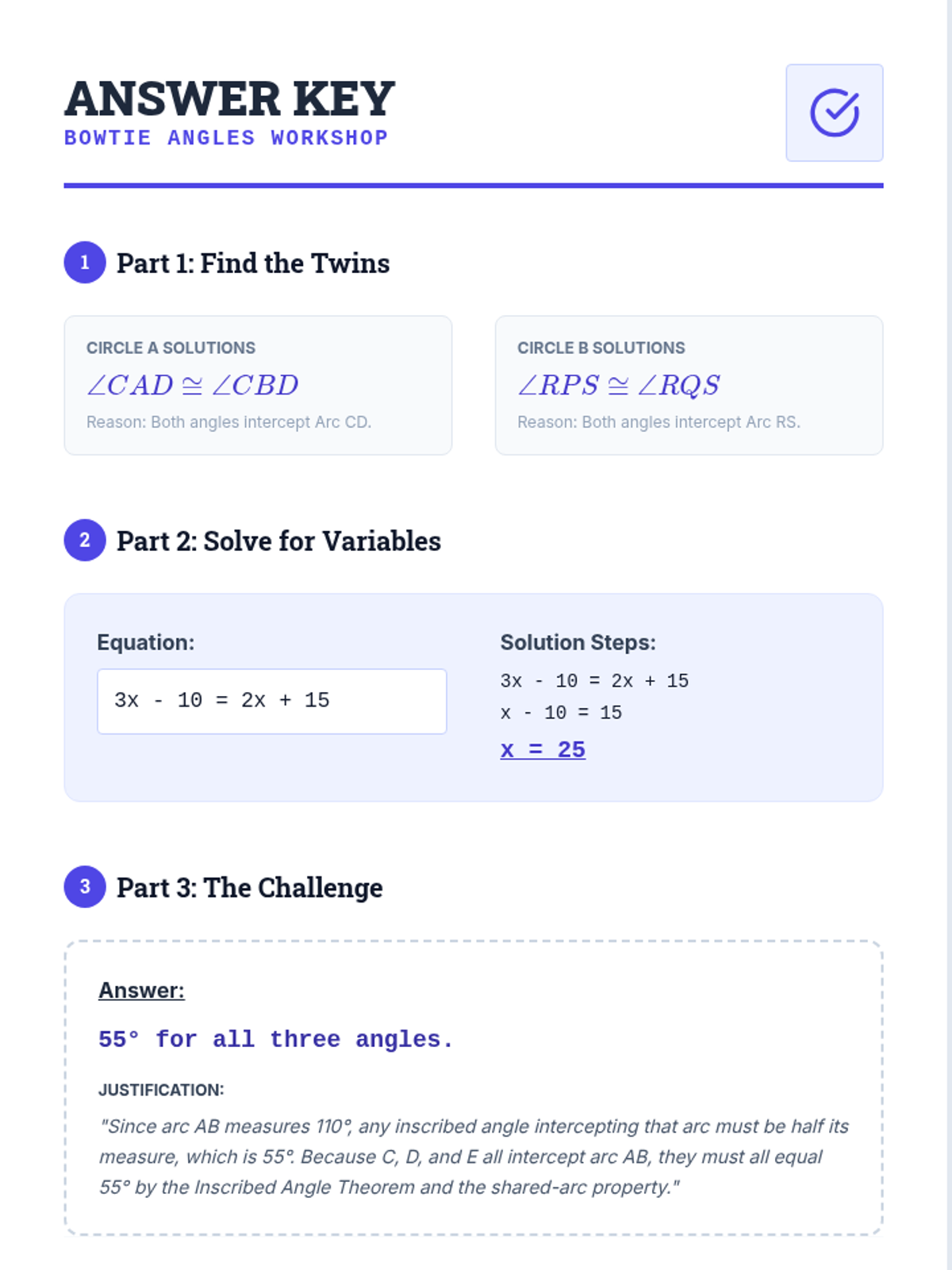

Bowtie Angles Key Answer Key
Bowtie Angles Workshop
1 Part 1: Find the Twins
Circle A Solutions
\(\angle CAD \cong \angle CBD\)
Reason: Both angles intercept Arc CD.
Circle B Solutions
\(\angle RPS \cong \angle RQS\)
Reason: Both angles intercept Arc RS.
2 Part 2: Solve for Variables
Equation:
3x - 10 = 2x + 15
Solution Steps:
3x - 10 = 2x + 15
x - 10 = 15
x = 25
3 Part 3: The Challenge
Answer:
55° for all three angles.
Justification:
"Since arc AB measures 110°, any inscribed angle intercepting that arc must be half its measure, which is 55°. Because C, D, and E all intercept arc AB, they must all equal 55° by the Inscribed Angle Theorem and the shared-arc property."
Circle Secrets: Key 02
VERIFIED SOLUTION
Semicircle Secrets Slides Circle Secrets // Module 03
SEMICIRCLE SURPRISE
Thales's Theorem & The 90° Rule
The Perfect Rectangle
How can you draw a perfect rectangle using only a compass and a straightedge?
"The answer lies in the diameter of a circle..."
The Greek Insight
Thales's Theorem
If \(A, B, \text{ and } C\) are points on a circle where \(AC\) is a diameter, then \(\angle ABC\) is always a RIGHT ANGLE.
Why 90°? Let's Crunch the Numbers
1
A circle is 360°.
2
A semicircle (diameter) cuts it into 180°.
3
The inscribed angle is HALF the arc.
180° / 2 = 90°
180° ARC
Math Fusion
Circle Geometry
Thales's Theorem
Triangle Geometry
Pythagorean Thm
Combine these two to find missing lengths in complex circle diagrams. It's time to build!

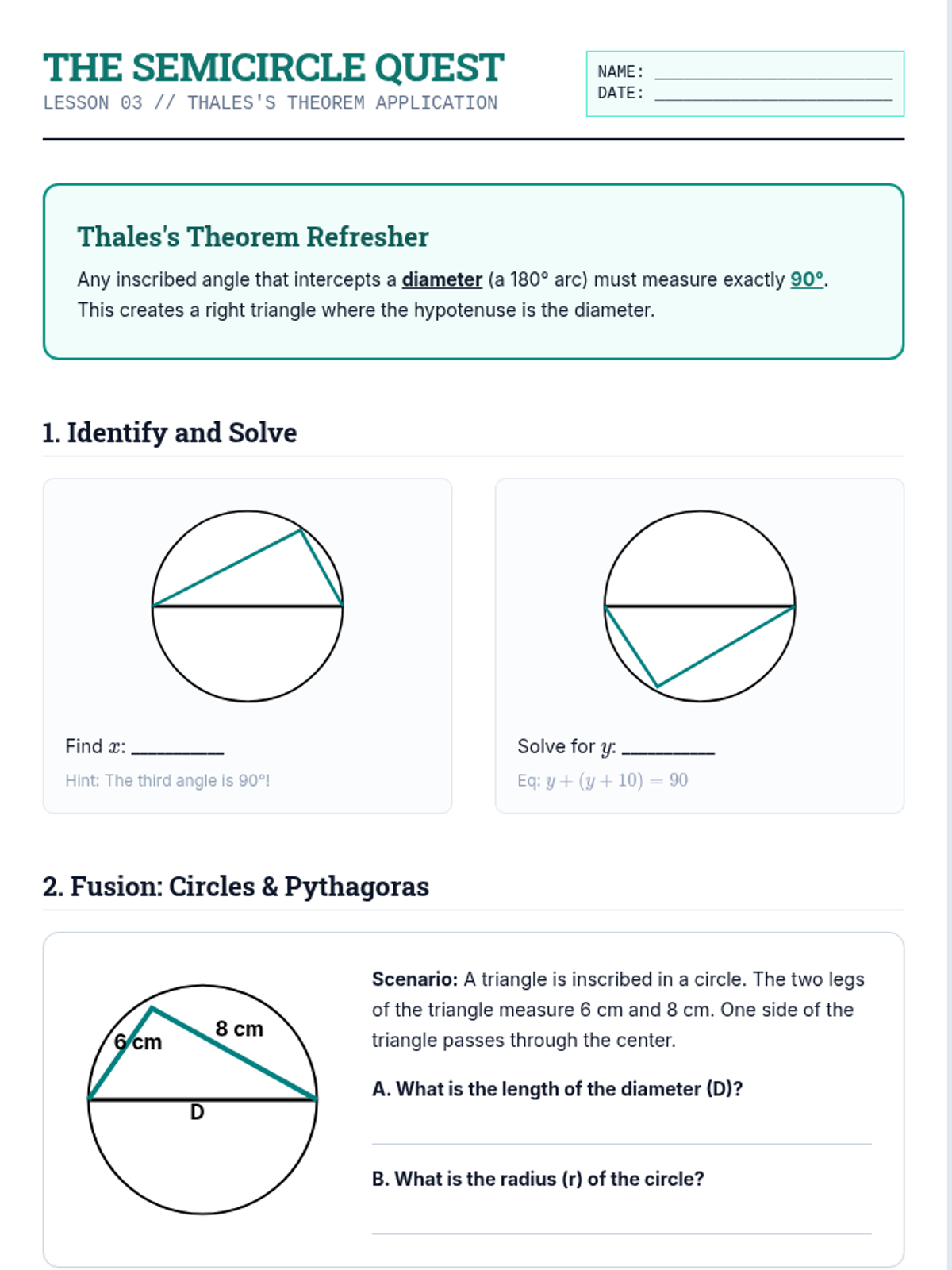

Thales's Theorem Worksheet The Semicircle Quest
Lesson 03 // Thales's Theorem Application
NAME: _________________________
DATE: _________________________
Thales's Theorem Refresher
Any inscribed angle that intercepts a diameter (a 180° arc) must measure exactly 90°. This creates a right triangle where the hypotenuse is the diameter.
1. Identify and Solve
\(42^\circ\) \(x\)
Find \(x\): ___________
Hint: The third angle is 90°!
\(y\) \(y + 10\)
Solve for \(y\): ___________
Eq: \(y + (y+10) = 90\)
2. Fusion: Circles & Pythagoras
6 cm 8 cm D
Scenario: A triangle is inscribed in a circle. The two legs of the triangle measure 6 cm and 8 cm. One side of the triangle passes through the center.
A. What is the length of the diameter (D)?
B. What is the radius (r) of the circle?
Architect's Note
Explain why we can't have an obtuse angle in a triangle where one side is the diameter of the circle.
Thales's Theorem Key Answer Key
The Semicircle Quest

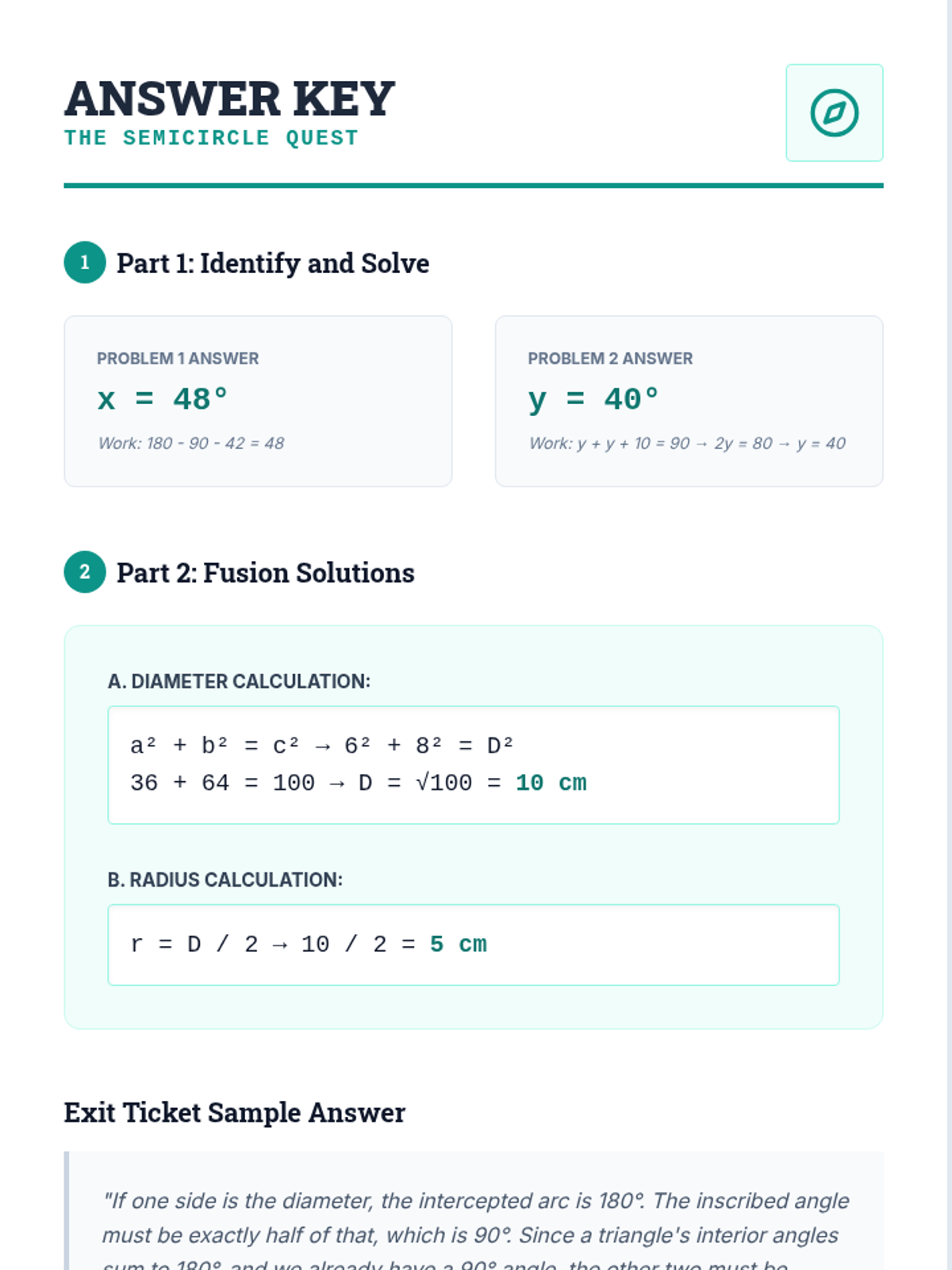

1 Part 1: Identify and Solve
Problem 1 Answer
x = 48°
Work: 180 - 90 - 42 = 48
Problem 2 Answer
y = 40°
Work: y + y + 10 = 90 → 2y = 80 → y = 40
2 Part 2: Fusion Solutions
A. Diameter Calculation:
a² + b² = c² → 6² + 8² = D²
B. Radius Calculation:
r = D / 2 → 10 / 2 = 5 cm
Exit Ticket Sample Answer
"If one side is the diameter, the intercepted arc is 180°. The inscribed angle must be exactly half of that, which is 90°. Since a triangle's interior angles sum to 180°, and we already have a 90° angle, the other two must be acute. It is impossible to have an angle > 90° because the arc intercepted cannot exceed 180° for an inscribed triangle where the diameter is a side."
Cyclic Quad Slides Circle Secrets // Module 04
THE CIRCLE TRAP
Cyclic Quadrilaterals & Supplementary Secrets
Can any shape fit?
Imagine trying to trap a four-sided shape inside a circle so that all four corners touch the edge perfectly.
"Are there special rules for the angles inside, or is it just random?"
The Inscribed Rule
Opposites Attract (to 180°)
In any cyclic quadrilateral, the opposite angles are SUPPLEMENTARY.
\(\angle A + \angle C = 180^\circ\)
The Proof: Why does it work?
Arc 1 Arc 2
Arc Sum:
Arc 1 + Arc 2 = 360°
Angle Link:
Each opposite angle intercepts exactly HALF of the circle's total arcs.
360° / 2 = 180°
Cracking the Case
If you know one angle, you know its opposite. Let's head to the Quadrilateral Proofs Worksheet to solve for x.
110° → 70°
85° → 95°
Cyclic Quad Worksheet Cyclic Quad Investigations
Lesson 04 // Supplementary Relationships
NAME: _________________________
DATE: _________________________
Problem 1: Solve for \(x\) and \(y\)
105° x 82° y
\(x = \) ___________
\(y = \) ___________
Problem 2: Algebra Focus
\(4x + 20\) \(x + 10\)
Opposite angles are supplementary!
Equation: _________________
Value of \(x\): ___________
2. Formal Proof Strategy
Prove that \(\angle A + \angle C = 180^\circ\) given that \(ABCD\) is inscribed in circle \(O\).
Statements Reasons 1. \(ABCD\) is a cyclic quadrilateral. Given 2. \(m\angle A = \frac{1}{2} m\overparen{BCD}\) ______________________________ 3. \(m\angle C = \frac{1}{2} m\overparen{BAD}\) ______________________________ 4. \(m\angle A + m\angle C = \frac{1}{2} (m\overparen{BCD} + m\overparen{BAD})\) ______________________________ 5. \(m\overparen{BCD} + m\overparen{BAD} = 360^\circ\) ______________________________ 6. \(m\angle A + m\angle C = \frac{1}{2} (360^\circ) = 180^\circ\) ______________________________
Key Takeaway
Cyclic quadrilaterals are the "gold standard" for inscribed polygons. If the opposite angles don't add to 180, the points simply cannot all lie on the same circle.

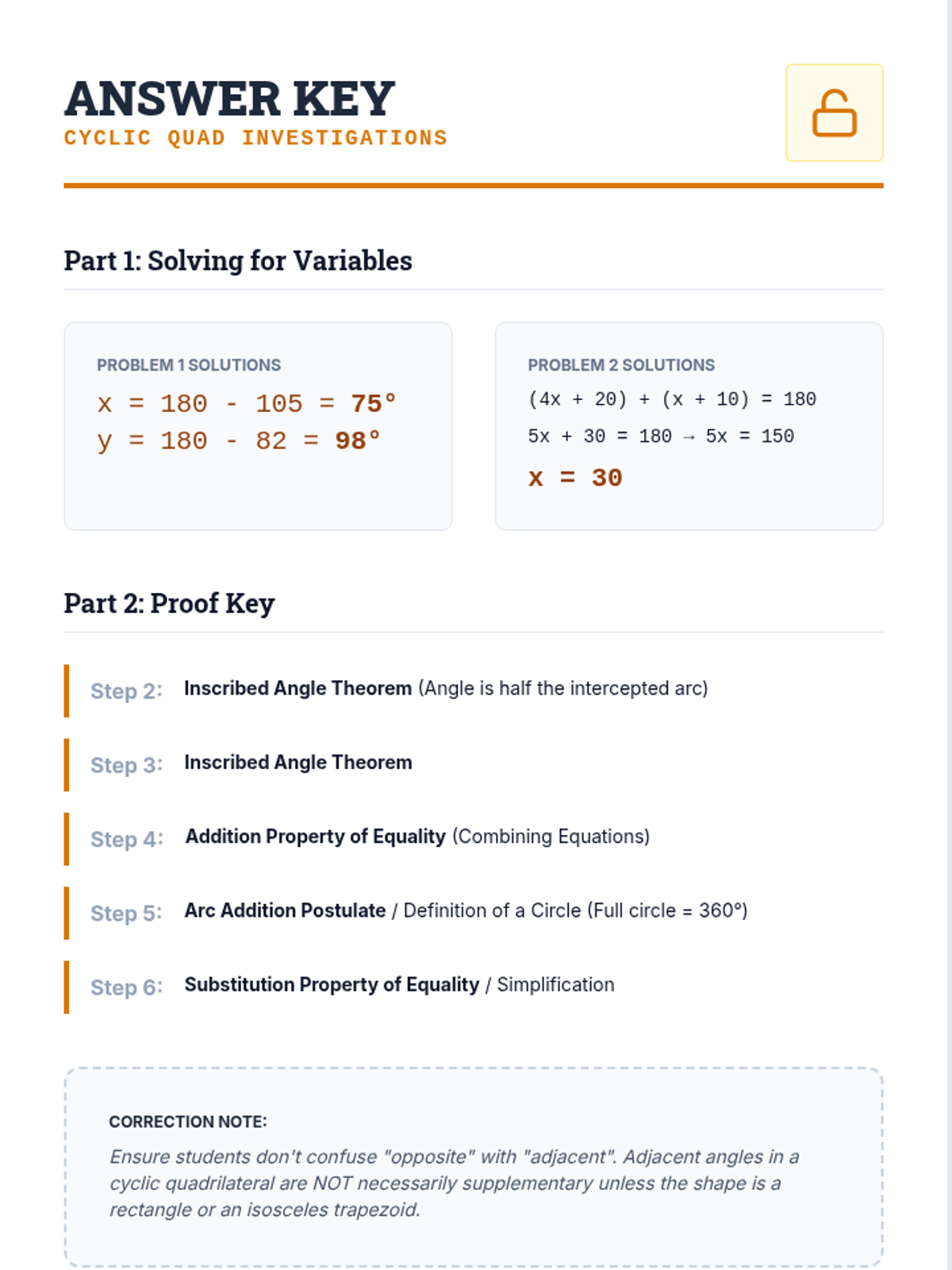

Cyclic Quad Key Answer Key
Cyclic Quad Investigations
Part 1: Solving for Variables
Problem 1 Solutions
x = 180 - 105 = 75°
y = 180 - 82 = 98°
Problem 2 Solutions
(4x + 20) + (x + 10) = 180
5x + 30 = 180 → 5x = 150
x = 30
Part 2: Proof Key
Step 2:
Inscribed Angle Theorem (Angle is half the intercepted arc)
Step 3:
Inscribed Angle Theorem
Step 4:
Addition Property of Equality (Combining Equations)
Step 5:
Arc Addition Postulate / Definition of a Circle (Full circle = 360°)
Step 6:
Substitution Property of Equality / Simplification
Correction Note:
Ensure students don't confuse "opposite" with "adjacent". Adjacent angles in a cyclic quadrilateral are NOT necessarily supplementary unless the shape is a rectangle or an isosceles trapezoid.
Tangent Trail Slides Circle Secrets // Module 05
POINT OF IMPACT
The Power of Tangent Lines
The Satellite Dish
If you look at a round satellite dish from a single point, are the distances to the left and right "edges" the same?
"Does geometry guarantee symmetry in the path of a signal?"
SIGNAL POINT
The Tangent Rule
The 90° Intersection
A tangent line is always perpendicular to the radius at the point of tangency.
The "Ice Cream Cone" Theorem
L1 L2
Tangent segments from the same external point are congruent.
L1 = L2
Think of it like an ice cream cone: the sides must be equal for the scoop to sit perfectly!
Final Boss Challenge
A circular track has a radius of 5 km. An observer is standing at a point 13 km away from the center of the track.
How far is the observer from the point of tangency on the track?
5² + X² = 13² → X = ?

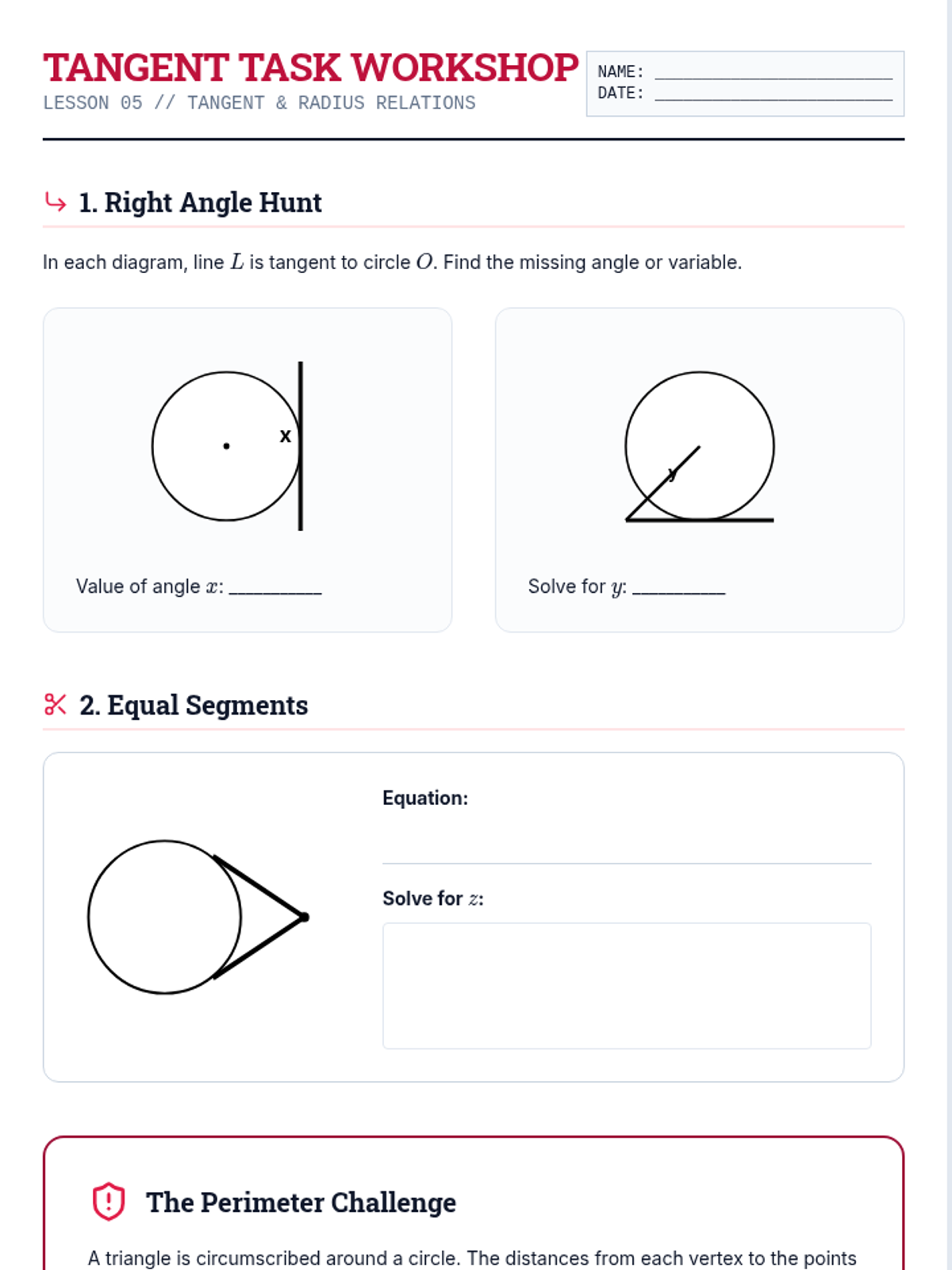

Tangent Task Worksheet Tangent Task Workshop
Lesson 05 // Tangent & Radius Relations
NAME: _________________________
DATE: _________________________
1. Right Angle Hunt
In each diagram, line \(L\) is tangent to circle \(O\). Find the missing angle or variable.
x
Value of angle \(x\): ___________
\(40^\circ\) y
Solve for \(y\): ___________
2. Equal Segments
\(3z + 5\) \(z + 15\)
Equation:
Solve for \(z\):
The Perimeter Challenge
A triangle is circumscribed around a circle. The distances from each vertex to the points of tangency are 4 cm, 6 cm, and 10 cm. What is the total perimeter of the triangle? Sketch your reasoning below.
Sketch Area
Calculation:
Final Perimeter: ___________

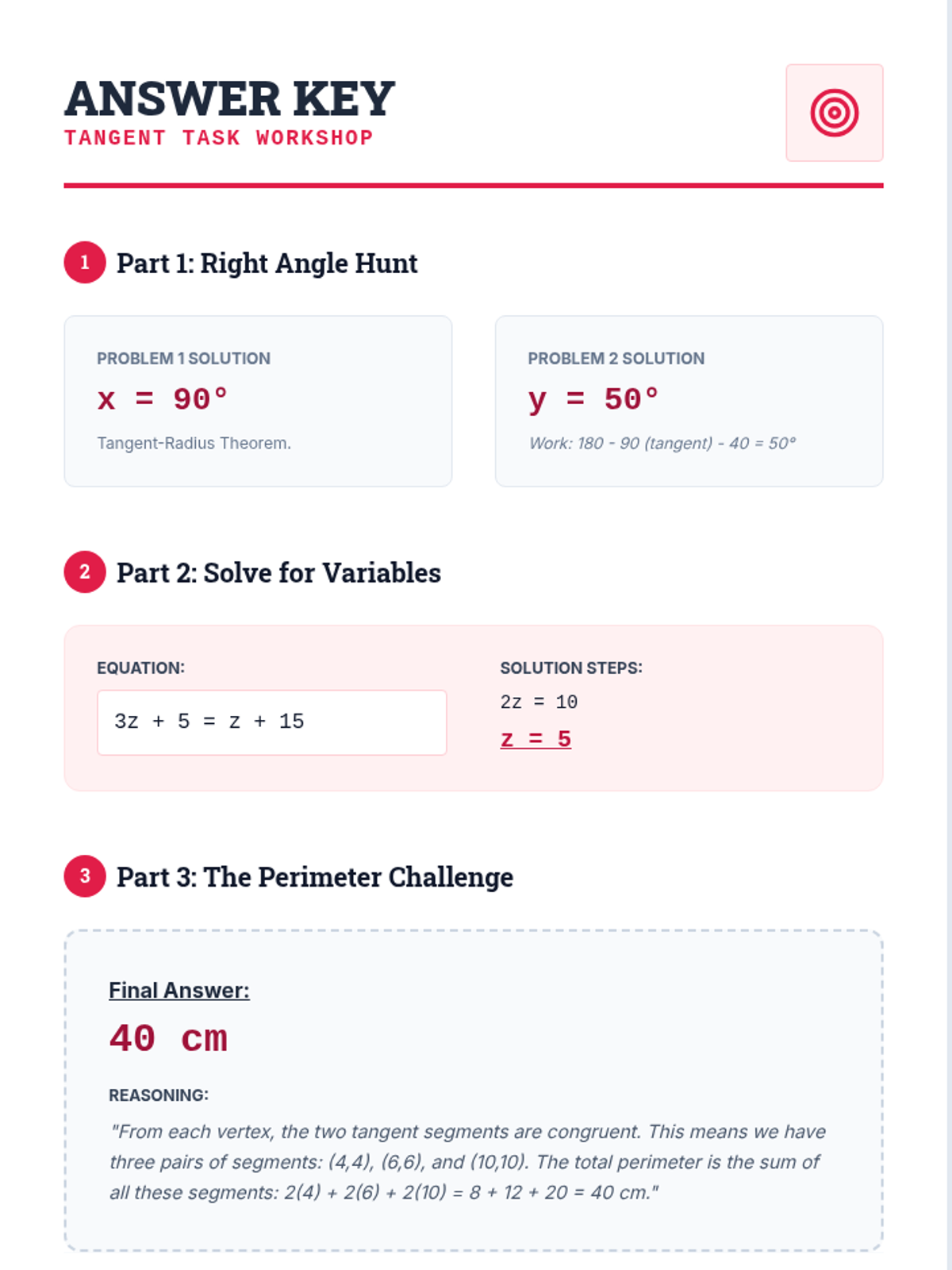

Tangent Task Key Answer Key
Tangent Task Workshop
1 Part 1: Right Angle Hunt
Problem 1 Solution
x = 90°
Tangent-Radius Theorem.
Problem 2 Solution
y = 50°
Work: 180 - 90 (tangent) - 40 = 50°
2 Part 2: Solve for Variables
Equation:
3z + 5 = z + 15
Solution Steps:
2z = 10
z = 5
3 Part 3: The Perimeter Challenge
Final Answer:
40 cm
Reasoning:
"From each vertex, the two tangent segments are congruent. This means we have three pairs of segments: (4,4), (6,6), and (10,10). The total perimeter is the sum of all these segments: 2(4) + 2(6) + 2(10) = 8 + 12 + 20 = 40 cm."
Circle Secrets: Key 05
COURSE COMPLETE
