Engineering Fails Slides ENGINEERING FAILS
The Cost of Geometrical Error
Lesson 1: Structural Angle Analysis
What Went Wrong?
[Imagine: A twisted steel pedestrian bridge]
CASE A: HYATT REGENCY COLLAPSE
"A slight change in design changed the load path..."
- Engineering Report
When angles are off, forces don't go where they are supposed to go.
Gravity pulls straight down.
Trusses redirect force through angles.
Architectural Vocabulary
Acute Angle
Less than 90°
Right Angle
Exactly 90°
Obtuse Angle
Greater than 90°
Discussion: Which of these looks the most "stable"? Why?
Case Study: The Warren Truss
Common truss design using equilateral triangles.
Why Triangles?
Triangles are the only polygon that is rigid. Their angles cannot change without changing the length of their sides.
Identify the angles in this truss:
Are they acute, obtuse, or right?
What would happen if we increased the base angle?
Your Mission
1
Analyze structural designs for specific angle types.
2
Determine how angles distribute "load" (weight).
3
Hypothesize why architects choose certain angles over others.
Structural Scavenger Hunt Worksheet Structural Scavenger Hunt
UNIT 1: ANGLE ANALYSIS IN ARCHITECTURE
ARCHITECT:
DATE:
Field Briefing
In the world of structural engineering, angles aren't just numbers—they are the paths through which weight and force travel. Use your protractor and geometric vocabulary to analyze the structural sketches below.
01
The A-Frame Residence
Angle A Angle B
IDENTIFY & MEASURE:
ANGLE A
(Type & Degrees)
ANGLE B
(Type & Degrees)
Structural Analysis:
Why would an architect choose an acute Angle A for a house in a snowy climate?
02
The Pratt Truss Bridge
Angle C Angle D
IDENTIFY & MEASURE:
ANGLE C
ANGLE D
Structural Analysis:
The vertical supports create 90° angles. How do these compare to the diagonal angles in terms of redirecting vertical pressure?
The Lead Engineer's Hypothesis
Based on your investigation, if you were building a bridge to carry heavy trains, would you use more acute or obtuse angles in your support truss? Explain your reasoning using at least two geometric terms.
Structural Case Study Teacher Guide Teacher Facilitation Guide
Structural Case Study
Lesson 1: Analyzing Angles in Architecture
DURATION
60 MIN
Learning Objectives
Identify and categorize acute, obtuse, and right angles in real-world architectural contexts.
Explain how different angle types impact structural stability and force distribution.
Formulate a hypothesis relating geometric choice to environmental factors (e.g., snow load).
Key Discussion Prompts
"Why don't we see many 90-degree angles in the main supports of a suspension bridge?"
Goal: Shift thinking from 'standard' squares to the rigidity of triangles.
"What happens to an obtuse angle when you push down on its vertex?"
Goal: Visualize force 'flattening' wider angles versus 'compressing' narrower ones.
Materials Needed
Engineering Fails Slides
Structural Scavenger Hunt WS
Protractors (1 per student)
Rulers
Vocabulary
Acute Obtuse Right Vertex Load Path Truss
Instructional Sequence
0-15m
The Hook: Engineering Fails
Present the slide deck. Focus on the Hyatt Regency Walkway Collapse. Explain that a minor design change in how the rods were joined changed the "load path." Ask students to sketch what they think a "stable" joint looks like.
15-35m
Direct Instruction: The Geometry of Strength
Define acute, obtuse, and right angles. Demonstrate using three rulers bolted together why a triangle is the only "rigid" polygon (it cannot be deformed without changing side lengths).
35-50m
Investigation: Scavenger Hunt
Students work individually or in pairs to complete the Structural Scavenger Hunt Worksheet. Walk around and ensure students are placing the center of their protractor exactly on the vertex of the angles in the sketches.
50-60m
Synthesis: Peer Discussion
Review the "Lead Engineer's Hypothesis." Debrief as a class: Why are roofs in snowy areas steep (acute angles)? Answer: To shed snow load and redirect force efficiently to the walls.
Differentiation Strategies
Support
Provide pre-marked vertices on the worksheet sketches. Allow students to use physical angle tiles to "match" the drawings before measuring.
Extension
Ask students to calculate the interior sum of the triangles in the Pratt Truss and predict what happens if a support is added.
Precision Drafting Slides Workshop Module 02
THE ART OF PRECISION
Mastering the Tools of the Architect
?
The Estimation Gap
Target Angle
47°
Can you draw it freehand?
In architecture, "close enough" is a disaster. A 2-degree error at the base of a skyscraper can lead to a 10-foot tilt at the top.
The Architect's Rule:
Measure twice, draft once.
Anatomy of the Protractor
The Origin (Vertex) Baseline (0°)
Common Mistake
Students often use the wrong scale (inner vs. outer). Always ask: Should this angle be bigger or smaller than 90°?
Relationships that Build
Complementary
Two angles that add up to 90°.
50° 40°
Supplementary
Two angles that add up to 180°.
125° 55°
Drafting Protocol
1
Mark your Vertex with a single dot.
2
Draw a Baseline using a straight edge.
3
Align the protractor Origin to your vertex.
4
Mark the degree, then connect with a Precision Line.
The Drafting Board Worksheet Technical Training Module
The Drafting Board
LEVEL
TECH I
DRAFTSPERSON:
PRECISION CHECK:
Phase I: Absolute Precision
Construct the following angles using a protractor and straight edge. Ensure your vertex is marked clearly.
1. Acute Constraint
38°
2. Obtuse Constraint
155°
Phase II: Structural Relationships
3. Complementary Bracing
An architect is designing a 90° corner brace. They have already drafted one angle at 27°.
CALCULATE MISSING ANGLE:
____ °
Drafting Field
Draw both angles to show they form a right angle:
4. Supplementary Support
A bridge support truss sits on a flat horizontal beam. One side of the truss forms a 112° angle.
CALCULATE SUPPLEMENTARY ANGLE:
____ °
Drafting Field
Draw the supplementary pair on the baseline below:
Standard 8.G.A.5 | Angle Relationships & Technical Drafting
Client Brief Slides THE CLIENT BRIEF
Project: Nexus Bridge & Roof
STRICT GEOMETRIC COMPLIANCE REQUIRED
Memo: Alpha Structural Firm
"We are seeking a lead architect to design a new pedestrian truss bridge for the River District. The local city council has mandated that the design must not only be stable but also showcase geometric complexity to celebrate the city's focus on STEM education."
— Director of Public Works
Your Task:
Create a scale technical drawing (blueprint) that meets exactly six geometric constraints.
Failure to meet any constraint results in a rejected permit during Lesson 4 inspection.
Design Constraints Checklist
1
At least 2 pairs of Supplementary Angles.
2
At least 1 pair of Complementary Angles.
3
At least 3 Acute Angles (labeled A1, A2, A3).
4
At least 2 Obtuse Angles (labeled O1, O2).
5
One structural element forming a Right Angle.
6
A Table of Contents listing every angle's degree.
Blueprint Best Practices
Start with the Frame
Draft the main baseline and overall shape before adding support trusses.
Label as You Go
Don't wait until the end to label your angles. It's easy to lose track!
Verify Often
Check your math! Supplementary angles MUST equal 180° exactly.
Ready to design?
Portfolio distribution in... 03:00

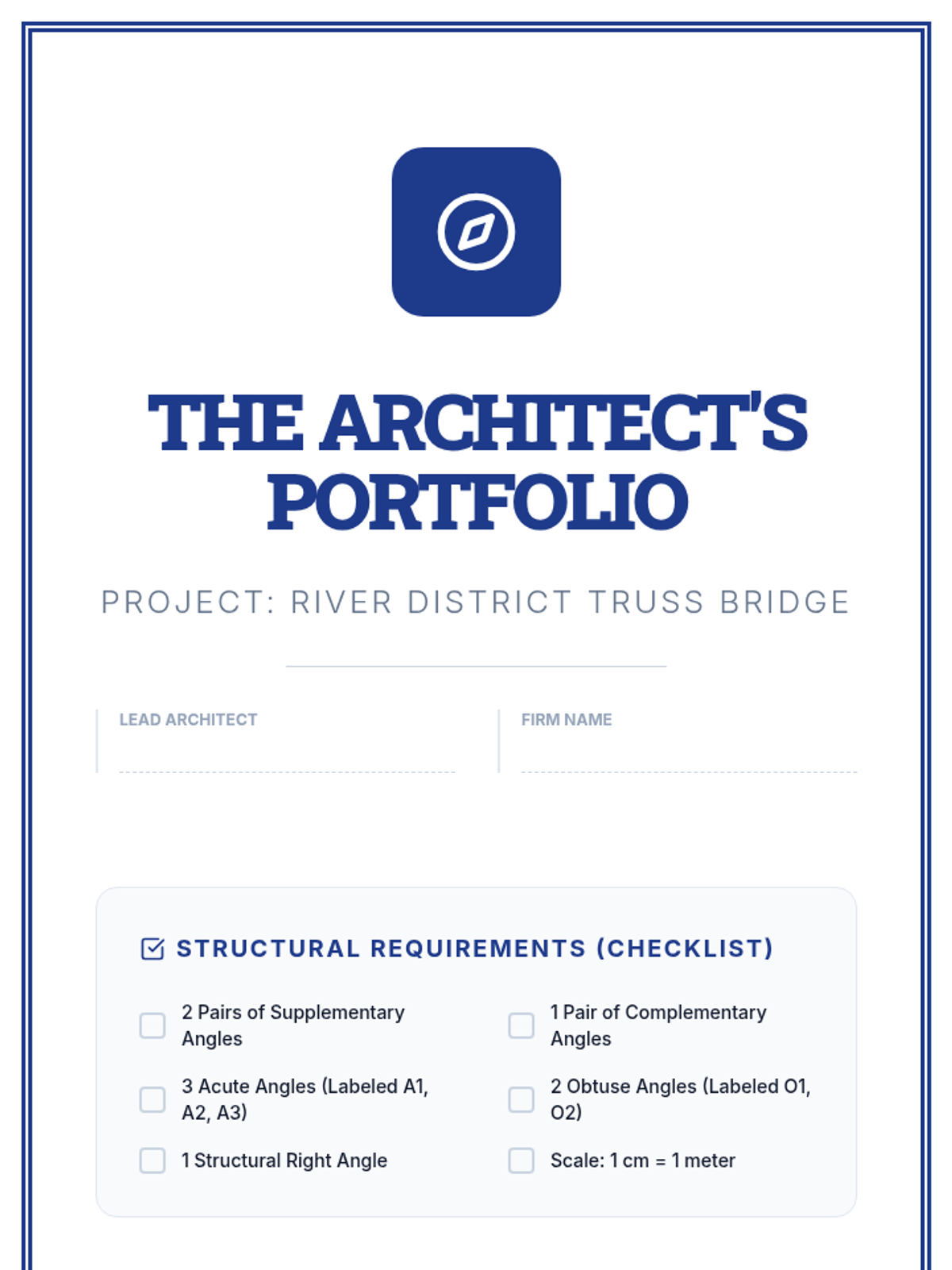

The Architect's Portfolio Document The Architect's
Portfolio
Project: River District Truss Bridge
Lead Architect
Firm Name
Structural Requirements (Checklist)
2 Pairs of Supplementary Angles
1 Pair of Complementary Angles
3 Acute Angles (Labeled A1, A2, A3)
2 Obtuse Angles (Labeled O1, O2)
1 Structural Right Angle
Scale: 1 cm = 1 meter
Drafting Field: River District Project (Sheet A-01)
Draft Blueprint Here
Project Title
RIVER DISTRICT TRUSS BRIDGE
Date
JAN 2026
Sheet
A-01
Technical Specifications
Complete the table below based on your drafted blueprint. Each measurement must be verified with a protractor.
Label Angle Type Measured Degree Relationship Pair (if applicable) A1 Acute A2 Acute A3 Acute O1 Obtuse O2 Obtuse R1 Right SUP 1 Pair A + Pair B ___° + ___° Sum: 180° SUP 2 Pair C + Pair D ___° + ___° Sum: 180° COMP 1 Pair E + Pair F ___° + ___° Sum: 90°
Architect's Note:
Explain how your choice of supplementary angles provides stability to your bridge's load path.
Building Code Slides BUILDING CODE INSPECTION
Safety Verification & Geometric Compliance
Today You are the Inspector
In the architectural world, a design is just a dream until it passes the Code Compliance Inspection.
Inspection Goal:
To ensure that every angle drafted by the lead architect exactly matches the technical specifications and safety constraints.
Equipment Check:
High-Precision Protractor
Code Violation Red Pen
Inspection Report Document
The Inspection Protocol
1. Verify Label
Locate the angle label (A1, O2, etc.) on the blueprint and match it to the tech spec table.
2. Re-Measure
Measure the angle yourself. You are checking the Lead Architect's accuracy.
3. Verify Pairs
Check the math for Supplementary (180°) and Complementary (90°) pairs.
Tolerance Level: ±2 Degrees
Greater than a 2° difference is a "Structural Violation".
Giving Feedback
Safe Observations:
"Angle A1 measures 42°, but the spec says 38°. This is a +4° deviation."
Unsafe Feedback:
"Your drawing is messy and I can't find the angles."
Inspectors are objective. Use the numbers to tell the story.

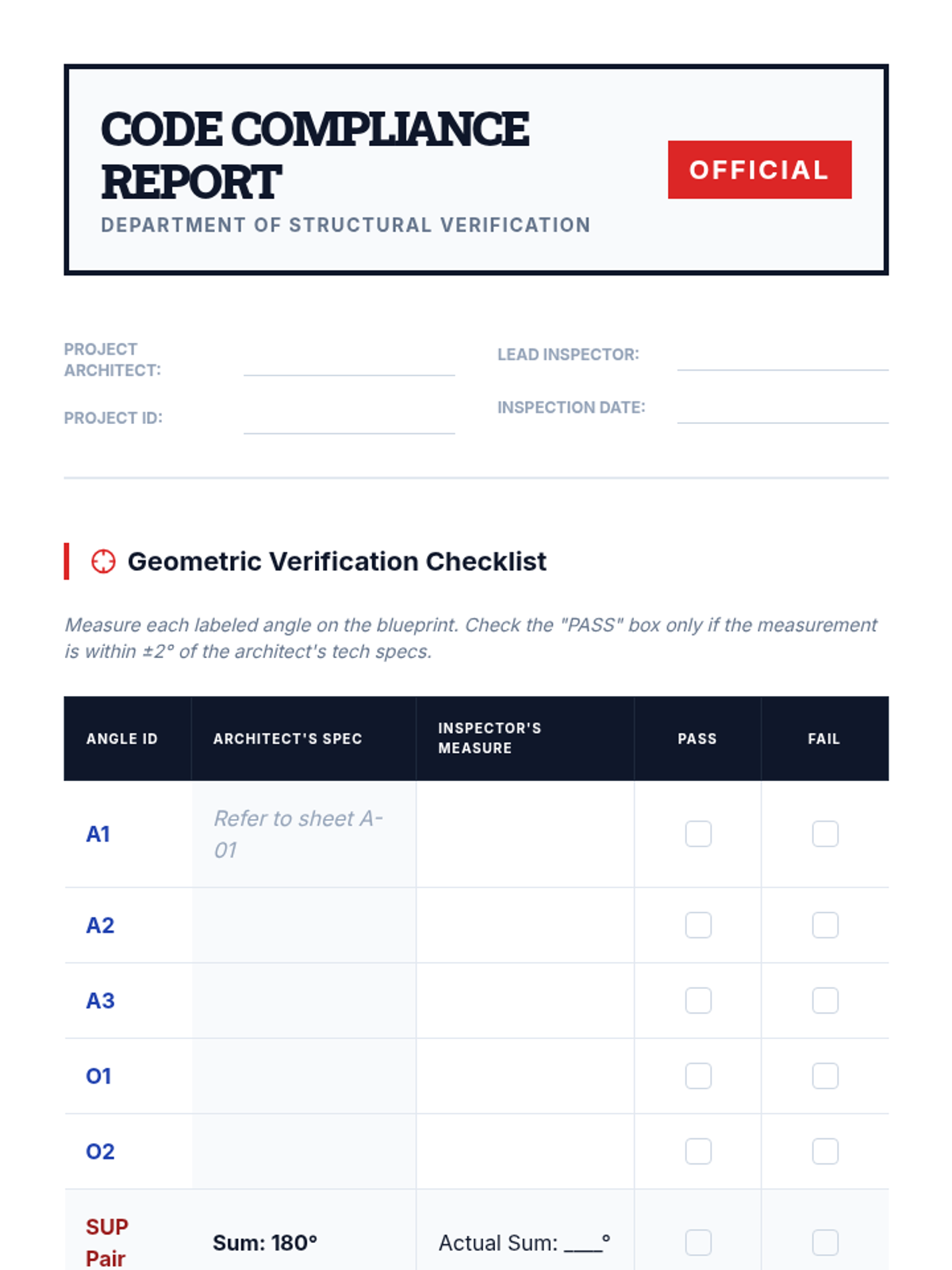

Building Inspector's Report Code Compliance Report
DEPARTMENT OF STRUCTURAL VERIFICATION
Official
Project Architect:
Project ID:
Lead Inspector:
Inspection Date:
Geometric Verification Checklist
Measure each labeled angle on the blueprint. Check the "PASS" box only if the measurement is within ±2° of the architect's tech specs.
Angle ID Architect's Spec Inspector's Measure PASS FAIL A1 Refer to sheet A-01
|
| A2 | | |
|
|
| A3 | | |
|
|
| O1 | | |
|
|
| O2 | | |
|
|
| SUP Pair | Sum: 180° | Actual Sum: ____° |
|
|
| COMP Pair | Sum: 90° | Actual Sum: ____° |
|
|
Inspector's Summary & Violations
Describe any structural violations or precision errors found:
INSPECTION STATUS:
APPROVED
REVOKE PERMIT
Inspector Signature
Official Document | Case #ARCH-2026-GRID | Applied Geometry Verification
Shark Tank Defense Slides Live Presentation
STRUCTURAL
DEFENSE
Secure the Contract. Prove the Math.
The "Shark Tank" Protocol
Your 2-Minute Pitch
Introduce your project name and design vision.
Highlight your most complex angle relationship.
Defend your "Safety Rating" (Inspection Score).
The "Sharks" Will Ask:
"How does Angle O1 contribute to the bridge's load path?"
"Why did you choose a supplementary relationship here instead of a right angle?"
"If this bridge carried 20% more weight, which angle would fail first?"
Draftsman's Vocabulary
You must use at least four of these terms in your defense:
Complementary
Supplementary
Acute / Obtuse
Load Path
Transversal
Rigidity
Precision
Constraint
Pro Tip
Use your Blueprint as a visual aid. Point to the vertices!
The Final Reflection
"Mathematics is the foundation of structural safety. A single degree of error is a bridge that never gets built."
Good Luck, Architects.

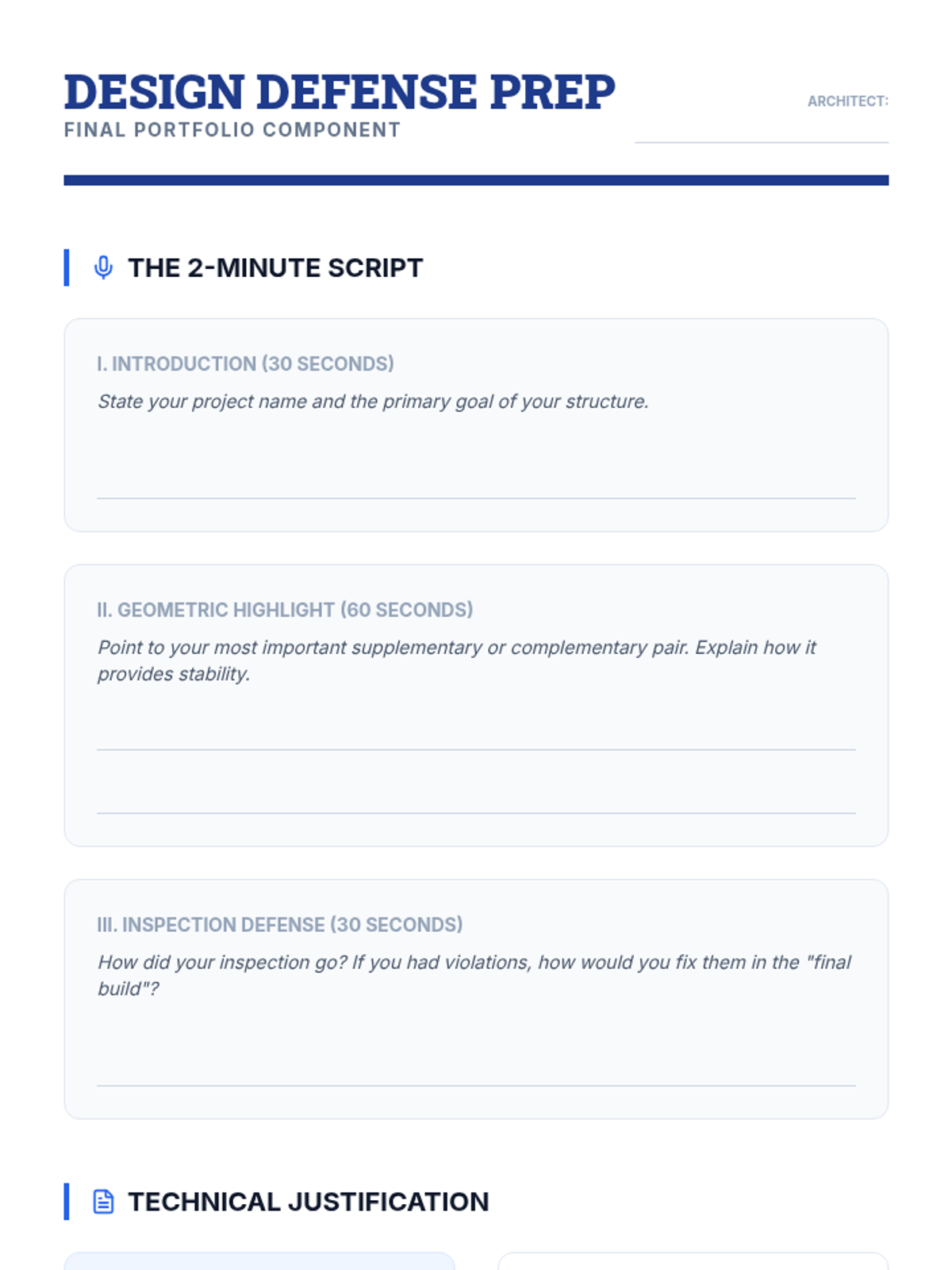

Design Defense Prep Sheet Design Defense Prep
FINAL PORTFOLIO COMPONENT
ARCHITECT:
The 2-Minute Script
I. Introduction (30 seconds)
State your project name and the primary goal of your structure.
II. Geometric Highlight (60 seconds)
Point to your most important supplementary or complementary pair. Explain how it provides stability.
III. Inspection Defense (30 seconds)
How did your inspection go? If you had violations, how would you fix them in the "final build"?
Technical Justification
Vocab Checklist
Circle the words you used in your pitch:
Supplementary
Complementary
Load Path
Transversal
Rigidity
Constraint
Reflective Prompt
What was the hardest part about maintaining precision during the drafting process?
CONTRACT STATUS
Approved for Construction
A
B
C
