Parabolic Reflectors Slides Technical Briefing L-01
Parabolic Reflectors
Harnessing the Geometric Focus: From Solar Cooking to Deep Space Communication
Precision Modeling
Energy Concentration
The Dual Nature of Focus
The Receiver
Parallel radio waves from a satellite millions of miles away strike a dish. Every single ray reflects to the exact same point.
The Projector
A tiny bulb at the focus of a flashlight sends rays hitting the reflector, which then travel out as a perfectly parallel beam of light.
[Insert Illustration: Parabolic Ray Tracing]
Geometry is the Engine
The Locus Definition
A parabola is the set of all points \(P(x, y)\) such that the distance from \(P\) to a fixed point (Focus , \(F\)) is equal to the distance from \(P\) to a fixed line (Directrix , \(L\)).
\(d(P, F) = d(P, L)\)
// Standard Form (Vertical Axis)
\(x^2 = 4py\)
Focus \((0, p)\)
Directrix \(y = -p\)
The Reflection Property
The tangent line to a parabola at point \(P\) makes equal angles with:
The line segment \(PF\) (connecting to the focus)
The line through \(P\) parallel to the axis of symmetry
The Physics Result
"Any ray originating at the focus and striking the surface is reflected outward parallel to the axis."
FERMAT'S PRINCIPLE IN ACTION
The path of least time between the focus and the directrix.
Case: Solar Concentrator
A parabolic solar cooker is 120 cm wide and 25 cm deep.
Design Requirements:
Establish a coordinate system with vertex at \((0,0)\).
Determine the equation \(x^2 = 4py\).
Find the optimal height above the vertex to place the cooking vessel (the focus).
Quick Calc Check
STEP 1: Point on Rim
\((x, y) = (60, 25)\)
STEP 2: Solve for p
\(60^2 = 4p(25)\)
\(3600 = 100p \implies p = 36\)
Focus at (0, 36)
The vessel must be 36 cm from the bottom.
Solar Cooker Blueprint Worksheet Document Ref: TS-712-A
Class: Analytic Geometry II
Solar Cooker Blueprint
Technical Modeling & Optimization Challenge
Student Name:
Date:
Objective
Translate geometric specifications into standard parabolic equations to find the optimal focus point.
System Constraints
Standard Form: \(x^2 = 4py\) (vertical axis, vertex at origin)
Focus Location: \((0, p)\)
Efficiency Requirement: Focus must lie within 10% of theoretical center.
TASK 01
The Backyard Solar Grill
A DIY solar grill uses a parabolic trough design. A cross-section shows the dish is 100 cm wide and 20 cm deep at its lowest point. You need to position a copper pipe (to carry water) at the focus of the parabola.
A. Define Coordinate System
If the vertex is at \((0,0)\), what are the coordinates of the two endpoints on the rim?
B. Calculate Focal Length (\(p\))
Show your substitution into \(x^2 = 4py\) and solve for \(p\).
FIG. 1: CROSS-SECTION SKETCH
Sketch the parabola, label the vertex,
TASK 02
Signal Optimization
A satellite receiver has a focus located exactly 1.5 meters from its vertex. Due to a manufacturing error, the depth of the dish was measured at 40 cm.
Based on the focus being at \(p = 1.5\) meters, what should the diameter of this dish be at a depth of 40 cm? (Be careful with units!)
PROOF
The Reflection Property
"Every ray parallel to the axis of symmetry reflects through the focus."
Using the parabola \(y = \frac{x^2}{4p}\), calculate the slope of the tangent line at any point \(P(x_0, y_0)\). Then, demonstrate that the angle of incidence equals the angle of reflection relative to the focus \(F(0, p)\).
Step 1: Differentiation
Find \(dy/dx\) at \(P(x_0, y_0)\).
Step 2: Geometric Relation
Explain using the diagram below why the focus property holds. (Consider the properties of isosceles triangles created by the tangent line and the focus).
End of Technical Document // Revision 1.0.4
Focus on Light Teacher Guide Focus on Light
Teacher Facilitation Guide: Lesson 1 (Parabolas)
Pacing: 90 Mins
Level: Undergraduate
Essential Skills
Modeling 3D objects with 2D cross-sections
Applying the distance formula locus definition
Proving reflection properties via Calculus
Mathematical Bridge
This lesson moves students from the high-school "shape" understanding of parabolas to the analytic "locus" definition. The key transition is showing how \(d(P,F) = d(P,L)\) leads directly to the standard form \(x^2 = 4py\). For undergraduate students, emphasize that p is the single most important parameter in engineering design.
Key Discussion Points
01
The Coordinate Advantage
Ask: "Does it matter where we place the origin?" Students should realize that while the parabola exists independently of coordinates, placing the vertex at \((0,0)\) simplifies the equation to \(x^2=4py\), while an arbitrary vertex \((h,k)\) yields \((x-h)^2=4p(y-k)\).
02
The 3D Transition
Explain that most real-world objects are paraboloids (surfaces of revolution). Since the object is symmetric around the axis, analyzing a 2D cross-section is sufficient for finding the focal point.
Task 01 & 02 Walkthrough
Backyard Grill (p = 31.25 cm)
Students often mistake the width (100) for the x-coordinate. It is \(x = 50\).
Common Error: Units
In Task 02, \(p = 1.5m\) but depth = \(0.4m\).
The Reflection Property Proof
// Derivative Approach
1. Let \(y = x^2 / 4p\). Then \(y' = x / 2p\).
2. At \(P(x_0, y_0)\), the slope of the tangent is \(m = x_0 / 2p\).
3. Let \(\alpha\) be the angle between the tangent and the line \(PF\) (to focus).
4. Use the angle-between-lines formula: \(\tan \phi = |(m_1 - m_2) / (1 + m_1 m_2)|\).
5. Compare to the angle between the tangent and the vertical axis.
Note: In the student worksheet, they are asked to conceptualize this using isosceles triangles formed by the sub-tangent, which is a classic geometric shortcut.
Elliptical Echoes Slides Technical Briefing L-02
Elliptical Echoes
The Geometry of Dual Focus: Acoustic Whispering Galleries and Precision Medicine
The Reflection Property
In a parabola, rays from the focus reflect outward.
In an ellipse, rays from one focus reflect inward to the other focus.
The Law of Reflection
"The tangent line at any point on the ellipse bisects the external angle formed by the lines connecting the point to the two foci."
[Illustration: Elliptical Focus-to-Focus Path]
Focus 1 → Surface → Focus 2
Standard Form Engineering
\[\frac{x^2}{a^2} + \frac{y^2}{b^2} = 1\]
Semi-Major Axis a
Semi-Minor Axis b
The Focal Identity
The distance from the center to each focus (\(c\)) is determined by the "Pythagorean-like" subtraction:
\(c^2 = a^2 - b^2\)
Why subtraction? Because the distance from a focus to the "top" of the minor axis is exactly \(a\).
Medical Lithotripsy
How do we break kidney stones without surgery?
A high-energy shockwave is generated at Focus 1 .
The waves hit an elliptical reflector.
They converge precisely at Focus 2 , where the stone is positioned.
Design Constraint
If the lithotripter tub is 40 cm long (\(2a\)) and 30 cm wide (\(2b\)), where should the patient be placed?
\(a = 20, b = 15\)
\(c^2 = 20^2 - 15^2 = 400 - 225 = 175\)
\(c \approx 13.23 \text{ cm}\)
Total distance from shock source: \(2c \approx 26.46 \text{ cm}\)
Whispering Galleries
"In the US Capitol Statuary Hall, you can whisper at one spot and be heard perfectly 50 feet away, even in a crowded room."
Speaker
Focus 1
Listener
Focus 2
The sum of distances from any point on the ellipse to the two foci is constant (\(2a\)).

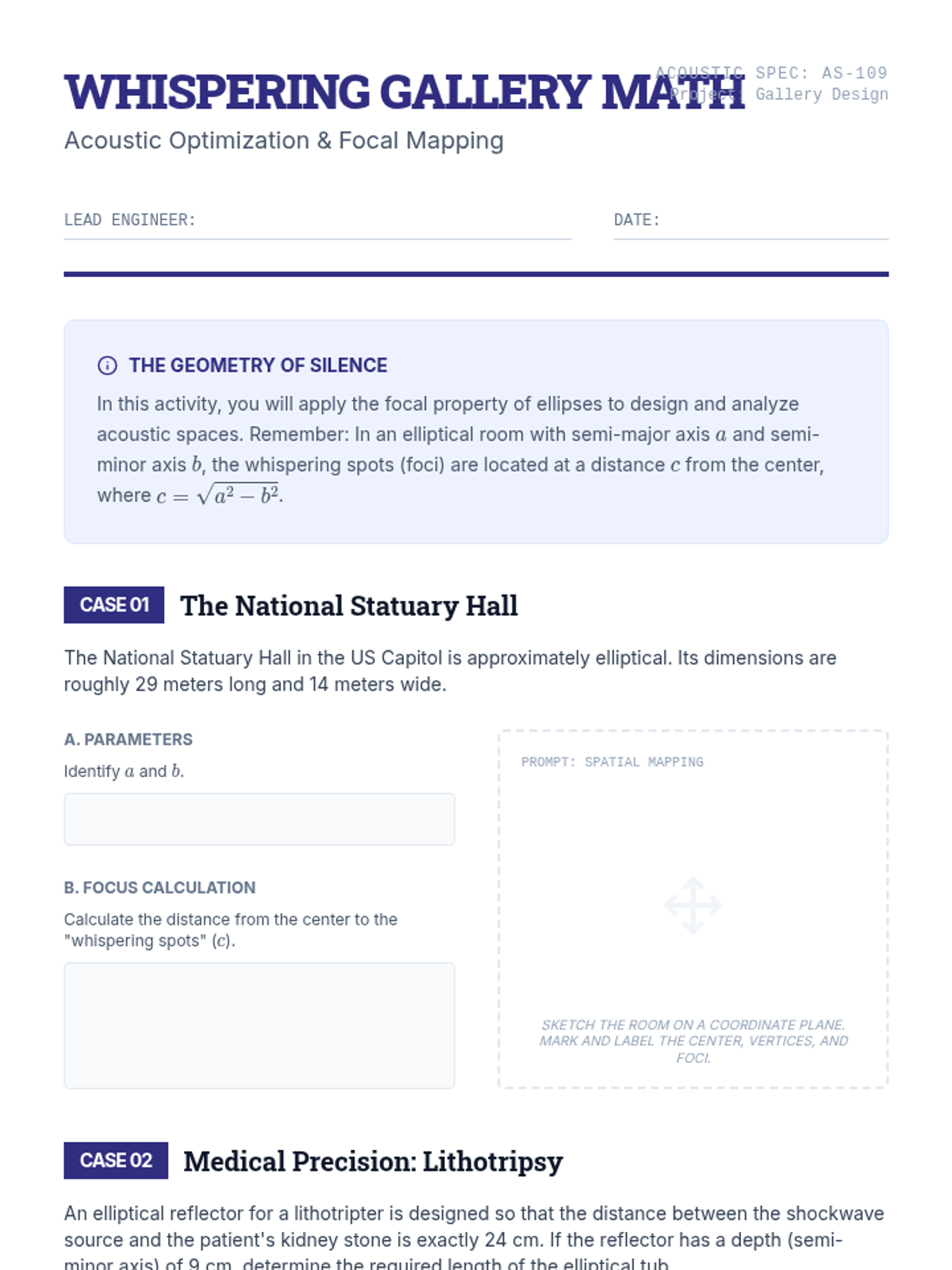

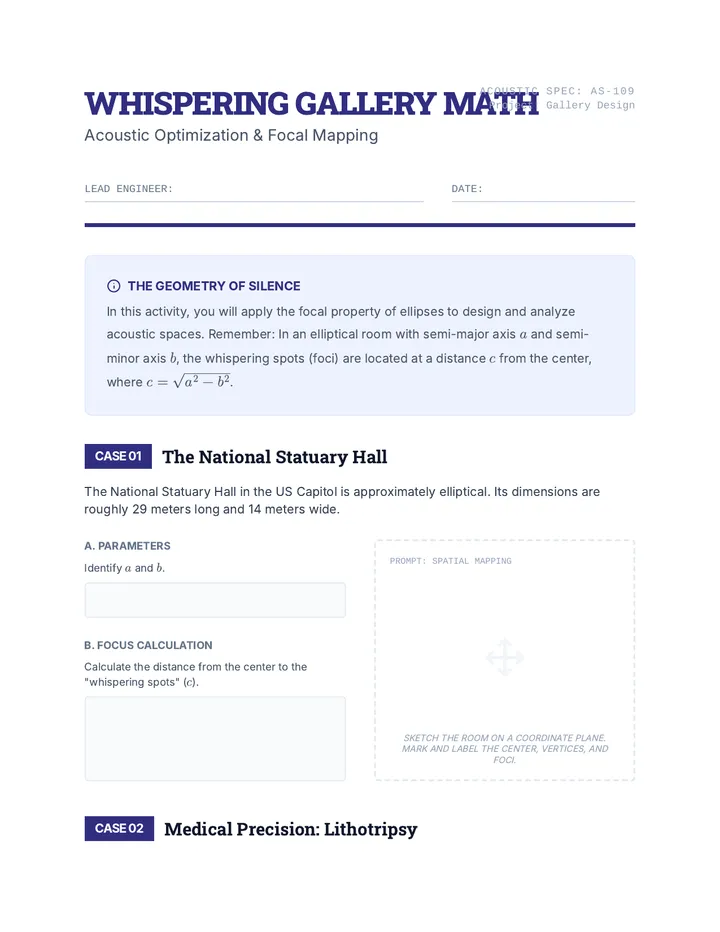

Whispering Gallery Math Worksheet Acoustic Spec: AS-109
Project: Gallery Design
Whispering Gallery Math
Acoustic Optimization & Focal Mapping
Lead Engineer:
Date:
The Geometry of Silence
In this activity, you will apply the focal property of ellipses to design and analyze acoustic spaces. Remember: In an elliptical room with semi-major axis \(a\) and semi-minor axis \(b\), the whispering spots (foci) are located at a distance \(c\) from the center, where \(c = \sqrt{a^2 - b^2}\).
CASE 01
The National Statuary Hall
The National Statuary Hall in the US Capitol is approximately elliptical. Its dimensions are roughly 29 meters long and 14 meters wide.
A. Parameters
Identify \(a\) and \(b\).
B. Focus Calculation
Calculate the distance from the center to the "whispering spots" (\(c\)).
PROMPT: SPATIAL MAPPING
Sketch the room on a coordinate plane.
CASE 02
Medical Precision: Lithotripsy
An elliptical reflector for a lithotripter is designed so that the distance between the shockwave source and the patient's kidney stone is exactly 24 cm. If the reflector has a depth (semi-minor axis) of 9 cm, determine the required length of the elliptical tub.
HINT:
The distance between the source and the stone is \(2c\).
GOAL:
Find \(2a\) (total length).
Synthesis
The Arrival Time Paradox
Why is the ellipse the only shape that works for a whispering gallery? Use the geometric definition of an ellipse (the set of all points where the sum of distances to two fixed points is constant) to explain why sound waves originating at one focus arrive at the other focus simultaneously (in phase).
Undergraduate Note: Consider the speed of sound \(v\) as constant. How does \(d_1 + d_2 = 2a\) relate to the time \(t = d/v\)?
END OF SPECIFICATION // CONFIDENTIAL DESIGN DOCUMENT
Lithotripsy Case Study Guide Lithotripsy Case Study
Teacher Reference Document: Medical Applications of Conics
REF: MED-GEO-02
Physics & Medicine
Clinical Application
Extracorporeal Shock Wave Lithotripsy (ESWL) is a non-invasive procedure that uses acoustic shock waves to fragment renal calculi (kidney stones). The device, called a lithotripter, relies entirely on the first reflection property of the ellipse to focus energy.
// THE PHYSICS OF FOCUS
1. Shockwave generator at Focus 1 (F1).
2. Reflector tub is a hemi-ellipsoid.
3. Patient is positioned so the stone is at Focus 2 (F2).
4. All rays \(d_1\) from F1 to the shell reflect along path \(d_2\) to F2.
5. Result: Energy density at F2 is high enough to pulverize calcium, while density at the surface and elsewhere in the body is low.
Teaching Insight
"Ask students why a sphere wouldn't work. In a sphere, there is only one center. Energy would simply bounce back to the source. The ellipse allows us to separate the 'harmful' energy source from the 'vulnerable' treatment target."
Worksheet Solution Guide
Statuary Hall Calculation
Given: Total Length (\(2a\)) = 29m \(\implies a = 14.5\)
Given: Total Width (\(2b\)) = 14m \(\implies b = 7\)
Calculation: \(c^2 = a^2 - b^2\)
\(c^2 = 14.5^2 - 7^2 = 210.25 - 49 = 161.25\)
Result: \(c \approx 12.70 \text{ meters}\)
The whispering spots are 12.7m from the center (25.4m apart).
Lithotripsy Design
Given: Distance F1 to F2 (\(2c\)) = 24 cm \(\implies c = 12\)
Given: Semi-minor axis (\(b\)) = 9 cm
Calculation: \(a^2 = b^2 + c^2\)
\(a^2 = 9^2 + 12^2 = 81 + 144 = 225\)
\(a = 15\)
Result: Total tub length (\(2a\)) = 30 cm
Total length required: 30 cm.
The "Phase" Explanation
In the synthesis question, students should conclude that because \(d_1 + d_2 = 2a\) (constant), the total distance traveled by every wave is identical. Since \(Time = Distance / Speed\), and speed is constant in a uniform medium, all waves arrive at the second focus at the exact same time. This constructive interference is what makes the "whisper" audible despite the 50-foot distance.
Hyperbolic Navigation Slides Technical Briefing L-03
Navigating Hyperbolas
LORAN Navigation: Triangulating Position with Constant Differences
The Constant Difference
While an ellipse is defined by the constant sum of distances, a hyperbola is defined by the constant difference.
\(|d_1 - d_2| = 2a\)
The "two-way" focus definition.
Standard Form
\[\frac{x^2}{a^2} - \frac{y^2}{b^2} = 1\]
Vertices (\(\pm a, 0\))
Foci (\(\pm c, 0\))
\(c^2 = a^2 + b^2\)
LORAN: Long Range Navigation
1
Transmission
Two stations (A and B) transmit synchronized radio signals.
2
Time Difference
A ship receives signals at different times (\(\Delta t\)).
3
Locus of Position
The difference in distance is \(2a = c_{light} \cdot \Delta t\). The ship is on a hyperbola.
"One hyperbola gives a line of position. Two hyperbolas give a coordinate."
Triangulation Logistics
HYPERBOLIC GRID INTERSECTION
The Math Problem
Station A: \((-100, 0)\)
Speed of Radio Signal \(\approx 3 \times 10^8\) m/s
Difference in distance (\(2a\)):
\(120,000\) meters
Equation: \(\frac{x^2}{60,000^2} - \frac{y^2}{b^2} = 1\)
Optical Hyperbolas
The hyperbola has a unique "virtual focus" property. A light ray aimed at one focus will reflect toward the other focus.
Application Preview

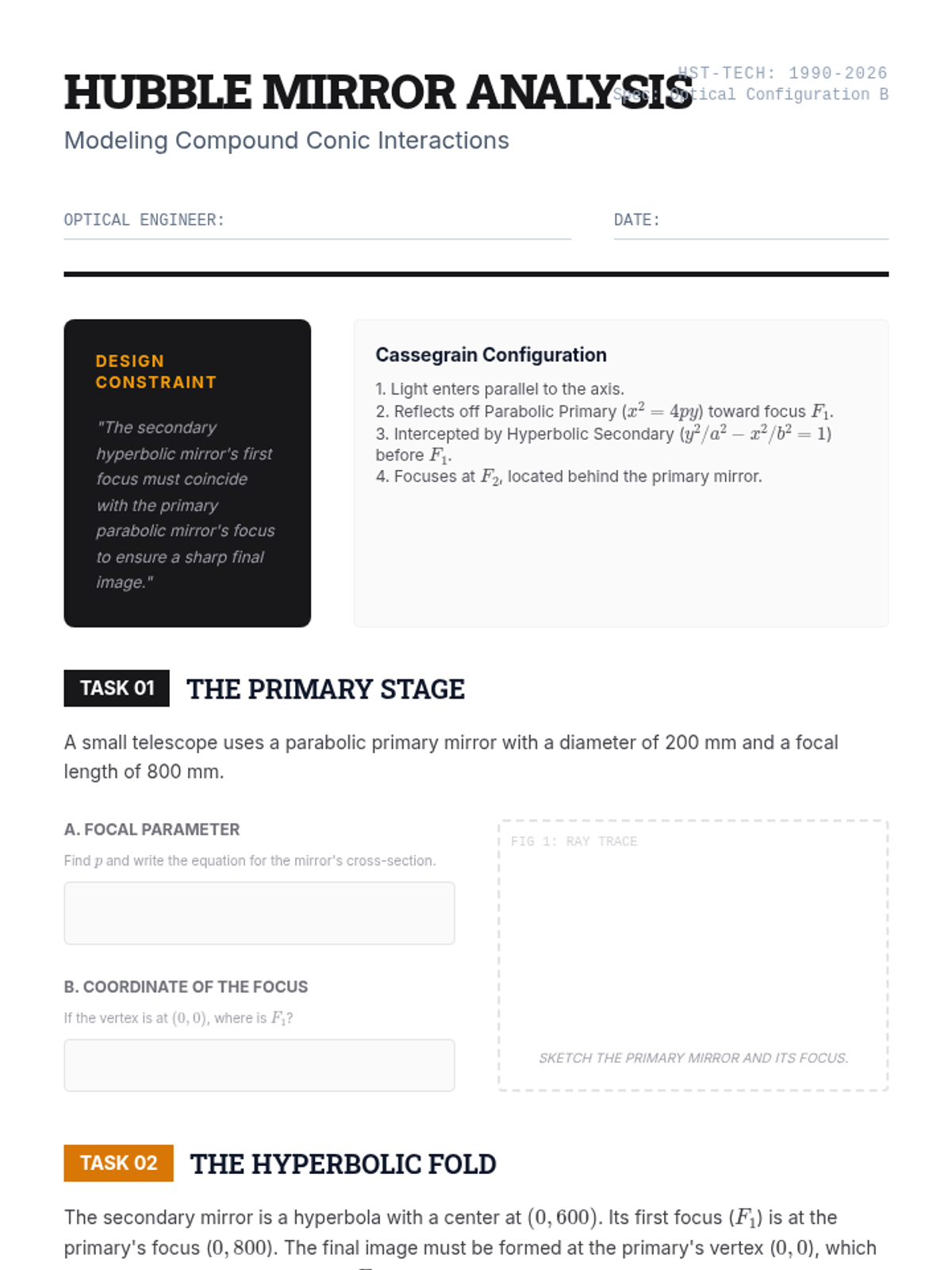

"This is the secret to the Cassegrain telescope. It allows us to fold the light path, making powerful telescopes compact."
Reflecting TOWARD the focus
Lost at Sea Simulation Worksheet NAV-SIM: 404-LOST
Protocol: Non-GPS Position Recovery
Lost at Sea Simulation
Triangulation via Hyperbolic Locus
Navigator:
Vessel ID:
Scenario Briefing
Your GPS is offline. You have picked up signals from two pairs of LORAN stations. Your task is to find the two hyperbolic lines of position and determine your exact coordinates by finding their intersection.
Signal Velocity: 300,000 km/s
Map Grid: 1 unit = 100 km
SIGNAL PAIR ALPHA
Master & Slave A
Station \(M_1\) is at \((-5, 0)\) and Station \(S_1\) is at \((5, 0)\). The signal from \(S_1\) arrives \(0.002\) seconds before the signal from \(M_1\).
A. Calculate Distance Difference (\(2a\))
Remember: \(\Delta d = v \cdot \Delta t\). Use km.
B. Determine Hyperbola Parameters
Find \(a, c,\) and \(b^2\).
C. The Equation
GRID-ALPHA (SCALE 1:100)
Sketch the hyperbolic branch on which the ship must lie.
SIGNAL PAIR BETA
Master & Slave B
A second pair of stations is aligned vertically. \(M_2\) is at \((0, -10)\) and \(S_2\) is at \((0, 10)\). The time difference is measured as \(0.004\) seconds, with the signal from \(M_2\) arriving first.
CALCULATE EQUATION BETA:
FIND INTERSECTION (SHIP POSITION):
Analysis Question:
Why does a single time difference give you two possible branches of a hyperbola? How do you know which branch the ship is actually on?
Reflective Log
As navigation technology moved to GPS (satellites), why did we move from 2D hyperbolas to 3D hyperboloids of revolution?

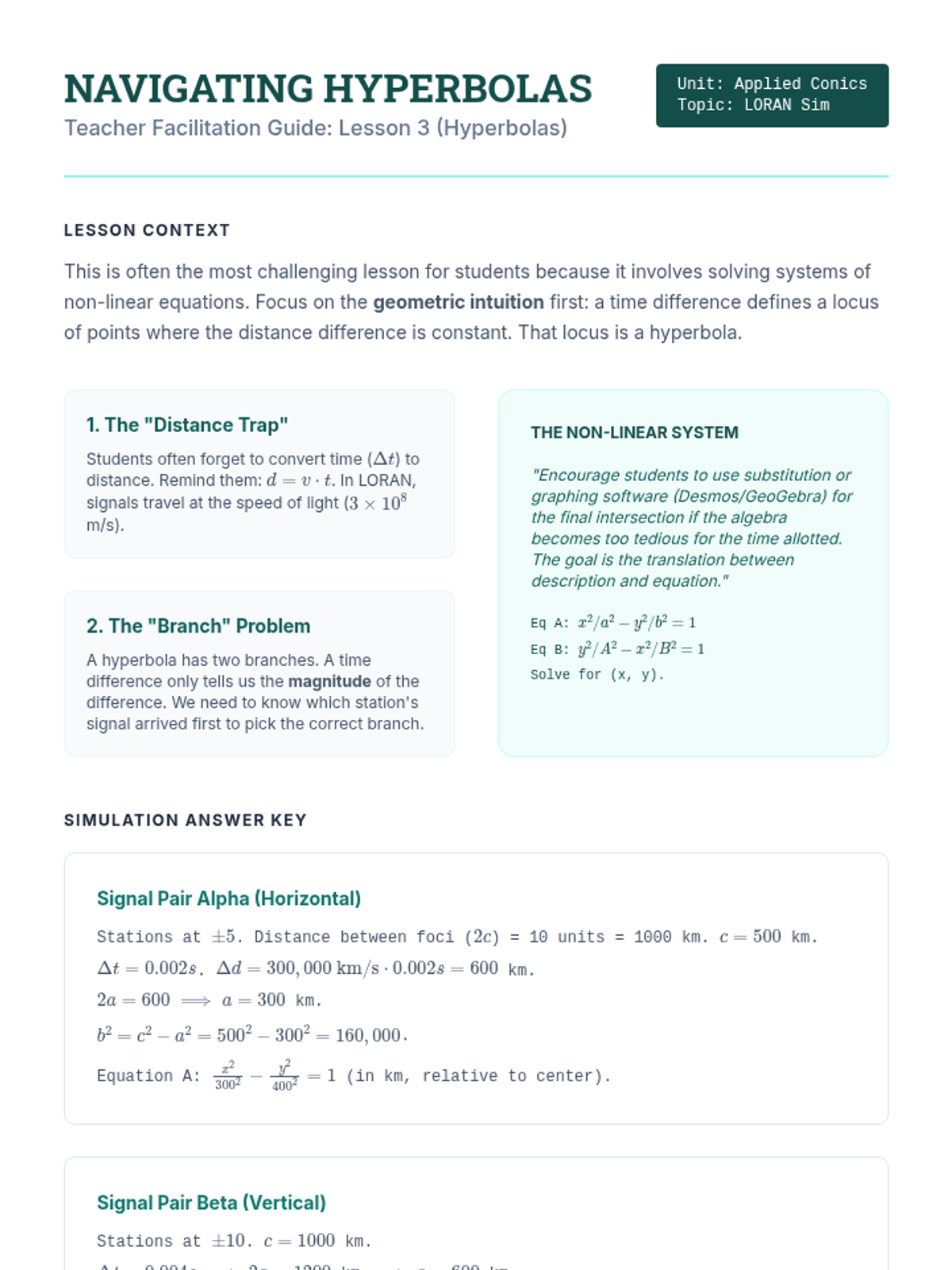

Navigating Hyperbolas Teacher Guide Navigating Hyperbolas
Teacher Facilitation Guide: Lesson 3 (Hyperbolas)
Unit: Applied Conics
Topic: LORAN Sim
Lesson Context
This is often the most challenging lesson for students because it involves solving systems of non-linear equations. Focus on the geometric intuition first: a time difference defines a locus of points where the distance difference is constant. That locus is a hyperbola.
1. The "Distance Trap"
Students often forget to convert time (\(\Delta t\)) to distance. Remind them: \(d = v \cdot t\). In LORAN, signals travel at the speed of light (\(3 \times 10^8\) m/s).
2. The "Branch" Problem
A hyperbola has two branches. A time difference only tells us the magnitude of the difference. We need to know which station's signal arrived first to pick the correct branch.
The Non-Linear System
"Encourage students to use substitution or graphing software (Desmos/GeoGebra) for the final intersection if the algebra becomes too tedious for the time allotted. The goal is the translation between description and equation."
Eq A: \(x^2/a^2 - y^2/b^2 = 1\)
Eq B: \(y^2/A^2 - x^2/B^2 = 1\)
Solve for (x, y).
Simulation Answer Key
Signal Pair Alpha (Horizontal)
Stations at \(\pm 5\). Distance between foci (\(2c\)) = 10 units = 1000 km. \(c = 500\) km.
\(\Delta t = 0.002s\). \(\Delta d = 300,000 \text{ km/s} \cdot 0.002s = 600\) km.
\(2a = 600 \implies a = 300\) km.
\(b^2 = c^2 - a^2 = 500^2 - 300^2 = 160,000\).
Equation A: \(\frac{x^2}{300^2} - \frac{y^2}{400^2} = 1\) (in km, relative to center).
Signal Pair Beta (Vertical)
Stations at \(\pm 10\). \(c = 1000\) km.
\(\Delta t = 0.004s \implies 2a = 1200\) km \(\implies a = 600\) km.
\(b^2 = 1000^2 - 600^2 = 640,000\).
Equation B: \(\frac{y^2}{600^2} - \frac{x^2}{800^2} = 1\).
Final Positioning
Intersection of \(\frac{x^2}{90,000} - \frac{y^2}{160,000} = 1\) and \(\frac{y^2}{360,000} - \frac{x^2}{640,000} = 1\).
Cosmic Conics Slides Technical Briefing L-04
Cosmic Conics
Compound Optical Systems: The Parabola-Hyperbola Synergy in Cassegrain Telescopes
The Geometry of Space
Refracting telescopes (lenses) have a limit: the glass gets too heavy and sags under its own weight.
The Solution: Reflectors
"Newtonian telescopes used a single parabola. But they were extremely long and unwieldy. We needed a way to 'fold' the light."
Folding Constant
Cassegrain Optics
By combining a large concave parabola with a small convex hyperbola, we can place the focal point behind the primary mirror.
Component 1: The Parabola
PRIMARY STAGE
The primary mirror is a large paraboloid . Its job is to collect light from infinity and aim it toward its focus (\(F_p\)).
Hubble Primary
Diameter: 2.4 meters
Focal Length: 5.52 meters
[Illustration: Parabolic Primary focusing toward a distant point]
Component 2: The Hyperbola
Before the light reaches the primary focus, it hits a convex hyperbolic secondary mirror.
The Geometric Trick
"The secondary mirror is positioned so its virtual focus is the same point as the primary mirror's focus."
The light reflects toward the hyperbola's second focus, located behind a hole in the primary mirror.
MIRROR DYNAMICS
Primary Focus
Shared with Hyperbola Focus 1
Final Image Point
Hyperbola Focus 2
Why Compound?
Compactness
Folded light paths allow a 10m effective focal length to fit in a 3m tube.
Aberration
Conic combinations correct spherical and chromatic aberration found in simple lenses.
Access
The eyepiece (or camera) is located at the back, making it easier to attach heavy scientific instruments.
Hubble effective focal length: 57.6 meters // Physical length: 13.2 meters
Hubble Mirror Analysis Worksheet HST-TECH: 1990-2026
Spec: Optical Configuration B
Hubble Mirror Analysis
Modeling Compound Conic Interactions
Optical Engineer:
Date:
Design Constraint
"The secondary hyperbolic mirror's first focus must coincide with the primary parabolic mirror's focus to ensure a sharp final image."
Cassegrain Configuration
1. Light enters parallel to the axis.
TASK 01
The Primary Stage
A small telescope uses a parabolic primary mirror with a diameter of 200 mm and a focal length of 800 mm.
A. Focal Parameter
Find \(p\) and write the equation for the mirror's cross-section.
B. Coordinate of the Focus
If the vertex is at \((0,0)\), where is \(F_1\)?
FIG 1: RAY TRACE
Sketch the primary mirror and its focus.
TASK 02
The Hyperbolic Fold
The secondary mirror is a hyperbola with a center at \((0, 600)\). Its first focus (\(F_1\)) is at the primary's focus (\(0, 800\)). The final image must be formed at the primary's vertex (\(0,0\)), which is the hyperbola's second focus (\(F_2\)).
Find \(c\)
Distance from hyperbola center to foci.
Find \(a\) and \(b^2\)
The vertices of this hyperbola are located 150mm from the center.
Final Secondary Mirror Equation
SYSTEM INTEGRATION
Optical Proof
Explain, using the reflection properties of both the parabola and the hyperbola, why an incoming ray from a star (effectively at infinity) will end up at the hyperbola's second focus \(F_2\).
End of Engineering Specification // System Revision: 4.0.1 (HUBBLE-COMPATIBLE)

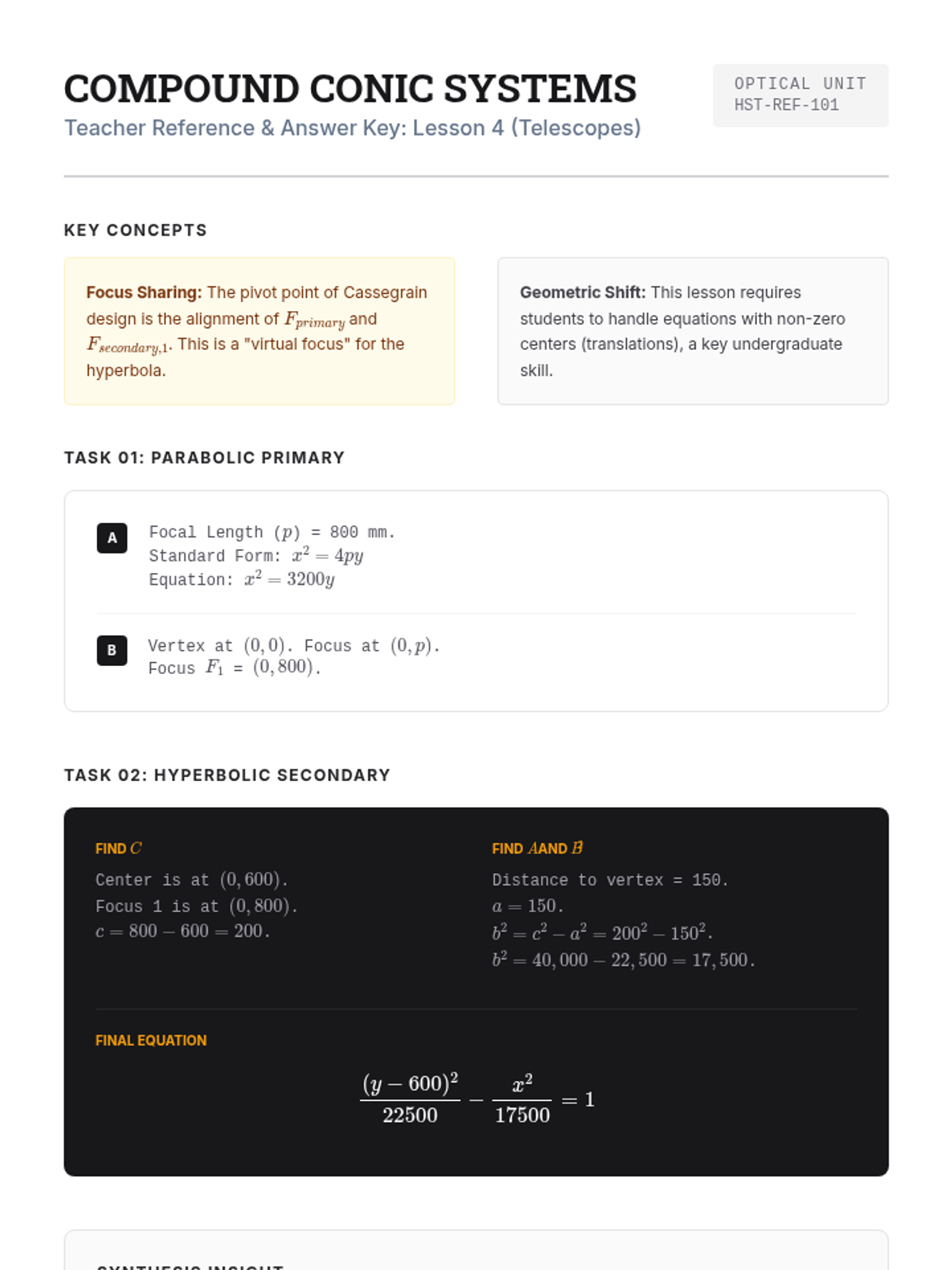

Compound Conic Answer Key Compound Conic Systems
Teacher Reference & Answer Key: Lesson 4 (Telescopes)
Optical Unit
HST-REF-101
Key Concepts
Focus Sharing: The pivot point of Cassegrain design is the alignment of \(F_{primary}\) and \(F_{secondary,1}\). This is a "virtual focus" for the hyperbola.
Geometric Shift: This lesson requires students to handle equations with non-zero centers (translations), a key undergraduate skill.
Task 01: Parabolic Primary
A
Focal Length (\(p\)) = 800 mm.
Standard Form: \(x^2 = 4py\)
Equation: \(x^2 = 3200y\)
B
Vertex at \((0,0)\). Focus at \((0, p)\).
Focus \(F_1\) = \((0, 800)\).
Task 02: Hyperbolic Secondary
Find \(c\)
Center is at \((0, 600)\).
Find \(a\) and \(b^2\)
Distance to vertex = 150.
Final Equation
\[\frac{(y - 600)^2}{22500} - \frac{x^2}{17500} = 1\]
Synthesis Insight
A ray from a star (parallel to axis) hits the parabola and reflects toward its focus \(F_1\). Since \(F_1\) is also the focus of the hyperbolic secondary, any ray headed toward it reflects toward the other focus of the hyperbola (\(F_2\)). Because \(F_2\) is at the primary's vertex, the light passes through the hole to the eyepiece. This is a perfect geometric pipeline.
Conic Innovation Slides The Finale
Conic Innovation
Design Challenge: Engineering the Future with Geometric Precision
Project Brief
REF: CHALLENGE-05
Your mission is to design a device, architectural structure, or scientific instrument that utilizes a specific geometric property of a conic section.
The "Big Three" Properties
Parallel-to-Focus (Parabola)
Focus-to-Focus Internal (Ellipse)
Focus-to-Focus Virtual (Hyperbola)
Deliverables
A cross-sectional blueprint with dimensions.
The formal algebraic equation (standard or translated).
A mathematical proof or derivation of the focal parameter.
Inspiration: Parabolic Applications
Solar Thermal Plant
Large-scale parabolic troughs concentrating heat into liquid salt for carbon-free power.
Radio Telescope
Capturing faint hydrogen line signals from the early universe with a massive mesh dish.
Parabolic Mic
Capturing sideline conversations or bird calls by focusing audio waves on a transducer.
Inspiration: Curved Realities
Elliptic Architecture
Design a performance hall where an actor can be heard in the balcony without amplification by exploiting focal points.
c² = a² - b² Optimization
Hyperbolic Flight
Model the gravity assist maneuver of a probe (like Voyager) performing a "flyby" along a hyperbolic trajectory.
Eccentricity (e > 1) Control
Proposal Phase
Your First Decision:
What problem are you solving? Start with the physical need (Concentrating light? Transmitting sound? Navigation?), then select the geometric tool that fits.
Analyze
Equation
Innovate
"The simplest geometry often solves the most complex engineering problems."

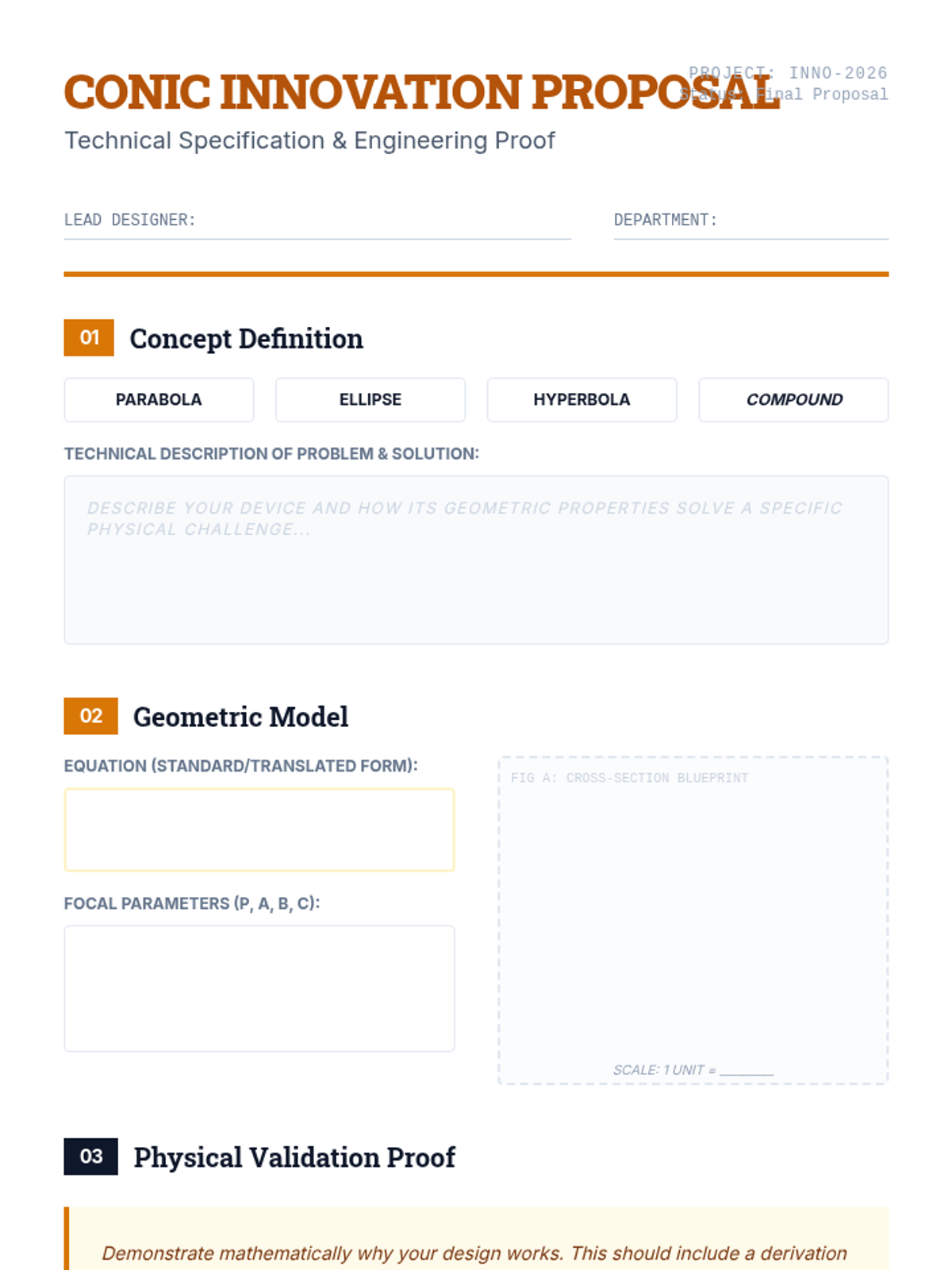

Conic Innovation Proposal Worksheet Project: INNO-2026
Status: Final Proposal
Conic Innovation Proposal
Technical Specification & Engineering Proof
Lead Designer:
Department:
01
Concept Definition
PARABOLA
ELLIPSE
HYPERBOLA
COMPOUND
Technical Description of Problem & Solution:
Describe your device and how its geometric properties solve a specific physical challenge...
02
Geometric Model
Equation (Standard/Translated Form):
Focal Parameters (p, a, b, c):
FIG A: CROSS-SECTION BLUEPRINT
Scale: 1 unit = _________
03
Physical Validation Proof
Demonstrate mathematically why your design works. This should include a derivation or application of the reflection property (e.g., using tangent lines or distance sums) for your specific conic.
SPECIFICATION CERTIFIED BY:
End of Formal Proposal Document

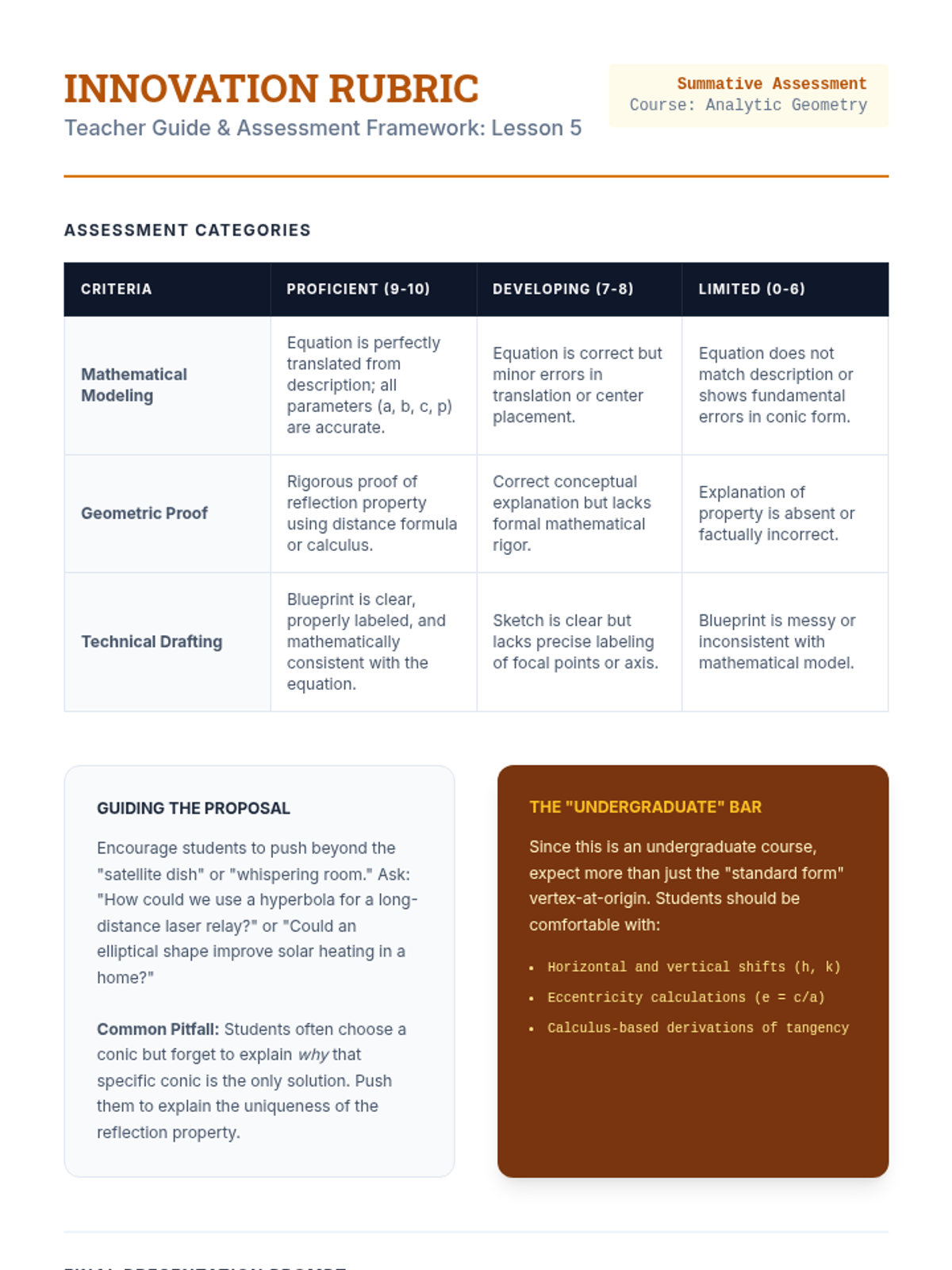

Innovation Rubric Guide Innovation Rubric
Teacher Guide & Assessment Framework: Lesson 5
Summative Assessment
Course: Analytic Geometry
Assessment Categories
Criteria Proficient (9-10) Developing (7-8) Limited (0-6) Mathematical Modeling Equation is perfectly translated from description; all parameters (a, b, c, p) are accurate. Equation is correct but minor errors in translation or center placement. Equation does not match description or shows fundamental errors in conic form. Geometric Proof Rigorous proof of reflection property using distance formula or calculus. Correct conceptual explanation but lacks formal mathematical rigor. Explanation of property is absent or factually incorrect. Technical Drafting Blueprint is clear, properly labeled, and mathematically consistent with the equation. Sketch is clear but lacks precise labeling of focal points or axis. Blueprint is messy or inconsistent with mathematical model.
Guiding the Proposal
Encourage students to push beyond the "satellite dish" or "whispering room." Ask: "How could we use a hyperbola for a long-distance laser relay?" or "Could an elliptical shape improve solar heating in a home?"
Common Pitfall: Students often choose a conic but forget to explain why that specific conic is the only solution. Push them to explain the uniqueness of the reflection property.
The "Undergraduate" Bar
Since this is an undergraduate course, expect more than just the "standard form" vertex-at-origin. Students should be comfortable with:
Horizontal and vertical shifts (h, k)
Eccentricity calculations (e = c/a)
Calculus-based derivations of tangency
Final Presentation Prompt
"If you were presenting this to a venture capital firm or a space agency, how would you prove that your choice of geometry provides the maximum efficiency for energy or signal transmission?"
