A two-part 50-minute geometry unit exploring angle classifications and angle pair relationships through rich geometric diagrams, guided algebraic problem-solving, and visual practice.
Two edges meet perpendicular to form the corner of a blueprint table.
Type: ________________
✂️ Open Pair of Scissors
Blades are partially open, measuring around \(35^\circ\).
Type: ________________
🏠 Wide Roof Truss
The peak angle inside a low-pitch warehouse roof measures \(140^\circ\).
Type: ________________
Reasoning Challenge
Architect Marcus's Measurement Debate
Marcus states: "Because \(91^\circ\) is only one single degree away from \(90^\circ\), it still counts as a right angle." Do you agree or disagree with Marcus? Explain why using the mathematical definitions of angle types.
Angle Architects Unit • Lesson 1 Student Worksheet Page 2 of 2
Angle \(A\) and Angle \(B\) form a right angle. Angle \(A = 62^\circ\).
Step 1: Set up the equation
\(62^\circ + x = 90^\circ\)
Step 2: Subtract from \(90^\circ\)
\(x = 90^\circ - 62^\circ = 28^\circ\)
Case 2: Supplementary Sum = \(180^\circ\)
Angle \(P\) and Angle \(Q\) lie on a straight line. Angle \(P = 114^\circ\).
Step 1: Set up the equation
\(114^\circ + y = 180^\circ\)
Step 2: Subtract from \(180^\circ\)
\(y = 180^\circ - 114^\circ = 66^\circ\)
Lesson 2: Angle Pairs
Quick Practice
Find the Unknown Angle
You & Your Partner
Visual 1: Corner Check \(48^\circ\) \(x = ?\)
\(x = 90^\circ - 48^\circ = 42^\circ\)
Visual 2: Straight Line Check \(132^\circ\) \(y = ?\)
\(y = 180^\circ - 132^\circ = 48^\circ\)
Lesson 2: Angle Pairs

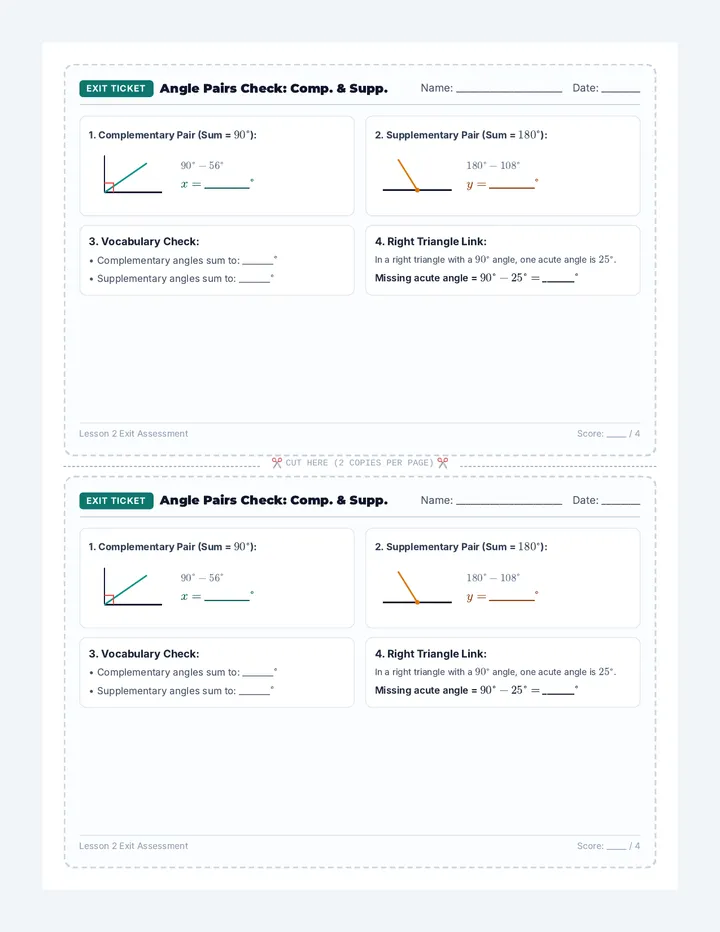

Exit Ticket
Wrap-Up & Check for Understanding
Final 8 Minutes
Your Exit Tasks:
1 Identify whether the angle pair sums to \(90^\circ\) or \(180^\circ\).
2 Show subtraction to solve for the missing angle.
3 Connect back to triangle angle knowledge!
Unit Mastered!
Certified Angle Architects
You now know angle classifications (acute, right, obtuse) AND pair relationships (complementary & supplementary)!
Hand your exit slip to your teacher before dismissed Awesome geometry work! 📐✨
Solution: \(x =\) ____________\(^\circ\)
Problem B Straight line = \(180^\circ\)
\(a\) \(67^\circ\)
Type: [ ] Comp. [ ] Supp.
Equation: _____________________
Solution: \(a =\) ____________\(^\circ\)
Problem C Corner = \(90^\circ\)
\(58^\circ\) \(w\)
Type: [ ] Comp. [ ] Supp.
Equation: _____________________
Solution: \(w =\) ____________\(^\circ\)
Problem D Straight line = \(180^\circ\)
\(144^\circ\) \(k\)
Type: [ ] Comp. [ ] Supp.
Equation: _____________________
Solution: \(k =\) ____________\(^\circ\)
Word Problems & Calculations
1. Blueprint Window Frame
Two adjacent angles in a window support form a complementary pair (\(90^\circ\)). If one angle is \(41.5^\circ\), what is the measure of the second angle?
2. Steel Beam Joint
A support post attaches to a flat steel girder creating two supplementary angles. If one angle is \(115^\circ\), find the measure of the other angle.
Concept Checks
True or False & Justification
A. Can two obtuse angles ever be supplementary? (Explain why or why not) [ ] True [ ] False
B. If two equal angles are complementary, both angles must measure exactly \(45^\circ\). [ ] True [ ] False
Angle Architects Unit • Lesson 2 Student Worksheet Page 2 of 2
