Shell Method Blueprints Slides Unit 4: Applications of Integration
Shell Method
Blueprints
Unrolling the Mystery of Cylindrical Volumes
L1: SHELL_DERIVATION
The Washer Wall
Consider the region bounded by \(y = 2x^2 - x^3\) and the x-axis, rotated about the y-axis.
The Challenge:
Slicing perpendicular to the y-axis requires solving for \(x\) in terms of \(y\).
Can you solve \(y = 2x^2 - x^3\) for \(x\) easily?
Integration becomes an algebraic nightmare.
"There must be a better way to slice this..."
Peeling the Layers
Thinking like an onion, not a loaf of bread.
The Onion Approach
Nested vertical layers. Slicing parallel to the axis of rotation.
The Scroll Approach
Unrolling each cylinder into a rectangular sheet.
Construction Geometry
Imagine unrolling a single cylindrical shell with radius \(r\) and height \(h\).
Length: Circumference = \(2\pi r\)
Height: Height = \(h\)
Thickness: Thickness = \(dx\)
The Volume Integral
\[V = \int_a^b 2\pi r \cdot h \, dx\]
Integrating \((\text{Circumference} \times \text{Height} \times \text{Thickness})\)
Anatomy of the Shell
Determining Radius (\(r\))
The distance from the axis of rotation to the slice .
Rotating about y-axis: \(r = x\)
Rotating about \(x = -2\): \(r = x - (-2) = x + 2\)
Determining Height (\(h\))
The vertical distance of the slice, usually the function value .
Upper curve - Lower curve
\(h = f(x) - g(x)\)
Pro Tip: If the axis of rotation is vertical (y-axis or \(x=c\)), integrate with respect to \(x\) .
On-Site Inspection: Let's Build
EXAMPLE 01
Find the volume of the solid generated by rotating the region bounded by \(y = \sqrt{x}\), \(y = 0\), and \(x = 4\) about the y-axis.
RADIUS
\(r = x\)
HEIGHT
\(h = \sqrt{x}\)
LIMITS
\(0 \to 4\)
\[V = \int_0^4 2\pi \cdot x \cdot \sqrt{x} \, dx\]
Shell Method Facilitator Guide Facilitator Guide
Lesson 1: Introduction to the Shell Method
DOC_ID: SHELL_TEACH_01
SEQUENCE: ADV_VOL_MODELING
Objective
Students will be able to derive the Shell Method formula \(V = \int 2\pi rh \, dx\) and apply it to find volumes of solids rotated about vertical axes.
Essential Questions
Why is the Disk/Washer method sometimes algebraically impossible to use?
How does "unrolling" a cylinder help us calculate its volume?
What is the geometric relationship between the radius and the height in the shell method?
Blueprint Specs
Duration
60 Minutes
Materials
Onion, Paper Towel Roll, Slides, Graphing Calculators
Key Terms
Cylindrical Shell
Axis of Rotation
Parallel Slice
Lesson Sequence
00-10
The "Onion vs. Loaf" Hook
Bring an onion and a loaf of pre-sliced bread. Slice the bread vertically—these are Disks/Washers. Now, peel a layer off the onion. Point out that the onion layer is a cylinder .
"If we wanted to find the volume of the whole onion, could we sum up these thin 'wraps' instead of slicing it like bread?"
10-25
The Problem & The Blueprint
Use the slides to present \(y = 2x^2 - x^3\). Challenge students to solve for \(x\). When they realize they can't easily, introduce the Shell Method as the "Parallel Slicing Strategy" .
Demonstration: Take a paper towel roll. Cut it vertically and unroll it. Show that it's just a flat rectangular prism with volume \(V = \text{Length} \cdot \text{Height} \cdot \text{Width}\).
25-45
Construction Training
Distribute the Shell Method Construction Sheet . Walk through the derivation. Key Insight: The slice is always parallel to the axis of rotation.
Misconception Blueprint
Incorrect Variable
Students often think a vertical axis means integrating with respect to \(y\) (like washers).
Correction: Remind them that Shells go "against the grain." Vertical axis = \(dx\); Horizontal axis = \(dy\).
Mixing Radius Formulas
Students struggle when the axis isn't a standard axis.
Correction: Radius is always "Right - Left" or "Top - Bottom". If rotating about \(x=c\), \(r = |x - c|\).
Drafting Prompts
"If we are rotating around the y-axis, why is our thickness 'dx' and not 'dy'?"
Shell Method Construction Sheet Shell Construction
Blueprint: Cylindrical Layers
Specimen:
Date Log:
PHASE 01
The Geometric Unrolling
A cylindrical shell is defined by its radius (\(r\)), height (\(h\)), and a very small thickness (\(dx\) or \(dy\)). When unrolled, it forms a rectangular sheet.
Length (Circumference)
2πr
Width (Height)
h
Thickness
dx / dy
Sketch unrolled shell here
PHASE 02
The Blueprint Setup
For each region described, identify the radius and height functions, then set up but do not evaluate the integral for the volume generated by rotating about the y-axis .
01. Region bounded by \(y = \frac{1}{x}\), \(y = 0\), \(x = 1\), and \(x = 3\).
Radius \(r(x)\)
Height \(h(x)\)
Limits
Volume Setup: \(V = \int \dots\)
02. Region bounded by \(y = x^2\) and \(y = 4\).
Radius \(r(x)\)
Height \(h(x)\)
Limits
Volume Setup: \(V = \int \dots\)
PHASE 03
Full Fabrication
FIELD CHALLENGE:
Calculate the volume of the solid generated by rotating the region bounded by \(y = 2x - x^2\) and the x-axis about the line \(x = 3\). Note: The axis of rotation is no longer the y-axis. How does your radius change?
Step A: Radius Definition
Distance from \(x = 3\) to a slice at point \(x\):
Step B: Integral Setup
Step C: Detailed Calculation
Show all integration steps below.
Drafting Checklist
Radius function correct?
Height (Top - Bottom)?
Limits match integration variable?
Is 2π included?
Comparative Analysis Slides The Great Volume Duel
SHELLS vs WASHERS
Choosing your weapon for algebraic efficiency.
Efficiency Protocol
Duel Rules
01
Rule #1: Same Target
Both methods calculate the EXACT SAME volume. The physical result is identical.
Rule #2: Variable Choice
Washers use the variable PERPENDICULAR to the axis. Shells use the variable PARALLEL to the axis.
THE GOAL
Minimize algebraic steps. Maximize integration ease.
VS
Case Study: Y-Axis Rotation
Region: \(y = x^2\), \(y = 4\), \(x \ge 0\). Rotate about y-axis.
WASHERS (Disks)
Slice perpendicular to y-axis.
Variable: dy
Solve for \(x\): \(x = \sqrt{y}\)
\(V = \pi \int_0^4 (\sqrt{y})^2 \, dy\)
SHELLS
Slice parallel to y-axis.
Variable: dx
\(r = x\), \(h = 4 - x^2\)
\(V = 2\pi \int_0^2 x(4 - x^2) \, dx\)
Verdict: Both are manageable!
THE KNOCKOUT BLOW
Consider: \(y = 2x^2 - x^3\)
To use Washers for rotation about the y-axis, you must solve for \(x\).
Good luck! There is no simple inverse function.
SHELLS WIN BY K.O.
Integrating \(2\pi x(2x^2 - x^3) \, dx\) is trivial power rule.
Heuristic #1
If solving for the other variable is hard, switch methods.
Heuristic #2
If the region has multiple 'top' or 'bottom' functions, one method might avoid splitting the integral.
Strategic Matrix
Axis of Rotation Washers / Disks Shells Horizontal (x-axis) Integrate \(dx\) Integrate \(dy\) Vertical (y-axis) Integrate \(dy\) Integrate \(dx\) Relationship Perpendicular Parallel
CHALLENGE: THE DUEL
"One problem, two champions. Who can reach the finish line first?"
TEAM A
WASHER SPECIALISTS
TEAM B
SHELL OPERATIVES
Prepare your duel prep sheets now.

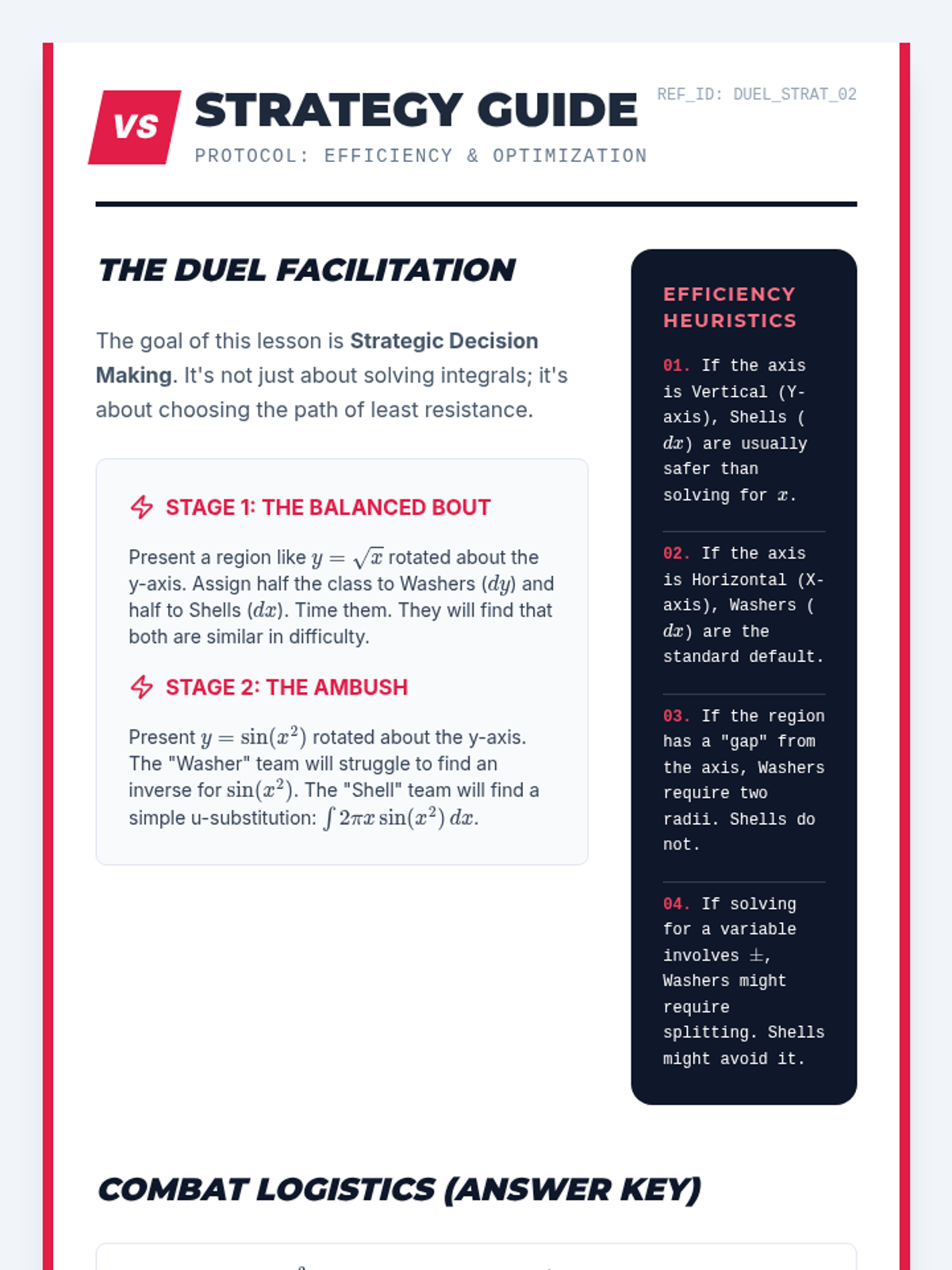

Strategy Guide Shells vs Washers VS
Strategy Guide
Protocol: Efficiency & Optimization
REF_ID: DUEL_STRAT_02
The Duel Facilitation
The goal of this lesson is Strategic Decision Making . It's not just about solving integrals; it's about choosing the path of least resistance.
Stage 1: The Balanced Bout
Present a region like \(y = \sqrt{x}\) rotated about the y-axis. Assign half the class to Washers (\(dy\)) and half to Shells (\(dx\)). Time them. They will find that both are similar in difficulty.
Stage 2: The Ambush
Present \(y = \sin(x^2)\) rotated about the y-axis. The "Washer" team will struggle to find an inverse for \(\sin(x^2)\). The "Shell" team will find a simple u-substitution: \(\int 2\pi x \sin(x^2) \, dx\).
Efficiency Heuristics
If the axis is Vertical (Y-axis), Shells (\(dx\)) are usually safer than solving for \(x\).
If the axis is Horizontal (X-axis), Washers (\(dx\)) are the standard default.
If the region has a "gap" from the axis, Washers require two radii. Shells do not.
If solving for a variable involves \(\pm\), Washers might require splitting. Shells might avoid it.
Combat Logistics (Answer Key)
Duel Case #1: \(y = x^2\), \(y = 4\), rotated about Y-axis.
WASHER METHOD (\(dy\))
\(V = \pi \int_0^4 (\sqrt{y})^2 \, dy\)
\(V = \pi [\frac{1}{2}y^2]_0^4 = 8\pi\)
SHELL METHOD (\(dx\))
\(V = 2\pi \int_0^2 x(4 - x^2) \, dx\)
\(V = 2\pi [2x^2 - \frac{1}{4}x^4]_0^2 = 8\pi\)
Duel Case #2: \(y = 2x - x^2\), \(y = 0\), rotated about Y-axis.
Note: Shells are significantly easier here because solving \(y = 2x - x^2\) for \(x\) requires completing the square and results in \(\pm\).
\(V = 2\pi \int_0^2 x(2x - x^2) \, dx = 2\pi [ \frac{2}{3}x^3 - \frac{1}{4}x^4 ]_0^2 = 2\pi(\frac{16}{3} - 4) = \frac{8\pi}{3}\)

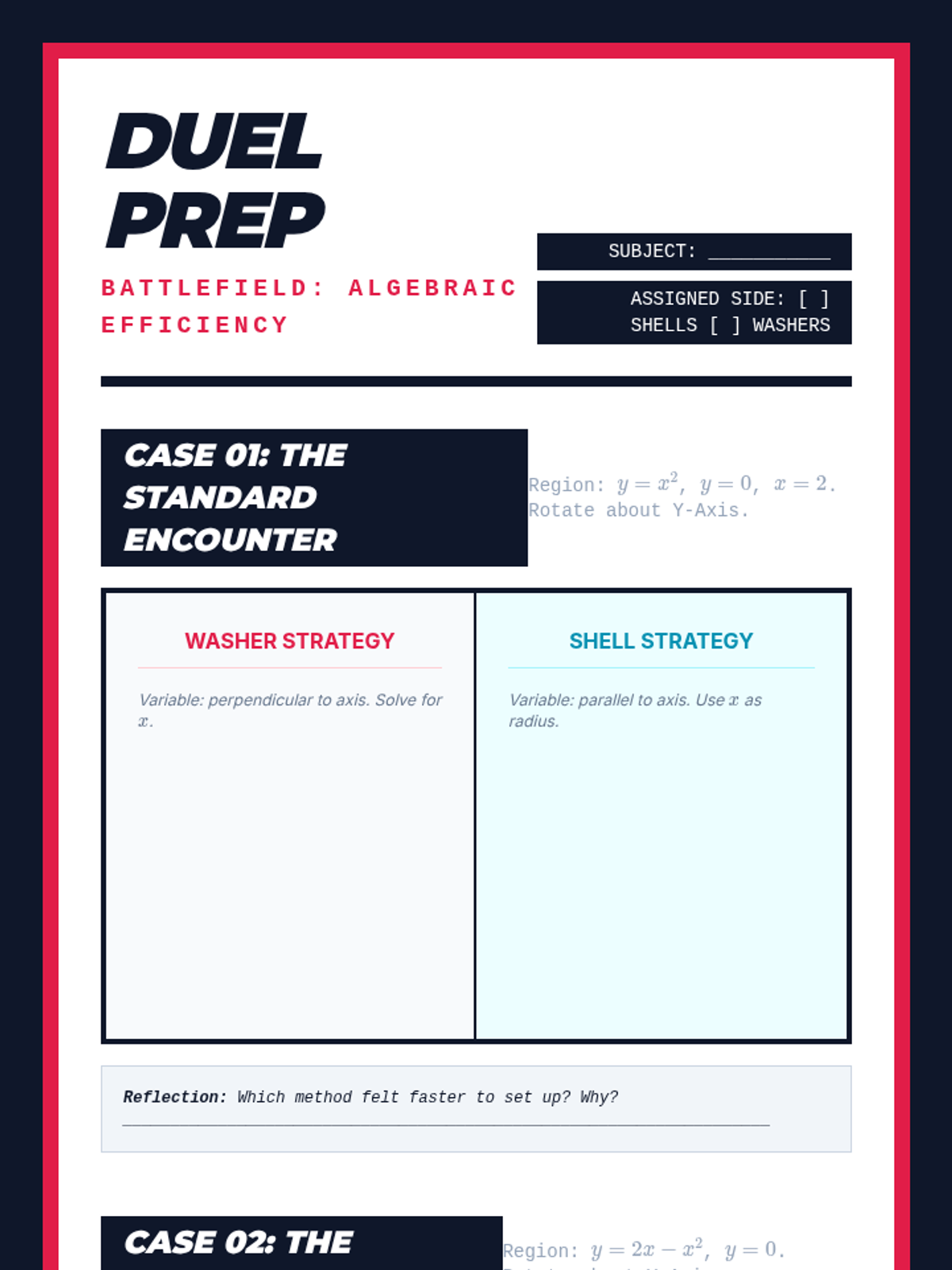

Duel Prep Sheet Duel Prep
Battlefield: Algebraic Efficiency
Subject: ___________
Assigned Side: [ ] SHELLS [ ] WASHERS
Case 01: The Standard Encounter
Region: \(y = x^2\), \(y = 0\), \(x = 2\). Rotate about Y-Axis.
Washer Strategy
Variable: perpendicular to axis. Solve for \(x\).
Shell Strategy
Variable: parallel to axis. Use \(x\) as radius.
Reflection: Which method felt faster to set up? Why? ____________________________________________________________________
Case 02: The Complex Curve
Region: \(y = 2x - x^2\), \(y = 0\). Rotate about Y-Axis.
Set Up Strategy A
Set Up Strategy B
Intelligence Report:
One of these methods requires you to solve a quadratic for \(x\), involving a \(\pm\) and a square root. The other is a simple polynomial integration. Identify the winner and perform the calculation below.
Strategic Heuristics
Based on your duels, complete the decision matrix for future missions. When should we deploy each weapon?
Deploy WASHERS if...
Deploy SHELLS if...
The Boss Fight
The region is bounded by \(y = \ln(x)\), \(y = 1\), \(y = 2\), and \(x = 0\). You are rotating around the x-axis .
Choice
[ ] Washers [ ] Shells
Justification (Why is this method more efficient?)
Calculation Log
End of Protocol 02
Rising From the Base Slides Structural Engineering
BASE TO SPACE
Calculating volume from cross-sectional ribs.
L3: NON_ROTATIONAL_SOLIDS
The Third Dimension
Until now, our solids were always created by spinning a region.
What if the solid just rises out of the paper in a specific shape?
The Concept:
We sum up the Areas of infinitely thin "ribs" along an axis.
\[V = \int_a^b A(x) \, dx\]
"Volume is the integral of the Area function."
Structural Components
Squares
Side = \(s\)
\(A = s^2\)
Semi-circles
Diameter = \(s\)
\(A = \frac{\pi}{8}s^2\)
Equilateral \(\triangle\)
Side = \(s\)
\(A = \frac{\sqrt{3}}{4}s^2\)
Measuring the Base
The "Side" (\(s\)) is always the distance across the base region at a point \(x\).
\(s = f(x) - g(x)\)
Step 1: Graph the base region.Step 2: Draw a representative "rib" (the side).Step 3: Determine the length of that side.
Visualizing the Rise
3D model placeholder
Work Order #301
MODELING_TEST
Base: Region bounded by \(y = x^2\) and \(y = 4\).Cross-Sections: Semicircles perpendicular to the y-axis.
Analysis
Perpendicular to y-axis means integrate dy .
Side \(s = \sqrt{y} - (-\sqrt{y}) = 2\sqrt{y}\).
Integral Setup
\(V = \int_0^4 \frac{\pi}{8} (2\sqrt{y})^2 \, dy\)
\(V = \int_0^4 \frac{\pi}{2} y \, dy\)

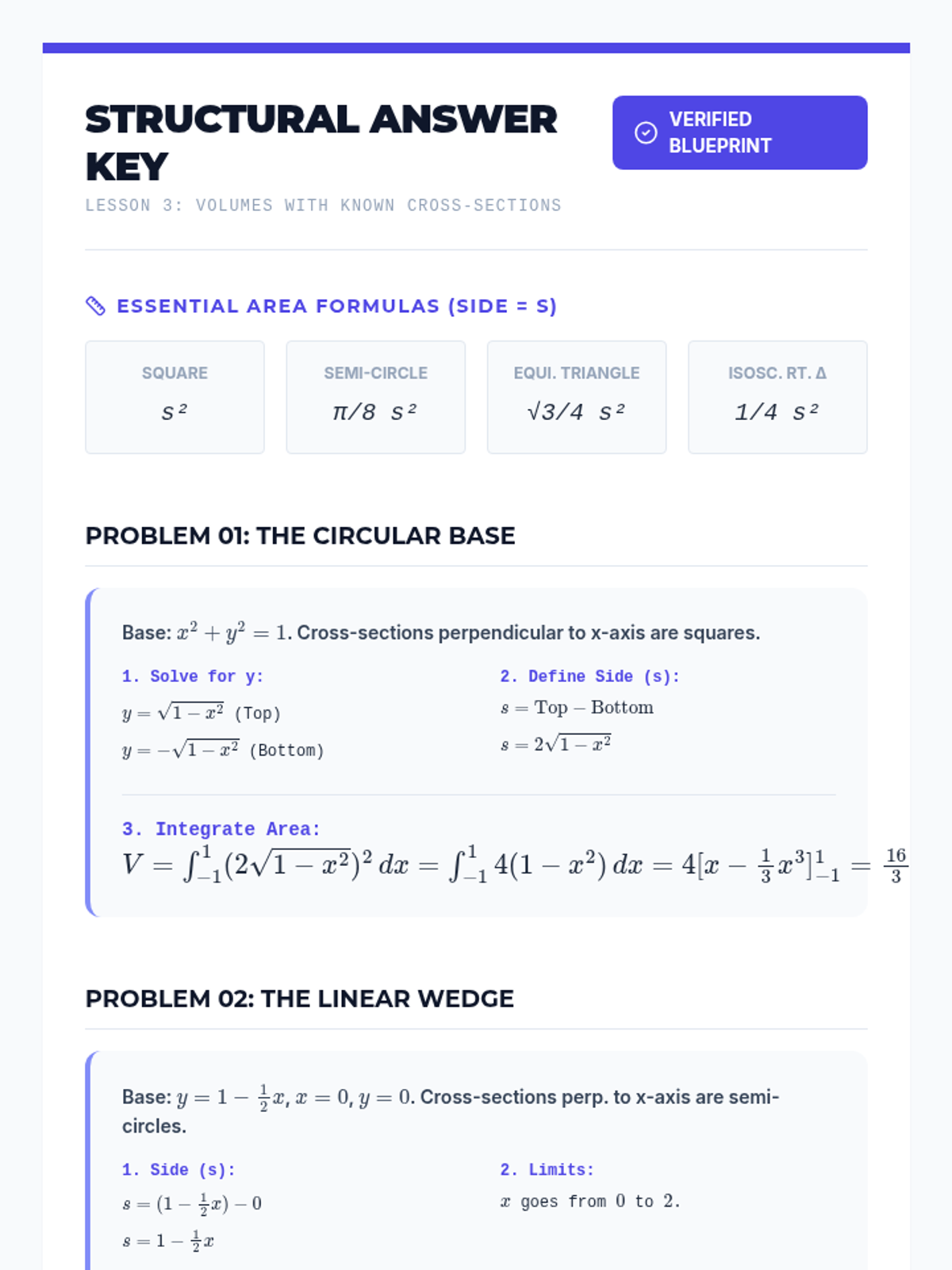

Cross Section Answer Key Structural Answer Key
Lesson 3: Volumes with Known Cross-Sections
VERIFIED BLUEPRINT
Essential Area Formulas (Side = s)
Square
s²
Semi-circle
π/8 s²
Equi. Triangle
√3/4 s²
Isosc. Rt. Δ
1/4 s²
Problem 01: The Circular Base
Base: \(x^2 + y^2 = 1\). Cross-sections perpendicular to x-axis are squares.
1. Solve for y:
\(y = \sqrt{1 - x^2}\) (Top)
\(y = -\sqrt{1 - x^2}\) (Bottom)
2. Define Side (s):
\(s = \text{Top} - \text{Bottom}\)
\(s = 2\sqrt{1 - x^2}\)
3. Integrate Area:
\(V = \int_{-1}^1 (2\sqrt{1 - x^2})^2 \, dx = \int_{-1}^1 4(1 - x^2) \, dx = 4[x - \frac{1}{3}x^3]_{-1}^1 = \frac{16}{3}\)
Problem 02: The Linear Wedge
Base: \(y = 1 - \frac{1}{2}x\), \(x = 0\), \(y = 0\). Cross-sections perp. to x-axis are semi-circles.
1. Side (s):
\(s = (1 - \frac{1}{2}x) - 0\)
\(s = 1 - \frac{1}{2}x\)
2. Limits:
\(x\) goes from \(0\) to \(2\).
3. Integrate Area:
\(V = \int_0^2 \frac{\pi}{8} (1 - \frac{1}{2}x)^2 \, dx = \frac{\pi}{12}\)
Base to Space Activity Sheet Base to Space
Protocol: Structural Extrusion
Constructor:
Sector ID:
Component Area Library
Before building, we must define the area function \(A(x)\) based on the side length \(s\).
Squares
A(s) = s²
Semi-circles
A(s) = ________
Equi. Triangles
A(s) = ________
UNIT 301
The Square Pillar
The base of a solid is the region bounded by \(y = 1 - \frac{1}{2}x\), \(x = 0\), and \(y = 0\). Cross-sections perpendicular to the x-axis are squares.
Graph the base region here.
Identify Side (s)
Identify Area Function A(x)
Volume Integral Setup
UNIT 302
The Semicircular Rib
The base is the region bounded by \(x = y^2\) and \(x = 4\). Cross-sections perpendicular to the x-axis are semi-circles. Caution: Does your side 's' vary with x or y?
Base Visualization
Upper Bound Function
Lower Bound Function
Side s(x)
Area A(x)
Full Integral Fabrication
Independent Stress Test
Find the volume of the solid whose base is the region bounded by \(y = \sqrt{x}\), \(y = 0\), and \(x = 4\). Cross-sections perpendicular to the x-axis are equilateral triangles. (Hint: \(A = \frac{\sqrt{3}}{4}s^2\))
Calculation Log
Project Blueprint Kickoff Slides The Capstone Design
VOLUME BY
DESIGN
Modeling the physical world through integration.
L4: PROJECT_KICKOFF
The Brief
"Your task is to design a 3D object whose volume can be calculated using the techniques of calculus: Disks, Washers, Shells, or Cross-Sections."
01. Model
Define your object using piecewise functions or geometric boundaries.
02. Analyze
Choose the most efficient integration method for your specific geometry.
03. Verify
Perform rigorous calculations and provide a technical volume report.
Architectural Inspiration
The Rotational Form
Objects like vases, chess pieces, or engine pistons. These are perfect for Disks or Shells.
[Visual: Lathe-turned object]
The Extruded Form
Objects like stadiums, tent structures, or curved benches. These are perfect for Cross-Sections.
[Visual: Stadium layout]
Technical Specifications
1
Mathematical Boundary
Your object must be defined by at least two distinct mathematical functions (e.g., polynomial, trig, or exponential).
2
Dual Analysis
You must provide a justification for your choice of method over another.
The Deliverables
Blueprint Sketch
Piecewise Equations
Volume Calculation Log
Final Volume justification
Production Schedule
01
Today
Design Ideation & Function Selection
02
Homework
Boundary Confirmation & Blueprinting
03
Next Class
Peer Review & Calculation Workshop

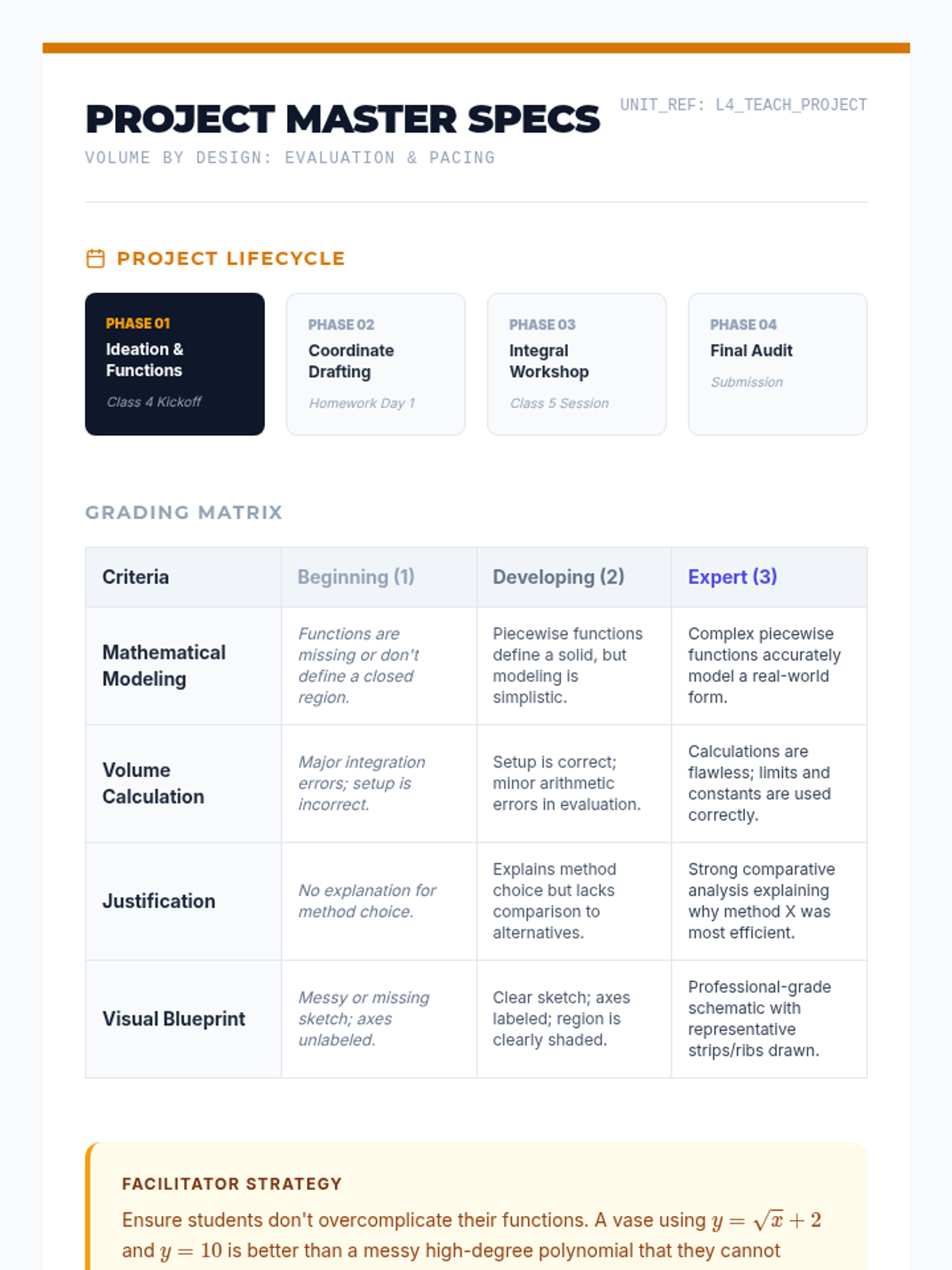

Project Rubric and Timeline Project Master Specs
Volume by Design: Evaluation & Pacing
UNIT_REF: L4_TEACH_PROJECT
Project Lifecycle
Phase 01
Ideation & Functions
Class 4 Kickoff
Phase 02
Coordinate Drafting
Homework Day 1
Phase 03
Integral Workshop
Class 5 Session
Phase 04
Final Audit
Submission
Grading Matrix
Criteria Beginning (1) Developing (2) Expert (3) Mathematical Modeling Functions are missing or don't define a closed region. Piecewise functions define a solid, but modeling is simplistic. Complex piecewise functions accurately model a real-world form. Volume Calculation Major integration errors; setup is incorrect. Setup is correct; minor arithmetic errors in evaluation. Calculations are flawless; limits and constants are used correctly. Justification No explanation for method choice. Explains method choice but lacks comparison to alternatives. Strong comparative analysis explaining why method X was most efficient. Visual Blueprint Messy or missing sketch; axes unlabeled. Clear sketch; axes labeled; region is clearly shaded. Professional-grade schematic with representative strips/ribs drawn.
Facilitator Strategy
Ensure students don't overcomplicate their functions. A vase using \(y = \sqrt{x} + 2\) and \(y = 10\) is better than a messy high-degree polynomial that they cannot integrate by hand. Encourage piecewise linear or simple power functions.

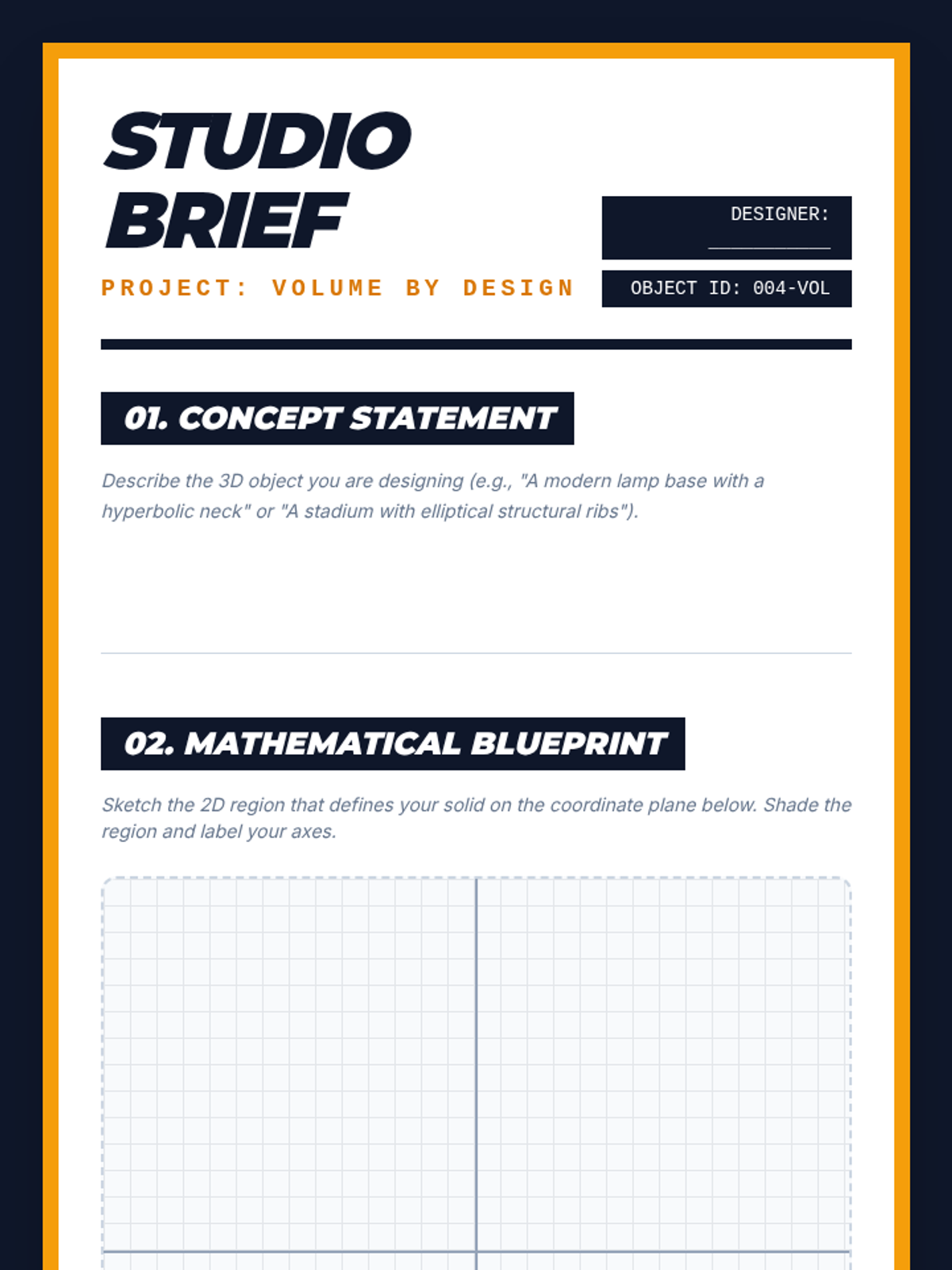

Project Design Brief Studio Brief
Project: Volume by Design
Designer: ___________
Object ID: 004-VOL
01. Concept Statement
Describe the 3D object you are designing (e.g., "A modern lamp base with a hyperbolic neck" or "A stadium with elliptical structural ribs").
02. Mathematical Blueprint
Sketch the 2D region that defines your solid on the coordinate plane below. Shade the region and label your axes.
03. Technical Specs
Boundary Type Equation \(f(x)\) or \(x = g(y)\) Domain / Range Upper Bound Lower Bound Left/Right (if needed)
04. Strategic Justification
Based on the boundaries identified in Section 03, which integration method will you deploy? Justify your choice by explaining why the alternative methods would be more difficult (consider algebraic complexity, splitting integrals, or solving for variables).
Target Strategy
Disk / Washer
Shell Method
Known Cross-Sections
Axis of Rotation / Extension
Justification Log:
05. Preliminary Setup
Show the integral setup you will use to calculate the volume.
V = ∫ ...
REF_AUTH: MASTER_DESIGNER BLUEPRINT_STAMP_04A
Calculation Workshop Slides The Final Audit
CALCULATION
WORKSHOP
Verifying structural integrity and volume precision.
L5: FINAL_FABRICATION
The Peer Audit
In professional engineering, no blueprint is approved without a third-party audit .
Today, you are the auditor. Trade your design brief with a colleague.
Audit Goals:
Verify the function intersections.
Check the setup of the radius and height.
Confirm the integration limits.
Integrity Check
"Is the volume physically possible? Did they miss a 2π?"
Structural Weaknesses
The Variable Flip
Integrating with dy but using x-limits . Limits must always match the variable of integration.
The Shell Radius
Using the function as the radius instead of x or y . Radius is distance to the axis!
The Constant Tax
Forgetting the 2π in Shells or the π in Washers. These are non-negotiable multipliers.
Presentation Specs
Scientific Units
Express your final answer in cubic units (\(u^3\)).
Clear Annotation
Show the anti-derivative before plugging in the limits.
The Final Report
Your final report should look like a professional submission. No scribbles. Every step justified.
Submission Ready
MISSION
ACCOMPLISHED
"Pure mathematics is, in its way, the poetry of logical ideas." — Albert Einstein

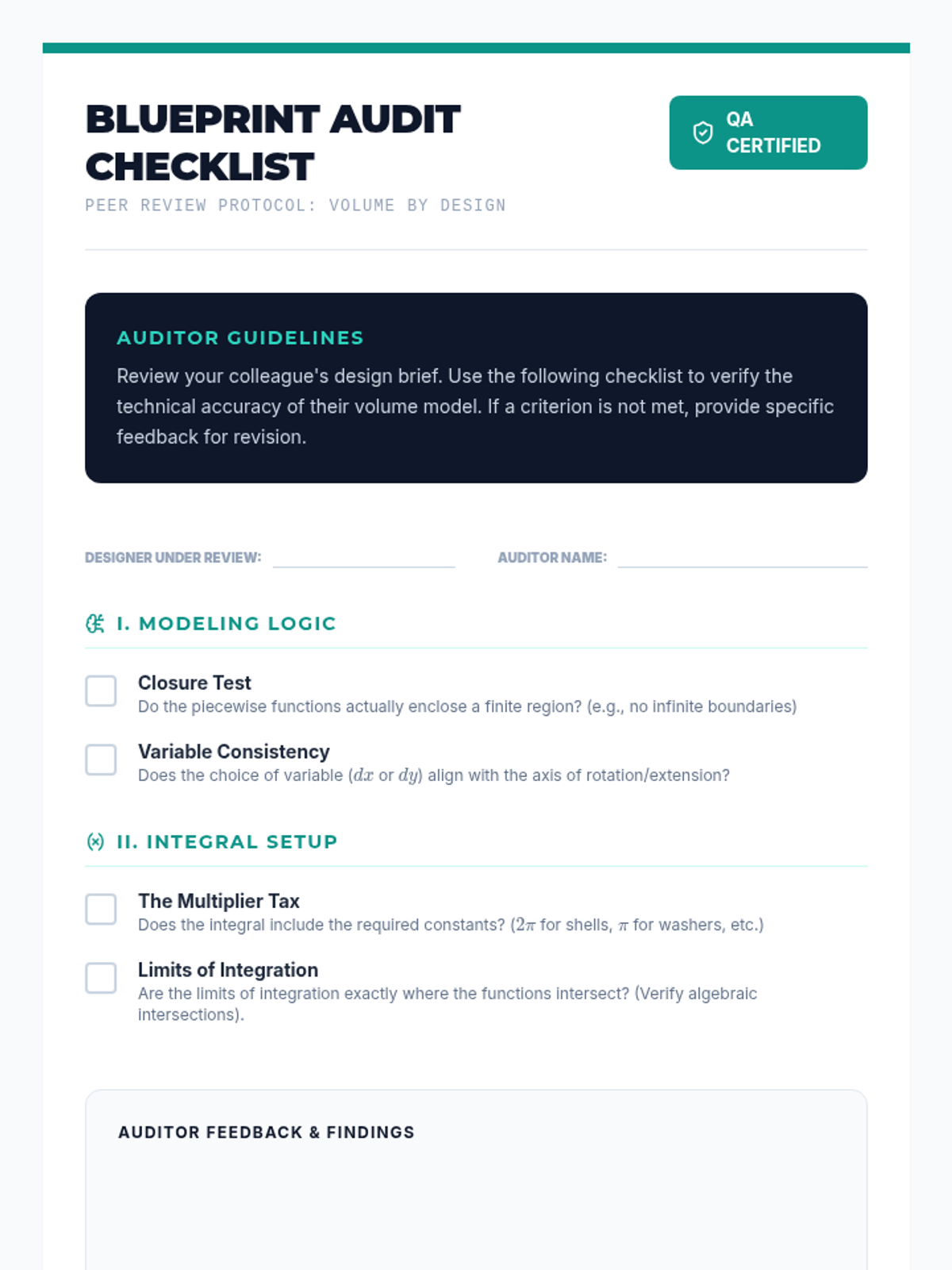

Peer Review Checklist Blueprint Audit Checklist
Peer Review Protocol: Volume by Design
QA CERTIFIED
Auditor Guidelines
Review your colleague's design brief. Use the following checklist to verify the technical accuracy of their volume model. If a criterion is not met, provide specific feedback for revision.
Designer Under Review:
Auditor Name:
I. Modeling Logic
Closure Test
Do the piecewise functions actually enclose a finite region? (e.g., no infinite boundaries)
Variable Consistency
Does the choice of variable (\(dx\) or \(dy\)) align with the axis of rotation/extension?
II. Integral Setup
The Multiplier Tax
Does the integral include the required constants? (\(2\pi\) for shells, \(\pi\) for washers, etc.)
Limits of Integration
Are the limits of integration exactly where the functions intersect? (Verify algebraic intersections).

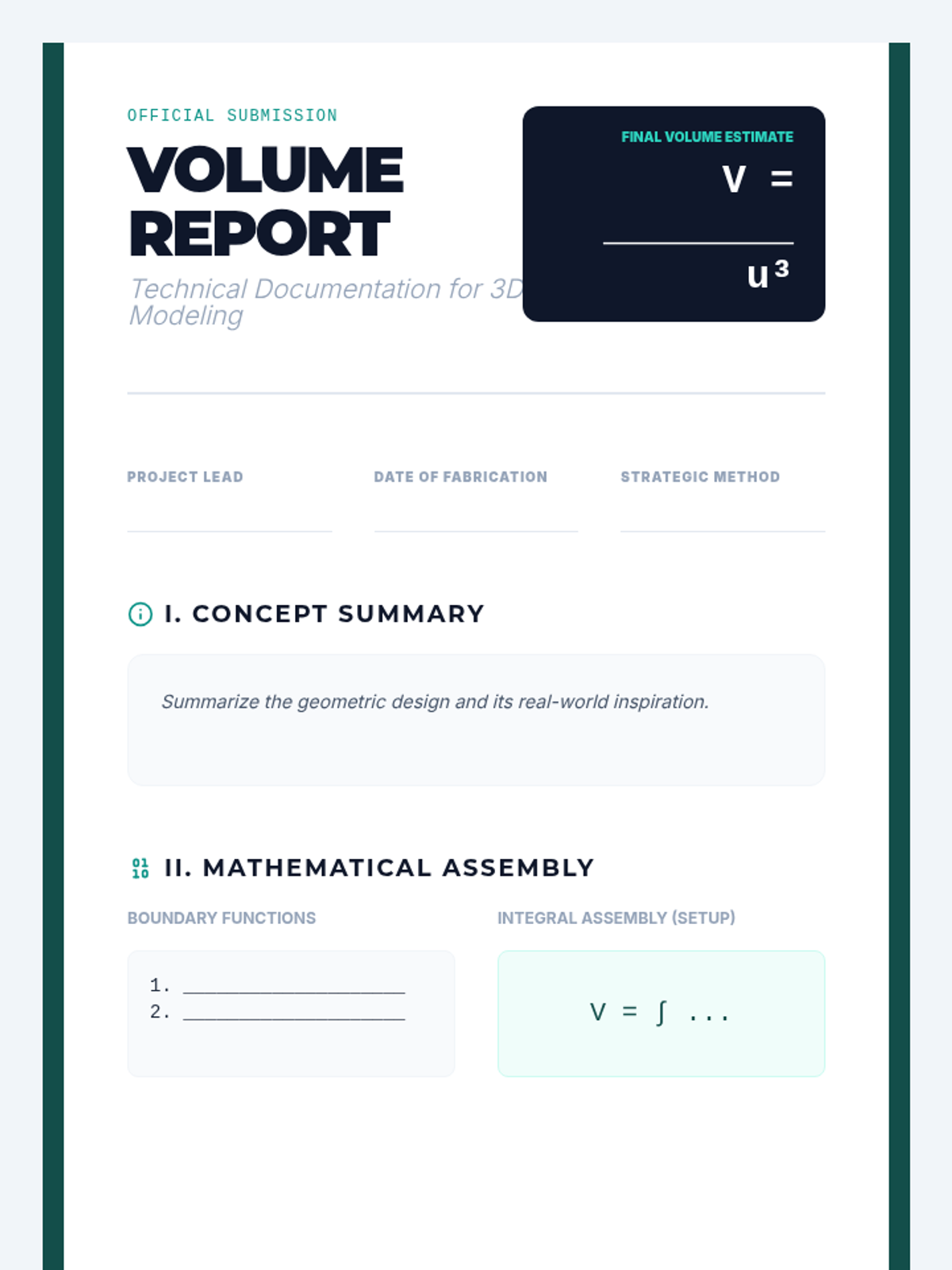

Auditor Feedback & Findings Final Volume Report Template Official Submission
Volume Report
Technical Documentation for 3D Modeling
Final Volume Estimate
V = ________ u³
Project Lead
Date of Fabrication
Strategic Method
I. Concept Summary
Summarize the geometric design and its real-world inspiration.
II. Mathematical Assembly
Boundary Functions
1. ____________________
Integral Assembly (Setup)
V = ∫ ...
III. Integration Log
Document the step-by-step calculus required to evaluate the final volume. Include anti-derivatives and upper/lower limit evaluation.
Calculus Log
IV. Final Certification
By signing below, the designer confirms that the volume calculated represents the exact mathematical volume of the solid defined in Section II.
Signature of Designer
Quality Score
Fabrication Code: 11-CALC-VOL Sequence Complete
