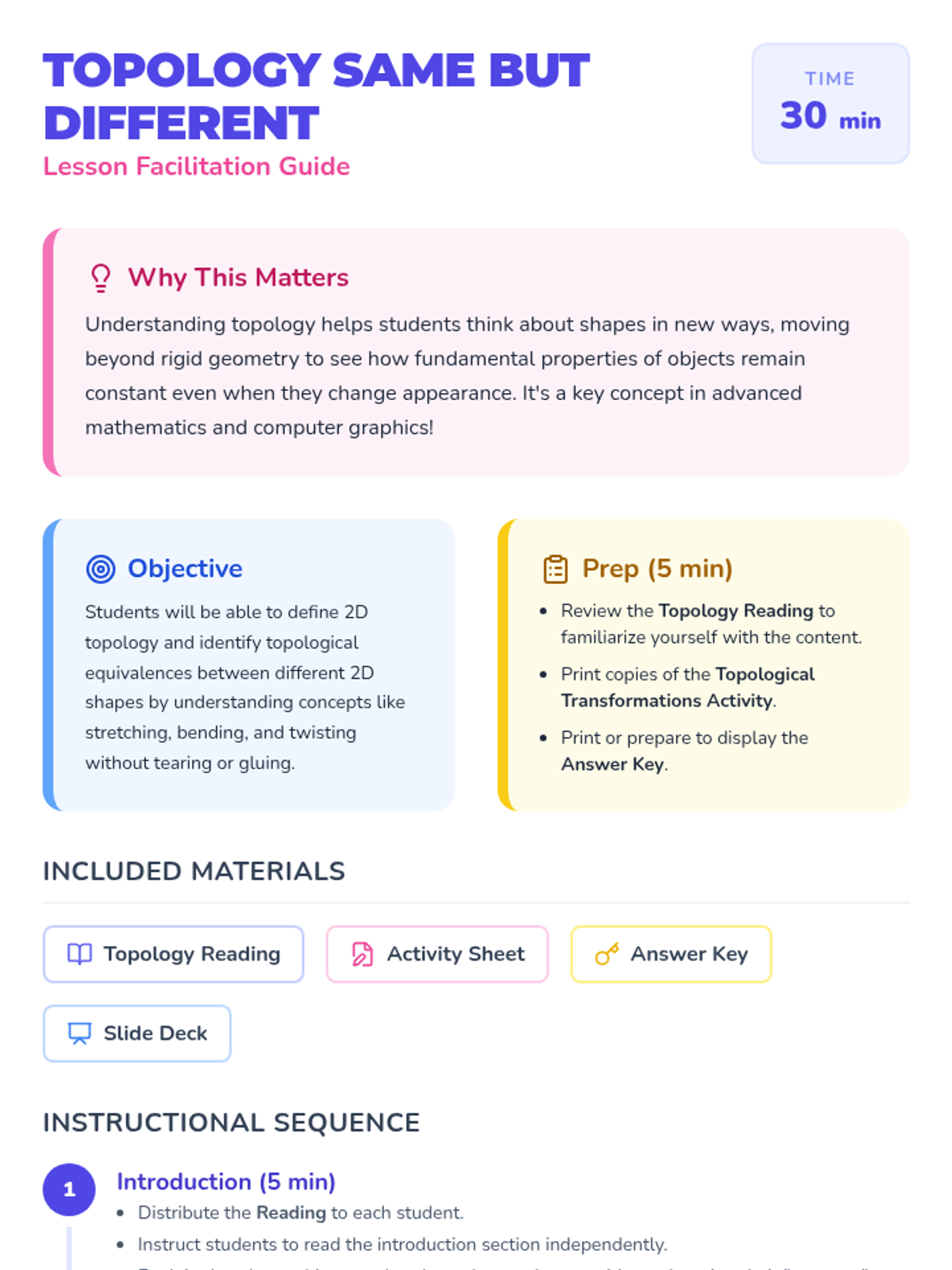

Topology Lesson Plan Topology Same But Different
Lesson Facilitation Guide
Time
30 min
Why This Matters
Understanding topology helps students think about shapes in new ways, moving beyond rigid geometry to see how fundamental properties of objects remain constant even when they change appearance. It's a key concept in advanced mathematics and computer graphics!
Objective
Students will be able to define 2D topology and identify topological equivalences between different 2D shapes by understanding concepts like stretching, bending, and twisting without tearing or gluing.
Prep (5 min)
Review the Topology Reading to familiarize yourself with the content.
Print copies of the Topological Transformations Activity .
Print or prepare to display the Answer Key .
Included Materials
Topology Reading
Activity Sheet
Answer Key
Slide Deck
Instructional Sequence
1
Introduction (5 min)
Distribute the Reading to each student.
Instruct students to read the introduction section independently.
Explain that the goal is to explore how shapes change without changing their "essence."
2
Deep Dive (10 min)
Students read "What is 2D Topology?" and "Topological Equivalence."
Encourage them to pay attention to the "Golden Rules" (no tearing, no gluing).
3
Transformation Activity (10 min)
Distribute the Activity Sheet .
Students complete the activity independently, applying learned concepts.
Remind them to justify their reasoning based on the rules.
4
Wrap-up (5 min)
Collect the activity or have students self-check using the Answer Key .
Encourage reflection on which shapes were surprisingly "the same."
Topology Presentation Slides Topology:
Same But Different?
Discovering the Hidden Connections Between Shapes
2D Topology Adventure
Welcome students and introduce the concept of today's independent lesson. Explain that they will be exploring a new way of looking at shapes called topology. Emphasize that this is independent work for when the teacher is absent, so they should follow the instructions carefully.
What is 2D Topology?
1
It's the study of shapes and spaces, but not in the way you usually think about geometry!
2
In topology, we care about properties that stay the same even if you stretch , bend , or twist a shape.
3
Think of shapes made of super-stretchy rubber!
Topologically the same!
Introduce the idea of 2D topology. Explain that it's about looking at the fundamental properties of shapes that don't change even if you stretch or squish them. Think of it like play-doh!
The Golden Rules
YOU CAN...
Stretch them
Bend them
Twist them
BUT NEVER...
"Rubber Sheet Geometry!"
Explain the 'rules' of topological transformations. This is crucial for students to understand what is and isn't allowed when determining equivalence. Use simple examples like a circle to a square.
Topological Equivalence
Two shapes are topologically equivalent if you can transform one into the other by only stretching, bending, or twisting, without tearing or gluing.
Mug
Donut
Both have exactly ONE hole!
Introduce the concept of topological equivalence. Give the classic example of a donut and a coffee cup. This is a memorable way to illustrate the concept.
Your Reading Journey
Please read the Topology: Same But Different? Reading document.
Introduction
What is 2D Topology?
Topological Equivalence
This reading will give you all the background you need for the activity!
Guide students to their independent reading. Explain the importance of carefully reading the provided text to grasp the concepts before moving to the activity.
Time for an Activity!
Now, it's your turn to be a topological investigator!
1. For each pair of shapes, decide if they are topologically equivalent .
2. Explain your reasoning based on the rules we just discussed.
Good luck, and have fun stretching your mind!
Introduce the activity. Remind students to apply the rules they just learned. This is their chance to put the theory into practice.
Reflect and Conclude
How did your understanding of "shape" change today?
Are there any pairs that surprised you?
Done?
Use the Answer Key to check your work!
Conclude the lesson. Explain how they can check their work or what to do with the activity. Emphasize the unique nature of topology.

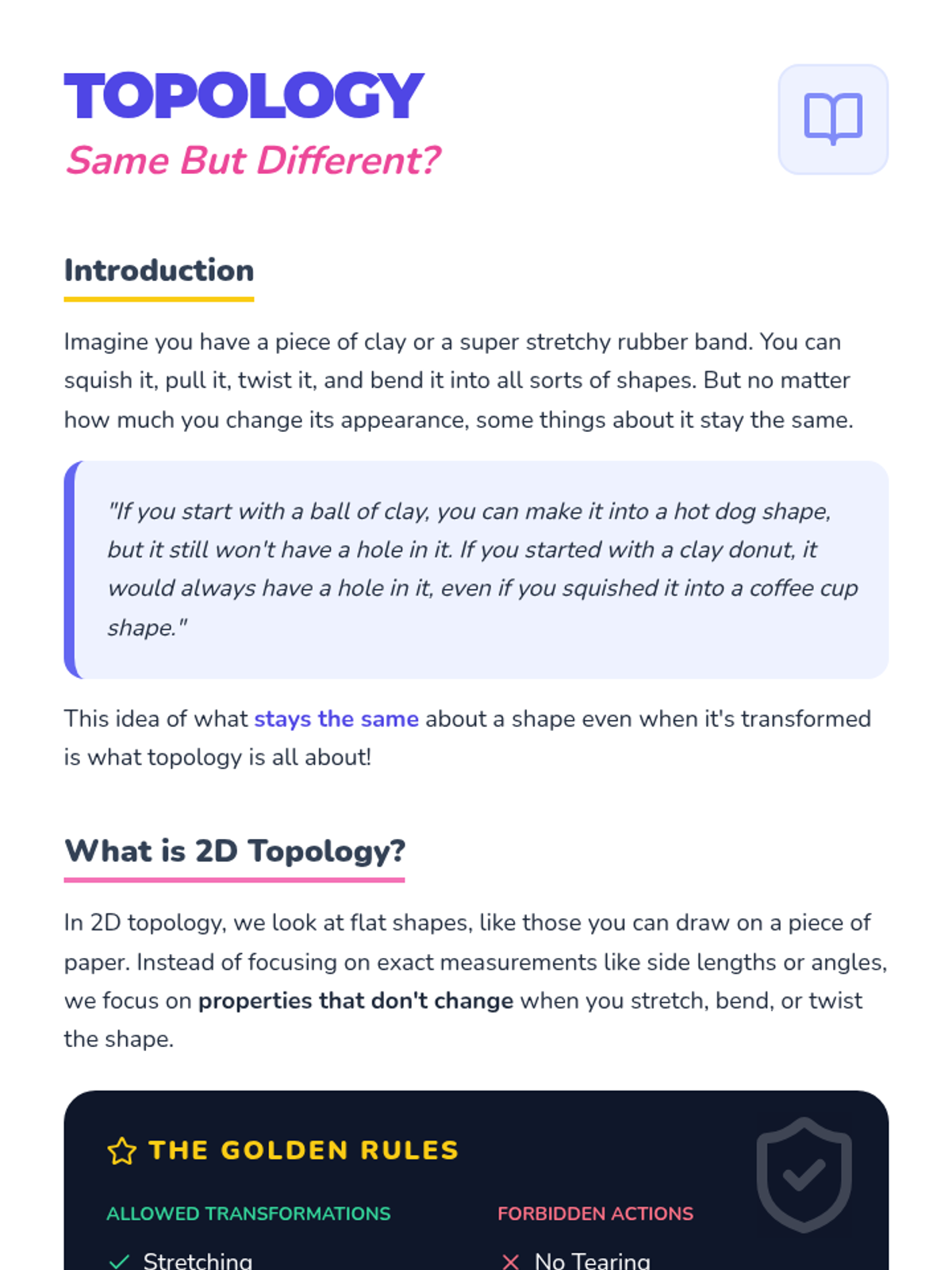

Topology Reading Topology
Same But Different?
Introduction
Imagine you have a piece of clay or a super stretchy rubber band. You can squish it, pull it, twist it, and bend it into all sorts of shapes. But no matter how much you change its appearance, some things about it stay the same.
"If you start with a ball of clay, you can make it into a hot dog shape, but it still won't have a hole in it. If you started with a clay donut, it would always have a hole in it, even if you squished it into a coffee cup shape."
This idea of what stays the same about a shape even when it's transformed is what topology is all about!
What is 2D Topology?
In 2D topology, we look at flat shapes, like those you can draw on a piece of paper. Instead of focusing on exact measurements like side lengths or angles, we focus on properties that don't change when you stretch, bend, or twist the shape.
The Golden Rules
Allowed Transformations
Stretching
Bending
Twisting
Forbidden Actions
Think of your shape being drawn on a thin, flexible rubber sheet. You can pull, push, and distort the rubber as much as you want, as long as you don't rip it or stick parts together!
Topological Equivalence
Two 2D shapes are said to be topologically equivalent if one can be transformed into the other following the golden rules. Let's look at some examples:
A Circle and a Square
Imagine a circle on a rubber sheet. Can you stretch it until it looks like a square? Yes! You aren't tearing or gluing, just changing its outline.
Straight Lines and Wiggles
You can stretch and bend a straight line to make it wiggly, and vice-versa. No tearing or gluing involved. Equivalence achieved!
A Donut and a Coffee Cup
This is a famous one! Both have exactly one hole. You could squish a clay cup until the cup part flattens out and the handle becomes the hole of the donut.
A
The Letter 'A' vs. a Circle
A circle has no holes. The letter 'A' (with a closed loop) has one hole. You can't turn no holes into one hole without tearing a hole into it. Therefore, they are NOT equivalent!
The Key Takeaway
Topology helps us classify shapes based on their fundamental features , like the number of holes or connected pieces, rather than their precise geometry.

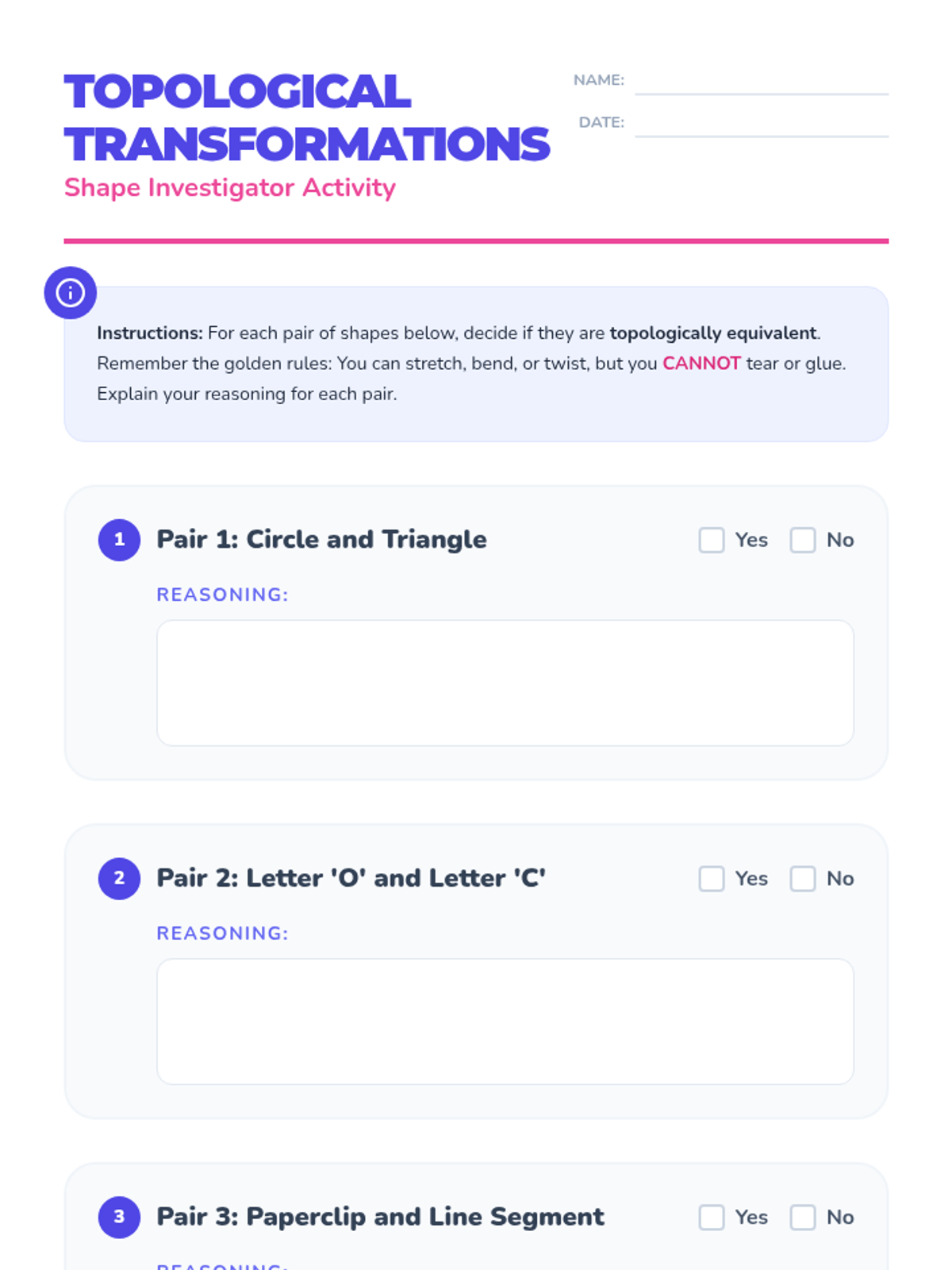

Topology Activity Sheet Topological Transformations
Shape Investigator Activity
Name:
Date:
Instructions: For each pair of shapes below, decide if they are topologically equivalent . Remember the golden rules: You can stretch, bend, or twist, but you cannot tear or glue. Explain your reasoning for each pair.
1 Pair 1: Circle and Triangle
Yes
No
Reasoning:
2 Pair 2: Letter 'O' and Letter 'C'
Yes
No
Reasoning:
3 Pair 3: Paperclip and Line Segment
Yes
No
Reasoning:
4 Pair 4: Donut and Sphere
Yes
No
Reasoning:
5 Pair 5: Figure-Eight (∞) and Two Separate Circles
Yes
No
Reasoning:
Reflection
Which of these pairs surprised you the most? Why do you think your intuition might have been different from the topological "rules"?

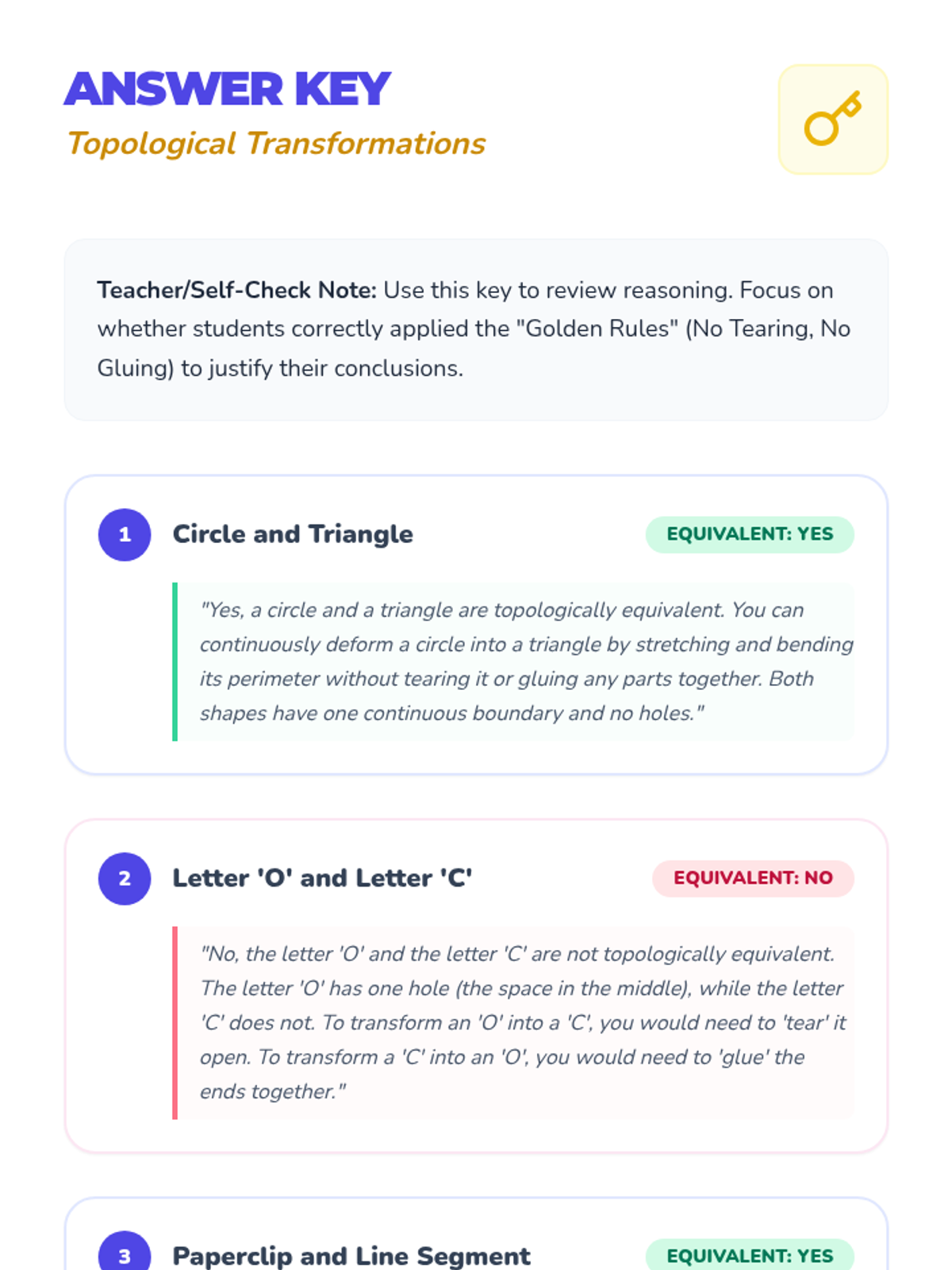

Topology Answer Key Answer Key
Topological Transformations
Teacher/Self-Check Note: Use this key to review reasoning. Focus on whether students correctly applied the "Golden Rules" (No Tearing, No Gluing) to justify their conclusions.
1
Circle and Triangle
Equivalent: YES
"Yes, a circle and a triangle are topologically equivalent. You can continuously deform a circle into a triangle by stretching and bending its perimeter without tearing it or gluing any parts together. Both shapes have one continuous boundary and no holes."
2
Letter 'O' and Letter 'C'
Equivalent: NO
"No, the letter 'O' and the letter 'C' are not topologically equivalent. The letter 'O' has one hole (the space in the middle), while the letter 'C' does not. To transform an 'O' into a 'C', you would need to 'tear' it open. To transform a 'C' into an 'O', you would need to 'glue' the ends together."
3
Paperclip and Line Segment
Equivalent: YES
"Yes, an unbent paperclip and a straight line segment are topologically equivalent. You can stretch and bend the wire until it forms a straight line without tearing or gluing. Both are essentially one-dimensional lines with two endpoints."
4
Donut and Sphere
Equivalent: NO
"No, a donut and a sphere are not topologically equivalent. A donut has one hole, while a sphere has no holes. To change a donut into a sphere, you would need to fill the hole (gluing). To change a sphere into a donut, you would have to poke a hole (tear) through it."
5
Figure-Eight (∞) and
Two Separate Circles
Equivalent: NO
"No, they are not equivalent. A figure-eight has one connected component with an intersection point (creating two loops). Two separate circles are two disconnected pieces. To turn a figure-eight into two circles, you would need to tear it at the crossing point. To join two circles into an eight, you'd need to glue them."
Mastery Check
Students have mastered the concept if they correctly identify that the number of holes and connectivity are the defining features, not the specific geometry.
