Projection Problem Teacher Guide Projection Problem
Teacher Guide
Geometry • Grade 9-12 • 60-90 min
Learning Objectives
Identify why a sphere cannot be flattened into a plane (Gaussian Curvature).
Compare Mercator, Gall-Peters, and Robinson projections.
Explain trade-offs: shape, area, distance, and direction.
Calculate surface area errors in projected regions.
Materials
Oranges/Clementines (1 per student/pair)
Permanent markers & peeling tools
Measuring string or tape
Lesson Slides & Student Worksheets
Instructional Sequence
1
The Hook (10 min)
Show Mercator Greenland vs. Africa. Reveal Africa is 14x larger. Discuss why maps "lie."
2
Direct Instruction (15 min)
Introduce Gaussian Curvature . Positive curvature (sphere) vs. Zero curvature (plane) = Unavoidable distortion.
3
Hands-On Lab (30 min)
Students use the Orange Peel Activity Guide to draw, peel, and attempt to flatten their oranges.
4
Geometric Analysis (20 min)
Complete the Distortion Detectives Worksheet to calculate specific scale factors: A = 4πr².
Essential Questions
— How do we choose maps for navigation versus data comparison?
— Why is a 100% accurate map mathematically impossible?
— How does curvature define the limits of 2D representation?
Projection Problem Slides The Projection Problem
Geometry, Distortion, and the Impossible Map
The Core Conflict: 3D to 2D
Gaussian Curvature
The Earth is a Sphere (Positive Curvature).Plane (Zero Curvature).
The Result: Distortion
You cannot flatten a sphere without stretching or tearing the surface.
Mercator's Famous "Lie"
On a classroom map, Greenland looks as large as Africa .
Greenland: 0.8M sq mi
Africa: 11.7M sq mi
The Truth:
Africa is 14.6 Times larger.
The Orange Peel Analogy
Visualization Task
1. Draw your "world" on the orange.
2. Peel the skin in one piece.
3. Attempt to press it flat.
"You cannot map a sphere onto a plane without introducing gaps or stretching the material."
The Geometry of a Sphere
Surface Area Formula:
A = 4 π r²
At φ = 90°, distortion reaches infinity!
Non-Isometric Mapping
Sphere: Positive Curvature
Plane: Zero Curvature
Result: Stretching / Tearing

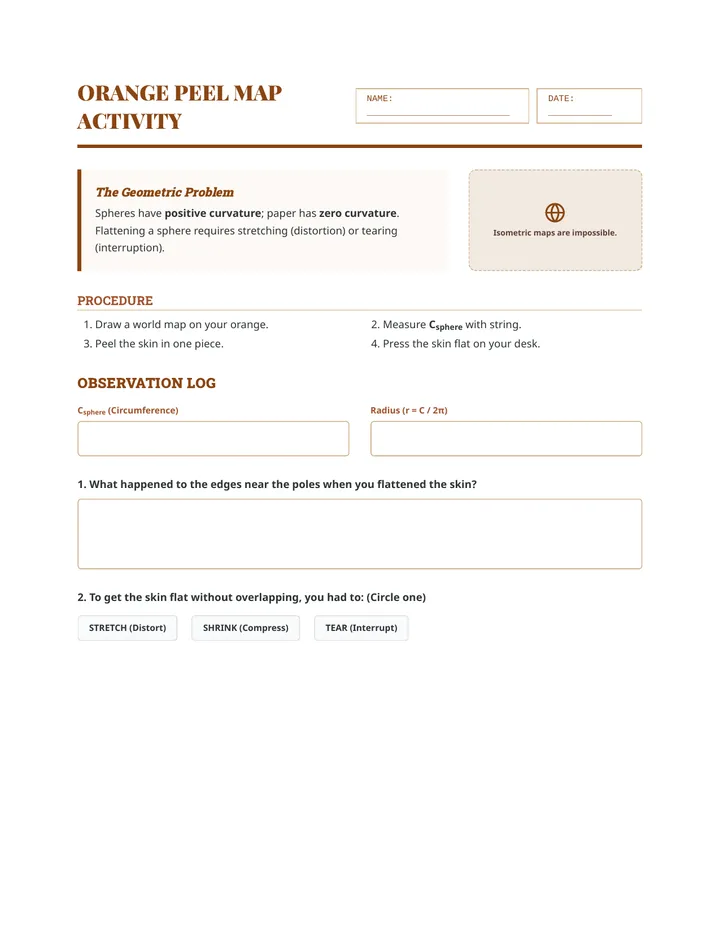

Orange Peel Activity Guide Orange Peel Map Activity
NAME: ___________________________
DATE: ____________
The Geometric Problem
Spheres have positive curvature ; paper has zero curvature . Flattening a sphere requires stretching (distortion) or tearing (interruption).
Isometric maps are impossible.
Procedure
Draw a world map on your orange.
Measure Csphere with string.
Peel the skin in one piece.
Press the skin flat on your desk.
Observation Log
Csphere (Circumference)
Radius (r = C / 2π)
1. What happened to the edges near the poles when you flattened the skin?
2. To get the skin flat without overlapping, you had to: (Circle one)
STRETCH (Distort) SHRINK (Compress) TEAR (Interrupt)
Orange Peel Map Activity: Continued
3. How do continent shapes on the flat skin compare to the round orange?
4. Geometric Conclusion: Why is it mathematically impossible to have a 100% accurate map of a sphere onto a plane? Use the term "Gaussian Curvature" in your answer.
"Geometry is the art of correct reasoning on incorrect figures." — Henri Poincaré
Distortion Detectives Worksheet Distortion Detectives
Geometric Analysis of Map Projections
NAME: ________________________________
DATE: ________________________________
Part 1: The Ideal Sphere
Earth radius R = 6,371 km .
1. Calculate total surface area (A = 4πR²).
2. Calculate equatorial circumference (C = 2πR).
∞
"Because a sphere's surface cannot be unfolded onto a plane, any cylindrical projection must stretch distance at an accelerating rate as we move away from the equator."
Analysis Part 2 & 3
Part 2: Mercator Scaling
Location Latitude Real Area (km²) Scaling Factor Equator 0° -- 1.0 × London, UK 51° N ~1,500 ~ 2.5 × Greenland 72° N 2,166,000 ~ 10.5 × North Pole 90° N Point (0) ∞ (Infinity)
3. Why is it impossible to show the poles on a Mercator map?
4. Antarctica factor ~33×. Area 14M km². Why does it look larger than Africa (30M km²)?
Part 3: Projection Match
Constant compass bearing:
Accurate biome comparisons:
Balanced school world map:
Curved World Quiz Curved World Quiz
Spherical Geometry & Projections
STUDENT: ________________________________ TOTAL SCORE: ________ / 20
Why is every flat map of the Earth fundamentally "wrong"?
(4 pts)
The Earth's gravity causes light to bend during map making.
A sphere has positive curvature, making it impossible to map onto a flat plane.
The Earth's radius is too large for standard geometry formulas.
Map projections only work if the Earth were a perfect cube.
Which property is perfectly PRESERVED in a Mercator projection?
(4 pts)
The relative surface area of nations near the poles.
The shortest linear distance between any two global points.
Constant compass bearings (rhumb lines) and local shapes.
The exact scale of continents along the Prime Meridian.
Explain the primary "trade-off" of the Gall-Peters projection.
(4 pts)
Hint: What does it get right, and what does it distort?
Which projection is a "compromise" map commonly used in schools?
(4 pts)
Mercator Projection
Gall-Peters Projection
Robinson Projection
Conic Projection
Why is "infinite distortion" found at the poles in some maps?
(4 pts)
"Every map is a compromise between truth and utility."
