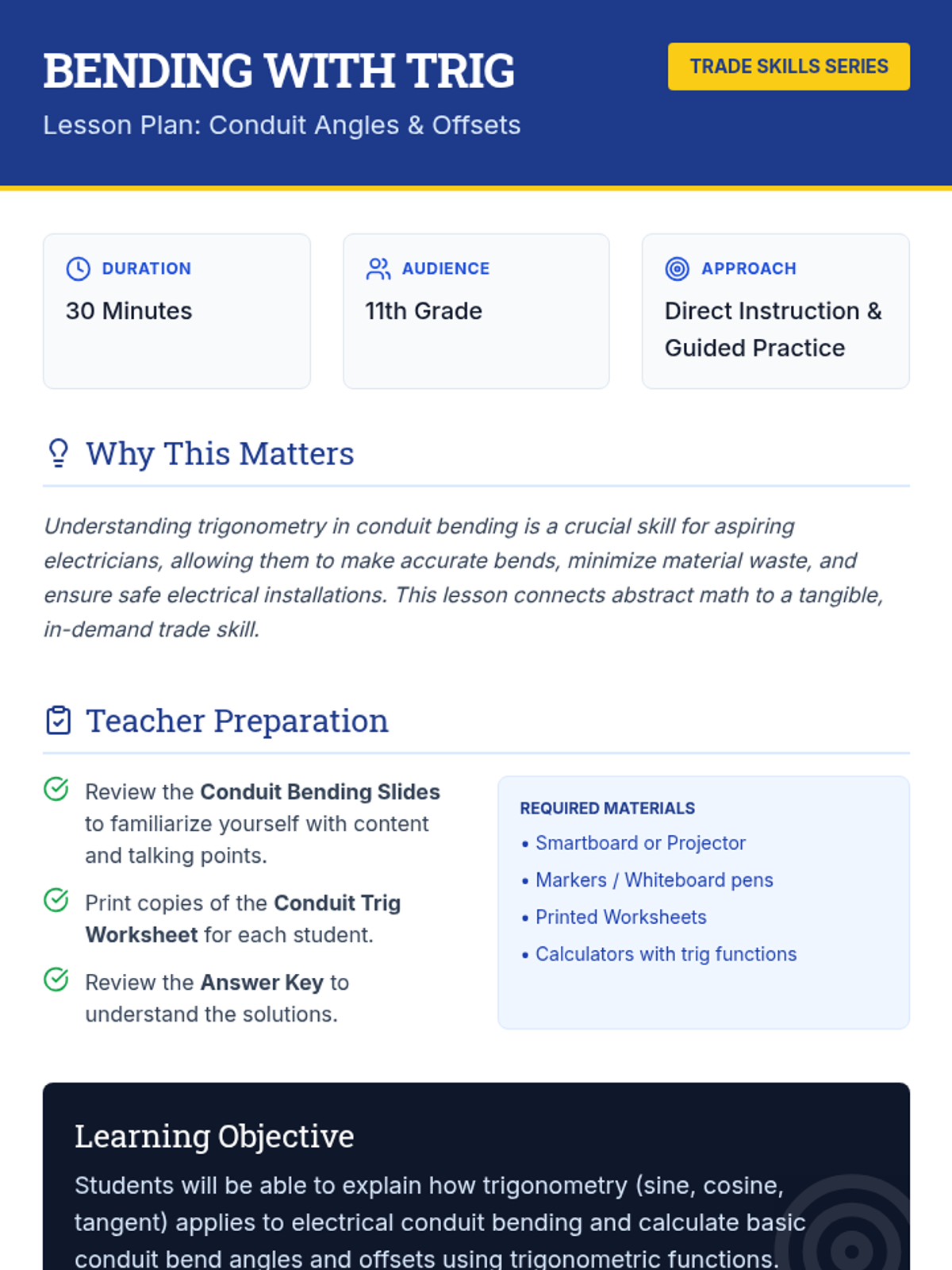

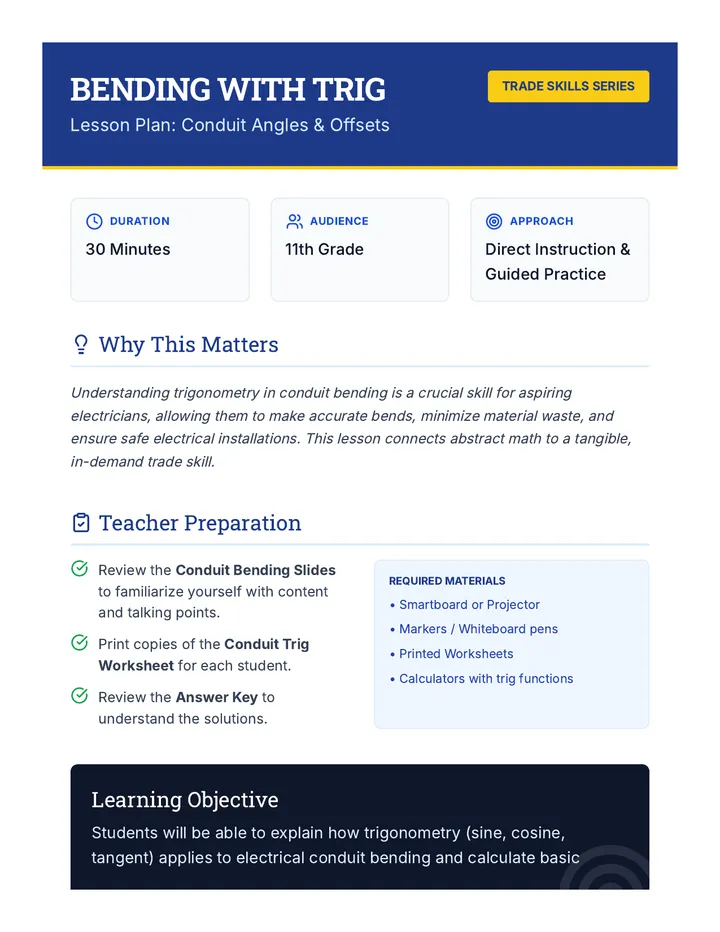

Bending with Trig Lesson Plan Bending with Trig
Lesson Plan: Conduit Angles & Offsets
Trade Skills Series
Duration
30 Minutes
Audience
11th Grade
Approach
Direct Instruction & Guided Practice
Why This Matters
Understanding trigonometry in conduit bending is a crucial skill for aspiring electricians, allowing them to make accurate bends, minimize material waste, and ensure safe electrical installations. This lesson connects abstract math to a tangible, in-demand trade skill.
Teacher Preparation
Review the Conduit Bending Slides to familiarize yourself with content and talking points.
Print copies of the Conduit Trig Worksheet for each student.
Review the Answer Key to understand the solutions.
Required Materials
• Smartboard or Projector
• Markers / Whiteboard pens
• Printed Worksheets
• Calculators with trig functions
Learning Objective
Students will be able to explain how trigonometry (sine, cosine, tangent) applies to electrical conduit bending and calculate basic conduit bend angles and offsets using trigonometric functions.
Instructional Sequence
1
5 MIN
Introduction & Hook: Why Trig Matters
Begin by asking students: "Have you ever seen electrical pipes or 'conduit' in buildings? They often have to bend around corners. How do you think electricians know exactly how much to bend them?" (Think-Pair-Share)
Introduce the concept: "Today, we're going to unlock the secret – it's all about trigonometry! We'll see how sine, cosine, and tangent help electricians make perfect bends."
2
10 MIN
Direct Instruction: Trig Basics & Conduit
Use the Conduit Bending Slides (Slides 1-4) to review basic sine, cosine, and tangent definitions (SOH CAH TOA).
Transition to conduit bending by explaining common bend types (e.g., 90-degree bends, offsets).
Introduce how right triangles are formed in offset bends and how trigonometric functions calculate the travel, offset, and take-up.
Show examples from the slides (Slides 5-7).
3
10 MIN
Guided Practice: Worksheet Walkthrough
Distribute the Conduit Trig Worksheet .
Work through the first problem or two as a class, guiding students on how to identify the right triangle, label sides, and apply the correct trigonometric function.
Encourage students to ask questions and discuss their approaches.
4
5 MIN
Independent Work & Wrap-up
Allow students to attempt remaining problems on the worksheet independently or in pairs.
Circulate the room to provide support and answer questions.
Conclude by reiterating the real-world importance of trigonometry in electrical work and how it ensures precision and safety.
Conduit Bending Slides Trade Math Series
Bending with Trig
Conduit Angles & Offsets
Ever wonder how electrical pipes bend perfectly around corners? Today, we'll discover the math behind it!
Right Triangles Review
01
The building blocks of our bends:
Right Angle Exactly 90 degrees
Hypotenuse The longest side, opposite the 90° angle
Opposite & Adjacent Defined by your focused angle (\(\theta\))
\(\theta\) Adjacent Opposite Hypotenuse
SOH CAH TOA
02
Your Trig Superpowers for the Jobsite
SOH
SINE
Opposite / Hypotenuse
CAH
COSINE
Adjacent / Hypotenuse
TOA
TANGENT
Opposite / Adjacent
Finding Angles
03
Sometimes we know the side measurements, but we need to find the bending angle (\(\theta\)).
sin⁻¹ (arcsin) Use when you know Opp & Hyp
cos⁻¹ (arccos) Use when you know Adj & Hyp
tan⁻¹ (arctan) Use when you know Opp & Adj
Calculators have these buttons!
Math Meets Metal
04
Offset Bends
Used to route conduit around obstructions like pipes, beams, or vents while keeping the conduit parallel to its original path.
Precision: Exact bends look professional.Safety: Prevents wire insulation damage.Efficiency: Less wasted material.
OBSTRUCTION CONDUIT OFFSET
The Offset Triangle
05
Adjacent OFFSET (Opposite) TRAVEL (Hypotenuse) \(\theta\)
1
Offset = Opposite Side
The vertical height needed to clear the obstacle.
2
Travel = Hypotenuse
The actual length of the angled piece of conduit.
3
Angle (\(\theta\))
The degree of bend set on your bending tool.
Example: Calculating Travel
06
The Mission:
You need an Offset of 4 inches. You decide to use a 30-degree bend.
Question: How much "Travel" do you need?
Step 1: Choose Function
sin(\(\theta\)) = Opp / Hyp

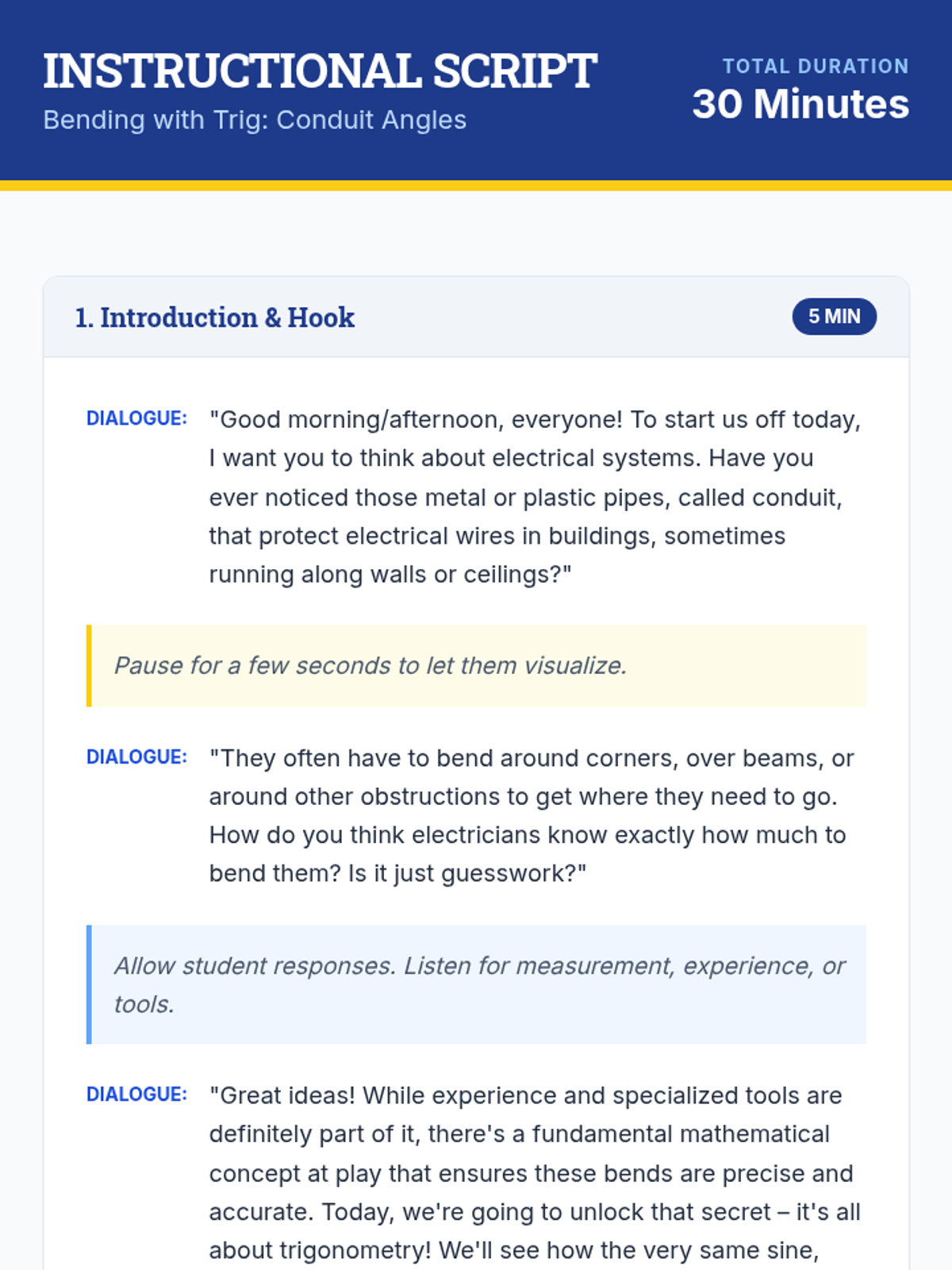

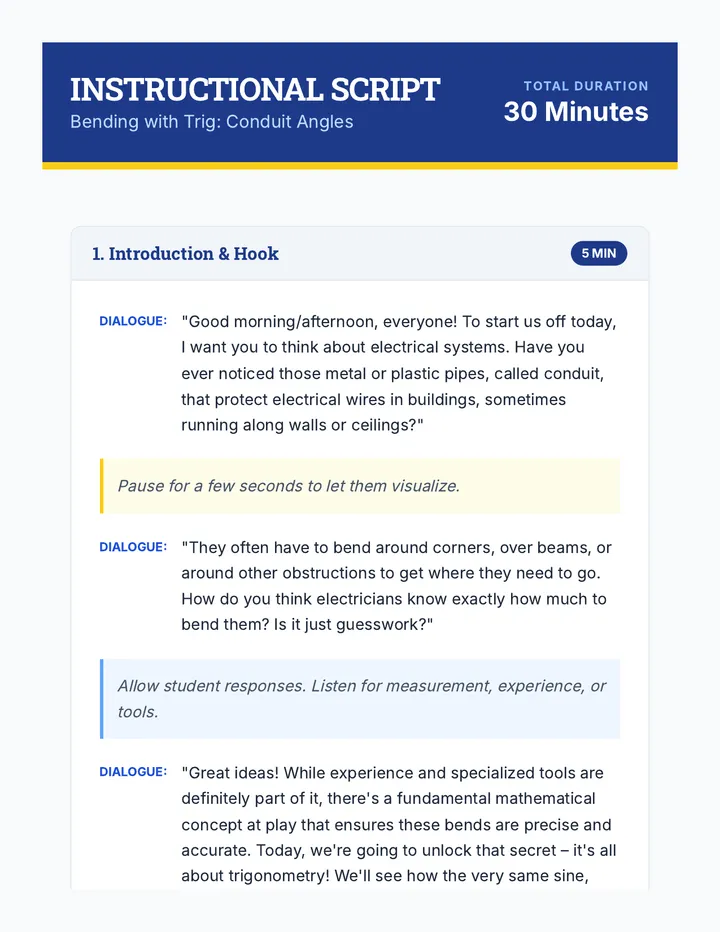

Conduit Bending Script Instructional Script
Bending with Trig: Conduit Angles
Total Duration 30 Minutes
1. Introduction & Hook
5 MIN
Dialogue:
"Good morning/afternoon, everyone! To start us off today, I want you to think about electrical systems. Have you ever noticed those metal or plastic pipes, called conduit, that protect electrical wires in buildings, sometimes running along walls or ceilings?"
Pause for a few seconds to let them visualize.
Dialogue:
"They often have to bend around corners, over beams, or around other obstructions to get where they need to go. How do you think electricians know exactly how much to bend them? Is it just guesswork?"
Allow student responses. Listen for measurement, experience, or tools.
Dialogue:
"Great ideas! While experience and specialized tools are definitely part of it, there's a fundamental mathematical concept at play that ensures these bends are precise and accurate. Today, we're going to unlock that secret – it's all about trigonometry! We'll see how the very same sine, cosine, and tangent you've been learning about help electricians make perfect bends and ensure safe, functional electrical installations."
2. Direct Instruction: Trig & Conduit
10 MIN
Slide 2: Right Triangles Review
"Let's do a quick review. Who can remind us what defines a right triangle?" (Wait for: 90-degree angle). "Exactly! And the hypotenuse is always...? (Wait for: the longest side/opposite 90°)."
Slide 3: SOH CAH TOA
"Now for our magic words: SOH CAH TOA. These mnemonics are your best friends on a jobsite. SOH? (Sine = Opp/Hyp). CAH? (Cos = Adj/Hyp). TOA? (Tan = Opp/Adj). Perfect."
Slide 5 & 6: Math Meets Metal
"So, why do electricians care? Look at this **Offset Bend**. When you need to clear an obstruction, you're literally creating a right triangle in the air. The vertical height you need to clear is the **Opposite** side (the Offset). The length of conduit in that angled section is the **Hypotenuse** (the Travel). If we know the angle we're bending, we can calculate everything else."
Slide 7: Example Calculation
"Let's walk through this. You need a 4-inch offset and you're using 30-degree bends. We have the Opposite side (4") and the Angle (30°). We need the Travel (Hypotenuse). Which function connects Opp and Hyp? (Sine!). sin(30°) = 0.5. So, 0.5 = 4 / Travel. Rearrange it: Travel = 4 / 0.5, which gives us 8 inches of conduit travel. Simple as that."
3. Guided & Independent Practice
15 MIN
"Now it's your turn to apply this! I'm handing out a **Conduit Trig Worksheet**. Let's look at Problem #1 together. We have a 22.5-degree angle and a 10-inch travel. We need the Offset. Again, Sine connects Opp and Hyp. sin(22.5°) is about 0.38. So, 0.38 times 10 inches gives us a 3.8-inch offset."

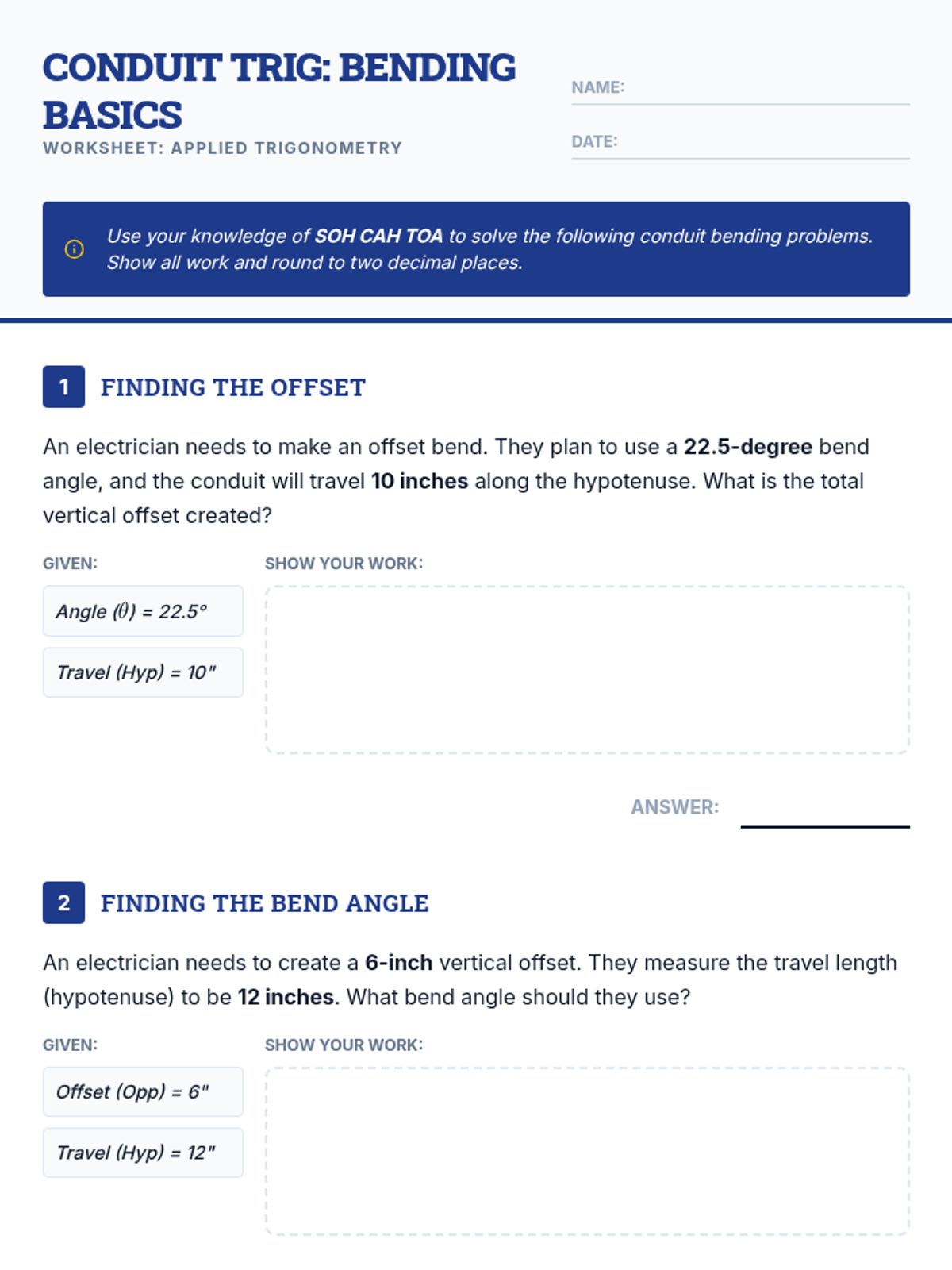

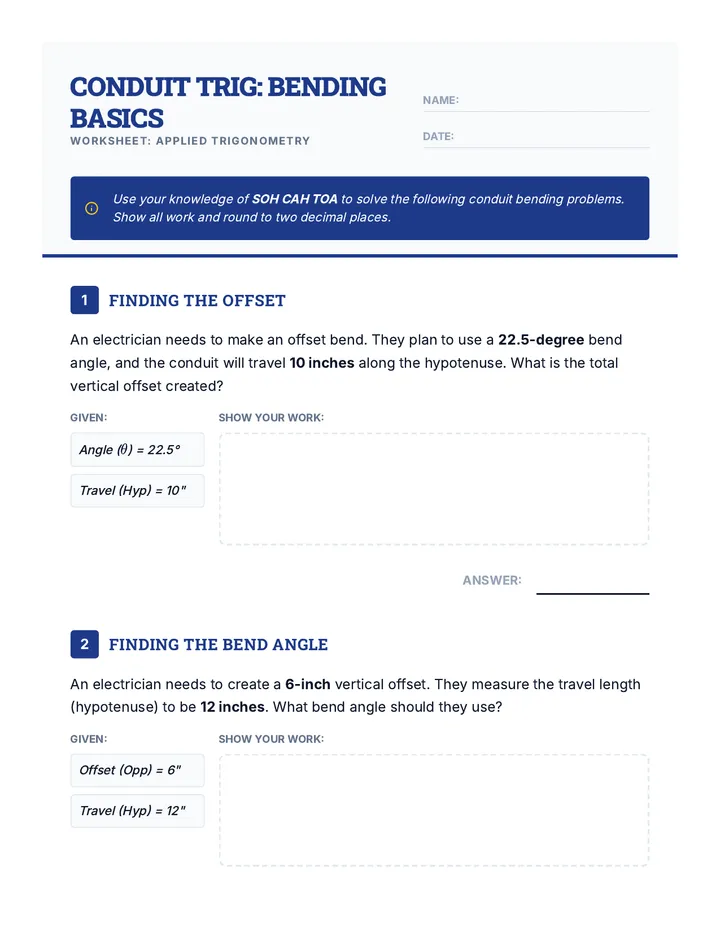

Conduit Trig Worksheet Conduit Trig: Bending Basics
Worksheet: Applied Trigonometry
Name:
Date:
Use your knowledge of SOH CAH TOA to solve the following conduit bending problems. Show all work and round to two decimal places.
1
Finding the Offset
An electrician needs to make an offset bend. They plan to use a 22.5-degree bend angle, and the conduit will travel 10 inches along the hypotenuse. What is the total vertical offset created?
Given:
Angle (\(\theta\)) = 22.5°
Travel (Hyp) = 10"
Show Your Work:
Answer:
2
Finding the Bend Angle
An electrician needs to create a 6-inch vertical offset. They measure the travel length (hypotenuse) to be 12 inches . What bend angle should they use?
Given:
Offset (Opp) = 6"
Travel (Hyp) = 12"
Show Your Work:
Answer:
3
Finding the Travel
An obstruction requires an offset of 3.5 inches . If the electrician wants to use 15-degree bends, what is the travel length needed for each bend?
Given:
Offset (Opp) = 3.5"
Angle (\(\theta\)) = 15°
Show Your Work:
Answer:
4
Complex Calculation (Challenge)
An electrician needs a total offset of 8 inches. They use two 30-degree bends. Calculate the Adjacent distance (distance between the start and end marks along the straight run) for a single 30-degree bend that creates half of that offset (4 inches ).
Given:
Offset (Opp) = 4"
Angle (\(\theta\)) = 30°
Show Your Work:
Answer:

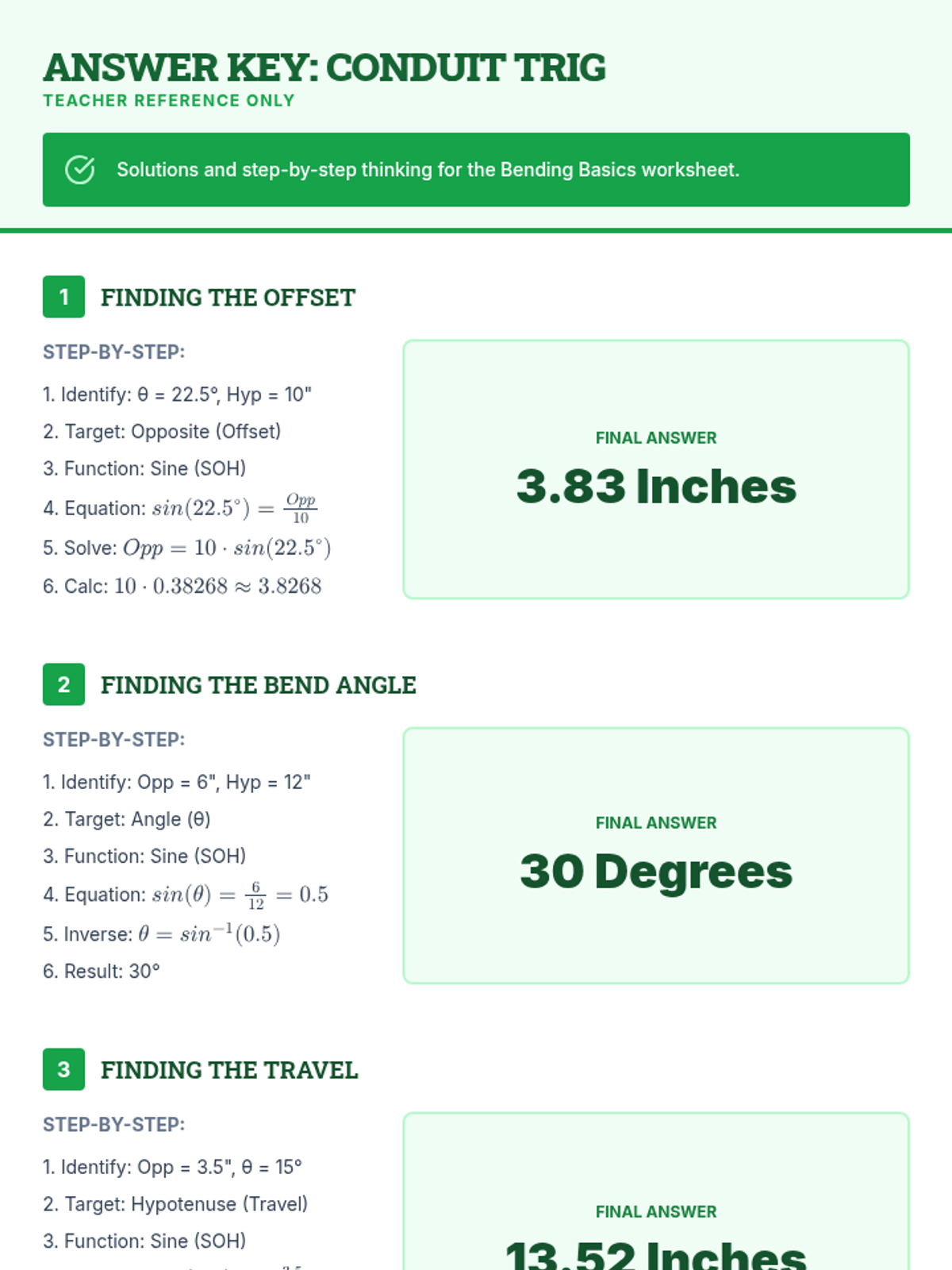

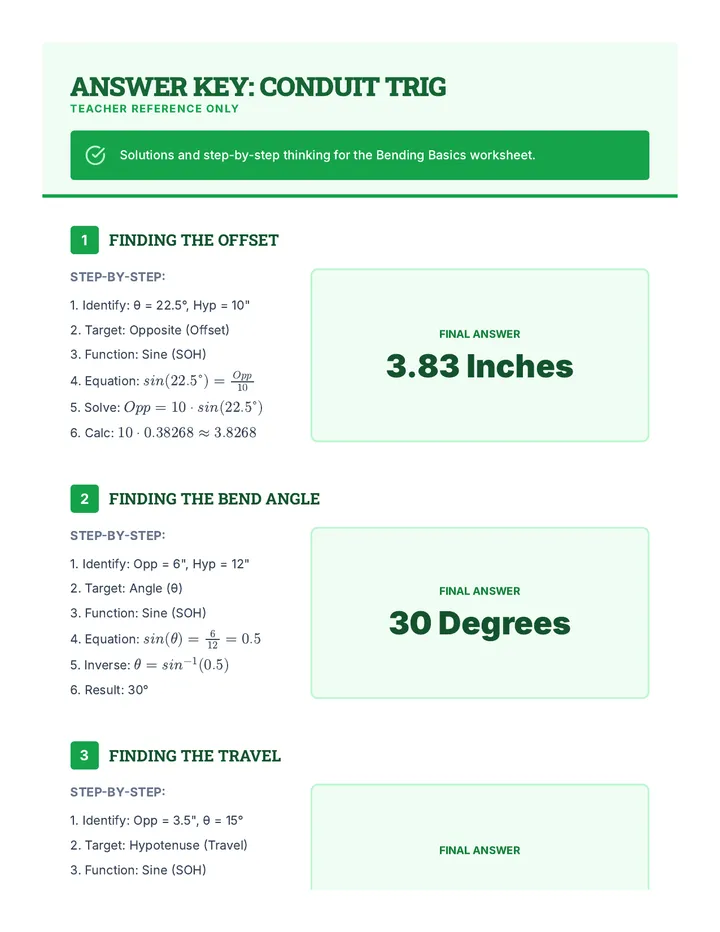

Conduit Trig Worksheet Answer Key Answer Key: Conduit Trig
Teacher Reference Only
Solutions and step-by-step thinking for the Bending Basics worksheet.
1
Finding the Offset
Step-by-Step:
1. Identify: θ = 22.5°, Hyp = 10"
2. Target: Opposite (Offset)
3. Function: Sine (SOH)
4. Equation: \(sin(22.5^\circ) = \frac{Opp}{10}\)
5. Solve: \(Opp = 10 \cdot sin(22.5^\circ)\)
6. Calc: \(10 \cdot 0.38268 \approx 3.8268\)
Final Answer 3.83 Inches
2
Finding the Bend Angle
Step-by-Step:
1. Identify: Opp = 6", Hyp = 12"
2. Target: Angle (θ)
3. Function: Sine (SOH)
4. Equation: \(sin(\theta) = \frac{6}{12} = 0.5\)
5. Inverse: \(\theta = sin^{-1}(0.5)\)
6. Result: 30°
Final Answer 30 Degrees
3
Finding the Travel
Step-by-Step:
1. Identify: Opp = 3.5", θ = 15°
2. Target: Hypotenuse (Travel)
3. Function: Sine (SOH)
4. Equation: \(sin(15^\circ) = \frac{3.5}{Travel}\)
5. Solve: \(Travel = \frac{3.5}{sin(15^\circ)}\)
6. Calc: \(\frac{3.5}{0.25882} \approx 13.5229\)
Final Answer 13.52 Inches
4
Challenge: Adjacent Distance
Step-by-Step:
1. Identify: Opp = 4", θ = 30°
2. Target: Adjacent
3. Function: Tangent (TOA)
4. Equation: \(tan(30^\circ) = \frac{4}{Adj}\)
5. Solve: \(Adj = \frac{4}{tan(30^\circ)}\)
6. Calc: \(\frac{4}{0.57735} \approx 6.9282\)
Final Answer 6.93 Inches
