The Great Shift Slides The Great Shift
From Flat Symbols to Living Worlds
Which is more "Real"?
[Medieval Style: Flat, Gold, Symbolic]
Style A
[Renaissance Style: Deep, Natural, Realistic]
Style B
Which one looks more like the world outside your window? Why?
The Middle Ages (500–1400)
Flatness: No attempt to create depth or 3D space.Symbolic Color: Gold backgrounds represent heaven, not the real sky.Hierarchical Scale: Most important people are drawn much larger.
[Example: Cimabue's Madonna Enthroned]
The Rebirth (1400–1600)
[Example: Raphael's School of Athens]
Linear Perspective: Using math to create an illusion of depth.Naturalism: Detailed landscapes and realistic human bodies.Humanism: Focus on human experience, history, and classical ideas.
The Power of Humanism
"Man is the measure of all things."
— Protagoras (Revived in the Renaissance)
Art stopped being just about heaven and started being about us —our world, our bodies, and our knowledge.
Art Comparison Worksheet Comparing Eras
Medieval vs. Renaissance Art
Name:
Date:
Part 1: Observation
Look closely at the two images provided in the slides. For each era, list three specific visual details you notice about the depth , the people , and the background .
Medieval Period
Renaissance Period
Part 2: Categorizing the Shift
Medieval Art
Renaissance Art
BOTH
Linear Perspective Religious Subjects Gold Leaf Backgrounds Human Emotions Natural Landscapes Flat Characters Used Paint
Part 3: Critical Thinking
1. Defining Humanism: How does Renaissance art show that people were starting to value observation and the real world more than purely symbolic ideas?
2. The Transition: If you were a person living in 1450, how might seeing a painting with 3D depth for the first time change how you view your world?
Shift Facilitation Guide Facilitator Guide
Lesson 1: The Great Shift
Pacing
50 min
Lesson Objective
Students will identify and explain three major stylistic differences between Medieval and Renaissance art, connecting these changes to the emergence of Humanism .
Key Vocabulary
Humanism: Focus on human potential and achievements.
Naturalism: Detailed portrayal of the physical world.
Linear Perspective: Math-based depth in art.
Hierarchical Scale: Sizing people by importance.
Materials Needed
Style Shift Slides
Comparison Worksheet
Projector/Screen
Instructional Sequence
05
min
The Hook: Visual Intuition
Display Slide 2. Ask students: "If you had to walk into one of these paintings, which one feels more possible?" Let students debate without teaching terms yet. This builds intrinsic curiosity about why Style B works better.
15
min
Direct Instruction: Defining Eras
Use Slides 3 and 4. Emphasize that Medieval art wasn't "bad"—it was "symbolic." It was meant to point to God, not the earth. Renaissance art shifted to "Naturalism" because people began to study the world scientifically.
Teacher Tip: Mention that "Perspective" comes from the Latin perspicere , meaning "to see through."
20
min
Guided Practice: Worksheet & Analysis
Students work on Part 1 & 2 of the Comparison Worksheet. Walk around and prompt students to find specific evidence (e.g., "Look at the floor tiles in the Renaissance painting—how are they drawn compared to the Medieval floor?").
10
min
Debrief: Humanism Connection
Discuss Part 3 as a class. Transition to the idea that Perspective isn't just an art trick—it's a mathematical discovery. This sets up Lesson 2: The Math of Perspective.
Common Misconceptions
X Misconception:
Medieval artists didn't know how to draw and were just "bad" at art.
✓ Correction:
Medieval artists prioritized spiritual meaning over realism. They purposefully made figures flat to represent holy figures as being beyond our world.
Vanishing Point Logic Slides Workshop Phase
Vanishing Point Logic
The Geometry of Deep Space
The Depth Dilemma
How do you make a flat piece of paper look like a deep hallway?
"Before 1415, we didn't have a reliable rule for this. Artists just guessed."
[Activity: Try to draw a depth box in 30 seconds!]
The Architect's Discovery
Filippo Brunelleschi (1377–1446) used mirrors and math to prove that parallel lines seem to meet at a single point in the distance.
The Rule:
All lines traveling away from you must point to the same dot.
[Brunelleschi's Florence Experiment]
The Perspective Toolkit
Horizon Line
The line where the sky meets the earth. It is always at your eye level.
Vanishing Point
The single dot on the horizon line where all parallel lines converge (meet).
Orthogonals
Diagonal lines that connect objects to the vanishing point.
Step-by-Step Logic
1
Draw Horizon
2
Place V.P. Dot
3
Draw Front Face
4
Connect Corners
Ready to use your rulers? Let's build some space.

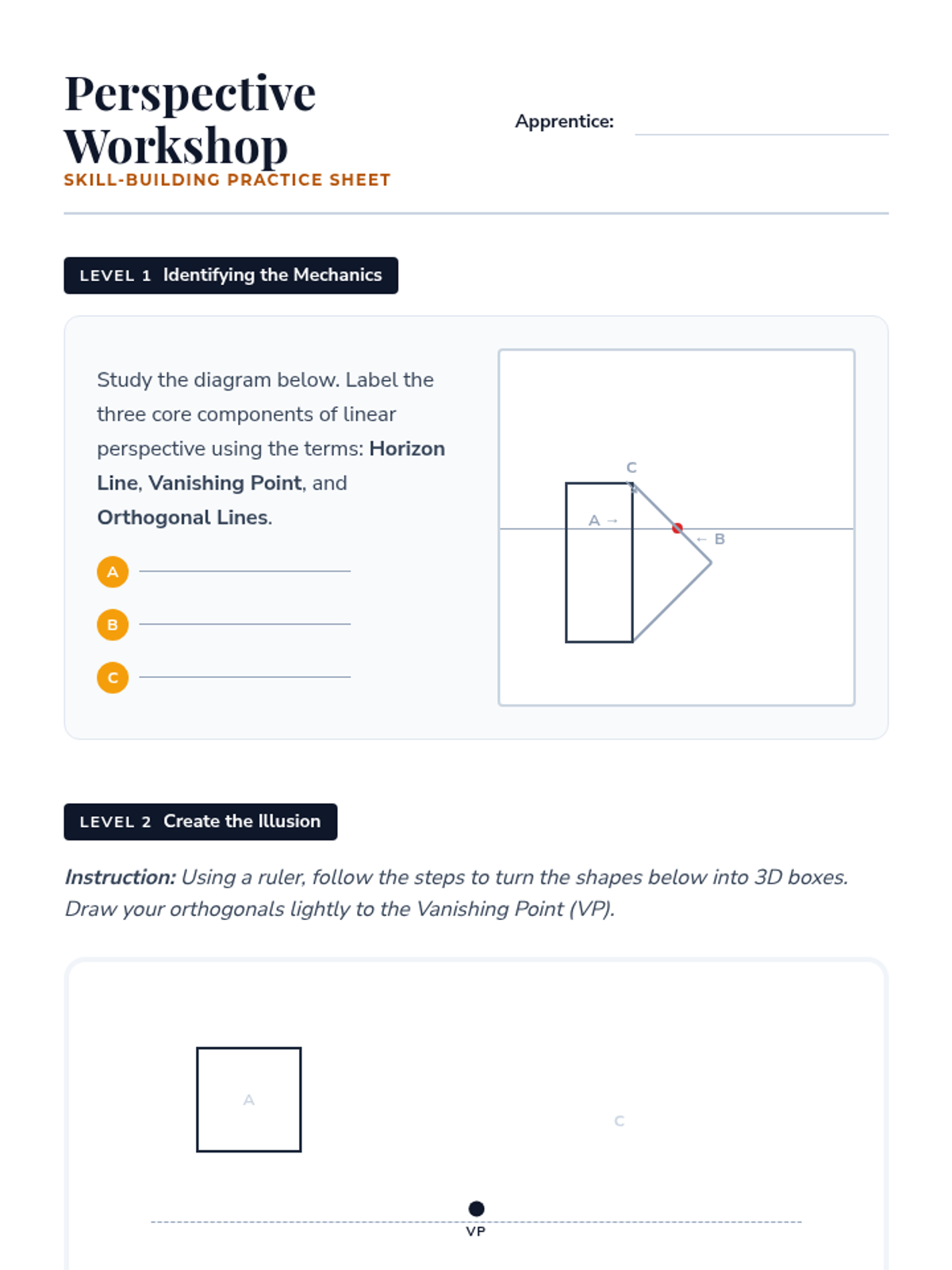

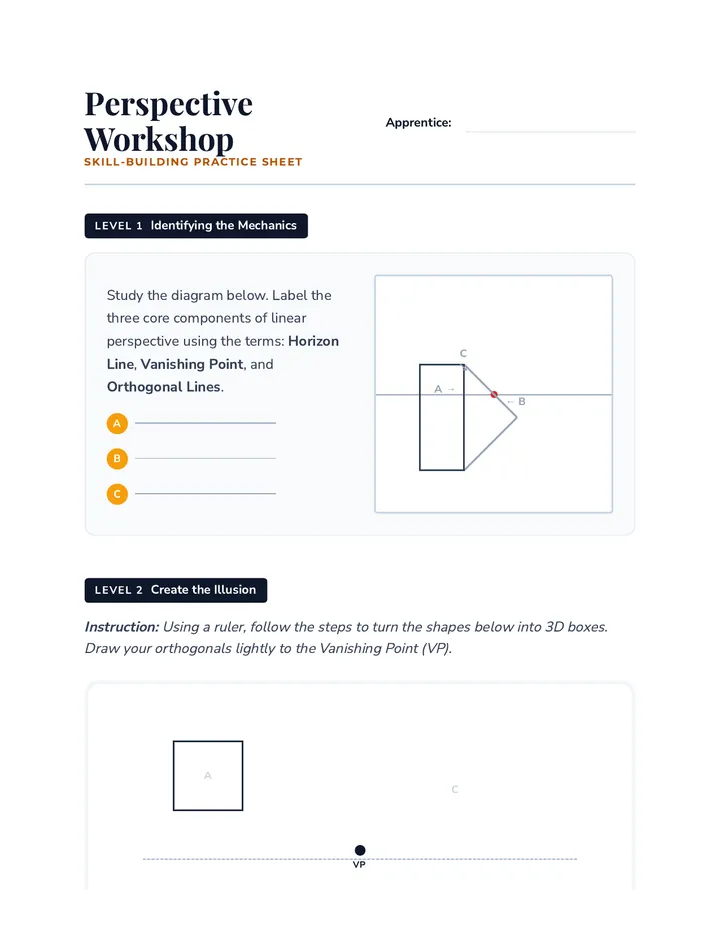

Perspective Practice Sheet Perspective Workshop
Skill-Building Practice Sheet
Apprentice:
Level 1
Identifying the Mechanics
Study the diagram below. Label the three core components of linear perspective using the terms: Horizon Line , Vanishing Point , and Orthogonal Lines .
A
B
C
A →
← B
C
Level 2
Create the Illusion
Instruction: Using a ruler, follow the steps to turn the shapes below into 3D boxes. Draw your orthogonals lightly to the Vanishing Point (VP).
VP
A
B
C
Remember: All diagonal lines must touch the VP dot!
Workshop Reflection
Why is it important to draw your orthogonals lightly with a pencil?

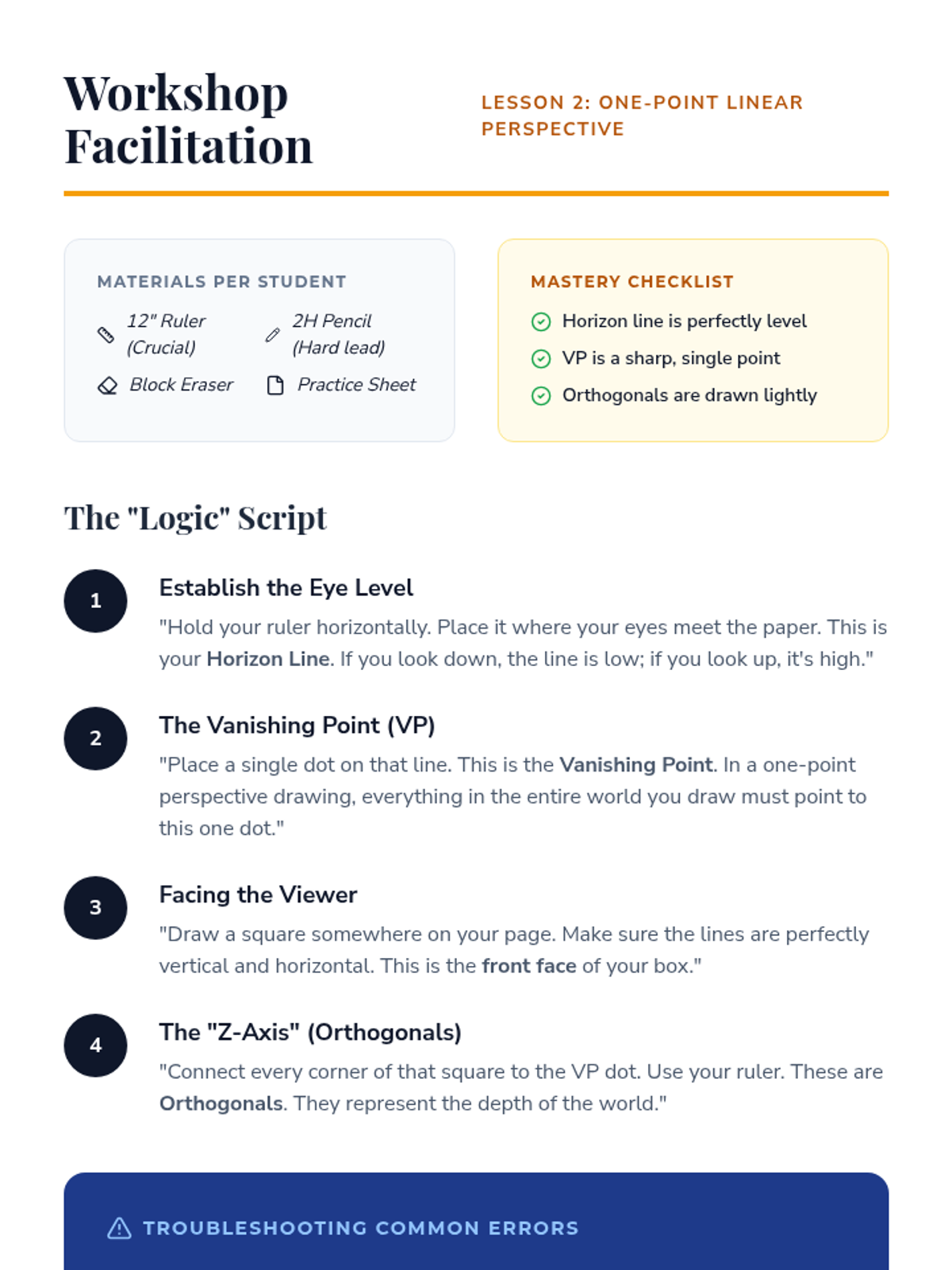

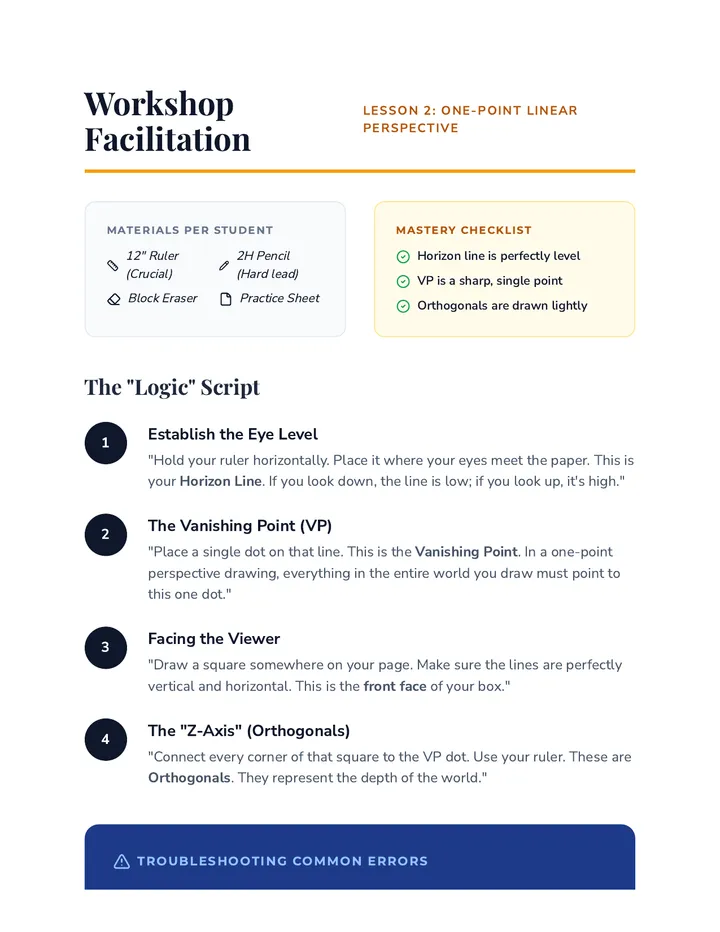

Technique Teacher Guide Workshop Facilitation
Lesson 2: One-Point Linear Perspective
Materials per Student
12" Ruler (Crucial)
2H Pencil (Hard lead)
Block Eraser
Practice Sheet
Mastery Checklist
Horizon line is perfectly level
VP is a sharp, single point
Orthogonals are drawn lightly
The "Logic" Script
1
Establish the Eye Level
"Hold your ruler horizontally. Place it where your eyes meet the paper. This is your Horizon Line . If you look down, the line is low; if you look up, it's high."
2
The Vanishing Point (VP)
"Place a single dot on that line. This is the Vanishing Point . In a one-point perspective drawing, everything in the entire world you draw must point to this one dot."
3
Facing the Viewer
"Draw a square somewhere on your page. Make sure the lines are perfectly vertical and horizontal. This is the front face of your box."
4
The "Z-Axis" (Orthogonals)
"Connect every corner of that square to the VP dot. Use your ruler. These are Orthogonals . They represent the depth of the world."
Troubleshooting Common Errors
The "Broken Ruler" Syndrome
Students often free-hand the orthogonals. Remedy: Insist that pencil never touches paper without the ruler guide for Level 2.
The "Ghost Corners" Error
Students forget to connect corners that are 'inside' the shape. Remedy: Teach them to 'trace the path' mentally from corner to VP.
Part 1 Answer Key
A: Orthogonal Lines B: Vanishing Point C: Horizon Line
Anatomy of Realism Slides Anatomy of Realism
Science Meets the Canvas
Beyond the Surface
Renaissance artists weren't satisfied with drawing a human figure that looked like a person. They wanted to know why it looked that way.
"To draw the skin, you must understand the muscles. To draw the muscles, you must understand the bone."
[Visual: Leonardo's Skeletal Sketches]
Leonardo: The Artist-Scientist
A
Dissection: Leonardo dissected over 30 human bodies to study organs and muscles.
B
The Vitruvian Man: A study of ideal human proportions based on geometry.
C
Mirror Writing: He kept secret notebooks of his anatomical findings.
[Image: Vitruvian Man]
Michelangelo: Strength in Stone
[Visual: Detail of David's Hands/Veins]
Michelangelo focused on terribilità —emotional intensity shown through muscular tension.
Exaggerated muscles to show power.
Twisted poses (contrapposto) that show motion.
Are YOU Proportionate?
Leonardo claimed that your height is exactly equal to your arm span .
Measure
Calculate
Confirm
Let's test the Renaissance Master's theory.

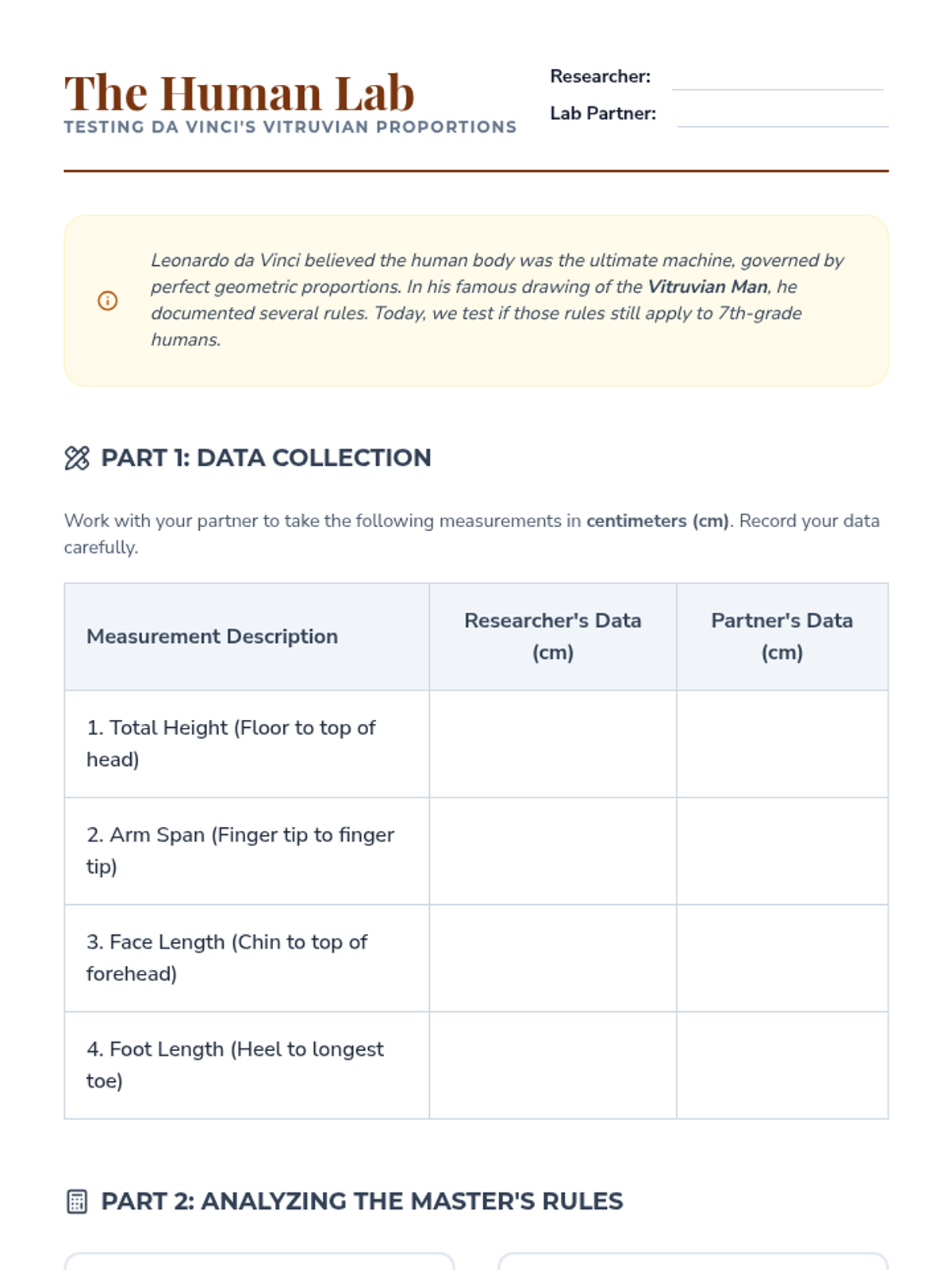

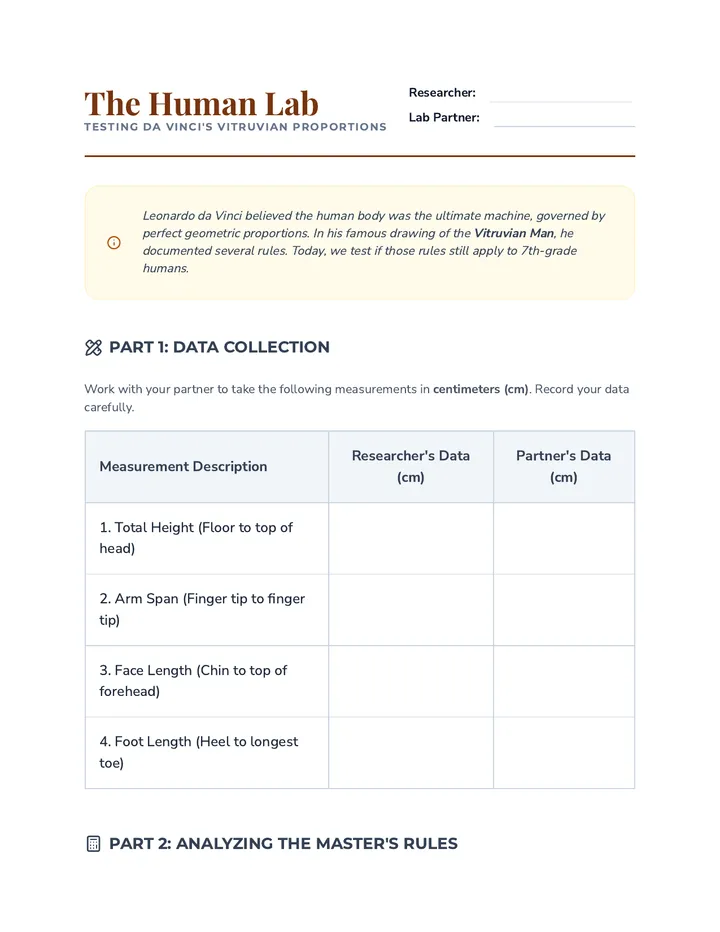

Proportions Lab Sheet The Human Lab
Testing Da Vinci's Vitruvian Proportions
Researcher:
Lab Partner:
Leonardo da Vinci believed the human body was the ultimate machine, governed by perfect geometric proportions. In his famous drawing of the Vitruvian Man , he documented several rules. Today, we test if those rules still apply to 7th-grade humans.
Part 1: Data Collection
Work with your partner to take the following measurements in centimeters (cm) . Record your data carefully.
Measurement Description Researcher's Data (cm) Partner's Data (cm) 1. Total Height (Floor to top of head) 2. Arm Span (Finger tip to finger tip) 3. Face Length (Chin to top of forehead) 4. Foot Length (Heel to longest toe)
Part 2: Analyzing the Master's Rules
Da Vinci's Rule #1
"The span of a man's outstretched arms is equal to his height."
Your Span: ____ cm Your Height: ____ cm
Result:
Perfect Match
Close (+/- 2cm)
No Match
Da Vinci's Rule #2
"The length of a foot is one-sixth of the height."
Foot x 6: ____ cm Your Height: ____ cm
Result:
Perfect Match
Close (+/- 5cm)
No Match
Part 3: Synthesis Question
Based on your lab results, do you think Renaissance artists were trying to draw average people or idealized versions of people? Use your data to support your answer.

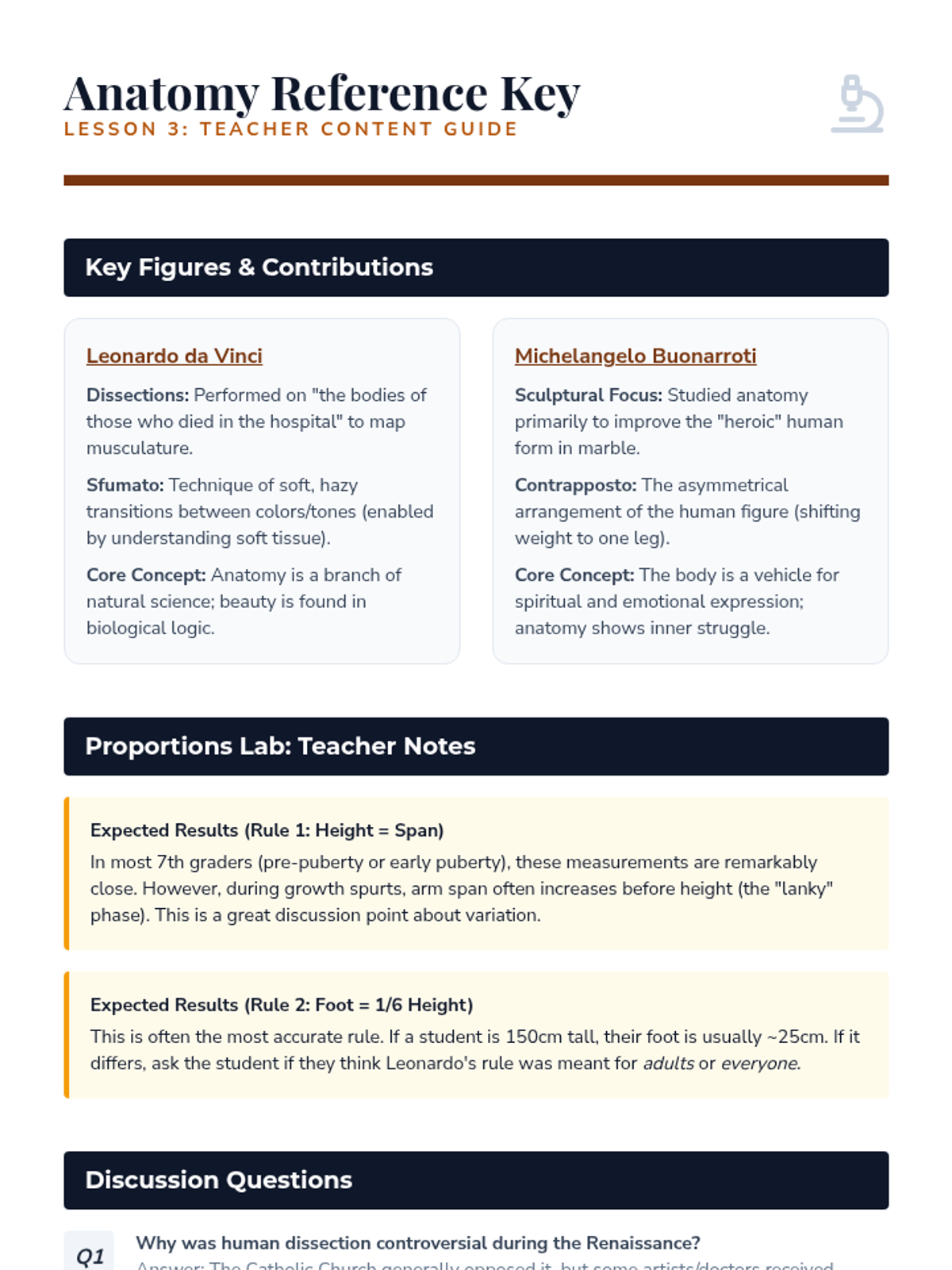

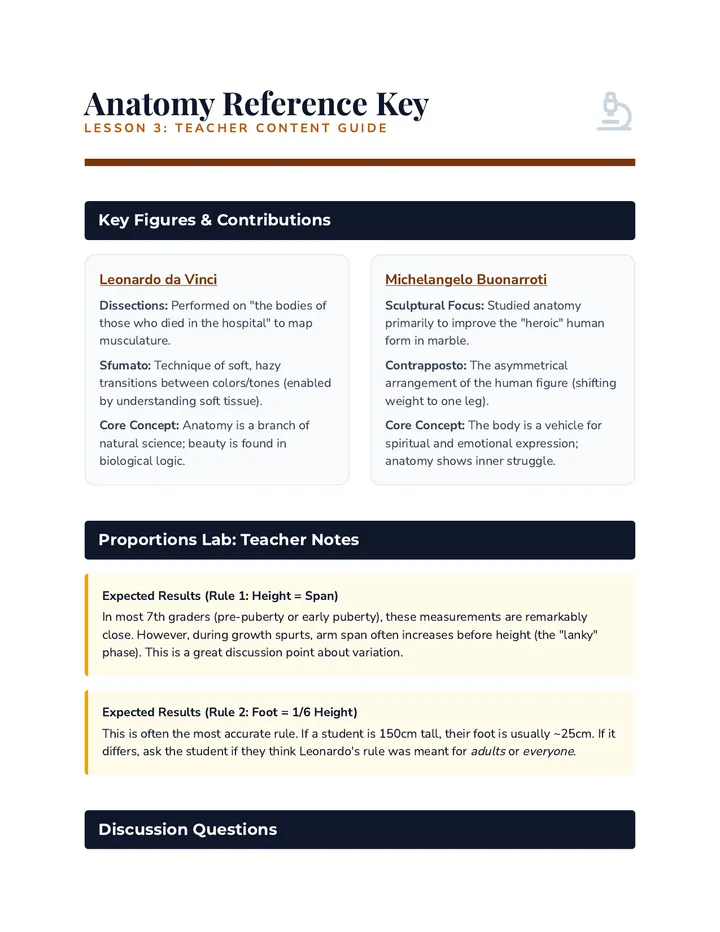

Anatomy Reference Key Anatomy Reference Key
Lesson 3: Teacher Content Guide
Key Figures & Contributions
Leonardo da Vinci
Dissections: Performed on "the bodies of those who died in the hospital" to map musculature.Sfumato: Technique of soft, hazy transitions between colors/tones (enabled by understanding soft tissue).Core Concept: Anatomy is a branch of natural science; beauty is found in biological logic.
Michelangelo Buonarroti
Sculptural Focus: Studied anatomy primarily to improve the "heroic" human form in marble.Contrapposto: The asymmetrical arrangement of the human figure (shifting weight to one leg).Core Concept: The body is a vehicle for spiritual and emotional expression; anatomy shows inner struggle.
Proportions Lab: Teacher Notes
Expected Results (Rule 1: Height = Span)
In most 7th graders (pre-puberty or early puberty), these measurements are remarkably close. However, during growth spurts, arm span often increases before height (the "lanky" phase). This is a great discussion point about variation.
Expected Results (Rule 2: Foot = 1/6 Height)
This is often the most accurate rule. If a student is 150cm tall, their foot is usually ~25cm. If it differs, ask the student if they think Leonardo's rule was meant for adults or everyone .
Discussion Questions
Q1
Why was human dissection controversial during the Renaissance?
Q2
How does studying anatomy connect to "Humanism"?
Misconception Alert
Students often think "Anatomy" just means "drawing muscles." Remind them that for Renaissance artists, it also meant understanding facial expressions (nerves/muscles of the face) and gestures (how tendons move hands).
Athens Deep Dive Slides Athens Deep Dive
Decoding Raphael’s Ultimate Masterpiece
The Stanza della Segnatura
[Image: Full Fresco of School of Athens]
Vatican City, Rome
Painted by Raphael (1509–1511). It represents the greatest thinkers of Ancient Greece—all meeting together in one fictional, massive room.
It is the "perfect" example of Renaissance perspective, anatomy, and humanism.
The Vanishing Point Strategy
Raphael used perspective to tell us who is the most important person in the room.
The Vanishing Point sits exactly between Plato and Aristotle .
The architecture (arches) frames them like a halo.
[Diagram: Perspective lines converging on the central figures]
A "Who's Who" of Antiquity
Plato (Points up)
Plato
Pointing to the heavens. He represents abstract ideas and the spiritual world.
Aristotle (Points down)
Aristotle
Pointing to the earth. He represents science and the physical world.
Raphael (The Artist)
The Cameo
Raphael painted himself looking at you . He is signaling that artists are also great thinkers!
The Athens Hunt
You have 20 minutes to find the hidden secrets inside the fresco. Use your analysis sheet to guide your eyes.
Start Your Analysis

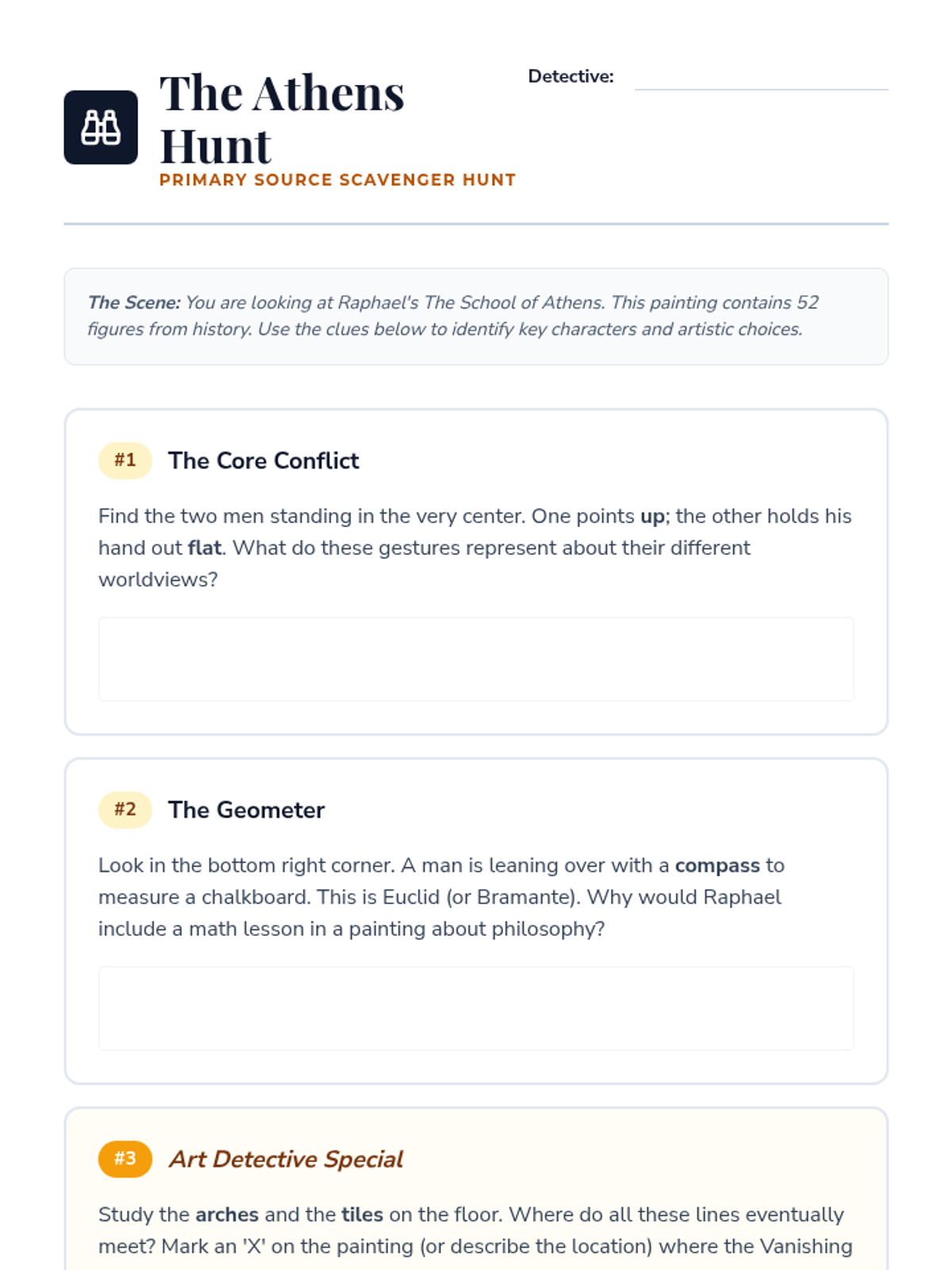

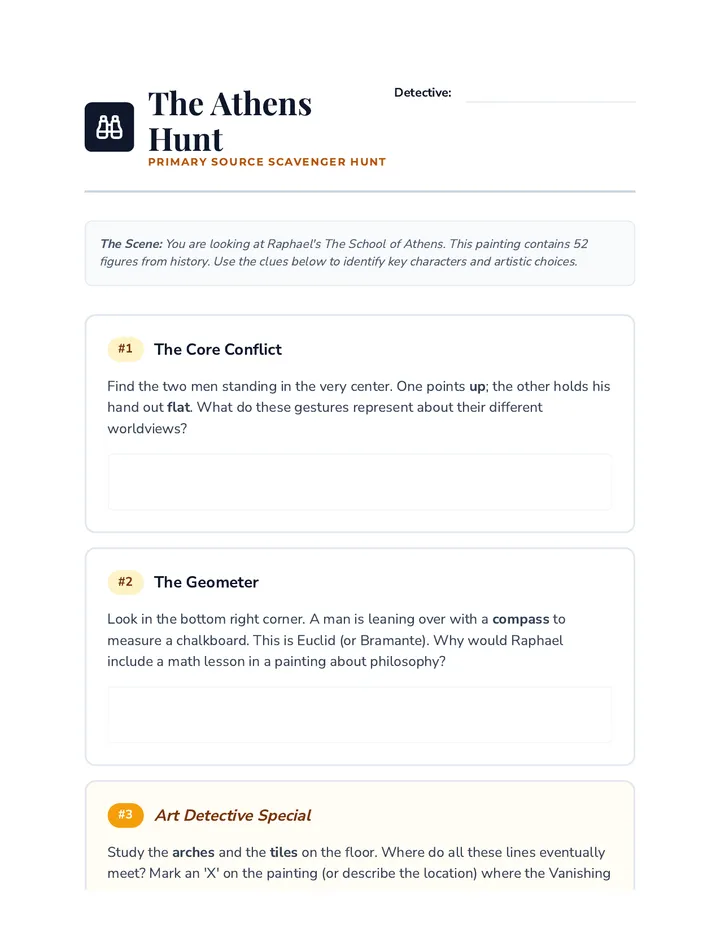

Masterpiece Scavenger Hunt The Athens Hunt
Primary Source Scavenger Hunt
Detective:
The Scene: You are looking at Raphael's The School of Athens . This painting contains 52 figures from history. Use the clues below to identify key characters and artistic choices.
#1
The Core Conflict
Find the two men standing in the very center. One points up ; the other holds his hand out flat . What do these gestures represent about their different worldviews?
#2
The Geometer
Look in the bottom right corner. A man is leaning over with a compass to measure a chalkboard. This is Euclid (or Bramante). Why would Raphael include a math lesson in a painting about philosophy?
#3
Art Detective Special
Study the arches and the tiles on the floor. Where do all these lines eventually meet? Mark an 'X' on the painting (or describe the location) where the Vanishing Point is located.
#4
The Hidden Face
In the far right corner, look for a man in a black hat looking directly out at you (the viewer). This is Raphael himself. How does "breaking the fourth wall" show Renaissance confidence?
Final Analysis
Raphael painted this in the Pope's private library. Why would a religious leader want a painting filled with non-Christian Greek philosophers?

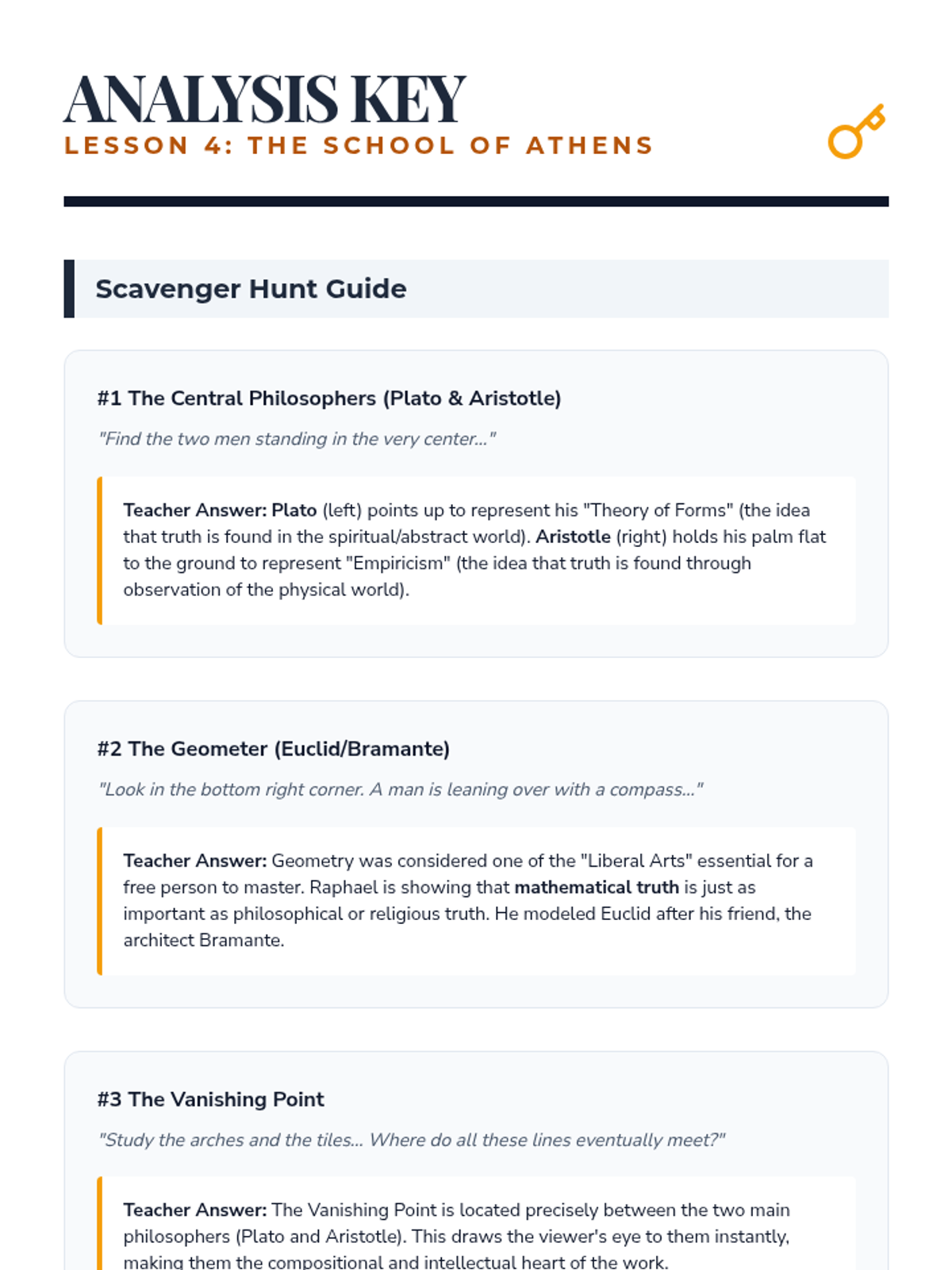

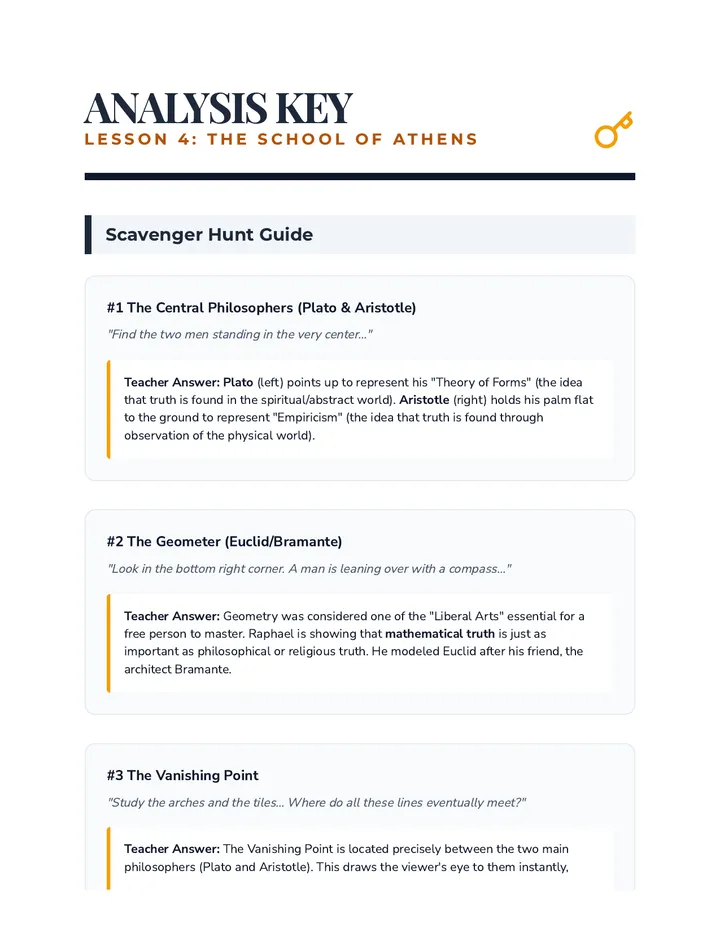

Athens Identification Key Analysis Key
Lesson 4: The School of Athens
Scavenger Hunt Guide
#1 The Central Philosophers (Plato & Aristotle)
"Find the two men standing in the very center..."
Teacher Answer: Plato (left) points up to represent his "Theory of Forms" (the idea that truth is found in the spiritual/abstract world). Aristotle (right) holds his palm flat to the ground to represent "Empiricism" (the idea that truth is found through observation of the physical world).
#2 The Geometer (Euclid/Bramante)
"Look in the bottom right corner. A man is leaning over with a compass..."
Teacher Answer: Geometry was considered one of the "Liberal Arts" essential for a free person to master. Raphael is showing that mathematical truth is just as important as philosophical or religious truth. He modeled Euclid after his friend, the architect Bramante.
#3 The Vanishing Point
"Study the arches and the tiles... Where do all these lines eventually meet?"
Teacher Answer: The Vanishing Point is located precisely between the two main philosophers (Plato and Aristotle). This draws the viewer's eye to them instantly, making them the compositional and intellectual heart of the work.
#4 The Artist Cameo
"Find a man in a black hat looking directly out at you..."
Teacher Answer: By painting himself among the greatest minds in history, Raphael is asserting that artists are intellectuals , not just craftsmen. This reflects the Renaissance shift in the social status of creators.
The Ultimate Paradox
"Why would the Pope want a painting of non-Christians in the Vatican?"
Discussion Strategy: Guide students toward Humanism . The Renaissance Church believed that classical reason and Christian faith could work together. By honoring the Greeks, the Pope was showing that the Church was the protector of all human knowledge, both ancient and new.
Masterpiece Workshop Slides The Guild Master's Call
The Apprentice Challenge
Creating Your Perspective Masterpiece
Your Final Commission
You must produce a one-point perspective drawing that proves you have mastered the techniques of the Renaissance.
Prompt:
"Design a grand architectural space—a library, a city street, or a temple—where people are gathered to learn."
Requirements:
Clear Horizon & V.P.
At least 5 Orthogonal structures
Human figures with correct proportions
An Artist Statement
The Master's Workflow
01
The Blueprint
Sketch your horizon line and vanishing point. This is the skeleton of your world.
02
The Flesh
Add your buildings and tiled floors. Erase your light guide lines (orthogonals) once the shapes are solid.
03
The Soul
Add human figures. Remember: people in the distance must be smaller than people in the front!
Explaining Your Vision
A true Renaissance Master must be able to write as well as they paint. Your Artist Statement is where you explain:
How did you use math?
Describe your vanishing point strategy.
Where is the Humanism?
What are the people in your drawing doing or learning?
The Master's Rubric
Criteria Apprentice (Needs Work) Master (Target) Perspective Lines are shaky or don't meet at V.P. All orthogonals hit the V.P. perfectly. Proportion People look "flat" or are same size. Figures follow Da Vinci's size rules. Humanism Space is empty or lacks meaning. Work celebrates learning and order.

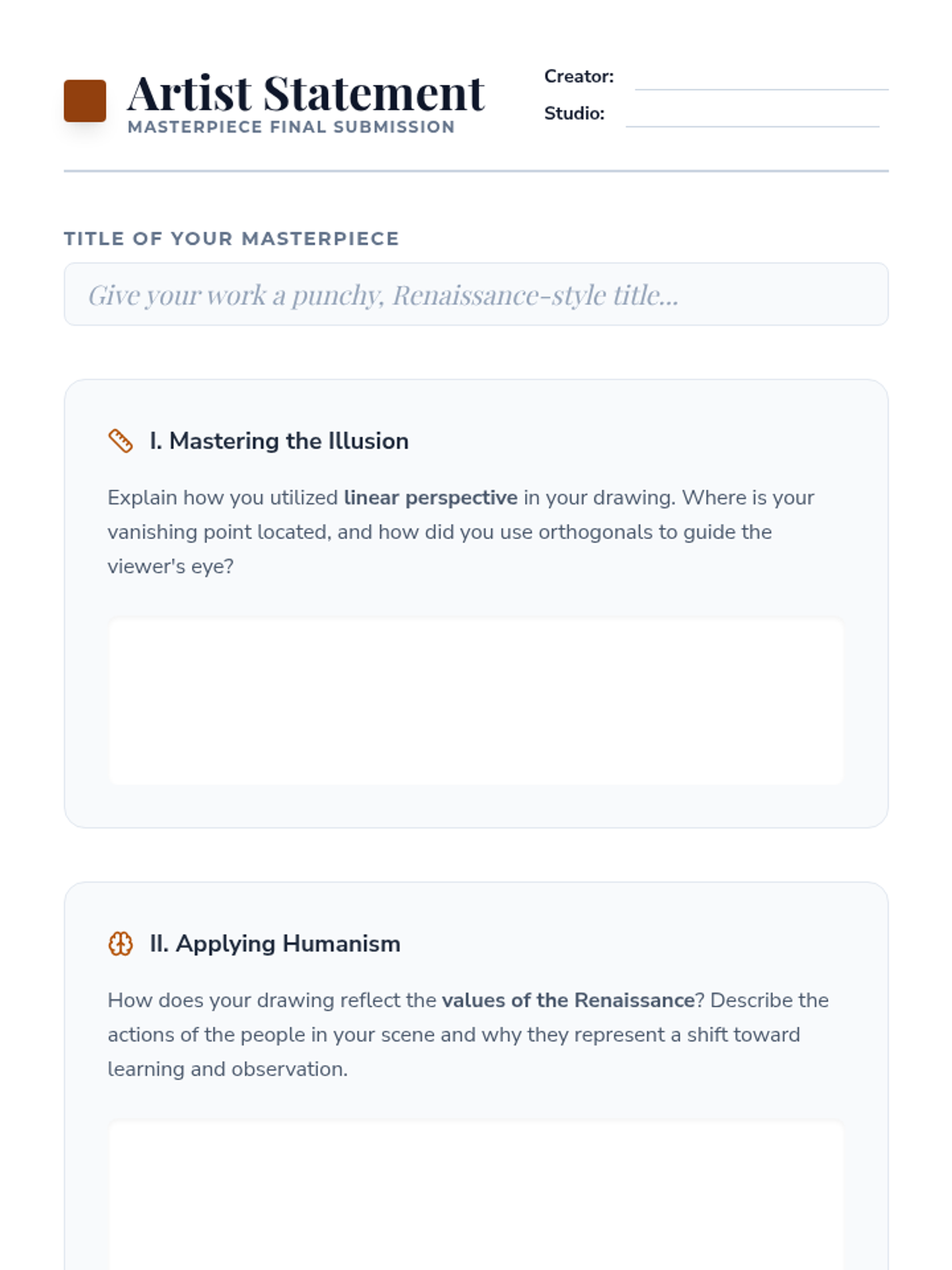

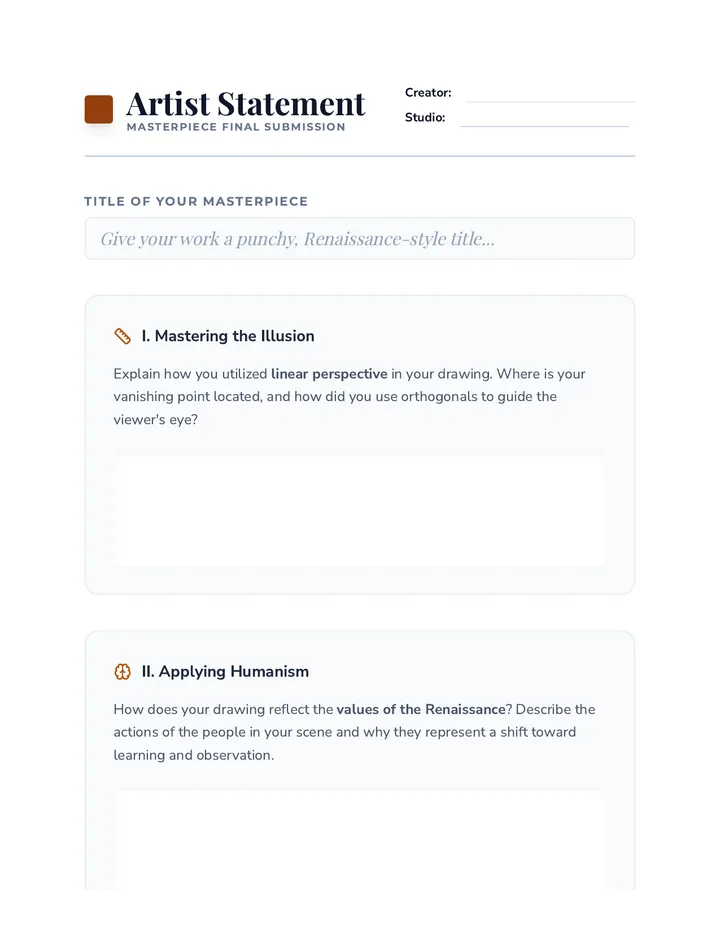

Artist Statement Template Artist Statement
Masterpiece Final Submission
Creator:
Studio:
Title of Your Masterpiece
Give your work a punchy, Renaissance-style title...
I. Mastering the Illusion
Explain how you utilized linear perspective in your drawing. Where is your vanishing point located, and how did you use orthogonals to guide the viewer's eye?
II. Applying Humanism
How does your drawing reflect the values of the Renaissance ? Describe the actions of the people in your scene and why they represent a shift toward learning and observation.
III. Anatomical Logic
Describe how you handled the proportions of your figures. How did you ensure that figures in the background looked realistic compared to those in the foreground?
Final Signature: ____________________________
Masterpiece Rubric Assessment Rubric
The Apprentice Masterpiece
Criteria Novice (1 pt) Journeyman (3 pts) Master (5 pts) Linear Perspective
| No clear V.P. used. Lines appear random or flat. | Clear V.P. identified, but some orthogonals do not converge. | Flawless use of V.P. All depth lines perfectly converge at the eye-level dot. |
|
Human Anatomy
| Figures are stick people or lack realistic scaling. | Figures are scaled correctly but lack detail or movement. | Figures follow Da Vinci's proportions. Distance scaling is visually accurate. |
|
Humanist Theme
| Work lacks a clear setting or purposeful action. | Setting is appropriate but interaction/learning is minimal. | Space is clearly intellectual (library/school). Figures show active learning/logic. |
|
Statement
| Minimal effort. Key terms are missing or misused. | Explains technique well but misses the Humanism connection. | Deep reflection on math and philosophy. Precise use of vocabulary terms. |
Guild Master Feedback
TOTAL SCORE:
/ 20
© Renaissance Studio Unit Lesson 5: Final Creation Phase
