Vowel Spectrum Slides Vowel Spectrum
Mechanics
Mastering the Articulatory Triangle
[vwa-jɛl]
French Phonetics Series
The Analytical Approach
Mimicry vs. Mechanics
Adult learners benefit from understanding how a sound is produced rather than just repeating it. We focus on:
Tongue Position: Height and anterior/posterior placement.Lip Rounding: Essential for the [y] and [u] distinction.Muscular Tension: French vowels are tense and stable.
Articulatory Anatomy
The Oral Cavity
The Oral Vowel Triangle
[i]
si, lit
[e]
é, été
[ɛ]
è, lait
[u]
ou, tout
[o]
eau, tôt
[ɔ]
o, sol
[y]
tu, lu
Front tongue + Round lips
[a]
la, patte
FRONT / UNROUNDED
BACK / ROUNDED
Mechanical Mastery: [i] vs. [y] vs. [u]
[i]
Smile
Lips spread wide, tongue high and forward.
"Si, Lit, Vie"
[y]
The Secret
Shape of [u] + Tongue of [i].
"Tu, Bu, Rue"
[u]
Tight Pucker
Lips rounded, tongue pulled back.
"Tout, Loup, Roue"
The "Tu" vs. "Tout" Test
Minimal Pairs for Accuracy
Front Rounded [y]
Tu [ty]
Bu [by]
Dessus [də-sy]
Back Rounded [u]
Tout [tu]
Boue [bu]
Dessous [də-su]
Mispronouncing these can change "above" (dessus) to "below" (dessous)!
Vowel Mechanics Worksheet Vowel Mechanics Lab
Articulatory Awareness Workshop
NOM:
DATE:
1
Vowel Triangle Mapping
Refer to the articulatory triangle from the lecture. Categorize the following IPA symbols based on their tongue height and horizontal position (front/back).
[i]
[u]
[y]
[a]
Vertical Height Front Unrounded Front Rounded Back Rounded High (Closed) Mid-High [e] [ø] [o] Low (Open) ---
2
Mechanical Transformation
Describe the precise physiological changes required to move between the following sounds. Focus on lips and tongue .
From [i] (lit) to [y] (lu):
From [u] (tout) to [y] (tu):
3
Transcription Practice
Transcribe the vowel sound for each word using IPA symbols. Then, identify if the lips are spread or rounded .
1. Vie
2. Bu
3. Beau
4. Bas
5. Pour
6. Pur
Articulatory Self-Check
When attempting the sound [y] (as in tu ), which of the following mechanical failures do you notice most often? Circle one and describe the sensation.
Tongue retreats too far
Lips lose rounding
Vowel "glides" (diphthongization)
Vowel Drill Teacher Guide Teacher Guide L1-VOWEL-MECH
Vowel Mechanics Facilitation
60 Minutes
Graduate Students
Articulatory Precision
Lesson Roadmap
The Hook: Mirror Work (10m)
Have students use hand mirrors. Ask them to say "EE" (English) then "TU" (French). Discuss the physical tension and lip protrusion. Many students will mistakenly move their tongue for 'tu'—redirect them to focus on lip movement first.
Direct Instruction: The Triangle (20m)
Present the slides. Emphasize that French vowels are "pure"—they do not glide like English "O" (which becomes 'ou'). Demonstrate the "statue" mouth: once the position is set, it does not move until the sound is finished.
Guided Drills: The [y] Hack (20m)
Use the "Holding [i], adding [u]" technique. 1. Have students sustain a long [i] sound. 2. Tell them not to move their tongue . 3. Slowly round their lips into a tight circle. 4. The resulting sound should be a perfect [y].
Common Pitfalls
Diphthongization: English speakers tend to "close" vowels. Watch for jaw movement at the end of sounds.English [u] vs French [u]: English "who" is often central. French [u] is very far back and very rounded.
Probing Questions
"Where exactly is your tongue touching your teeth when you say [i]?"
"Can you feel the air hitting a different part of your palate for [u]?"
Troubleshooting the [y] Sound
If they sound like [i]:
Their lips are not rounded enough. Use the "whistle" cue. Ask them to pretend they are about to whistle, then try to say [i].
If they sound like [u]:
Their tongue has retreated. Tell them to press the tip of their tongue against their lower front teeth and never let go.
Labiale
Lip-focused
Aperture
Mouth opening
Postérieure
Back-positioned
Antérieure
Front-positioned
Nasal Nuance Slides Nasal Nuances
The Airflow Revolution
[vwa-jɛl na-zal]
The Velum Mechanics
Anatomy of Sound
What is a Nasal Vowel?
Unlike English, where vowels are nasalized before a nasal consonant (e.g., "man"), French nasal vowels are distinct phonemes .
1
The soft palate (velum) drops.
2
Air flows simultaneously through mouth and nose .
3
The tongue position remains stable.
NO [n] OR [m] SOUND!
The consonant is silent; it only signals the nasality of the vowel.
The "Big Four" Nasals
[ɛ̃]
VIN / UN
Like "eh" but nasal. Spread lips.
[œ̃]
BRUN
Like [ɛ̃] but rounded. (Fading in modern speech).
[ɔ̃]
BON
Like "oh" but nasal. Very rounded lips.
[ɑ̃]
BANC / EN
Like "ah" but nasal. Open jaw.
Oral vs. Nasal: Meaning Matters
Oral Vowel
Beau [bo] Beautiful
Bas [ba] Low
Fait [fɛ] Fact/Done
Nasal Vowel
Bon [bɔ̃] Good
Banc [bɑ̃] Bench
Faim [fɛ̃] Hunger
The Golden Rule
"If you touch your tongue to the roof of your mouth to make an 'N' or 'M' sound, you have failed the nasal vowel."
Keep the mouth open. Let the nose work.
❌
[bɔn]
✅
[bɔ̃]

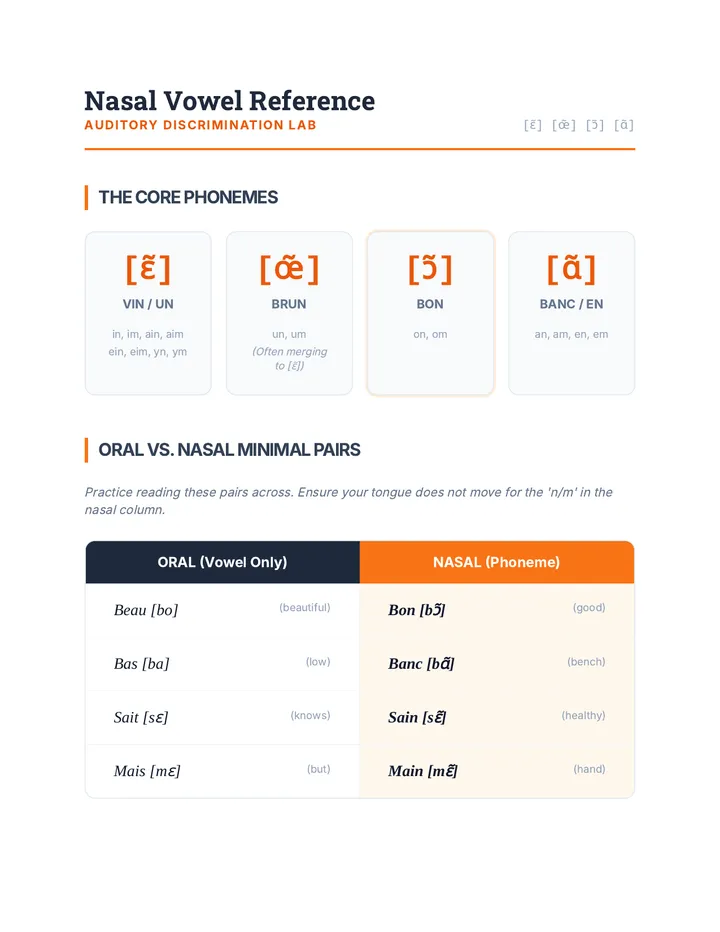

Nasal Minimal Pairs Handout Nasal Vowel Reference
Auditory Discrimination Lab
[ɛ̃] [œ̃] [ɔ̃] [ɑ̃]
The Core Phonemes
[ɛ̃]
VIN / UN
in, im, ain, aim
ein, eim, yn, ym
[œ̃]
BRUN
un, um
(Often merging to [ɛ̃])
[ɔ̃]
BON
on, om
[ɑ̃]
BANC / EN
an, am, en, em
Oral vs. Nasal Minimal Pairs
Practice reading these pairs across. Ensure your tongue does not move for the 'n/m' in the nasal column.
ORAL (Vowel Only)
NASAL (Phoneme)
Beau [bo] (beautiful)
Bon [bɔ̃] (good)
Bas [ba] (low)
Banc [bɑ̃] (bench)
Sait [sɛ] (knows)
Sain [sɛ̃] (healthy)
Mais [mɛ] (but)
Main [mɛ̃] (hand)
The "Pinch Test" Exercise
Step 1
Sustain the oral vowel [o] (as in beau ). Pinch your nose closed.
Result: Sound continues.
Step 2
Now try to sustain the nasal vowel [ɔ̃] (as in bon ).
Result: Vibration in nose.
Step 3
While sustaining [ɔ̃], pinch your nose closed mid-sound.
Result: Sound should stop.
Transcription Challenge
Listen to the instructor and transcribe the nasal phoneme heard.
1. ________
2. ________
3. ________
4. ________
5. ________

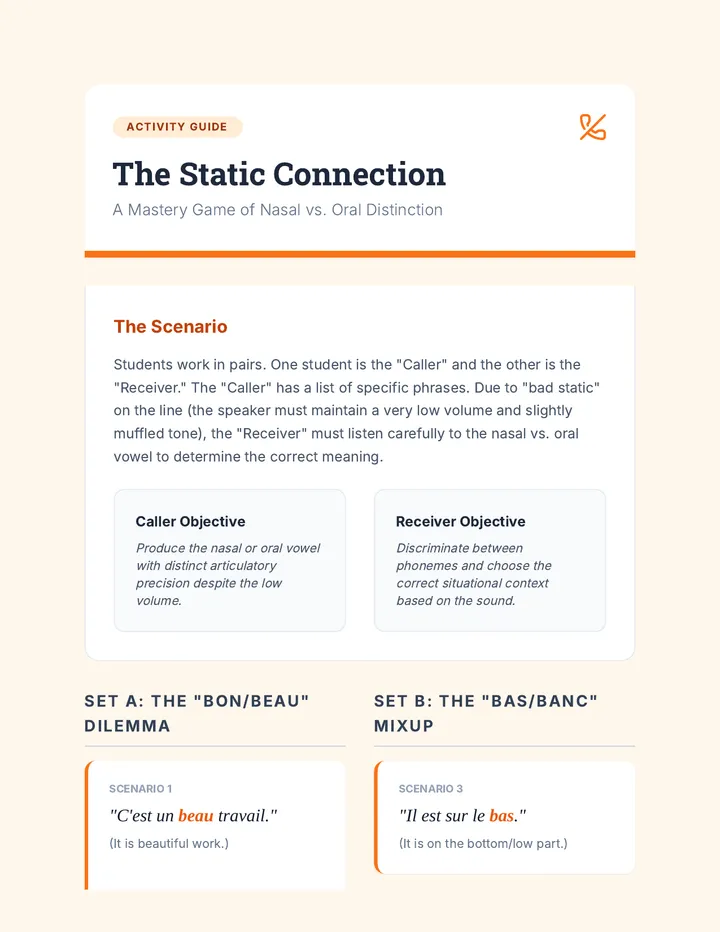

Nasal Nuance Activity Activity Guide
The Static Connection
A Mastery Game of Nasal vs. Oral Distinction
The Scenario
Students work in pairs. One student is the "Caller" and the other is the "Receiver." The "Caller" has a list of specific phrases. Due to "bad static" on the line (the speaker must maintain a very low volume and slightly muffled tone), the "Receiver" must listen carefully to the nasal vs. oral vowel to determine the correct meaning.
Caller Objective
Produce the nasal or oral vowel with distinct articulatory precision despite the low volume.
Receiver Objective
Discriminate between phonemes and choose the correct situational context based on the sound.
Set A: The "Bon/Beau" Dilemma
Scenario 1
"C'est un beau travail."
(It is beautiful work.)
Oral [o] VS Nasal [ɔ̃]
Scenario 2
"C'est un bon travail."
(It is good work.)
Set B: The "Bas/Banc" Mixup
Scenario 3
"Il est sur le bas."
(It is on the bottom/low part.)
Scenario 4
"Il est sur le banc."
(He is on the bench.)
Set C: The "Lait/Lin" Confusion
Scenario 5
"Je veux du lait."
(I want some milk.)
Scenario 6
"Je veux du lin."
(I want some linen.)
Mastery Check
After the game, students must record themselves saying one sentence from each pair. They will submit this as a "Voice Memo" for articulatory feedback.
REC
Liaison Logic Slides Liaison and Flow
Mastering the Word-Link
lɛ-zɑ̃-fɑ̃
les enfants
The "Staccato Trap"
English is stress-timed and allows for distinct gaps between words. French is syllable-timed and prioritizes the "breath group."
Liaison is Mechanical
A silent final consonant becomes the onset of the following word's first syllable when that word starts with a vowel or mute 'h'.
Without Liaison
[le] . [a-mi]
With Liaison
[le-za-mi]
Liaison Taxonomy
Obligatory
Article + Noun Pronoun + Verb Adjective + Noun
Forbidden
After 'Et' (and) Before 'H' Aspiré Subject Noun + Verb
Optional
Common in formal speech, rarer in casual conversation.
After plural verbs After prepositions
Elision: Removing the Barrier
Elision is the dropping of a final vowel (usually 'e' or 'a') before a word starting with a vowel/mute 'h'.
"French hates 'hiatus'—the clashing of two vowel sounds."
le + ami l'ami
The List
le, la, je, me, te, se, ne, que, de, jusque.
The Special Rule
"Si" only elides before il or ils .
Si + il = s'il
Marking the Flow
Mark the liaisons ( ◡ ) and elisions ( ' ) in the following sentence:
Ils ont un petit enfant intelligent.
Correct pronunciation:
[il-zɔ̃-tœ̃-pə-ti-tɑ̃-fɑ̃-ɛ̃-te-li-ʒɑ̃]

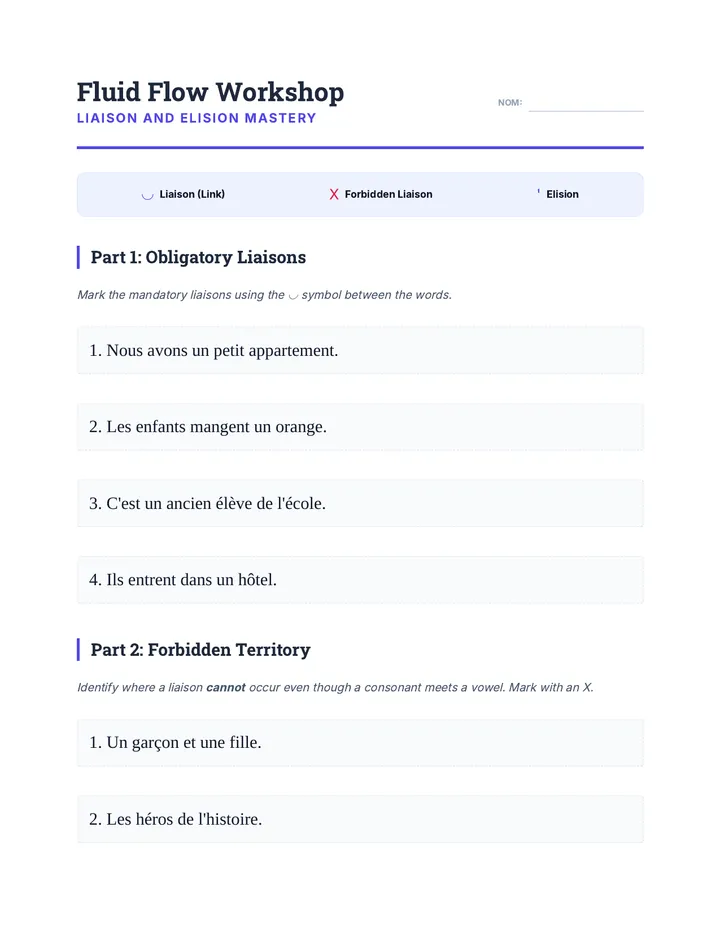

Fluid Flow Worksheet Fluid Flow Workshop
Liaison and Elision Mastery
NOM:
◡ Liaison (Link)
X Forbidden Liaison
' Elision
Part 1: Obligatory Liaisons
Mark the mandatory liaisons using the ◡ symbol between the words.
1. Nous avons un petit appartement.
2. Les enfants mangent un orange.
3. C'est un ancien élève de l'école.
4. Ils entrent dans un hôtel.
Part 2: Forbidden Territory
Identify where a liaison cannot occur even though a consonant meets a vowel. Mark with an X.
1. Un garçon et une fille.
2. Les héros de l'histoire.
3. Paul est un étudiant sérieux.
4. Nous allons à la plage et après au restaurant.
Part 3: The Flow Sentence
Read the following paragraph. Mark all liaisons (◡) and elisions ('). Then, transcribe the first sentence into IPA based on how you would say it.
"Les oiseaux arrivent en été. Ils aiment les arbres et les insectes. C'est un spectacle magnifique pour les enfants."
IPA Transcription (Sentence 1):
[ ____________________________________________________________________ ]
Articulation Note:
When you perform a liaison with the letter 'S', what is the phonetic result? (e.g., [s] or [z]?)
[s]
[z]

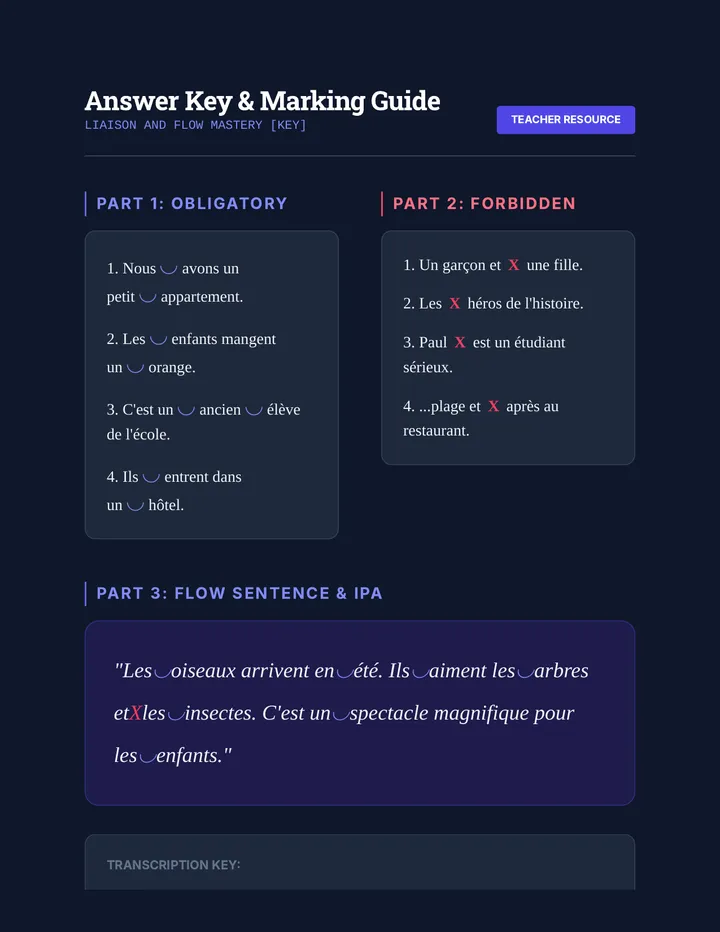

Liaison Mastery Key Answer Key & Marking Guide
Liaison and Flow Mastery [KEY]
Teacher Resource
Part 1: Obligatory
1. Nous◡avons un petit◡appartement.
2. Les◡enfants mangent un◡orange.
3. C'est un◡ancien◡élève de l'école.
4. Ils◡entrent dans un◡hôtel.
Part 2: Forbidden
1. Un garçon etXune fille.
2. LesXhéros de l'histoire.
3. PaulXest un étudiant sérieux.
4. ...plage etXaprès au restaurant.
Part 3: Flow Sentence & IPA
"Les◡oiseaux arrivent en◡été. Ils◡aiment les◡arbres etXles◡insectes. C'est un◡spectacle magnifique pour les◡enfants."
Transcription Key:
[le-zwa-zo-a-ri-vɑ̃-ne-te]
Notes:
Final consonants (s, t, n) move to the next syllable.
'S' liaison always results in [z].
Pedagogical Tip:
Encourage students to speak the transcription aloud. If it sounds choppy, they are missing a link.
Final Note Answer:
[s]
[z]
Example: "Les amis" [le-za-mi]
Prosody Patterns Slides Intonation
and Melody
The Musical Architecture of French
Rhythmic Groups
Groups of Thought
French speakers do not stress individual words. They stress the last syllable of a rhythmic group (groupe rythmique).
The Stress Rule
All syllables in a group are equal in length and pitch, except the final one , which is slightly elongated and higher in pitch.
Example Grouping
[ Le petit chat ] [ est sur le banc. ]
Stress falls on "chat" and "banc".
The Declarative Slope
Je vais à la bibliothèque avec mon ami.
Pitch
Time
The "Mountain" Effect
Pitch rises at the end of internal groups to signal "there's more coming."
The "Final Drop"
The very last syllable of the sentence drops significantly in pitch.
The Inquiry Shift
Statement
Il arrive à huit heures.
Falling Pitch
Yes/No Question
Il arrive à huit heures ?
Rising Pitch
Humming the Flow
To master prosody, remove the words. Hum the "song" of the sentence first.
"If the melody is wrong, the listener will be confused, even if the vowels are perfect."
Melody Mapping Activity Melody Mapping
Prosody and Rhythmic Groups
NOM:
The Mapping Rules:
Draw a box [ ] around each rhythmic group.
Draw a line above the words to show pitch (rising / , falling \ ).
Mark the syllable with stress with an underscore _ .
1
Declarative Statement
PITCH CONTOUR AREA
Marie étudie le français avec ses amis à Paris.
Expected groups: 3-4
2
Yes/No Question
Est-ce que vous avez fini votre travail ce soir ?
3
The "Song" of the Sentence
Listen to the instructor hum a pattern. Match it to one of the sentences below by circling it and drawing the hummed melody.
"C'est incroyable !"
DRAW MELODY HERE
"C'est incroyable ?"
DRAW MELODY HERE
Prosody Analysis
Compare the two "incredible" sentences above. In your own words, how does the meaning of the interaction change based purely on the pitch movement at the end?
Intonation Investigation Guide Facilitation Guide L4-PROSODY-MELODY
Melodic Inquiry Facilitation
Prosody Focus
Graduate Seminar
Teaching Rhythmic Groups
The biggest challenge for adult English speakers is the instinct to stress lexical items (nouns/verbs). Use the "Hand Tap" method:
Practice Sentence: "Le petit garçon joue au ballon."
Le petit garçon | joue au ballon.
Instruction: Tap evenly for every syllable. Tap twice as hard for the underlined ones.
Pitch Contour Workshop
During the "Mapping" activity, encourage students to hum the pattern using "Ma-Ma-Ma". This removes the cognitive load of word meaning and focuses purely on frequency.
The Rising Internal Syllable
In a list or complex sentence, the last syllable of an internal group always rises. It functions like a musical "comma."
The Final Fall
In declarative sentences, the final pitch must be the lowest point of the entire phrase. Anything else sounds like a question or hesitation.
Discussion Starters
Comparison: "How does English intonation handle a 'surprise' statement? How would that differ in French if the melody must remain syllable-timed?"Perception: "Listen to a native speaker. Does the stress feel like volume (loudness) or pitch (height) to you?"Meaning: "Could a wrong intonation make a polite request sound like a demand?"
The "Humming" Hook
Start the lesson by humming the melody of a famous French quote (e.g., 'To be or not to be' in French). See if they can recognize the rhythm before you add the words.
Mastery Checklist:
Rhythmic Unity Final Syllable Stress Group Boundaries Pitch Terminal
Shadowing Skills Slides Shadowing
Lab
Internalizing the Native Frequency
What is Shadowing?
The Mastery Technique
Shadowing is an advanced language learning technique where you repeat an audio track as you hear it , with as little delay as possible.
Why it works for adults:
It forces your brain to stop "translating" and start "executing" the mechanical movements of the mouth at native speed.
1
Internalizes Cadence
2
Bypasses Mental Hurdles
3
Refines Liaison Instincts
The Lab Protocol
Phase 1: Listen
Listen to the passage twice without speaking. Focus on the melody and rhythmic groups.
Phase 2: Mumble
Shadow with low volume. Focus on the rhythm only. Mumble the vowels correctly.
Phase 3: Articulate
Shadow at full volume. Match the speaker's intensity and liaison exactly.
Phase 4: Record
Record yourself without the audio prompt. This is your baseline for analysis.
Visualizing the Sound
Waveform Comparison
Native Speaker (Continuous Energy)
Fluid / Linked
Non-Native (Choppy / Staccato)
Gaps / Stress-timed
"Parler sans effort."
To speak without effort. When mechanics become instinctual, you can focus on the message, not the mouth.
Mastery Lab Task
Record your final assessment passage. Self-analyze against the waveform model provided.
Phonetic Finale Assessment Phonetic Finale
Summative Mastery Assessment
NOM:
1
Preparation & Marking
Prepare the text below for a recorded reading. Mark all liaisons (◡) and rhythmic groups [ ]. Practice the mechanics of the underlined vowels.
"Le petit huit de la rue est un endroit très agréable. Il y a des oiseaux dans les arbres et un ancien banc au milieu du jardin. Est-ce que vous voulez venir avec nous ? C'est une occasion magnifique de lire et de parler français."
2
Mastery Rubric
Criteria Mastery (4) Proficient (3) Developing (2-1) Articulatory Precision [y] vs [u] & Nasals Consistent purity; no English diphthongs. Lips rounded appropriately. Mostly accurate; occasional glides or loss of lip tension on [y]. Significant vowel interference; nasals pronounced with [n] or [m]. Liaison & Elision All obligatory liaisons executed; no forbidden liaisons heard. Obligatory liaisons mostly present; some hesitation before linking. Text is choppy; lack of connections; vowel hiatus occurs often. Prosody & Flow Clear rhythmic groups; stress on final syllables only; correct pitch slope. Intelligible prosody; some lexical stress (English pattern) remains. Inconsistent rhythm; pitch does not match grammatical intent.
Post-Assessment Reflection
Listen back to your recording. Identify one specific moment where you felt your mechanics failed (e.g., "In 'jardin', my tongue touched the roof of my mouth for the nasal").
Final Grade / Evaluation:
M
P
D

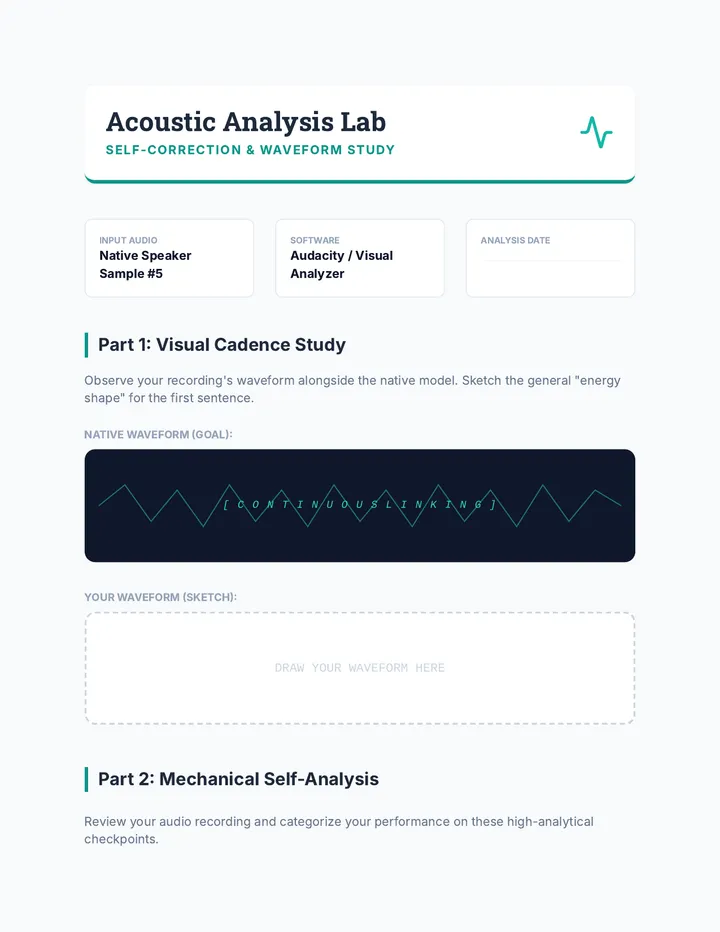

Shadowing Lab Report Acoustic Analysis Lab
Self-Correction & Waveform Study
Input Audio
Native Speaker Sample #5
Software
Audacity / Visual Analyzer
Analysis Date
Part 1: Visual Cadence Study
Observe your recording's waveform alongside the native model. Sketch the general "energy shape" for the first sentence.
Native Waveform (Goal):
[ C O N T I N U O U S L I N K I N G ]
Your Waveform (Sketch):
DRAW YOUR WAVEFORM HERE
Part 2: Mechanical Self-Analysis
Review your audio recording and categorize your performance on these high-analytical checkpoints.
Vowel Stability (Purity)
Did any of your vowels 'glide' (e.g., [o] turning into [ou])?
No Gliding
Minimal
Frequent
Notes on specific words...
Liaison Connectivity
Identify one instance where you successfully used a silent consonant to link words.
Did you miss any obligatory liaisons?
Prosodic Slope
Did your sentence-final pitch drop significantly, or did it remain flat?
Action Plan for Mastery
Based on this analysis, what is the single most important mechanical adjustment you need to make for native-like fluency?
