Tissue Trauma Slides Biomechanics Lab
Tissue Trauma
Understanding the Mechanics of Injury and Tissue Response
The Moment of Failure
Watch the following clip of a non-contact ACL injury. Observe closely:
The position of the knee upon landing.
The direction of force applied to the limb.
The "give" in the tissue.
"Injury occurs when the load applied exceeds the tolerance of the tissue."
[Insert Video of Non-Contact Injury Analysis]
Reference: Biomechanics Case Study #01
Forces of Failure
Compression
Forces pushing ends of tissue together.
Ex: Spinal compression, stress fractures
Tension
Forces pulling tissue ends apart (stretching).
Ex: Sprains, strains, ligament tears
Shear
Forces sliding tissue in opposite directions.
Ex: Blisters, ACL tears (pivoting)
Timing of Trauma
Acute Injury
Caused by a single, sudden traumatic event (macro-trauma).
Fracture from a fall
Sprained ankle
Concussion
Chronic Injury
Resulting from repeated overload or poor mechanics (micro-trauma).
Tendonitis (Tennis Elbow)
Stress fractures
Shin splints
The Big Question
"If we know the exact mechanical forces that cause tissue to fail, why do these injuries still happen?"
Human Factors
Environmental Hazards
Injury Investigation Worksheet Injury Investigation
Biomechanics Lab // Incident Analysis Report
Student Name:
Date:
Mechanical Force Identification
Compression
Pushed together
Tension
Pulled apart
Shear
Opposing slide
CASE 01 The Basketball Pivot
A player plants their foot to change direction. The foot stays fixed to the court, but the upper body continues to rotate. A loud "pop" is heard, and the knee collapses. MRI reveals a Grade III ACL rupture.
Primary Force Mechanism:
Acute or Chronic?
Biomechanical Explanation:
CASE 02 The Cross-Country Veteran
A runner increases their weekly mileage from 20 to 50 miles over two weeks. They begin to feel a localized, sharp pain in their shin that worsens during exercise but subsides at rest. Imaging confirms a stress fracture in the tibia.
Primary Force Mechanism:
Acute or Chronic?
Tissue Failure Explanation:
CASE 03 The Gymnast Landing
A gymnast over-rotates a vault and lands with their knees fully extended (locked). They immediately feel excruciating pain in their lower back. Diagnosis shows a herniated disc in the lumbar spine.
Primary Force Mechanism:
Acute or Chronic?
Impact Analysis:
Critical Thinking Challenge
Why do you think "shear" forces are often considered the most damaging to internal connective tissues (like ligaments and spinal discs) compared to pure compression or tension?
Lab Module 01: Tissue Mechanics
Strictly Confidential // Investigator Copy
Mechanism Teacher Guide Teacher Guide: Tissue Trauma
Module 01 // Facilitation & Answer Key
Reference Code
TG-BIOM-01
Hook Facilitation
When showing the injury footage, ask students to focus on the ankle/knee alignment . Most non-contact injuries occur during the deceleration phase of movement. Use a rubber band to demonstrate tension vs. shear.
Key Terminology
Load/Tolerance
Macro-trauma
Micro-trauma
Yield Point
Injury Investigation: Answer Key
Case 01: The Basketball Pivot
ACUTE
Primary Force:
Shear (Rotational/Pivoting)
Explanation:
The tibia stays fixed while the femur rotates, creating a shearing force across the ACL that exceeds its tensile strength.
Case 02: The Cross-Country Veteran
CHRONIC
Primary Force:
Compression (Repetitive Ground Impact)
Explanation:
Cumulative micro-trauma from ground reaction forces exceeds the bone's remodeling rate, leading to a structural failure (stress fracture).
Case 03: The Gymnast Landing
ACUTE
Primary Force:
Compression (Axial Loading)
Explanation:
Locked knees prevent joint dissipation of force. The impact travels up the kinetic chain to the lumbar spine, compressing the disc until it ruptures.
The Shear Force Discussion
Discussion Guide: Biological tissues (especially bone and collagen-based ligaments) are structurally optimized to resist compression and tension because these forces align with the direction of their fibers/mineral structures.
Teaching Analogy:
"Think of a bundle of dry spaghetti. You can press the ends (compression) quite hard, or pull them (tension), but they snap instantly if you try to slide them across each other (shear)."
Injury Prevention Sequence // Lesson 01
Educator Resource // Not for Student Distribution

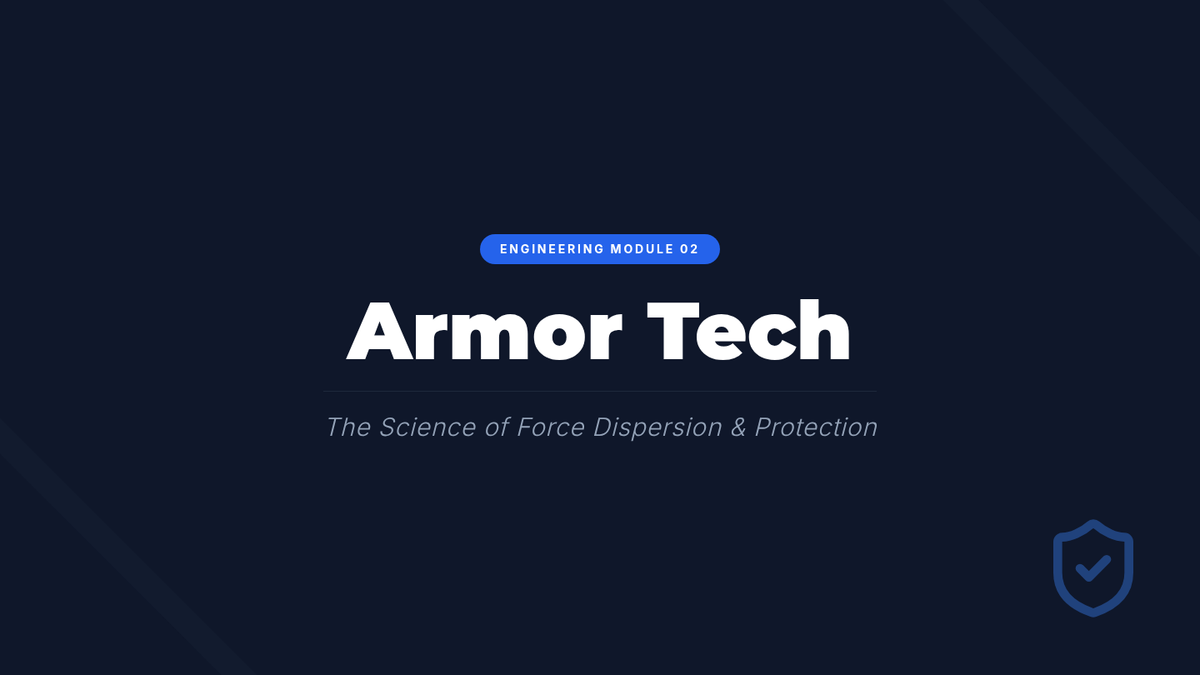

Armor Tech Slides Engineering Module 02
Armor Tech
The Science of Force Dispersion & Protection
01 The Impulse Principle
Injury occurs when too much force is applied too FAST.
Force × Time = Change in Momentum
The Golden Rule of Safety
To reduce Force , we must increase the Time of the impact.
Hard Impact
Short time = High Peak Force
Padded Impact
Longer time = Lower Peak Force
Protective Layering Strategy
SHELL
Dispersion
Spreads a point impact over a larger surface area.
LINER
Absorption
Collapses/compresses to absorb energy and slow down the impact.
FIT
Retention
Ensures the tech stays in place during multiple impacts.
Safety Inspection Routine
Equipment only works if it is structurally sound. You must check for:
Surface Integrity
Foam Compression
Fastener Stability
The "One-Hit" Rule
"Most modern safety liners (EPS foam) are designed for a SINGLE major impact. Once compressed, they lose their protective properties."
CRITICAL: If a helmet takes a major hit, it MUST be retired.
LAB TIME: Bio-Armor
Your mission: Design a protective casing for a raw egg using the principles of dispersion and absorption.
Constraint 01 Increase Deceleration Time
Constraint 02 Distribute Load Across Shell

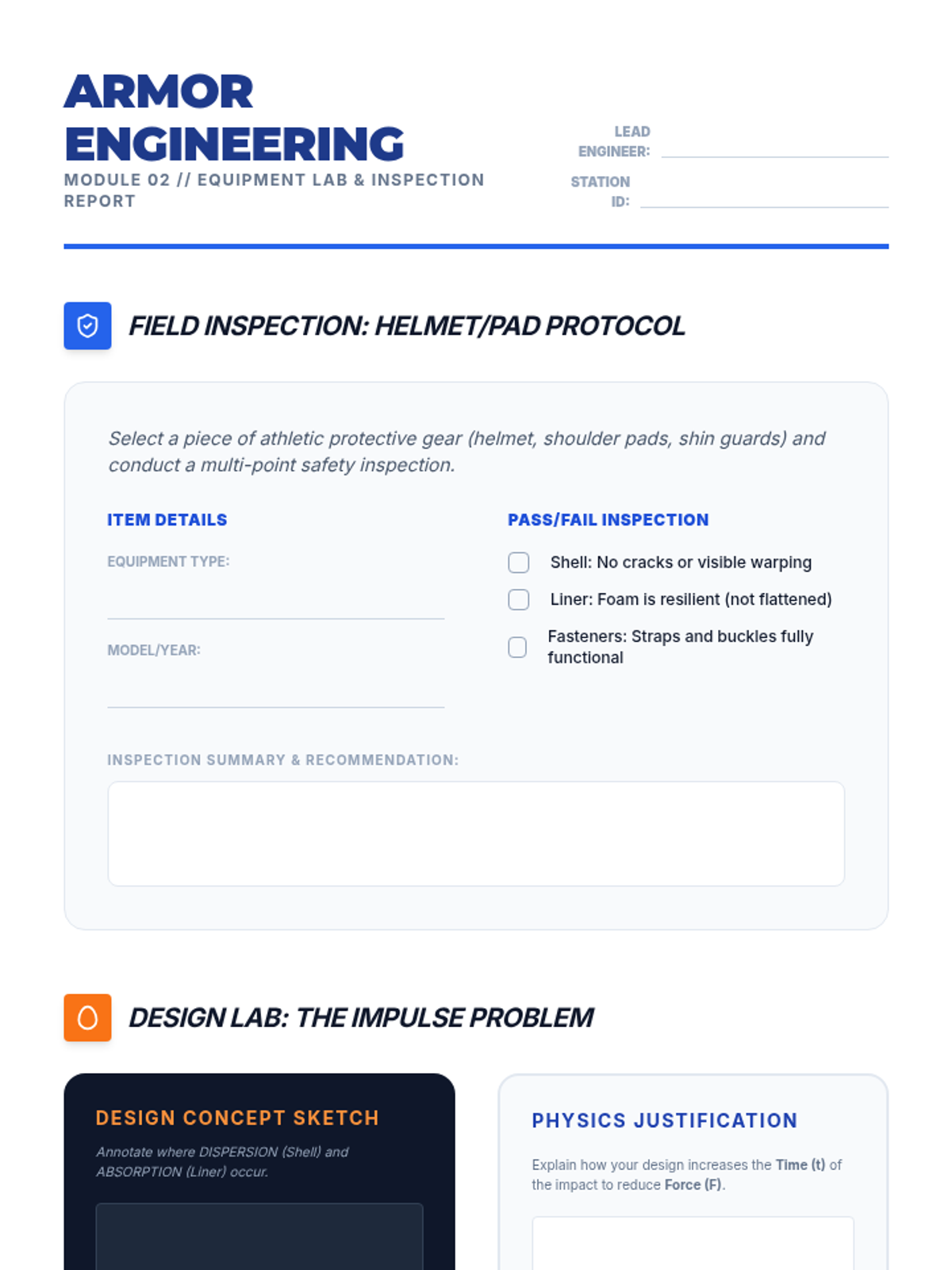

Armor Engineering Lab Report Armor Engineering
Module 02 // Equipment Lab & Inspection Report
Lead Engineer:
Station ID:
Field Inspection: Helmet/Pad Protocol
Select a piece of athletic protective gear (helmet, shoulder pads, shin guards) and conduct a multi-point safety inspection.
Item Details
Equipment Type:
Model/Year:
Pass/Fail Inspection
Shell: No cracks or visible warping
Liner: Foam is resilient (not flattened)
Fasteners: Straps and buckles fully functional
Inspection Summary & Recommendation:
Design Lab: The Impulse Problem
Design Concept Sketch
Annotate where DISPERSION (Shell) and ABSORPTION (Liner) occur.
Physics Justification
Explain how your design increases the Time (t) of the impact to reduce Force (F) .
Drop Height (m)
Result (Intact/Broken)
Post-Lab Reflection
Based on the result, what part of the 'Anatomy of a Helmet' (Shell, Liner, or Fit) needed the most improvement?
Unit: Biomechanics & Safety
Armor Lab Report v1.0

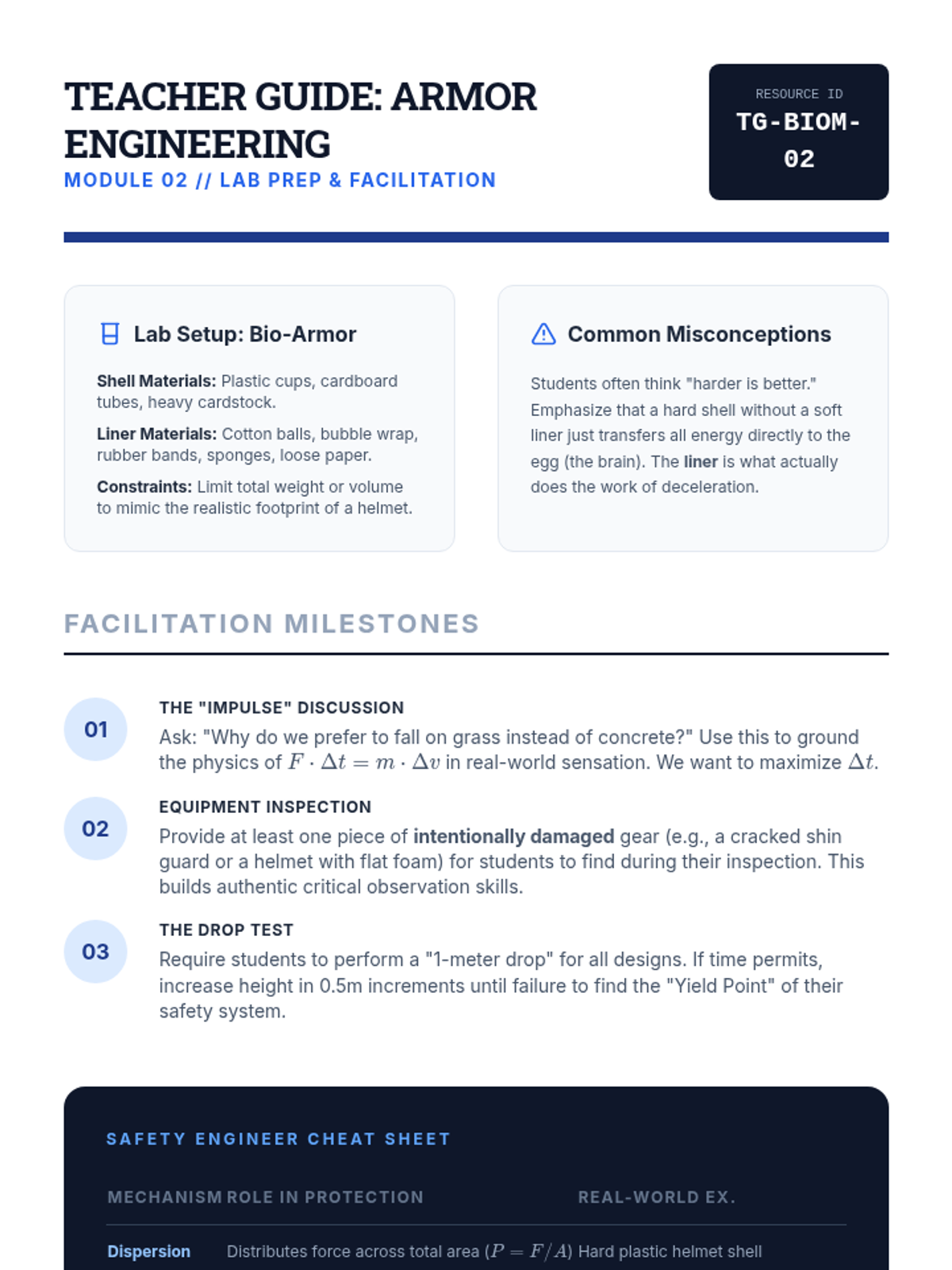

Armor Engineering Teacher Guide Teacher Guide: Armor Engineering
Module 02 // Lab Prep & Facilitation
Resource ID
TG-BIOM-02
Lab Setup: Bio-Armor
Shell Materials: Plastic cups, cardboard tubes, heavy cardstock.Liner Materials: Cotton balls, bubble wrap, rubber bands, sponges, loose paper.Constraints: Limit total weight or volume to mimic the realistic footprint of a helmet.
Common Misconceptions
Students often think "harder is better." Emphasize that a hard shell without a soft liner just transfers all energy directly to the egg (the brain). The liner is what actually does the work of deceleration.
Facilitation Milestones
01
The "Impulse" Discussion
Ask: "Why do we prefer to fall on grass instead of concrete?" Use this to ground the physics of \(F \cdot \Delta t = m \cdot \Delta v\) in real-world sensation. We want to maximize \(\Delta t\).
02
Equipment Inspection
Provide at least one piece of intentionally damaged gear (e.g., a cracked shin guard or a helmet with flat foam) for students to find during their inspection. This builds authentic critical observation skills.
03
The Drop Test
Require students to perform a "1-meter drop" for all designs. If time permits, increase height in 0.5m increments until failure to find the "Yield Point" of their safety system.
Safety Engineer Cheat Sheet
Mechanism Role in Protection Real-World Ex. Dispersion Distributes force across total area (\(P = F/A\)) Hard plastic helmet shell Absorption Converts kinetic energy to heat/deformation EPS foam liner, air bladders Deceleration Increases time of impact to lower peak force Gym mats, padding, crumple zones
Injury Prevention Sequence // Lesson 02
Educator Resource // Not for Student Distribution
Movement Prep Slides Physiology Lab
Movement Prep
Optimizing Performance & Elasticity for Injury Prevention
The Performance Gap
Does a warm-up actually work, or is it just a habit?
The Comparison Study
COLD
Vertical Jump #1
PREPPED
Vertical Jump #2
Most athletes see a 3-5% increase in power after movement prep. Why?
Physiological Benchmarks
Muscle Temperature: Increases elasticity and reduces viscous resistance.Nerve Conduction: Faster electrical signals mean quicker reaction times.
The Battle of the Stretch
Static
Holding a position for 30+ seconds without movement.
Risk Factor
Can temporarily decrease power output and "sleep" the nervous system before activity.
Best For: Post-Workout Recovery
Dynamic
Controlled, movement-based stretching through full range of motion.
Primary Benefit
Prepares joint-specific movement patterns and raises core temperature.
Best For: Pre-Activity Readiness
The R.A.M.P. Protocol
R
Raise
Body temp, heart rate, and blood flow.
A
Activate
Key muscle groups for the specific sport.
M
Mobilize
Move joints through full range of motion.
P
Potentiate
High-intensity, sport-specific bursts.
Your Turn: Architect
Choose a sport (Soccer, Swimming, Tennis, etc.) and design a 10-minute R.A.M.P. routine that targets its specific movement demands.
Think Pattern
Think Plane of Motion

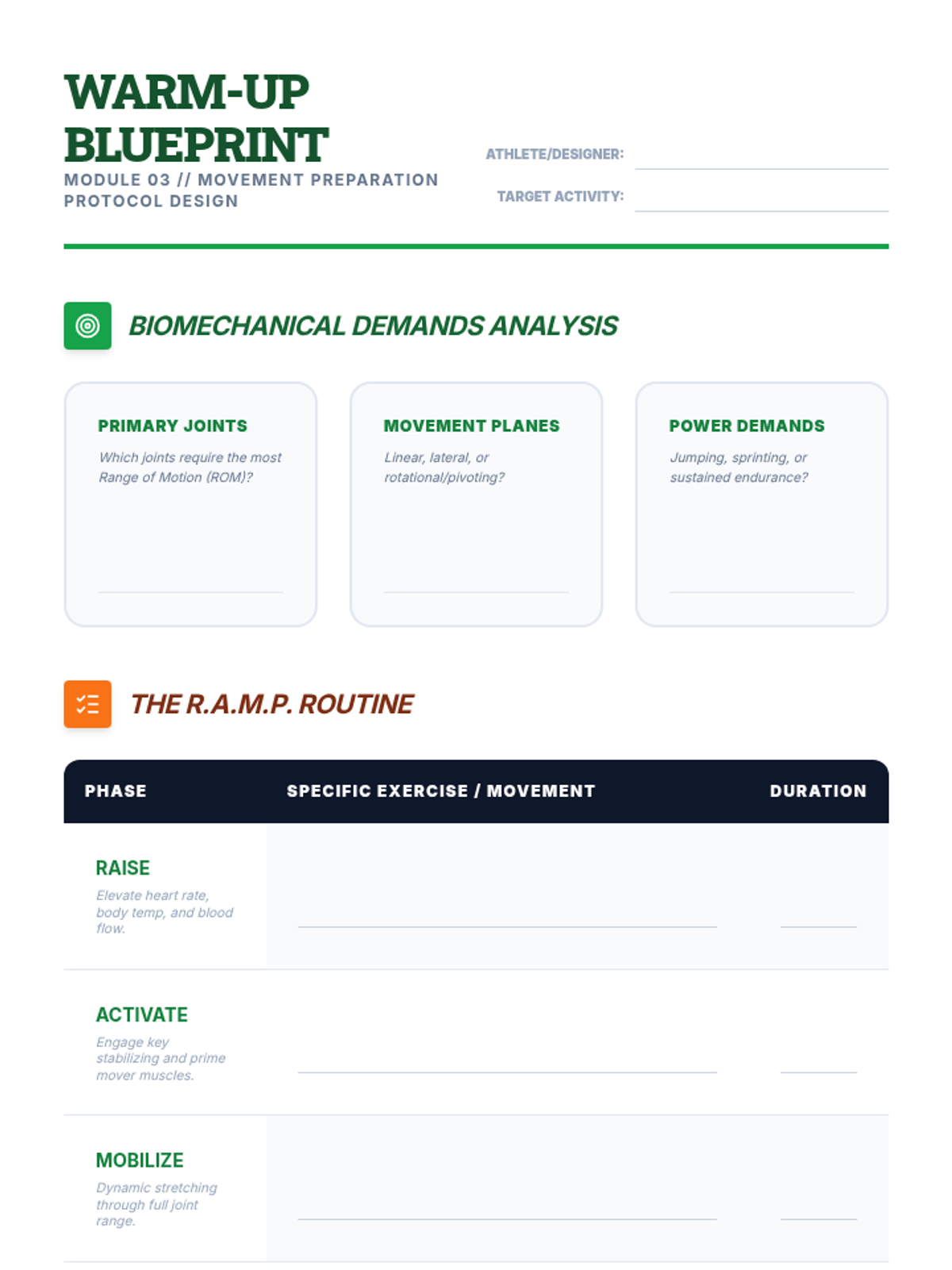

Warm-Up Blueprint Worksheet Warm-Up Blueprint
Module 03 // Movement Preparation Protocol Design
Athlete/Designer:
Target Activity:
Biomechanical Demands Analysis
Primary Joints
Which joints require the most Range of Motion (ROM)?
Movement Planes
Linear, lateral, or rotational/pivoting?
Power Demands
Jumping, sprinting, or sustained endurance?
The R.A.M.P. Routine
Phase Specific Exercise / Movement Duration Raise
Elevate heart rate, body temp, and blood flow.
|
|
|
|
Activate
Engage key stabilizing and prime mover muscles.
|
|
|
|
Mobilize
Dynamic stretching through full joint range.
|
|
|
|
Potentiate
High-intensity, sport-specific explosive bursts.
|
|
|
Mechanism Checklist
Briefly explain how your routine addresses the following physiological needs to prevent injury:
Viscous Resistance Reduction:
Neuromuscular Readiness:
Injury Prevention Sequence // Lesson 03
Protocol Template v2.4

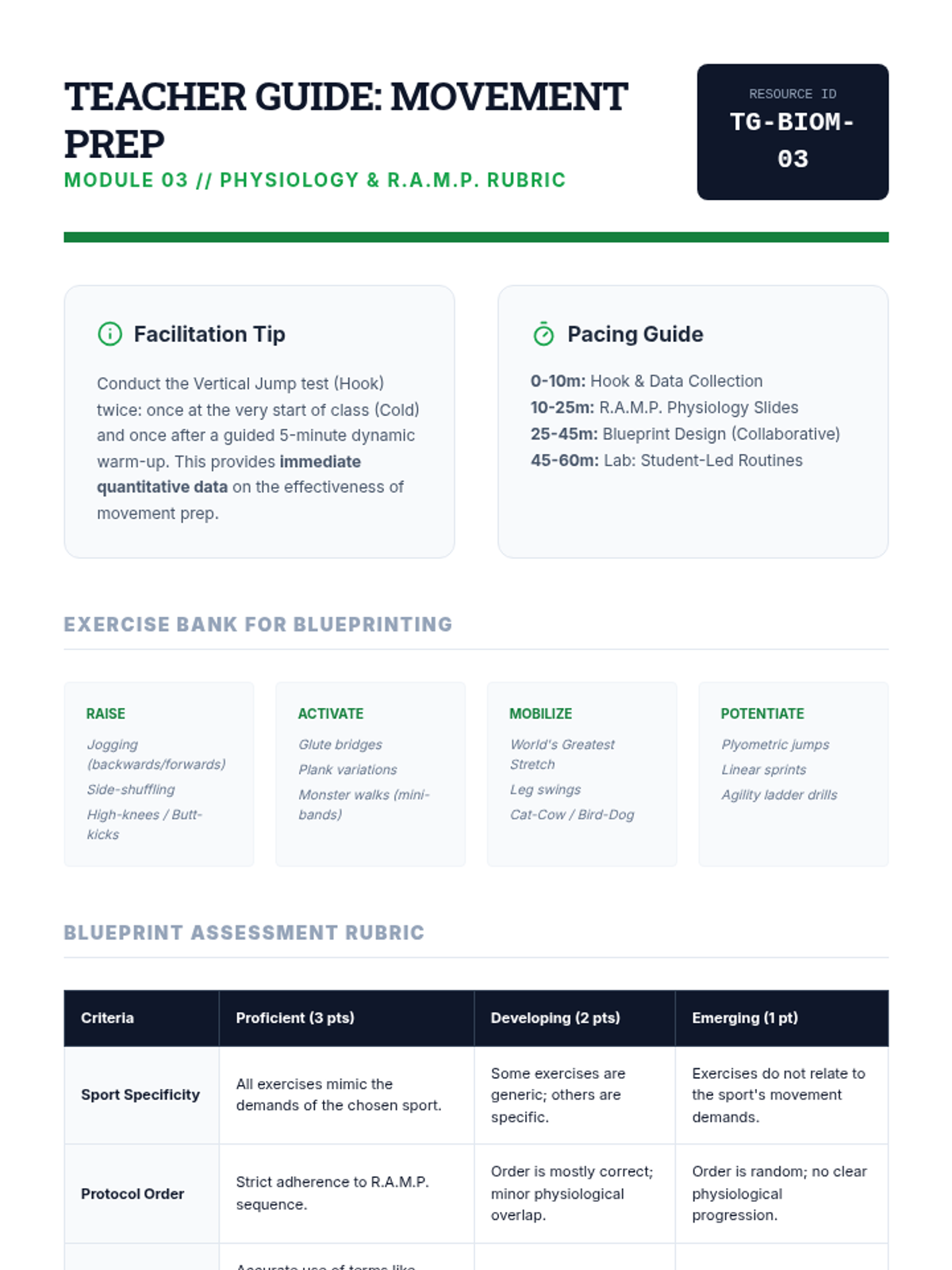

Warm-Up Master Guide Teacher Guide: Movement Prep
Module 03 // Physiology & R.A.M.P. Rubric
Resource ID
TG-BIOM-03
Facilitation Tip
Conduct the Vertical Jump test (Hook) twice: once at the very start of class (Cold) and once after a guided 5-minute dynamic warm-up. This provides immediate quantitative data on the effectiveness of movement prep.
Pacing Guide
0-10m: Hook & Data Collection10-25m: R.A.M.P. Physiology Slides25-45m: Blueprint Design (Collaborative)45-60m: Lab: Student-Led Routines
Exercise Bank for Blueprinting
Raise
Jogging (backwards/forwards)
Side-shuffling
High-knees / Butt-kicks
Activate
Glute bridges
Plank variations
Monster walks (mini-bands)
Mobilize
World's Greatest Stretch
Leg swings
Cat-Cow / Bird-Dog
Potentiate
Plyometric jumps
Linear sprints
Agility ladder drills
Blueprint Assessment Rubric
Criteria Proficient (3 pts) Developing (2 pts) Emerging (1 pt) Sport Specificity All exercises mimic the demands of the chosen sport. Some exercises are generic; others are specific. Exercises do not relate to the sport's movement demands. Protocol Order Strict adherence to R.A.M.P. sequence. Order is mostly correct; minor physiological overlap. Order is random; no clear physiological progression. Physiological Justification Accurate use of terms like "viscous resistance" and "neuromuscular." Basic explanation of "warming up" provided. Incorrect or no justification provided.
Injury Prevention Sequence // Lesson 03
Educator Resource // Not for Student Distribution
Motion Analysis Slides Analysis Module
Motion Analysis
Identifying Risk Factors in the Kinetic Chain
The Kinetic Chain Principle
Movement at one joint affects the alignment and stress at every other joint in the system.
"Injury rarely happens where the pain is. It happens where the dysfunction is."
Stability Joints
Mobility Joints
ANKLE Mobility
KNEE Stability
HIP Mobility
LUMBAR Stability
Joint-By-Joint Approach
Risk Factor 01: Valgus Collapse
[Landing Analysis Overlay]
Showing knee buckling inward (Valgus) vs. neutral alignment.
DANGER ZONE
The "Bowing" Knee
When the knee cave inwards during landing or squatting, it creates massive SHEAR and TENSION on the ACL.
Cause: Weak Glute Medius / Hip Stability
Correction: "Push the knees out over toes"
Risk Factor 02: Spinal Rounding
Losing a neutral spine under load (squatting, lifting) shifts the force from the muscles to the Intervertebral Discs.
Biomechanical Consequence:
Increased anterior compression on discs.
High risk of herniation/acute failure.
Protect the Pillar
Workshop: Peer Scan
Use your tablets to record 3 reps of a Squat and a Drop-Landing. Frame the shot from the front and the side.
Step 1: Record
Step 2: Scrub Frame
Step 3: Overlay Angles

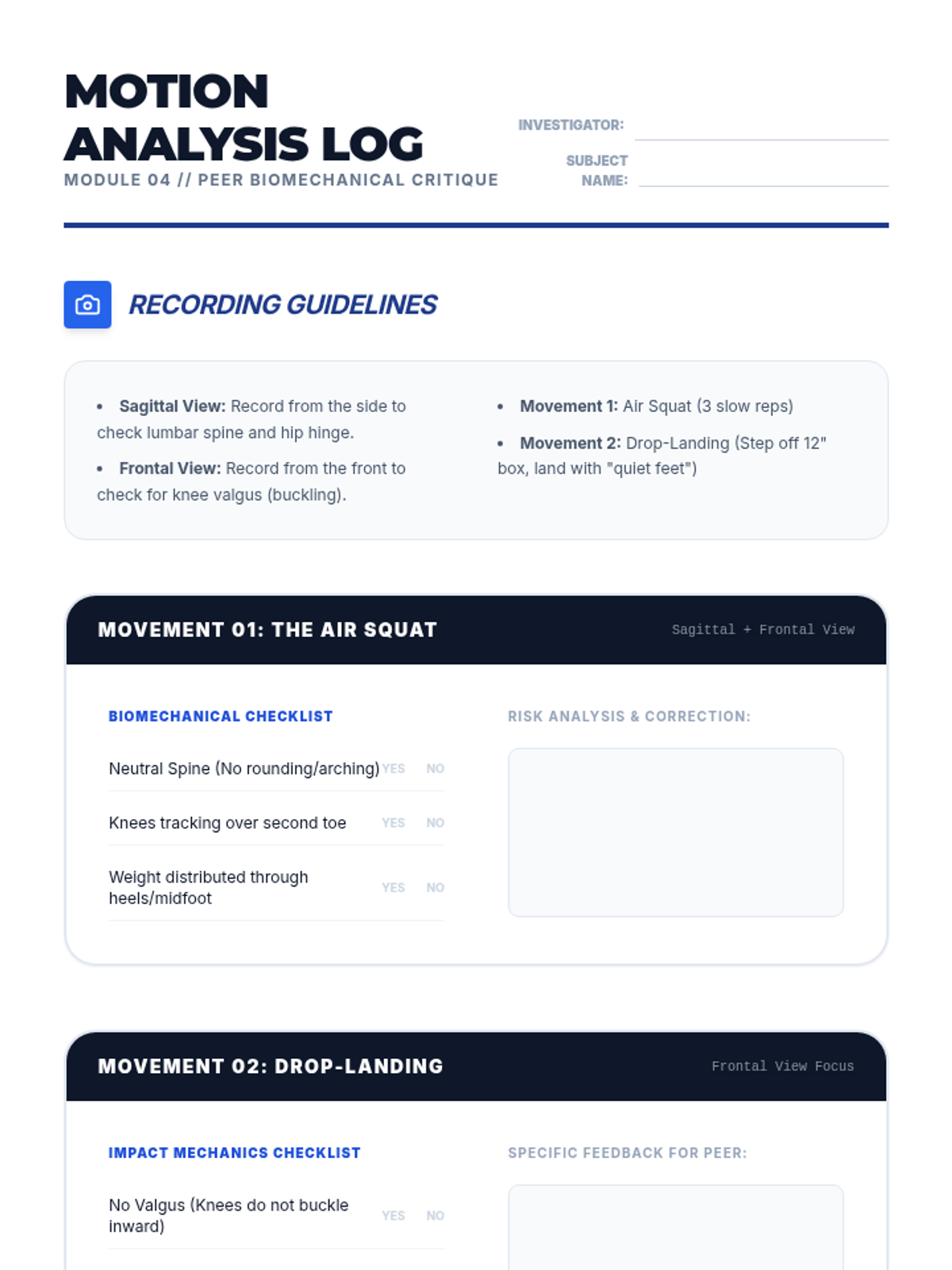

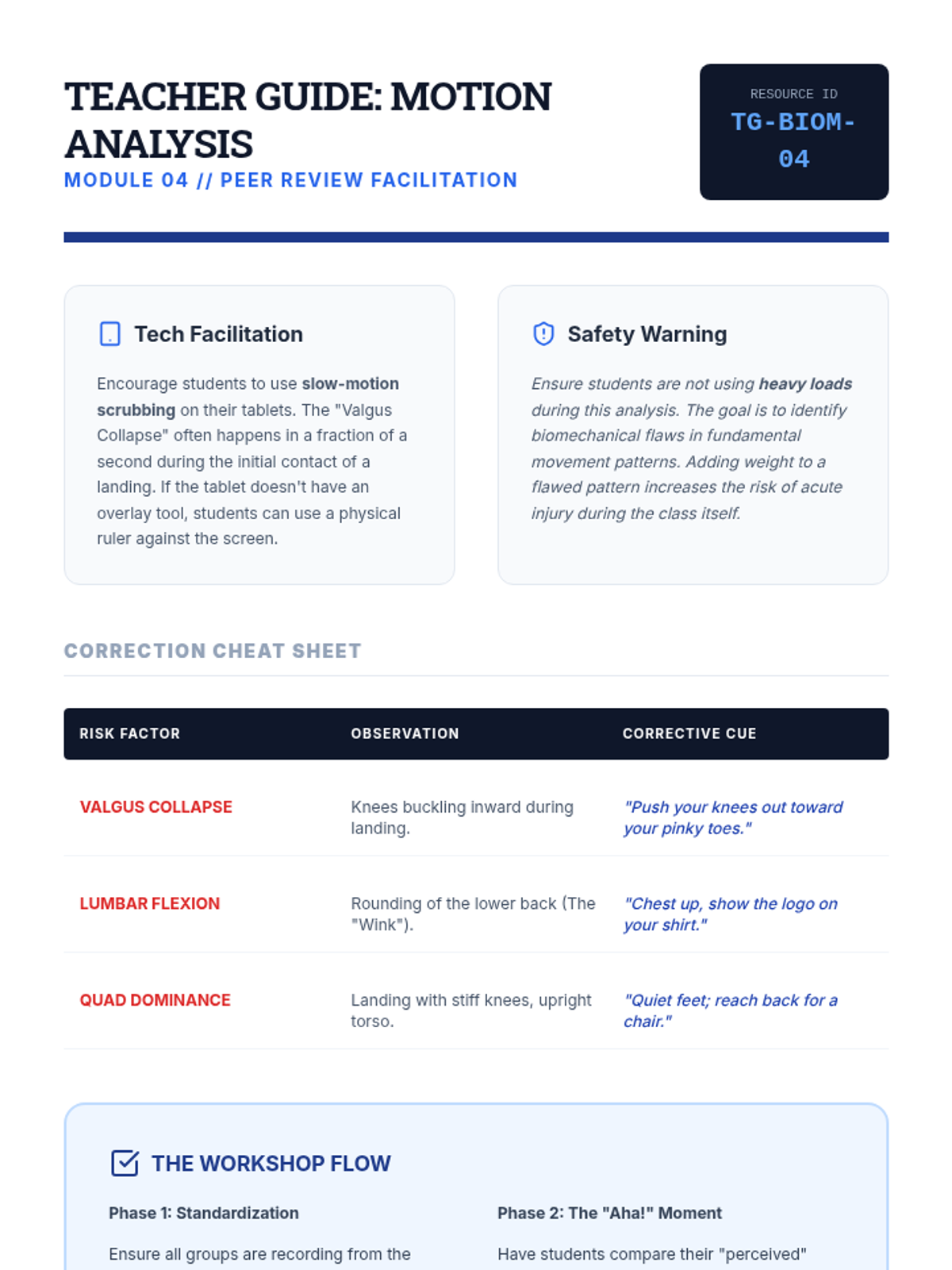

Motion Analysis Log Worksheet Motion Analysis Log
Module 04 // Peer Biomechanical Critique
Investigator:
Subject Name:
Recording Guidelines
Sagittal View: Record from the side to check lumbar spine and hip hinge.
Frontal View: Record from the front to check for knee valgus (buckling).
Movement 1: Air Squat (3 slow reps)
Movement 2: Drop-Landing (Step off 12" box, land with "quiet feet")
Movement 01: The Air Squat
Sagittal + Frontal View
Biomechanical Checklist
Neutral Spine (No rounding/arching)
Yes No
Knees tracking over second toe
Yes No
Weight distributed through heels/midfoot
Yes No
Risk Analysis & Correction:
Movement 02: Drop-Landing
Frontal View Focus
Impact Mechanics Checklist
No Valgus (Knees do not buckle inward)
Yes No
Soft Landing (Quiet contact, knee/hip flexion)
Yes No
Hips back (Glute-dominant landing)
Yes No
Specific Feedback for Peer:
Correction Protocol
If you identified a risk factor (e.g., knee buckling), what "Internal Cue" would you give your peer to help them correct the pattern instantly?
Injury Prevention Sequence // Lesson 04
Field Lab Analysis // Confidential
Motion Analysis Teacher Guide Teacher Guide: Motion Analysis
Module 04 // Peer Review Facilitation
Resource ID
TG-BIOM-04
Tech Facilitation
Encourage students to use slow-motion scrubbing on their tablets. The "Valgus Collapse" often happens in a fraction of a second during the initial contact of a landing. If the tablet doesn't have an overlay tool, students can use a physical ruler against the screen.
Safety Warning
Ensure students are not using heavy loads during this analysis. The goal is to identify biomechanical flaws in fundamental movement patterns. Adding weight to a flawed pattern increases the risk of acute injury during the class itself.
Correction Cheat Sheet
Risk Factor
Observation
Corrective Cue
Valgus Collapse
Knees buckling inward during landing.
"Push your knees out toward your pinky toes."
Lumbar Flexion
Rounding of the lower back (The "Wink").
"Chest up, show the logo on your shirt."
Quad Dominance
Landing with stiff knees, upright torso.
"Quiet feet; reach back for a chair."
The Workshop Flow
Phase 1: Standardization
Ensure all groups are recording from the same angles (Front/Side) at the same distance (approx. 5-7 feet).
Phase 2: The "Aha!" Moment
Have students compare their "perceived" form with their "recorded" form. Most students are unaware of their knee position until they see it on screen.
Injury Prevention Sequence // Lesson 04
Educator Resource // Not for Student Distribution
Safety Protocol Slides Culminating Module
Safety Leadership
Designing Protocols for High-Stakes Physical Activity
The Safety Director
Safety is not an accident; it is a System.
Your Responsibility:
Identify Environmental Hazards.
Enforce Equipment Standards.
Establish Clear Operating Procedures.
Prevention
Scanning before activity begins.
Protocol
Writing the 'Law' of the facility.
Environmental Scanners
Injuries often happen because the Arena is as dangerous as the Activity.
Surfaces
Wet floors, loose turf, uneven concrete, debris in the 'landing zone'.
Obstructions
Equipment stored too close to boundary lines; overcrowding in weight rooms.
Conditions
Extreme heat, poor lighting, ventilation issues, or lack of hydration stations.
Standard Operating Procedures (SOPs)
An SOP is a set of step-by-step instructions compiled to help workers carry out complex routine operations.
"If it isn't written down, it isn't a protocol."
SOP Elements:
Scope: Who does this apply to?
Pre-Check: What happens before the first whistle?
Emergency: What is the 'Red Button' plan?
The Safety Manual
You are the Safety Director for a specific sport or facility. Use everything you've learned to build a Comprehensive Safety Protocol Manual .
Biomechanical Risks
Gear Standards
Warm-Up Protocol
Hazard Scan
Safety Protocol Manual Template Official Safety Publication
Safety & Prevention Protocol Manual
Facility / Sport Discipline:
Safety Director Name:
Project Reference: UNIT-BIO-SEC
Date Issued: ________________
01
Biomechanical Risk Assessment
Identify three (3) critical movement patterns in your sport and analyze the primary injury risks associated with them (e.g., knee valgus during a landing, spinal rounding during a lift).
Pattern 01 Analysis
Force Mechanism (Shear/Tension/Comp):
Pattern 02 Analysis
Force Mechanism (Shear/Tension/Comp):
Required Corrective Cues
List the specific coaching cues that will be used to prevent these risks during practice:
02
Environmental & Gear SOP
Equipment Inspection Protocol
Define the pass/fail standards for the protective equipment used in this sport.
Shell Integrity
Absorption Liner
Fasteners/Fit
The "Five-Minute" Pre-Activity Scan
List 5 specific environmental hazards that must be checked and cleared before any athlete enters the facility.
1
2
3
4
5
Injury Prevention Synthesis // Final Project
Strictly Confidential // Authorized Personnel Only

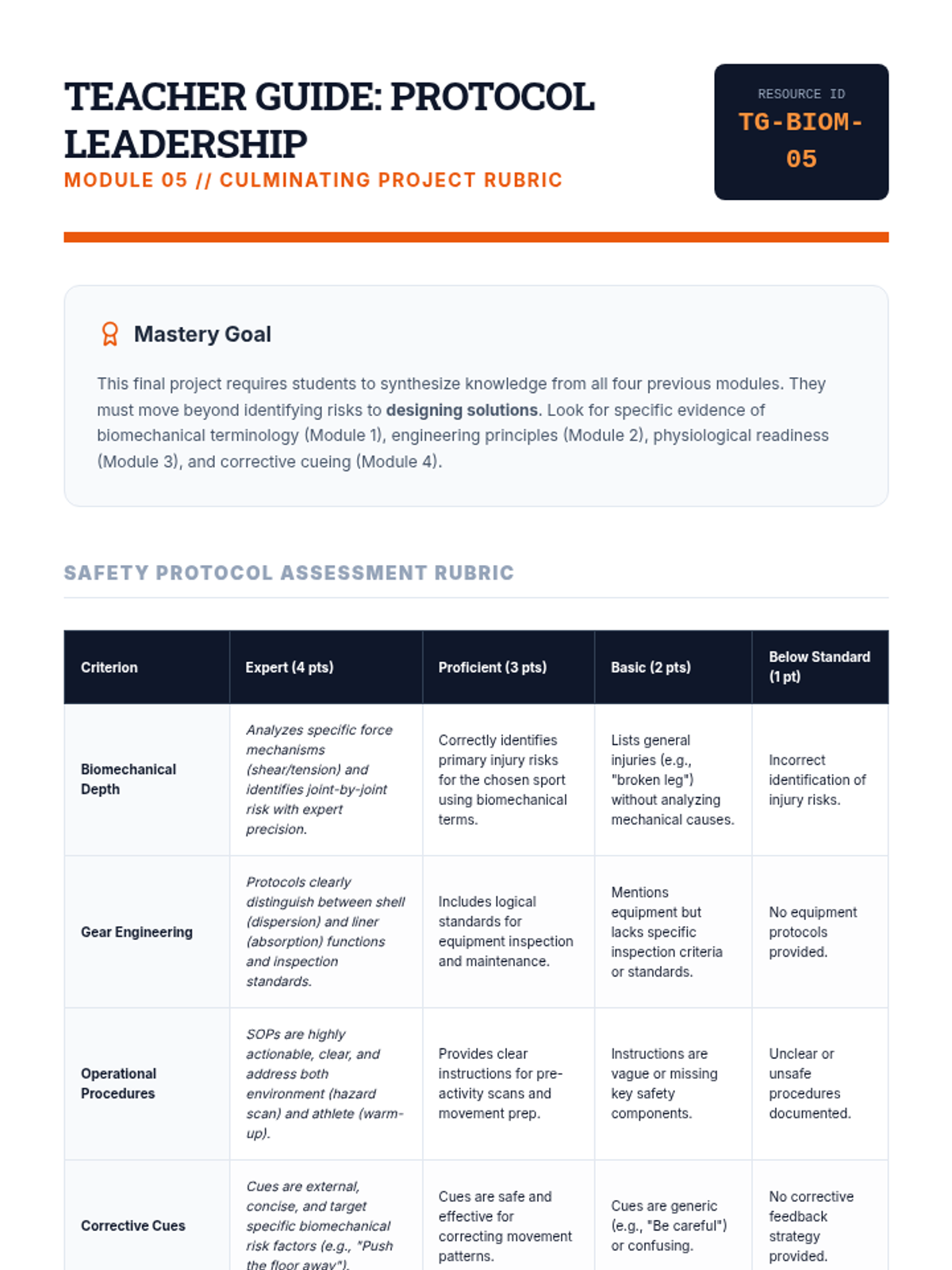

Protocol Master Rubric Teacher Guide: Protocol Leadership
Module 05 // Culminating Project Rubric
Resource ID
TG-BIOM-05
Mastery Goal
This final project requires students to synthesize knowledge from all four previous modules. They must move beyond identifying risks to designing solutions . Look for specific evidence of biomechanical terminology (Module 1), engineering principles (Module 2), physiological readiness (Module 3), and corrective cueing (Module 4).
Safety Protocol Assessment Rubric
Criterion Expert (4 pts) Proficient (3 pts) Basic (2 pts) Below Standard (1 pt) Biomechanical Depth Analyzes specific force mechanisms (shear/tension) and identifies joint-by-joint risk with expert precision. Correctly identifies primary injury risks for the chosen sport using biomechanical terms. Lists general injuries (e.g., "broken leg") without analyzing mechanical causes. Incorrect identification of injury risks. Gear Engineering Protocols clearly distinguish between shell (dispersion) and liner (absorption) functions and inspection standards. Includes logical standards for equipment inspection and maintenance. Mentions equipment but lacks specific inspection criteria or standards. No equipment protocols provided. Operational Procedures SOPs are highly actionable, clear, and address both environment (hazard scan) and athlete (warm-up). Provides clear instructions for pre-activity scans and movement prep. Instructions are vague or missing key safety components. Unclear or unsafe procedures documented. Corrective Cues Cues are external, concise, and target specific biomechanical risk factors (e.g., "Push the floor away"). Cues are safe and effective for correcting movement patterns. Cues are generic (e.g., "Be careful") or confusing. No corrective feedback strategy provided.
Post-Project Discussion Prompts
Cultural Impact: How do we change the "tough it out" culture in sports to prioritize protocol and biomechanical safety?
Future Tech: How might wearable motion analysis sensors change the way Safety Directors monitor athletes in real-time?
Injury Prevention Sequence // Lesson 05
Educator Resource // Not for Student Distribution
