Monumental Charcoal Lesson Plan Advanced Studio Art • Grade 12
Scale and Substance
Monumental Charcoal Studies • Instructional Plan
Studio Master
3–5 Studio Sessions (180 min)
Instructional Rationale
Senior art students often encounter physical constriction within 9×12" sketchbooks, limiting mark-making to wrist-pivot mechanics. This unit destabilizes habitual fine-motor drawing by commanding vertical, floor-to-ceiling drawing expanses. Students mobilize shoulder, core, and whole-body kinetics to explore visual weight, atmospheric field, and monumental spatial presence.
Core Learning Targets
Somatic Kinetic Marks: Mobilize torso and shoulder reach to generate continuous 5-foot dynamic strokes without lifting the charcoal.Tonal Mass & Spatial Weight: Layer vine, willow, and compressed charcoal to establish dense, brooding gravity balanced by radiant negative light.Atmospheric Subtraction: Use chamois and reductive erasing to sculpt spatial volume out of continuous charcoal dust veils.
Materials & Safety
Substrate: 50-70 lb kraft paper or Stonehenge rolls, 48" wide cut into 7–8 ft vertical panels taped to hard backing walls.
Charcoal Media: Jumbo soft vine sticks, compressed charcoal chunks (4B/6B), natural lump willow, powdered willow.
Reductive Tools: Large chamois skins, hard vinyl wedge erasers, kneaded dough, microfiber towels.
PPE & Health: NIOSH N95 masks, drop cloths, shop vacuums, ventilation hoods for workable fixative application.
Studio Pacing Guide — Part 1
00–25m
Phase I: Architectural Station Setup & Kinetic Somatic Reset
Each student tapes an 8-foot sheet plumb to drywall using blue painter's tape and heavy drafting tape. Complete the "Body and Mark Warmup" facing the paper at full arm span: lateral sweeping lunges, vertical downward drags with body weight, and blind spatial mapping with willow charcoal.
25–70m
Phase II: Mass Lay-in & Grounding the Structural Field
Moving past outline drawing, artists attack the surface using the broad flat side of vine charcoal and palm buffing to lay down massive tonal fields. Emphasize directional tension: where does visual mass accumulate (the bottom-third anchor vs. top compression)?
Scale and Substance: Monumental Charcoal Studies Instructional Guide • Page 1 of 2
Instructional Facilitation & Studio Protocols Page 2
Studio Pacing Guide — Part 2
70–120m
Phase III: The Subtractive Chisel & Compressed Climax
Introduce subtractive light extraction using folded chamois leather and kneaded wedges. Students "draw with absence," pulling light conduits through deep atmospheric smoke. Once structure is articulated, deploy 6B compressed charcoal blocks for velvet, light-devouring focal weights.
120–155m
Phase IV: Spatial Distance Calibration & Surface Fixation
Mandatory step-back rule: Artists must retreat 15 feet every 10 minutes to evaluate readability across the studio room. Refine edges, sharpen micro-contrasts, and anchor spatial gravity. Apply workable matte fixative in designated spray booths or outdoors.
155–180m
Phase V: Perimeter Stand-Off Critique
Students line the opposite studio wall. Critique operates on spatial resonance: Which works exert gravitational pull? Which gestures feel authentically somatic versus mechanical? Where does the paper breath?
Common Pitfalls & Fixes
The "Big Little Drawing" Syndrome: Students draw isolated miniature figures in the center of the giant paper.Correction: Mandate bleeding edges—at least 4 major gestural tracks must run off paper boundaries.
Tonal Timidity: Excessive mid-tone gray with no true carbon black or crisp white reserve.Correction: The "Charcoal Slap" intervention—deposit direct dense powder block at highest friction locus.
Teacher Socratic Prompts
"How does your mark change when you engage your knee flexion versus your elbow hinge?"
"If this paper were a 3D architectural corridor, where would a viewer feel crushed, and where could they inhale?"
"Where is your charcoal sitting passively on paper fibers, and where is it driven deep into the weave?"
Differentiated Support & Physical Adaptations
Mobility Modifications: Provide bamboo extension poles or charcoal clamped to dowels for artists working from seated or wheelchair vantage points to enable full 6-foot dynamic reach without strain.
Advanced Extension: Introduce liquid charcoal emulsion, wet-into-dry ink washes, or dual-handed mirrored gestural choreography to explore polyphonic spatial weight.
Scale and Substance: Monumental Charcoal Studies Instructional Guide • Page 2 of 2
Monumental Charcoal Slides Studio Masterclass • Grade 12 AP / Advanced Art
Scale &
Substance
Monumental charcoal studies: leaving the safety of the 9×12" sketchbook to command architectural space with whole-body mark making.
8-Foot Vertical Surfaces • Somatic Kinetic Force • Atmospheric Density
Biomechanical Shift
Dethroning the Wrist
The Desktop Habit
Focal Length: 14 Inches
Pivot point locked at the wrist and knuckles. Tiny micro-movements, calculated control, tight outlines, and polite pressure.
Result: Constrained, illustrative, static.
Monumental Somatics
Focal Length: Architectural
Pivot points at the shoulder girdle, ribcage, hip rotation, and knee bends. Full body weight driven directly into the paper fibers.
Result: Visceral velocity, gravitas, authentic power.
"Your paper is not a desktop page; it is a full-height wall you are grappling with."
Material Taxonomy
Charcoal Forms & Friction
Vine & Willow
Burnt twigs with zero binders. Silky, fugitive, easily wiped. Ideal for rapid volumetric lay-in and smoky atmospheric fields.
Tonal Range: Light-to-Mid Gray
Powdered Willow
Raw crushed soot applied with chamois skins or bare palms. Dissolves hard edges instantly to create spatial vortexes and fog.
Tonal Range: Infinite Transitions
Compressed 6B
Charcoal bound with clay or gum. Permanent, light-devouring matte black. Demands decisive physical force to deposit.
Tonal Range: Deep Velvet Black
Golden Rule: Never commit compressed charcoal until the structural masses are established in vine.
Compositional Physics
Spatial Weight & Mass
Visual Gravity in 2D Space
Mass is not just shading objects—it is creating an environment where darkness feels dense like stone, and light feels charged like open air.
Compression: Packing dense value into specific compression zones forces surrounding space to expand.Atmospheric Falloff: Contrast softens as forms recede into charcoal vapor.
The Spatial Challenge
"If a viewer walks within 3 feet of your drawing, they should feel enclosed by the environment. If they step 20 feet back, the visual architecture should snap into monumental clarity."
Scale and Substance: Monumental Charcoal Studies Atmospheric Dynamics
Reductive Drawing

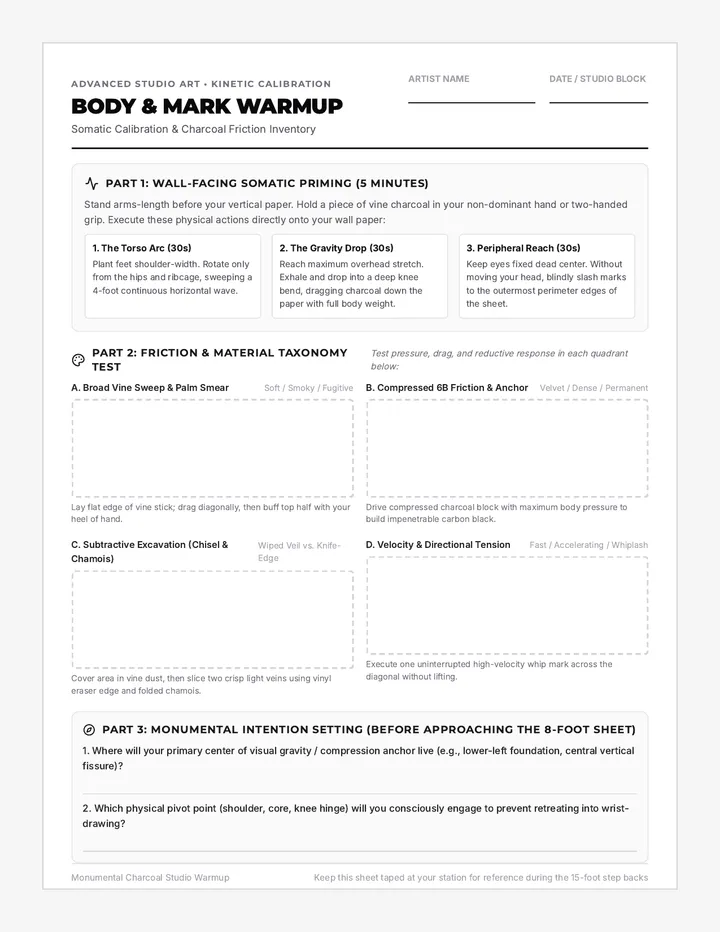

Body and Mark Warmup Advanced Studio Art • Kinetic Calibration
Body & Mark Warmup
Somatic Calibration & Charcoal Friction Inventory
Artist Name
Date / Studio Block
Part 1: Wall-Facing Somatic Priming (5 Minutes)
Stand arms-length before your vertical paper. Hold a piece of vine charcoal in your non-dominant hand or two-handed grip. Execute these physical actions directly onto your wall paper:
1. The Torso Arc (30s)
Plant feet shoulder-width. Rotate only from the hips and ribcage, sweeping a 4-foot continuous horizontal wave.
2. The Gravity Drop (30s)
Reach maximum overhead stretch. Exhale and drop into a deep knee bend, dragging charcoal down the paper with full body weight.
3. Peripheral Reach (30s)
Keep eyes fixed dead center. Without moving your head, blindly slash marks to the outermost perimeter edges of the sheet.
Part 2: Friction & Material Taxonomy Test
Test pressure, drag, and reductive response in each quadrant below:
A. Broad Vine Sweep & Palm Smear Soft / Smoky / Fugitive
Lay flat edge of vine stick; drag diagonally, then buff top half with your heel of hand.
B. Compressed 6B Friction & Anchor Velvet / Dense / Permanent
Drive compressed charcoal block with maximum body pressure to build impenetrable carbon black.
C. Subtractive Excavation (Chisel & Chamois) Wiped Veil vs. Knife-Edge
Cover area in vine dust, then slice two crisp light veins using vinyl eraser edge and folded chamois.
D. Velocity & Directional Tension Fast / Accelerating / Whiplash
Execute one uninterrupted high-velocity whip mark across the diagonal without lifting.
Part 3: Monumental Intention Setting (Before Approaching the 8-Foot Sheet)
1. Where will your primary center of visual gravity / compression anchor live (e.g., lower-left foundation, central vertical fissure)?
2. Which physical pivot point (shoulder, core, knee hinge) will you consciously engage to prevent retreating into wrist-drawing?
Monumental Charcoal Studio Warmup Keep this sheet taped at your station for reference during the 15-foot step backs

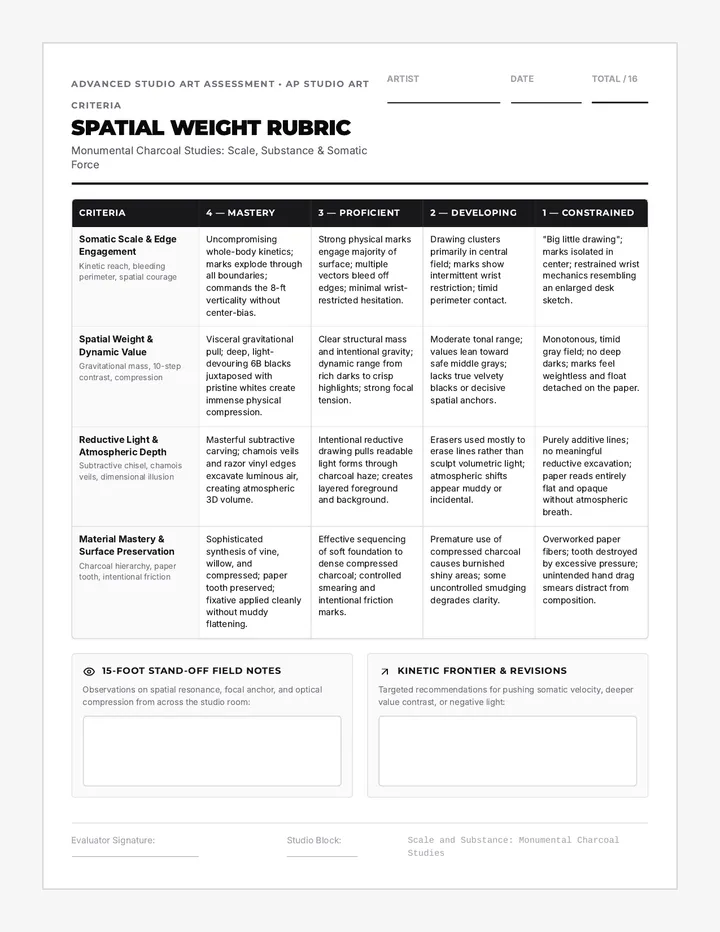

Spatial Weight Rubric Advanced Studio Art Assessment • AP Studio Art Criteria
Spatial Weight Rubric
Monumental Charcoal Studies: Scale, Substance & Somatic Force
Artist
Date
Total / 16
Criteria 4 — Mastery 3 — Proficient 2 — Developing 1 — Constrained Somatic Scale & Edge Engagement Kinetic reach, bleeding perimeter, spatial courage Uncompromising whole-body kinetics; marks explode through all boundaries; commands the 8-ft verticality without center-bias. Strong physical marks engage majority of surface; multiple vectors bleed off edges; minimal wrist-restricted hesitation. Drawing clusters primarily in central field; marks show intermittent wrist restriction; timid perimeter contact. "Big little drawing"; marks isolated in center; restrained wrist mechanics resembling an enlarged desk sketch. Spatial Weight & Dynamic Value Gravitational mass, 10-step contrast, compression Visceral gravitational pull; deep, light-devouring 6B blacks juxtaposed with pristine whites create immense physical compression. Clear structural mass and intentional gravity; dynamic range from rich darks to crisp highlights; strong focal tension. Moderate tonal range; values lean toward safe middle grays; lacks true velvety blacks or decisive spatial anchors. Monotonous, timid gray field; no deep darks; marks feel weightless and float detached on the paper. Reductive Light & Atmospheric Depth Subtractive chisel, chamois veils, dimensional illusion Masterful subtractive carving; chamois veils and razor vinyl edges excavate luminous air, creating atmospheric 3D volume. Intentional reductive drawing pulls readable light forms through charcoal haze; creates layered foreground and background. Erasers used mostly to erase lines rather than sculpt volumetric light; atmospheric shifts appear muddy or incidental. Purely additive lines; no meaningful reductive excavation; paper reads entirely flat and opaque without atmospheric breath. Material Mastery & Surface Preservation Charcoal hierarchy, paper tooth, intentional friction Sophisticated synthesis of vine, willow, and compressed; paper tooth preserved; fixative applied cleanly without muddy flattening. Effective sequencing of soft foundation to dense compressed charcoal; controlled smearing and intentional friction marks. Premature use of compressed charcoal causes burnished shiny areas; some uncontrolled smudging degrades clarity.

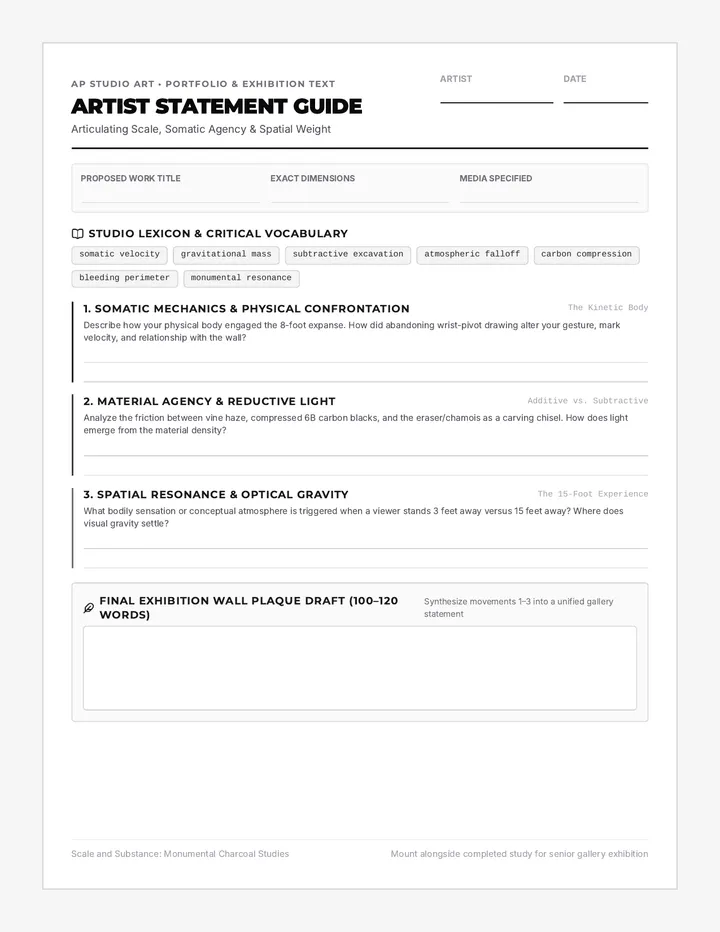

Monumental Artist Statement Guide AP Studio Art • Portfolio & Exhibition Text
Artist Statement Guide
Articulating Scale, Somatic Agency & Spatial Weight
Artist
Date
Proposed Work Title
Exact Dimensions
Media Specified
Studio Lexicon & Critical Vocabulary
somatic velocity gravitational mass subtractive excavation atmospheric falloff carbon compression bleeding perimeter monumental resonance
1. Somatic Mechanics & Physical Confrontation
The Kinetic Body
Describe how your physical body engaged the 8-foot expanse. How did abandoning wrist-pivot drawing alter your gesture, mark velocity, and relationship with the wall?
2. Material Agency & Reductive Light
Additive vs. Subtractive
Analyze the friction between vine haze, compressed 6B carbon blacks, and the eraser/chamois as a carving chisel. How does light emerge from the material density?
3. Spatial Resonance & Optical Gravity
The 15-Foot Experience
What bodily sensation or conceptual atmosphere is triggered when a viewer stands 3 feet away versus 15 feet away? Where does visual gravity settle?
Final Exhibition Wall Plaque Draft (100–120 Words)
Synthesize movements 1–3 into a unified gallery statement
Scale and Substance: Monumental Charcoal Studies Mount alongside completed study for senior gallery exhibition
