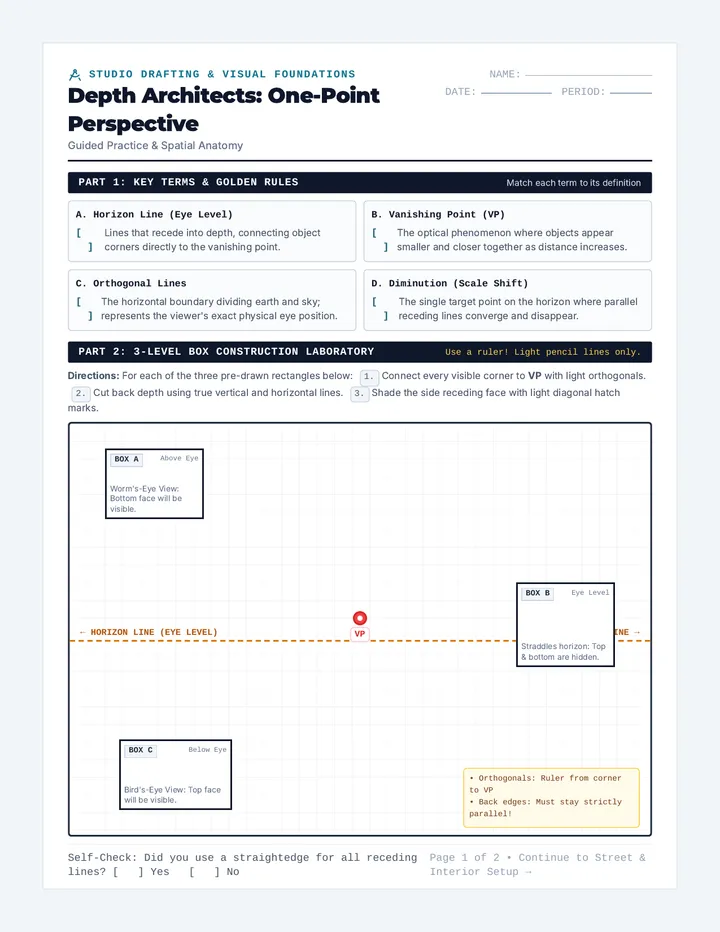

A comprehensive studio art lesson guiding students from fundamental one-point perspective mechanics to creative choice-driven architectural scene drawings. Students learn to manipulate horizon lines, vanishing points, and orthogonal lines to build compelling illusions of three-dimensional space on a flat surface.
← Left Wall (Doorways)
Right Wall (Artwork) →
↓ Floor (Receding Tiles & Seams)
Part 4: Architectural Inspector • Spot the Mistake Analyze each drawing and diagnose the failure
Case 1: The Floating Roof
VP
What rule is broken?
Case 2: The Leaning Wall
What rule is broken?
Case 3: Frozen Spacing
What rule is broken?
Completed worksheets must be checked prior to beginning the Choice Studio Project. Page 2 of 2
Add compressions, crosswalks, ceiling pipes, and small architectural trims.
Studio Art Assessment Portfolio • Depth Architects Unit Page 2 of 2
Level-by-Level Student Work Benchmarks (Choice Project)
LEVEL 4: EXCELLING (15-16 PTS) Exemplary
Characteristics: Ruler used flawlessly; all 5+ receding elements terminate exactly at the VP. Dramatic scale compression in floor tiles/crosswalks. Cohesive architectural theme with layered overlapping and three distinct tonal values (highlight, midtone, core shadow).
Teacher Note: Ready for two-point perspective extension challenges!
LEVEL 3: PROFICIENT (12-14 PTS) Class Standard
Characteristics: Clear horizon line and vanishing point. 5 elements accurately constructed. Back edges are parallel. Minor slip on 1-2 small details (e.g. doorframe orthogonal slightly off), but illusion of deep space is fully convincing. Cleanlinework with basic shading.
Teacher Note: Meets all grade-level drafting and visual art standards.
LEVEL 2: DEVELOPING (9-11 PTS) Approaching
Characteristics: VP is present, but student freehanded some receding lines or allowed lines to drift away from the target. Spacing between objects does not compress toward background. Back edges show slight accidental slant. Shading is patchy or rushed.
Intervention: Have student lay ruler back on VP to audit drifting lines.
LEVEL 1: EMERGING (0-8 PTS) Needs Revision
Characteristics: Vanishing point missing or ignored. Receding lines drawn in random directions. No sense of scale diminution. Drawing remains flat or heavily warped. Heavy un-erased construction scribbles and unfinished composition.
Intervention: Reset to Box Construction Lab with 1-on-1 straightedge scaffolding.
Unit Pacing Guide & Differentiation Playbook 5-Day Studio Model
DAY 1 Slides Deck & Core Anatomy
DAY 2 Worksheet & Box Lab Mastery
DAY 3 Scene Choice & Thumbnails
DAY 4 Studio Drafting & Orthogonals
DAY 5 Inking, Value & Peer Audit
Scaffolding / Accommodations: • Provide pre-taped rulers with highlighted center indicator for easier pivoting.
• Supply high-contrast colored pencils (e.g. red for VP guide lines, blue for final edges) before inking.
• Allow students with fine motor challenges to use a T-square or gridded drafting paper.
Advanced Extensions: • Require curved or circular perspective elements (e.g. rounded sci-fi tunnels, archways) using the bounding box method.
• Challenge students to add interior cutouts (e.g. hollow boxes, open windows looking into another room).
• Introduce atmospheric perspective (fading contrast and blue/gray tones toward background).
