Personal Symbolism Mindmap Worksheet
Studio Art • Relief Printmaking
Personal Symbolism Mindmap
Phase 1: Concept & Iconography
Name:
Date:
Period/Block:
Iconography in Relief: Artists use symbols—objects, plants, animals, textures, or geometric emblems—to represent invisible facets of who they are. You will transform personal stories into a striking black-and-white linocut print.
1 Identity Exploration Mind Map
Jot 3-4 associations in each node quadrant
Roots, Culture & Places
Passions, Talents & Rituals
My Identity Core
Obstacles, Resilience & Growth
Aspirations & Guiding Beliefs
2 Symbol Translation Matrix
Translate 3 abstract themes into tangible visual symbols
| Personal Trait / Memory | Literal Physical Object | Metaphorical Meaning | Carving Mark / Texture Plan |
|---|
| Model: Quiet perseverance | Dandelion growing through cracked asphalt | Finding strength and blooming under harsh conditions | Dense cross-hatching for concrete; crisp radiating V-cuts for petals |
| | | |
| | | |
| | | |
Unit: Symbolic Linocut Relief Prints Page 1 of 2 • Brainstorming & Symbol Mapping
Relief Print Planning
Positive vs. Negative Space Studies
Linoleum Block Size: 4" × 6" (Standard Relief)
Negative Space (Carved Away)
Every cut you gouge out holds no ink. It reveals the white printmaking paper. Gouge marks create dynamic texture and light.
Positive Space (Raised / Inked)
Uncut surface areas receive the rolled brayer ink. They print as solid, bold black shapes and defining silhouettes.
3 Thumbnail Explorations (4" × 5" Scaled Ratio)
Fill one thumbnail using each dominant visual approach
Option A: Dark Dominant (White-Line) 70% Ink / 30% White
Dark background. Carve only fine contour lines, highlights, and internal textures. Feels dramatic and nocturnal.
4" × 5" Scale
Option B: Light Dominant (Black-Line) 30% Ink / 70% White
Carve away the entire background. Leave bold positive shapes and graphic outlines to catch the ink. Feels airy and crisp.
4" × 5" Scale
4 Pre-Carving Transfer Protocol Checklist
Mirror Reversal: Lettering/numbers and asymmetrical symbols are reversed for transfer. Black Sharpie Mapping: Every area to stay uncut is colored solid black on the linoleum block. Safety Rule Commitment: Never carve toward non-dominant hand; bench hook securely mounted. Focal Balance: Composition uses clear foreground/background balance rather than floating icons.
Final Design Choice: [ ] Option A [ ] Option B [ ] Hybrid
Teacher Transfer Approval:
Unit: Symbolic Linocut Relief Prints Page 2 of 2 • Thumbnail Studies & Pre-Transfer Check

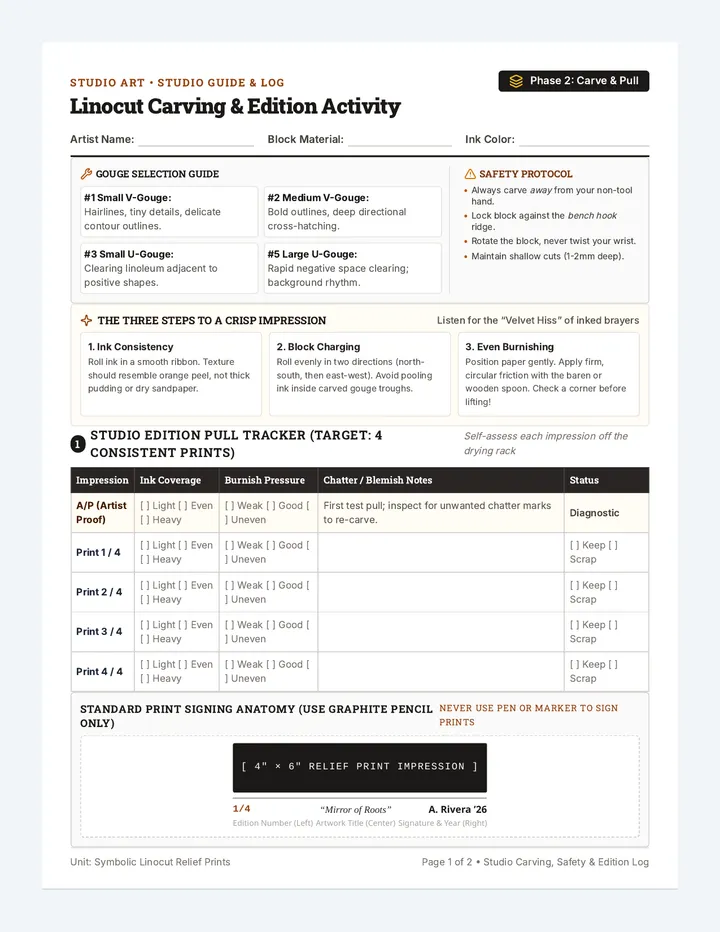

Relief Printing Studio Activity
Studio Art • Studio Guide & Log
Linocut Carving & Edition Activity
Phase 2: Carve & Pull
Artist Name:
Block Material:
Ink Color:
Gouge Selection Guide
#1 Small V-Gouge: Hairlines, tiny details, delicate contour outlines.
#2 Medium V-Gouge: Bold outlines, deep directional cross-hatching.
#3 Small U-Gouge: Clearing linoleum adjacent to positive shapes.
#5 Large U-Gouge: Rapid negative space clearing; background rhythm.
Safety Protocol
- • Always carve away from your non-tool hand.
- • Lock block against the bench hook ridge.
- • Rotate the block, never twist your wrist.
- • Maintain shallow cuts (1-2mm deep).
The Three Steps to a Crisp Impression
Listen for the “Velvet Hiss” of inked brayers
1. Ink Consistency
Roll ink in a smooth ribbon. Texture should resemble orange peel, not thick pudding or dry sandpaper.
2. Block Charging
Roll evenly in two directions (north-south, then east-west). Avoid pooling ink inside carved gouge troughs.
3. Even Burnishing
Position paper gently. Apply firm, circular friction with the baren or wooden spoon. Check a corner before lifting!
1 Studio Edition Pull Tracker (Target: 4 Consistent Prints)
Self-assess each impression off the drying rack
| Impression | Ink Coverage | Burnish Pressure | Chatter / Blemish Notes | Status |
|---|
| A/P (Artist Proof) | [ ] Light [ ] Even [ ] Heavy | [ ] Weak [ ] Good [ ] Uneven | First test pull; inspect for unwanted chatter marks to re-carve. | Diagnostic |
| Print 1 / 4 | [ ] Light [ ] Even [ ] Heavy | [ ] Weak [ ] Good [ ] Uneven | | [ ] Keep [ ] Scrap |
| Print 2 / 4 | [ ] Light [ ] Even [ ] Heavy | [ ] Weak [ ] Good [ ] Uneven | | [ ] Keep [ ] Scrap |
| Print 3 / 4 | [ ] Light [ ] Even [ ] Heavy | [ ] Weak [ ] Good [ ] Uneven | | [ ] Keep [ ] Scrap |
| Print 4 / 4 | [ ] Light [ ] Even [ ] Heavy | [ ] Weak [ ] Good [ ] Uneven | | [ ] Keep [ ] Scrap |
Standard Print Signing Anatomy (Use Graphite Pencil Only) Never use pen or marker to sign prints
