Drawing in Space Slides DRAWING IN SPACE
Translating 2D Contour to 3D Line
The Blind Challenge
"Can you draw a complex object without looking at your paper or lifting your pencil?"
The Rules
No Peeking at the paper.
No Lifting the pencil.
Eyes locked on the object's edges.
[Place Object Here: Keys, Shoe, or Plant]
What is Contour?
The Edge
The outer boundary of a form. It separates the object from the space around it (negative space).
Cross-Contour
Lines that travel across the form's surface to describe its three-dimensional volume.
Thinking Prompt: If an ant crawled across this object, what path would it take?
Translation: 2D → 3D
The Sketch
The continuous line on paper acts as your "map."
The Wire
The wire becomes that same line, lifted off the paper and into the air.
Key Concept: Wire is a line that you can walk around. It occupies volume without having mass.
Today's Mission
1
Select a singular object with interesting negative space.
2
Create three 2-minute Blind Contour drawings.
3
Use a single strand of aluminum wire to "retrace" your favorite sketch in the air.
Line Translation Worksheet Line Translation
Contour Drawing to 3D Form Workshop
Lesson 01
Sculpture I: Wire
Student Name
Date
01
The Blind Contour Challenge
Place your object in front of you. Set a timer for 2 minutes. Focus your eyes only on the object's edges. DO NOT LOOK AT YOUR PAPER. DO NOT LIFT YOUR PENCIL.
Attempt #1
Attempt #2
02
Line Analysis
Look at your drawings above. Identify one area where the line captures the 'spirit' of the object's volume. Why does this line work?
03
Spatial Translation
Thinking in 3D:
Your drawing is a map. Pick a starting point on your sketch. As you bend your wire, imagine your hands are the pencil. If the drawing goes 'up', your wire goes 'up'. If the drawing loops, your wire loops.
Checklist
Continuous strand
No sharp cut ends
Translates volume
Balances independently
Post-Activity Reflection
What was the hardest part about moving the line from the paper into the air?
Contour to Wire Guide Lesson Guide
Translating 2D Contour to 3D Line
Duration
60-90 Minutes
Learning Objectives
• Students will execute blind contour drawings to build hand-eye coordination.
• Students will identify the relationship between a drawn line and a physical edge.
• Students will manipulate a single wire to mimic a 2D continuous line.
Materials Needed
Drawing paper & Graphite pencils
12-gauge Aluminum wire (soft/malleable)
Assorted objects (Shoes, keys, plants, bottles)
Painters tape (for temporary mounting)
Instructional Sequence
1
The Hook: The Blind Drawing (10 mins)
Display an object. Students must draw it without looking at their paper or lifting their pencil. Emphasize that "accuracy" isn't the goal—"observation" is.
2
Direct Instruction: Contour & Volume (15 mins)
Use slides to define Contour vs. Cross-Contour. Show examples of how a single wire line can "hold" a shape. Demo the wire: "Think of your hands as the pencil and the air as the paper."
3
Studio Workshop: Translation (50 mins)
Teacher Circulates:
Ensure students aren't "kinking" the wire too much early on.
Encourage students to look at their object more than their wire.
Prompt: "How can this wire suggest the back of the object too?"
Teacher Troubleshooting
"My wire won't stand up!"
Remind students this is a linear exploration. They can use a small piece of tape to anchor the "start" of their wire to the table while they work upwards.
"It looks like a mess."
Celebrate the mess! Blind contour wire art is about gesture . Ask them to rotate the piece and find a 'view' that feels most like the object.
Wire Workshop Slides BENDING THE RULES
Wire Manipulation & Tool Safety
01. Anatomy of the Toolbox
Needle-Nose Pliers
The Nose: For tight bends.The Jaw: For gripping/crimping.The Pivot: Keep clean of debris.
Wire Cutters
Always cut away from your face.
Shield the wire end with your hand.
Safety goggles are mandatory.
The Gauge Paradox
In the world of wire, Lower Numbers = Thicker Wire .
12 Gauge
The "Skeleton"
20 Gauge
The "Muscle"
28 Gauge
The "Skin"
Connection Vocabulary
T
The Twist
Two wires braided together for strength.
C
The Crimp
Squashing one wire over another for a locked joint.
L
The Loop
Creating mechanical hinges or eyelets.
W
The Wrap
Coiling thin wire around a structural joint.
Skill Challenge!
Create a chain of five links using 14-gauge wire in under 5 minutes .
No sharp ends poking out.
All links must be identical size.
Chain must support its own weight.

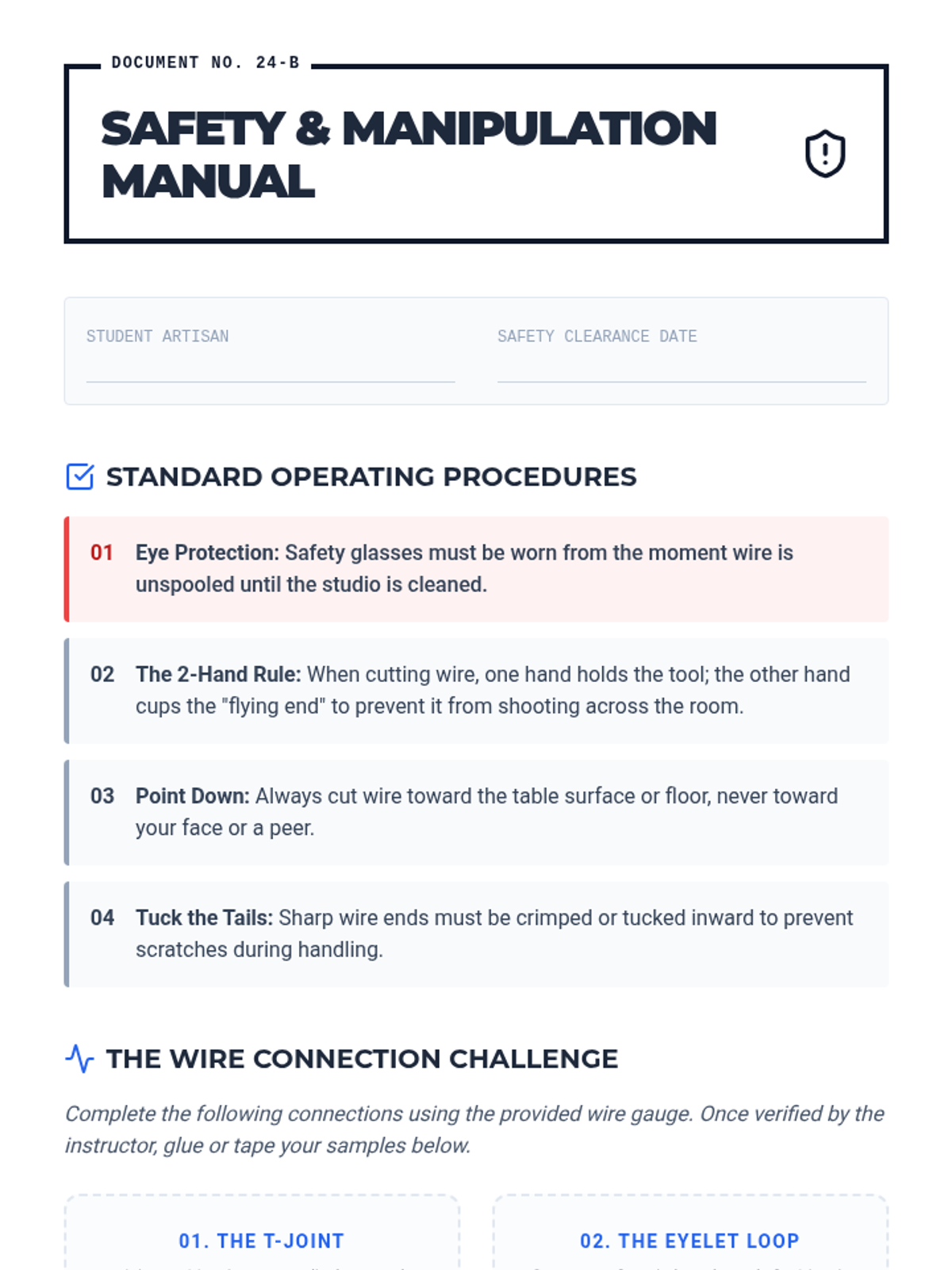

Safety and Technique Manual Document No. 24-B
Safety & Manipulation Manual
Student Artisan
Safety Clearance Date
Standard Operating Procedures
01
Eye Protection: Safety glasses must be worn from the moment wire is unspooled until the studio is cleaned.
02
The 2-Hand Rule: When cutting wire, one hand holds the tool; the other hand cups the "flying end" to prevent it from shooting across the room.
03
Point Down: Always cut wire toward the table surface or floor, never toward your face or a peer.
04
Tuck the Tails: Sharp wire ends must be crimped or tucked inward to prevent scratches during handling.
The Wire Connection Challenge
Complete the following connections using the provided wire gauge. Once verified by the instructor, glue or tape your samples below.
01. The T-Joint
Join two 16g wires perpendicular to each other using a tight wrap.
02. The Eyelet Loop
Create a perfect circle at the end of a 14g wire using only the nose of the pliers.
03. The Wrapped Coil
Secure a 24g wire to a 12g wire using ten perfectly even coils.
04. The Tension Bend
Create a zig-zag that holds its shape under pressure.
Artisan Safety Pledge
"I understand that tools and wire can be hazardous if used improperly. I agree to wear my safety gear at all times and follow the instructions of my lead artisan. I will respect my space and the safety of those around me."
Signature

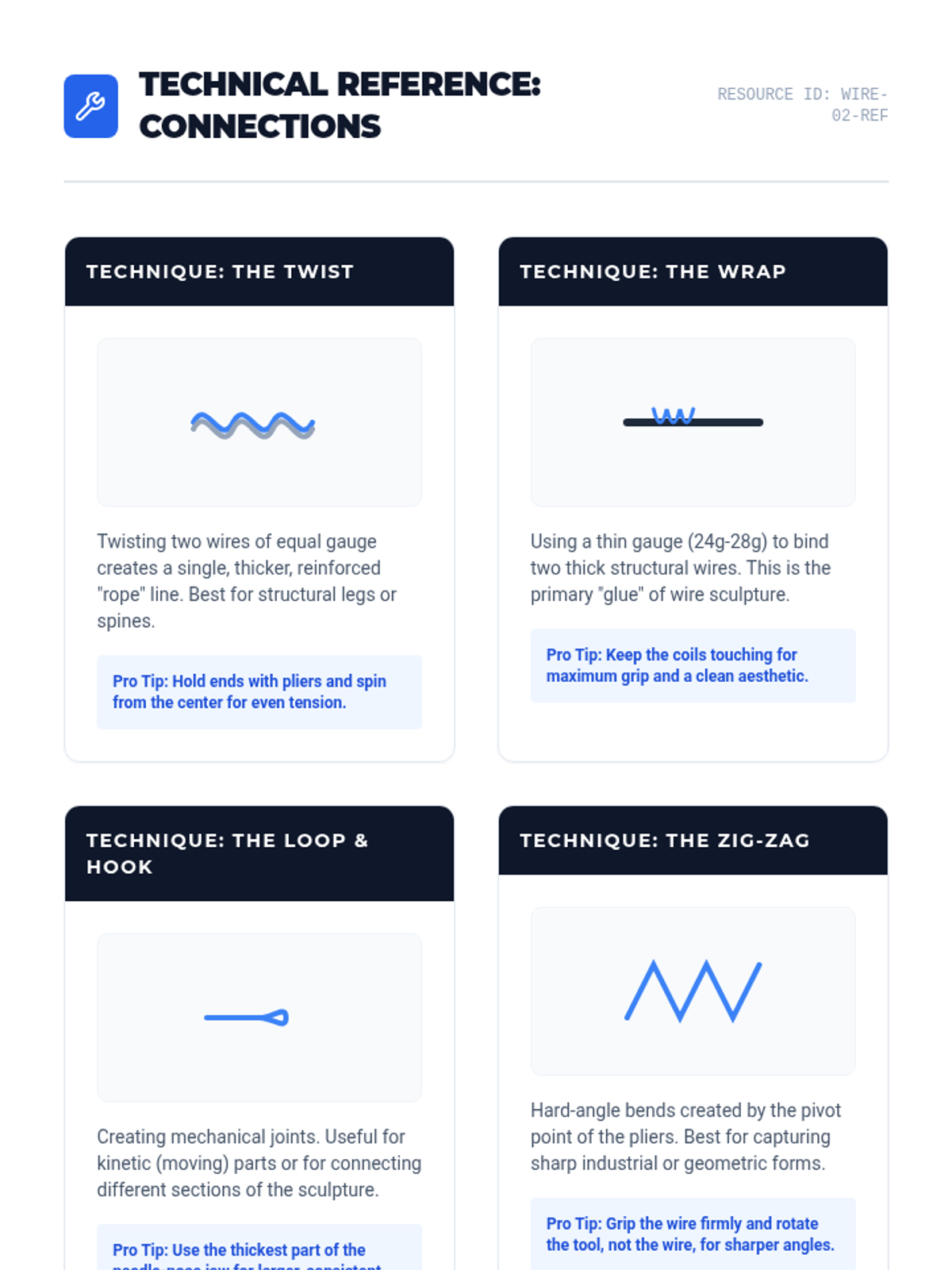

Wire Connection Reference Sheet Technical Reference: Connections
Resource ID: WIRE-02-REF
Technique: The Twist
Twisting two wires of equal gauge creates a single, thicker, reinforced "rope" line. Best for structural legs or spines.
Pro Tip: Hold ends with pliers and spin from the center for even tension.
Technique: The Wrap
Using a thin gauge (24g-28g) to bind two thick structural wires. This is the primary "glue" of wire sculpture.
Pro Tip: Keep the coils touching for maximum grip and a clean aesthetic.
Technique: The Loop & Hook
Creating mechanical joints. Useful for kinetic (moving) parts or for connecting different sections of the sculpture.
Pro Tip: Use the thickest part of the needle-nose jaw for larger, consistent loops.
Technique: The Zig-Zag
Hard-angle bends created by the pivot point of the pliers. Best for capturing sharp industrial or geometric forms.
Pro Tip: Grip the wire firmly and rotate the tool, not the wire, for sharper angles.
Teacher Guide: Tool Safety Checklist
Are they wearing safety goggles?
Are they shielding the wire when cutting?
Is the table clear of small wire scraps?
Are tools being used for their intended purpose?
Sculpting Air Slides SCULPTING THE VOID
Defining Volume with Negative Space
The Invisible Ingredient
Positive Space
The physical matter. The wire itself.
Negative Space
The empty air trapped inside or around the sculpture. In wire art, this is your primary medium.
This air is
"The bowl is the space it holds."
How to Suggest Mass
Density
Where the wire is most tangled or wrapped, the object feels "heavier" or "solid."
Enclosure
If you wrap a wire around a "ghost" form, the viewer's brain fills in the solid surface.
Line Weight
Thicker wire suggests a structural bone; thinner wire suggests a skin or delicate edge.
"Drawing the Air"
[Teacher: Project an image of an Alexander Calder Wire Portrait here]
Analyze the Line:
Where does the line stop being an outline and become a "feature"?
How many distinct "holes" of negative space can you count?
Is the form recognizable from the side?
Phase 01: The Skeleton
A
Use 12-gauge wire to define the primary silhouette of your object.
B
Create three internal loops that bridge the front to the back.
C
Verify: Does it hold its shape when lifted?

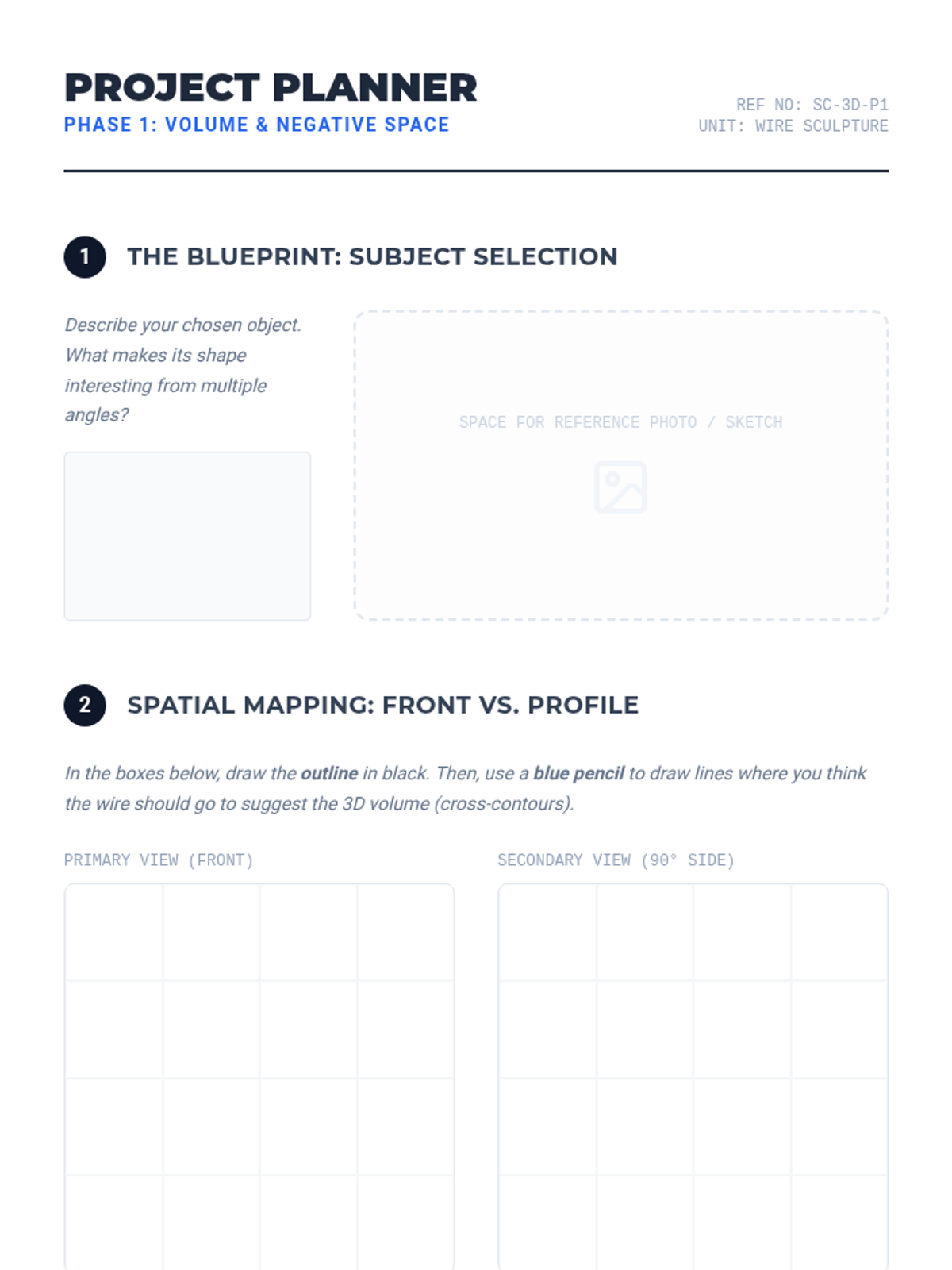

Volume Planning Sketchbook Project Planner
Phase 1: Volume & Negative Space
REF NO: SC-3D-P1
UNIT: WIRE SCULPTURE
1
The Blueprint: Subject Selection
Describe your chosen object. What makes its shape interesting from multiple angles?
Space for Reference Photo / Sketch
2
Spatial Mapping: Front vs. Profile
In the boxes below, draw the outline in black. Then, use a blue pencil to draw lines where you think the wire should go to suggest the 3D volume (cross-contours).
Primary View (Front)
Secondary View (90° Side)
Material Strategy
Structure (12g)
Where will you use your thickest wire for the "skeleton"?
Volume (20g)
How will you bridge the space between front and back?
Detail (28g)
Where do you want the eye to focus? (Density)
Critique Compass Guide Critique Compass
Mid-Project Review Guide
Phase 01
Facilitator Notes
At this stage, sculptures should be "skeletal." The goal of this critique is not to judge the final product, but to ensure the spatial logic is sound before students add more weight. Pair students up for a 10-minute "Rotation Walk."
Spatial Logic
Does it look like the object from every side?
The 360° Check
Rotate the sculpture. If it "disappears" or looks like a flat line from the side, prompt the student to add a cross-contour loop connecting the front to the back.
Negative Space
Is the air being used effectively?
Volume vs. Outline
Is the wire just tracing the outside? Look for wires that cut through the center of the form to define the interior "heart" of the object.
Line Variety
Is there a mix of wire thicknesses?
Hierarchy of Line
Check if the student is using 12g for the main frame and 20g/24g for internal support. If everything is the same gauge, the piece will look flat and visually monotonous.
Student Critique Prompts
"I recognized this object immediately from the front, but from the top, I wasn't sure. Where could you add one wire to show how wide it is?"
"Your negative space feels very open here. Is that because the object is hollow there, or do we need more line density to suggest a surface?"
Engineering Stability Slides THE WOBBLE TEST
Structural Integrity & Mounting
01. Finding the Center
The Center of Gravity
Every sculpture has a point where its weight is perfectly balanced. If your sculpture leans too far from its center, gravity will pull it over.
Check: Draw a vertical line from the highest point down. Is most of the weight directly over the base?
Mounting Strategies
Integrated Loop
The wire itself wraps into a wide, flat circular base. Invisible and elegant.
Block Mount
Drill small holes into wood or cork. Insert wire and secure with glue or friction.
The Tripod
Three points of contact with the ground. The most stable geometric configuration.
The Problem Solver
Problem: Top Heavy
The sculpture tips over when the table is nudged.
Fix: Wide the base or add "counter-weight" wires low to the ground.
Problem: Slinky Effect
The sculpture bounces or sags under its own weight.
Fix: Add diagonal "bracing" wires (12g) to create triangular support.
The Test
Phase 02: Stabilization
"Can your sculpture survive a gentle shake of the table without falling over or changing its shape?"
Observe
Reinforce
Verify

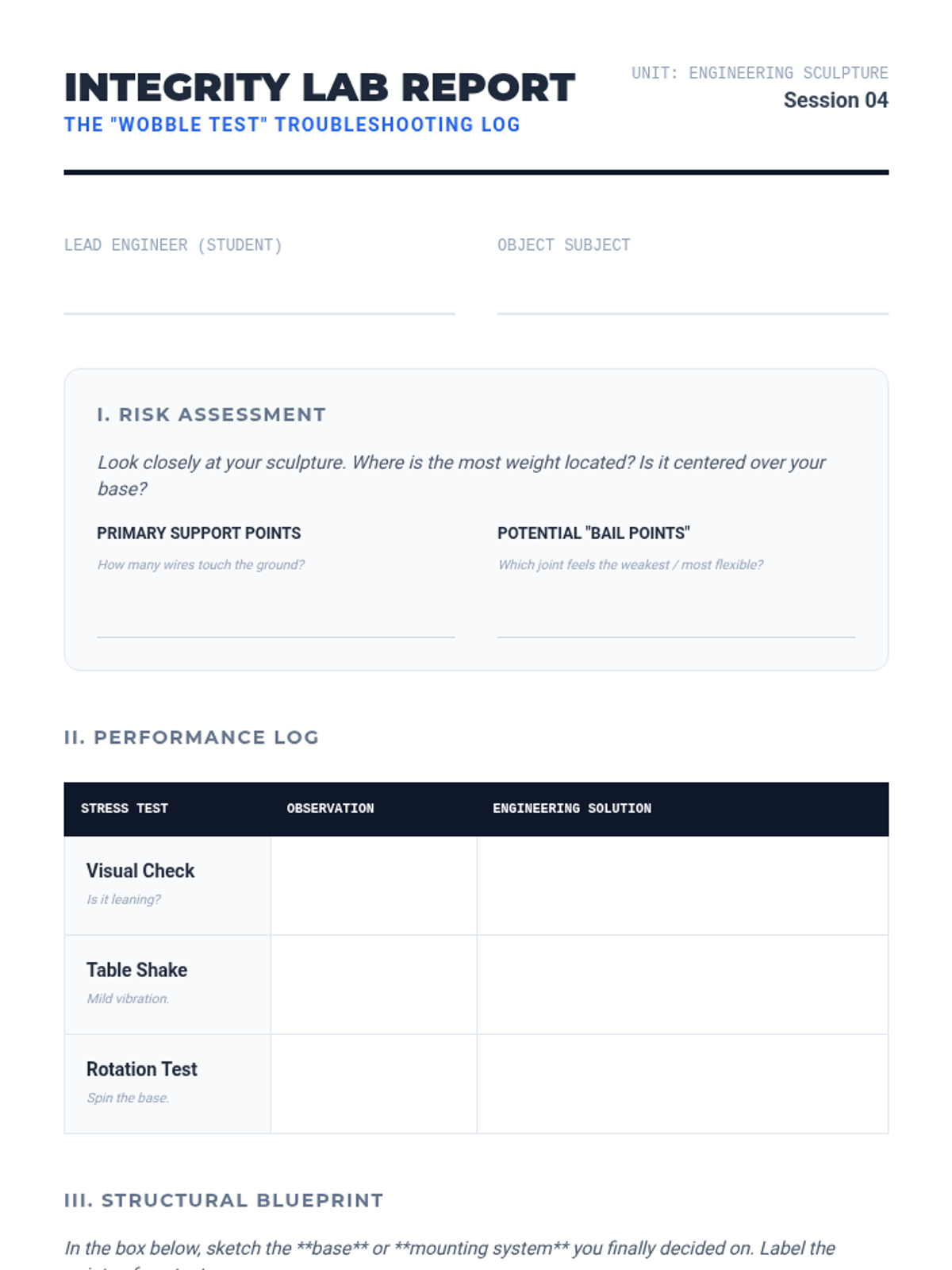

The Wobble Test Worksheet Integrity Lab Report
The "Wobble Test" Troubleshooting Log
Unit: Engineering Sculpture
Session 04
Lead Engineer (Student)
Object Subject
I. Risk Assessment
Look closely at your sculpture. Where is the most weight located? Is it centered over your base?
Primary Support Points
How many wires touch the ground?
Potential "Bail Points"
Which joint feels the weakest / most flexible?
II. Performance Log
Stress Test Observation Engineering Solution Visual Check Is it leaning? Table Shake Mild vibration. Rotation Test Spin the base.
III. Structural Blueprint
In the box below, sketch the **base** or **mounting system** you finally decided on. Label the points of contact.
Technical Drawing Area
Strength = Stability + Flexibility

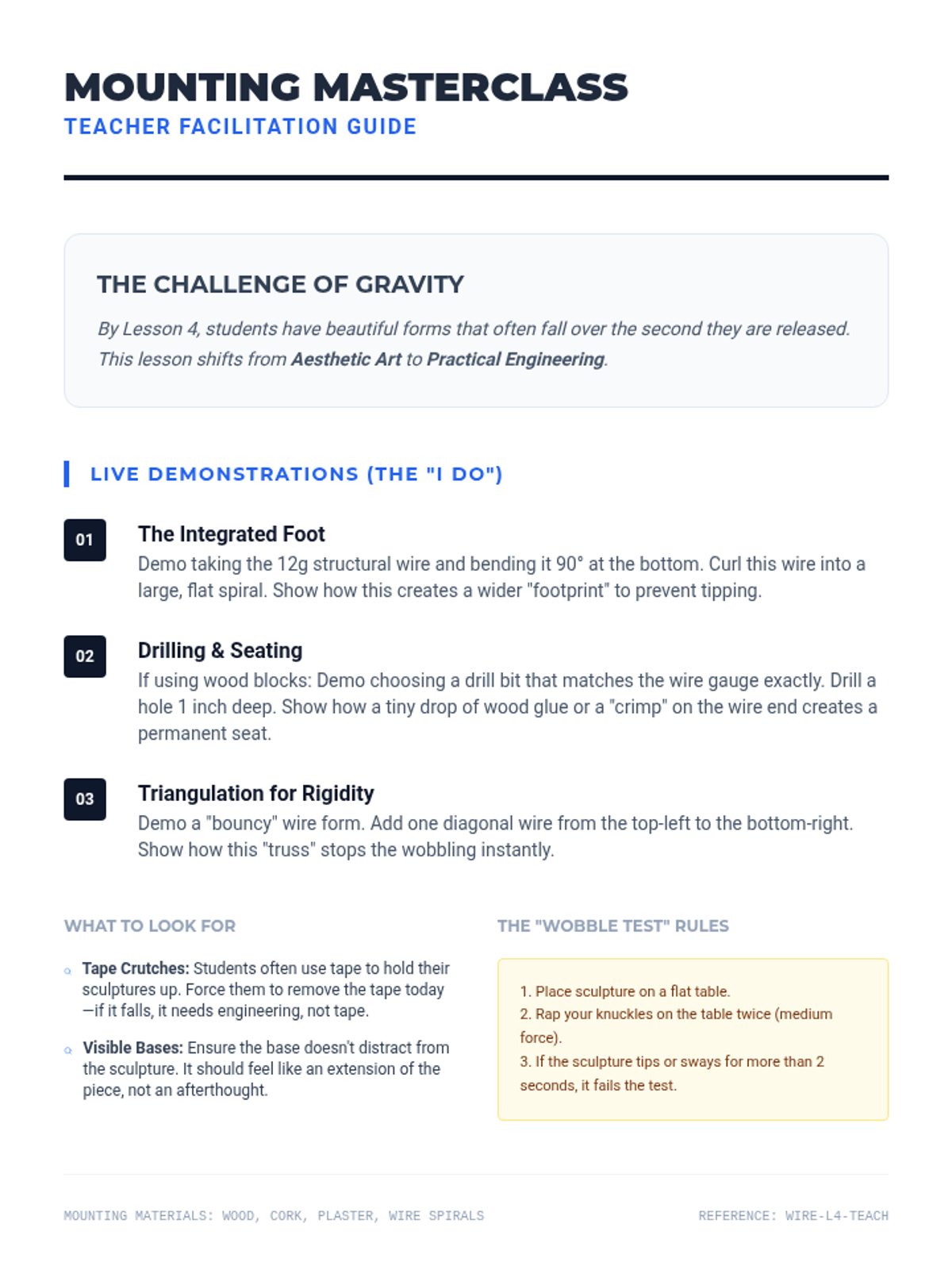

Mounting Masterclass Guide Mounting Masterclass
Teacher Facilitation Guide
The Challenge of Gravity
By Lesson 4, students have beautiful forms that often fall over the second they are released. This lesson shifts from Aesthetic Art to Practical Engineering .
Live Demonstrations (The "I Do")
01
The Integrated Foot
Demo taking the 12g structural wire and bending it 90° at the bottom. Curl this wire into a large, flat spiral. Show how this creates a wider "footprint" to prevent tipping.
02
Drilling & Seating
If using wood blocks: Demo choosing a drill bit that matches the wire gauge exactly. Drill a hole 1 inch deep. Show how a tiny drop of wood glue or a "crimp" on the wire end creates a permanent seat.
03
Triangulation for Rigidity
Demo a "bouncy" wire form. Add one diagonal wire from the top-left to the bottom-right. Show how this "truss" stops the wobbling instantly.
What to Look For
Tape Crutches: Students often use tape to hold their sculptures up. Force them to remove the tape today—if it falls, it needs engineering, not tape.Visible Bases: Ensure the base doesn't distract from the sculpture. It should feel like an extension of the piece, not an afterthought.
The "Wobble Test" Rules
1. Place sculpture on a flat table.
Mounting Materials: Wood, Cork, Plaster, Wire Spirals Reference: WIRE-L4-TEACH
Shadow Play Slides SHADOW PLAY
Final Lighting & Presentation
The "Double" Sculpture
Your wire sculpture is only half of the experience.
The shadow is a second, two-dimensional drawing created by the light hitting your 3D line.
"How can a single object produce ten different drawings?"
Manipulating the Light
Distance
Closer light = Large, blurry shadows.
Angle
Low angle = Long, distorted shadows.
Multiplicity
Two lights = Intersecting patterns.
Documenting the Work
1
Background
Use a clean, matte white or black surface. No patterns.
2
Focus
Focus on the wire itself; let the shadow provide the atmosphere.
3
Composition
Include both the object and its shadow in the frame.
GALLERY MODE
"Turn off the overhead lights. Use your flashlights to explore your peers' work."
LOOK
For the most unexpected shadow.
DISCUSS
How light changes the 'weight' of the wire.
WRITE
One thing that surprised you about your own work.

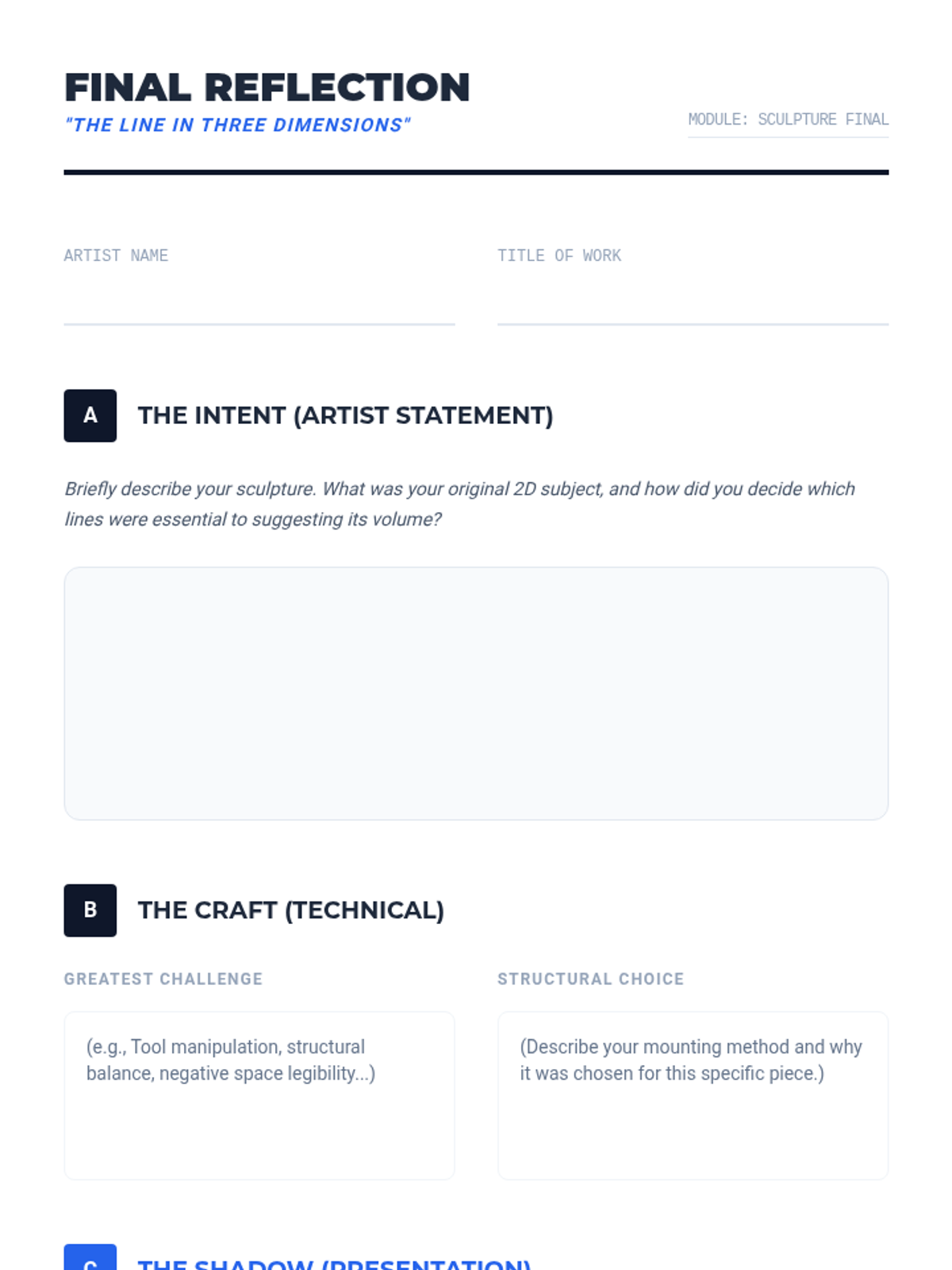

Artist Statement Reflection Sheet Final Reflection
"The Line in Three Dimensions"
Module: Sculpture Final
Artist Name
Title of Work
A
The Intent (Artist Statement)
Briefly describe your sculpture. What was your original 2D subject, and how did you decide which lines were essential to suggesting its volume?
B
The Craft (Technical)
Greatest Challenge
(e.g., Tool manipulation, structural balance, negative space legibility...)
Structural Choice
(Describe your mounting method and why it was chosen for this specific piece.)
C
The Shadow (Presentation)
"How did the shadow of your work change your perception of the piece?"

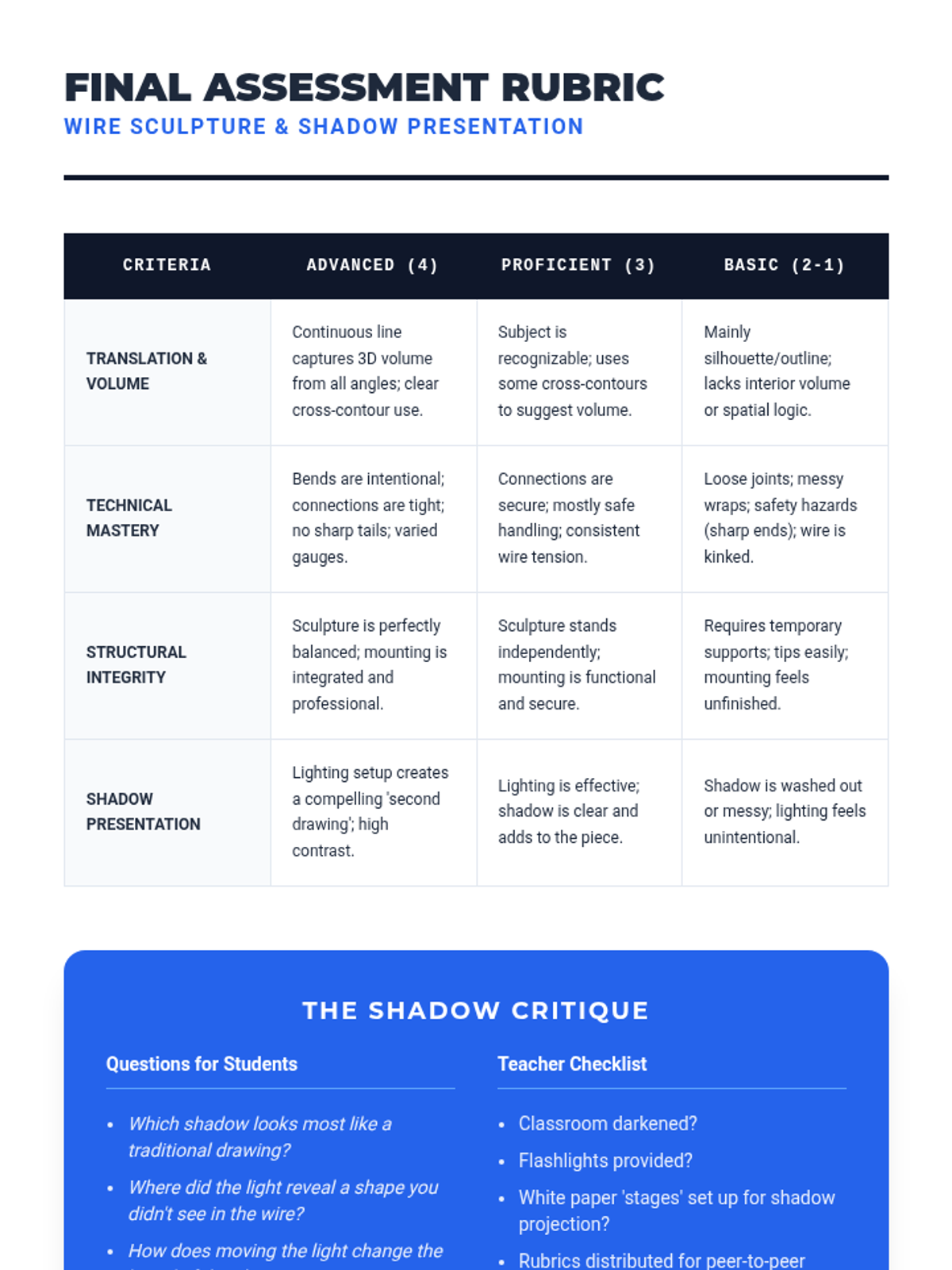

Final Assessment Rubric Guide Final Assessment Rubric
Wire Sculpture & Shadow Presentation
Criteria Advanced (4) Proficient (3) Basic (2-1) Translation & Volume Continuous line captures 3D volume from all angles; clear cross-contour use. Subject is recognizable; uses some cross-contours to suggest volume. Mainly silhouette/outline; lacks interior volume or spatial logic. Technical Mastery Bends are intentional; connections are tight; no sharp tails; varied gauges. Connections are secure; mostly safe handling; consistent wire tension. Loose joints; messy wraps; safety hazards (sharp ends); wire is kinked. Structural Integrity Sculpture is perfectly balanced; mounting is integrated and professional. Sculpture stands independently; mounting is functional and secure. Requires temporary supports; tips easily; mounting feels unfinished. Shadow Presentation Lighting setup creates a compelling 'second drawing'; high contrast. Lighting is effective; shadow is clear and adds to the piece. Shadow is washed out or messy; lighting feels unintentional.
The Shadow Critique
Questions for Students
Which shadow looks most like a traditional drawing?
Where did the light reveal a shape you didn't see in the wire?
How does moving the light change the 'story' of the object?
Teacher Checklist
Classroom darkened?
Flashlights provided?
White paper 'stages' set up for shadow projection?
Rubrics distributed for peer-to-peer feedback?
