Terrain Vision Slides Terrain Vision
Visualizing the 3D World through 2D Maps
Lesson 01: Topography & Landforms
The Topo Challenge
Map A: Topographic
Map B: 3D Satellite
Without using Map B, which route on Map A is the steepest?
The Code of the Lines
Contour Lines
Imaginary lines connecting points of equal elevation above sea level.
Contour Interval
The vertical distance or change in elevation between contour lines.
Rule of Thumb
Close Together = Very Steep Slope
Far Apart = Gentle Slope / Flat
Common Landforms
Peak
Concentric circles showing the highest point.
Ridge
A long, narrow high point; "U" or "V" shapes pointing downhill.
Valley
Low ground between hills; "V" shapes pointing uphill.
Saddle
A low point between two peaks; looks like an hourglass.
Cliff
Contour lines that merge or touch.
Depression
Hole or crater; shown with tiny "hachure" marks.
From Map to Mountain
The Mission:
Using the provided topographic map section, build a 3-dimensional clay model that accurately represents the terrain.
Each layer of clay must represent ONE contour interval.
Identify and label: 1 Peak, 1 Valley, 1 Ridge.
Ensure the steepest slope on the map is the steepest on your model.
Work in pairs. You have 25 minutes.

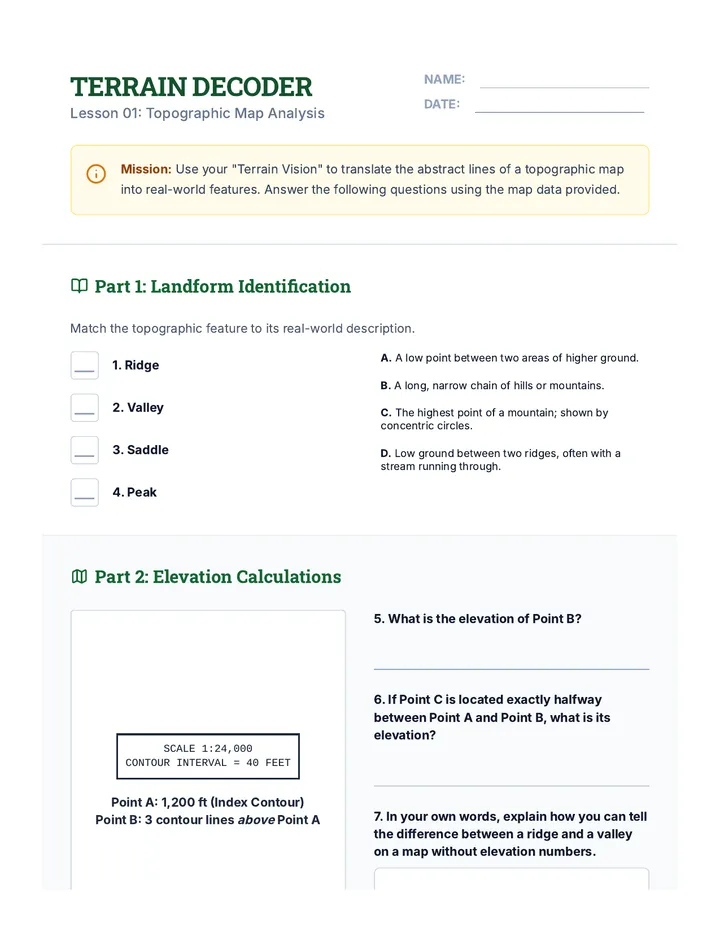

Terrain Decoder Worksheet Terrain Decoder
Lesson 01: Topographic Map Analysis
Name:
Date:
Mission: Use your "Terrain Vision" to translate the abstract lines of a topographic map into real-world features. Answer the following questions using the map data provided.
Part 1: Landform Identification
Match the topographic feature to its real-world description.
___
1. Ridge
___
2. Valley
___
3. Saddle
___
4. Peak
A. A low point between two areas of higher ground.
B. A long, narrow chain of hills or mountains.
C. The highest point of a mountain; shown by concentric circles.
D. Low ground between two ridges, often with a stream running through.
Part 2: Elevation Calculations
SCALE 1:24,000
Point A: 1,200 ft (Index Contour)
5. What is the elevation of Point B?
6. If Point C is located exactly halfway between Point A and Point B, what is its elevation?
7. In your own words, explain how you can tell the difference between a ridge and a valley on a map without elevation numbers.
Part 3: Terrain Sketching
Sketch a side-view profile of a mountain that has a very steep eastern face and a gentle western slope.
WEST
EAST
Critical Thinking:
Why would a hiker want to identify a "Saddle" on a map before choosing a route to the peak?

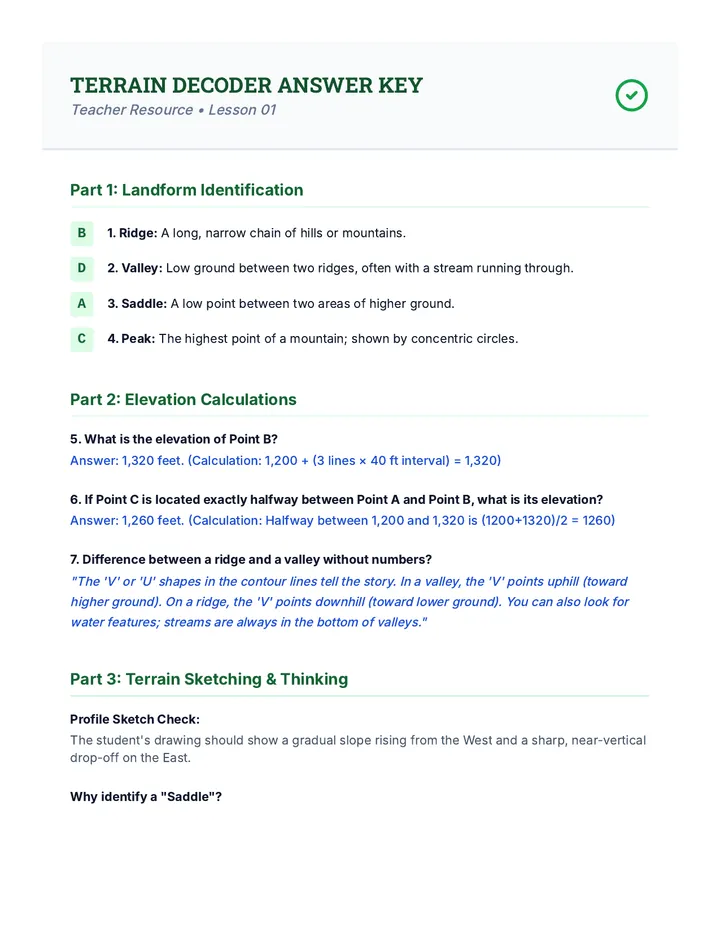

Terrain Decoder Answer Key Terrain Decoder Answer Key
Teacher Resource • Lesson 01
Part 1: Landform Identification
B 1. Ridge: A long, narrow chain of hills or mountains.
D 2. Valley: Low ground between two ridges, often with a stream running through.
A 3. Saddle: A low point between two areas of higher ground.
C 4. Peak: The highest point of a mountain; shown by concentric circles.
Part 2: Elevation Calculations
5. What is the elevation of Point B?
Answer: 1,320 feet. (Calculation: 1,200 + (3 lines × 40 ft interval) = 1,320)
6. If Point C is located exactly halfway between Point A and Point B, what is its elevation?
Answer: 1,260 feet. (Calculation: Halfway between 1,200 and 1,320 is (1200+1320)/2 = 1260)
7. Difference between a ridge and a valley without numbers?
"The 'V' or 'U' shapes in the contour lines tell the story. In a valley, the 'V' points uphill (toward higher ground). On a ridge, the 'V' points downhill (toward lower ground). You can also look for water features; streams are always in the bottom of valleys."
Part 3: Terrain Sketching & Thinking
Profile Sketch Check:
The student's drawing should show a gradual slope rising from the West and a sharp, near-vertical drop-off on the East.
Why identify a "Saddle"?
"Saddles are often the easiest points to cross from one side of a mountain range to another. They provide a 'pass' or a break in the high terrain. For a peak-bagger, a saddle might represent a good place to set up a base camp or the final ridge-line approach to a summit."
Teaching Tip
Many students struggle with the "V" rule. Remind them that water flows out of a "V" (Valley) and the point of the "V" points where the water came from (Uphill).
Compass Core Slides Compass Core
Precision Direction & Magnetic Alignment
Lesson 02: Mechanics & Bearings
The Straight Line Challenge
"Humans cannot walk in a straight line without a visual reference point. Without a tool, we naturally veer in circles."
Blindfolded Human
Natural Veering
The Compass is your "Internal Straight Edge".
Anatomy of the Tool
1. Baseplate
The clear plastic plate; serves as the ruler and holder.
2. Direction of Travel Arrow
Points exactly where you want to go.
3. Magnetic Needle
"Red Fred"
The red end always points to Magnetic North.
4. Orienting Arrow
"The Shed"
The static arrow on the housing floor.
Taking a Bearing
1
Point: Point the Direction-of-Travel arrow at your target landmark.
2
Turn: Rotate the compass housing until the Magnetic Needle (Fred) is inside the Orienting Arrow (Shed).
3
Read: Look at the degree mark at the index line. This is your Azimuth.
"Red Fred in the Shed"
This is the most important rhyme in navigation. Memorize it. Use it.
The Declination Problem
True North (Geographic)
The Earth's axis (The North Pole). Where maps point.
Magnetic North
The magnetic center of the Earth. Where compasses point.
The difference between these two points is called DECLINATION.
Warning: Reverse Polarity
Keep your compass away from metal objects, magnets, and electronic devices, or the needle will give false readings!

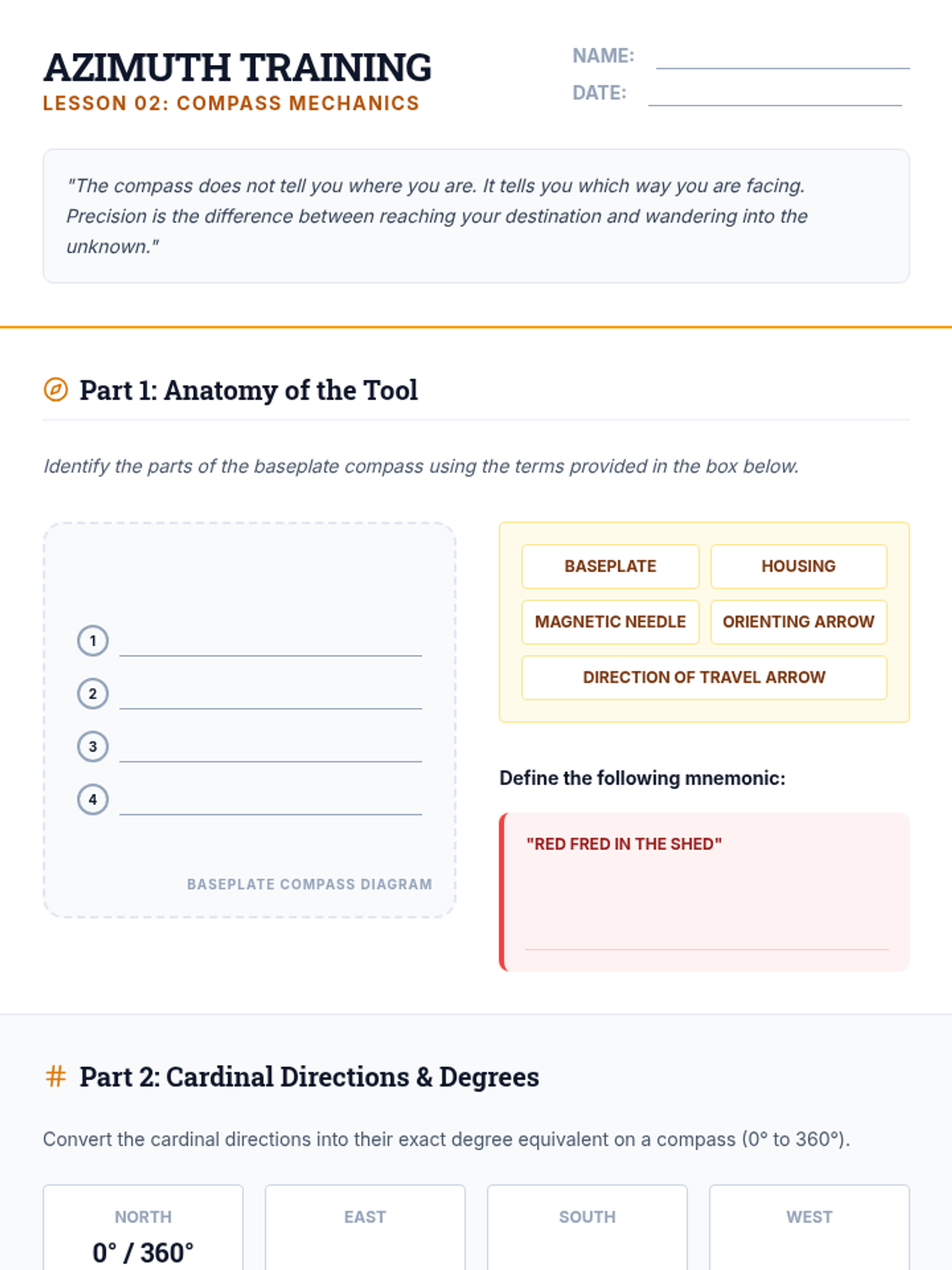

Azimuth Training Worksheet Azimuth Training
Lesson 02: Compass Mechanics
Name:
Date:
"The compass does not tell you where you are. It tells you which way you are facing. Precision is the difference between reaching your destination and wandering into the unknown."
Part 1: Anatomy of the Tool
Identify the parts of the baseplate compass using the terms provided in the box below.
1
2
3
4
Baseplate Compass Diagram
Baseplate
Housing
Magnetic Needle
Orienting Arrow
Direction of Travel Arrow
Define the following mnemonic:
"Red Fred in the Shed"
Part 2: Cardinal Directions & Degrees
Convert the cardinal directions into their exact degree equivalent on a compass (0° to 360°).
NORTH
0° / 360°
EAST
SOUTH
WEST
Reading an Azimuth:
If you are walking at a bearing of 225° , which direction are you heading?
NE NW SE SW
Magnetic Interference:
List two common items in a hiker's pack that could cause "Reverse Polarity" or a false compass reading.
Part 3: Declination Awareness
Critical Scenario:
You are hiking in the Pacific Northwest where the magnetic declination is roughly 15° East . If your compass reads 100°, but you fail to adjust for declination, will you end up to the LEFT or RIGHT of your intended target?

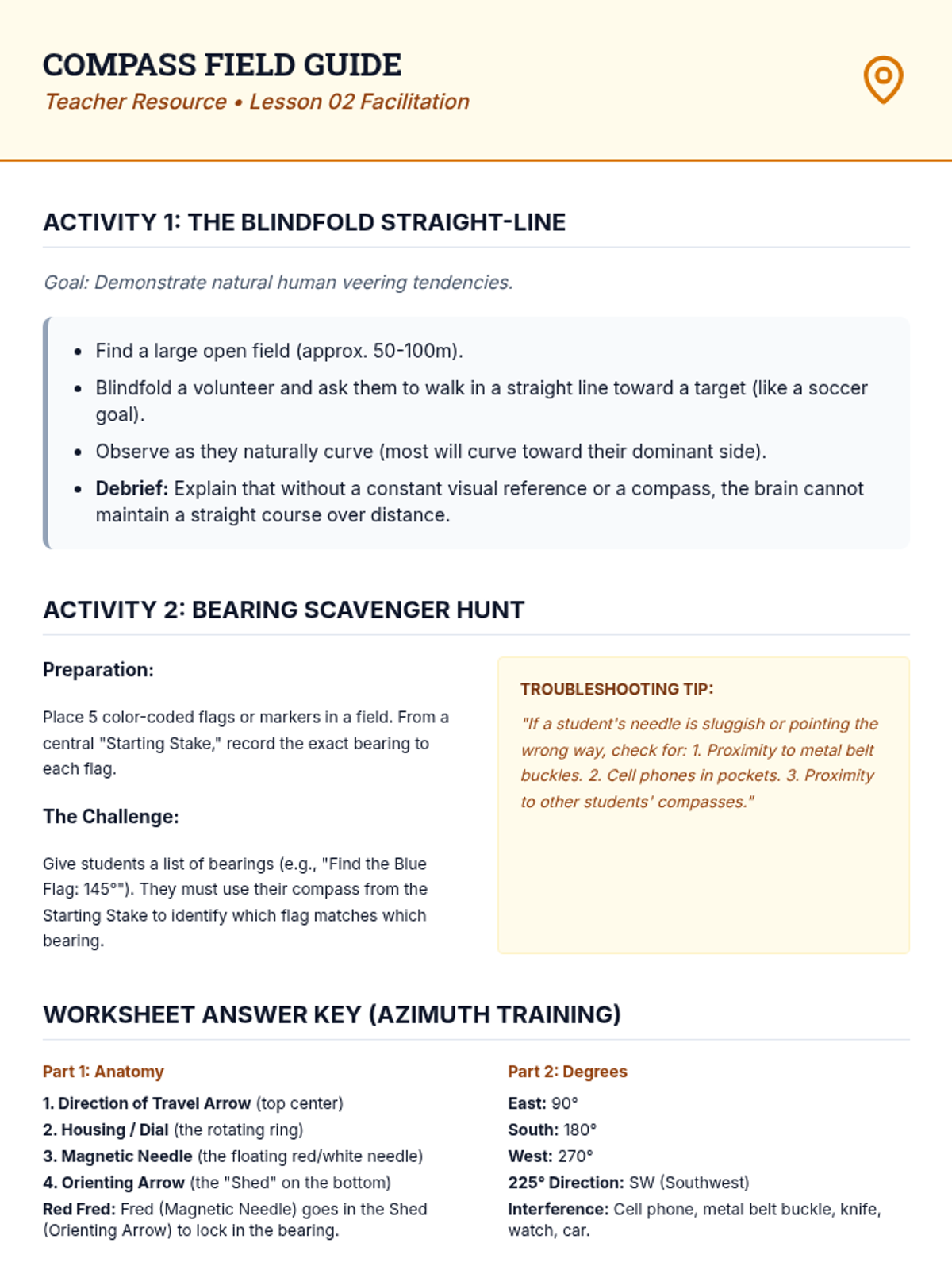

Compass Field Guide Compass Field Guide
Teacher Resource • Lesson 02 Facilitation
Activity 1: The Blindfold Straight-Line
Goal: Demonstrate natural human veering tendencies.
Find a large open field (approx. 50-100m).
Blindfold a volunteer and ask them to walk in a straight line toward a target (like a soccer goal).
Observe as they naturally curve (most will curve toward their dominant side).
Debrief: Explain that without a constant visual reference or a compass, the brain cannot maintain a straight course over distance.
Activity 2: Bearing Scavenger Hunt
Preparation:
Place 5 color-coded flags or markers in a field. From a central "Starting Stake," record the exact bearing to each flag.
The Challenge:
Give students a list of bearings (e.g., "Find the Blue Flag: 145°"). They must use their compass from the Starting Stake to identify which flag matches which bearing.
Troubleshooting Tip:
"If a student's needle is sluggish or pointing the wrong way, check for: 1. Proximity to metal belt buckles. 2. Cell phones in pockets. 3. Proximity to other students' compasses."
Worksheet Answer Key (Azimuth Training)
Part 1: Anatomy
1. Direction of Travel Arrow (top center)2. Housing / Dial (the rotating ring)3. Magnetic Needle (the floating red/white needle)4. Orienting Arrow (the "Shed" on the bottom)Red Fred: Fred (Magnetic Needle) goes in the Shed (Orienting Arrow) to lock in the bearing.
Part 2: Degrees
East: 90°South: 180°West: 270°225° Direction: SW (Southwest)Interference: Cell phone, metal belt buckle, knife, watch, car.
Part 3: Declination Scenario
Answer: You will end up to the RIGHT of your target. (Explanation: If declination is 15° East, Magnetic North is 15° to the East/Right of True North. Following the magnetic needle without adjusting means you are pulled 15° off-course toward the East.)
Point of Origin Slides Point of Origin
The Art & Science of Triangulation
Lesson 03: Location Fixing
SAR Scenario
"Mayday! We are lost in the White Mountains. We can see the Summit of Mt. Washington at 45° and the Lake of the Clouds Hut at 180°..."
Can you find them before the storm hits?
The Logic of Three
The Goal
Finding your exact position on a map when you are not on a trail or recognizable landmark.
The Concept
By drawing lines from multiple known points, your location is where those lines intersect.
Peak A
Tower B
Cabin C
Execution
01
Identify & Shoot
Find 3 recognizable landmarks. Shoot a bearing to each using your compass.
02
Calculate Back-Bearing
The opposite direction.
03
Plot & Pinpoint
Draw the back-bearing lines from each landmark on the map. Where they meet is YOU.
Pitfalls of the Point
Narrow Angles
If landmarks are too close together, your intersection will be sloppy. Aim for 60° to 120° apart.
Map Not Oriented
ALWAYS orient your map to North before plotting lines, or your location will be miles off.
The "Triangle of Uncertainty"
Your lines will rarely meet at a perfect point. They will form a small triangle. You are somewhere inside that triangle.
Triangulation Mission Worksheet Triangulation Mission
Lesson 03: Search & Rescue Simulation
Team:
Date:
SITUATION: A solo hiker has signaled for help. They have reported bearings to three visible landmarks. You must use these "back-bearings" to pinpoint their location on your SAR grid before nightfall.
Part 1: The Opposite Direction
To find where someone is, you must draw a line from the landmark back to them. Calculate the back-bearings below.
Landmark A: Lookout Tower
45°
+ 180° =
Landmark B: Eagle Peak
210°
- 180° =
Landmark C: Ranger Station
330°
- 180° =
Part 2: Plotting the Intersection
Lookout Tower
Eagle Peak
Ranger Station
Wilderness SAR Map
N
Instructions:
Orient your protractor/compass to Grid North.
Draw a line from each landmark using the BACK-BEARING you calculated.
Identify the area where the three lines intersect.
Final Coordinates Found:
Post-Mission Debrief
1. Your lines likely did not meet at a single perfect dot. Describe the shape they formed and explain why this happens in the field.
2. Why is it important to use THREE landmarks instead of just two for triangulation?

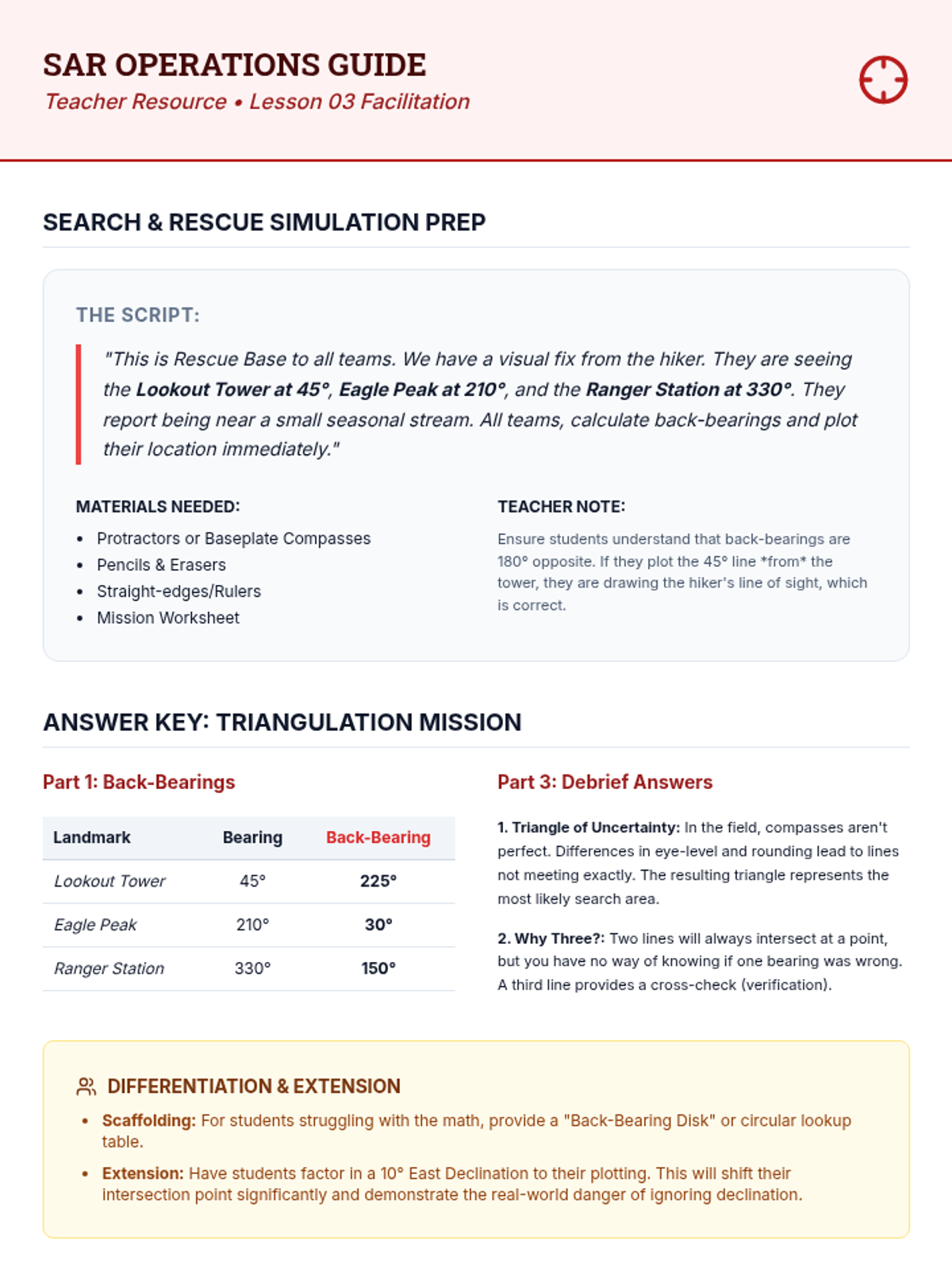

SAR Operations Guide SAR Operations Guide
Teacher Resource • Lesson 03 Facilitation
Search & Rescue Simulation Prep
The Script:
"This is Rescue Base to all teams. We have a visual fix from the hiker. They are seeing the Lookout Tower at 45° , Eagle Peak at 210° , and the Ranger Station at 330° . They report being near a small seasonal stream. All teams, calculate back-bearings and plot their location immediately."
Materials Needed:
Protractors or Baseplate Compasses
Pencils & Erasers
Straight-edges/Rulers
Mission Worksheet
Teacher Note:
Ensure students understand that back-bearings are 180° opposite. If they plot the 45° line *from* the tower, they are drawing the hiker's line of sight, which is correct.
Answer Key: Triangulation Mission
Part 1: Back-Bearings
<table class="w-full text-xs"><tbody><tr class="bg-slate-100 font-bold border-b border-slate-300"><td class="p-2">Landmark</td><td class="p-2 text-center">Bearing</td><td class="p-2 text-center text-red-600">Back-Bearing</td></tr><tr class="border-b border-slate-200"><td class="p-2 italic">Lookout Tower</td><td class="p-2 text-center">45°</td><td class="p-2 text-center font-bold">225°</td></tr><tr class="border-b border-slate-200"><td class="p-2 italic">Eagle Peak</td><td class="p-2 text-center">210°</td><td class="p-2 text-center font-bold">30°</td></tr><tr class="border-b border-slate-200"><td class="p-2 italic">Ranger Station</td><td class="p-2 text-center">330°</td><td class="p-2 text-center font-bold">150°</td></tr></tbody></table>
Part 3: Debrief Answers
1. Triangle of Uncertainty: In the field, compasses aren't perfect. Differences in eye-level and rounding lead to lines not meeting exactly. The resulting triangle represents the most likely search area.
2. Why Three?: Two lines will always intersect at a point, but you have no way of knowing if one bearing was wrong. A third line provides a cross-check (verification).
Differentiation & Extension
Scaffolding: For students struggling with the math, provide a "Back-Bearing Disk" or circular lookup table.Extension: Have students factor in a 10° East Declination to their plotting. This will shift their intersection point significantly and demonstrate the real-world danger of ignoring declination. Calculated Trek Slides The Calculated Trek
Logistics, Timing & Safe Passage
Lesson 04: Route Planning
Race Against the Sun
18:45 SUNSET
"It is 2:00 PM. Your destination is 4 miles away with 2,000 feet of climbing. You still have to hike back to the car."
4 Miles
2,000 ft Gain
Do you make it back before dark?
Naismith's Rule
Created in 1892 by William Naismith, this simple formula allows hikers to estimate travel time over varied terrain.
The Formula:
1
1 Hour per 3 miles of flat travel.
1 Hour per 2,000 ft of climbing.
Calculation Example
Distance (6 miles): 2 Hours
Elevation (1,000 ft): 30 Mins
Breaks / Packs: +30 Mins
Total Time: 3 Hours
Logistical Mastery
Hazard Assessment
Water Crossings: Can be dangerous after rain.
Exposed Ridges: Risk of lightning/wind.
Bail-out Points: Shortcuts back to safety if someone is injured or weather turns.
Resources
Water Sources: Where will you refill?
Permits: Does the area require them?
Emergency Contacts: Who knows where you are?
The Mission: Trip Plan
You are planning a trek to "Devil's Peak." You must complete a Trip Plan Document to leave with a Ranger.
Calculate exact travel time.
Identify 2 potential hazards.
Name 1 emergency "Bail-out" point.
Final Trip Plan
"If you aren't back by the 'Return Time' on this paper, a search party starts looking for you."
Wilderness Trip Plan Worksheet Wilderness Trip Plan
Confidential Logistic Record
Lead Planner:
Date of Trip:
INSTRUCTIONS: Complete this document before every wilderness expedition. Leave one copy with a responsible person and keep one copy in your pack. Accuracy saves lives.
1. Mission Overview
Route Name / Destination:
Trailhead / Starting Location:
Total Distance (Miles):
Elevation Gain (Feet):
2. Time Estimation
Naismith's Workspace
Flat Travel (1hr per 3mi)
Ascent (1hr per 2,000ft)
Breaks & Gear (+20%)
TOTAL TRIP TIME
Start Time:
Latest Return Time:
3. Risk Management
Identify 2 Terrain Hazards:
Hazard 1:
Hazard 2:
Emergency Strategy:
Bail-out Point (Shortest path to safety):
Water Source along route:
4. Emergency Contacts
Primary Contact Name:
Phone Number:
P
The Navigator's Pledge
I verify that the calculations above are as accurate as possible. I understand that terrain can change and I will prioritize safety over speed. I will turn back if I reach my "Latest Return Time" before reaching my destination.
Signature:
Route Logistics Key Route Logistics Key
Teacher Resource • Lesson 04 Facilitation
Naismith's Rule Quick-Reference
<table class="w-full text-xs"><tbody><tr class="font-bold border-b border-slate-300"><td class="p-2">Variable</td><td class="p-2">Rule</td><td class="p-2">Example</td></tr><tr class="border-b border-slate-200"><td class="p-2 font-bold">Flat Distance</td><td class="p-2">1 Hour / 3 Miles</td><td class="p-2">6 miles = 2 hours</td></tr><tr class="border-b border-slate-200"><td class="p-2 font-bold">Vertical Gain</td><td class="p-2">1 Hour / 2,000 Feet</td><td class="p-2">1,000 feet = 30 mins</td></tr><tr class="border-b border-slate-200"><td class="p-2 font-bold">Small Gain</td><td class="p-2">1 Min / 33 Feet</td><td class="p-2">330 feet = 10 mins</td></tr></tbody></table>
Note: These estimations are for a fit hiker with a medium pack. Encourage students to add a "Buffer" of 20% for breaks and photo-ops.
Trip Plan Assessment Rubric
Calculations
Proficient: Calculations follow Naismith's Rule precisely. Breakdown of distance time vs. elevation time is clearly shown. Total time is realistic.
Risk ID
Proficient: Two specific terrain hazards identified (e.g., "Slippery rocks at Miller's Stream" vs. just "Water"). Hazards are relevant to the route.
Contingency
Proficient: Bail-out point is a logical exit toward safety or a lower-elevation trail. "Latest Return Time" factors in at least 1 hour of daylight before sunset.
The "Safe-to-Go" Audit
Have students swap their Trip Plans. The peer reviewer must try to find a "logic flaw" in the plan (e.g., "You didn't factor in the 2,000ft climb on the way back" or "You're planning to finish at exactly sunset with no buffer"). This simulates the peer-checking done in professional guiding.
Wilderness Ethics Slides Wilderness Ethics
The Ten Essentials & Leave No Trace
Lesson 05: Gear & Responsibility
Survival Audit
"You are 8 miles into the backcountry. The temperature drops 30 degrees, it begins to pour, and your partner twists an ankle. You open your pack..."
Is your gear just 'stuff', or is it a system?
The Survival Systems
1. Navigation
Map, compass, GPS, altimeter.
2. Illumination
Headlamp (plus extra batteries).
3. Sun Protection
Sunglasses, sunscreen, hat.
4. First Aid
Including foot care and meds.
5. Repair Kit
Knife, duct tape, multi-tool.
6. Fire
Matches, lighter, tinder.
7. Emergency Shelter
Space blanket, bivy, or tarp.
8. Extra Food
Beyond your planned meals.
9. Extra Water
Plus a way to purify more.
10. Extra Clothes
Insulation/rain gear (No Cotton!).
The Seven Principles
Plan Ahead and Prepare
Travel and Camp on Durable Surfaces
Dispose of Waste Properly
Leave What You Find
Minimize Campfire Impacts
Respect Wildlife
Be Considerate of Other Visitors
The Ethics of Entry
"Take nothing but pictures, leave nothing but footprints, kill nothing but time."
Activity: The Pack Audit
You are given a list of 25 items found in a daypack. Your task is to audit this load-out.
Sort items into the 10 Systems.
Identify "Dead Weight" (Useless items).
Identify "Critical Gaps" (Missing essentials).
Would you trust this backpack for a night in the woods?

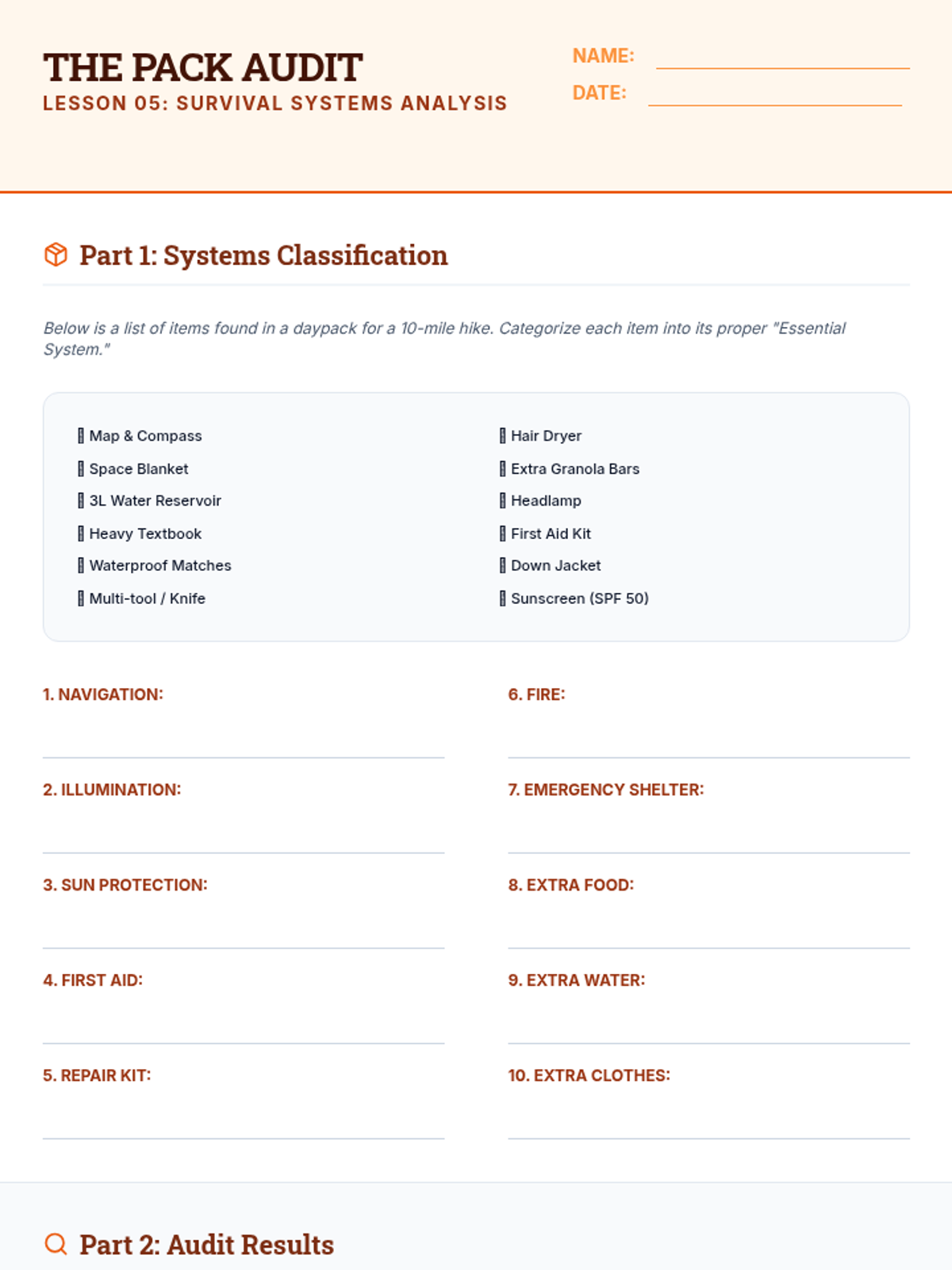

Backpack Audit Worksheet The Pack Audit
Lesson 05: Survival Systems Analysis
Name:
Date:
Part 1: Systems Classification
Below is a list of items found in a daypack for a 10-mile hike. Categorize each item into its proper "Essential System."
☐ Map & Compass
☐ Hair Dryer
☐ Space Blanket
☐ Extra Granola Bars
☐ 3L Water Reservoir
☐ Headlamp
☐ Heavy Textbook
☐ First Aid Kit
☐ Waterproof Matches
☐ Down Jacket
☐ Multi-tool / Knife
☐ Sunscreen (SPF 50)
1. Navigation:
2. Illumination:
3. Sun Protection:
4. First Aid:
5. Repair Kit:
6. Fire:
7. Emergency Shelter:
8. Extra Food:
9. Extra Water:
10. Extra Clothes:
Part 2: Audit Results
Dead Weight:
Which items from the list above provide NO survival benefit and only waste energy?
Critical Gaps:
Looking at your sorted list, what is MISSING from this pack to make it safe?
Part 3: Leave No Trace
Briefly explain how "Planning Ahead" (Principle #1) helps you "Minimize Campfire Impacts" (Principle #5).
"I leave the trail better than I found it."
Pledge Signature:

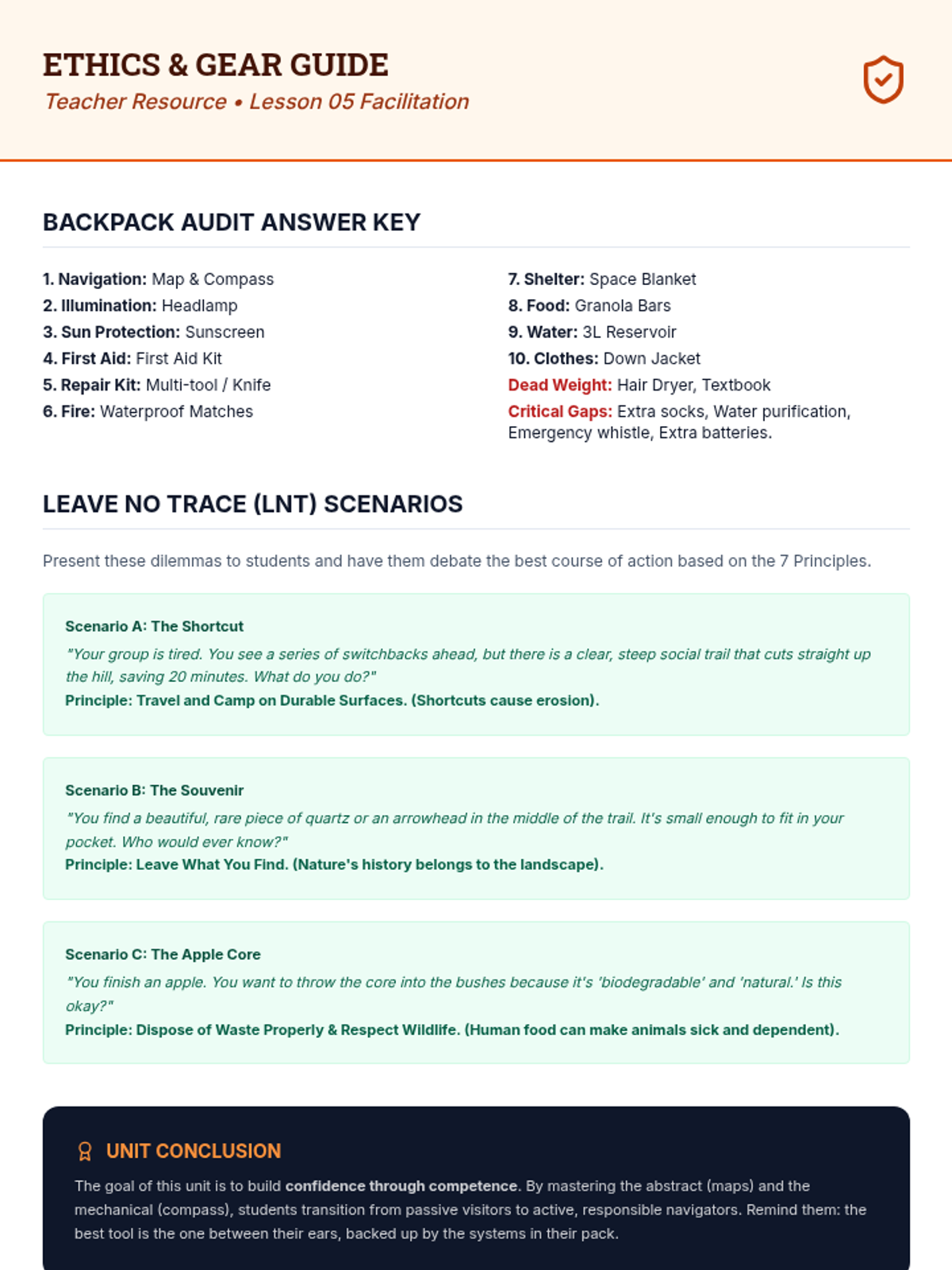

LNT Field Scenarios Guide Ethics & Gear Guide
Teacher Resource • Lesson 05 Facilitation
Backpack Audit Answer Key
1. Navigation: Map & Compass
2. Illumination: Headlamp
3. Sun Protection: Sunscreen
4. First Aid: First Aid Kit
5. Repair Kit: Multi-tool / Knife
6. Fire: Waterproof Matches
7. Shelter: Space Blanket
8. Food: Granola Bars
9. Water: 3L Reservoir
10. Clothes: Down Jacket
Dead Weight: Hair Dryer, Textbook
Critical Gaps: Extra socks, Water purification, Emergency whistle, Extra batteries.
Leave No Trace (LNT) Scenarios
Present these dilemmas to students and have them debate the best course of action based on the 7 Principles.
Scenario A: The Shortcut
"Your group is tired. You see a series of switchbacks ahead, but there is a clear, steep social trail that cuts straight up the hill, saving 20 minutes. What do you do?"
Scenario B: The Souvenir
"You find a beautiful, rare piece of quartz or an arrowhead in the middle of the trail. It's small enough to fit in your pocket. Who would ever know?"
Scenario C: The Apple Core
"You finish an apple. You want to throw the core into the bushes because it's 'biodegradable' and 'natural.' Is this okay?"
Unit Conclusion
The goal of this unit is to build confidence through competence . By mastering the abstract (maps) and the mechanical (compass), students transition from passive visitors to active, responsible navigators. Remind them: the best tool is the one between their ears, backed up by the systems in their pack.
