Logo Anatomy Slides Logo Anatomy
Lesson 01: Deconstructing Visual Symbols
01
02
03
The Recognition Challenge
SESSION_01 / SLIDE_02
How much of a logo do you need to see to recognize the brand?
Logo Fragment A
Logo Fragment B
Logo Fragment C
"Design is the silent ambassador of your brand." — Paul Rand
The 3 Pillars of Logo Design
Logotype
A wordmark that uses specific typography to create a brand name. No icons or symbols needed.
Examples
Google, Coca-Cola, NASA
Logo Mark
A pictorial symbol or abstract shape that represents the brand without words.
Examples
Apple, Twitter, Nike
Combination
The best of both worlds: a symbol paired with a wordmark for maximum clarity.
Examples
Adidas, Starbucks, Burger King
Symbols are Shortcuts
Shapes communicate values faster than text. In a fraction of a second, your brain processes:
Circles = Community, Unity, Warmth
Squares = Stability, Logic, Strength
Triangles = Power, Direction, Speed
Visual Power
What does your brand feel like?
Your Mission
You are now lead designers at Studio Identity. Your first task: Deconstruct the symbols around you.
Step 1: Logo Hunt
Step 2: Symbol Match
Step 3: Sketching
Symbolism Secrets Worksheet Studio Identity
Design Intelligence Division
Junior Designer:
Date:
Exercise 01.A
Symbolism Secrets
Analyze how brands use simple geometry to communicate complex ideas.
1 The Anatomy Check
Match the logo type to its definition by drawing a line.
Logotype (Wordmark)
Logo Mark (Symbol)
Combination Logo
A design that uses both a pictorial symbol and typography to communicate the brand identity clearly.
A logo focused purely on typography, turning the brand's name into a unique visual style.
An icon or pictorial symbol that represents the brand without using any text or words.
2 Shape Psychology
For each company description below, choose the primary geometric shape (Circle, Square, or Triangle) that best fits their brand value. Explain why.
Company A: "Terra-Nova Logistics"
Values: Strength, reliability, safe storage, and organized logic.
Circle
Square
Triangle
Company B: "Kindred Community Bank"
Values: Inclusivity, warmth, friendship, and protection.
Circle
Square
Triangle
3 The 5-Minute Abstract Challenge
In the box below, sketch an abstract logo mark for a brand called "FLUX" (a futuristic electric bicycle company). Focus on speed and energy. No words, just shapes!
Drafting Area
Refinement Notes Logo Hunt Teacher Guide Studio Identity
Creative Director's Guide
Lesson No.
01
Logo Anatomy & Symbols
This lesson shifts students from being passive consumers to active designers. The goal is to help them understand that logos are not just drawings, but functional communication tools built from specific geometric choices.
Discussion-Based Game-Based
Learning Objectives
Identify 3 logo types
Link shapes to brand values
Analyze logo fragments
Session Flow
00-10m
The Recognition Hook
Use Slide 2. Show the logo fragments. Ask: "Who can name all three?" Discuss why we recognize them even when they are incomplete. (Answer: Consistent exposure and simple, strong shapes).
10-25m
Direct Instruction: The 3 Pillars
Use Slide 3. Define Logotype, Mark, and Combination. Challenge students to look around the room (or in their bags) for examples of each.
25-45m
Activity: Symbolism Secrets
Distribute the worksheet. Have students work through the shape psychology section. Teacher Prompt: "If a bank logo was a jagged triangle, would you trust it with your money? Why or why not?"
45-60m
The Abstract Challenge
Final section of the worksheet. Encourage students to think about 'visual verbs' (fast, soaring, spinning) rather than drawing a literal bicycle.
The Agency Simulation
To make this feel like a real agency, refer to the students as "Junior Designers" and yourself as the "Creative Director." Remind them that at Studio Identity, we don't just "draw"—we "solve visual problems."
Key Phrase A
"Let's look at the anatomy of this concept..."
Key Phrase B
"How does this shape communicate our values?"
The Design Brief Slides The Client Brief
Lesson 02: Thinking Before Drawing
01
02
03
The Design Roadmap
SESSION_02 / SLIDE_02
A Creative Brief is a document that maps out the goals, values, and target audience for a design project.
Why do we use them?
Aligns the client & designer
Defines the target audience
Prevents "Guessing"
The 3 Big Questions
WHO?
Who is the target audience? Toddlers? Pro Athletes? Scientists?
WHAT?
What is the "vibe" or personality? Playful? Serious? High-Tech?
WHY?
Why does this brand exist? What makes them different?
Concept Generation
1. Mind Mapping
Start with one word in the center. Branch out to related ideas, feelings, and objects.
2. Word Association
Rapid-fire list of words. Don't censor yourself. The weirder the connection, the better the logo concept.
Client Assigned
"Great design begins with understanding the person across the table."
Today's Goal
Select your client profile, analyze their values, and build your initial Mind Map.

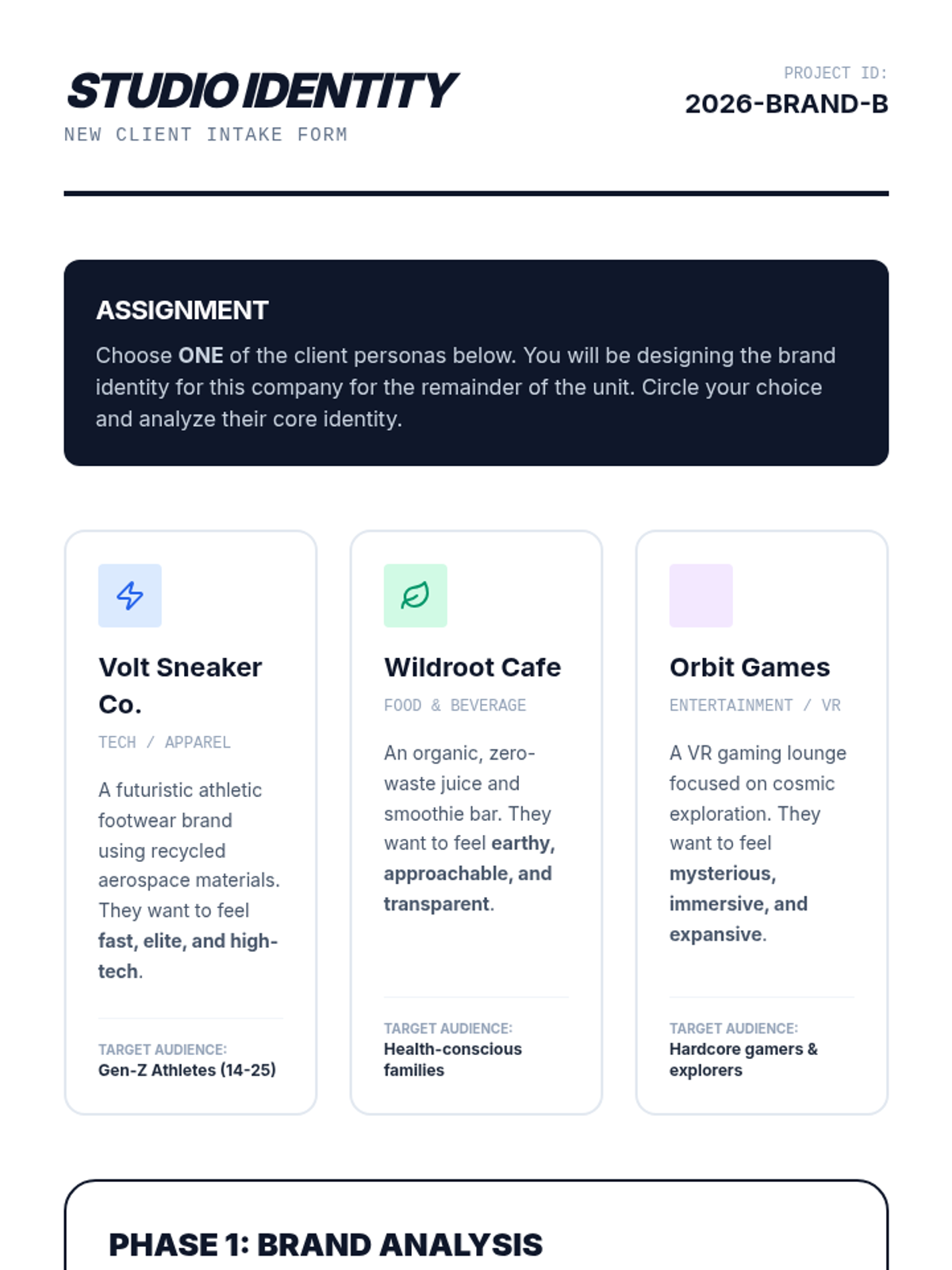

Client Profile Worksheet Studio Identity
New Client Intake Form
Project ID: 2026-BRAND-B
Assignment
Choose ONE of the client personas below. You will be designing the brand identity for this company for the remainder of the unit. Circle your choice and analyze their core identity.
Volt Sneaker Co.
Tech / Apparel
A futuristic athletic footwear brand using recycled aerospace materials. They want to feel fast, elite, and high-tech .
Target Audience:
Gen-Z Athletes (14-25)
Wildroot Cafe
Food & Beverage
An organic, zero-waste juice and smoothie bar. They want to feel earthy, approachable, and transparent .
Target Audience:
Health-conscious families
Orbit Games
Entertainment / VR
A VR gaming lounge focused on cosmic exploration. They want to feel mysterious, immersive, and expansive .
Target Audience:
Hardcore gamers & explorers
Phase 1: Brand Analysis
Core Brand Values (List 3 Adjectives)
The "One Word" Mission
If this brand was one word, it would be...
Visual Metaphor Search
List 5 objects or shapes that represent your client. (e.g., if the brand is 'speed', you might list: lightning, arrow, jet, cheetah, streak).
Designer Approved
Mind Map Template Worksheet Studio Identity
Ideation & Concept Phase
Workspace 02.B
Visual Concept Mind-Map
Start with your brand's name or core value in the center. Branch out into emotions, objects, and shapes.
Central Brand
Feeling
Object
Audience
Shape
Pro Tip
Don't think too hard! If your brand is "Wildroot", think: roots, dirt, juice, green, hands, glass, fresh, morning...

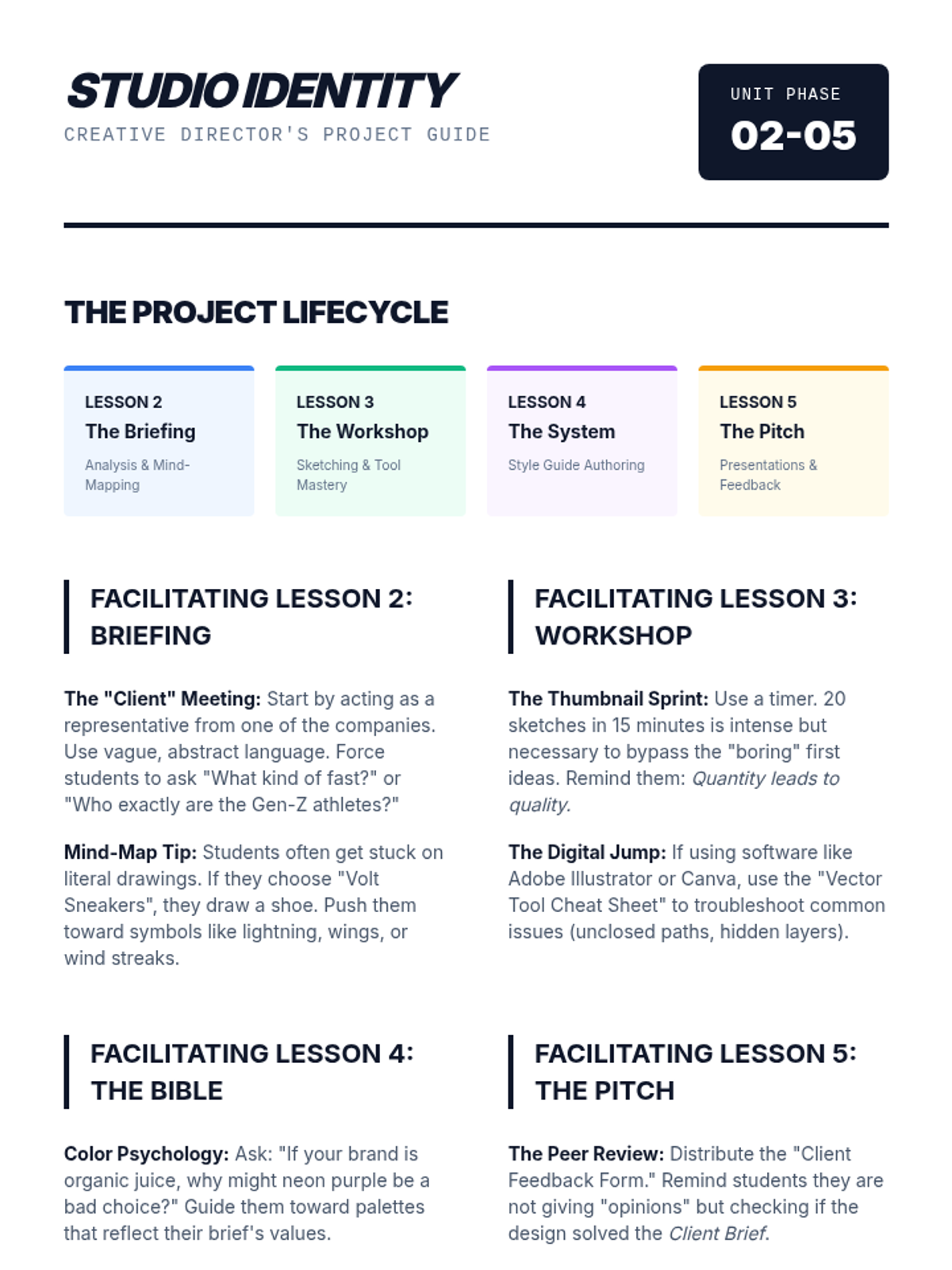

Project Facilitation Guide Studio Identity
Creative Director's Project Guide
Unit Phase
02-05
The Project Lifecycle
Lesson 2
The Briefing
Analysis & Mind-Mapping
Lesson 3
The Workshop
Sketching & Tool Mastery
Lesson 4
The System
Style Guide Authoring
Lesson 5
The Pitch
Presentations & Feedback
Facilitating Lesson 2: Briefing
The "Client" Meeting: Start by acting as a representative from one of the companies. Use vague, abstract language. Force students to ask "What kind of fast?" or "Who exactly are the Gen-Z athletes?"
Mind-Map Tip: Students often get stuck on literal drawings. If they choose "Volt Sneakers", they draw a shoe. Push them toward symbols like lightning, wings, or wind streaks.
Facilitating Lesson 3: Workshop
The Thumbnail Sprint: Use a timer. 20 sketches in 15 minutes is intense but necessary to bypass the "boring" first ideas. Remind them: Quantity leads to quality.
The Digital Jump: If using software like Adobe Illustrator or Canva, use the "Vector Tool Cheat Sheet" to troubleshoot common issues (unclosed paths, hidden layers).
Facilitating Lesson 4: The Bible
Color Psychology: Ask: "If your brand is organic juice, why might neon purple be a bad choice?" Guide them toward palettes that reflect their brief's values.
Typography Check: Ensure they understand the difference between high-impact headlines (Logos) and readable body text (Style Guides).
Facilitating Lesson 5: The Pitch
The Peer Review: Distribute the "Client Feedback Form." Remind students they are not giving "opinions" but checking if the design solved the Client Brief .
The Hook: Use mockup generators or simple overlay templates to show their logos on actual merchandise—it makes the project feel real.
Common Designer Roadblocks
"I can't draw!" Remind them that logos are made of geometry (circles, squares, lines), not fine art illustration."It's too simple." Show them the Nike swoosh or Apple logo. Simple is memorable and scalable. Vector vs Raster Slides Sketch to Vector
Lesson 03: Refining the Concept
01
02
03
Quantity over Quality
SESSION_03 / SLIDE_02
Thumbnail Sketching
In design, your first idea is rarely your best. We sketch thumbnails —small, fast drawings—to empty our brains of the obvious stuff.
1
Draw small (1 inch squares)
2
Spend only 30-60 seconds per sketch
3
Focus on shapes, not details
Raster vs Vector
Raster (Pixels)
Made of tiny dots. If you zoom in, it gets blurry and "pixelated." Good for photos, bad for logos.
Vector (Paths)
Made of mathematical curves. Can be scaled to the size of a billboard and stay perfectly sharp.
The Pen Tool
The most important (and hardest) tool in a designer's belt. It uses Anchor Points and Handles to create curves.
Click = Sharp Corner
Click + Drag = Smooth Curve
Vector Refining Interface_v.03
Go Rapid
Time to move from the abstract "Mind Map" to physical sketches.
The Challenge: 20 thumbnails in 15 minutes. Select your top 3 for refinement.
15:00
Thumbnail Sketching Grid Worksheet Studio Identity
Rapid Concept Iteration
Stage 03.A
Thumbnail Grid: 20 Concepts
Don't overthink. Don't erase. Just draw shapes and symbols. Aim for variety!
CLIENT: ____________________
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
The "Golden" Concept
Circle your best idea from the grid above and redraw it here in more detail. This will be the sketch you take into the digital phase.
Symmetry checked
Matches Client Brief
Works in Black & White
Final Sketch Area

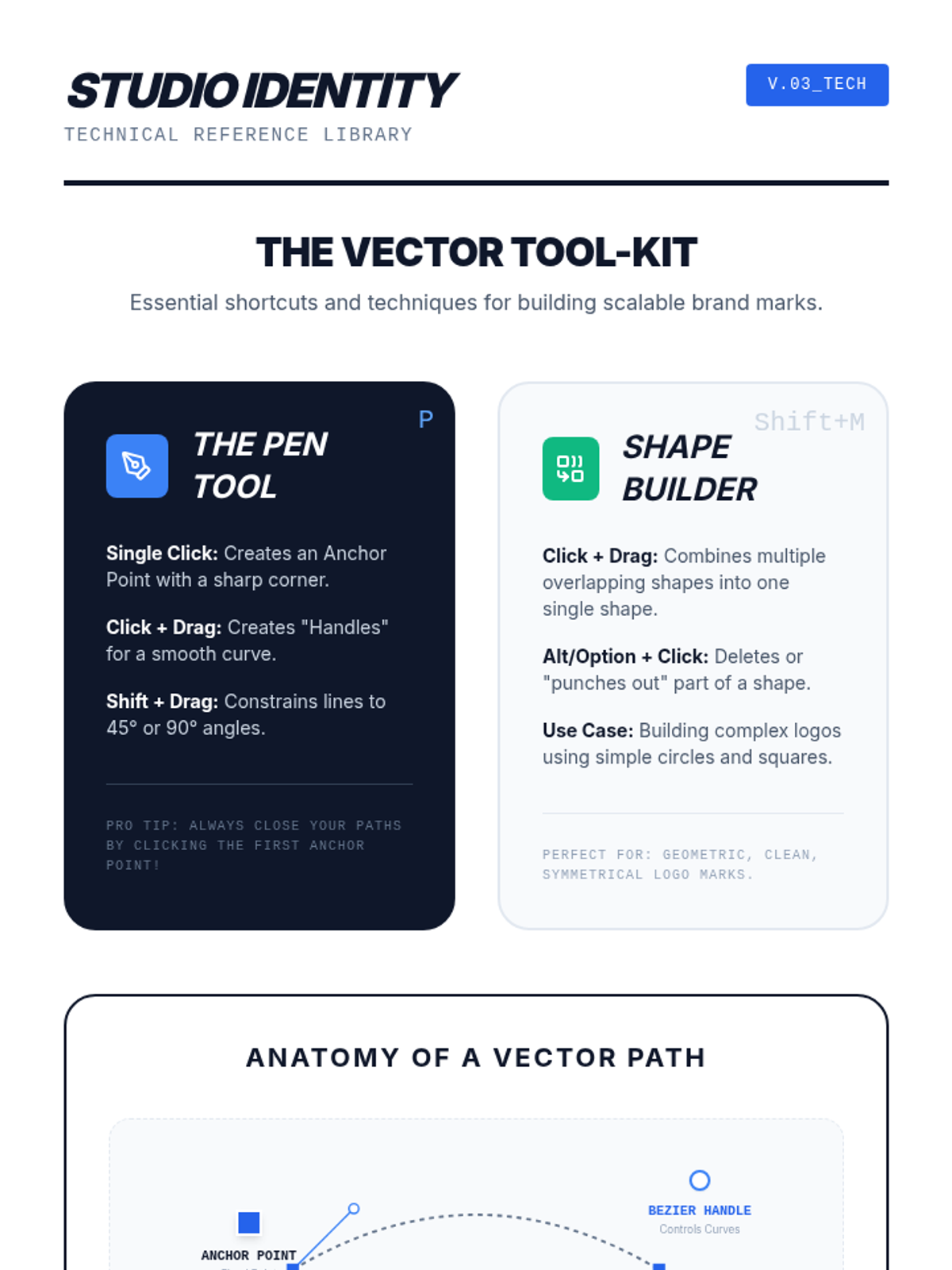

Vector Tool Cheat Sheet Studio Identity
Technical Reference Library
v.03_TECH
The Vector Tool-Kit
Essential shortcuts and techniques for building scalable brand marks.
P
The Pen Tool
Single Click: Creates an Anchor Point with a sharp corner.
Click + Drag: Creates "Handles" for a smooth curve.
Shift + Drag: Constrains lines to 45° or 90° angles.
Pro Tip: Always close your paths by clicking the first anchor point!
Shift+M
Shape Builder
Click + Drag: Combines multiple overlapping shapes into one single shape.
Alt/Option + Click: Deletes or "punches out" part of a shape.
Use Case: Building complex logos using simple circles and squares.
Perfect for: Geometric, clean, symmetrical logo marks.
Anatomy of a Vector Path
Anchor Point
Fixed Point
Bezier Handle
Controls Curves
Layer Order
Fill vs Stroke
Alignment Tools
Consistency is Key Slides The Brand Bible
Lesson 04: Creating a Visual System
03
04
05
Consistency is King
SESSION_04 / SLIDE_02
A brand isn't just a logo. It's a cohesive system . If every person in a company uses different fonts and colors, the brand loses its power.
The Style Guide contains:
Primary & Secondary Colors
Typography (Fonts)
Logo Usage Rules (Do's & Don'ts)
Official Brand Guidelines
The Language of Color
Red
Energy, Urgency, Passion, Appetite
Blue
Trust, Security, Logic, Technology
Green
Growth, Health, Nature, Stability
Yellow
Optimism, Clarity, Warmth, Attention
Which colors match your Client Brief ?
Typography
"Fonts have a voice. They speak before the reader starts reading."
Serif
Formal, Traditional, Reliable
Sans
Modern, Clean, Efficient
Aa
Selection is Design
Author the Bible
You will now create the official Brand Style Guide for your client. This document ensures your logo will be used correctly for years to come.

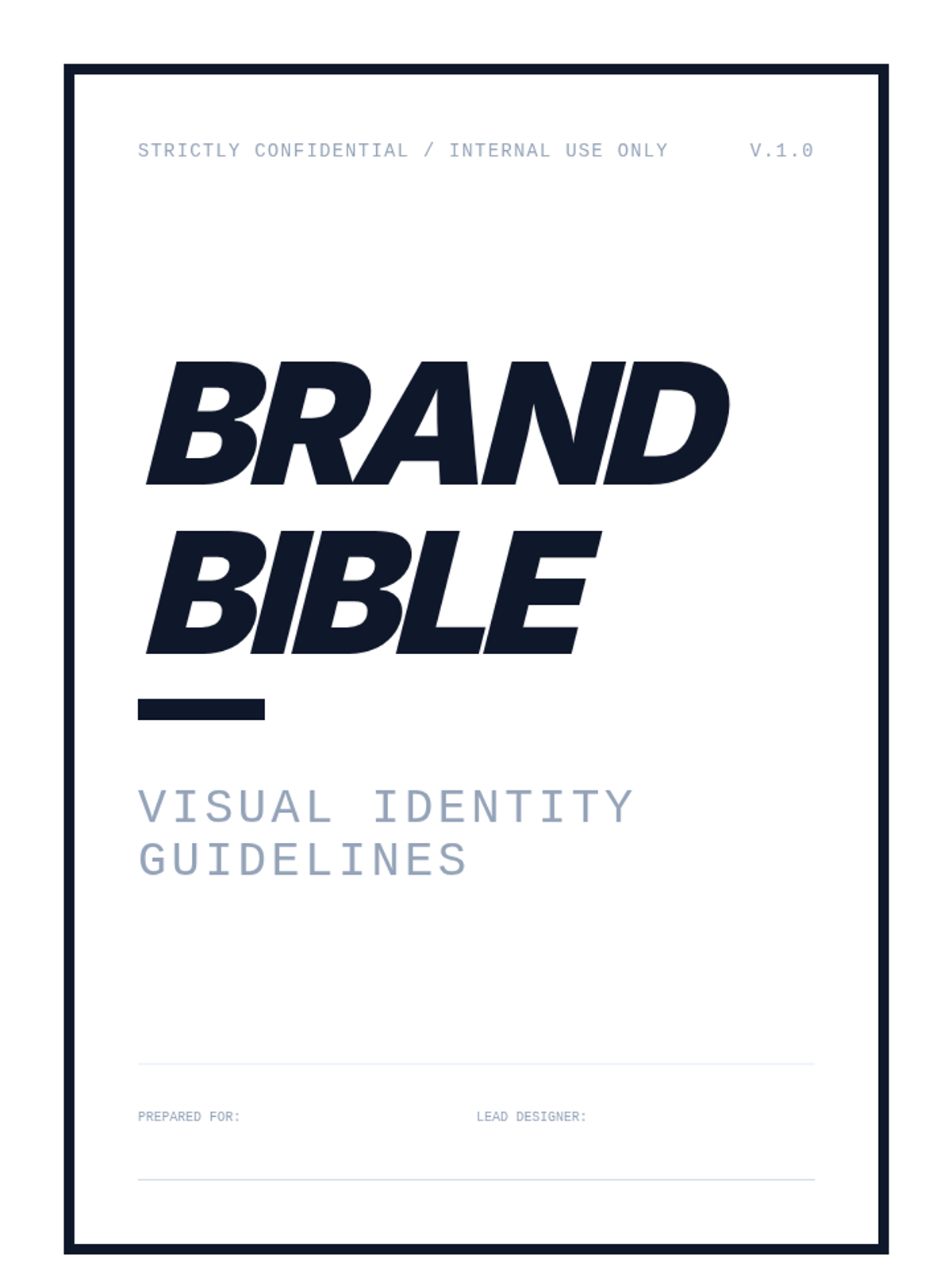

Brand Style Guide Template Strictly Confidential / Internal Use Only
v.1.0
Brand
Bible
Visual Identity Guidelines
Prepared for:
Lead Designer:
01. Primary Identity
Official Logo Mark (Center it below)
Color Palette
HEX: #________
HEX: #________
HEX: #________
HEX: #________
02. Typography & Usage
Typography
Headings Font:
Type Font Name Here...
Aa Bb Cc Dd Ee Ff
Body Copy Font:
Type Font Name Here...
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.
Usage Rules
DO USE:
On clear, high-contrast backgrounds
With at least 20px of clear space
Only using brand colors
DON'T USE:
Stretch or squish the logo
Change the layout of symbols
Add drop shadows or glows
Certified Brand Identity Design / Studio Identity Systems Division
Pitch Perfect Slides The Design
Pitch
Lesson 05: Selling the Story
04
05
Selling the Solution
SESSION_05 / SLIDE_02
A pitch is more than just showing a picture. You are explaining the "Why" behind your design decisions to convince the client that this is the best identity for their brand.
The Pitch Structure:
The Brief Recap: Remind them of their goals.The Concept: Explain the symbolism.The System: Show the colors and type.The Mockup: Show it in the "real world."
Presentation Interface
Real-World Context
Apparel
App Icon
Product
Critique vs Criticism
As peers, we act as the "Client." Our goal is to provide feedback that helps the designer improve.
DO SAY:
"The triangle shape successfully communicates the 'speed' value in the brief."
DON'T SAY:
"I don't like the color blue. It's boring." (This is personal opinion, not design critique).
Studio Live
"Design is a journey of 1,000 sketches, but the final mark is what makes it immortal."
Begin Presentations

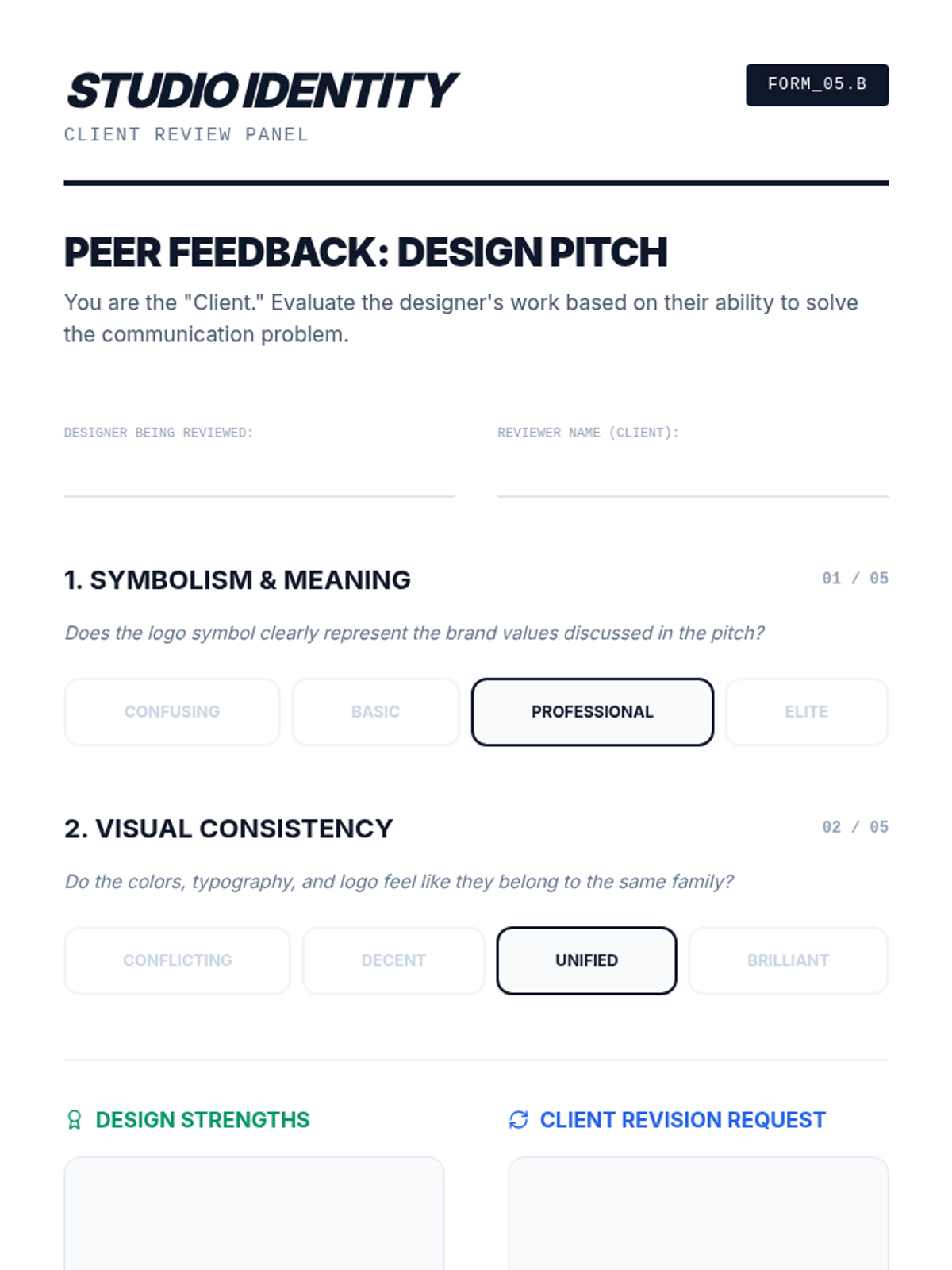

Client Feedback Form Studio Identity
Client Review Panel
FORM_05.B
Peer Feedback: Design Pitch
You are the "Client." Evaluate the designer's work based on their ability to solve the communication problem.
Designer Being Reviewed:
Reviewer Name (Client):
1. Symbolism & Meaning 01 / 05
Does the logo symbol clearly represent the brand values discussed in the pitch?
Confusing
Basic
Professional
Elite
2. Visual Consistency 02 / 05
Do the colors, typography, and logo feel like they belong to the same family?
Conflicting
Decent
Unified
Brilliant
Design Strengths
Client Revision Request
PROJECT STATUS
Approved

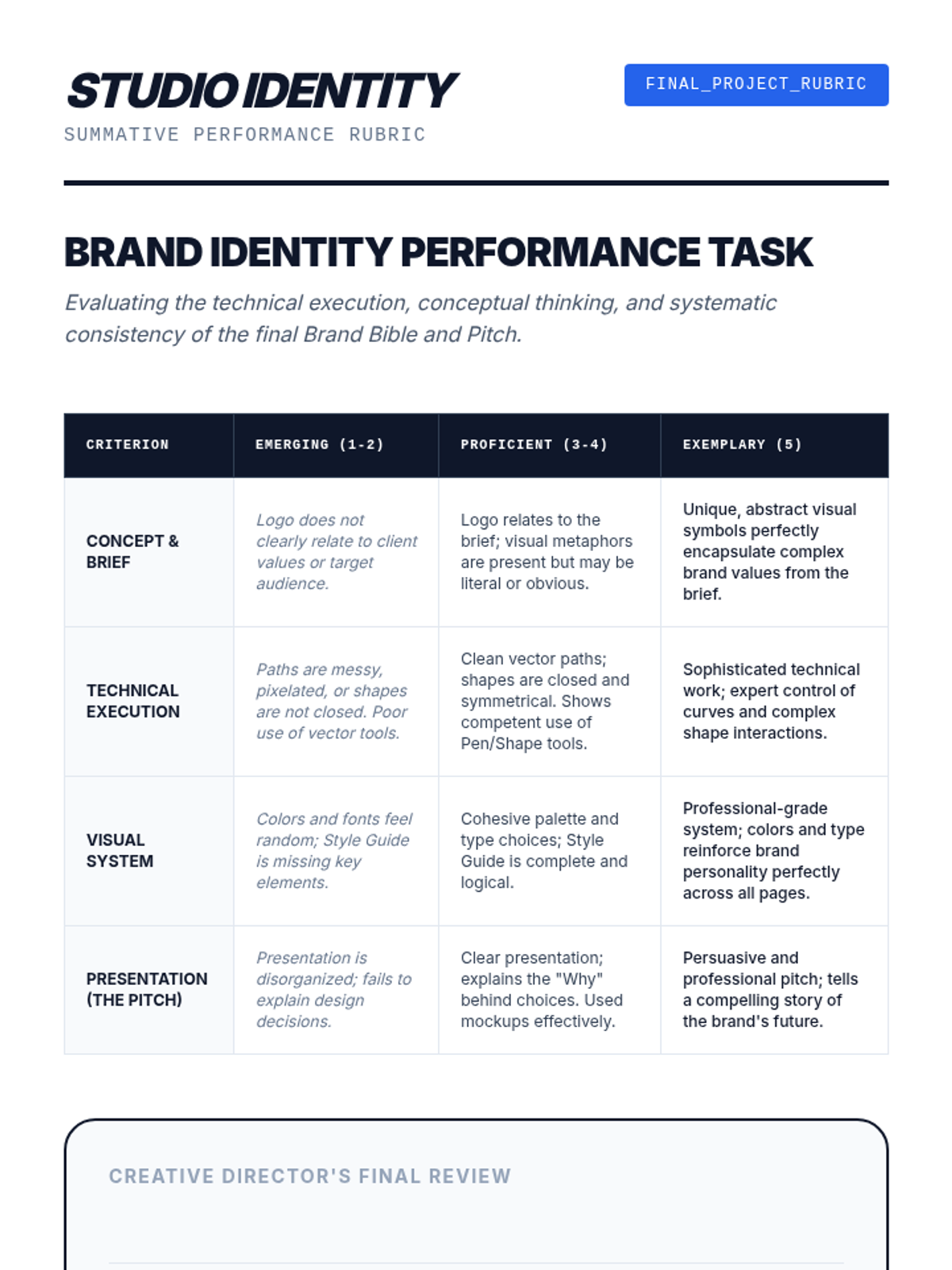

Final Project Rubric Studio Identity
Summative Performance Rubric
FINAL_PROJECT_RUBRIC
Brand Identity Performance Task
Evaluating the technical execution, conceptual thinking, and systematic consistency of the final Brand Bible and Pitch.
Criterion Emerging (1-2) Proficient (3-4) Exemplary (5) Concept & Brief Logo does not clearly relate to client values or target audience. Logo relates to the brief; visual metaphors are present but may be literal or obvious. Unique, abstract visual symbols perfectly encapsulate complex brand values from the brief. Technical Execution Paths are messy, pixelated, or shapes are not closed. Poor use of vector tools. Clean vector paths; shapes are closed and symmetrical. Shows competent use of Pen/Shape tools. Sophisticated technical work; expert control of curves and complex shape interactions. Visual System Colors and fonts feel random; Style Guide is missing key elements. Cohesive palette and type choices; Style Guide is complete and logical. Professional-grade system; colors and type reinforce brand personality perfectly across all pages. Presentation (The Pitch) Presentation is disorganized; fails to explain design decisions. Clear presentation; explains the "Why" behind choices. Used mockups effectively. Persuasive and professional pitch; tells a compelling story of the brand's future.
Creative Director's Final Review
Total Agency Score:
/ 20
