Space Sketches Slides SPACE SKETCHES
Drawing with Wire in 3D Space
Lesson 1: Contour to Wire
The Big Question
"Can you make a drawing that stands up on its own and casts a shadow?"
Paper Drawing
Flat, 2D, stays on the page.
Wire Drawing
Volume, 3D, interacts with space.
ALEXANDER CALDER
The Master of Wire
1898 – 1976
Drawing in Space
Calder used wire to "draw" portraits and figures in the air. Instead of heavy clay or stone, he used thin lines to capture a person's character.
Transparency
His sculptures were mostly made of air! You can see right through them, but the wire still creates a recognizable shape.
Imagine a circus made entirely of wire and cork...
"Cirque Calder"
BLIND CONTOUR
1
Don't Look
Keep your eyes on the object, NOT your paper.
2
One Line
Do not lift your pencil. It's one continuous journey.
3
Go Slow
Let your eye and hand move at the exact same speed.
Why? Because wire is one continuous line too!
Mission
Translate Line to Metal
1 Pick a simple object (key, glasses, shoe).
2 Draw it using a Blind Contour line.
3 Use soft aluminum wire to "trace" that line in the air.
4 Create a base so your drawing can stand!
Pro-Tip
Aluminum wire is very soft. If it gets kinked or messy, use your hands to "un-draw" and start the section over. No erasers needed!
Space Sketches Worksheet Space Sketches
Unit: Airborne Art | Lesson 1
Name:
Date:
The Blind Contour Rule
A Blind Contour drawing is a single continuous line drawn while looking ONLY at the object, never at your paper.
No peeking at the paper.
Never lift your pencil.
Match your eye and hand speed.
The Wire Mission
You will use one long piece of aluminum wire to "re-draw" your sketch in 3D space.
Keep the wire continuous.
Create "volume" by bending.
Build a base for it to stand.
Step 1: The Blind Contour Sketch
Place your object on your desk and start drawing below...
Step 2: Observation Reflection
Where did your eye notice the most detail?
What was the hardest part about "drawing" with wire?
Space Sketches Teacher Guide Teacher Manual
Unit: Airborne Art | Lesson 1: Space Sketches
Time: 60 mins Focus: Line to Volume
Objectives
• Students will execute a Blind Contour drawing to build eye-hand coordination.
• Students will translate 2D continuous lines into a 3D wire armature .
• Students will identify negative space within their sculptural form.
Materials Needed
For Drawing
• Drawing Paper / Worksheet
• 6B Graphite Pencils
• Simple Still Life Objects
For Sculpture
• 12-gauge Aluminum Wire
• Small pliers (optional today)
• Wooden base blocks (optional)
Common Snags
The "Peeker"
Students will want to look at their paper. Have them place their hand inside a cardboard box or paper bag while drawing.
Wire Kinks
Aluminum wire gets brittle if bent back and forth too much. Show them how to "smooth" wire by pulling it through a cloth.
Flimsy Bases
Remind students that a 3D object needs three points of contact to stand, like a tripod.
The Procedure
1
The Hook (10 mins)
Present the Calder slides. Discuss how the wire sculptures look different from traditional heavy statues. Introduce the concept of "Transparency."
2
Blind Contour Demo (10 mins)
Model a blind contour drawing on the board. Emphasize the "slow eye, slow hand" connection. Expect giggles at the distorted results—explain that these distortions capture "energy."
3
Wire Translation (30 mins)
Hand out 3-4 feet of wire per student. Instruct them to follow their drawn line exactly. If the line crosses over itself on paper, twist the wire together at that junction.
4
Gallery Walk (10 mins)
Have students stand their sculptures on their desks. Walk around to see how shadows change the "drawing" depending on the light source.
The Wire Handshake Slides THE WIRE HANDSHAKE
Mastering the Tools of the Trade
Lesson 2: Tool Safety & Technique
Meet Your Tools
Extensions of your own hands
Wire Cutters
The "Jaws." Used for clean cuts. Always point the wire down towards the table when cutting!
Needle Nose
The "Precision Fingers." Great for tight loops, tiny details, and holding wire steady.
Flat Nose
The "Vise." Used for heavy bending and crushing wire together for a permanent grip.
Safety Protocol
01
Eyes on the Prize: Wear safety goggles when cutting.
02
The Shield: Use your hand to shield the wire end when cutting so it doesn't fly.
03
Clean Zones: Keep your desk clear of scrap wire to avoid pokes.
04
No "Air Fencing": Tools stay on the desk or in your work zone.
The "Handshake" Techniques
The Loop-and-Hook
Create a circle on one wire and a hook on the other. Clamp them shut for a hinge-like joint.
The Candy Cane Wrap
Coil a thin wire tightly around a thick wire. This is the strongest connection!
"Mechanical joints are stronger than glue."
Mastery Challenge
Using exactly 3 pieces of wire , create a triangular structure that can support the weight of your sketchbook without collapsing.
No Glue
No Tape
Only Handshakes

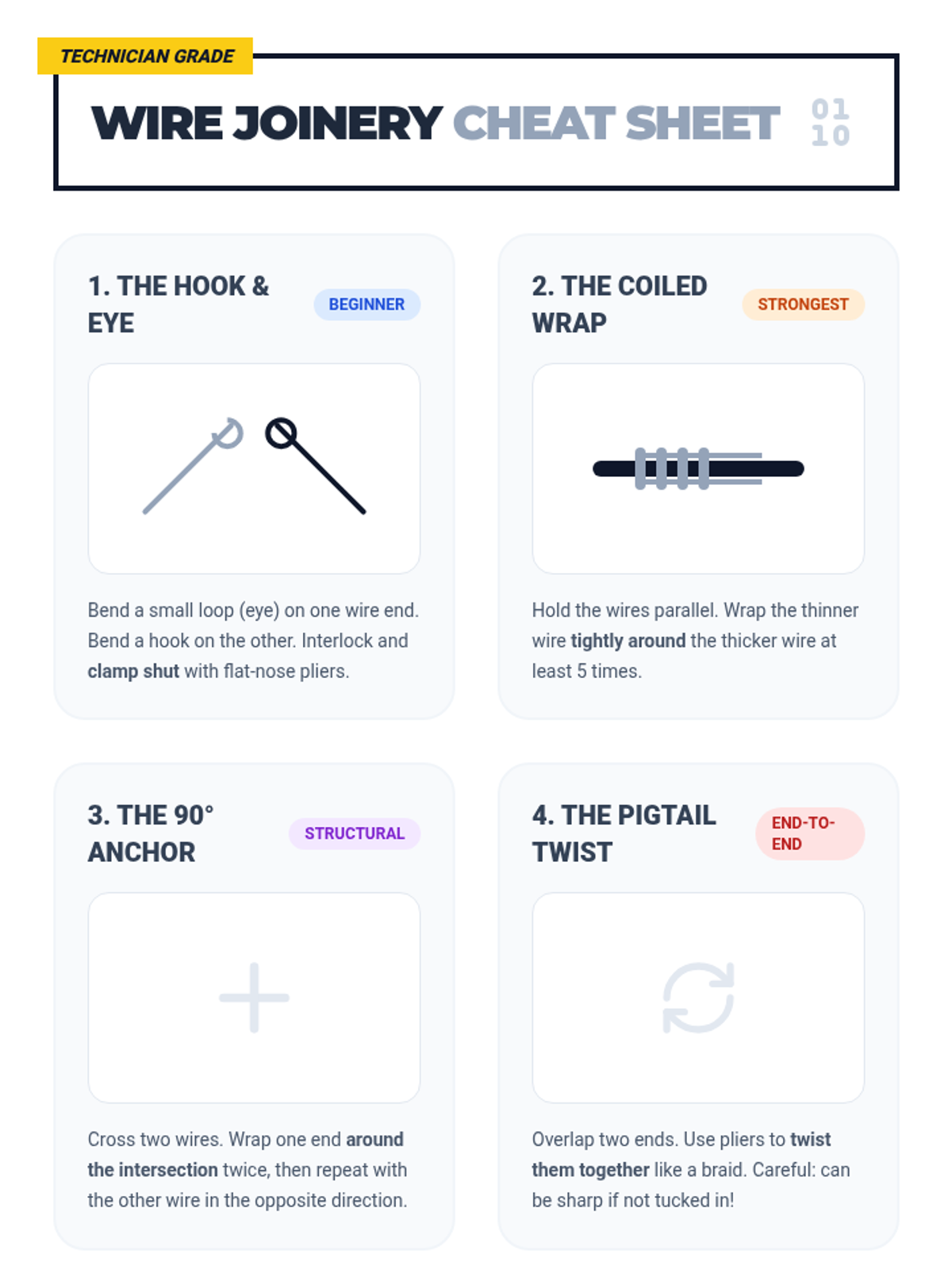

Wire Joinery Cheat Sheet Technician Grade
Wire Joinery Cheat Sheet
1. The Hook & Eye
Beginner
Bend a small loop (eye) on one wire end. Bend a hook on the other. Interlock and clamp shut with flat-nose pliers.
2. The Coiled Wrap
Strongest
Hold the wires parallel. Wrap the thinner wire tightly around the thicker wire at least 5 times.
3. The 90° Anchor
Structural
Cross two wires. Wrap one end around the intersection twice, then repeat with the other wire in the opposite direction.
4. The Pigtail Twist
End-to-End
Overlap two ends. Use pliers to twist them together like a braid. Careful: can be sharp if not tucked in!
Final Safety Check
Goggles are ON and secure.
Cutting away from my body.
Work area is clear of scrap.
Holding the "tail" when cutting.
Bone Builders Slides BONE BUILDERS
Mastering the Art of the Armature
Lesson 3: Building the Skeletal Frame
The Hidden Hero
Armature (n): an open framework on which a sculpture is molded.
Strength
It holds the weight of the sculpture and prevents it from collapsing or sagging.
Proportion
It sets the size of the head, limbs, and body BEFORE you add any bulk.
The Skeleton
STRENGTH
Capture the ZAP!
Pose First
Don't build a stiff statue. Think about a person running, a cat stretching, or a bird landing.
Core Strength
The "spine" of your sculpture is its most important wire. Build it thick and strong.
Exaggerate
If your character is leaning, make them lean 10% more! Sculptures lose energy once wrapped.
The Golden Rules of Proportion
7
The 7-Head Rule
A human figure is roughly 7 "heads" tall. Measure your head loop and multiply!
W
The Wingspan
Arm span is usually equal to total height. Keep those wire arms long!
L
Lower Body
Legs take up about half of the total height. Don't make them too short!
"Get the bones right, and the body will follow."
Mission: The Core Framework
Build a standing wire skeleton for a figure or creature. It must stand on its own and capture a specific action .
Action Pose
Strong Spine
Balanced Base

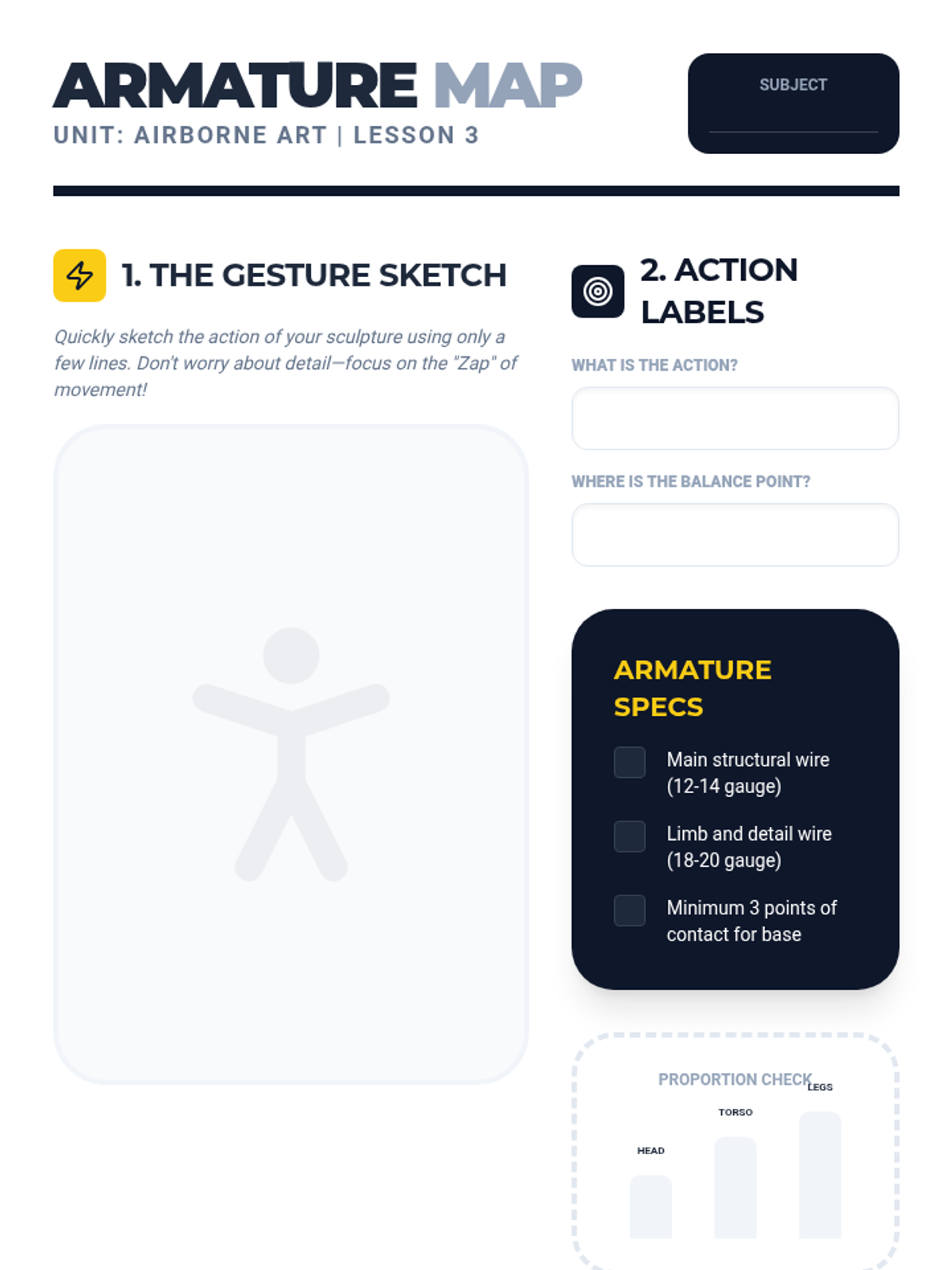

Armature Map Worksheet Armature Map
Unit: Airborne Art | Lesson 3
Subject
1. The Gesture Sketch
Quickly sketch the action of your sculpture using only a few lines. Don't worry about detail—focus on the "Zap" of movement!
2. Action Labels
What is the action?
Where is the balance point?
Armature Specs
Main structural wire (12-14 gauge)
Limb and detail wire (18-20 gauge)
Minimum 3 points of contact for base
Proportion Check
HEAD
TORSO
LEGS
Remember: The armature is the skeleton. We will add the "skin" in the next lesson!
Airy Mass Slides AIRY MASS
The Power of Negative Space
Lesson 4: Creating Volume through Wrapping
Seeing the Air
Negative Space
In wire sculpture, the space between the wires is just as important as the wire itself.
Think Like a Net
A net isn't a solid wall—it's a series of lines that "trap" the air to suggest a shape.
Volume without Weight
Fleshing out the Bones
A
The Coil Wrap
Spin the wire tightly around the armature to create muscle or thickness. Great for legs and necks.
B
The Cage Wrap
Loosely loop the wire around to create a "cage" of air. Perfect for torsos or billowy clothing.
Contrast & Texture
Dense Areas
Wrap wire very close together to show weight and solidity (like a heavy foot or a torso).
Open Areas
Leave big gaps to show lightness or movement (like a flying wing or a long tail).
Mixed Gauges
Use thick wire for structure and VERY thin wire for "fur," "hair," or "detail."
Challenge: The Muscle Map
Choose **one area** of your armature to be "Heavy" (Dense Wrapping) and **one area** to be "Light" (Loose Wrapping).
Define Volume Respect the Air

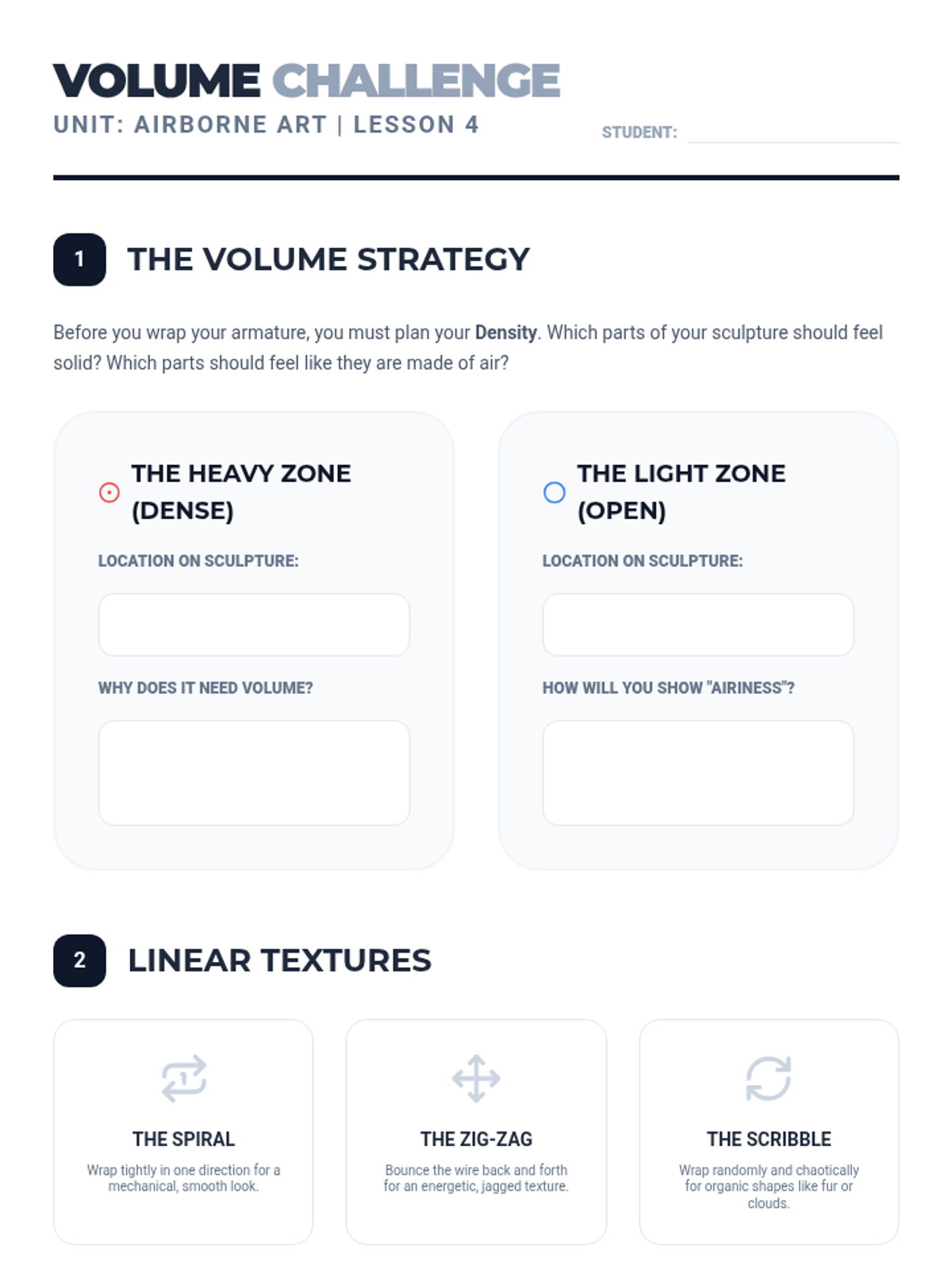

Volume Challenge Worksheet Volume Challenge
Unit: Airborne Art | Lesson 4
Student:
1
The Volume Strategy
Before you wrap your armature, you must plan your Density . Which parts of your sculpture should feel solid? Which parts should feel like they are made of air?
The Heavy Zone (Dense)
Location on Sculpture:
Why does it need volume?
The Light Zone (Open)
Location on Sculpture:
How will you show "Airiness"?
2
Linear Textures
The Spiral
Wrap tightly in one direction for a mechanical, smooth look.
The Zig-Zag
Bounce the wire back and forth for an energetic, jagged texture.
The Scribble
Wrap randomly and chaotically for organic shapes like fur or clouds.
Self-Check: Negative Space
Hold your sculpture up to a window or a white wall. Can you still see "through" it in key places? If it's becoming a solid blob, you're losing the negative space!
I can see through my sculpture
Shadows look like drawings
Balanced Motion Slides BALANCED MOTION
The Physics of Kinetic Sculpture
Lesson 5: Equilibrium & Movement
Art in Motion
Kinetic (adj): relating to or resulting from motion.
Sculpture doesn't have to stand still. Kinetic sculptures are designed to move with the air or through mechanical force.
Air Currents
Human Touch
Gravity
THE MOBILE
Invented by Calder
Finding the Balance Point
The Fulcrum
The point on which a lever rests or is supported and on which it pivots. In your sculpture, this is where the wire hangs or balances.
Heavier side? Move the fulcrum CLOSER to the weight.
Lighter side? Move the fulcrum FURTHER from the weight.
The Balance Lab
1
The Finger Test
Place your main wire on your index finger. Slide it back and forth until the wire stays perfectly level.
2
The Counterweight
If one side is too heavy, add a small "bead" or coil of wire to the other side to pull it back into balance.
3
The Air Test
Blow gently on your sculpture. Does it spin gracefully or tumble over? Adjust the base or hang point.
FINAL CHECK
Does it Stand/Hang?
Does it Move?
Is it Balanced?
"I want to make things that are fun to look at, that have no meaning at all." — Alexander Calder

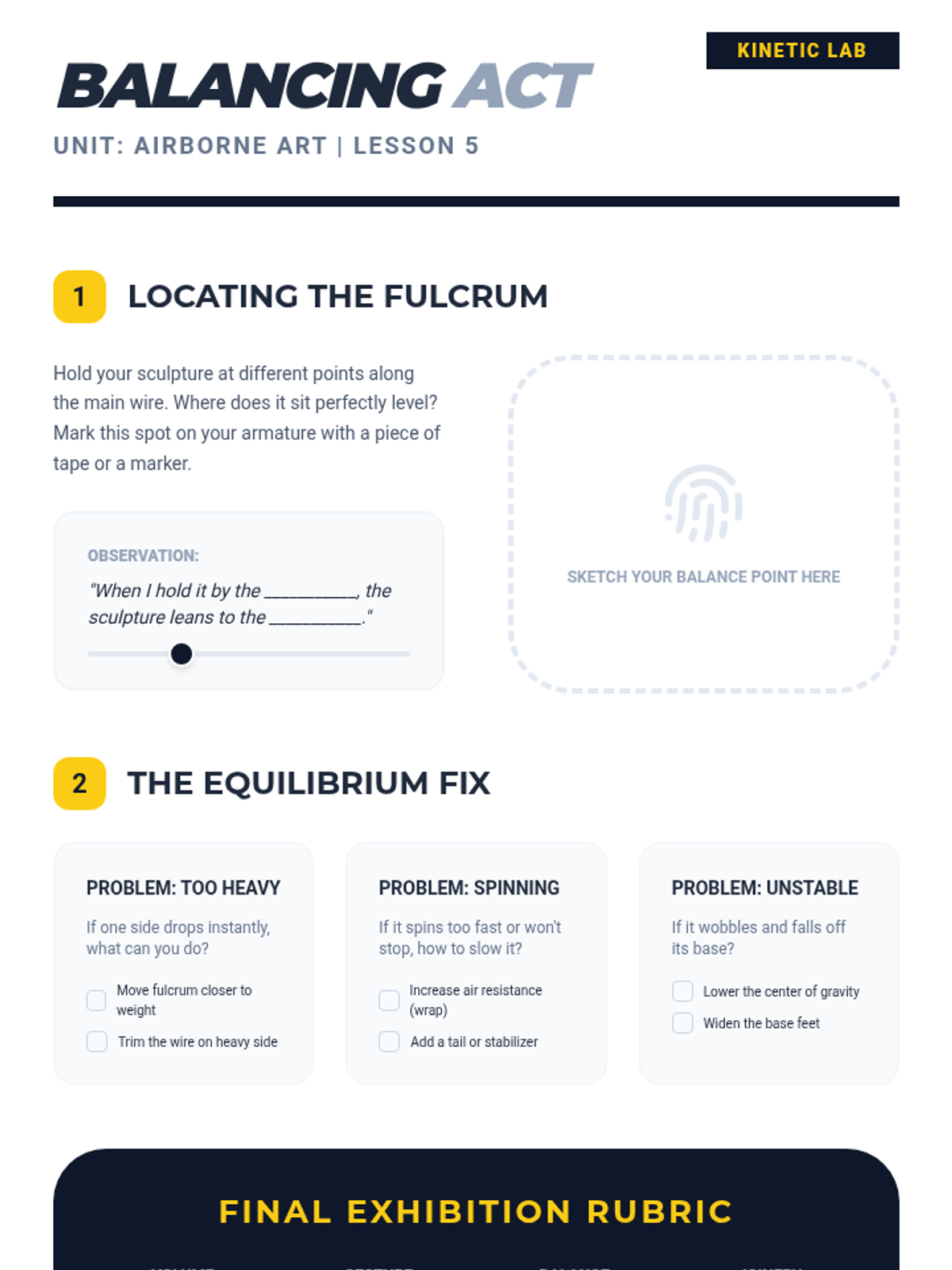

Balancing Act Lab Worksheet Kinetic Lab
Balancing Act
Unit: Airborne Art | Lesson 5
1
Locating the Fulcrum
Hold your sculpture at different points along the main wire. Where does it sit perfectly level? Mark this spot on your armature with a piece of tape or a marker.
Observation:
"When I hold it by the ___________, the sculpture leans to the ___________."
Sketch your balance point here
2
The Equilibrium Fix
Problem: Too Heavy
If one side drops instantly, what can you do?
Move fulcrum closer to weight
Trim the wire on heavy side
Problem: Spinning
If it spins too fast or won't stop, how to slow it?
Increase air resistance (wrap)
Add a tail or stabilizer
Problem: Unstable
If it wobbles and falls off its base?
Lower the center of gravity
Widen the base feet
Final Exhibition Rubric
Volume
Clear heavy/light zones
Gesture
Captures a distinct action
Balance
Stands or hangs level
Joinery
Strong mechanical links
