Advanced Topography Slides Navigation Module 01
ADVANCED
TOPOGRAPHY
Mastering Terrain Visualization & Magnetic Declination
The Invisible Challenge
Look at the map fragment on your desk. No labels. No scale. Only brown lines.
Challenge:
"Identify the steepest route to the summit versus the safest approach. You have 60 seconds."
REFERENCE ID: TOPO-V1
The UTM Coordinate System
Universal Transverse Mercator
A grid-based system to communicate location with precision, avoiding the distortion of spherical degrees.
Easting: X-axis distance (Meters East).
Northing: Y-axis distance (Meters North).
10S 0559741 / 4282182
Reading the grid: The 4-digit prefix usually indicates the 1km grid line on standard 1:24k maps.
Magnetic Declination
The Earth's core is fluid. Magnetic North moves constantly, while True North remains fixed at the axis.
The Calculation
MN +/- Declination = TN
"East is least, West is best." (Subtract East, Add West to Mag Bearing to get True)
TRUE NORTH (TN) MAG NORTH (MN) 14° E
2D to 3D Visualization
Valleys & Spurs
"V" points up-slope = Stream/Valley.
"V" points down-slope = Spur/Ridge.
Slope Gradient
Closely packed lines = Precipitous cliffs.
Wide spacing = Plateaus or gentle flats.
Depressions
Look for hachure marks (ticks pointing inward) to identify sinkholes or craters.
Terrain Identification Worksheet Terrain Analysis
Lab Activity 01: Topography & Declination
Student Name:
Date:
01
Morphological Interpretation
Study the provided map segment. Identify the following landforms and provide their coordinate center-points (Estimated UTM).
1. Cirque/Basin:
2. Major Saddle:
3. Gully/Drainage:
[ INSERT ATTACHED TOPO SHEET #4A-V ]
02
Bearing Correction Calculations
Solve the following declination scenarios. Show your adjustment formula.
SCENARIO A: Pacific Northwest
Magnetic Declination: 15° East. Your compass reads a magnetic bearing of 210°. What is the True (Grid) Bearing?
Calculation Space
SCENARIO B: Appalachian Trail
Magnetic Declination: 11° West. You identify a summit on the map with a True Bearing of 045°. What must you set your compass to?
Calculation Space
03
UTM Precision Plotting
Mission Parameters
A Search & Rescue team has reported a beacon at coordinate: 12T 0456100 / 5012350. Determine the elevation at this point using your topo sheet and describe the terrain immediate to the west of this point.
Elevation (Meters):
Primary Vegetation/Coverage Code:
Terrain Analysis (Hazards or access obstacles):
04
Mental Model Projection
Based on the contour pattern at UTM 0455500 / 5012000, draw a profile sketch (side view) of the slope as you would see it standing at the base.
Horizontal Distance
Altitude
UTM and Declination Reference Guide Navigator's Technical Reference
TEACHER RESOURCE // UNIT 01
UTM GRID SPECIFICATIONS
Zone Anatomy:
The world is divided into 60 zones, each 6° of longitude wide. Zones are numbered 1-60. Latitudinal bands (C-X) provide a letter designator. Example: 10S .
Reading Eastings & Northings
• Easting: Distance from the central meridian of the zone. Starts at 500,000m (False Easting) to avoid negatives.
• Northing: Distance from the Equator (0m for Northern Hemisphere).
INSTRUCTOR TIP: PRECISION
Students often confuse the 1,000m grid squares with the actual coordinate. Emphasize that coordinates are read Left to Right (Eastings), then Bottom to Top (Northings).
Mnemonic: "In the house (across), up the stairs (north)."
DECLINATION ADJUSTMENT LOGIC
EAST DECLINATION (e.g., +15°)
Mag Bearing - Declination = True Bearing
Example: Compas reads 100°. Declination is 10°E. Map bearing is 90°.
WEST DECLINATION (e.g., -10°)
Mag Bearing + Declination = True Bearing
Example: Compass reads 100°. Declination is 10°W. Map bearing is 110°.
CONTOUR PATTERN KEY
RIDGE / SPUR
U-Shapes pointing DOWN-slope
VALLEY / GULLY
V-Shapes pointing UP-slope
SADDLE / COL
Hourglass or "butterfly" contours
Prerequisite Verification
Confirm students can identify the Contour Interval (C.I.) on the map legend before starting Part 1.
Check for "Declination Confusion": Students often try to adjust the map instead of the compass.
Remind students that index contours are thicker and labeled with elevation every 5th line.
Route Math Slides Navigation Module 02
ROUTE
MATH
Mastering Naismith's Rule & Logistical Forecasting
The Overdue Party
"The hiking party was last seen at the trailhead at 08:00. They planned to reach the pass (6km, 900m ascent). It is now 15:00. Should you launch a SAR mission?"
CRITICAL QUESTION:
Where should they be by now based on standard physical limits?
Incident Report Fragment
DISTANCE: 6,000m
VERTICAL: +900m
SURFACE: Rough Talus
TEMP: 2°C (35°F)
Naismith's Golden Rule
1 hr / 5 km
+ 1 hr / 600m ASCENT
Devised in 1892, this formula remains the baseline for mountain navigation globally.
ESTIMATION EXAMPLE
Distance: 10km 2:00:00
Ascent: 300m 0:30:00
Basal Time: 2.5 Hours
+ Rest/Breaks (10%): 15 mins
Modern Calibration
The Group Factor
"The slowest person is your primary speed constraint." Adjust basal time by 20% for groups of 4 or more.
Terrain Roughness
Deep mud, scree, or snow can double time requirements. Use a multiplier of 1.5 - 2.0 for bushwhacking.
Descent Math
"Down isn't always free."
Steep descents (scree/stairs) require 10 mins per 300m descent for joint protection.
The Route Card
"A plan is a list of failures you've already avoided."
LEG ID BEARING (T) DIST (M) ELEV +/- EST. TIME DESCRIPTION 01 045° 1500m +200m 38m Ascend along spur to prominent ridge 02 090° 800m -50m 10m Handrail the treeline east to saddle

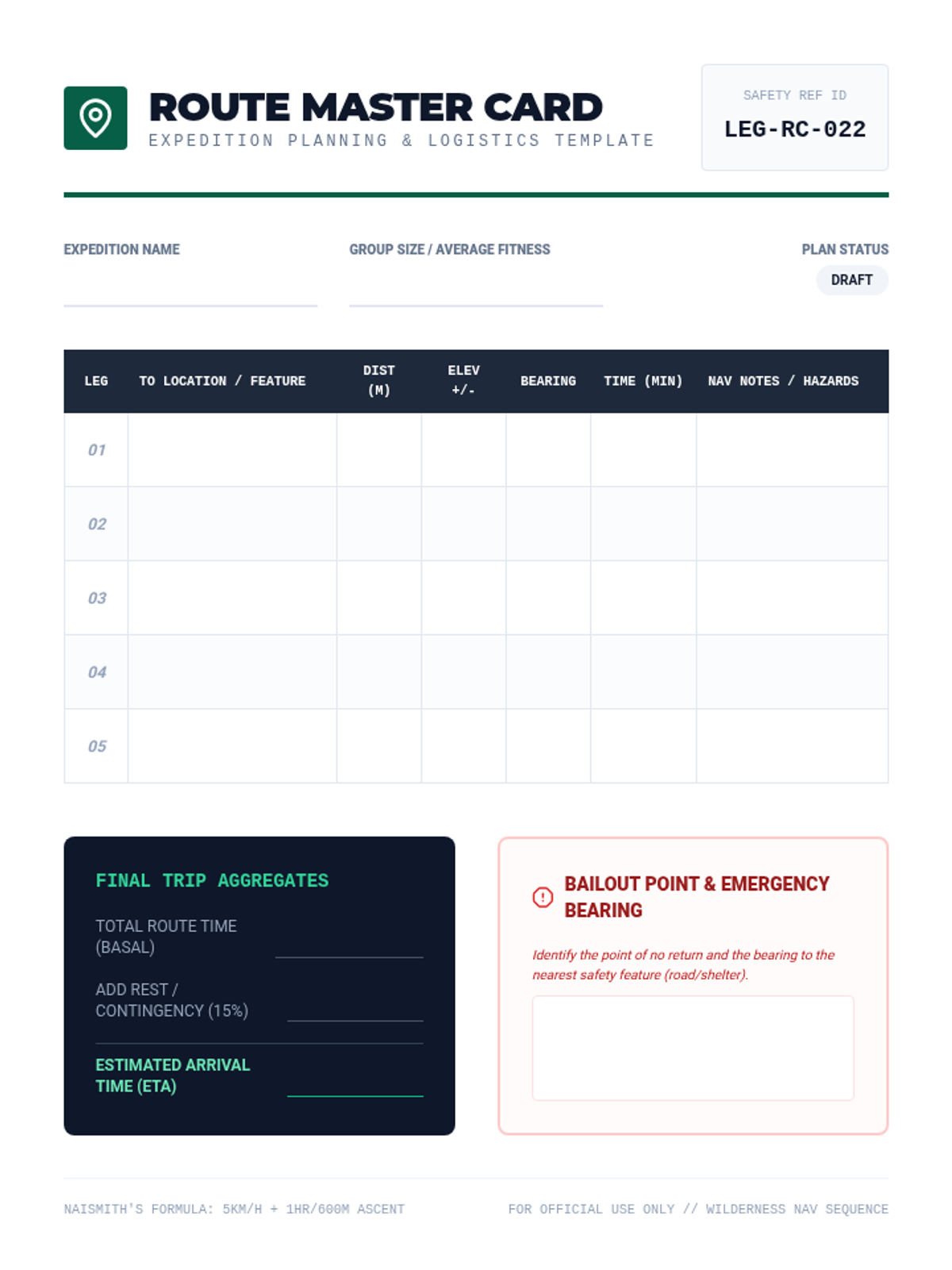

Route Card Template Document Route Master Card
Expedition Planning & Logistics Template
Safety Ref ID
LEG-RC-022
Expedition Name
Group Size / Average Fitness
Plan Status DRAFT
Leg To Location / Feature Dist (m) Elev +/- Bearing Time (min) Nav Notes / Hazards 01 02 03 04 05
Final Trip Aggregates
Total Route Time (Basal)
Add Rest / Contingency (15%)
ESTIMATED ARRIVAL TIME (ETA)
Bailout Point & Emergency Bearing
Identify the point of no return and the bearing to the nearest safety feature (road/shelter).
NAISMITH'S FORMULA: 5KM/H + 1HR/600M ASCENT FOR OFFICIAL USE ONLY // WILDERNESS NAV SEQUENCE
Route Estimation Answer Key Instructor Simulation Key
LESSON 2: ROUTE ESTIMATION SCENARIOS
The "Mount Storm" Scenario (Answer Key)
Problem: Group of 6 undergraduates. Route: 8.5km distance, 1,200m total vertical ascent. Weather: Light rain, slippery rock. Heavy packs.
Mathematical Breakdown
Distance (8.5km / 5km/h) 1 hr 42 min
Ascent (1200m / 600m/h) 2 hr 00 min
BASAL TIME: 3 hr 42 min
Adjustment Factors
Group size (1.2x) +45 min
Weather/Terrain (1.1x) +25 min
REALISTIC TOTAL: 4 hr 52 min
Critical Debrief Points
The "Halfway" Trap: Most groups underestimate the fatigue of the second half. Remind students that energy is a finite resource, not a constant.
Break Hygiene: 5 minutes every hour is better than 20 minutes every three hours. Cold muscles take longer to restart.
Instructor Observation Checklist
Did they convert meters to kilometers before calculating time?
Did they account for the specific descent time on steep legs?
Are the 'Nav Notes' specific (e.g., "Aiming off" or "Handrailing")?
Red Flags in Student Planning
<table class="w-full text-xs border border-slate-200"><tbody><tr class="bg-slate-50 font-bold uppercase"><td class="p-2 border">Error</td><td class="p-2 border">Navigational Consequence</td></tr><tr><td class="p-2 border font-bold">The "Perfect Speed" Fallacy</td><td class="p-2 border">Planning at 5km/h regardless of grade; leads to night-hiking risks.</td></tr><tr><td class="p-2 border font-bold">Ignoring Descent</td><td class="p-2 border">Missing knees/joint impact; unexpected fatigue on "easy" return legs.</td></tr><tr><td class="p-2 border font-bold">Vague Waypoints</td><td class="p-2 border">"To the woods" instead of "UTM 055 982"; makes verification impossible.</td></tr></tbody></table>Digital Wild Slides Navigation Module 03
DIGITAL
WILD
GPS Integration & Technological Limits
Trilateration
Your GPS receiver doesn't "talk" to satellites. It only listens. By measuring the time it takes for signals from at least 4 satellites to arrive, it calculates your 3D position.
1 Sat: Sphere of distance
2 Sats: Circle intersection
3 Sats: Point (2D Fix)
4 Sats: Precision (3D + Time)
Digital Data Types
Waypoints
Discrete coordinate points saved by the user. Static markers for summits, water, or camp.
POI_001: 10T 456123 / 5012344
Tracks
The "Breadcrumb Trail." A recorded log of where you have actually moved over time.
REC ON
Why Technology Fails
Battery Decay
Cold weather reduces lithium-ion efficiency by up to 60%.
Signal Masking
Deep canyons or heavy canopy cause "multi-path" errors.
System Freeze
Software bugs require hard resets; data can be lost in corruption.
Human Over-Reliance
"The Map is the Territory." Forgetting to look up at the horizon.
The Verification Protocol
"GPS is a verification tool, not a steering wheel."
01
ANALOG FIRST
Determine position on paper map using terrain association before checking device.
02
DATUM MATCH
Ensure GPS and Map use the same Datum (e.g., WGS84 or NAD27).
03
LEAVE TRACKING OFF
Save battery by marking waypoints at major intersections only.

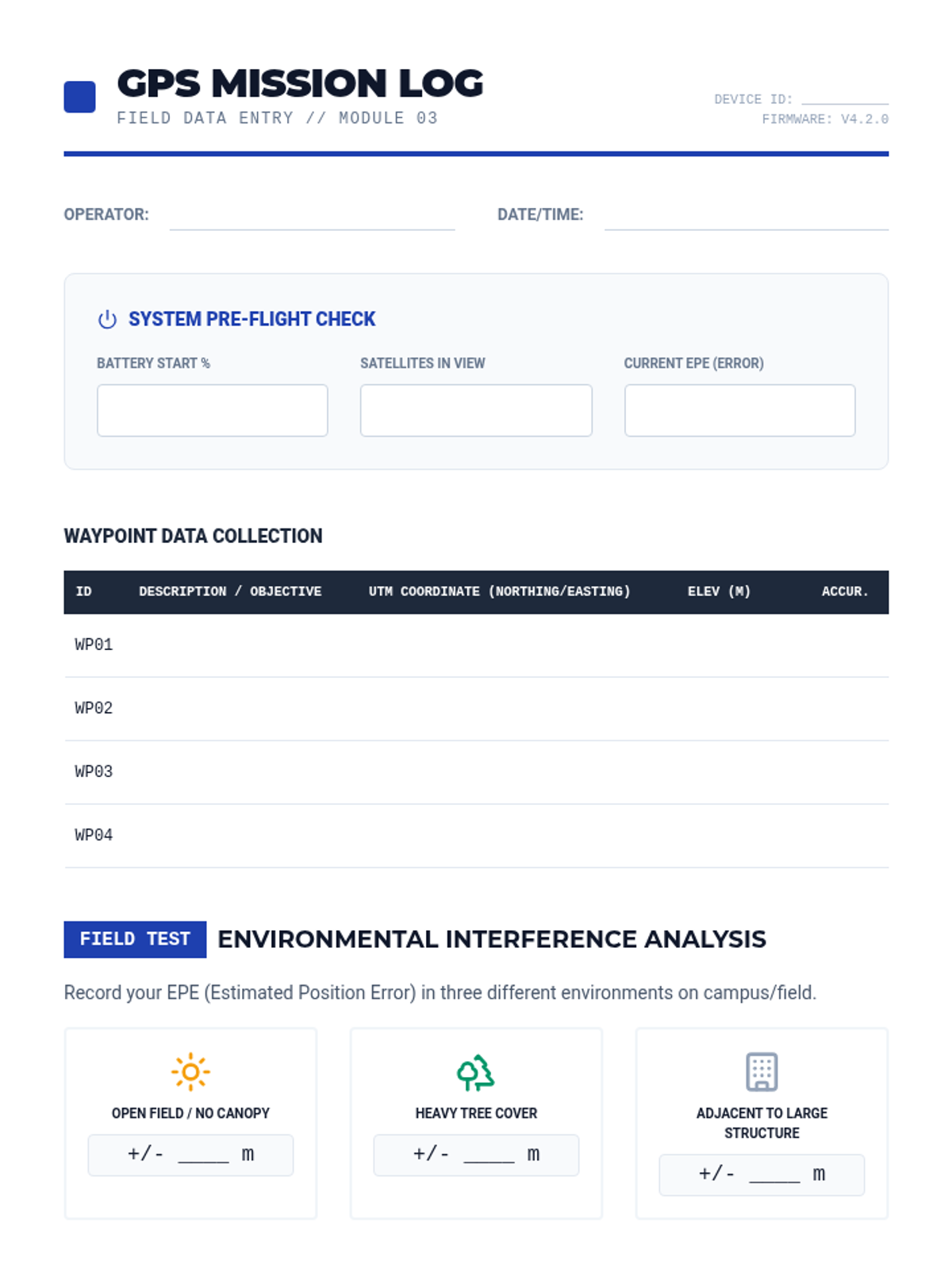

GPS Field Log Document GPS Mission Log
Field Data Entry // Module 03
DEVICE ID: ___________
FIRMWARE: V4.2.0
Operator:
Date/Time:
System Pre-Flight Check
Battery Start %
Satellites in View
Current EPE (Error)
Waypoint Data Collection
ID Description / Objective UTM Coordinate (Northing/Easting) Elev (m) Accur. WP01 WP02 WP03 WP04
Field Test
Environmental Interference Analysis
Record your EPE (Estimated Position Error) in three different environments on campus/field.
Open Field / No Canopy
+/- ____ m
Heavy Tree Cover
+/- ____ m
Adjacent to Large Structure
+/- ____ m
Digital-Analog Discrepancy Log
Note any instances where your GPS position contradicted your visual terrain association (Paper Map).
Confirm Datum WGS84 before syncing data with GIS software.

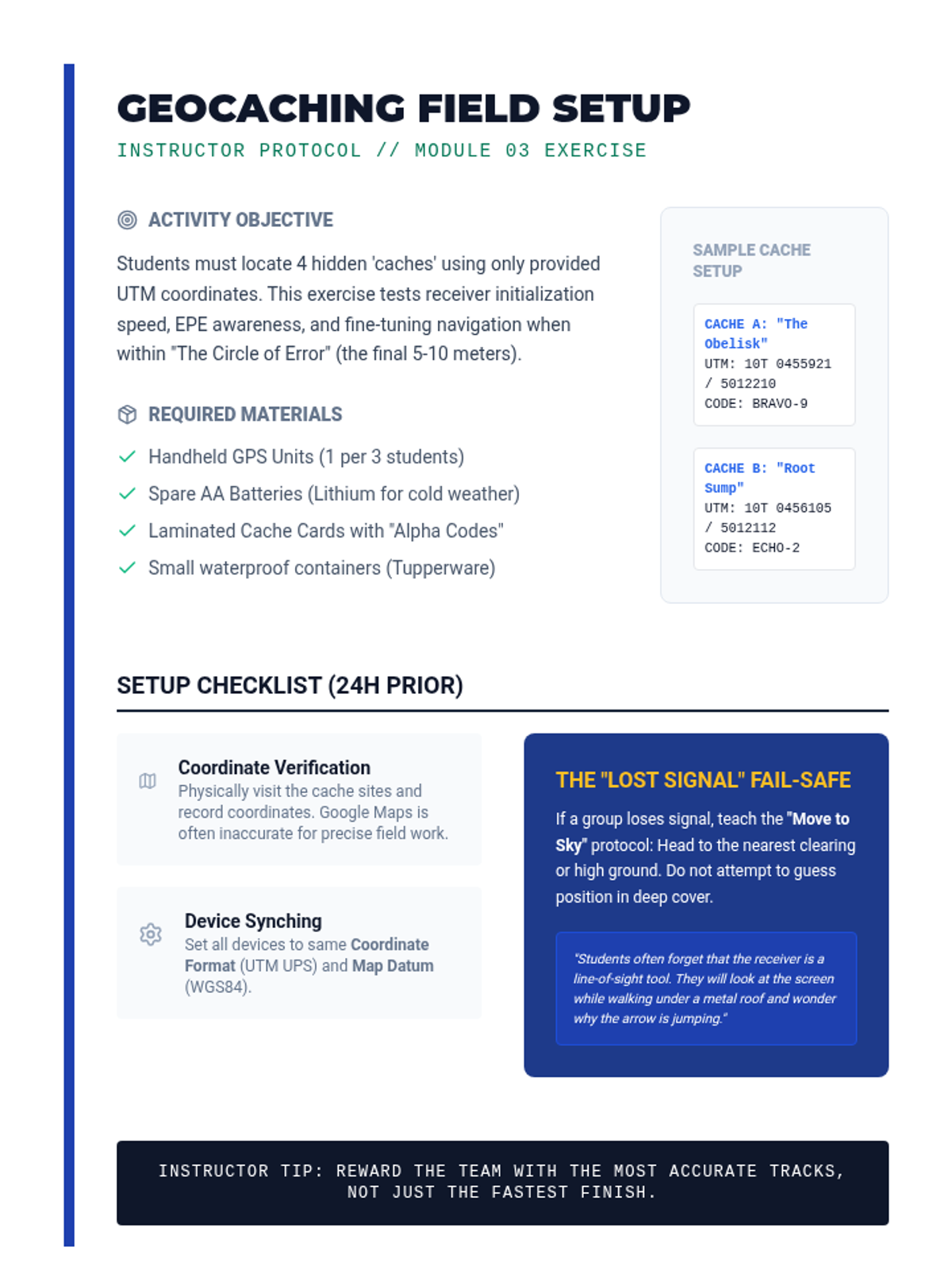

Geocaching Setup Guide Resource Geocaching Field Setup
Instructor Protocol // Module 03 Exercise
Activity Objective
Students must locate 4 hidden 'caches' using only provided UTM coordinates. This exercise tests receiver initialization speed, EPE awareness, and fine-tuning navigation when within "The Circle of Error" (the final 5-10 meters).
Required Materials
Handheld GPS Units (1 per 3 students)
Spare AA Batteries (Lithium for cold weather)
Laminated Cache Cards with "Alpha Codes"
Small waterproof containers (Tupperware)
Sample Cache Setup
CACHE A: "The Obelisk"
UTM: 10T 0455921 / 5012210
CODE: BRAVO-9
CACHE B: "Root Sump"
UTM: 10T 0456105 / 5012112
CODE: ECHO-2
Setup Checklist (24h Prior)
Coordinate Verification
Physically visit the cache sites and record coordinates. Google Maps is often inaccurate for precise field work.
Device Synching
Set all devices to same Coordinate Format (UTM UPS) and Map Datum (WGS84).
The "Lost Signal" Fail-Safe
If a group loses signal, teach the "Move to Sky" protocol: Head to the nearest clearing or high ground. Do not attempt to guess position in deep cover.
"Students often forget that the receiver is a line-of-sight tool. They will look at the screen while walking under a metal roof and wonder why the arrow is jumping."
Instructor Tip: Reward the team with the most accurate tracks, not just the fastest finish.
Backcountry Decisions Slides Navigation Module 04
RISK &
LEADERSHIP
Human Factors in Wilderness Decision-Making
The Accident Chain
"Rarely is a wilderness emergency the result of one catastrophic failure. It is almost always a chain of 3 to 5 minor errors."
Error 1
Poor Map Review
Error 2
Missed Junction
Result
Emergency
Heuristic Traps (FACETS)
Commitment / Consistency
The "Summit Fever." Continuing toward a goal simply because you have already invested time and energy into it.
Social Proof
The belief that a behavior is correct because others are doing it. "They look like they know where they are going."
Expert Halo
Assuming the "best" navigator is infallible. Letting others follow blindly without verifying the position themselves.
Scarcity
Rushing to reach a location (campsite/summit) before "the good spots" are taken or light fails.
Case Study: The Fatal Turn
"They were 200 meters from the trail. They could see the lights of the town. But they decided to descend into the drainage instead of climbing the ridge."
INCIDENT FACTORS:
- Fatigue (12+ hours)
- Negative Declination
- Group Silence
Analysis In Progress
The Safety Matrix
Pre-Trip
Identify "Bailout Points" where the group can exit safely before reaching the objective.
On-Trail
The "Navigator's Check." Stop at every junction. Every member must confirm position on their own map.
Emergency
S.T.O.P. Protocol: Sit, Think, Observe, Plan. Don't move until the panic passes.
Safety Matrix Planner Document Safety Matrix Planner
Risk Mitigation // Module 04
Document Class
RESTRICTED / LEADERSHIP
Environmental & Human Hazard Analysis
Hazard Category Potential Risk Level (1-5) Mitigation Strategy / Protocol Environmental (e.g., River crossings, steep scree)
|
| Meteorological (e.g., Inversion, high winds) |
|
|
| Human Factor (e.g., Fatigue, group conflict) |
|
|
Bailout Point & Emergency Bearing Plan
Mission Critical Directive
Identify the Point of No Return for your planned practicum route. If an emergency occurs after this point, what is the Primary Survival Bearing (bearing to the nearest reliable baseline/road)?
Waypoint ID for Bailout:
Emergency Bearing (True):
Estimated Extraction Time (h):
Justification & Visual Cues (How will you know you are at the bailout?):
The "Quiet Navigator" Protocol
Describe a scenario where a high-status group member (expert) is making a navigational error. Write out the specific words you would use to facilitate a "Pause & Re-orient" without causing defensive conflict.
S.T.O.P. = SIT, THINK, OBSERVE, PLAN CONFIDENTIAL STUDENT SAFETY LOG

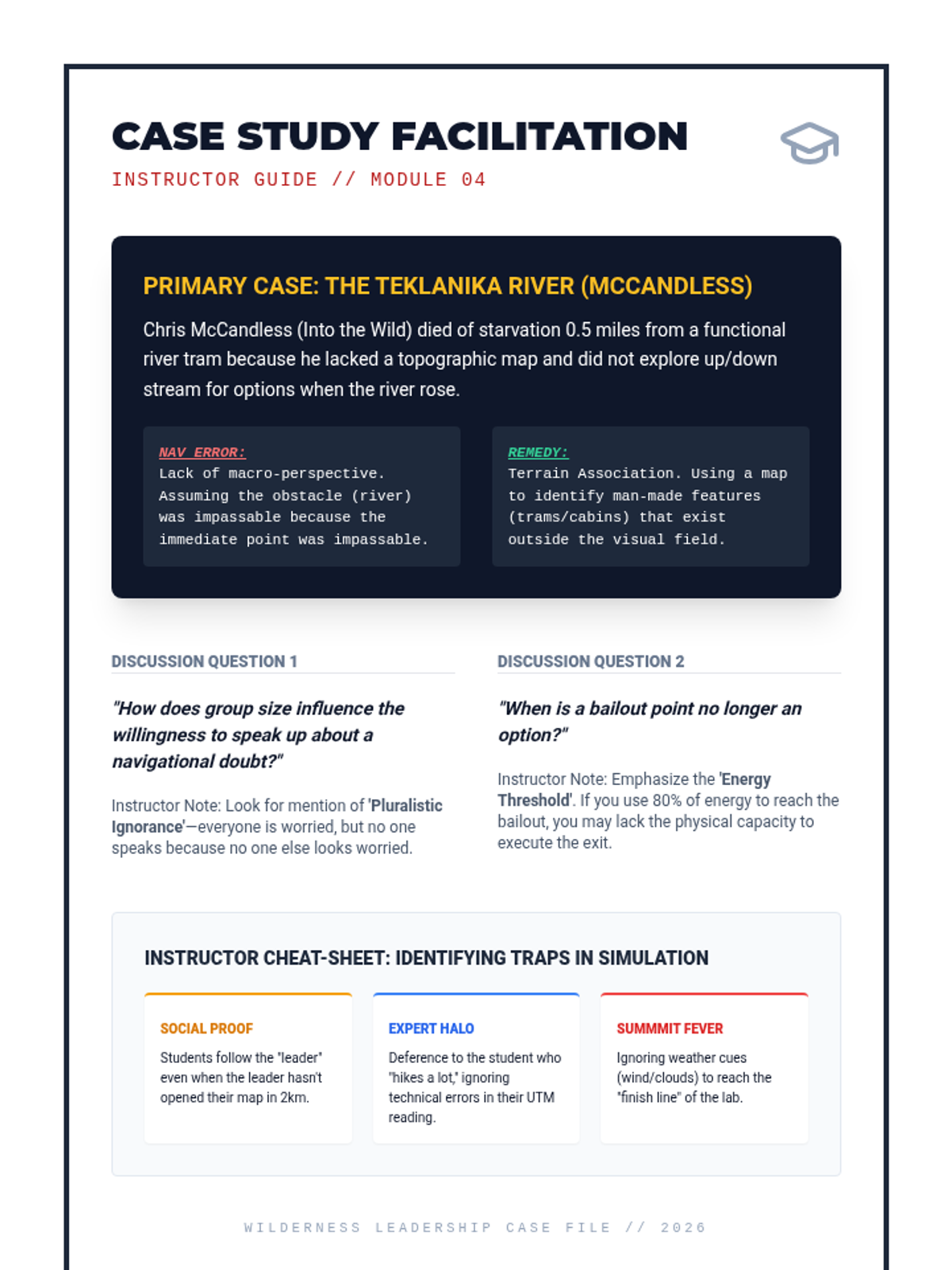

Case Study Facilitation Resource Case Study Facilitation
Instructor Guide // Module 04
Primary Case: The Teklanika River (McCandless)
Chris McCandless (Into the Wild) died of starvation 0.5 miles from a functional river tram because he lacked a topographic map and did not explore up/down stream for options when the river rose.
NAV ERROR:
Lack of macro-perspective. Assuming the obstacle (river) was impassable because the immediate point was impassable.
REMEDY:
Terrain Association. Using a map to identify man-made features (trams/cabins) that exist outside the visual field.
Discussion Question 1
"How does group size influence the willingness to speak up about a navigational doubt?"
Instructor Note: Look for mention of 'Pluralistic Ignorance' —everyone is worried, but no one speaks because no one else looks worried.
Discussion Question 2
"When is a bailout point no longer an option?"
Instructor Note: Emphasize the 'Energy Threshold' . If you use 80% of energy to reach the bailout, you may lack the physical capacity to execute the exit.
Instructor Cheat-Sheet: Identifying Traps in Simulation
Social Proof
Students follow the "leader" even when the leader hasn't opened their map in 2km.
Expert Halo
Deference to the student who "hikes a lot," ignoring technical errors in their UTM reading.
Summmit Fever
Ignoring weather cues (wind/clouds) to reach the "finish line" of the lab.
Wilderness Leadership Case File // 2026
Practicum Briefing Slides Navigation Module 05
FIELD
PRACTICUM
Applied Orienteering & Leadership Assessment
The Mission Brief
"Your team will be dropped at an unknown point. You have 10 minutes to fix your location before the clock starts. Locate 6 checkpoints in sequence."
- Timed: 180 Minutes
- Gear: Map, Compass, GPS (Backup only)
- Team: 3-4 Navigators
Evaluation Criteria
Checkpoint Accuracy (90%)
Route Efficiency
Safety Protocol Adherence
The Tactical Toolbox
Triangulation
Taking bearings from 3 distinct landforms to create a "triangle of error" on the map.
Handrailing
Following a linear feature (stream, ridge, road) that leads directly toward your objective.
Aiming Off
Deliberately aiming to one side of a target so you know which way to turn upon reaching the baseline.
Dynamic Leadership
"Navigation is a team sport. Leadership will rotate every two checkpoints."
1
The Primary
Maintains bearing and sets pace.
2
The Auditor
Verifies terrain association and UTM logging.
Team Performance Area
Safety & Comms
WHISTLE
3 Blasts = Emergency
HARD CUT-OFF
16:00 (Return to Base)
RADIO CHECK
Channel 4 (Emergency Only)
"SPEED IS SECOND TO CERTAINTY."
Orienteering Scorecard Document Orienteering Scorecard
Practicum Performance Record // Module 05
TEAM ID
Lead Navigator:
Auditor:
Start Time
__:__
Finish Time
__:__
Checkpoint Verification
# Arrival Time Alpha Code (Found at Site) Primary Nav Technique Used Verified 01 e.g., Handrailing 02 03 04 05 06
Field Evidence
Position Fix (Triangulation)
At Checkpoint #3, perform a 3-point triangulation. Record your bearings below and sketch the intersecting lines in the grid.
Feature 1: _________________
Bearing (Mag): ______°
Feature 2: _________________
Bearing (Mag): ______°
Feature 3: _________________
Bearing (Mag): ______°
Triangulation Plot Area
Navigator Signature: _______________________ Field Marshall Initials: _______

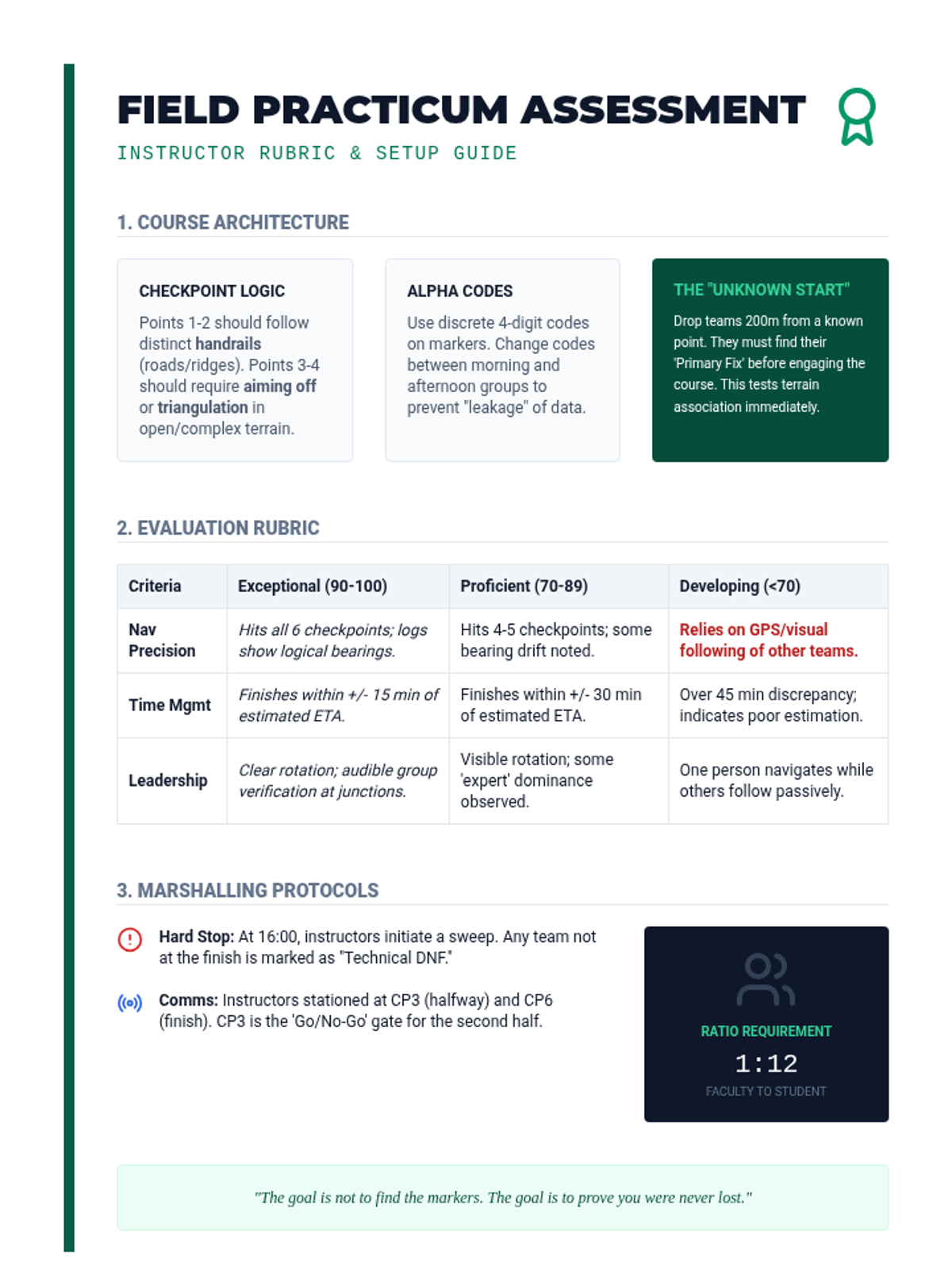

Field Practicum Assessment Resource Field Practicum Assessment
Instructor Rubric & Setup Guide
1. Course Architecture
Checkpoint Logic
Points 1-2 should follow distinct handrails (roads/ridges). Points 3-4 should require aiming off or triangulation in open/complex terrain.
Alpha Codes
Use discrete 4-digit codes on markers. Change codes between morning and afternoon groups to prevent "leakage" of data.
The "Unknown Start"
Drop teams 200m from a known point. They must find their 'Primary Fix' before engaging the course. This tests terrain association immediately.
2. Evaluation Rubric
Criteria Exceptional (90-100) Proficient (70-89) Developing (<70) Nav Precision Hits all 6 checkpoints; logs show logical bearings. Hits 4-5 checkpoints; some bearing drift noted. Relies on GPS/visual following of other teams. Time Mgmt Finishes within +/- 15 min of estimated ETA. Finishes within +/- 30 min of estimated ETA. Over 45 min discrepancy; indicates poor estimation. Leadership Clear rotation; audible group verification at junctions. Visible rotation; some 'expert' dominance observed. One person navigates while others follow passively.
3. Marshalling Protocols
Hard Stop: At 16:00, instructors initiate a sweep. Any team not at the finish is marked as "Technical DNF."
Comms: Instructors stationed at CP3 (halfway) and CP6 (finish). CP3 is the 'Go/No-Go' gate for the second half.
Ratio Requirement
1:12
Faculty to Student
"The goal is not to find the markers. The goal is to prove you were never lost."
