Shadow Masters Lesson Plan Visual Arts Curriculum Guide • Grades 5–8 • 60 Minutes
Shadow Masters: Value & Form
Transforming 2D Flat Shapes into 3D Volumetric Illusions with Chiaroscuro
Lesson Type Studio & Inquiry
Standards Alignment (NCAS & State VA Standards)
VA:Cr1.2.5–8: Brainstorm and apply creative concepts to transform 2D shapes into convincing 3D dimensional illusions.VA:Cr2.1.5–8: Experiment with graphite media and blending tools to demonstrate deliberate control of value.VA:Re7.1.5–8: Analyze how light source, contrast, and shading create perceived depth in fine art and peer work.
Learning Target
"I can" create a 5-step value gradient and accurately shade a 3D sphere identifying all 5 zones of light from a fixed source.
Key Concept: Value creates the illusion of tangible form.
Required Studio Materials
Drawing pencils (2B, 4B, 6B or #2 pencils)
Blending tortillons & kneaded erasers
70–80 lb white paper / Studio Sheet
High-contrast desk lamp & white foam sphere
Document camera or projector for demo
Core Art Vocabulary
Value: Lightness or darkness of tone.
Form: 3D object having volume and depth.
Chiaroscuro: High-contrast light & dark modeling.
Highlight: Brightest area where light strikes directly.
Midtone: True local tone transitioning to shadow.
Core Shadow: Darkest band on object away from light.
Reflected Light: Rim bounced from nearby surface.
Cast Shadow: Shadow projected onto the surface beneath.
60-Minute Instructional Pacing Guide
Time Phase Teacher Moves & Guided Prompt Student Engagement 00–08 min Visual Hook & Inquiry Display flat circle beside shaded sphere. Turn flashlight on actual foam ball. Ask: "What makes your brain believe this flat paper has weight and volume?" Turn & talk; identify light angle; spot highlights and cast shadow. 08–20 min Direct Demo & Anatomy Under doc-cam, demonstrate pencil grip (side of lead vs point), 5-tone value bar, and the 5 zones of light. Emphasize: "Never draw a heavy black outline around a 3D form!" Follow along; practice pressure modulation in air and on paper edge. 20–45 min Studio Practice (25m) Circulate tables with "pencil doctor" checks. Prompt students to check for reflected light and seamless transitions. Play ambient focus music. Complete 5-step value gradient, shade practice sphere, then execute the Floating Relic challenge. 45–54 min Gallery Walk Critique Initiate silent museum walk. Introduce TAG protocol: T ell something strong, A sk a question, G ive a refinement tip. Rotate every 90 seconds. Leave sticky note or written peer feedback using art terms. 54–60 min Clean-Up & Closure Signal 2-minute table clean-up. Prompt exit ticket reflection: "Which zone of light was hardest to control and why?" Return tools to bins; complete self-assessment rating on studio sheet.
Unit: Elements of Art • Strand: Chiaroscuro Modeling Page 1 of 2 • Teacher Instructional Plan
Instructional Execution & Assessment
Teacher modeling prompts, differentiation bands, and evaluation criteria
Grades 5–8 Adaptations
Teacher Live Demo Key Points
Pencil Grip: Hold pencil back from the tip at a 30° angle to use the broad lead belly for soft shading, not the sharp point.Cross-Contour Stroke: Curve your pencil strokes along the sphere’s curved surface. Flat straight lines will instantly flatten the sphere.Preserve the Highlight: Leave pure white paper untouched first; do not erase back into heavy dark pencil unless using a kneaded eraser.The Ground Plane: The cast shadow must anchor directly under the object and fade slightly at its outer edge (penumbra).
Common Student Misconceptions
Dark Outer Outline: Students naturally outline the circle dark. Correction: Erase outer line; let value contrast define the edge.Omitting Reflected Light: Students make the bottom edge pitch black. Correction: Remind them table bounce illuminates the lower crescent.Smudging with Fingers: Skin oils ruin smooth graphite gradients. Correction: Enforce tortillons or clean paper shield under palm.Middle Gray Mud: Fear of pressing firmly. Correction: Model pushing 4B/6B pencil to maximum pitch-black core shadow.
Differentiated Instruction Tiers (Grades 5 to 8)
Grade 5 / Guided Support
Provide pre-printed faint guideline circles. Focus on establishing at least 3 distinct values (light, medium, dark). Offer blending stumps to aid motor control.
Grades 6–7 / Proficient
Independent construction of 5-tone value bar. Shading must show all 5 zones of light clearly, with curved cross-contour pencil work and clean cast shadow.
Grade 8 / Extension
Shade complex multi-form arrangements (cylinder intersecting sphere) or introduce dual contrasting light sources with dramatic cast shadow occlusion.
Standards-Based Assessment Rubric (4 Levels)
Criteria 1 - Emerging 2 - Developing 3 - Proficient (Target) 4 - Advanced Value Range (VA:Cr2.1) 1–2 flat values; no clear transition. 3 recognizable tones; transitions are sudden or abrupt. 5 distinct steps from pure paper white to rich dark graphite. Seamless gradient; sophisticated pressure modulation and tonal control. Anatomy of Form (VA:Cr1.2) Circle remains flat; heavy outline dominates. Light and shadow present, but zones are misplaced. All 5 zones of light clearly identified and positioned logically. Convincing 3D volume, accurate penumbra on cast shadow, subtle bounce light. Critique & Vocab (VA:Re7.1) No participation or feedback is off-topic. Offers general praise without using art terms. Uses TAG protocol accurately citing highlight or shadow zones. Insightful peer critique offering technical shading advice with full vocab.
Studio Norms: Respect tools, manage pencil graphite safely, honor peer effort. Page 2 of 2 • Teacher Instructional Plan
Shadow Masters Slides Middle School Visual Arts Studio
Grades 5–8 • 60 Minutes
Element of Art: Value & Form
SHADOW MASTERS
Mastering Chiaroscuro: How to transform flat 2D shapes into convincing 3D dimensional illusions.
Anatomy of Light
Graphite Control
TAG Peer Critique
The Great Illusion: Shape vs. Form
Visual Inquiry
2D Flat Shape Geometry
CIRCLE
Has only height and width
Completely flat on the page
No sense of light or shadow
3D Dimensional Form Illusion
SPHERE
Appears to occupy real space
Has volume, mass, and weight
Created solely through VALUE
Key Takeaway: Value is what convinces the human brain that a flat drawing has physical volume!
The Anatomy of Light
Every dimensional object in nature displays these 5 zones
5 Zones of Value
01
Highlight
Pure paper white where light strikes directly.
02
Midtone
True local tone as the form curves away.
03
Core Shadow
Darkest band where light cannot reach.
04
Reflected Light
Soft rim of light bounced from table surface.
05
Cast Shadow
Shadow projected on the ground plane.
Studio Secret: Reflected light keeps the edge of your sphere from looking glued to the dark background!
Shading Techniques Arsenal
Four professional methods for building smooth value gradients
Technique
Blending
Smooth Tonal
Use pencil belly and tortillon for seamless gradients.
Hatching
Parallel Lines
//////
Uniform parallel strokes; closer lines build tone.
Cross-Hatch
Woven Mesh
Intersecting lines layered to create rich textures.
Stippling
Point Density
••••••
Controlled dots; density builds the deep shadows.
Pro Tip for Round Forms: Curve strokes with the contour of the sphere. Straight lines make curved objects flat!
Studio Mission: 25 Minutes
Follow the three-stage studio progression on your Studio Guide

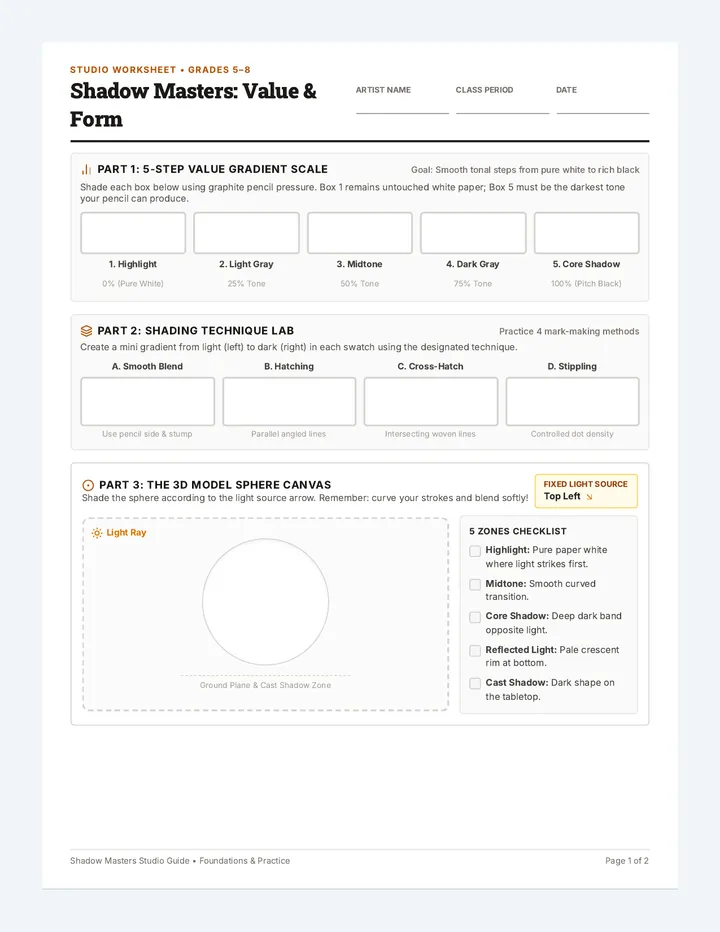

Shadow Masters Studio Guide Studio Worksheet • Grades 5–8
Shadow Masters: Value & Form
Artist Name
Class Period
Date
Part 1: 5-Step Value Gradient Scale
Goal: Smooth tonal steps from pure white to rich black
Shade each box below using graphite pencil pressure. Box 1 remains untouched white paper; Box 5 must be the darkest tone your pencil can produce.
1. Highlight 0% (Pure White)
2. Light Gray 25% Tone
3. Midtone 50% Tone
4. Dark Gray 75% Tone
5. Core Shadow 100% (Pitch Black)
Part 2: Shading Technique Lab
Practice 4 mark-making methods
Create a mini gradient from light (left) to dark (right) in each swatch using the designated technique.
A. Smooth Blend
Use pencil side & stump
B. Hatching
Parallel angled lines
C. Cross-Hatch
Intersecting woven lines
D. Stippling
Controlled dot density
Part 3: The 3D Model Sphere Canvas
Shade the sphere according to the light source arrow. Remember: curve your strokes and blend softly!
Fixed Light Source Top Left
Light Ray
Ground Plane & Cast Shadow Zone
5 Zones Checklist
Shadow Masters Studio Guide • Foundations & Practice Page 1 of 2
Studio Challenge
Part 4: The Floating Relic
Select Light Angle: Top-Left Overhead Top-Right
Mission: Choose an original 3D object (floating crystal, ancient geometric relic, planet, or cylinder). Render it with full 3D chiaroscuro. Show how directional light creates volumetric depth and projects a dramatic cast shadow on a surface below.
Studio Workspace (Draw your floating relic below) Tip: Eliminate hard black contours; use values to define edges
