Fretboard Basics Reference Guide Guitar 101 Foundations Reference
Guitar Anatomy & Basics
Fretboard Launchpad
Reference Sheet • Page 1
Essential Instrument Anatomy
Acoustic & Electric
1. Headstock & Pegs
Anchors the strings; turning the pegs tightens (raises pitch) or loosens (lowers pitch).
2. The Nut
Grooved bone or plastic strip that spaces strings and marks fret zero (open strings).
3. Fretboard & Frets
Metal strips pressed into the wooden neck. Pressing behind a fret shortens the vibrating string.
4. Neck & Position Dots
Marker markers usually at frets 3, 5, 7, 9, and double dots at 12 (one octave up).
5. Body & Soundhole
Acoustic body amplifies vibrations naturally. Electric guitars use magnetic pickups instead.
6. Bridge & Saddle
Secures strings to the lower body, transferring string vibration directly into the soundboard.
Standard Tuning (E A D G B E)
Numbered from lowest pitch (thickest, 6th string) to highest pitch (thinnest, 1st string):
6 E (Low E - Thickest)
Eddie
5 A (5th String)
Ate
4 D (4th String)
Dynamite
3 G (3rd String)
Good
2 B (2nd String)
Bye
1 E (High E - Thinnest)
Eddie
Tuner Rule: When turning pegs, always pluck the string repeatedly. If pitch is sharp (too high), tune below the note and tune UP to pitch.
Physical Technique & Proper Mechanics
Build Clean Muscle Memory Early
L
Fretting Hand Setup
Thumb Position: Rest flat on the back centerline of the neck (not hooked over top).Fingertip Arch: Arch fingers like holding a tennis ball; play on firm fingertips.Behind the Fret: Press directly behind the metal fret wire to avoid buzz or mute.
R
Pick & Strum Grip
Pick Grip: Hold pick between thumb pad and side of index finger; leave ~5mm tip showing.Wrist Motion: Strum from a loose, flexible wrist—never lock your elbow or forearm.Angle of Attack: Slice across strings at a slight 15° tilt for a smooth, warm tone.
Posture & Balance
Seated Position: Sit near chair edge, back straight, guitar waist resting on right thigh.Neck Upward: Elevate guitar neck at a ~30° to 45° angle so wrist stays straight.No Slouching: Bring the instrument to your body, do not hunch over the guitar.
Fretting Finger Numbers
Used in all guitar chord charts & tab:
1 = Index 2 = Middle 3 = Ring 4 = Pinky
Guitar Care & Longevity Rules
Wipe Strings: Wipe sweat off strings with a microfiber cloth after every session to prevent rust.
Climate Safe: Never leave guitar in a hot car, cold trunk, or next to home heating radiators.
Use a Stand: Never lean guitar flat against a wall or chair where it can slip and snap headstock.
Fretboard Launchpad • Basic Guitar Reference Series Turn page for The 8 Essential Beginner Open Chords →
Chords 101 Master Reference
The 8 Essential Open Chords
Fretboard Launchpad
Reference Sheet • Page 2
How to Read Guitar Chord Boxes
Vertical lines are strings (Low E on left to High E on right). Horizontal lines are frets.
O Open String (Pluck)
X Mute / Do Not Play
1 Finger Number
Em E Minor
O O O O 2 3 Strum: All 6 Strings
E E Major
O O O 1 2 3 Strum: All 6 Strings
Am A Minor
X O O 1 2 3 Strum: From 5th String
A A Major
X O O 1 2 3 Strum: From 5th String
C C Major
X O O 1 2 3 Strum: From 5th String
G G Major
O O O 1 2 3 Strum: All 6 Strings
D D Major
X X O 1 2 3 Strum: From 4th String
Dm D Minor
X X O 1 2 3 Strum: From 4th String
Essential 4/4 Strumming Patterns
1. Four On The Floor: Steady downstrums
↓ ↓ ↓ ↓ (1 2 3 4)
2. The Folk/Rock Classic: Most common rhythm
↓ ↓↑ ↑↓↑ (1 2+ +4+)
3. Ballad Down-Up: Fluid pendulum wrist
↓↑ ↓↑ ↓↑ ↓↑ (1+ 2+ 3+ 4+)
Chord Switching Rules
1. Anchor Fingers: When switching from Am to C , leave finger 1 & 2 stationary; move only finger 3.2. Form Before Pressure: Hover fingers into shape above strings first, then land all fingers simultaneously.3. Never Stop the Right Hand: Keep strumming in tempo even if your fretting hand is half a beat late.
Top Beginner Progression: G → Em → C → D
Fretboard Launchpad • Open Chords Sheet Keep fingers curved directly onto the tips for clean, buzz-free chords

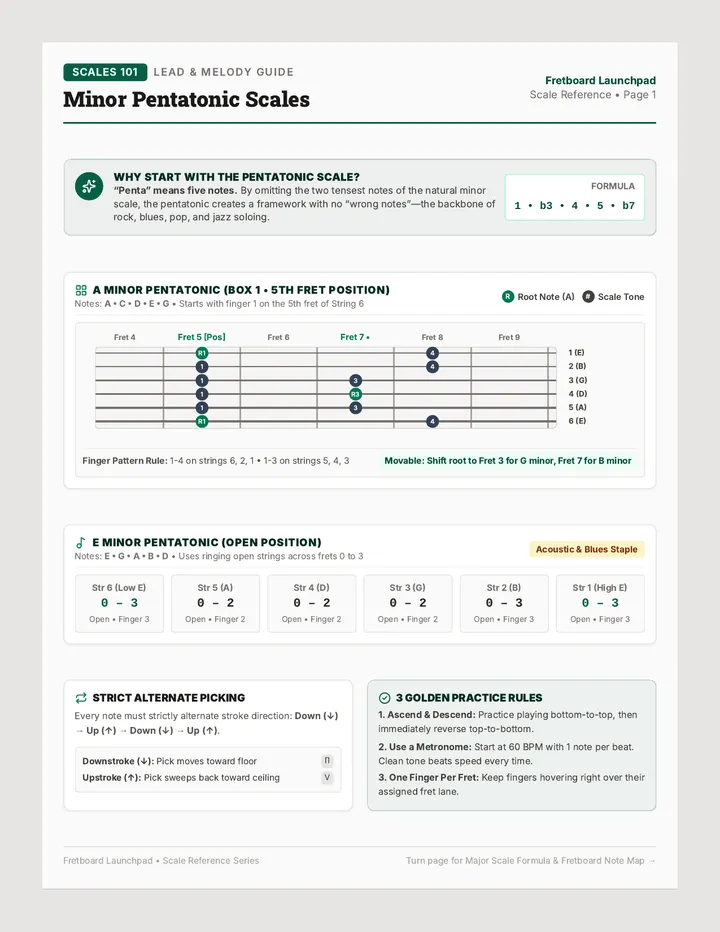

Beginner Scales Reference Guide Scales 101 Lead & Melody Guide
Minor Pentatonic Scales
Fretboard Launchpad
Scale Reference • Page 1
Why Start with the Pentatonic Scale?
“Penta” means five notes. By omitting the two tensest notes of the natural minor scale, the pentatonic creates a framework with no “wrong notes”—the backbone of rock, blues, pop, and jazz soloing.
Formula 1 • b3 • 4 • 5 • b7
A Minor Pentatonic (Box 1 • 5th Fret Position)
Notes: A • C • D • E • G • Starts with finger 1 on the 5th fret of String 6
R Root Note (A) # Scale Tone
Fret 4 Fret 5 [Pos] Fret 6 Fret 7 • Fret 8 Fret 9 1 (E) 2 (B) 3 (G) 4 (D) 5 (A) 6 (E) R1 4 1 3 1 R3 1 3 1 4 R1 4
Finger Pattern Rule: 1-4 on strings 6, 2, 1 • 1-3 on strings 5, 4, 3 Movable: Shift root to Fret 3 for G minor, Fret 7 for B minor
E Minor Pentatonic (Open Position)
Notes: E • G • A • B • D • Uses ringing open strings across frets 0 to 3
Acoustic & Blues Staple
Str 6 (Low E)
0 – 3
Open • Finger 3
Str 5 (A)
0 – 2
Open • Finger 2
Str 4 (D)
0 – 2
Open • Finger 2
Str 3 (G)
0 – 2
Open • Finger 2
Str 2 (B)
0 – 3
Open • Finger 3
Str 1 (High E)
0 – 3
Open • Finger 3
Strict Alternate Picking
Every note must strictly alternate stroke direction: Down (↓) → Up (↑) → Down (↓) → Up (↑) .
Downstroke (↓): Pick moves toward floor Π
Upstroke (↑): Pick sweeps back toward ceiling V
3 Golden Practice Rules
1. Ascend & Descend: Practice playing bottom-to-top, then immediately reverse top-to-bottom.2. Use a Metronome: Start at 60 BPM with 1 note per beat. Clean tone beats speed every time.3. One Finger Per Fret: Keep fingers hovering right over their assigned fret lane.
Fretboard Launchpad • Scale Reference Series Turn page for Major Scale Formula & Fretboard Note Map →
Theory 101 Fretboard Architecture
Major Scales & Fretboard Map
Fretboard Launchpad
Scale Reference • Page 2
The Universal Major Scale Formula

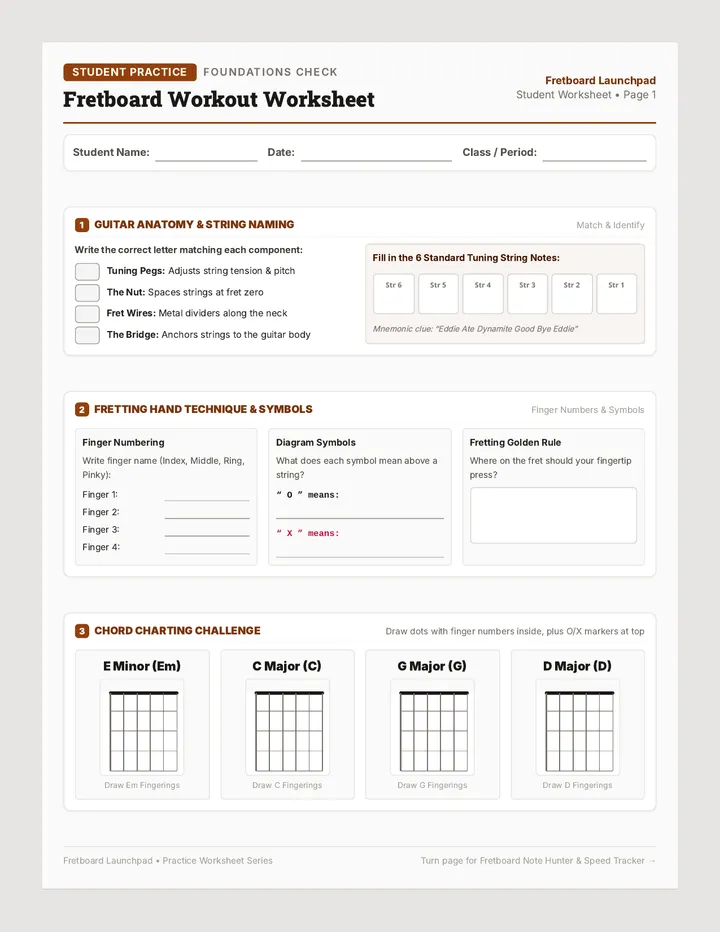

Fretboard Workout Worksheet Student Practice Foundations Check
Fretboard Workout Worksheet
Fretboard Launchpad
Student Worksheet • Page 1
Student Name:
Date:
Class / Period:
1 Guitar Anatomy & String Naming
Match & Identify
Write the correct letter matching each component:
Tuning Pegs: Adjusts string tension & pitch
The Nut: Spaces strings at fret zero
Fret Wires: Metal dividers along the neck
The Bridge: Anchors strings to the guitar body
Fill in the 6 Standard Tuning String Notes:
Str 6
Str 5
Str 4
Str 3
Str 2
Str 1
Mnemonic clue: “Eddie Ate Dynamite Good Bye Eddie”
2 Fretting Hand Technique & Symbols
Finger Numbers & Symbols
Finger Numbering
Write finger name (Index, Middle, Ring, Pinky):
Finger 1:
Finger 2:
Finger 3:
Finger 4:
Diagram Symbols
What does each symbol mean above a string?
“ O ” means:
“ X ” means:
Fretting Golden Rule
Where on the fret should your fingertip press?
3 Chord Charting Challenge
Draw dots with finger numbers inside, plus O/X markers at top
E Minor (Em) Draw Em Fingerings
C Major (C) Draw C Fingerings
G Major (G) Draw G Fingerings
D Major (D) Draw D Fingerings
Fretboard Launchpad • Practice Worksheet Series Turn page for Fretboard Note Hunter & Speed Tracker →
Fretboard Workout Speed & Fluency Drills
Note Hunter & Speed Workout
Fretboard Launchpad
Student Worksheet • Page 2
4 Fretboard Note Hunter (Low E & A Strings)
Write the note letter name in each empty box
Using the natural note rule (half step only between B-C and E-F), identify each marked fret:
String 6 (Low E String):
Fret 1
Fret 3 •
Fret 5 •
Fret 7 •
Fret 8
Fret 12 ••
String 5 (A String):
Fret 2
Fret 3 •
Fret 5 •
Fret 7 •
Fret 10
Fret 12 ••

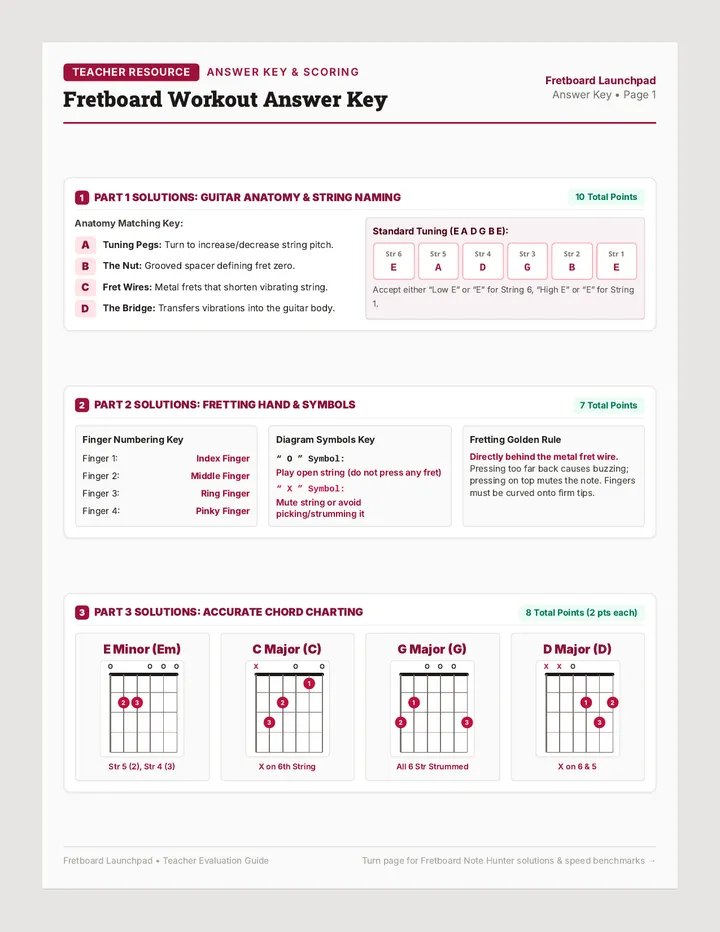

Fretboard Workout Answer Key Teacher Resource Answer Key & Scoring
Fretboard Workout Answer Key
Fretboard Launchpad
Answer Key • Page 1
1 Part 1 Solutions: Guitar Anatomy & String Naming
10 Total Points
Anatomy Matching Key:
A Tuning Pegs: Turn to increase/decrease string pitch.
B The Nut: Grooved spacer defining fret zero.
C Fret Wires: Metal frets that shorten vibrating string.
D The Bridge: Transfers vibrations into the guitar body.
Standard Tuning (E A D G B E):
Str 6 E
Str 5 A
Str 4 D
Str 3 G
Str 2 B
Str 1 E
Accept either “Low E” or “E” for String 6, “High E” or “E” for String 1.
2 Part 2 Solutions: Fretting Hand & Symbols
7 Total Points
Finger Numbering Key
Finger 1: Index Finger
Finger 2: Middle Finger
Finger 3: Ring Finger
Finger 4: Pinky Finger
Diagram Symbols Key
“ O ” Symbol:
Play open string (do not press any fret)
“ X ” Symbol:
Mute string or avoid picking/strumming it
Fretting Golden Rule
Directly behind the metal fret wire. Pressing too far back causes buzzing; pressing on top mutes the note. Fingers must be curved onto firm tips.
3 Part 3 Solutions: Accurate Chord Charting
8 Total Points (2 pts each)
E Minor (Em) O O O O 2 3 Str 5 (2), Str 4 (3)
C Major (C) X O O 1 2 3 X on 6th String
G Major (G) O O O 1 2 3 All 6 Str Strummed
D Major (D) X X O 1 2 3 X on 6 & 5
Fretboard Launchpad • Teacher Evaluation Guide Turn page for Fretboard Note Hunter solutions & speed benchmarks →
Teacher Resource Answer Key & Scoring
Note Hunter & Speed Benchmarks
Fretboard Launchpad
Answer Key • Page 2
4 Part 4 Solutions: Fretboard Note Hunter Key
12 Total Points (1 pt each)
String 6 (Low E String) Answers: Remember: E-F half step, B-C half step
Fret 1 F
Fret 3 • G
Fret 5 • A
Fret 7 • B
Fret 8 C
Fret 12 •• E
String 5 (A String) Answers: Open A string root
