Orchestral Anatomy Teacher Guide Unit: Musical Foundations • Lesson 1
Orchestral Anatomy
5E Teacher Guide & Lesson Plan
Model 5E Plan
Learning Objectives
Classify orchestral instruments into standard families based on sound-generation mechanics.
Analyze sound production: single/double reeds, vibrating air columns, and pitched/unpitched percussion resonance.
Evaluate how physical tube length directly dictates wave frequency and pitch.
Prep & Materials
Orchestral Anatomy Slide Deck
Worksheets & Exit Tickets
Audio clips: Oboe, Clarinet, French Horn, Timpani, Snare
5E Instructional Pacing Guide
1. Engage 0-8m
The Blind Listening Challenge
Play an oboe clip and a French horn clip playing the exact same pitch. Students predict how each instrument initiates its vibration. Discuss how vastly different physical constructs produce sound from vibrating air.
2. Explore 8-18m
Sound Vibration Discovery
Have students tap their vocal cords while humming. Demonstrate bow friction (arco) vs. plucking (pizzicato) on strings, and blowing air vs. buzzing lips on tube mouthpieces. Have students hypothesize the categorizations.
3. Explain 18-28m
Acoustic Logic Breakdowns
Deliver instructional slides. Define classifications: Strings (vibrating string, body resonance), Woodwinds (single vs. double reed, open embouchure), Brass (buzzing lip frequency), and Percussion (pitched vs. unpitched).
4. Elaborate 28-38m
Instrument Classification Matrix
Display complex hybrid instruments (e.g., metal Saxophone, English Horn, Timpani). Apply the 3-step checklist: 1. What vibrates? 2. How is pitch changed? 3. Is there a reed/valve/mallet? Solve the "Reed Paradox."
5. Evaluate 38-50m
Assessment Worksheet & Exit Ticket
Students independently complete the Orchestral Anatomy Worksheet to verify mastery. Collect Exit Tickets to assess understanding of double reeds, lip-buzzing acoustics, and pitched/unpitched percussion.
Musical Foundations Unit • Orchestral Anatomy Page 1
Discussion Prompts & Assessment Keys
Essential Discussion & Inquiry Prompts
The Reed Paradox
"Why is the saxophone made entirely of brass, yet categorized as a woodwind?"
Key Answer: It uses a single wooden cane reed to initiate the sound. Materials of construction do not dictate the family; sound production mechanism does.
The Pitch-Size Relationship
"Compare a violin and a double bass. What does their physical size tell us about pitch?"
Key Answer: Longer strings and larger resonating bodies create slower vibration frequencies, producing lower pitches. Smaller instruments yield higher frequencies.
Worksheet Answer Key
Question Section
Correct Responses
Common Misconceptions
1. Sound Source Matching
Oboe → Double Reed
Flute → Air Embouchure
Trombone → Buzzing Lips
Students think flute uses a reed because it is a woodwind. Emphasize the open embouchure.
2. Percussion Pitches
Pitched: Timpani, Marimba, Glockenspiel
Unpitched: Snare Drum, Bass Drum, Triangle
Believing snare has a pitch because it can be "high or low". Clarify that unpitched means no definite fundamental musical pitch.
3. Brass Valve Physics
Pressing valves lengthens the air path, which lowers the frequency and drops the overall pitch.
Students often reverse this: thinking more metal/tubing equals higher, faster sound. Emphasize longer tube = lower note.
Exit Ticket Answer Key
Q1: Name the double-reed woodwind instrument that plays the tuning note.
→ Oboe
Q2: Why is piano categorized as percussion in some systems but strings in others?
→ Percussion because hammers strike the strings; strings because the vibrating medium is steel strings. Both are technically correct, but modern orchestral standard usually groups it as a keyboard auxiliary.
Q3: Standard orchestra brass valve configuration lowers pitch. True/False?
→ True. Opening valves adds extra loops of tubing, lengthening the instrument.
Musical Foundations Unit • Orchestral Anatomy Page 2
Orchestral Anatomy Slides Unit 1: Musical Foundations Lesson 1
Orchestral Anatomy
An investigation into sound physical mechanics, acoustics, and the four instrument families.
The Symphony Lab
Slide 1 of 5
String & Woodwind Anatomy
Acoustics
01. String Family
• Vibration: Hair of a bow (arco) or fingers (pizzicato) frictionally excite wire or gut strings.
• Pitch Control: Finger pressure shortens active string length (shorter = higher pitch).
02. Woodwind Family
• Single Reed: Sax, Clarinet (one piece of cane vibrating against mouthpiece).
• Double Reed: Oboe, Bassoon (two reeds vibrating against each other).
Notice: Construction material does NOT determine family! Slide 2 of 5
Brass & Percussion Physics
Resonance
03. Brass Family
• Vibration: Player's lips buzz into a cup-shaped mouthpiece.
• Pitch Control: Valves or slides redirect air path. Longer tubing slows wave speed, producing lower notes .
04. Percussion Family
• Pitched: Glockenspiel, Timpani, Xylophone (produce a clear, measurable note).
• Unpitched: Bass Drum, Snare, Triangle, Cymbals (produce diffuse, non-tonal sound).
Brass players literally buzz their lips to activate the air column. Slide 3 of 5
Quick-Fire Classification
Active Check-In
Where do these oddballs belong?
Sousaphone
Valves & Brass Bell
Family: Brass
English Horn
Uses a Double Reed
Family: Woodwind
Timpani
Tuned Drum Head
Family: Pitched Perc.
Cello
Bowed Wooden Body
Family: Strings
Discuss: What makes the Timpani "pitched" but a snare drum "unpitched"? Slide 4 of 5
The Reed Paradox & Keyboard Auxiliary
Deep Dive
Why is Saxophone a Woodwind?
The entire body is made of brass metal, yet it is a woodwind because it uses a flat wooden cane reed.
The vibration source, not the outer metallic material, dictates historical acoustic classification.

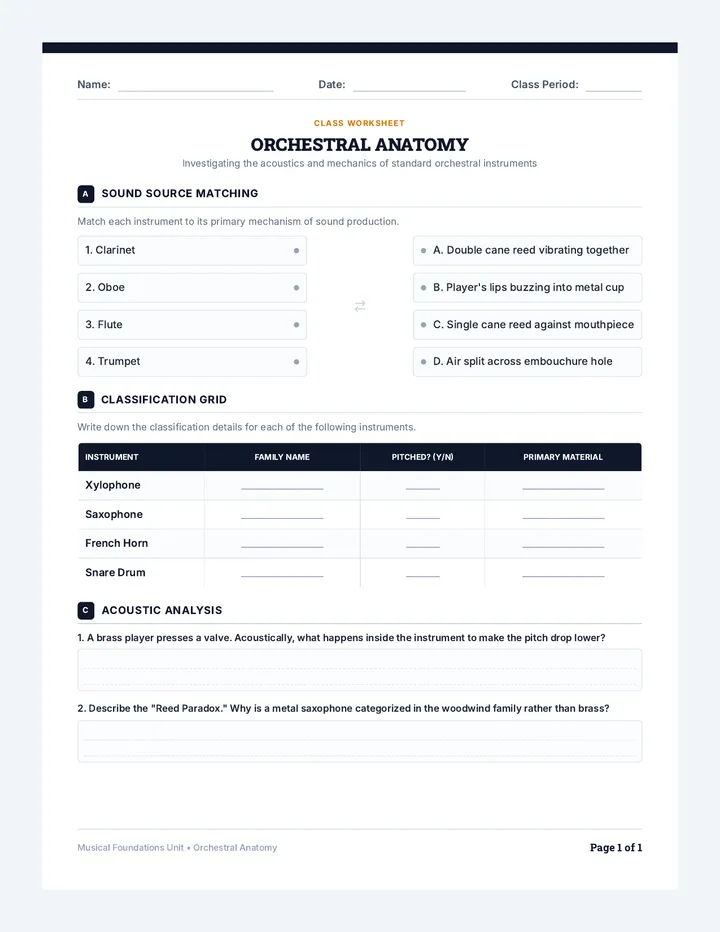

Orchestral Anatomy Worksheet Name:
Date:
Class Period:
Class Worksheet
Orchestral Anatomy
Investigating the acoustics and mechanics of standard orchestral instruments
A Sound Source Matching
Match each instrument to its primary mechanism of sound production.
1. Clarinet
2. Oboe
3. Flute
4. Trumpet
A. Double cane reed vibrating together
B. Player's lips buzzing into metal cup
C. Single cane reed against mouthpiece
D. Air split across embouchure hole
B Classification Grid
Write down the classification details for each of the following instruments.
Instrument Family Name Pitched? (Y/N) Primary Material Xylophone _________________ _______ _________________ Saxophone _________________ _______ _________________ French Horn _________________ _______ _________________ Snare Drum _________________ _______ _________________
C Acoustic Analysis
1. A brass player presses a valve. Acoustically, what happens inside the instrument to make the pitch drop lower?
2. Describe the "Reed Paradox." Why is a metal saxophone categorized in the woodwind family rather than brass?
Musical Foundations Unit • Orchestral Anatomy Page 1 of 1

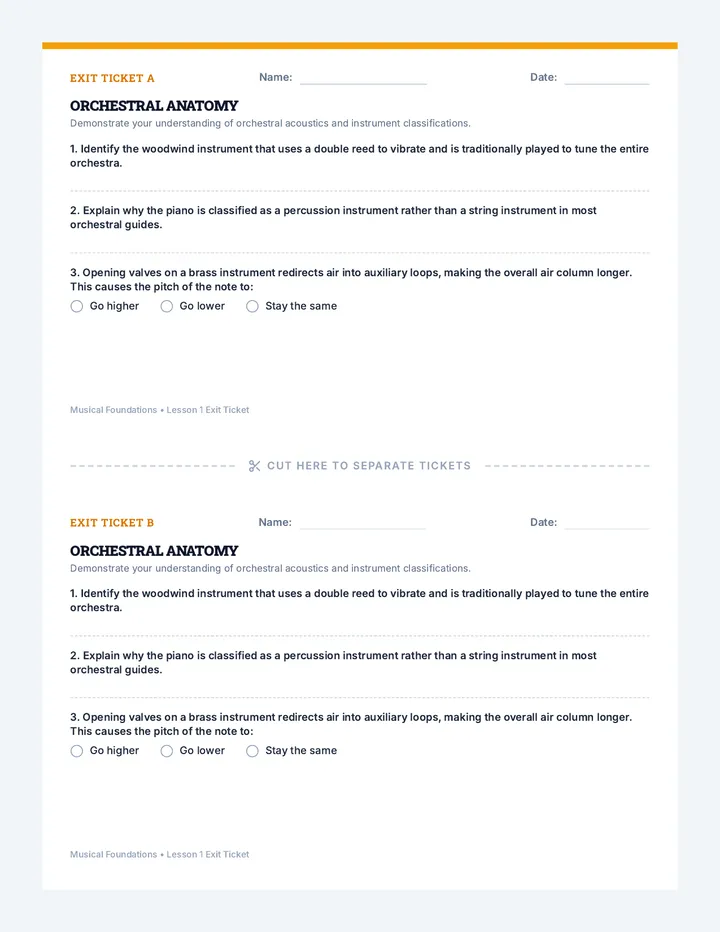

Orchestral Anatomy Exit Ticket Exit Ticket A
Name:
Date:
Orchestral Anatomy
Demonstrate your understanding of orchestral acoustics and instrument classifications.
1. Identify the woodwind instrument that uses a double reed to vibrate and is traditionally played to tune the entire orchestra.
2. Explain why the piano is classified as a percussion instrument rather than a string instrument in most orchestral guides.
3. Opening valves on a brass instrument redirects air into auxiliary loops, making the overall air column longer. This causes the pitch of the note to:
Go higher Go lower Stay the same
Musical Foundations • Lesson 1 Exit Ticket
Cut Here to Separate Tickets
Exit Ticket B
Name:
Date:
Orchestral Anatomy
Demonstrate your understanding of orchestral acoustics and instrument classifications.
1. Identify the woodwind instrument that uses a double reed to vibrate and is traditionally played to tune the entire orchestra.
2. Explain why the piano is classified as a percussion instrument rather than a string instrument in most orchestral guides.
3. Opening valves on a brass instrument redirects air into auxiliary loops, making the overall air column longer. This causes the pitch of the note to:
Go higher Go lower Stay the same
Musical Foundations • Lesson 1 Exit Ticket

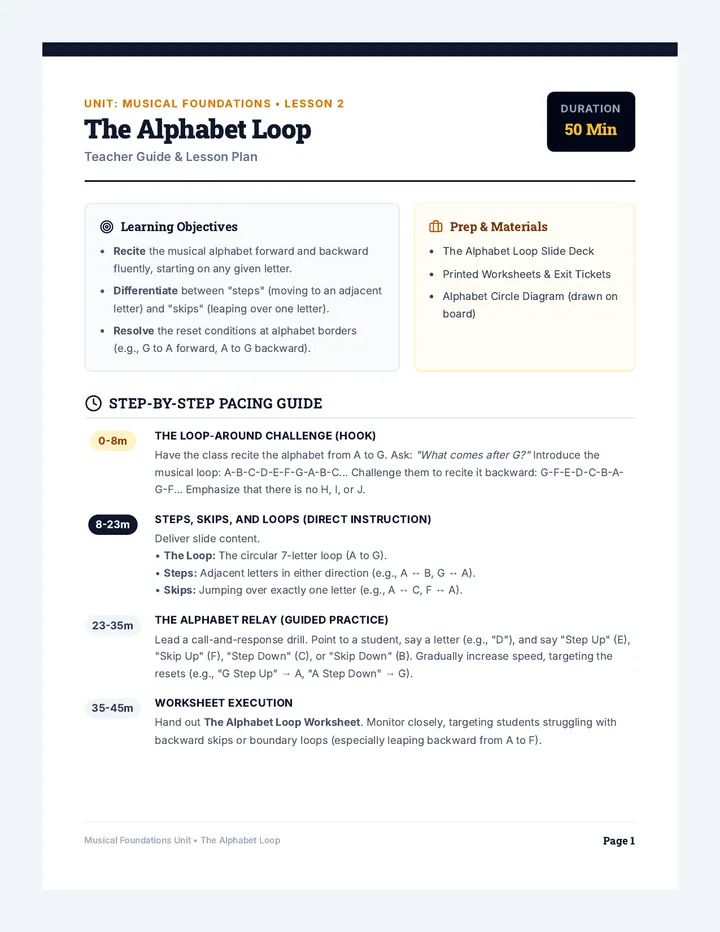

Alphabet Loop Teacher Guide Unit: Musical Foundations • Lesson 2
The Alphabet Loop
Teacher Guide & Lesson Plan
Duration 50 Min
Learning Objectives
Recite the musical alphabet forward and backward fluently, starting on any given letter.
Differentiate between "steps" (moving to an adjacent letter) and "skips" (leaping over one letter).
Resolve the reset conditions at alphabet borders (e.g., G to A forward, A to G backward).
Prep & Materials
The Alphabet Loop Slide Deck
Printed Worksheets & Exit Tickets
Alphabet Circle Diagram (drawn on board)
Step-By-Step Pacing Guide
0-8m
The Loop-Around Challenge (Hook)
Have the class recite the alphabet from A to G. Ask: "What comes after G?" Introduce the musical loop: A-B-C-D-E-F-G-A-B-C... Challenge them to recite it backward: G-F-E-D-C-B-A-G-F... Emphasize that there is no H, I, or J.
8-23m
Steps, Skips, and Loops (Direct Instruction)
Deliver slide content.
• The Loop: The circular 7-letter loop (A to G).
• Steps: Adjacent letters in either direction (e.g., A ↔ B, G ↔ A).
• Skips: Jumping over exactly one letter (e.g., A ↔ C, F ↔ A).
23-35m
The Alphabet Relay (Guided Practice)
Lead a call-and-response drill. Point to a student, say a letter (e.g., "D"), and say "Step Up" (E), "Skip Up" (F), "Step Down" (C), or "Skip Down" (B). Gradually increase speed, targeting the resets (e.g., "G Step Up" → A, "A Step Down" → G).
35-45m
Worksheet Execution
Hand out The Alphabet Loop Worksheet . Monitor closely, targeting students struggling with backward skips or boundary loops (especially leaping backward from A to F).
Musical Foundations Unit • The Alphabet Loop Page 1
Discussion Prompts & Assessment Keys
Essential Discussion & Inquiry Prompts
The Cyclic Nature of Music
"Why does music loop after G instead of continuing to Z?"
Key Answer: Frequency doubles (an octave) at every eighth note, meaning the pitch names repeat because the human ear hears them as the same musical note, just higher or lower.
Skipping vs. Stepping
"If you skip up from G, what note do you land on? Explain your logic."
B. A step up is A, and skipping means passing over A to land on the next letter, B.
Alphabet Loop Slides Unit 1: Musical Foundations Lesson 2
The Alphabet Loop
Cracking the 7-letter music code. Mastering cyclic resets, steps, and skips in both directions.
Alphabet & Steps
Slide 1 of 5
The Infinite Loop
Resets
No Letters Past G!
In written music, the alphabet consists strictly of:
A•B•C•D•E•F•G
When going forward, G loops back to A . When going backward, A loops back to G .
Forward Cycle
...E → F → G → A → B...
Backward Cycle
A → G → F → E → D → C → B → A
Practice tip: Recite the forward and backward sequences as a group. Slide 2 of 5
Step Movements
Adjacent Notes
01. Step Up (Forward)
Moving to the very next letter alphabetically.
D → E • G → A
02. Step Down (Backward)
Moving to the previous letter alphabetically.
D → C • A → G
Steps represent adjacent movements on the keyboard or staff. Slide 3 of 5
Skip Movements
Leap-Overs
03. Skip Up (Forward)
Leaping over one letter. Skip the next, land on the following.
C → (skip D) → E
04. Skip Down (Backward)
Leaping backward over one letter in reverse.
A → (skip G) → F
Skips represent jumping from line to line, or space to space on a staff. Slide 4 of 5
Quick-Fire Challenge
Alphabet Puzzles
Perform these instructions in your head!
Puzzle 1
Start on C.
Step Up → Skip Up.
Spells: C - D - F
Puzzle 2
Start on B.
Step Up → Skip Up.
Spells: B - C - E
Puzzle 3
Start on F.
Skip Up → Step Up.
Spells: F - A - B
You are now ready to tackle the Independent Alphabet worksheet! Slide 5 of 5

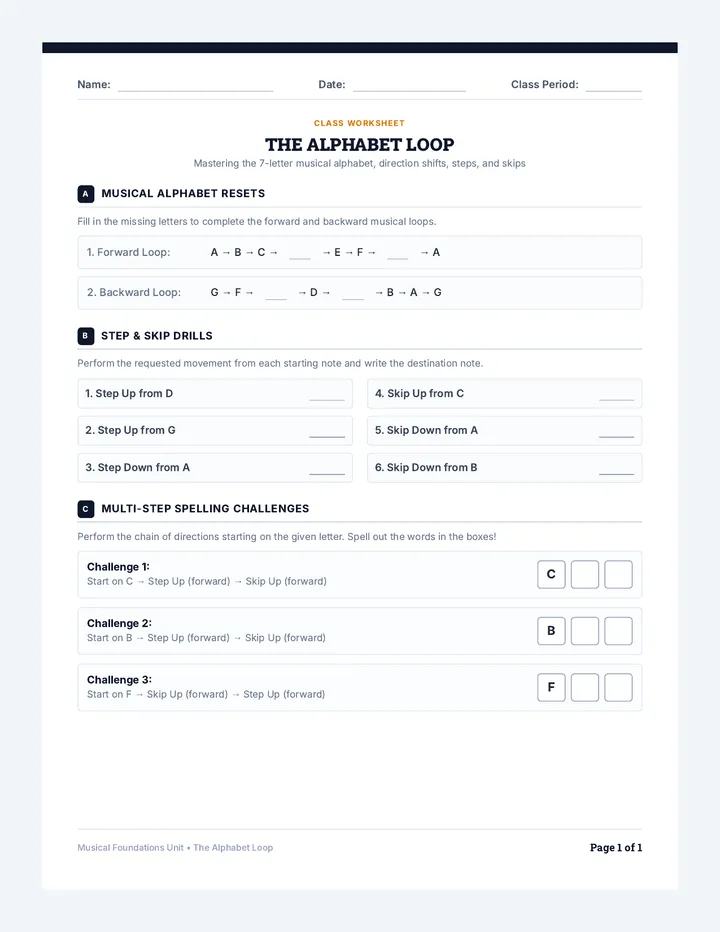

Alphabet Loop Worksheet Name:
Date:
Class Period:
Class Worksheet
The Alphabet Loop
Mastering the 7-letter musical alphabet, direction shifts, steps, and skips
A Musical Alphabet Resets
Fill in the missing letters to complete the forward and backward musical loops.
1. Forward Loop: A → B → C → → E → F → → A
2. Backward Loop: G → F → → D → → B → A → G
B Step & Skip Drills
Perform the requested movement from each starting note and write the destination note.
1. Step Up from D
2. Step Up from G
3. Step Down from A
4. Skip Up from C
5. Skip Down from A
6. Skip Down from B
C Multi-Step Spelling Challenges
Perform the chain of directions starting on the given letter. Spell out the words in the boxes!
Challenge 1: Start on C → Step Up (forward) → Skip Up (forward)
C
Challenge 2: Start on B → Step Up (forward) → Skip Up (forward)
B
Challenge 3: Start on F → Skip Up (forward) → Step Up (forward)
F
Musical Foundations Unit • The Alphabet Loop Page 1 of 1

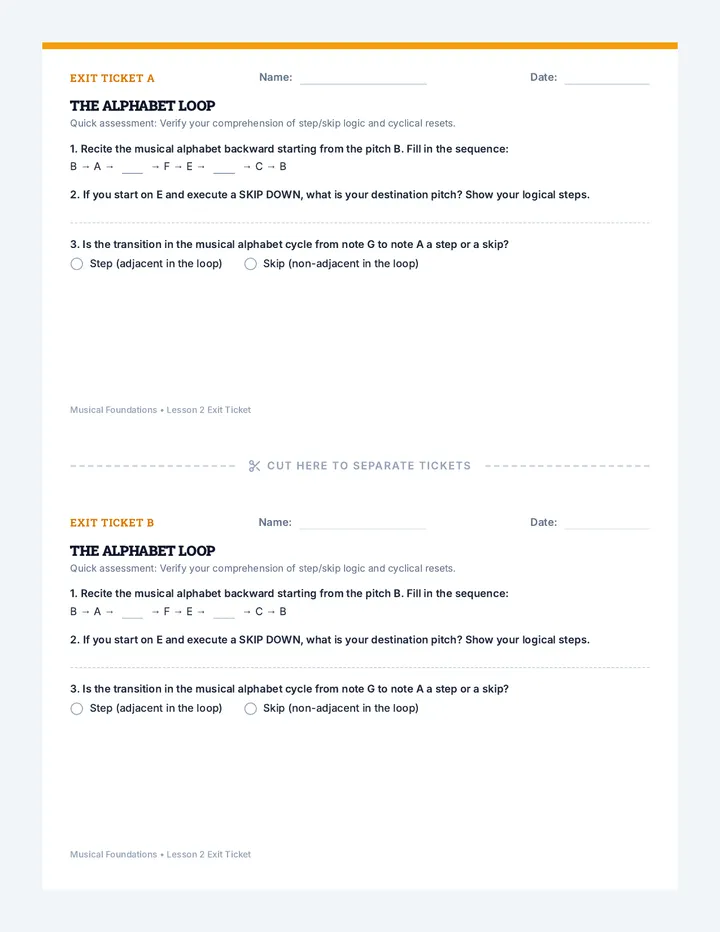

Alphabet Loop Exit Ticket Exit Ticket A
Name:
Date:
The Alphabet Loop
Quick assessment: Verify your comprehension of step/skip logic and cyclical resets.
1. Recite the musical alphabet backward starting from the pitch B. Fill in the sequence:
B → A → → F → E → → C → B
2. If you start on E and execute a SKIP DOWN, what is your destination pitch? Show your logical steps.
3. Is the transition in the musical alphabet cycle from note G to note A a step or a skip?
Step (adjacent in the loop) Skip (non-adjacent in the loop)
Musical Foundations • Lesson 2 Exit Ticket
Cut Here to Separate Tickets
Exit Ticket B
Name:
Date:
The Alphabet Loop
Quick assessment: Verify your comprehension of step/skip logic and cyclical resets.
1. Recite the musical alphabet backward starting from the pitch B. Fill in the sequence:
B → A → → F → E → → C → B
2. If you start on E and execute a SKIP DOWN, what is your destination pitch? Show your logical steps.
3. Is the transition in the musical alphabet cycle from note G to note A a step or a skip?
Step (adjacent in the loop) Skip (non-adjacent in the loop)
Musical Foundations • Lesson 2 Exit Ticket

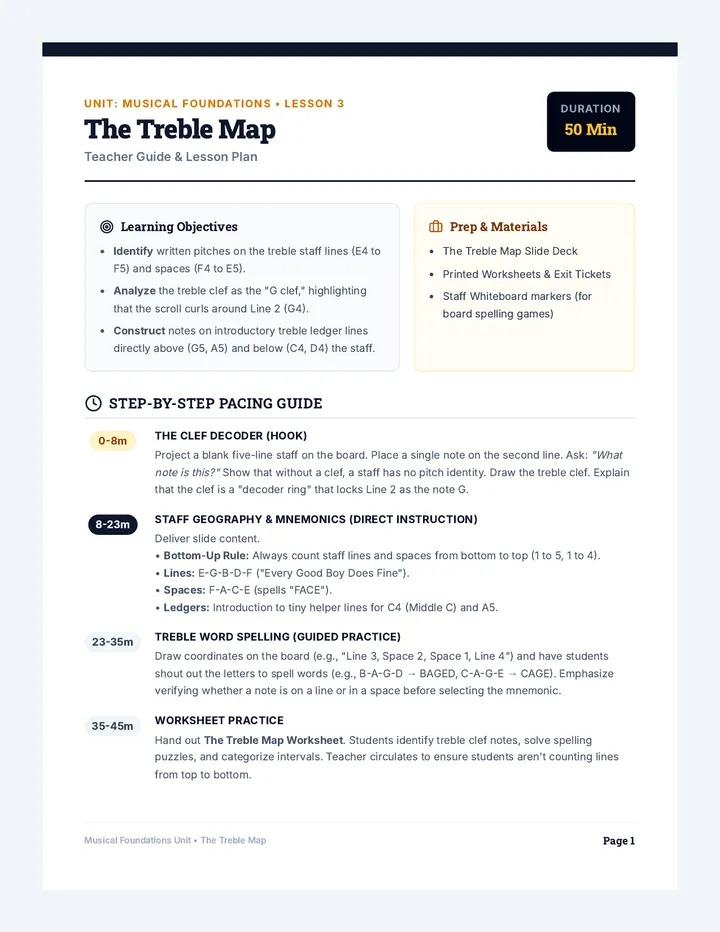

Treble Map Teacher Guide Unit: Musical Foundations • Lesson 3
The Treble Map
Teacher Guide & Lesson Plan
Duration 50 Min
Learning Objectives
Identify written pitches on the treble staff lines (E4 to F5) and spaces (F4 to E5).
Analyze the treble clef as the "G clef," highlighting that the scroll curls around Line 2 (G4).
Construct notes on introductory treble ledger lines directly above (G5, A5) and below (C4, D4) the staff.
Prep & Materials
The Treble Map Slide Deck
Printed Worksheets & Exit Tickets
Staff Whiteboard markers (for board spelling games)
Step-By-Step Pacing Guide
0-8m
The Clef Decoder (Hook)
Project a blank five-line staff on the board. Place a single note on the second line. Ask: "What note is this?" Show that without a clef, a staff has no pitch identity. Draw the treble clef. Explain that the clef is a "decoder ring" that locks Line 2 as the note G.
8-23m
Staff Geography & Mnemonics (Direct Instruction)
Deliver slide content.
• Bottom-Up Rule: Always count staff lines and spaces from bottom to top (1 to 5, 1 to 4).
• Lines: E-G-B-D-F ("Every Good Boy Does Fine").
• Spaces: F-A-C-E (spells "FACE").
• Ledgers: Introduction to tiny helper lines for C4 (Middle C) and A5.
23-35m
Treble Word Spelling (Guided Practice)
Draw coordinates on the board (e.g., "Line 3, Space 2, Space 1, Line 4") and have students shout out the letters to spell words (e.g., B-A-G-D → BAGED, C-A-G-E → CAGE). Emphasize verifying whether a note is on a line or in a space before selecting the mnemonic.
35-45m
Worksheet Practice
Hand out The Treble Map Worksheet . Students identify treble clef notes, solve spelling puzzles, and categorize intervals. Teacher circulates to ensure students aren't counting lines from top to bottom.
Musical Foundations Unit • The Treble Map Page 1
Discussion Prompts & Assessment Keys
Essential Discussion & Inquiry Prompts
Treble Range Instruments
"Why do flutes and violins use treble clef while cellos do not?"
Key Answer: Flutes and violins produce high frequencies (short waves). The treble clef represents the high register of pitches. Writing flute music in bass clef would require dozens of ledger lines above the staff, making it impossible to read.

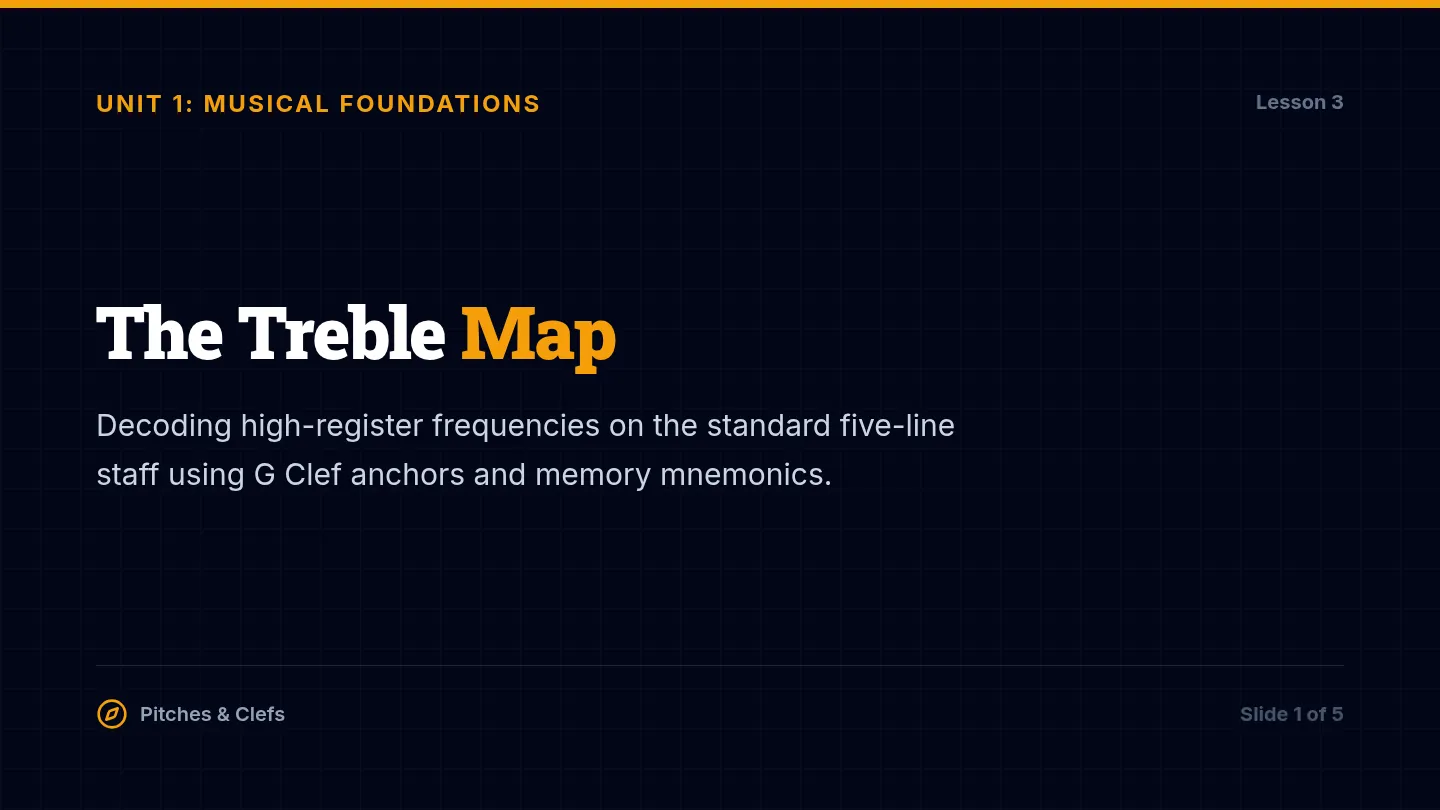

Treble Map Slides Unit 1: Musical Foundations Lesson 3
The Treble Map
Decoding high-register frequencies on the standard five-line staff using G Clef anchors and memory mnemonics.
Pitches & Clefs
Slide 1 of 5
Staff Geography
Core Rule
Always Count Bottom to Top!
A musical staff has exactly 5 lines and 4 spaces .
Line 1 is at the bottom of the page, and Line 5 is at the top. Moving up the staff raises pitch; moving down lowers pitch.
Coordinate System
Line 5 (Top)
•••
Line 1 (Bottom)
Just like floors in a building, we start on the ground and count up! Slide 3 of 5
The G Clef Anchor
Clef Origin
Stylized Cursive G
The treble clef is historically a decorative gothic letter G .
The scroll curls directly around Line 2 , anchoring that line as the pitch G4 .
Universal Compass
If you forget all mnemonics, find Line 2 (G) and count up/down alphabetically to decode any pitch!
The loop spiral of the clef is a literal map pointer! Slide 3 of 5
Treble Staff Mnemonics
Memory Tools
Staff Lines (1 to 5)
Line 1 → E Line 2 → G Line 3 → B Line 4 → D Line 5 → F
"Every Good Boy Does Fine"
Staff Spaces (1 to 4)
Space 1 → F Space 2 → A Space 3 → C Space 4 → E
"F - A - C - E" spells FACE!
Both mnemonics must be read from the bottom to the top. Slide 4 of 5
Going Off-Grid: Treble Ledgers
Ledger Lines
Extending the Staff Map
Ledger lines are miniature horizontal lines drawn temporarily below or above the five-line staff.
The first ledger line below the treble staff houses Middle C (C4) , while the space hanging just above is D4 .
Ledger Reference
• A5: Sits directly on first ledger line above.
• G5: Sits in the space sitting on Line 5.
• D4: Sits in the space hanging below Line 1.
• C4: Sits crossed by first ledger line below.
Middle C is the universal handshake note we will meet later! Slide 5 of 5

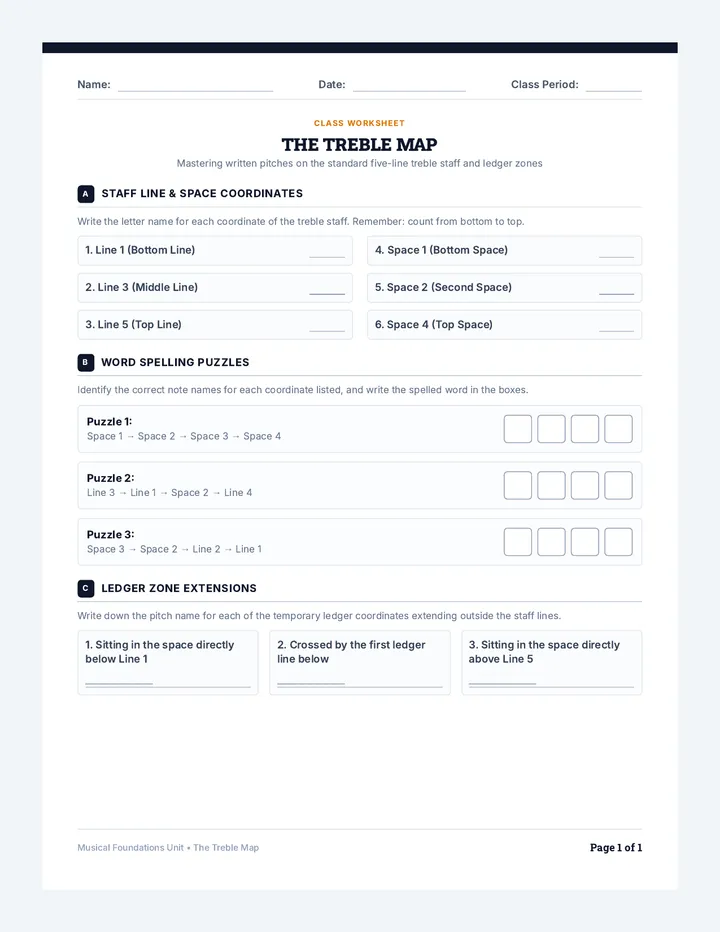

Treble Map Worksheet Name:
Date:
Class Period:
Class Worksheet
The Treble Map
Mastering written pitches on the standard five-line treble staff and ledger zones
A Staff Line & Space Coordinates
Write the letter name for each coordinate of the treble staff. Remember: count from bottom to top.
1. Line 1 (Bottom Line)
2. Line 3 (Middle Line)
3. Line 5 (Top Line)
4. Space 1 (Bottom Space)
5. Space 2 (Second Space)
6. Space 4 (Top Space)
B Word Spelling Puzzles
Identify the correct note names for each coordinate listed, and write the spelled word in the boxes.
Puzzle 1: Space 1 → Space 2 → Space 3 → Space 4
Puzzle 2: Line 3 → Line 1 → Space 2 → Line 4
Puzzle 3: Space 3 → Space 2 → Line 2 → Line 1
C Ledger Zone Extensions
Write down the pitch name for each of the temporary ledger coordinates extending outside the staff lines.
1. Sitting in the space directly below Line 1 ______________
2. Crossed by the first ledger line below ______________
3. Sitting in the space directly above Line 5 ______________
Musical Foundations Unit • The Treble Map Page 1 of 1

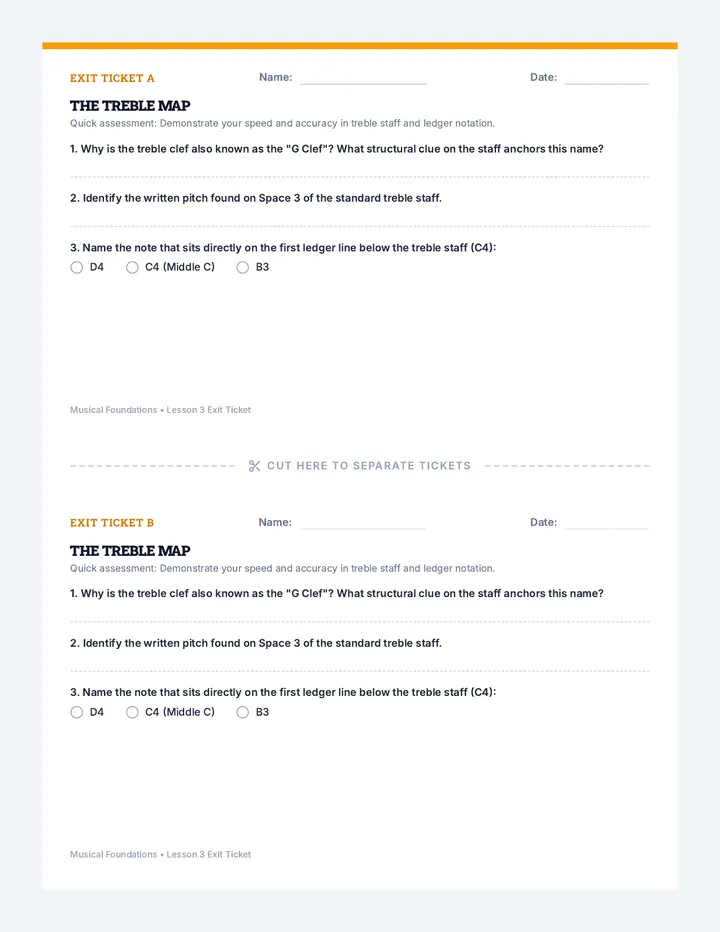

Treble Map Exit Ticket Exit Ticket A
Name:
Date:
The Treble Map
Quick assessment: Demonstrate your speed and accuracy in treble staff and ledger notation.
1. Why is the treble clef also known as the "G Clef"? What structural clue on the staff anchors this name?
2. Identify the written pitch found on Space 3 of the standard treble staff.
3. Name the note that sits directly on the first ledger line below the treble staff (C4):
D4 C4 (Middle C) B3
Musical Foundations • Lesson 3 Exit Ticket
Cut Here to Separate Tickets
Exit Ticket B
Name:
Date:
The Treble Map
Quick assessment: Demonstrate your speed and accuracy in treble staff and ledger notation.
1. Why is the treble clef also known as the "G Clef"? What structural clue on the staff anchors this name?
2. Identify the written pitch found on Space 3 of the standard treble staff.
3. Name the note that sits directly on the first ledger line below the treble staff (C4):
D4 C4 (Middle C) B3
Musical Foundations • Lesson 3 Exit Ticket

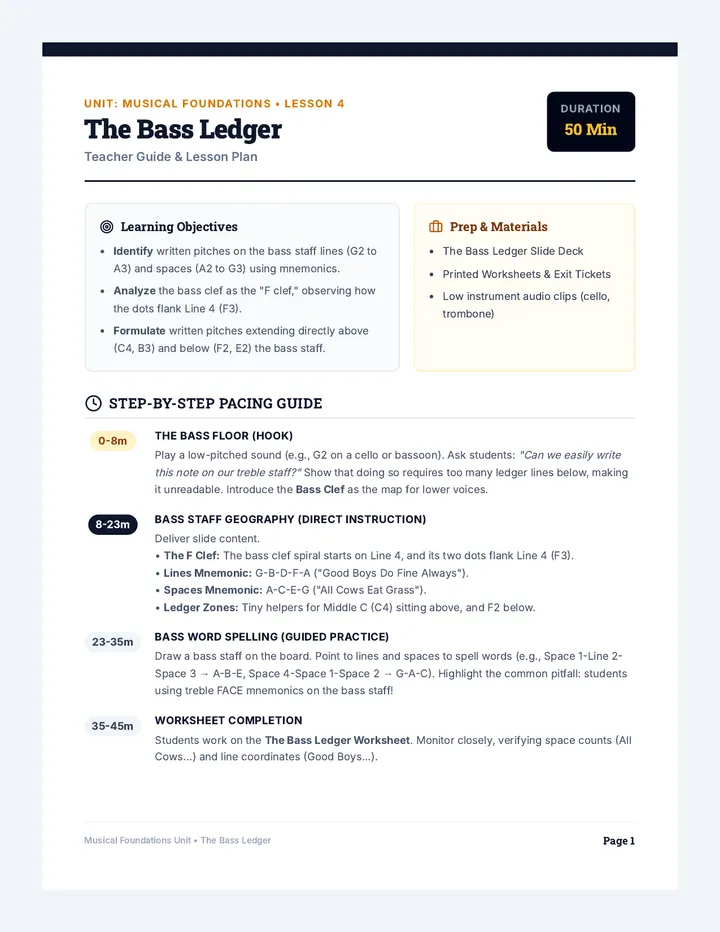

Bass Ledger Teacher Guide Unit: Musical Foundations • Lesson 4
The Bass Ledger
Teacher Guide & Lesson Plan
Duration 50 Min
Learning Objectives
Identify written pitches on the bass staff lines (G2 to A3) and spaces (A2 to G3) using mnemonics.
Analyze the bass clef as the "F clef," observing how the dots flank Line 4 (F3).
Formulate written pitches extending directly above (C4, B3) and below (F2, E2) the bass staff.
Prep & Materials
The Bass Ledger Slide Deck
Printed Worksheets & Exit Tickets
Low instrument audio clips (cello, trombone)
Step-By-Step Pacing Guide
0-8m
The Bass Floor (Hook)
Play a low-pitched sound (e.g., G2 on a cello or bassoon). Ask students: "Can we easily write this note on our treble staff?" Show that doing so requires too many ledger lines below, making it unreadable. Introduce the Bass Clef as the map for lower voices.
8-23m
Bass Staff Geography (Direct Instruction)
Deliver slide content.
• The F Clef: The bass clef spiral starts on Line 4, and its two dots flank Line 4 (F3).
• Lines Mnemonic: G-B-D-F-A ("Good Boys Do Fine Always").
• Spaces Mnemonic: A-C-E-G ("All Cows Eat Grass").
• Ledger Zones: Tiny helpers for Middle C (C4) sitting above, and F2 below.
23-35m
Bass Word Spelling (Guided Practice)
Draw a bass staff on the board. Point to lines and spaces to spell words (e.g., Space 1-Line 2-Space 3 → A-B-E, Space 4-Space 1-Space 2 → G-A-C). Highlight the common pitfall: students using treble FACE mnemonics on the bass staff!
35-45m
Worksheet Completion
Students work on the The Bass Ledger Worksheet . Monitor closely, verifying space counts (All Cows...) and line coordinates (Good Boys...).
Musical Foundations Unit • The Bass Ledger Page 1
Discussion Prompts & Assessment Keys
Essential Discussion & Inquiry Prompts
Mnemonic Divergence
"Why can't we use standard treble mnemonics on the bass staff?"
Key Answer: Clefs determine the absolute pitches of the staff. The bass clef is offset by exactly a third/one step, so reading line 1 as E instead of G would cause a reading error.
The Flanking Dots

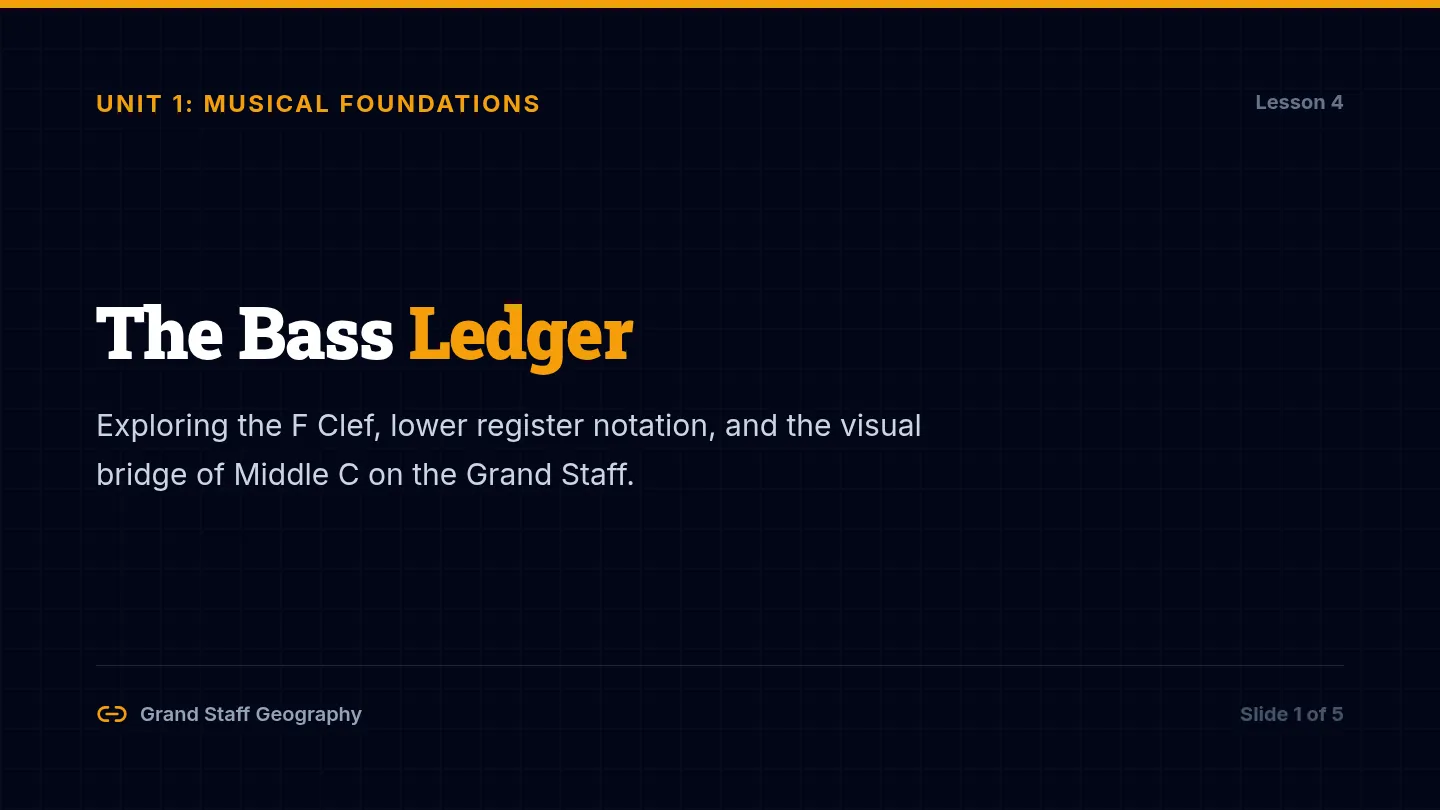

Bass Ledger Slides Unit 1: Musical Foundations Lesson 4
The Bass Ledger
Exploring the F Clef, lower register notation, and the visual bridge of Middle C on the Grand Staff.
Grand Staff Geography
Slide 1 of 5
The F Clef Anchor
Clef Design
Why call it the "F Clef"?
Historically, the bass clef symbol is a stylized gothic letter F .
The clef's central spiral starts directly on Line 4 , and its two prominent dots frame Line 4 on either side. This anchors Line 4 as the pitch F3 .
Register Context
This clef is used for instruments with low registers:
• Cello & Double Bass
• Bassoon
• Trombone & Tuba
• Left hand of the Piano
If you get lost, locate Line 4 (between the dots) and count alphabetically! Slide 2 of 5
Bass Staff Mnemonics
Memory Aids
Staff Lines (1 to 5)
Line 1 → G Line 2 → B Line 3 → D Line 4 → F Line 5 → A
"Good Boys Do Fine Always"
Staff Spaces (1 to 4)
Space 1 → A Space 2 → C Space 3 → E Space 4 → G
"All Cows Eat Grass"
Warning: Do not mix these up with treble mnemonics! Bass spaces start on A. Slide 3 of 5
The Grand Staff Blueprint
Unified Grid
Unified System
The Grand Staff merges the Treble and Bass staves together into a single bracketed reading system.
This allows keyboard players and conductors to read a wide range of frequencies spanning over four octaves simultaneously.
The Neutral Zone
Between the Treble staff and Bass staff lies a narrow gap. This represents the register where high and low frequencies meet.
A thick brace on the far left visualizes that both staves are played together. Slide 4 of 5
The Middle C Bridge & Ledgers
The Pivot Note
The Pivot: Middle C
Middle C (C4) sits exactly in the middle of the neutral zone, utilizing a single temporary ledger line .
It is written just below the Treble staff, OR just above the Bass staff. It is the exact same pitch on the instrument!
Ledger Lines
Small, temporary horizontal lines drawn above or below the five-line staff, extending the map's pitch range when notes go "off-grid."

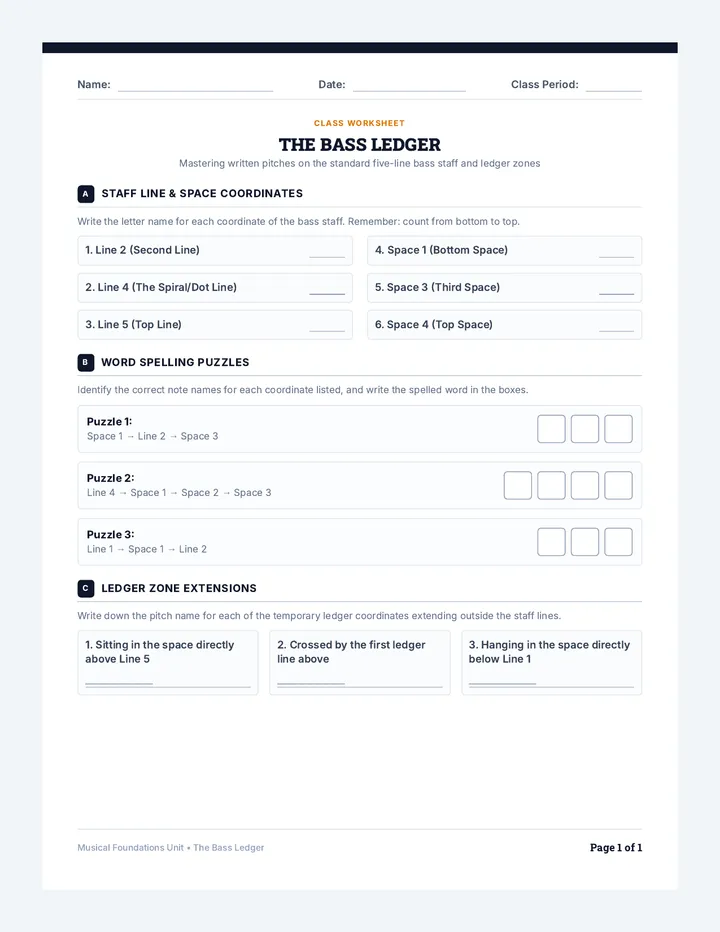

Bass Ledger Worksheet Name:
Date:
Class Period:
Class Worksheet
The Bass Ledger
Mastering written pitches on the standard five-line bass staff and ledger zones
A Staff Line & Space Coordinates
Write the letter name for each coordinate of the bass staff. Remember: count from bottom to top.
1. Line 2 (Second Line)
2. Line 4 (The Spiral/Dot Line)
3. Line 5 (Top Line)
4. Space 1 (Bottom Space)
5. Space 3 (Third Space)
6. Space 4 (Top Space)
B Word Spelling Puzzles
Identify the correct note names for each coordinate listed, and write the spelled word in the boxes.
Puzzle 1: Space 1 → Line 2 → Space 3
Puzzle 2: Line 4 → Space 1 → Space 2 → Space 3
Puzzle 3: Line 1 → Space 1 → Line 2
C Ledger Zone Extensions
Write down the pitch name for each of the temporary ledger coordinates extending outside the staff lines.
1. Sitting in the space directly above Line 5 ______________
2. Crossed by the first ledger line above ______________
3. Hanging in the space directly below Line 1 ______________
Musical Foundations Unit • The Bass Ledger Page 1 of 1

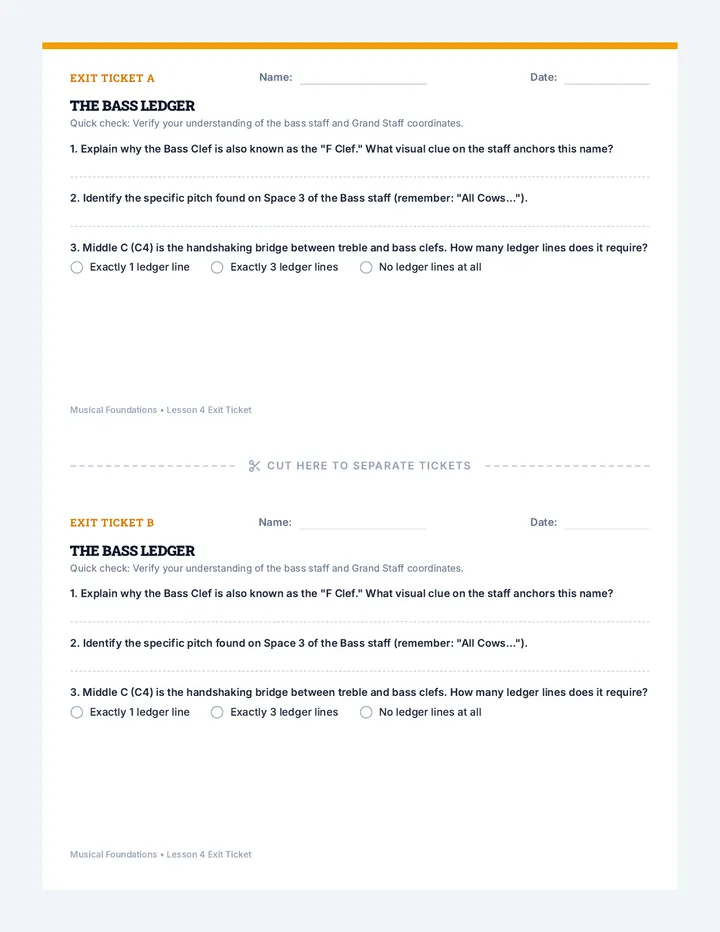

Bass Ledger Exit Ticket Exit Ticket A
Name:
Date:
The Bass Ledger
Quick check: Verify your understanding of the bass staff and Grand Staff coordinates.
1. Explain why the Bass Clef is also known as the "F Clef." What visual clue on the staff anchors this name?
2. Identify the specific pitch found on Space 3 of the Bass staff (remember: "All Cows...").
3. Middle C (C4) is the handshaking bridge between treble and bass clefs. How many ledger lines does it require?
Exactly 1 ledger line Exactly 3 ledger lines No ledger lines at all
Musical Foundations • Lesson 4 Exit Ticket
Cut Here to Separate Tickets
Exit Ticket B
Name:
Date:
The Bass Ledger
Quick check: Verify your understanding of the bass staff and Grand Staff coordinates.
1. Explain why the Bass Clef is also known as the "F Clef." What visual clue on the staff anchors this name?
2. Identify the specific pitch found on Space 3 of the Bass staff (remember: "All Cows...").
3. Middle C (C4) is the handshaking bridge between treble and bass clefs. How many ledger lines does it require?
Exactly 1 ledger line Exactly 3 ledger lines No ledger lines at all
Musical Foundations • Lesson 4 Exit Ticket

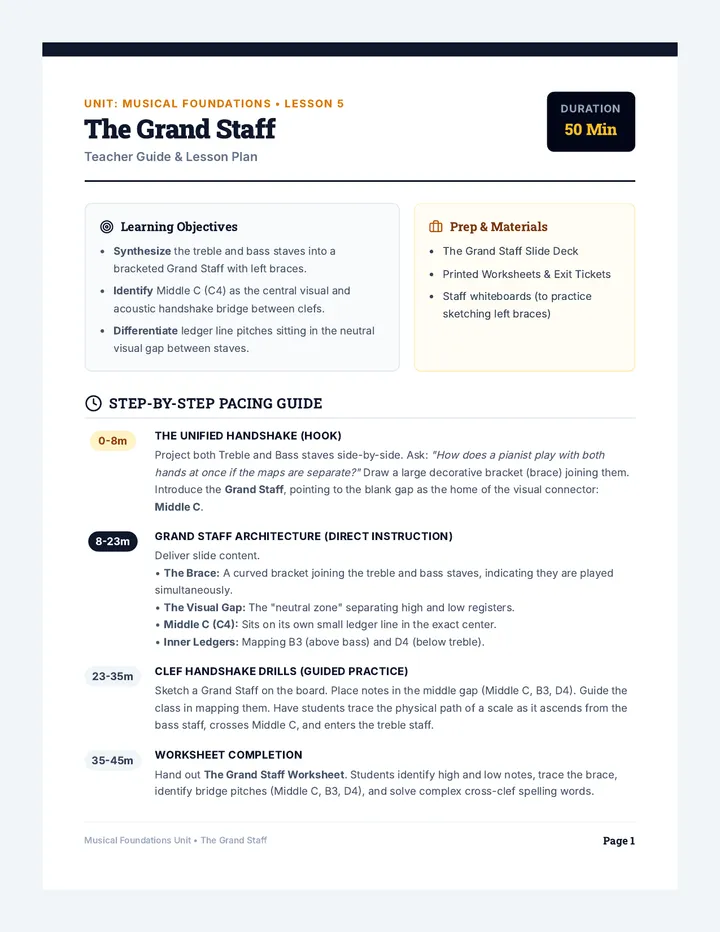

Grand Staff Teacher Guide Unit: Musical Foundations • Lesson 5
The Grand Staff
Teacher Guide & Lesson Plan
Duration 50 Min
Learning Objectives
Synthesize the treble and bass staves into a bracketed Grand Staff with left braces.
Identify Middle C (C4) as the central visual and acoustic handshake bridge between clefs.
Differentiate ledger line pitches sitting in the neutral visual gap between staves.
Prep & Materials
The Grand Staff Slide Deck
Printed Worksheets & Exit Tickets
Staff whiteboards (to practice sketching left braces)
Step-By-Step Pacing Guide
0-8m
The Unified Handshake (Hook)
Project both Treble and Bass staves side-by-side. Ask: "How does a pianist play with both hands at once if the maps are separate?" Draw a large decorative bracket (brace) joining them. Introduce the Grand Staff , pointing to the blank gap as the home of the visual connector: Middle C .
8-23m
Grand Staff Architecture (Direct Instruction)
Deliver slide content.
• The Brace: A curved bracket joining the treble and bass staves, indicating they are played simultaneously.
• The Visual Gap: The "neutral zone" separating high and low registers.
• Middle C (C4): Sits on its own small ledger line in the exact center.
• Inner Ledgers: Mapping B3 (above bass) and D4 (below treble).
23-35m
Clef Handshake Drills (Guided Practice)
Sketch a Grand Staff on the board. Place notes in the middle gap (Middle C, B3, D4). Guide the class in mapping them. Have students trace the physical path of a scale as it ascends from the bass staff, crosses Middle C, and enters the treble staff.
35-45m
Worksheet Completion
Hand out The Grand Staff Worksheet . Students identify high and low notes, trace the brace, identify bridge pitches (Middle C, B3, D4), and solve complex cross-clef spelling words.
Musical Foundations Unit • The Grand Staff Page 1
Discussion Prompts & Assessment Keys
Essential Discussion & Inquiry Prompts
Braces vs. Brackets
"Why do piano sheets use a curly brace on the left, while choir sheets use straight brackets?"
Key Answer: Curly braces indicate that one single performer plays both staves simultaneously. Straight brackets show different performers (e.g., Soprano, Alto, Tenor, Bass) are grouping their lines.
Grand Staff Slides Unit 1: Musical Foundations Lesson 5
The Grand Staff
Integrating treble and bass registers into a single reading grid. Navigating Middle C and cross-clef notation.
Grand Staff connection
Slide 1 of 5
Staff Integration
The Brace
The Left Curly Brace
Standard keyboards use a thick curved brace on the far left to group the treble and bass staves together.
This brace indicates to the player that the staves are played at the same time, as a single unified instrument.
Clef Division
• Treble staff: For high-register notes, played by the right hand.
• Bass staff: For low-register notes, played by the left hand.
The Grand Staff combines the two distinct maps we have explored. Slide 2 of 5
The Handshake Note
Middle C
• Treble Middle C
Written with a single ledger line **just below** the Treble staff.
This is played by the right hand as a starting point for ascending melodies.
• Bass Middle C
Written with a single ledger line **just above** the Bass staff.
This is played by the left hand as a cap on low register basslines.
Crucial: They represent the exact same key on the piano! Slide 3 of 5
The Neutral Zone Gap
In-Between Pitches
Hanging Spaces
D4 hangs in the space directly below Treble Line 1. It sits directly above Middle C.
No ledger line is needed; it simply rests in the visual gap.
Sitting Spaces
B3 sits in the space directly above Bass Line 5. It sits directly below Middle C.
Like D4, no ledger line is needed; it rests inside the gap.
The gap pattern reads: Bass Line 5 (A) → space (B) → ledger (C) → space (D) → Treble Line 1 (E). Slide 4 of 5
Cross-Clef spelling
Active Check-In
Can you decode these combined clef words?
Puzzle 1
Bass Space 1 →
Gap Middle C →
Treble Space 4
Spells: A - C - E
Puzzle 2
Bass Line 4 →
Treble Space 2 →
Treble Space 3 →
Treble Space 4
Spells: F - A - C - E
Puzzle 3
Bass Line 2 →
Treble Line 1 →
Treble Space 2
Spells: B - E - A

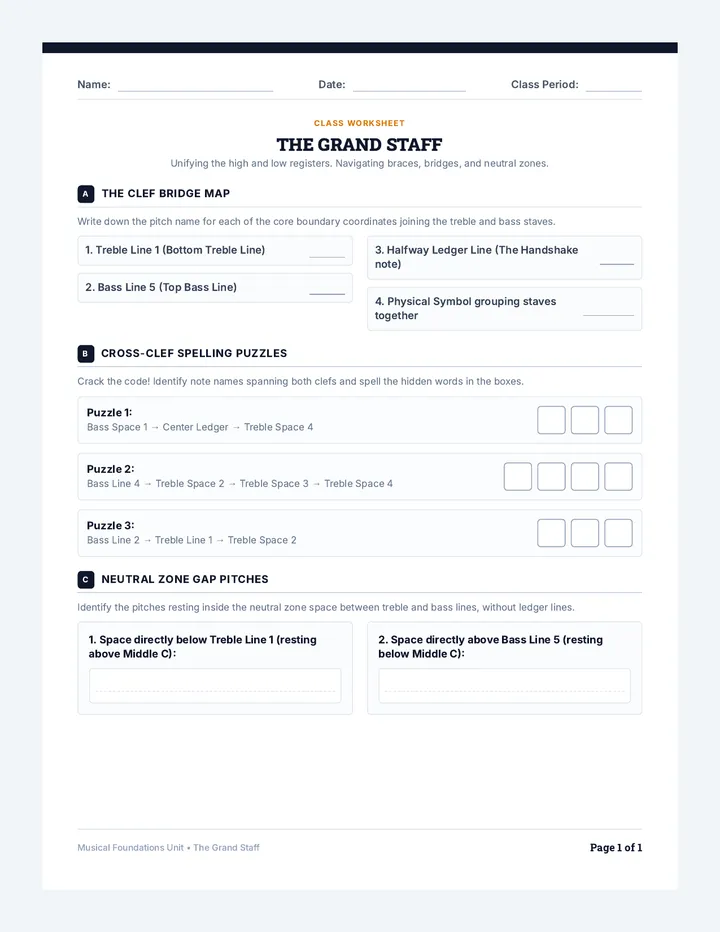

Grand Staff Worksheet Name:
Date:
Class Period:
Class Worksheet
The Grand Staff
Unifying the high and low registers. Navigating braces, bridges, and neutral zones.
A The Clef Bridge Map
Write down the pitch name for each of the core boundary coordinates joining the treble and bass staves.
1. Treble Line 1 (Bottom Treble Line)
2. Bass Line 5 (Top Bass Line)
3. Halfway Ledger Line (The Handshake note)
4. Physical Symbol grouping staves together
B Cross-Clef Spelling Puzzles
Crack the code! Identify note names spanning both clefs and spell the hidden words in the boxes.
Puzzle 1: Bass Space 1 → Center Ledger → Treble Space 4
Puzzle 2: Bass Line 4 → Treble Space 2 → Treble Space 3 → Treble Space 4
Puzzle 3: Bass Line 2 → Treble Line 1 → Treble Space 2
C Neutral Zone Gap Pitches
Identify the pitches resting inside the neutral zone space between treble and bass lines, without ledger lines.
1. Space directly below Treble Line 1 (resting above Middle C):
2. Space directly above Bass Line 5 (resting below Middle C):
Musical Foundations Unit • The Grand Staff Page 1 of 1

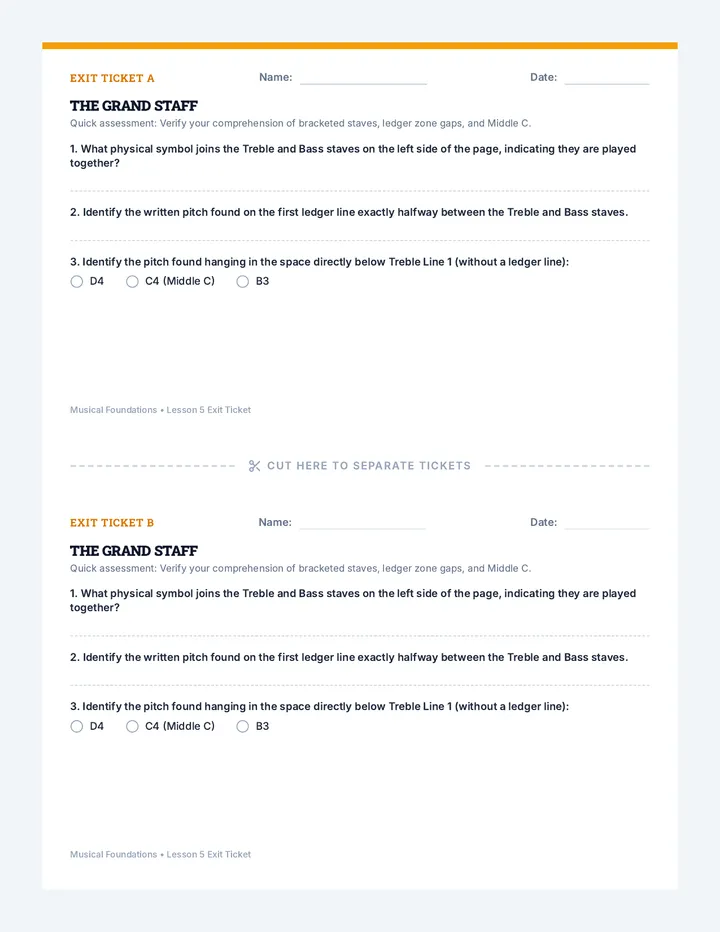

Grand Staff Exit Ticket Exit Ticket A
Name:
Date:
The Grand Staff
Quick assessment: Verify your comprehension of bracketed staves, ledger zone gaps, and Middle C.
1. What physical symbol joins the Treble and Bass staves on the left side of the page, indicating they are played together?
2. Identify the written pitch found on the first ledger line exactly halfway between the Treble and Bass staves.
3. Identify the pitch found hanging in the space directly below Treble Line 1 (without a ledger line):
D4 C4 (Middle C) B3
Musical Foundations • Lesson 5 Exit Ticket
Cut Here to Separate Tickets
Exit Ticket B
Name:
Date:
The Grand Staff
Quick assessment: Verify your comprehension of bracketed staves, ledger zone gaps, and Middle C.
1. What physical symbol joins the Treble and Bass staves on the left side of the page, indicating they are played together?
2. Identify the written pitch found on the first ledger line exactly halfway between the Treble and Bass staves.
3. Identify the pitch found hanging in the space directly below Treble Line 1 (without a ledger line):
D4 C4 (Middle C) B3
Musical Foundations • Lesson 5 Exit Ticket
