Contextual Color Lab Worksheet Contextual Color Lab
Interaction of Color // Experiment Series 01
Researcher:
Date:
01
The Albers Paradox: Making One Color Appear as Two
Objective: Select a single target hue (Gouache). Through the manipulation of two different background fields, make the target hue appear as two distinctly different colors.
Background Field A
Field A Rationale
Background Field B
Field B Rationale
Technical Requirement
Paint must be applied with maximum opacity. Ensure no visible brushstrokes. The central "target" hue must be mixed in a single batch and applied to both squares to ensure physical identity despite optical variance.
02
Subtraction of Color
Objective: Manipulate two different backgrounds to "subtract" a specific quality (warmth, coolness, or chroma) from the same target color.
Experiment Setup 02.A
Hypothesis: Subtracted Element
Observations
03
The Bezold Effect (Spreading)
Objective: Using a high-frequency linear pattern, demonstrate how changing one dominant line color alters the perceived intensity of the overall field.
Version Alpha (Dominant Hue 1)
Version Beta (Dominant Hue 2)
Critical Synthesis
Analyze the relationship between the physical reality of the pigment and the mental perception of the artist. How does this subjectivity inform your personal painting practice?
Relativity Perception Slides Chromatic Logic // Series 01
Relativity of Perception
Deconstructing Albers & The Interaction of Color
The Albers Legacy
Josef Albers (1888–1976) moved beyond the physics of color to the behavior of color.
His central thesis: "Color is the most relative medium in art."
Perception is not static; it is a relational outcome determined by contextual adjacency.
Homage Study Schema
Physical Fact vs. Psychic Effect
The Physical Fact
The specific wavelength of light.
The chemical composition of pigment.
Measured reflectance percentages.
Static, objective, and quantifiable.
The Psychic Effect
How the retinal receptors react.
Influence of simultaneous contrast.
Contextual hue/value shifting.
Dynamic, subjective, and relative.
Mechanism of Shift
Making one color appear as two
Technique Guide
Principle of Contrast
To make a color look darker, place it on a lighter background.
Principle of Hue
To make a color look warmer, place it on a cooler background.
Principle of Saturation
To make a color look more vivid, place it on a neutral background.
Gouache: The Precision Medium
Matte Finish: Eliminates glare, allowing pure color comparison.Opacity: Critical for clean fields without visual "noise" or brushwork.Drying Shift: Lighter colors dry darker; darker colors dry lighter. Account for this in your mixing.
Studio Best Practices
Consistency
Thick cream texture
Clean Brushes
Avoid muddying
The Studio Challenge
Can you make one grey tone look like distinct shades of violet and green simultaneously?
3 Experiments
90 Minutes
1 Result
Refer to your Contextual Color Lab Worksheet to begin.
Albers Facilitation Guide Teacher Facilitation Guide
Albers Workshop Protocol
Managing the Studio: Technical Precision & Theoretical Inquiry
Instructional Objectives
Differentiate between the objective physical properties of a pigment and the subjective perceptual experience.
Demonstrate technical mastery of gouache to create "flat" fields of color.
Predict how specific background hues will "subtract" properties from a target color.
Technical Studio Management
Gouache Consistency
Ensure students are mixing paint to the consistency of heavy cream. If too thin, the field will be streaky; if too thick, it will crack and cast shadows (distorting the color).
The "Single Batch" Rule
Stress that the "target" color must be mixed in a large enough quantity to paint all samples from one puddle. Secondary mixing will introduce physical variables that invalidate the experiment.
Drying Shifts
Warn students: Dark colors often dry lighter, and light colors dry darker in gouache. Evaluations should only happen once the paint is bone dry.
Socratic Questioning Framework
To probe "One Color as Two":
"If you want this neutral grey to look like a cool blue, what qualities must the background possess to 'push' it there?"
To probe "Subtraction of Color":
"If we place an orange on a red field, what specific chromatic element is the eye 'tiring' of, and how does that alter the remaining perceived hue of the orange?"
To probe "Synthesis":
"How does this inherent 'unreliability' of color empower you as a painter? How can you use it to create luminosity without using brighter pigments?"
Common Pitfalls
• Background fields too small to influence the target.
• Visible brush texture creating highlights.
• Contaminated water muddiness.
Extension Activity
Challenge students to make two different hues appear identical through contextual placement—the inverse of Experiment 01.
Semiotics Slides Chromatic Logic // Series 02
Semiotics of Color
Psychology, Culture, & Subversion
How Color Carries Meaning
S
Signifier
The physical color (e.g., Red Pigment)
C
Concept
The mental association (e.g., Danger, Love, Revolution)
X
Context
The cultural/situational lens that links them.
Cultural Divergence
Color associations are learned, not innate. A single hue can trigger diametrically opposed emotional responses based on geography and history.
Case Study: Red
East Asia: Prosperity, Luck, Marriage.Western: Danger, Passion, Stop.South Africa: Mourning, Sacrifice.
Political Weaponization
Institutional Blue
Used by banks, tech giants, and healthcare to project stability, authority, and hygiene. It is the "non-threatening" color of late-stage capitalism.
Revolutionary Red
Used to signify disruption, blood, and shared labor. It is designed to trigger the fight-or-flight response and demand immediate attention.
"We do not see colors as they are; we see them as we are told they are."
The Subversive Palette
How contemporary artists break semiotic chains:
Cognitive Dissonance
Using "comfort" colors to depict violent or disturbing imagery. (e.g., Pastel carnage in Pop Art).
Contextual Reversal
Taking a color with a heavy historical weight and placing it in a banal or domestic setting to strip its power.
Seminar Task
Subvert the Signifier
Identify a color with a strong cultural association. Propose a work that utilizes that color to communicate its exact opposite meaning.
Draft Proposal
Cite Index

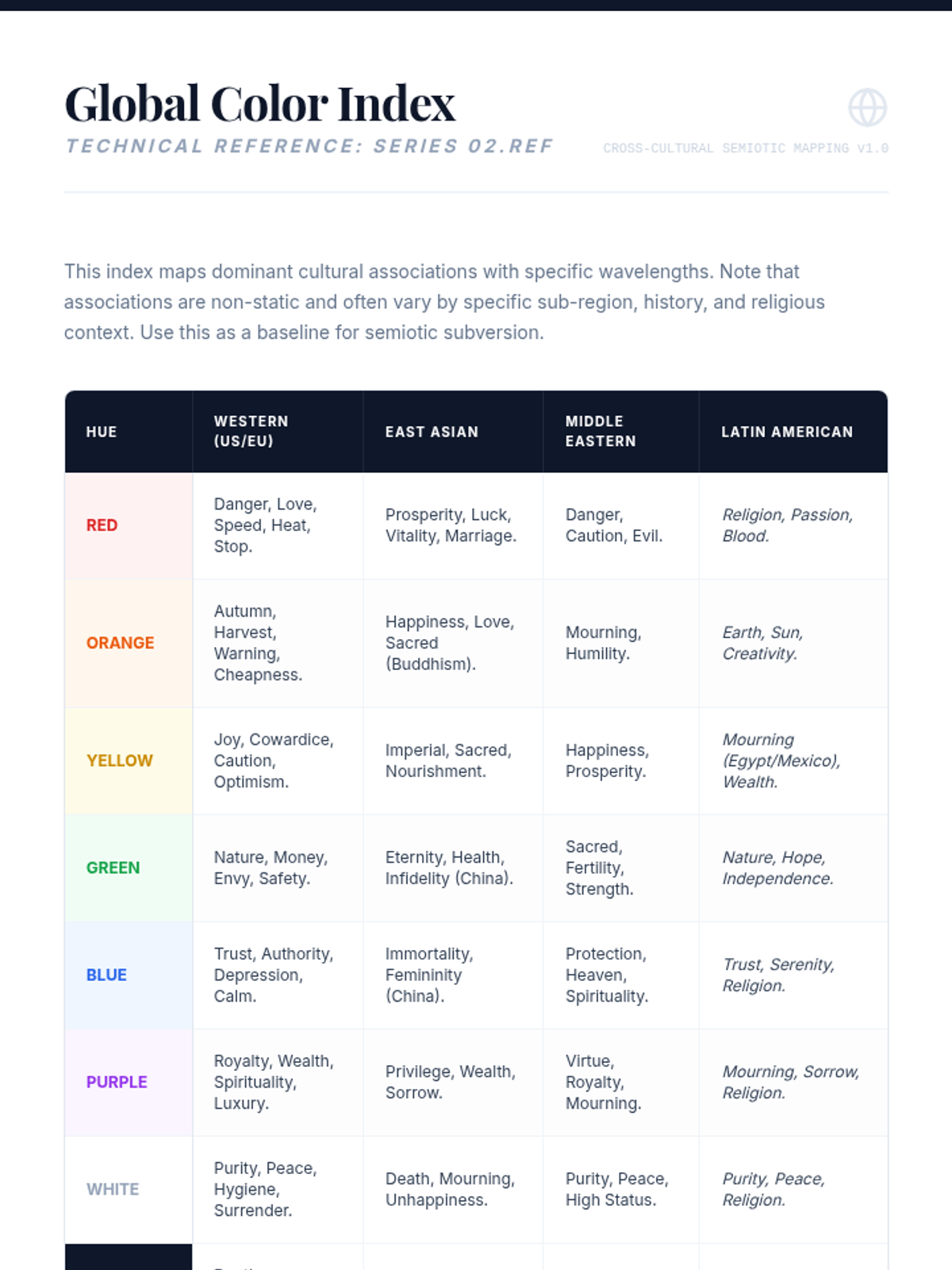

Cultural Color Index Global Color Index
Technical Reference: Series 02.Ref
CROSS-CULTURAL SEMIOTIC MAPPING v1.0
This index maps dominant cultural associations with specific wavelengths. Note that associations are non-static and often vary by specific sub-region, history, and religious context. Use this as a baseline for semiotic subversion.
Hue Western (US/EU) East Asian Middle Eastern Latin American RED Danger, Love, Speed, Heat, Stop. Prosperity, Luck, Vitality, Marriage. Danger, Caution, Evil. Religion, Passion, Blood. ORANGE Autumn, Harvest, Warning, Cheapness. Happiness, Love, Sacred (Buddhism). Mourning, Humility. Earth, Sun, Creativity. YELLOW Joy, Cowardice, Caution, Optimism. Imperial, Sacred, Nourishment. Happiness, Prosperity. Mourning (Egypt/Mexico), Wealth. GREEN Nature, Money, Envy, Safety. Eternity, Health, Infidelity (China). Sacred, Fertility, Strength. Nature, Hope, Independence. BLUE Trust, Authority, Depression, Calm. Immortality, Femininity (China). Protection, Heaven, Spirituality. Trust, Serenity, Religion. PURPLE Royalty, Wealth, Spirituality, Luxury. Privilege, Wealth, Sorrow. Virtue, Royalty, Mourning. Mourning, Sorrow, Religion. WHITE Purity, Peace, Hygiene, Surrender. Death, Mourning, Unhappiness. Purity, Peace, High Status. Purity, Peace, Religion. BLACK Death, Mourning, Formal, Evil. Age, Experience, High Authority. Evil, Mystery, Rebirth. Death, Formal, Strength.
Semantic Overlap
Notice where hues share universal qualities (Blue = Calm/Religion) versus where they clash (White = Purity vs. Mourning). These friction points are the most fertile ground for conceptual artistic work.
Artist Note
Always consider the Saturation and Value. A "Friendly Blue" (High Value/Saturation) differs significantly from an "Authoritarian Blue" (Low Value/Desaturated).
Semiotics Proposal Worksheet Subversive Color Proposal
Research & Conceptual Planning // Series 02.B
Student ID
01 Semantic Foundation
Target Signifier (Primary Hue/Value):
Traditional Cultural Association (Cite Index):
02 The Subversion Thesis
Identify the "Opposite" emotional or political meaning you intend to communicate using this specific color.
Tactical Adjacency
What colors will surround the target to strip its power or "poison" its traditional meaning?
Contextual Framing
What is the subject matter or setting? (e.g., using "Royal Gold" for an industrial waste site).
03 Chromatic Study (Sketch & Swatches)
Primary Palette Swatches
Zorn Logic Slides Chromatic Logic // Series 03
The Zorn Challenge
Mastering Temperature & Value through the Ultimate Restriction
The Restricted Quartet
Yellow Ochre
The earthy warmth; primary yellow substitute.
Vermilion
The high-chroma heat; blood and flush.
Ivory Black
The Cold Core; serves as the "Blue".
White
The tinting agent; atmospheric control.
"Simplicity is the final achievement."
Anders Zorn (1860-1920) famously achieved a full spectral range of skin tones and atmospheric depth using only these four pigments.
The Paradox of Ivory Black
Ivory Black is naturally a cool pigment with a subtle blue undertone.
Optical Mixing Formula
Black + White + Ochre = Olive/Greyscale Blue
By eliminating Cerulean or Ultramarine, we force the eye to find coolness in the neutrals.
Traditional Blue (Too easy)
Zorn "Blue" (Sophisticated)
Temperature Control Protocol
Warm Transitions
Vermilion + Ochre. Used for nostrils, ears, cheeks, and fingers.
Neutral Halftones
Black + White + Ochre. Used for turning planes and soft shadows.
Deep Accents
Pure Ivory Black + Vermilion. Used for pupils, hair shadows, and occlusions.
Studio Challenge 03
Mastering Flesh via Restriction
Produce a life study (portrait or figure) using only the Zorn palette. Focus on the temperature shift at the transition of the terminator line.
3 Hours 4 Tubes 100% Palette Mastery
Zorn Mixing Matrix Worksheet Zorn Mixing Matrix
Technical Calibration // Series 03.A
SYSTEMATIC CHROMATIC MAPPING // v2.1
01. Pure Pigment Tint Scales (+ Titanium/Zinc White)
Yellow Ochre
Pure
75%
50%
25%
Vermilion
Ivory Black (The Cold Scale)
02. The Phantom Spectrum (Binary Mixes)
Warm/Orange Arc (Ochre + Vermilion)
3:1
1:1
1:3
Cold/Green Arc (Ochre + Ivory Black)
3:1
1:1
1:3
03. The Lifelike Flesh Matrix (Ochre + Vermilion + Black + White)
Highlight
Mostly White + Ochre
Mid-Warm
Flush Area
Cool Half
Turning Plane
Deep Shadow
Neutral/Cold
"By removing the crutch of convenient tube colors, the artist is forced into a higher state of chromatic awareness. The phantom blue and olive tones discovered here are the true markers of a master tonalist."

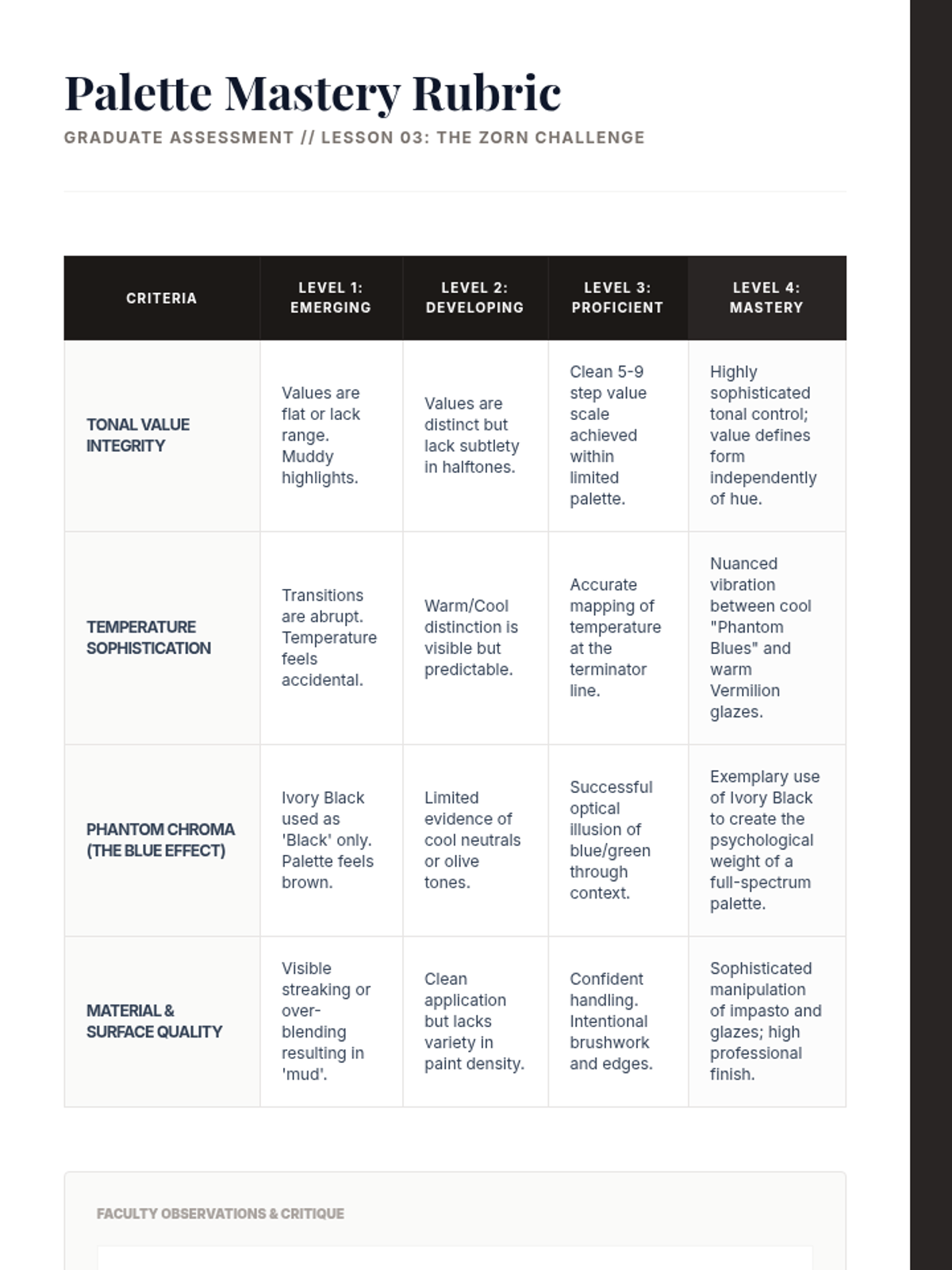

Palette Mastery Rubric Palette Mastery Rubric
Graduate Assessment // Lesson 03: The Zorn Challenge
Criteria Level 1: Emerging Level 2: Developing Level 3: Proficient Level 4: Mastery Tonal Value Integrity Values are flat or lack range. Muddy highlights. Values are distinct but lack subtlety in halftones. Clean 5-9 step value scale achieved within limited palette. Highly sophisticated tonal control; value defines form independently of hue. Temperature Sophistication Transitions are abrupt. Temperature feels accidental. Warm/Cool distinction is visible but predictable. Accurate mapping of temperature at the terminator line. Nuanced vibration between cool "Phantom Blues" and warm Vermilion glazes. Phantom Chroma (The Blue Effect) Ivory Black used as 'Black' only. Palette feels brown. Limited evidence of cool neutrals or olive tones. Successful optical illusion of blue/green through context. Exemplary use of Ivory Black to create the psychological weight of a full-spectrum palette. Material & Surface Quality Visible streaking or over-blending resulting in 'mud'. Clean application but lacks variety in paint density. Confident handling. Intentional brushwork and edges. Sophisticated manipulation of impasto and glazes; high professional finish.
Faculty Observations & Critique
Final Grade / Evaluation:
Evaluator: ___________________________
Optical Vibration Slides Chromatic Logic // Series 04
Optical Vibration
The Physiology of Dissonance
Retinal Fatigue & Successive Contrast
When the eye is saturated with a single hue, the photoreceptors (cones) tire. This triggers the perception of the after-image—the complementary opposite.
Simultaneous Contrast
Two colors, side-by-side, interact. They push each other toward their respective complements, creating a state of visual flux.
The Formula for Shimmer
01. Complementary Pairs
Maximum chromatic opposition (Red/Cyan, Purple/Yellow, Blue/Orange).
02. Equiluminance
The colors must have the exact same value (brightness).
Why Equiluminance?
The brain's "where" system (evolutionarily older) cannot see the border between colors of equal value. The "what" system (color-sensitive) sees a sharp border.
This cognitive conflict produces the "shimmer."
The Pioneers of the Pulse
Bridget Riley
Structural rhythms and linear undulation.
Victor Vasarely
Geometric kinetics and warping depth.
Studio Task 04
Create Kinetic Stasis
Design a composition that produces intense visual vibration using a single complementary pair at perfect equiluminance.
0% Value Variance
100% Visual Pulse

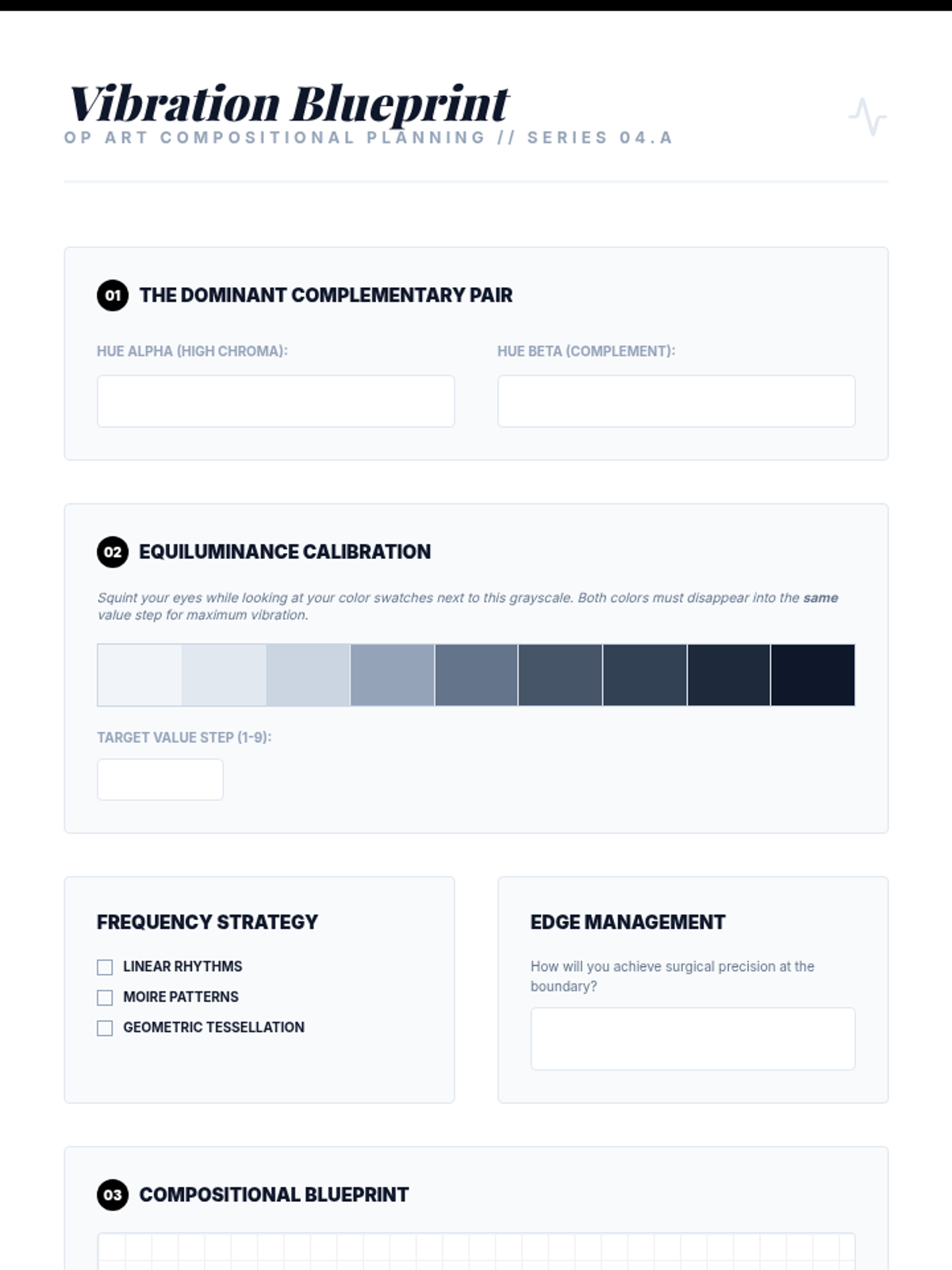

Vibration Blueprint Worksheet Vibration Blueprint
Op Art Compositional Planning // Series 04.A
01 The Dominant Complementary Pair
Hue Alpha (High Chroma):
Hue Beta (Complement):
02 Equiluminance Calibration
Squint your eyes while looking at your color swatches next to this grayscale. Both colors must disappear into the same value step for maximum vibration.
Target Value Step (1-9):
Frequency Strategy
Linear Rhythms
Moire Patterns
Geometric Tessellation
Edge Management
How will you achieve surgical precision at the boundary?
03 Compositional Blueprint
Preliminary Schematic // Note: Maintain high frequency areas for pulse

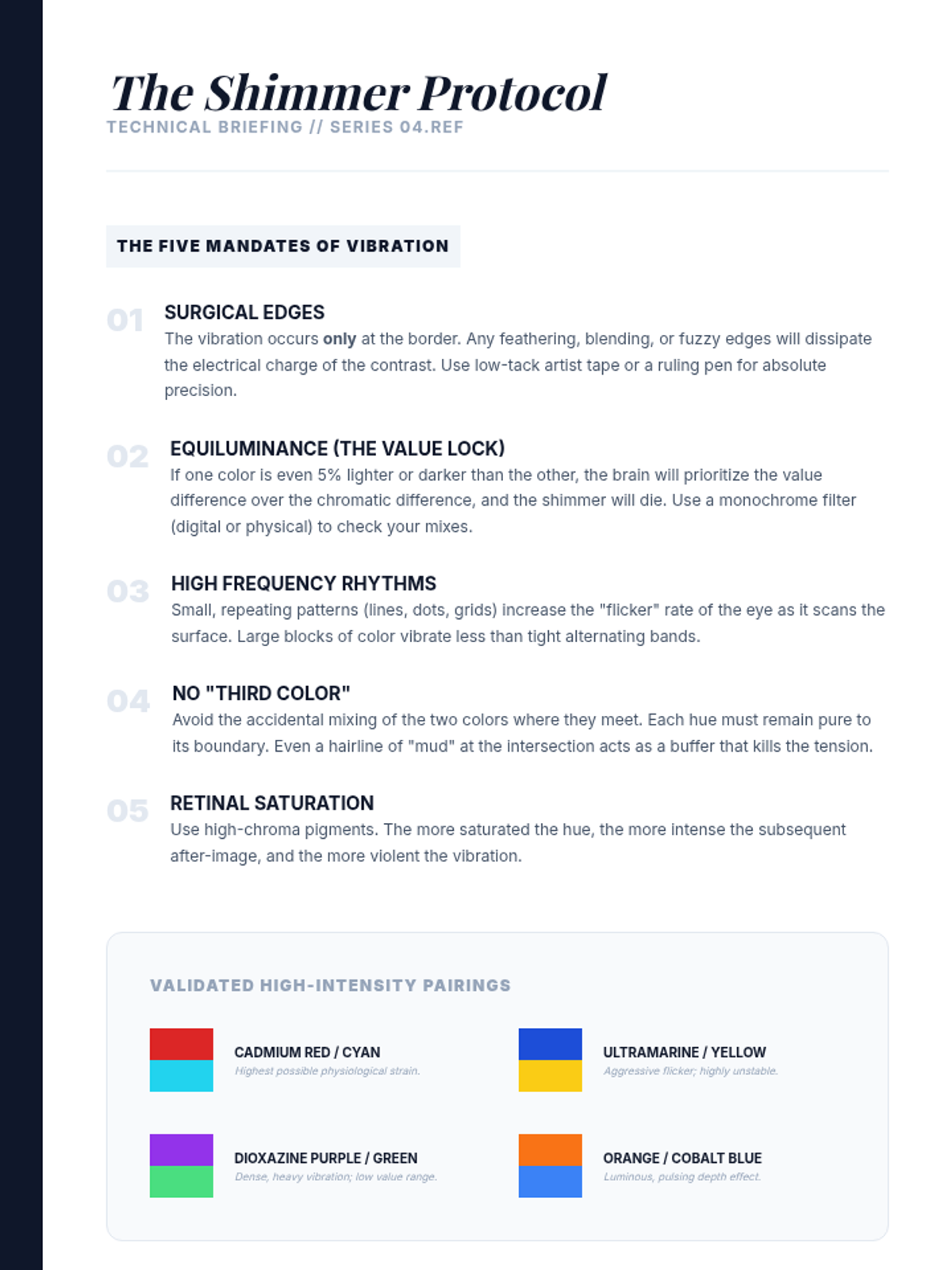

Shimmer Techniques Sheet The Shimmer Protocol
Technical Briefing // Series 04.Ref
The Five Mandates of Vibration
01
Surgical Edges
The vibration occurs only at the border. Any feathering, blending, or fuzzy edges will dissipate the electrical charge of the contrast. Use low-tack artist tape or a ruling pen for absolute precision.
02
Equiluminance (The Value Lock)
If one color is even 5% lighter or darker than the other, the brain will prioritize the value difference over the chromatic difference, and the shimmer will die. Use a monochrome filter (digital or physical) to check your mixes.
03
High Frequency Rhythms
Small, repeating patterns (lines, dots, grids) increase the "flicker" rate of the eye as it scans the surface. Large blocks of color vibrate less than tight alternating bands.
04
No "Third Color"
Avoid the accidental mixing of the two colors where they meet. Each hue must remain pure to its boundary. Even a hairline of "mud" at the intersection acts as a buffer that kills the tension.
05
Retinal Saturation
Use high-chroma pigments. The more saturated the hue, the more intense the subsequent after-image, and the more violent the vibration.
Validated High-Intensity Pairings
Cadmium Red / Cyan
Highest possible physiological strain.
Ultramarine / Yellow
Aggressive flicker; highly unstable.
Dioxazine Purple / Green
Dense, heavy vibration; low value range.
Orange / Cobalt Blue
Luminous, pulsing depth effect.
Troubleshooting the Pulse
Issue: Flat Image
Check values. If one color feels "heavier" than the other, adjust with tiny amounts of black or white until they match.
Issue: Blurred Edge
Ensure paint is opaque. Transparent layers allow the background to "leak" through, softening the vibration.
Issue: Static Feel
Increase the pattern frequency. Double the amount of lines or decrease the width of individual shapes.
Monochromatic Narrative Slides Chromatic Logic // Series 05
Monochromatic Narrative
Synthesis, Abstraction, & Final Critique
Hue is a Distraction.
In this final synthesis, we strip away the ease of hue variety. When restricted to a single color family, the artist must rely on Value (Lightness) and Saturation (Intensity) to drive the narrative arc.
High Contrast = Conflict / Climax
Soft Gradation = Introspection / Stasis
High Saturation = Emotional Peak
VALUE
CHROMA
FORM
The Power of the Single Hue
Picasso's Blue Period
A monochromatic strategy used to enforce a psychological atmosphere of melancholy and isolation. The blue acts as a physical weight.
Ad Reinhardt's Black Paintings
The ultimate reduction. Forcing the viewer into a state of extreme visual patience. Narrative is found in the almost-invisible temperature shifts.
Synthesis Task 05
The Monochromatic Story
Select a complex narrative theme (e.g., betrayal, epiphany, decay). Execute a major work using one base hue plus black and white.
1 Base Hue | Infinite Values | Structural Narrative
Critique Framework
Narrative Intent
Is the story legible without the crutch of varied hues?
Value Mastery
Does the value range create convincing depth and focus?
Psychological Weight
Does the chosen color feel integrated into the theme?

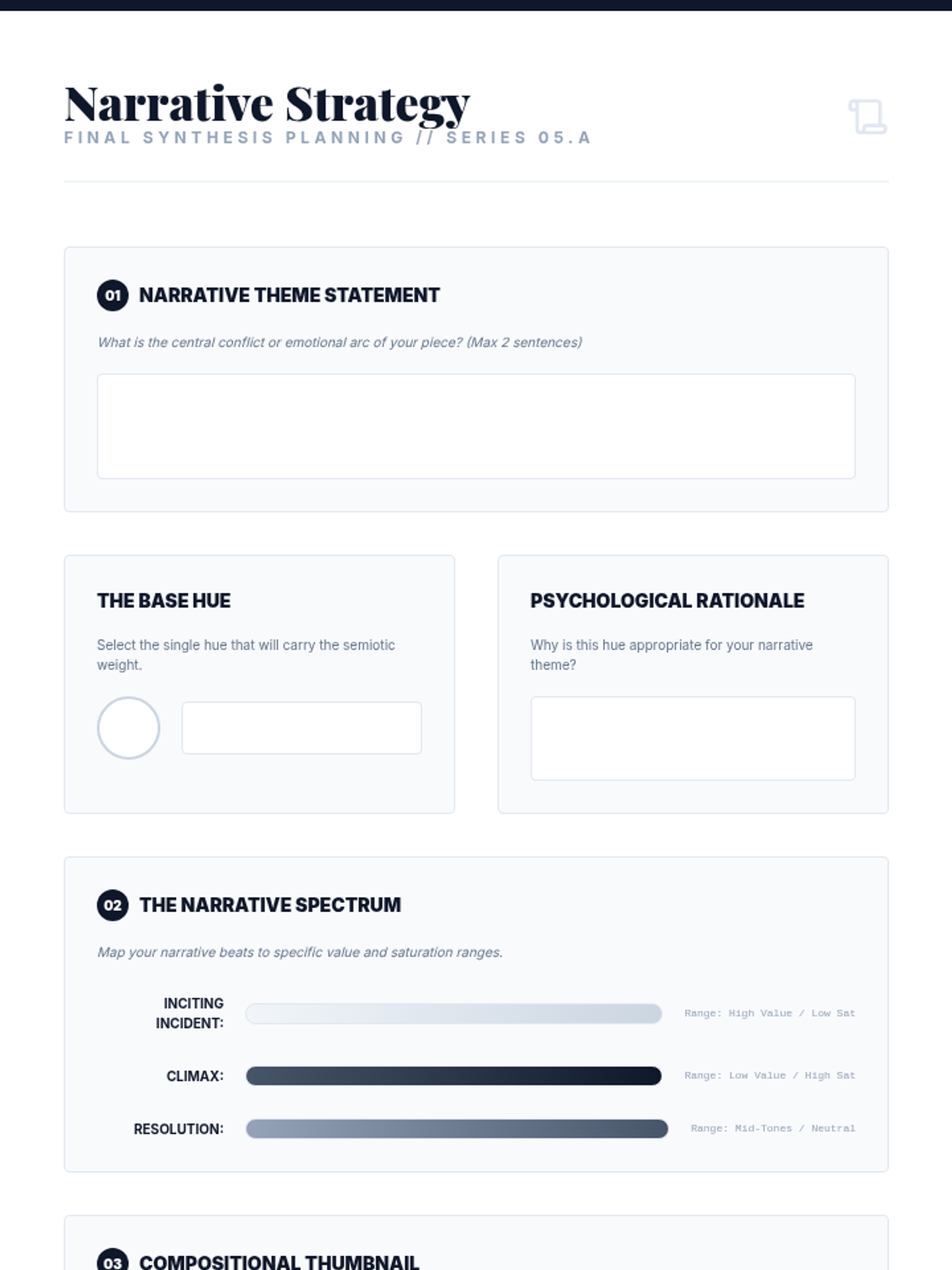

Narrative Strategy Worksheet Narrative Strategy
Final Synthesis Planning // Series 05.A
01 Narrative Theme Statement
What is the central conflict or emotional arc of your piece? (Max 2 sentences)
The Base Hue
Select the single hue that will carry the semiotic weight.
Psychological Rationale
Why is this hue appropriate for your narrative theme?
02 The Narrative Spectrum
Map your narrative beats to specific value and saturation ranges.
Inciting Incident:
Range: High Value / Low Sat
Climax:
Range: Low Value / High Sat
Resolution:
Range: Mid-Tones / Neutral
03 Compositional Thumbnail
Preliminary Value Study // Focus on focal point placement via contrast

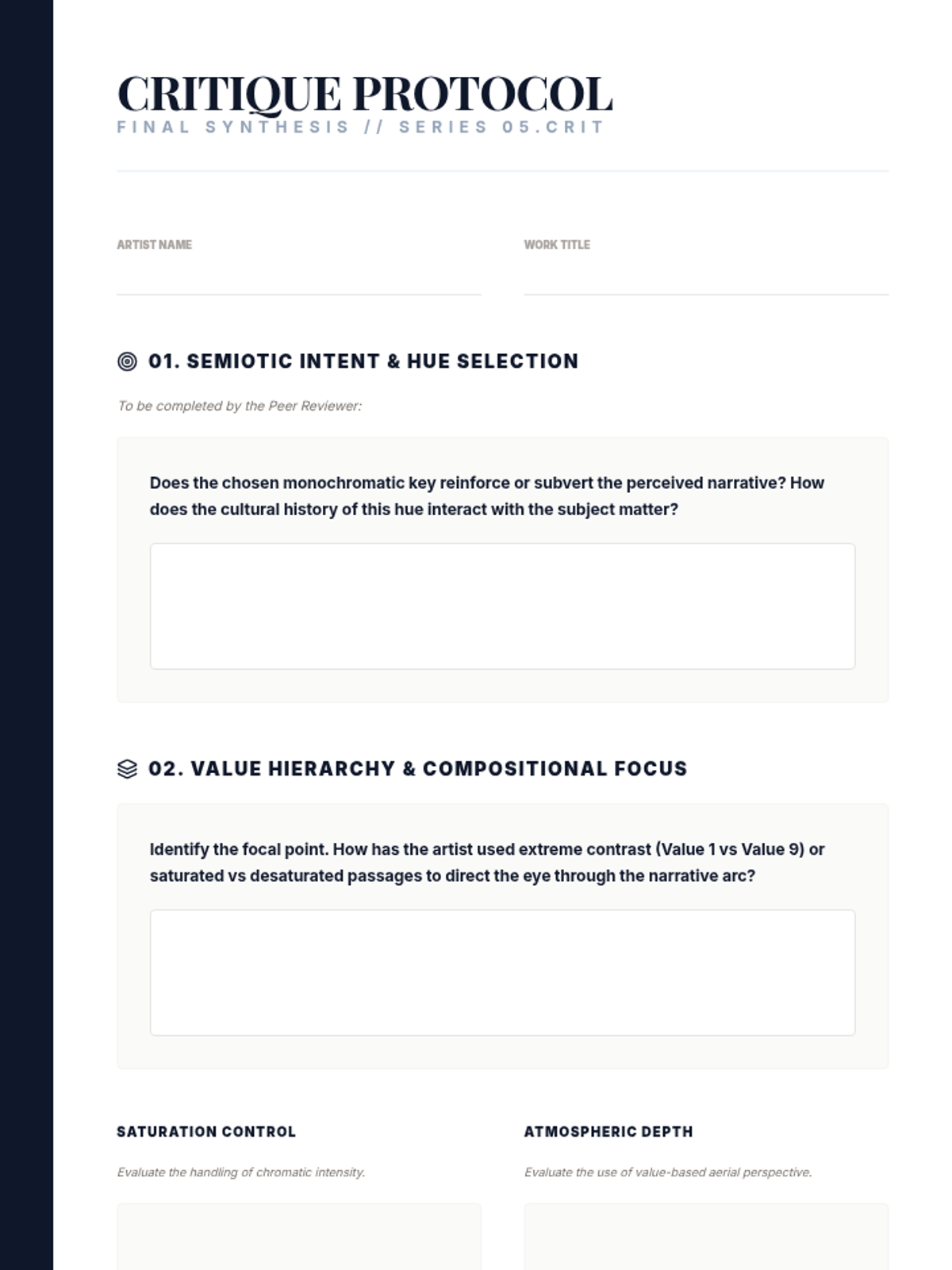

Synthesis Critique Protocol Critique Protocol
Final Synthesis // Series 05.Crit
Artist Name
Work Title
01. Semiotic Intent & Hue Selection
To be completed by the Peer Reviewer:
Does the chosen monochromatic key reinforce or subvert the perceived narrative? How does the cultural history of this hue interact with the subject matter?
02. Value Hierarchy & Compositional Focus
Identify the focal point. How has the artist used extreme contrast (Value 1 vs Value 9) or saturated vs desaturated passages to direct the eye through the narrative arc?
Saturation Control
Evaluate the handling of chromatic intensity.
Atmospheric Depth
Evaluate the use of value-based aerial perspective.
03. Narrative Resonance
Psychological Impact:
Quiet/Still
Violent/Dynamic
Summative Synthesis & Synthesis Score
Reviewer: Provide a final assessment of how this work synthesizes the five lessons of Chromatic Logic.
