Mapping Terrain Slides Lesson 01
MAPPING THE TERRAIN
Visualizing 3D Landscapes on 2D Paper
WILDERNESS NAVIGATION SERIES
The Cartographer's Challenge
How do we represent a massive, vertical mountain on a flat piece of paper?
Scale: Shrinking the world to fit.Symbols: Abstracting real objects.Contour Lines: Showing elevation.
"Thinking in slices: Each line represents a specific elevation."
Anatomy of a Topo Map
Legend/Key
The dictionary of symbols. Green for forest, blue for water, dotted lines for trails.
Scale
The ratio (e.g., 1:24,000). 1 inch on the map equals 24,000 inches on the ground.
Contour Interval
The vertical distance between each line (e.g., 40 feet). Consistent across the whole map.
Reading the Lines
Steep Terrain
Lines are very close together.
Flat Terrain
Lines are spaced far apart.
Ridges & Valleys
"V" shapes. Pointing toward peaks = Valleys. Pointing away = Ridges.
The "V" Rule
Water always flows across "V" shaped contour lines that point uphill.
Your Mission: The Hill to Map
You are about to receive a 3D model. Your job is to translate its physical features into a 2D topographical map.
1
Measure Elevation
2
Trace Contours
3
Add the Legend
Map Master Worksheet Map Master Worksheet
Lesson 1: Topographical Interpretation
NAME:
DATE:
Part 1: The Legend Decoder
Identify the following common topographical map symbols and describe what they represent in the field.
Dashed Black Line
Blue Ribbon/Area
Green Shaded Area
X
Small "X" with Elevation Number
Part 2: Visualizing Terrain
Scenario A: A steep cliff face dropping into a river.
Sketch how the contour lines would look:
Scenario B: A gentle, rolling hill with a flat top.
Sketch how the contour lines would look:
Part 3: From Model to Map
Look at the 3D terrain model at your station. Create a 2D topographical map based on your observations. Ensure you include: • A scale • A north arrow • Contour lines • 2 Symbols
Mapping Terrain Teacher Guide Teacher Facilitation Guide
Lesson 1: Mapping the Terrain
Lesson Overview
This lesson transitions students from 3D spatial thinking to 2D topographical representation. The core challenge is understanding how vertical height (elevation) is translated into flat lines (contours).
Key Concepts
Contour Intervals
Map Symbols & Legends
Scale Ratios (1:24,000)
Materials Needed
Clay or sand models (hills)
Fishing line (for "slicing")
Projector & 3D Topo Slides
The Hook: The Sandbox Demo
"How do we see height on a flat page?"
Instructions:
Place a physical hill model (clay or sand) under a downward-facing projector.
Project a simple grid or a series of concentric circles onto the model.
Show how the circles "warp" around the terrain—wider spacing on gentle slopes, tighter on steep ones.
The "Slice" Reveal: Take a fishing line and literally slice the clay model into 1-inch horizontal layers. Trace the perimeter of each slice on a piece of paper to build the map live.
Watch For: Common Pitfalls
Crossing Lines
Remind students that contour lines never cross or split (except for cliffs/overhangs, which are too advanced for now).
"V" Direction
Students often think the "V" points downstream. Correct them: the "V" points uphill where the stream cuts the terrain.
Pacing Guide
50 Minute Period: Hook (10m), Lecture (15m), Activity (20m), Review (5m)
Homework
Local Map Treasure Hunt
Compass Proficiency Slides Lesson 02
THE NAVIGATOR'S NEEDLE
Mastering the Compass & Magnetic Bearings
DIRECTIONAL PRECISION
Anatomy of the Baseplate
Magnetic Needle
The red end always points to Magnetic North.
Orienting Arrow
"The Shed." Used to align the compass with the needle.
Direction of Travel Arrow
The arrow you point toward your destination.
"Put the Red in the Shed"
The Declination Dilemma
Maps are drawn to True North (the North Pole).
Compass needles point to Magnetic North (a moving point in Canada).
"In our region, the difference is approximately 12° East. If you ignore this, you'll be miles off target."
TRUE NORTH
MAGNETIC NORTH
How to Shoot a Bearing
01
Point
Aim the "Direction of Travel" arrow at your target.
02
Twist
Rotate the housing until the needle is in the "Shed".
03
Read
Look at the index line—your bearing is in degrees.
04
Move
Hold the compass flat and follow your arrow!
THE CHALLENGE: BLIND TRIANGLE
Can you walk 100 yards and return to the exact same spot using only your compass?
100 Steps
at 0° (North)
100 Steps
at 120°
100 Steps
at 240°
Ready to move?

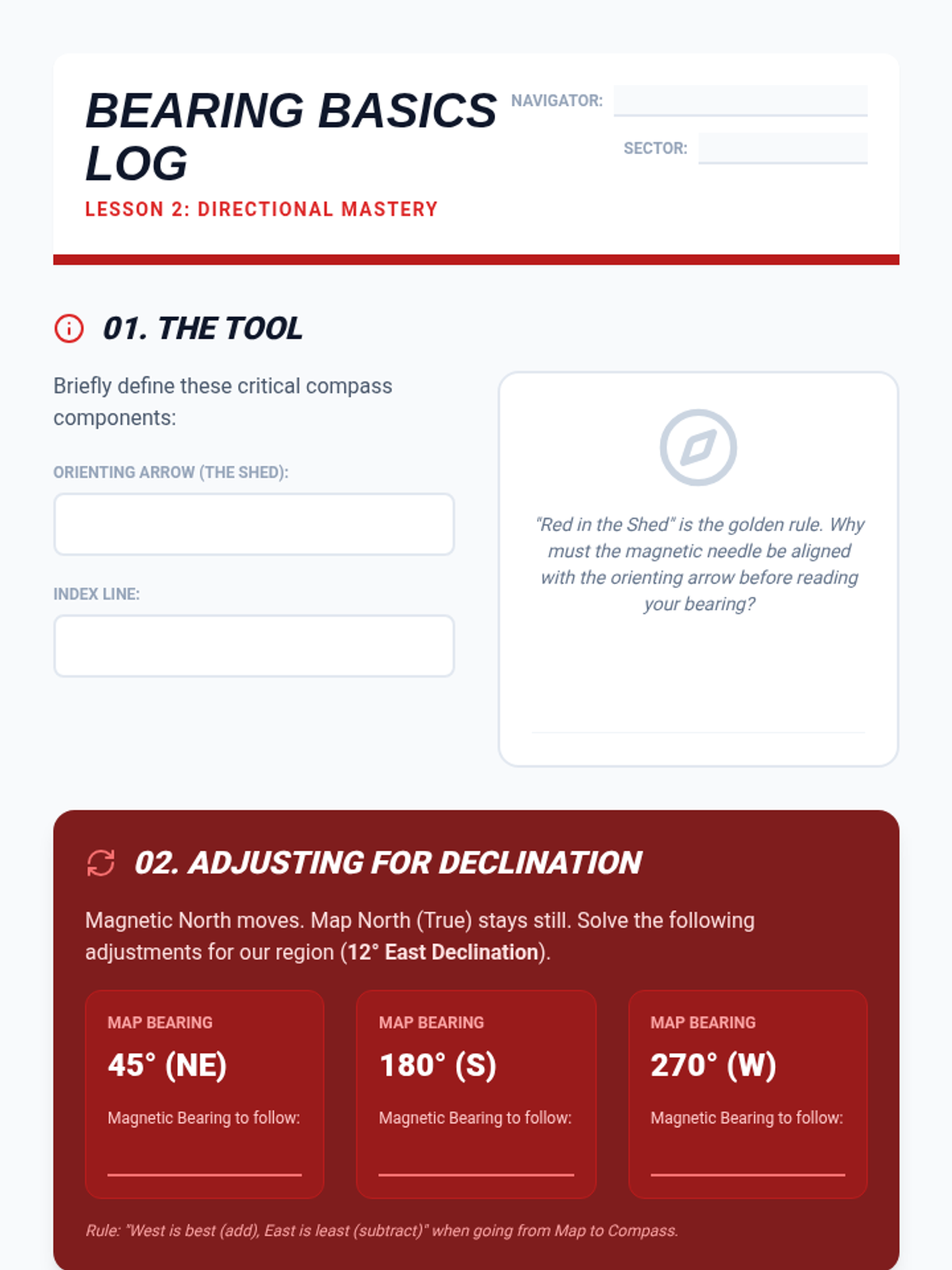

Bearing Basics Worksheet Bearing Basics Log
Lesson 2: Directional Mastery
Navigator:
Sector:
01. The Tool
Briefly define these critical compass components:
Orienting Arrow (The Shed):
Index Line:
"Red in the Shed" is the golden rule. Why must the magnetic needle be aligned with the orienting arrow before reading your bearing?
02. Adjusting for Declination
Magnetic North moves. Map North (True) stays still. Solve the following adjustments for our region (12° East Declination).
Map Bearing
45° (NE)
Magnetic Bearing to follow:
Map Bearing
180° (S)
Magnetic Bearing to follow:
Map Bearing
270° (W)
Magnetic Bearing to follow:
Rule: "West is best (add), East is least (subtract)" when going from Map to Compass.
03. Field Sighting Log
Identify 4 distant landmarks and shoot an accurate bearing to each. Have your partner verify.
Landmark Description Bearing (Degrees) Partner Verified Ex: Lone Pine Tree 122°
|
| | |
|
| | |
|
| | |
|

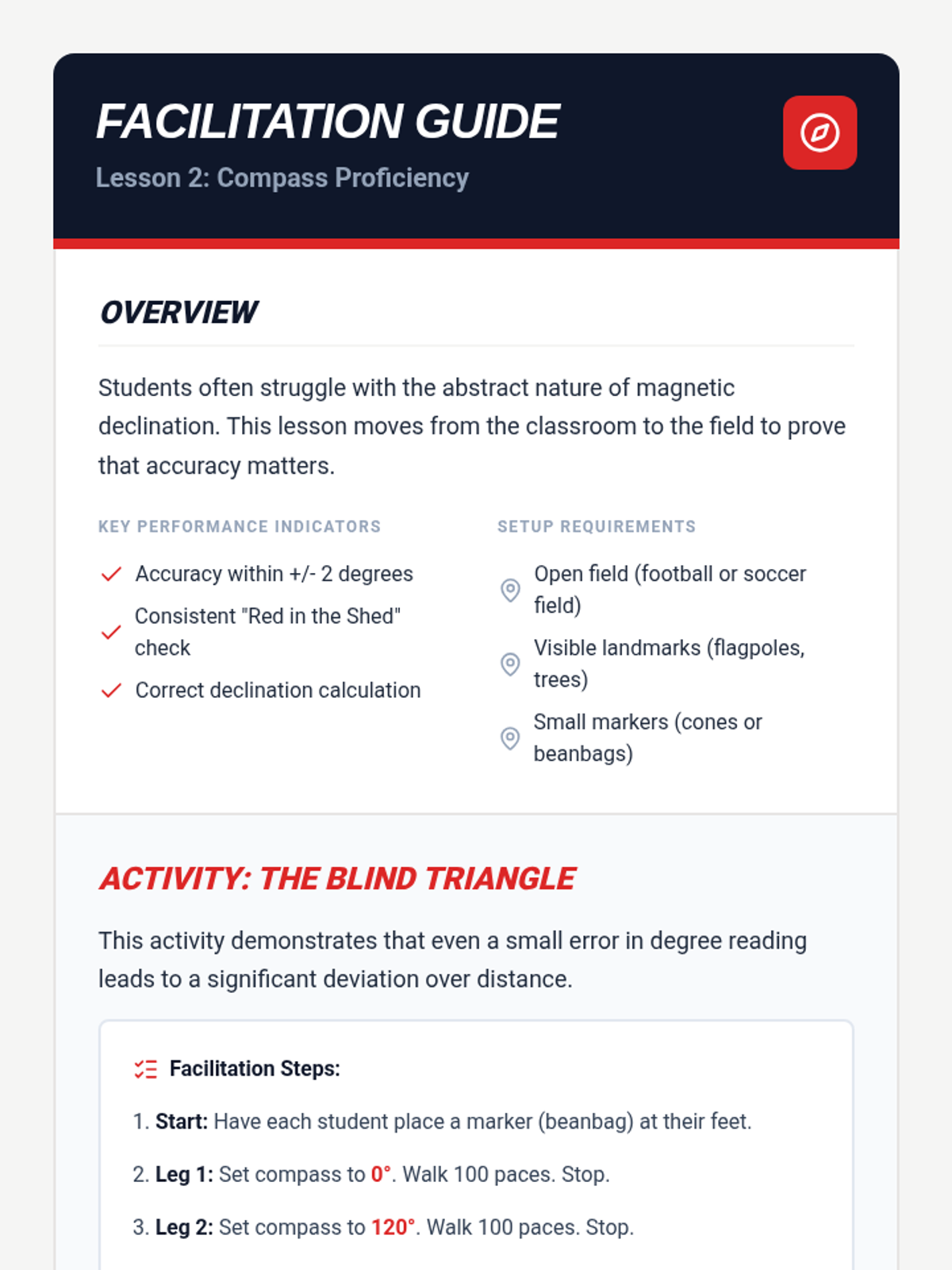

Compass Proficiency Teacher Guide Facilitation Guide
Lesson 2: Compass Proficiency
Overview
Students often struggle with the abstract nature of magnetic declination. This lesson moves from the classroom to the field to prove that accuracy matters.
Key Performance Indicators
Accuracy within +/- 2 degrees
Consistent "Red in the Shed" check
Correct declination calculation
Setup Requirements
Open field (football or soccer field)
Visible landmarks (flagpoles, trees)
Small markers (cones or beanbags)
Activity: The Blind Triangle
This activity demonstrates that even a small error in degree reading leads to a significant deviation over distance.
Facilitation Steps:
Start: Have each student place a marker (beanbag) at their feet.
Leg 1: Set compass to 0°. Walk 100 paces. Stop.
Leg 2: Set compass to 120°. Walk 100 paces. Stop.
Leg 3: Set compass to 240°. Walk 100 paces. Stop.
The Reveal: Students should land exactly on their marker. Most will be 5-10 feet away.
Troubleshooting Student Errors
Compass Tilt
Students often hold the compass at an angle. If the needle touches the glass, it won't rotate freely. Remind them: "Keep it flat like a plate of soup."
Metallic Interference
Watches, belt buckles, and smartphones can deflect the needle. Ensure students hold the compass away from their bodies and gear.
Extension
Have advanced students perform a "back-bearing" to verify their position from two different landmarks simultaneously (Triangulation).
Pacing
Lecture: 10m. Blind Triangle: 20m. Field Log: 15m. Debrief: 5m.
Route Planning Slides Lesson 03
THE PREPARED HIKER
Route Planning & Wilderness Safety
SAFETY FIRST
The Ten Essentials
Navigation
Sun Protection
Insulation
Illumination
First Aid
Fire Starter
Why ten?
In a survival situation, your gear buys you time. Time to think, time to recover, and time to be found.
Missing just one of these can turn a small error into a life-threatening disaster.
Calculating Travel Time
Naismith's Rule
How long will the hike take? Don't guess. Calculate it.
3 MPH Base walking speed on flat terrain.
+ 30 MIN Add 30 minutes for every 1,000 ft of ascent.
Sample Challenge
Distance: 6 Miles
Elevation Gain: 2,000 Feet
Estimated Time?
(Scroll for Answer: 3 Hours)
Leave No Trace (LNT)
1. Plan Ahead and Prepare
2. Travel and Camp on Durable Surfaces
3. Dispose of Waste Properly
4. Leave What You Find
The Goal
"Take only pictures, leave only footprints, kill only time."
The Lost Hiker
You are about to analyze a real-world survival story. Your job is to identify the Preparation Errors that led to the incident.
Identify Risks
Analyze Errors
Plan Better

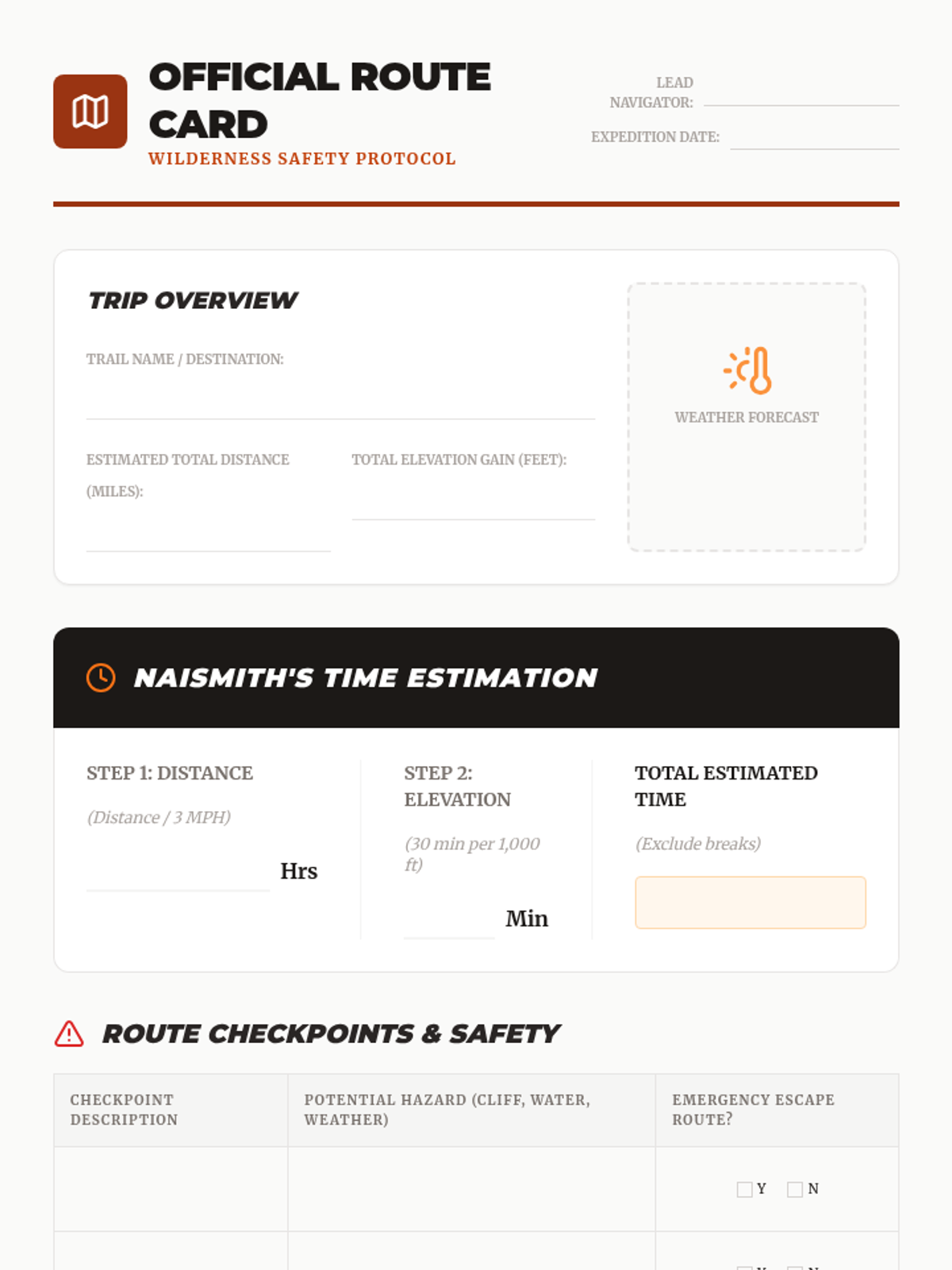

Route Card Planner Worksheet Official Route Card
Wilderness Safety Protocol
Lead Navigator:
Expedition Date:
Trip Overview
Trail Name / Destination:
Estimated Total Distance (Miles):
Total Elevation Gain (Feet):
Weather Forecast
Naismith's Time Estimation
Step 1: Distance
(Distance / 3 MPH)
Hrs
Step 2: Elevation
(30 min per 1,000 ft)
Min
Total Estimated Time
(Exclude breaks)
Route Checkpoints & Safety
Checkpoint Description Potential Hazard (Cliff, Water, Weather) Emergency Escape Route? Y
N
|
| | |
Y
N
|
| | |
Y
N
|
LNT Pledge
I acknowledge that wilderness travel is a privilege. I commit to planning ahead, staying on durable surfaces, and leaving the landscape exactly as I found it.
Signature:

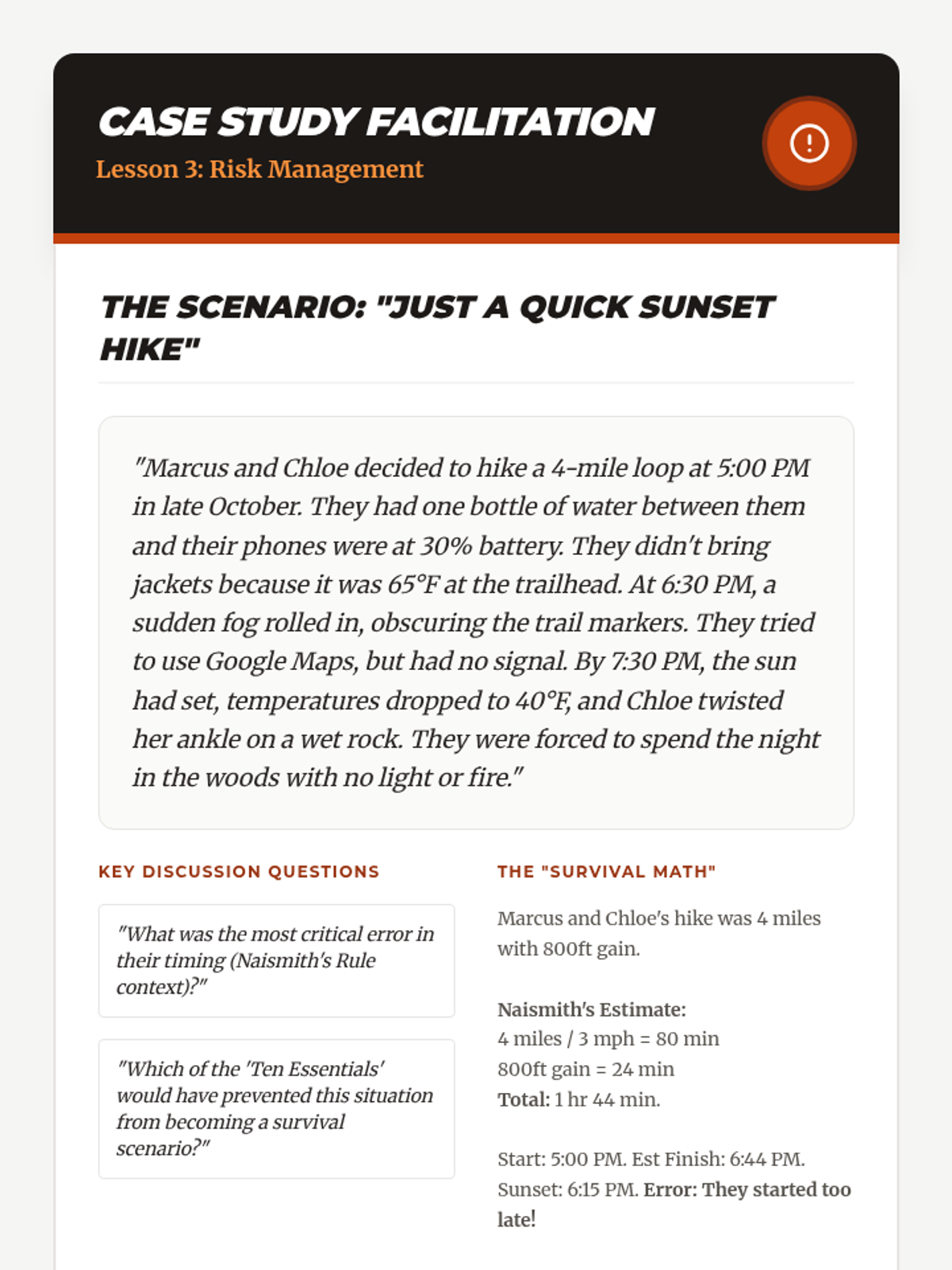

Route Planning Teacher Guide Case Study Facilitation
Lesson 3: Risk Management
The Scenario: "Just a Quick Sunset Hike"
"Marcus and Chloe decided to hike a 4-mile loop at 5:00 PM in late October. They had one bottle of water between them and their phones were at 30% battery. They didn't bring jackets because it was 65°F at the trailhead. At 6:30 PM, a sudden fog rolled in, obscuring the trail markers. They tried to use Google Maps, but had no signal. By 7:30 PM, the sun had set, temperatures dropped to 40°F, and Chloe twisted her ankle on a wet rock. They were forced to spend the night in the woods with no light or fire."
Key Discussion Questions
"What was the most critical error in their timing (Naismith's Rule context)?"
"Which of the 'Ten Essentials' would have prevented this situation from becoming a survival scenario?"
The "Survival Math"
Marcus and Chloe's hike was 4 miles with 800ft gain.
Naismith's Estimate: Total: 1 hr 44 min.
Start: 5:00 PM. Est Finish: 6:44 PM.Error: They started too late!
Facilitation Tips
Timing Strategy
Have students calculate their own "Personal Pace." Not everyone walks at 3 MPH. Have them walk a measured quarter-mile with a backpack to find their true base speed.
The "Cotton Kills" Discussion
Explain how cotton loses all insulation when wet. In the case study, if they wore cotton, hypothermia risk was extreme.
Pacing: 50 Min PE Standard: Risk Assessment & Planning
Digital Navigation Slides Module 04
DIGITAL WAYFINDING
GPS Integration & Coordinate Precision
Lat 45.523062° N
Lon 122.676482° W
The Satellite Web
Trilateration
Your device calculates position by measuring its distance from at least 4 satellites simultaneously.
Accuracy Factors
Standard GPS is accurate to within 5 meters, but signal bounce and tree cover can degrade this.
Navigational Vocabulary
Waypoint
A specific point on the earth saved by its coordinates (Marking your car, a camp, or a view).
Track
The "digital breadcrumbs" recorded as you move, showing exactly where you walked.
Geofence
A virtual perimeter. Alarms can trigger if you enter or leave a specific area.
The Tech Limit
Why do we still need analog skills?
Battery life is finite, especially in cold weather.
Signal loss in deep canyons or under heavy canopy.
Screen failure from moisture or impacts.
The Golden Rule
"Digital for convenience, Analog for survival."
GEOCACHE HUNT
Hidden across campus are 5 caches. Use your coordinates to find them, but watch out for 'Signal Drift' zones.
Mark Waypoints
Track Movement
Verify Finds

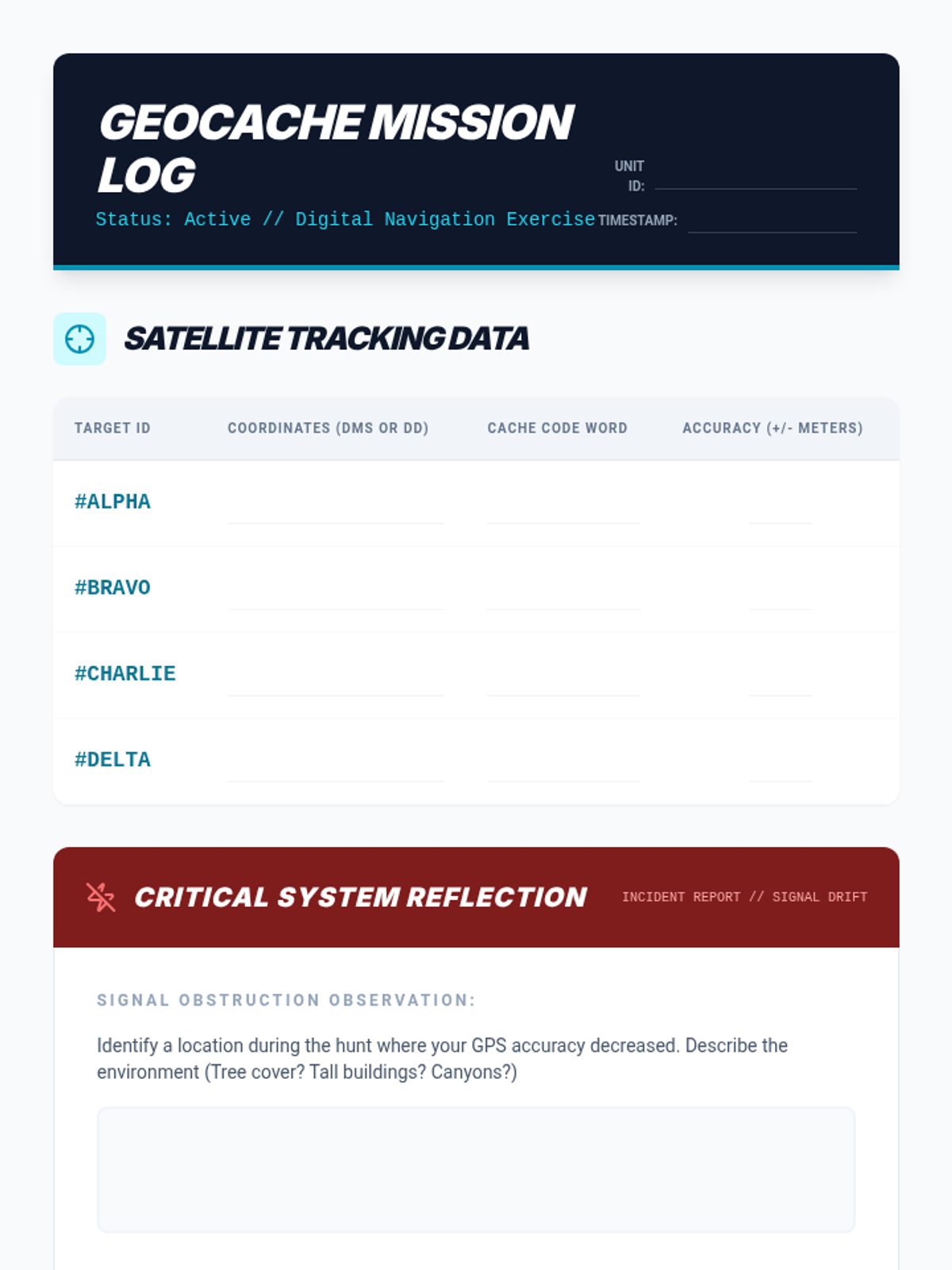

Geocaching Log Worksheet Geocache Mission Log
Status: Active // Digital Navigation Exercise
Unit ID:
Timestamp:
Satellite Tracking Data
Target ID Coordinates (DMS or DD) Cache Code Word Accuracy (+/- meters) #ALPHA
|
|
| #BRAVO |
|
|
|
| #CHARLIE |
|
|
|
| #DELTA |
|
|
|
Critical System Reflection
INCIDENT REPORT // SIGNAL DRIFT
Signal Obstruction Observation:
Identify a location during the hunt where your GPS accuracy decreased. Describe the environment (Tree cover? Tall buildings? Canyons?)
Analog vs. Digital:
During the geocache hunt, when was the digital tool less effective than simply looking at your surroundings?
Battery Management Strategy:
If you were planning a 3-day backcountry trip, how would you conserve your device's power?
Mission Verification Required
Authorized By:

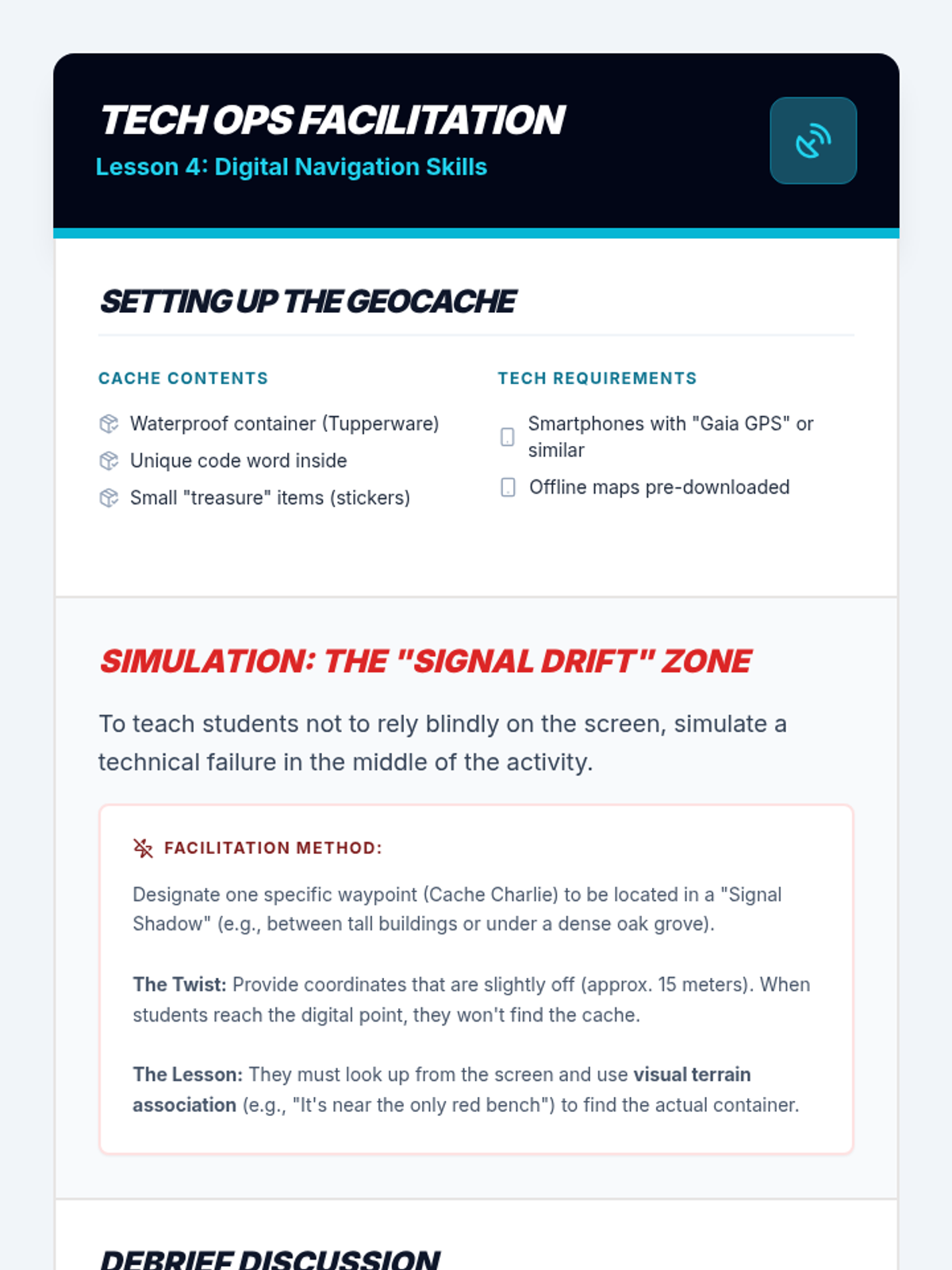

Digital Navigation Teacher Guide Tech Ops Facilitation
Lesson 4: Digital Navigation Skills
Setting Up the Geocache
Cache Contents
Waterproof container (Tupperware)
Unique code word inside
Small "treasure" items (stickers)
Tech Requirements
Smartphones with "Gaia GPS" or similar
Offline maps pre-downloaded
Simulation: The "Signal Drift" Zone
To teach students not to rely blindly on the screen, simulate a technical failure in the middle of the activity.
Facilitation Method:
Designate one specific waypoint (Cache Charlie) to be located in a "Signal Shadow" (e.g., between tall buildings or under a dense oak grove).
The Twist: Provide coordinates that are slightly off (approx. 15 meters). When students reach the digital point, they won't find the cache.
The Lesson: They must look up from the screen and use visual terrain association (e.g., "It's near the only red bench") to find the actual container.
Debrief Discussion
GPS Lag
Remind students that GPS position updates every few seconds. Walking too fast can cause them to "overshoot" the waypoint on the screen.
Privacy & Data
Briefly discuss the ethics of digital tracking and how to keep location data private when using outdoor apps.
Pacing: 60 Min Total Lesson ID: L04-DIGI-NAV
Orienteering Challenge Slides Final Mastery Challenge
ORIENTEERING
Map • Compass • Endurance • Strategy
Mastery Level
Rules of Engagement
1
The Order: You must visit control points in numerical order (1, 2, 3...).
2

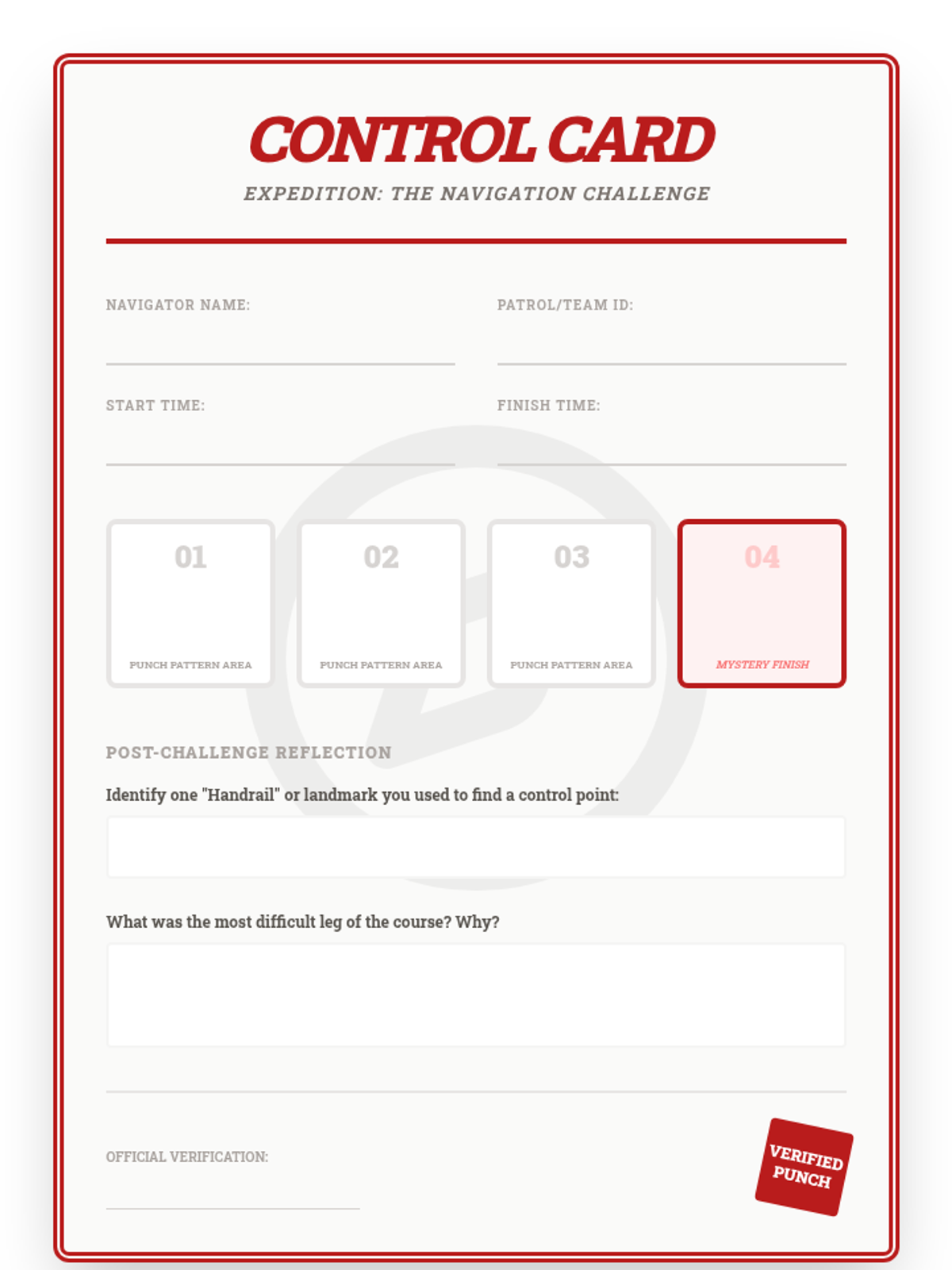

The Proof: Use the punch tool at each station to mark your Control Card.
3
The Clock: Your total time starts when you cross the 'Start' line and ends when you punch the 'Finish' station.
Zero Tolerance
No smartphones. No help from other teams. No leaving the designated course boundaries.
Winning Strategy
The shortest route is rarely the fastest route.
Consider:
• Elevation Gain (Is the hill worth it?)
• Terrain Type (Trail vs. Thick Brush)
• Handrails (Fences/Rivers to follow)
"Think Twice, Run Once"
Pro-Tip: Thumbing the Map
Fold your map so only the current leg of the course is visible.
Keep your thumb on your exact current location. As you walk, slide your thumb along.
If you look away, you won't waste time finding your spot again!
Safety Protocol
"If you are lost for more than 10 minutes: Stop. Stay Calm. Use your whistle (3 sharp blasts)."
The Mystery Coordinates
You will receive a sealed envelope. Inside is the location of the 'Finish Line'. You may only open it once you have punched Control Points 1, 2, and 3.
GOOD LUCK
Orienteering Control Card Worksheet Control Card
Expedition: The Navigation Challenge
Navigator Name:
Start Time:
Patrol/Team ID:
Finish Time:
01
Punch Pattern Area
02
Punch Pattern Area
03
Punch Pattern Area
04
Mystery Finish
Post-Challenge Reflection
Identify one "Handrail" or landmark you used to find a control point:
What was the most difficult leg of the course? Why?
Official Verification:
Verified Punch
Keep this card dry. Lost cards result in disqualification.

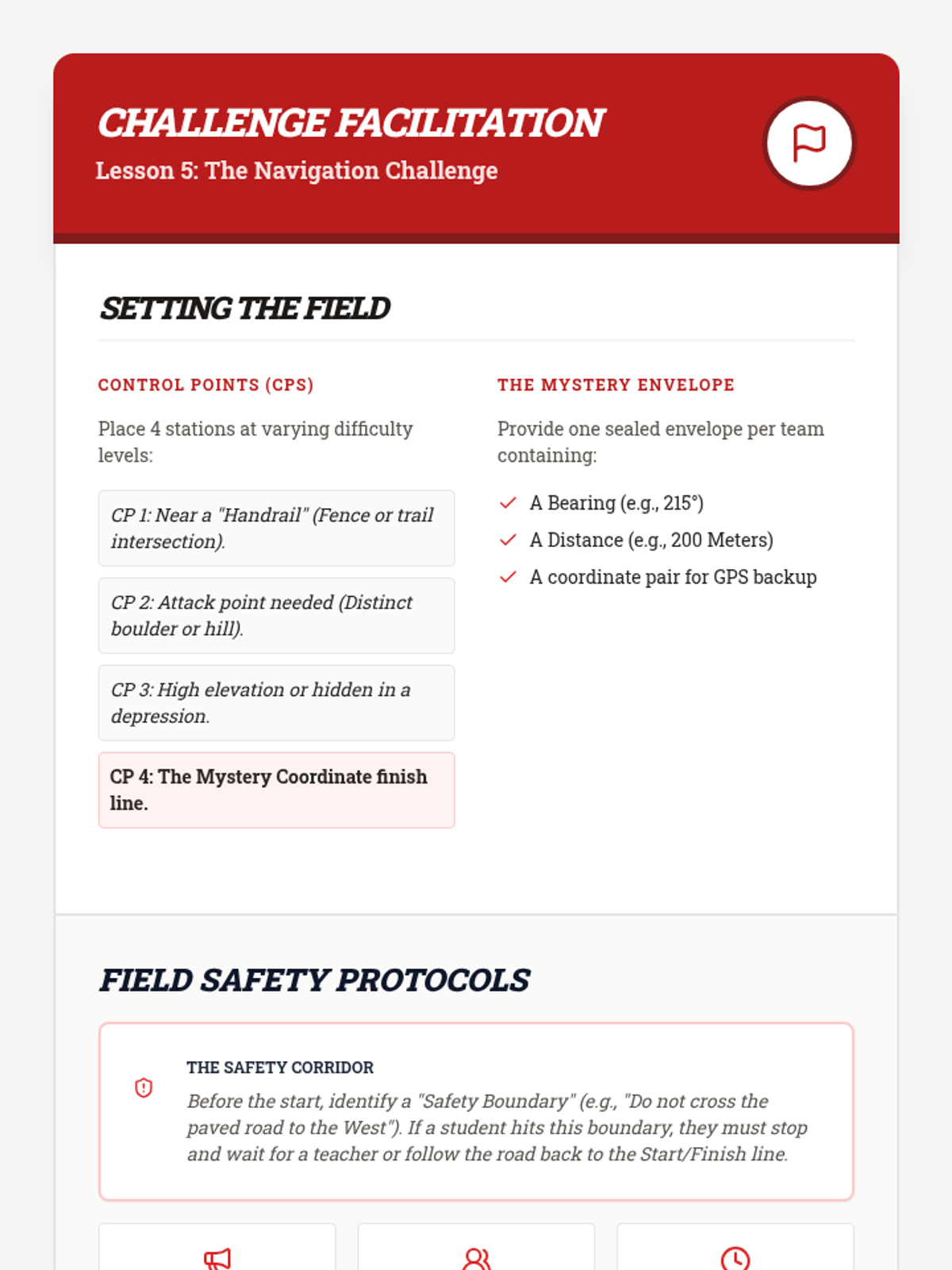

Orienteering Challenge Teacher Guide Challenge Facilitation
Lesson 5: The Navigation Challenge
Setting the Field
Control Points (CPs)
Place 4 stations at varying difficulty levels:
CP 1: Near a "Handrail" (Fence or trail intersection).
CP 2: Attack point needed (Distinct boulder or hill).
CP 3: High elevation or hidden in a depression.
CP 4: The Mystery Coordinate finish line.
The Mystery Envelope
Provide one sealed envelope per team containing:
A Bearing (e.g., 215°)
A Distance (e.g., 200 Meters)
A coordinate pair for GPS backup
Field Safety Protocols
The Safety Corridor
Before the start, identify a "Safety Boundary" (e.g., "Do not cross the paved road to the West"). If a student hits this boundary, they must stop and wait for a teacher or follow the road back to the Start/Finish line.
Whistles Req.
Buddy System
Firm Cut-off Time
Scoring Methodology
Efficiency is prioritized over pure speed. A team that finds all 4 points correctly in 40 minutes scores higher than a team that finds 3 points in 20 minutes.
SCORING_ALGO = (CPs_FOUND * 100) - (TOTAL_TIME_MINUTES * 2) - (PENALTY_POINTS)
Unit Completion Challenge Total Course Time: 90 Minutes
