Depth Foundations Slides Unit: Perceptual Organization
Depth Foundations
The biological mechanics of 3D vision: Binocular Cues and the Stereoscopic Mind.
The Floating Finger Hook
The Challenge:
Hold your index fingers about 5 inches in front of your eyes.
Point the tips toward each other, leaving an inch of space.
Stare past your fingers at the wall behind them.
Do you see a "sausage" finger floating in the middle?
RETINAL DISPARITY IN ACTION
The 2D to 3D Translation
The retina is a two-dimensional surface.
Yet, we live in a three-dimensional world.
Depth Perception: The ability to see objects in three dimensions and judge distance.
Cue #1: Retinal Disparity
Physical distance between eyes = different images
Because your eyes are about 2.5 inches apart, they receive slightly different images of the same object.
The greater the disparity (difference) between the two images, the closer the object.
FIG 1.1: STEREOSCOPIC OVERLAP
Cue #2: Convergence
The "Muscular" Feedback Loop
Your brain monitors the inward turn of your eyes as you focus on nearby objects.
High Tension = Object is Close
Low Tension = Object is Far
NEURAL FEEDBACK ACTIVE
Vision Lab Phase 1
Grab your Lab Notebook. We are going to measure the Breakdown Point where binocular cues fail.
Retinal Disparity Test
Convergence Stress Test
Vision Lab Worksheet Vision Lab Report 01
Binocular Depth Foundations
Subject:
Date:
Objective
To empirically observe and measure the physiological mechanisms of Retinal Disparity and Convergence, identifying the specific point at which binocular depth cues become less effective.
1
Retinal Disparity Sensitivity
"Hold a pencil vertically at arm's length. Look at it with one eye closed, then swap eyes. Notice the 'jump'. Slowly move the pencil toward your nose while repeating the eye-swapping."
Data Collection
Apparent Jump @ Arm's Length (cm):
Apparent Jump @ 10cm from nose (cm):
Observations
How does the distance of the object relate to the amount of disparity your brain has to resolve? Why might this make close-up work more tiring for the visual system?
2
Convergence Point Measurement
Work with a partner. Have them slowly move a target object toward your nose. They will record the distance where your eyes begin to "break" (stop turning inward or lose focus).
Trial 1 Distance
Trial 2 Distance
Trial 3 Distance
The Muscular Sensation
Describe the physical sensation in your eye muscles as the object reaches the 10cm mark. How does this serve as a "cue" for the brain?
The Binocular Synthesis
If a person loses vision in one eye, which of these tasks would become the most difficult? Use your data from today to justify your answer.
Depth Foundations Teacher Guide Teacher Facilitation Guide
Lesson 1: Biological Depth Foundations
GR.12 PSYCH | MOD 04
Instruction Goals
Define binocular depth cues and identify their physiological basis.
Differentiate between Retinal Disparity and Convergence.
Collect and analyze data on visual breakdown points.
Pacing (55 Min)
00-10: The "Sausage Finger" Hook & Discussion
10-25: Interactive Direct Instruction (Slides)
25-45: Lab Activity: Disparity & Convergence
45-55: Debrief & Synthesis Question
Materials Needed
Pencils (1 per student)
Metric Rulers (1 per pair)
Lab Worksheets
Depth Foundations Slides
Misconception Alert: Disparity vs. Convergence
Students often confuse the two. Clarify that Disparity is an image-based cue (the brain compares two flat pictures), while Convergence is a muscular cue (the brain feels the tension in the eye muscles).
Lab Troubleshooting
Ex 1: Retinal Disparity
Ensure students hold the pencil at a consistent distance. If they close the same eye twice, they won't see the "jump". Stress that the jump increases as the object gets closer.
Ex 2: Convergence
Remind partners to move the object slowly. If moved too fast, the brain can't track the muscular feedback effectively, leading to inconsistent data.
Synthesis Answer Key
Question: Difficulties with Monocular Vision
A person with one eye loses both Retinal Disparity and Convergence. The most difficult task would be judging distances of close-up objects (within 10 feet), such as threading a needle or catching a small ball.
Evidence from Lab
"My data showed that the 'jump' (disparity) was significantly larger when the pencil was close, suggesting that's where the brain relies on it most. Without that second viewpoint, the brain can't calculate that specific depth."
Monocular Cues Slides Lesson 02: Monocular Cues
Mastering Monocular Cues
How artists trick the eye into seeing depth on a flat canvas.
The Railroad Paradox
We know the rails are parallel...
So why does our brain insist they touch in the distance?
Linear Perspective
A Monocular Cue
Monocular "Pictorial" Cues
The Definition
Distance cues available to either eye alone.
The Artistic Connection
These are the tools painters use to turn a flat 2D canvas into a perceived 3D world.
Pictorial Toolset: Cues 1-3
Relative Size
If two objects are similar in size, the one that casts the smaller retinal image is perceived as farther away.
Interposition
If one object partially blocks our view of another, we perceive it as closer (overlap).
Relative Clarity
Hazy objects are perceived as farther away because light from distant objects passes through more atmosphere.
Pictorial Toolset: Cues 4-6
Texture Gradient
A gradual change from a coarse, distinct texture to a fine, indistinct texture signals increasing distance.
Relative Height
Objects higher in our field of vision are perceived as farther away.
Light & Shadow
Nearby objects reflect more light to our eyes. Shading produces a sense of depth consistent with our light source.
Art Detective Challenge
"Every masterpiece is a study in deception."
Open your activity packets. We are going to analyze how Renaissance masters "faked" reality.
Art Detective Worksheet Art Detective Dispatch
Case Study: Decoding the Renaissance Masters
Detective Name:
Badge No:
"Before the 15th century, art was often flat. Figures were sized by importance rather than distance. Then, artists like Brunelleschi and Raphael unlocked the secrets of the brain's monocular cues. Your mission is to diagnose these 'tricks' in the field."
EXHIBIT A
The School of Athens (Raphael)
Refer to the projected slide for the full-color masterpiece.
Key Detail:
Notice the floor tiles and the arches stretching toward the center.
1. Identify the primary cue used in the floor tiles:
Linear Perspective
Relative Clarity
How do you know?
EXHIBIT B
Landscape with the Fall of Icarus (Bruegel)
In this painting, a plowman in the foreground is rendered in vivid detail and large scale, while a ship further out is tiny and a distant city is hazy and blue-tinted.
2. Identify three (3) monocular cues used here:
01
02
03
Forensic Application
Why does the brain interpret "hazy/blue-tinted" as "distant"?
Field Report: The Architect's Dilemma
Imagine you are tasked with designing a hallway that appears three times longer than it actually is. Using at least three monocular cues from today's lesson, explain your design strategy.
Strategy Sketch
Monocular Cues Teacher Guide Teacher Facilitation Guide
Lesson 2: Mastering Monocular Cues
GR.12 PSYCH | MOD 04
Instruction Goals
Identify 6+ monocular (pictorial) depth cues in visual media.
Analyze how historical artists applied psychological principles to create depth.
Apply monocular cue knowledge to hypothetical architectural problems.
Pacing (55 Min)
00-05: The Railroad Track Hook (Slide 2)
05-20: Cue Gallery Direct Instruction (Slides 3-5)
20-45: Art Detective Activity (Worksheet)
45-55: Hallway Design Synthesis Challenge
Key Cues to Emphasize
Linear Perspective
Interposition
Relative Clarity
Texture Gradient
Relative Height
Art Detective Answer Key
Exhibit A: School of Athens
Primary Cue: Linear Perspective. The floor tiles and architectural arches all converge toward the central figures (Plato and Aristotle), creating a "vanishing point."
Exhibit B: Landscape with Fall of Icarus
Cues Identified:
Relative Size: Giant plowman vs tiny ship.
Relative Clarity: Distant city is hazy/blurred.
Relative Height: The distant city is higher on the canvas than the foreground plowman.
Texture Gradient: Detailed furrows in foreground field vs smooth water in distance.
Facilitation Tips
Atmospheric Perspective: When discussing "Relative Clarity," mention that this is often called "Atmospheric Perspective." The air isn't perfectly clear; moisture and dust scatter light (especially blue light), which is why distant mountains look blue and hazy.
Linear Perspective Challenge: If students struggle with the Hallway Design task, suggest they make the tiles in the back much smaller and closer together than the tiles in the front (Texture Gradient + Relative Size).
Motion and Texture Slides Lesson 03: Dynamics of Depth
Motion & Texture
Decoding the world through movement and patterns.
The Train Window Effect
Look out the window of a moving train...
Nearby telephone poles blur past you instantly.
Distant mountains seem to hardly move at all.
Motion Parallax
The Brain's Speedometer for Distance
Simulation: The Moving Landscape
[Video URL to be provided by Instructor]
FIG 3.1: DYNAMIC DEPTH ANALYSIS
Defining Motion Parallax
As we move, objects at different distances appear to move at different speeds.
Fast
= Object is Close
Slow
= Object is Far
Speed Correlation Data
Cue #7: Texture Gradient
The Density of Detail
VISUAL DENSITY MAP
Objects that are far away appear densely packed and lack fine detail.
Nearby objects have distinct, identifiable textures.
"Think of a field of flowers: you can see individual petals near your feet, but the far end of the field looks like a solid carpet of color."
The Fixation Rule
Objects closer than your fixation point appear to move backward.
Objects farther than your fixation point appear to move forward (with you).
Predicting Motion Geometry

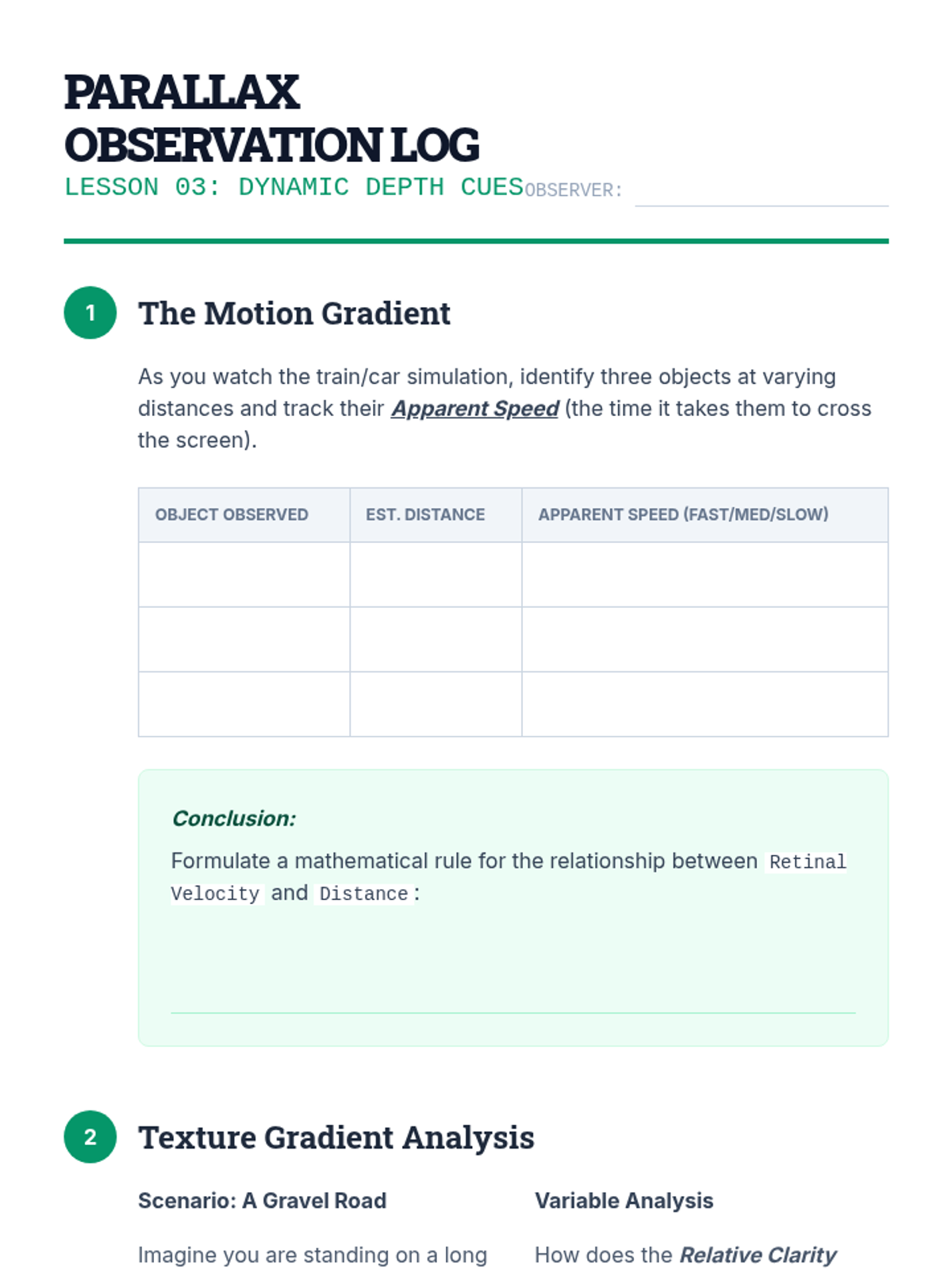

Parallax Observation Log Parallax Observation Log
Lesson 03: Dynamic Depth Cues
Observer:
1
The Motion Gradient
As you watch the train/car simulation, identify three objects at varying distances and track their Apparent Speed (the time it takes them to cross the screen).
Object Observed Est. Distance Apparent Speed (Fast/Med/Slow)
Conclusion:
Formulate a mathematical rule for the relationship between Retinal Velocity and Distance:
2
Texture Gradient Analysis
Scenario: A Gravel Road
Imagine you are standing on a long gravel road. Describe the visual "texture" of the road at your feet versus the texture 100 meters away.
Variable Analysis
How does the Relative Clarity (from Lesson 2) work together with Texture Gradient to signal extreme distance?
Fixation Point Mastery
You are driving and focusing your eyes on a tree 50 meters away. Based on the "Fixation Point Rule," describe the apparent direction of motion for the following objects:
The Hood of your Car
~2 meters away
Moving Forward
Moving Backward
Distant Clouds
~5 kilometers away
Moving Forward
Moving Backward
Scientific Explanation:
Why does the direction change based on the fixation point? (Hint: Think about the angle of light hitting the retina.)

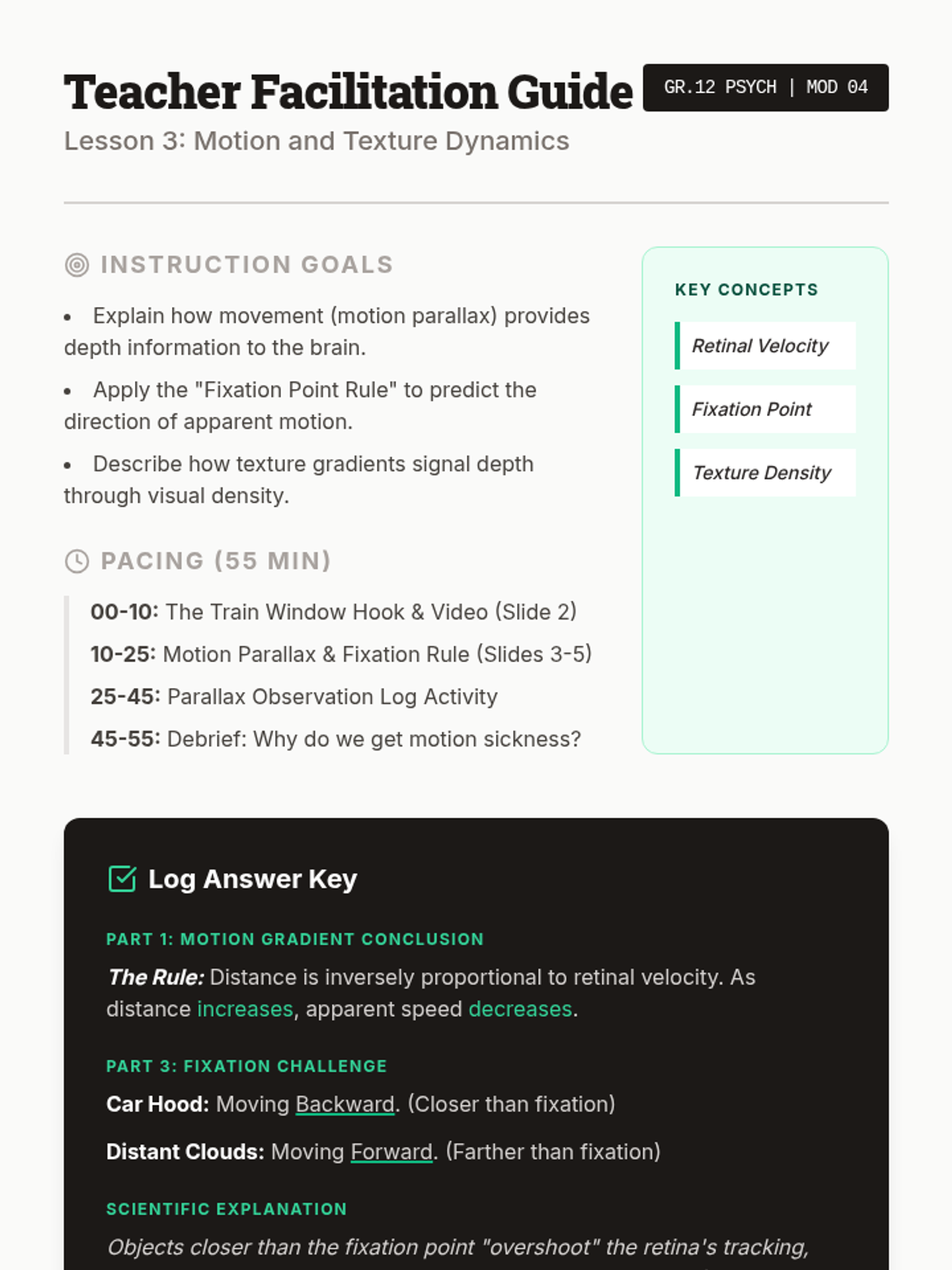

Motion Parallax Teacher Guide Teacher Facilitation Guide
Lesson 3: Motion and Texture Dynamics
GR.12 PSYCH | MOD 04
Instruction Goals
Explain how movement (motion parallax) provides depth information to the brain.
Apply the "Fixation Point Rule" to predict the direction of apparent motion.
Describe how texture gradients signal depth through visual density.
Pacing (55 Min)
00-10: The Train Window Hook & Video (Slide 2)
10-25: Motion Parallax & Fixation Rule (Slides 3-5)
25-45: Parallax Observation Log Activity
45-55: Debrief: Why do we get motion sickness?
Key Concepts
Retinal Velocity
Fixation Point
Texture Density
Log Answer Key
Part 1: Motion Gradient Conclusion
The Rule: Distance is inversely proportional to retinal velocity. As distance increases, apparent speed decreases.
Part 3: Fixation Challenge
Car Hood: Moving Backward. (Closer than fixation)
Distant Clouds: Moving Forward. (Farther than fixation)
Scientific Explanation
Objects closer than the fixation point "overshoot" the retina's tracking, creating backward motion relative to the observer. Objects farther away "lag" behind our movement, appearing to follow us.
The "Fixation Point" Demo
Have students focus on a poster on the far wall (fixation point). Ask them to move their head side to side. Notice how objects between them and the poster move opposite to their head, while the poster and wall move with them.
Motion Sickness Connection
Discuss how motion sickness often occurs when the eyes (seeing motion) and the inner ear (feeling motion) send conflicting depth signals to the brain. Looking at the horizon (far distance, low parallax) often helps.
Perceptual Constancy Slides Lesson 04: Perceptual Stability
The Constancy Challenge
Why the world stays still when your eyes say it's changing.
The Ames Room Paradox
The Shrinking Human
[Ames Room Demonstration Video]
Your brain has a choice...
In the Ames Room, either the room is a weird trapezoid, or people can shrink and grow at will.
Size Constancy:
The brain usually prioritizes "room stability" over "object size," which is why the illusion works.
Defining Constancy
The ability to perceive objects as unchanging (having consistent lightness, color, shape, and size)...
...even as illumination and retinal images change.
01
Shape Constancy
We perceive the form of familiar objects (like a door) as constant even while our retinal image of it changes.
Input Change vs Perception Stable
02
Size Constancy
We perceive objects as having a constant size, even while our distance from them varies.
The Formula:
Distance + Retinal Image = Constant Size
03
Color & Brightness
We perceive an object as having a steady color even if changing illumination alters the wavelengths reflected by the object.
"An apple looks red in bright sunlight, at sunset, and in a dim room—even though the light actually hitting your eye is totally different in each case."
BRIGHT LIGHT
SHADOW
Brain Corrects for Context
The Constancy Challenge
"Can you break your own brain's stability?"
We are going to attempt to 'break' size constancy using the Moon Illusion effect in our classroom.
Constancy Challenge Lab Sheet The Constancy Challenge
Vision Lab 04: Perceptual Stability
Subject:
1
Size-Distance Scaling
"Size constancy depends on the brain's ability to use distance cues to scale its interpretation of a retinal image. If distance cues are removed or faked, our perception of size breaks."
The Experiment:
Have a partner hold a coin 1 meter away.
Estimate its diameter (cm).
Close one eye and look through a "tube" (rolled paper) to block peripheral distance cues.
Have the partner move the coin to 3 meters.
Data Log
Perceived Size (1m): ________ cm
Perceived Size (3m): ________ cm
Observation:
Did the object appear to shrink as it moved away, or did it remain 'constant'? How did the view through the tube change your perception?
2
The Ponzo Illusion Analysis
FIG 4.1: PONZO EFFECT
In the diagram to the left, which yellow bar appears longer? (Top or Bottom).
Note: Both bars are mathematically identical in length.
The Psychological "Why":
Explain how Linear Perspective (the 'tracks') tricks the brain into using Size Constancy incorrectly here.
The Stability Synthesis
Why is Perceptual Constancy considered a "Top-Down" processing mechanism? How does it help us survive in a world where lighting and viewpoints are constantly changing?
Perceptual Constancy Teacher Guide Teacher Facilitation Guide
Lesson 4: Perceptual Constancy
GR.12 PSYCH | MOD 04
Instruction Goals
Define perceptual constancy (size, shape, color, brightness).
Explain the psychological mechanism of the Ames Room and Ponzo illusions.
Demonstrate how context influences the brain's interpretation of sensory data.
Pacing (55 Min)
00-10: Ames Room Hook & Discussion (Slide 2)
10-25: Types of Constancy Instruction (Slides 3-5)
25-45: Size-Distance Scaling & Ponzo Lab
45-55: Synthesis: Survival & Top-Down Processing
Key Illusions
Ames Room
Ponzo Illusion
Moon Illusion
Lab Answer Key
Part 1: Size-Distance Scaling Observation
The Result: Without the tube, the coin should look constant (Size Constancy). With the tube, distance cues (like floor texture and walls) are gone. The coin will appear to physically shrink as it moves away because the brain has no 'distance' variable to multiply with the 'retinal image' size.
Part 2: The Ponzo Why?
The brain sees the converging lines as a railroad track going into the distance (Linear Perspective). Because the top bar sits 'farther' up the tracks, the brain assumes it must be physically larger than the bottom bar to cast an identical retinal image. It scales the perceived size up automatically.
Part 3: Top-Down Processing
Constancy is Top-Down because it relies on our prior knowledge and expectations about the world (e.g., "rooms are rectangular," "doors don't change shape"). Without it, the world would be a chaotic, dizzying place where everything appears to warp and pulse as we move.
Facilitation Tips
The "Door" Demo: To reinforce shape constancy, simply open and close the classroom door slowly. Ask students what shape it is. They will say "rectangle." Then ask what shape the light hitting their eye is (a trapezoid).
Müller-Lyer Connection: If time permits, connect size constancy to the Müller-Lyer illusion (arrows). Explain that people in "carpentered worlds" (with corners and straight lines) are more susceptible to these illusions than those in cultures with circular dwellings.
Virtual Reality Slides Lesson 05: Application & Synthesis
Virtual Realities
Synthesizing depth cues in the digital age.
The Quest for Immersion
8-BIT ERA
Low-Fidelity Depth
No Texture Gradient
Flat Shadows
Basic Interposition
MODERN ERA
Hyper-Realistic Depth
Ray-Traced Shadows
Complex Parallax
Atmospheric Haze
VR & Stereopsis
Virtual Reality headsets don't just show one screen—they show two slightly different screens.
Synthetic Disparity
By rendering images from two virtual "cameras" spaced 6.4cm apart, the VR engine mimics Retinal Disparity in real-time.
Left Image
Right Image
Binocular Feed Active
Why VR makes you Dizzy
The Conflict:
Your eyes converge on a distant virtual mountain, but they must physically focus on a screen only 2 inches from your face.
The Brain's Logic Error
Warning: Sensory Mismatch Detected
Final Assessment
"Diagnosis of the Three-Dimensional Mind."
You are now the lead Perception Architect. Your exam involves identifying cues in games, critiquing VR, and diagnosing why illusions fail.

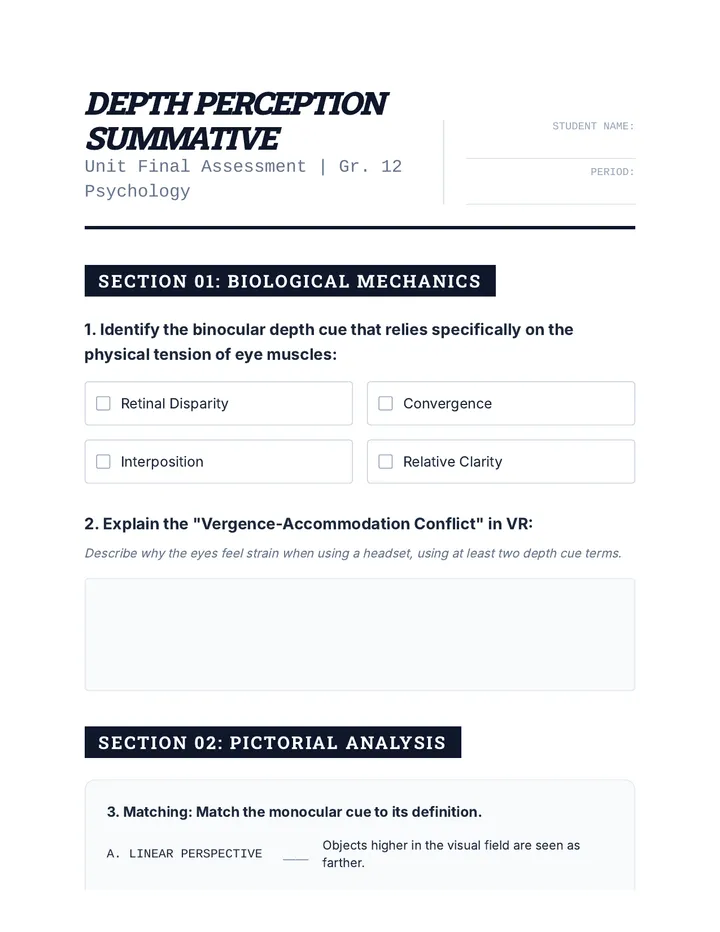

Depth Perception Final Assessment Depth Perception Summative
Unit Final Assessment | Gr. 12 Psychology
Student Name:
Period:
Section 01: Biological Mechanics
1. Identify the binocular depth cue that relies specifically on the physical tension of eye muscles:
Retinal Disparity
Convergence
Interposition
Relative Clarity
2. Explain the "Vergence-Accommodation Conflict" in VR:
Describe why the eyes feel strain when using a headset, using at least two depth cue terms.
Section 02: Pictorial Analysis
3. Matching: Match the monocular cue to its definition.
A. Linear Perspective ____ Objects higher in the visual field are seen as farther.
B. Relative Height ____ Parallel lines appear to converge in the distance.
C. Texture Gradient ____ Coarse detail shifts to fine, indistinct detail.
4. Application: The Game Designer's Critique
A game developer wants to create a scene with a massive skyscraper. List three specific monocular cues they should use to ensure the skyscraper looks truly distant and massive on a 2D screen.
1
2
3
Section 03: The Constancy Lab
5. The Ames Room Diagnosis:
Why does a person appear to shrink as they walk from one corner of the Ames Room to the other? (Select the most accurate psychological explanation)
The brain maintains Size Constancy but ignores distance.
The brain maintains Shape Constancy (room is a rectangle) and sacrifices size constancy.
The brain uses Motion Parallax to calculate the person's true height.
6. Final Synthesis Challenge:
"We do not see things as they are; we see them as we are." Explain this quote in the context of Top-Down Processing and Perceptual Organization. Use at least one example of an optical illusion discussed in class.
End of Examination | Depth Perception Unit 04

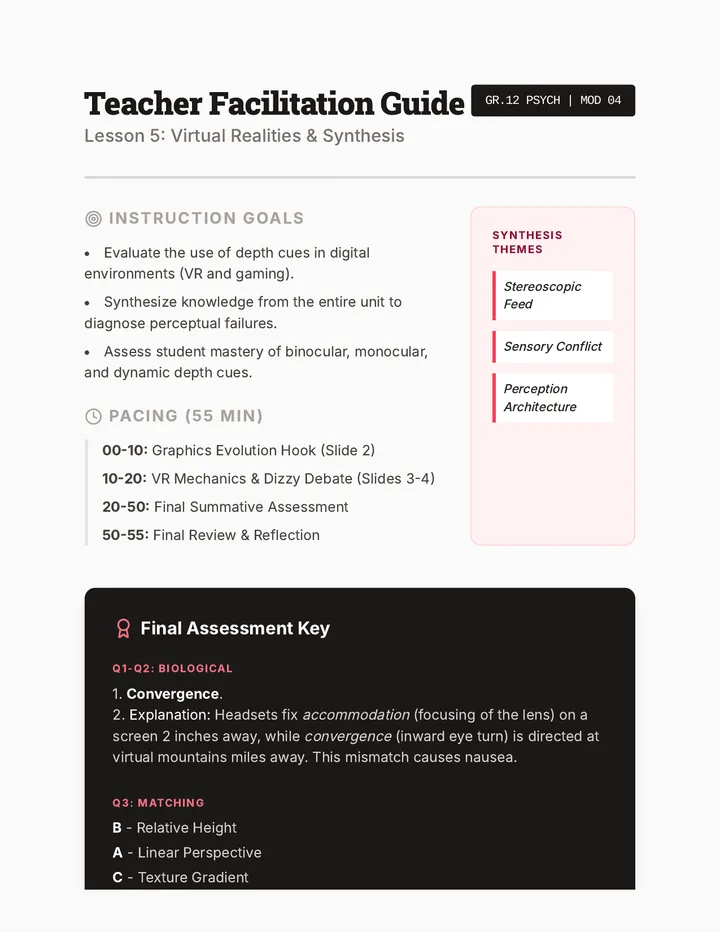

Virtual Depth Teacher Guide Teacher Facilitation Guide
Lesson 5: Virtual Realities & Synthesis
GR.12 PSYCH | MOD 04
Instruction Goals
Evaluate the use of depth cues in digital environments (VR and gaming).
Synthesize knowledge from the entire unit to diagnose perceptual failures.
Assess student mastery of binocular, monocular, and dynamic depth cues.
Pacing (55 Min)
00-10: Graphics Evolution Hook (Slide 2)
10-20: VR Mechanics & Dizzy Debate (Slides 3-4)
20-50: Final Summative Assessment
50-55: Final Review & Reflection
Synthesis Themes
Stereoscopic Feed
Sensory Conflict
Perception Architecture
Final Assessment Key
Q1-Q2: Biological
1. Convergence.
Q3: Matching
B - Relative Height
A - Linear Perspective
C - Texture Gradient
Q5: Ames Room
Option B: The brain prioritizes Shape Constancy. Because we "know" rooms are rectangular, the brain interprets the change in retinal image size as a change in the person's physical height rather than a change in the room's geometry.
Q6: Synthesis Rubric (Top-Down Processing)
Level Criteria Proficient Correctly identifies constancy as a top-down process. Uses an illusion (e.g., Ames Room or Ponzo) to show how prior knowledge/context overrides raw sensory data. Developing Defines constancy but fails to connect it to top-down processing or provides a generic example without unit-specific depth cues.
