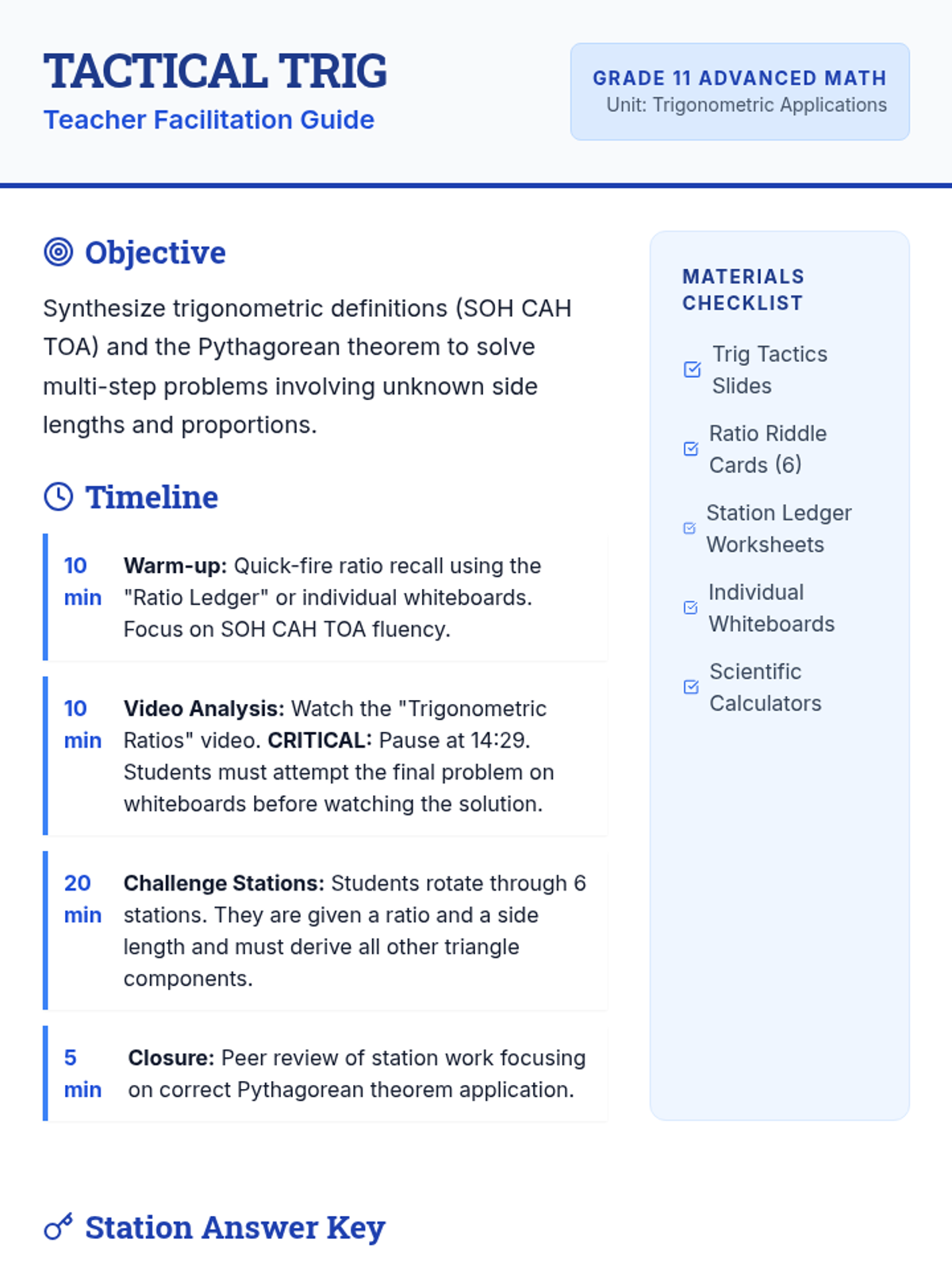

Tactical Trig Teacher Guide
Tactical Trig
Teacher Facilitation Guide
Grade 11 Advanced Math
Unit: Trigonometric Applications
Objective
Synthesize trigonometric definitions (SOH CAH TOA) and the Pythagorean theorem to solve multi-step problems involving unknown side lengths and proportions.
Timeline
10 min Warm-up: Quick-fire ratio recall using the "Ratio Ledger" or individual whiteboards. Focus on SOH CAH TOA fluency.
10 min Video Analysis: Watch the "Trigonometric Ratios" video. CRITICAL: Pause at 14:29. Students must attempt the final problem on whiteboards before watching the solution.
20 min Challenge Stations: Students rotate through 6 stations. They are given a ratio and a side length and must derive all other triangle components.
5 min Closure: Peer review of station work focusing on correct Pythagorean theorem application.
Materials Checklist
- Trig Tactics Slides
- Ratio Riddle Cards (6)

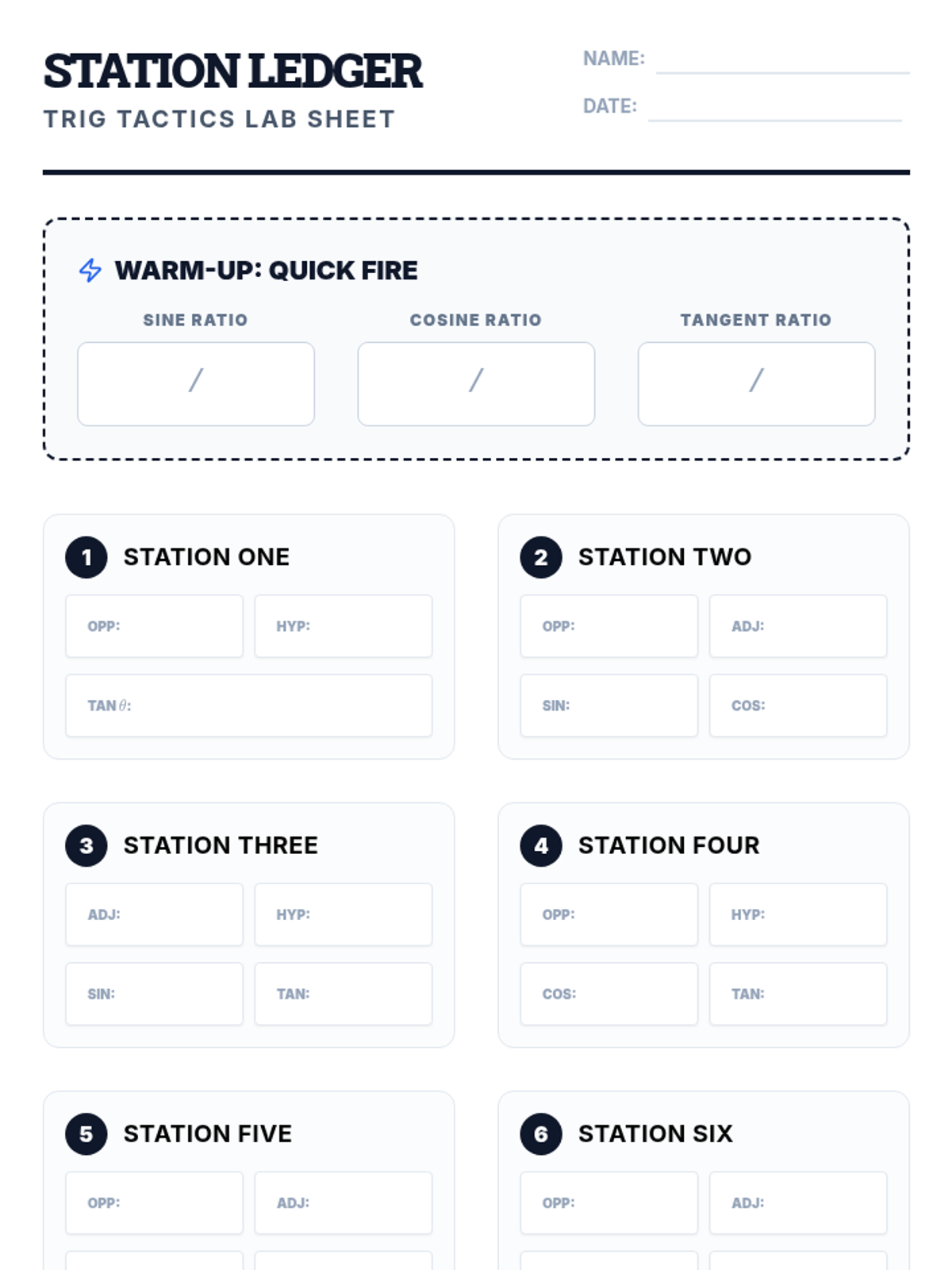

- Station Ledger Worksheets
- Individual Whiteboards
- Scientific Calculators
Station Answer Key
| Station | Given Info | Correct Solution Details |
|---|
| 1 | \(\sin \theta = \frac{7}{25}\), adj = 48 | Let opp = \(7k\), hyp = \(25k\). Use Pythagorean triple \(7, 24, 25\). |
| Adj = \(24k = 48 \Rightarrow k=2\). | | |
| Opp = 14, Hyp = 50, \(\tan \theta = \frac{14}{48} = \frac{7}{24}\) | | |
| 2 | \(\tan A = \frac{12}{5}\), hyp = 39 | Let opp = \(12k\), adj = \(5k\). Hyp = \(13k = 39 \Rightarrow k=3\). |
| Opp = 36, Adj = 15, \(\sin A = \frac{36}{39} = \frac{12}{13}, \cos A = \frac{15}{39} = \frac{5}{13}\) | | |
| 3 | \(\cos B = \frac{15}{17}\), opp = 16 | Let adj = \(15k\), hyp = \(17k\). Opp = \(8k = 16 \Rightarrow k=2\). |
| Adj = 30, Hyp = 34, \(\sin B = \frac{16}{34} = \frac{8}{17}, \tan B = \frac{16}{30} = \frac{8}{15}\) | | |
| 4 | \(\sin A = \frac{4}{5}\), adj = 9 | Let opp = \(4k\), hyp = \(5k\). Adj = \(3k = 9 \Rightarrow k=3\). |
| Opp = 12, Hyp = 15, \(\cos A = \frac{9}{15} = \frac{3}{5}, \tan A = \frac{12}{9} = \frac{4}{3}\) | | |
| 5 | \(\tan \theta = \frac{3}{4}\), hyp = 25 | Let opp = \(3k\), adj = \(4k\). Hyp = \(5k = 25 \Rightarrow k=5\). |
| Opp = 15, Adj = 20, \(\sin \theta = \frac{15}{25} = \frac{3}{5}, \cos \theta = \frac{20}{25} = \frac{4}{5}\) | | |
| 6 | \(\cos \theta = \frac{1}{\sqrt{2}}\), hyp = 14 | Special triangle (45-45-90). Sides are equal. \(s\sqrt{2} = 14 \Rightarrow s = \frac{14}{\sqrt{2}} = 7\sqrt{2}\). |
| Opp = \(7\sqrt{2}\), Adj = \(7\sqrt{2}\), \(\sin \theta = \frac{1}{\sqrt{2}}\), \(\tan \theta = 1\) | | |
Anticipating Misconceptions
-
1
Proportion vs. Direct Assignment: Students may see \(\tan A = 3/4\) and assume the sides *are* 3 and 4. Emphasize that these are ratios and use the \(k\) multiplier (e.g., \(3k, 4k\)) to solve with the given side.
-
2
Variable in Denominator: When solving \( \cos(50) = 18/y \), watch for students multiplying by 18. Remind them to treat it as a proportion: \( \frac{\cos(50)}{1} = \frac{18}{y} \).
Trig Tactics Presentation
Trig Tactics
Synthesizing Ratios & The Pythagorean Theorem
Grade 11 Advanced Math
Warm-up: Ratio Recall
10 Minutes • Quick-Fire Round
SOH CAH TOA
Challenge:
- Define Sin, Cos, and Tan ratios.
- Which side is ALWAYS opposite the 90° angle?
- How do "opposite" and "adjacent" change?
15 8 17 A
Write Sin(A), Cos(A), and Tan(A)
Visual Breakdown
Watch closely: pause at 14:29 for the challenge!
Embedded media
The Mission
Pause at 14:29. Use the given info: \(\cos(A) = 5/13\), \(AC = 52\).
The Goal
Calculate \(\sin(A)\) before the narrator reveals the answer!
Ratio Riddles
1
The Setup
Visit each of the 6 stations. Each card gives you one ratio and one side length.
2
The Solve
On your whiteboard, find the missing side lengths and the other trig ratios. Show your work!
3
The Ledger
Once verified on your whiteboard, record your final findings in your Station Ledger.
Tactical Audit
Exchange your Station Ledger with a partner.
Verification Check:
Pick one station. Does \(a^2 + b^2 = c^2\) hold true for their calculated sides?
Great Work Today!
Ratio Riddle Cards
Ratio Riddle Cards
Station Activity • Tactical Trig
GRADE 11 ADV
STATION 01
THE GIVEN RATIO
\[ \sin \theta = \frac{7}{25} \]
Adjacent Side = 48
MISSION: Find Opp, Hyp, and \(\tan \theta\)
STATION 02
THE GIVEN RATIO
\[ \tan A = \frac{12}{5} \]
Hypotenuse = 39
MISSION: Find Opp, Adj, \(\sin A\), and \(\cos A\)
STATION 03
THE GIVEN RATIO
\[ \cos B = \frac{15}{17} \]
Opposite Side = 16
MISSION: Find Adj, Hyp, \(\sin B\), and \(\tan B\)
STATION 04
THE GIVEN RATIO
\[ \sin A = \frac{4}{5} \]
Adjacent Side = 9
MISSION: Find Opp, Hyp, \(\cos A\), and \(\tan A\)
STATION 05
THE GIVEN RATIO
\[ \tan \theta = \frac{3}{4} \]
Hypotenuse = 25
MISSION: Find Opp, Adj, \(\sin \theta\), and \(\cos \theta\)
STATION 06
THE GIVEN RATIO
\[ \cos \theta = \frac{1}{\sqrt{2}} \]
Hypotenuse = 14
MISSION: Find Opp, Adj, \(\sin \theta\), and \(\tan \theta\)
