Wave Theory Reference

Advanced Electrodynamics

Maxwell Laws

Gauge Theory

Wave Solution

Polarization

Maxwell Equations (Differential)

\[ \nabla \cdot \mathbf{E} = \rho / \epsilon_0 \]
\[ \nabla \cdot \mathbf{B} = 0 \]
\[ \nabla \times \mathbf{E} = -\partial \mathbf{B} / \partial t \]
\[ \nabla \times \mathbf{B} = \mu_0 \mathbf{J} + \mu_0 \epsilon_0 \partial \mathbf{E} / \partial t \]

Conservation Laws

Poynting's Theorem:

\[ \frac{\partial u}{\partial t} + \nabla \cdot \mathbf{S} = -\mathbf{J} \cdot \mathbf{E} \]

Density \(u\):

\[ \frac{1}{2}(\epsilon_0 E^2 + \frac{1}{\mu_0} B^2) \]

Flux \(\mathbf{S}\):

\[ \frac{1}{\mu_0}(\mathbf{E} \times \mathbf{B}) \]

Gauges

Coulomb Gauge:

\[ \nabla \cdot \mathbf{A} = 0 \ foliage]

Lorenz Gauge:

\[ \nabla \cdot \mathbf{A} + \frac{1}{c^2} \frac{\partial \Phi}{\partial t} = 0 \]

Retarded Potentials

\[ \Phi(\mathbf{r}, t) = \frac{1}{4\pi\epsilon_0} \int \frac{\rho(\mathbf{r}', t_r)}{|\mathbf{r} - \mathbf{r}'|} d\mathbf{r}' \]

\[ \mathbf{A}(\mathbf{r}, t) = \frac{\mu_0}{4\pi} \int \frac{\mathbf{J}(\mathbf{r}', t_r)}{|\mathbf{r} - \mathbf{r}'|} d\mathbf{r}' \]

Where retarded time \(t_r = t - |\mathbf{r} - \mathbf{r}'|/c\)

Monochromatic Waves

\[ \mathbf{E} = \mathbf{E}_0 e^{i(\mathbf{k} \cdot \mathbf{r} - \omega t)} \]

Wave Number: \(k = \omega/v = n\omega/c\)

Transverse: \(\mathbf{k} \cdot \mathbf{E}_0 = 0\)

Magnetic: \(\mathbf{B}_0 = \frac{1}{\omega} (\mathbf{k} \times \mathbf{E}_0)\)

Intensity: \(I = \frac{1}{2} c \epsilon_0 n E_0^2\)

Polarization Calculus

Jones Vector

Lin Horz: \(\begin{pmatrix} 1 \\ 0 \end{pmatrix}\)

Lin Vert: \(\begin{pmatrix} 0 \\ 1 \end{pmatrix}\)

RHC: \(\frac{1}{\sqrt{2}} \begin{pmatrix} 1 \\ -i \end{pmatrix}\)

Stokes (I,Q,U,V)

\(I = |E_x|^2 + |E_y|^2\)

\(Q = |E_x|^2 - |E_y|^2\)

\(U = 2\text{Re}(E_x E_y^*)\)

\(V = 2\text{Im}(E_x E_y^*)\)

Degree of Polarization: \(P = \frac{\sqrt{Q^2 + U^2 + V^2}}{I}\)

Advanced Electrodynamics Potentials and Wave Theory

Field Conservation Laws

Gauge Invariance Mastery

Causal Wave Solutions

Plane Wave Dynamics

Polarization Matrix Algebra

Conservation Field Analysis Worksheet

Conservation Field Slides

Wave Theory Cheat Sheet

Potentials and Gauge Slides

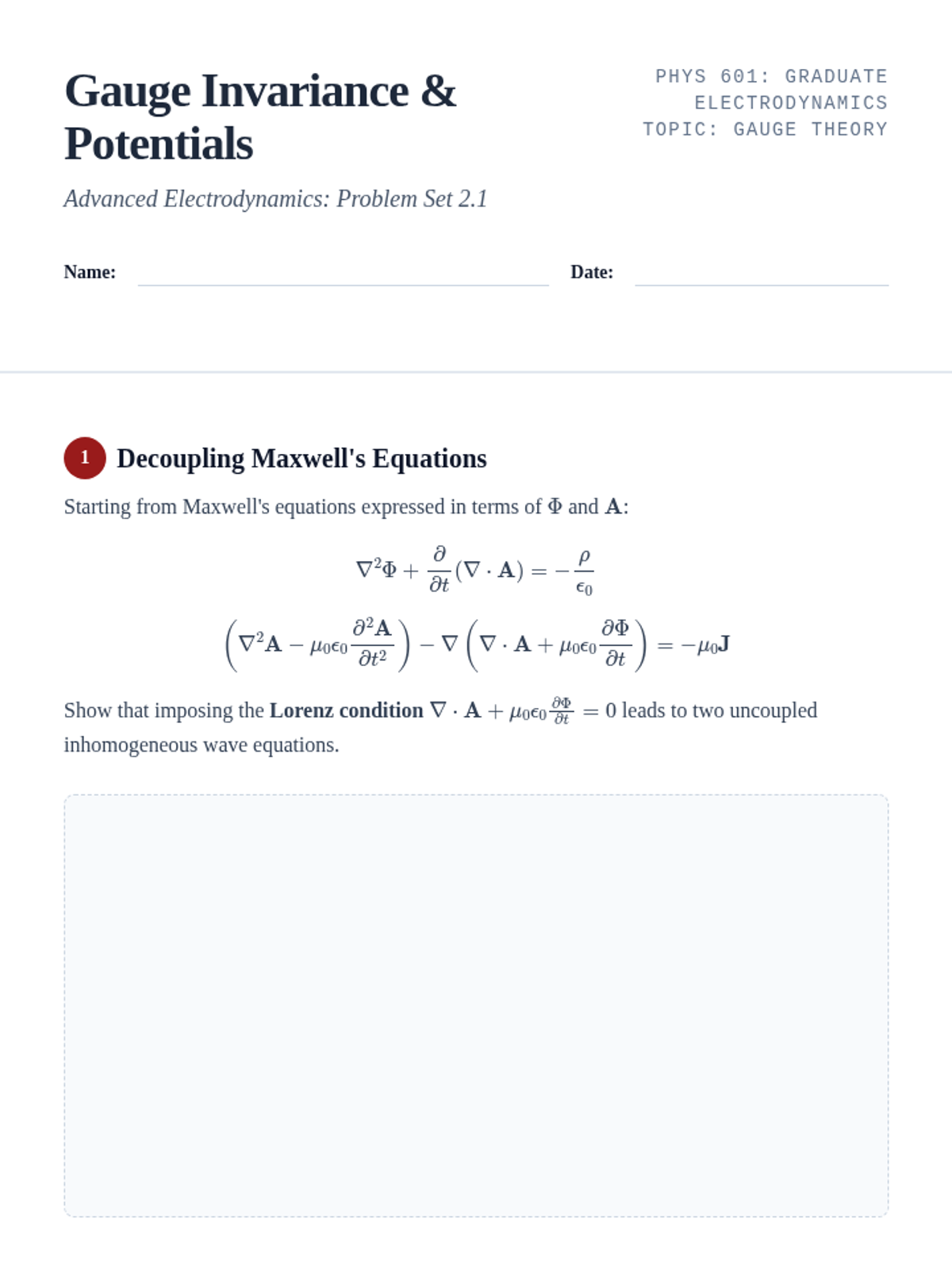

Gauge Transformation Worksheet

Green's Function Slides

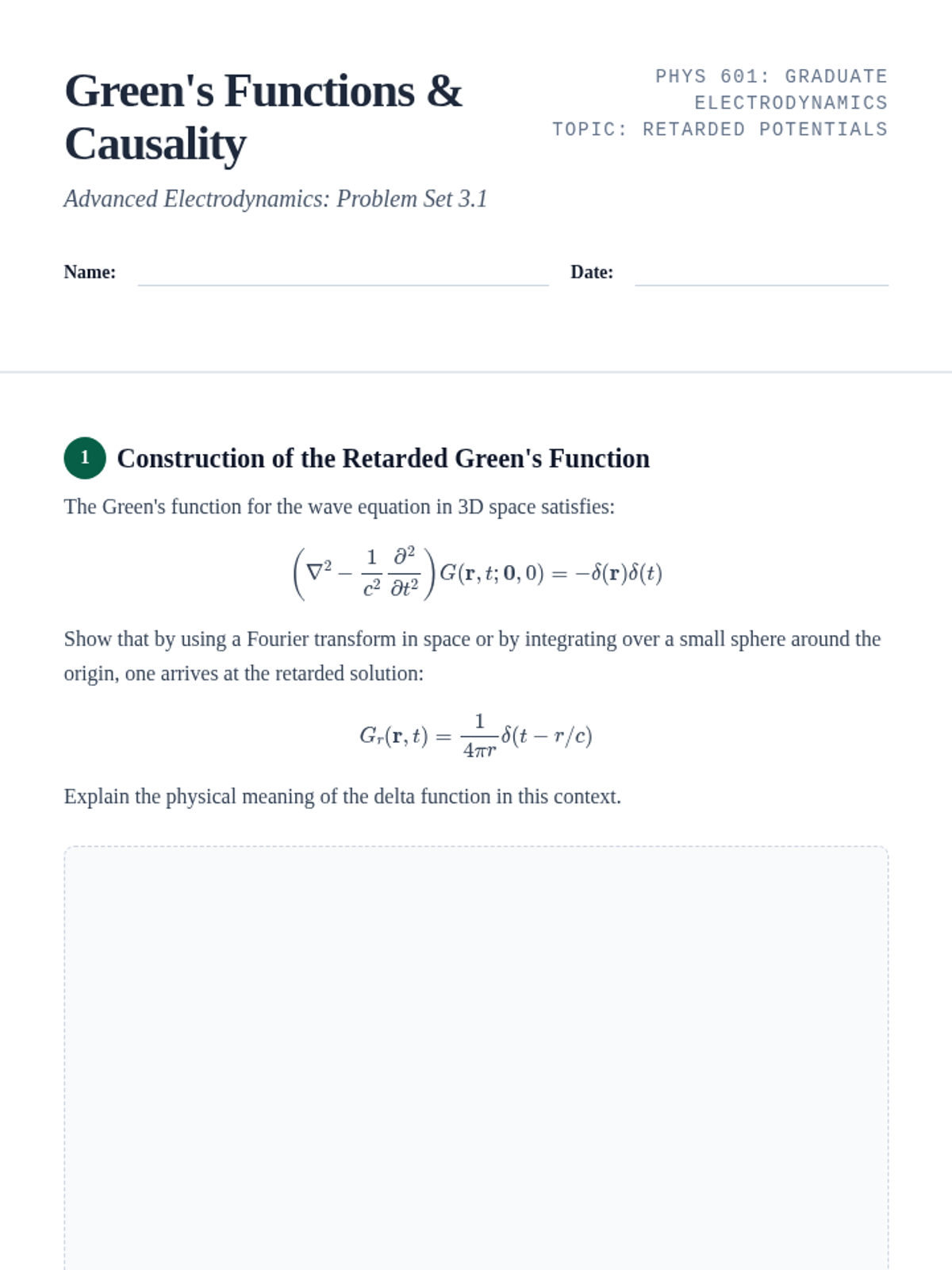

Retarded Potentials Worksheet

Plane Wave Dynamics Slides

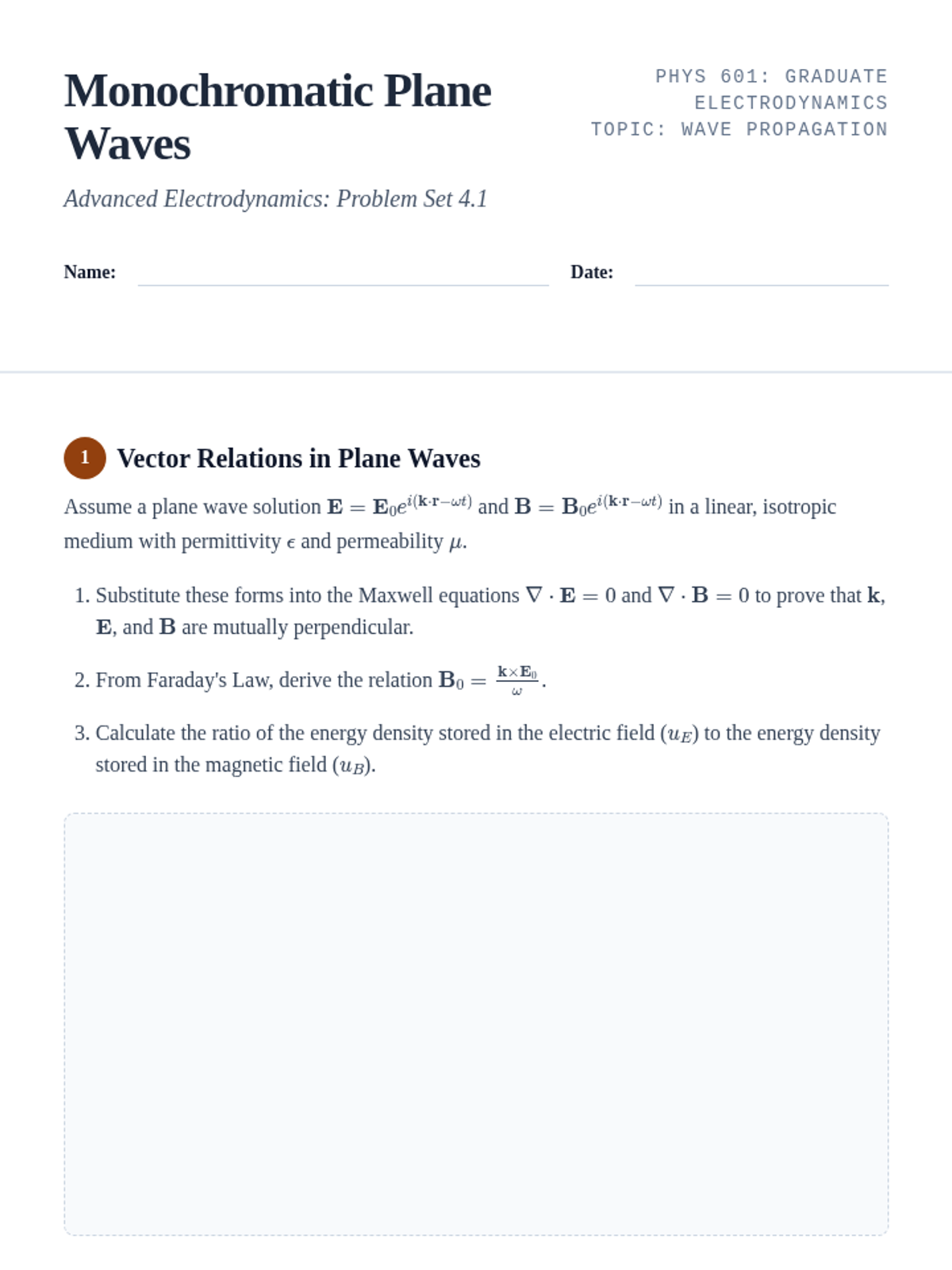

Plane Wave Analysis Worksheet

Polarization Matrix Slides

Polarization Matrix Worksheet
