Shape Studio Slides SHAPE ARCHITECT STUDIO
Designing the Hierarchy of Geometry
Grade 5 | Geometry standards 5.G.3 & 5.G.4
Today's Blueprint
01
Classify
Identify triangles and quadrilaterals based on their unique "DNA" (attributes).
02
Hierarchy
Map out how shapes fit inside larger families (e.g., Every square is a rectangle).
03
Argue
Use logic to defend why a shape belongs to a specific category.
"An architect doesn't just draw shapes; they understand the rules that hold them together."
Part 1: The Triangle Workshop
By Sides
Equilateral: 3 equal sides
Isosceles: at least 2 equal sides
Scalene: 0 equal sides
By Angles
Right: one 90° angle
Acute: 3 angles < 90°
Obtuse: one angle > 90°
Can a triangle be both right and isosceles? Why or why not?
The Quadrilateral Family Tree
Quadrilaterals (4 sides)
Parallelograms
Rectangles
Rhombuses
SQUARES
Trapezoids
Wait... do trapezoids fit into parallelograms? Let's discuss!
Attributes flow down.
Categories flow up.
TIME TO BUILD
Open your Shape Studio Worksheet. You are tasked with analyzing blueprints and defending your design choices using geometric logic.
DRAW
Sketch shapes based on strict attributes.
MAP
Organize shapes in the hierarchy.
DEBATE
Prove or disprove shape theories.
Shape Studio Worksheet Shape Studio Worksheet
Classification & Hierarchy Lab | Project #5-G-34
Architect:
Date:
1
Triangle Drafting
Draw a triangle that fits the description below. If the triangle is impossible to draw, explain why.
A. Right Isosceles Triangle
Drafting Area
Verification Checklist:
One 90° angle
Two equal side lengths
B. Obtuse Equilateral Triangle
Drafting Area
Justification:
2
The Quadrilateral Vault
Analyze the relationships between these quadrilateral families.
The Hierarchy Claim
"Every rhombus is also a parallelogram, but not every parallelogram is a rhombus."
Explain why this statement is true based on their properties:
3
The Shape Debate
Two lead architects are arguing about a shape. Read their claims and determine who is correct using evidence.
Architect Alex
"I have a shape with 4 right angles. That means it must be a square. There is no other possibility!"
Architect Blair
"Wait, Alex! Having 4 right angles only proves it is a rectangle. It could be a square, but it doesn't have to be."
Your Verdict:
Who do you agree with? Explain your reasoning using the definitions of rectangles and squares.
4
Mystery Blueprint
SPECIFICATIONS
Sides: 4
Opposite Sides: Parallel
Side Lengths: All 4 sides are equal
Angles: No right angles
Identify the shape based on the specifications:
Hierarchy Check: Is this shape a parallelogram? Explain.
"Remember: A shape inherits all the properties of the categories above it in the hierarchy!"
Shape Studio Answer Key Answer Key
Shape Studio Lab | Project #5-G-34
Teacher Reference Copy
1
Triangle Drafting
A. Right Isosceles Triangle
Key attributes:
Must have one 90° angle. Two legs must be of equal length. The angles will be 90°, 45°, and 45°.
B. Obtuse Equilateral Triangle
IMPOSSIBLE
Correct Reasoning:
An equilateral triangle must have three 60° angles. Since 60° is acute, an equilateral triangle can never be obtuse (one angle > 90°). All equilateral triangles are acute.
2
The Quadrilateral Vault
Hierarchy Reasoning:
A parallelogram is defined as a quadrilateral with two pairs of parallel sides. A rhombus is defined as a quadrilateral with four equal sides and two pairs of parallel sides. Because the rhombus has the "2 pairs of parallel sides" requirement, it fits the definition of a parallelogram. However, a parallelogram does not need to have four equal sides, so not all parallelograms are rhombuses.
3
The Shape Debate
Verdict:
Blair is correct. A rectangle is a quadrilateral with 4 right angles. A square is a rectangle with 4 equal sides. If you only know a shape has 4 right angles, you only have enough information to classify it as a rectangle. It could be a square if all sides are equal, but it could also be a non-square rectangle (where adjacent sides are different lengths).
4
Mystery Blueprint
Shape Identity:
Rhombus
Parallelogram Check:
Yes, it is a parallelogram. By definition, a rhombus has two pairs of parallel sides, which is the exact requirement for a parallelogram. It inherits the properties of the parallelogram category.
Shape Studio Worksheet Expanded Shape Studio Worksheet
Classification & Hierarchy Lab | Project #5-G-34
Architect:
Date:
1
Triangle Drafting
Draw a triangle that fits the description below. If the triangle is impossible to draw, explain why.
A. Right Isosceles Triangle
Drafting Area
B. Obtuse Equilateral Triangle
Drafting Area
Reasoning / Justification:
C. Acute Scalene Triangle
Drafting Area
D. Right Scalene Triangle
Drafting Area
2
The Property Audit
Shape Name At least 1 pair of parallel sides? 4 Equal Sides? 4 Right Angles? Square
|
|
| Rhombus |
|
|
|
| Trapezoid |
|
|
|
| Rectangle |
|
|
|
3
The Quadrilateral Vault
Hierarchy Analysis
"Every rhombus is also a parallelogram, but not every parallelogram is a rhombus."
Explain why this statement is true based on their mandatory properties:
Hierarchy Flowchart
Fill in the shapes in order from most general (top) to most specific (bottom).
Quadrilaterals
Squares
4
The Shape Debate
Two lead architects are arguing about a shape. Read their claims and determine who is correct using evidence.
Architect Alex
"I have a shape with 4 right angles. That means it must be a square. There is no other possibility!"
Architect Blair
"Wait, Alex! Having 4 right angles only proves it is a rectangle. It could be a square, but it doesn't have to be."
Your Verdict:
I agree with Architect because...
5
Mystery Blueprint
SPECIFICATIONS
Sides: 4
Opposite Sides: Parallel
All Sides: Equal Length
Angles: No right angles
Identify the shape based on the specifications:
Hierarchy Check: List EVERY category this shape belongs to (start general, end specific):
Shape Studio Answer Key Expanded Answer Key
Shape Studio Lab | Project #5-G-34 (Expanded)
Teacher Reference Copy
1
Triangle Drafting
A. Right Isosceles
Solution: 90° angle with two equal sides (45° base angles).
B. Obtuse Equilateral
Impossible
Equilateral triangles must have three 60° angles. Since 60 < 90, they are always acute.
C. Acute Scalene
Solution: All angles < 90° and all sides different lengths.
D. Right Scalene
Solution: One 90° angle and all sides different lengths (e.g., 3-4-5 triangle).
2
The Property Audit
Shape Parallel? 4 Equal Sides? 4 Right Angles? Square YES (2 pairs) YES YES Rhombus YES (2 pairs) YES Not required Trapezoid YES (at least 1 pair) Not required Not required Rectangle YES (2 pairs) Not required YES
3
Vault & Flowchart
Hierarchy logic: A rhombus has all properties of a parallelogram (2 pairs of parallel sides) plus the extra constraint of 4 equal sides. This makes it a sub-category.
Flowchart Order:
Quadrilaterals → Parallelograms → (Rectangles / Rhombuses) → Squares
4
The Shape Debate
Winner: Architect Blair. Alex's definition is incomplete. 4 right angles only defines a rectangle. To be a square, you must also prove all 4 sides are equal. Every square is a rectangle, but not every rectangle is a square.
5
Mystery Blueprint
Identity: Rhombus
Categories (Hierarchy):
Quadrilateral (4 sides)
Parallelogram (2 pairs parallel sides)
Rhombus (4 equal sides)
6
The Impossible Challenge
Key Idea: The "Kite" or "Irregular Quadrilateral"
To avoid being a trapezoid (which has at least 1 pair of parallel sides), the student must draw a shape where no sides are parallel. This is often called an irregular quadrilateral or a non-trapezoid kite.
Paper Polygon Cutouts More Paper Polygons
Teacher Master: Polygon Cutout Set
A
Square
B
Rectangle
C
Rhombus
D
Parallelogram
E
Trapezoid
F
Right Isosceles
G
Regular Pentagon
H
Kite
I
Acute Scalene
Cutting Instructions
Cut out each polygon along the black lines. Place them on your desk to begin the Hierarchy Riddles .
Hierarchy Riddle Slides HIERARCHY RIDDLES
Mystery Shapes & Logic Gates
New Vocabulary
Regular Polygon
A polygon where all sides and all angles are congruent (equal).
Irregular Polygon
A polygon where not all sides or angles are congruent.
Equilateral Polygon
A polygon where all sides are equal, regardless of the angles.
Riddle #1
Mystery Shape
Clue 1: I am a polygon with 4 sides.
Clue 2: I have 2 pairs of parallel sides.
Clue 3: All 4 of my sides are congruent.
Clue 4: All of my angles are 90 degrees.
TURN & TALK: Which shapes do we eliminate after Clue 1?
Riddle #2
The Inheritor
Clue 1: I am a regular polygon.
Clue 2: I have exactly 4 sides.
Clue 3: I am a subcategory of rectangles.
PROVE IT: Why MUST this shape have 4 right angles?
Your Independent Quest
Record your eliminations on your Riddle Record Sheet. Remember: if a category is eliminated, its subcategories go with it!
ESSENTIAL QUESTION
"How can we use a hierarchy of properties to identify a specific mystery shape?"
Riddle Record Sheet Riddle Record Sheet
"How can we use a hierarchy of properties to identify a specific mystery shape?"
Riddle Detective:
Partner:
1 Riddle #1 Analysis
Process of Elimination
Clue 1 Eliminations
Clue 2 Eliminations
Clue 3 Eliminations
Clue 4 Eliminations
Architect's Justification (MP.3):
Explain why one of your eliminated shapes could NOT be the mystery shape using math vocabulary (parallel, congruent, etc.).
Final Shape ID:
Letter: ____
2 Riddle #2 Analysis
Inheritance Logic
Clue 1 Eliminations
Clue 2 Eliminations
Clue 3 Eliminations
Hierarchy Argument (5.G.3):
Which attribute did this mystery shape inherit from the category above it?
Final Shape ID:
Letter: ____
Enrichment: Master Riddler
Create your own challenge using the paper polygons.
The Secret Shape Selection
Pick one shape (A-I) and write 4 clues that lead exactly to that shape.
TARGET ?
"Write clues from general (category) to specific (attributes)."
1
2
3
4
Vocabulary Checklist
Regular Congruent Hierarchy Subcategory Parallelogram Rhombus Acute
Riddle Answer Key Riddle Answer Key
Hierarchy Riddle Studio | Teacher Reference
Lesson 4
1
Riddle #1: The Geometric Evolution
Clue 1:
Eliminates: F, G, I. (These are not quadrilaterals; G has 5 sides, F/I have 3).
Clue 2:
Eliminates: E, H. (Trapezoids and Kites do not have 2 pairs of parallel sides).
Clue 3:
Eliminates: B, D. (Rectangles and general Parallelograms do not have 4 congruent sides).
Clue 4:
Eliminates: C. (A non-square Rhombus does not have 90 degree angles).
FINAL ANSWER: SHAPE A (Square)
2
Riddle #2: The Inheritor
Clue 1:
Eliminates: B, C, D, E, F, H, I. (These are all irregular; only A and G are regular polygons).
Clue 2:
Eliminates: G. (A regular pentagon has 5 sides).
Clue 3:
Confirmation: Shape A (Square) is a subcategory of Rectangle.
FINAL ANSWER: SHAPE A (Square)
Inheritance Note:
Because the Square is a subcategory of the Rectangle, it MUST inherit the "4 right angles" property, even if the riddle didn't explicitly state it.
Shape Studio Worksheet Expanded Compact Shape Studio Worksheet
Classification & Hierarchy Lab | Project #5-G-34
Architect:
Date:
1
Triangle Drafting
Instructions: Sketch each triangle described below. If a triangle is impossible to draw based on its properties, explain why in the provided lines.
A. Right Isosceles
Drafting Area
B. Obtuse Equilateral
Drafting Area
C. Acute Scalene
Drafting Area
D. Right Scalene
Drafting Area
2
Property Audit
Instructions: Use your knowledge of shape categories. Mark an 'X' in the box if the property always applies to that shape category.
Shape Category At least 1 pair of parallel sides? All 4 sides are equal? Has 4 right angles? Square
|
|
| Rhombus |
|
|
|
| Trapezoid |
|
|
|
| Rectangle |
|
|
|
3
Hierarchy Vault
Claim: "Every rhombus is a parallelogram , but not every parallelogram is a rhombus ." Explain why this is true:
4
The Shape Debate
Instructions: Read the argument between the two architects. Defend your verdict for who is correct using shape definitions.
ALEX "If a shape has 4 right angles, it must be a square. There is no other shape it could possibly be!"
BLAIR "Wait, Alex! Having 4 right angles only proves it is a rectangle. It might not have 4 equal sides."
Your Verdict & Reasoning:
5
Mystery Blueprint
Instructions: Use the specifications below to identify the shape. List ALL categories it belongs to (from general to specific).
SPECIFICATIONS
• Number of Sides: 4
• Opposite Sides: Parallel
• All Sides: Congruent (Equal)
• Angles: No right angles
Identify the specific shape:
Category Hierarchy Chain:

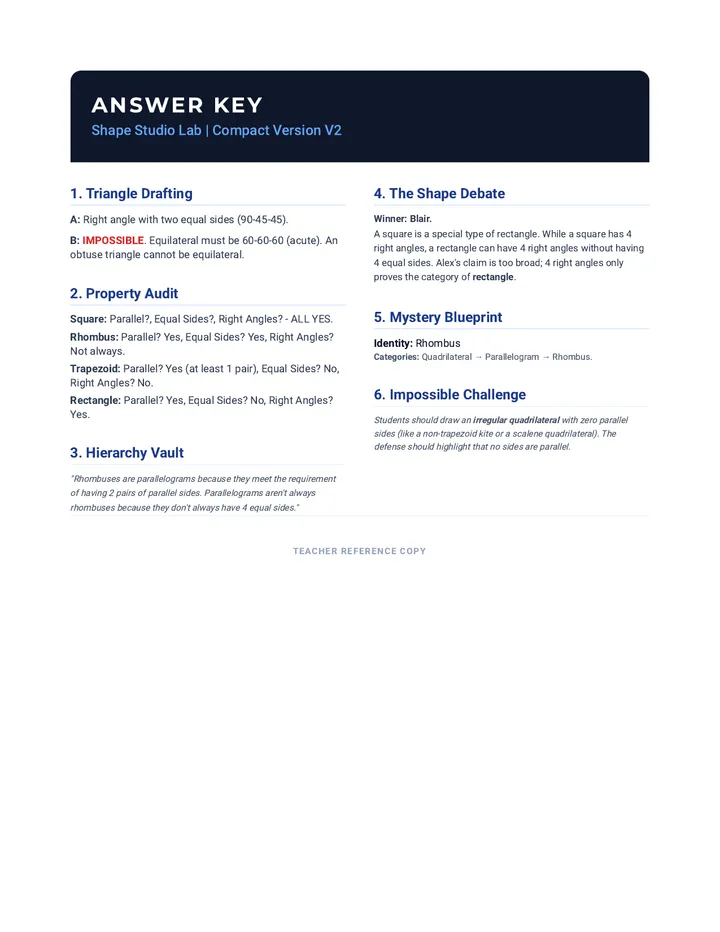

Shape Studio Answer Key Expanded Compact Answer Key
Shape Studio Lab | Compact Expanded Version
1. Triangle Drafting
A: Right angle with two equal sides.B: Impossible. Equilateral must be 60-60-60 (acute).C: Scalene with all angles < 90°.D: 90° angle with 3 different side lengths.
2. Property Audit
Square: Yes, Yes, Yes.Rhombus: Yes, Yes, No.Trapezoid: Yes (at least 1 pair), No, No.Rectangle: Yes, No, Yes.
3. Hierarchy Vault
Rhombuses are parallelograms because they have 2 pairs of parallel sides. Parallelograms are not rhombuses because they don't require 4 equal sides.
4. The Shape Debate
Winner: Blair. A square is a rectangle with 4 equal sides. Knowing only "4 right angles" only classifies the shape as a rectangle .
5. Mystery Blueprint
Identity: Rhombus
Categories: Quadrilateral → Parallelogram → Rhombus.
6. Impossible Challenge
Draw an irregular quadrilateral with zero parallel sides. Explanation must note the absence of parallel pairs.
End of Teacher Reference
Shape Studio Worksheet Expanded Compact Final Shape Studio Worksheet
Classification & Hierarchy Lab | Project #5-G-34
Architect:
Date:
1
Triangle Drafting
Instructions: Sketch each triangle described below. If a triangle is impossible to draw based on its properties, explain why in the provided lines.
A. Right Isosceles
Drafting Area
B. Obtuse Equilateral
Drafting Area
C. Acute Scalene
Drafting Area
D. Right Scalene
Drafting Area
2
Property Audit
Instructions: Use your knowledge of shape categories. Mark an 'X' in the box if the property always applies to that shape category.
Shape Category At least 1 pair of parallel sides? All 4 sides are equal? Has 4 right angles? Square
|
|
| Rhombus |
|
|
|
| Trapezoid |
|
|
|
| Rectangle |
|
|
|
3
Hierarchy Vault
Claim: "Every rhombus is a parallelogram , but not every parallelogram is a rhombus ." Explain why this is true:
4
The Shape Debate
Instructions: Read the argument between the two architects. Defend your verdict for who is correct using shape definitions and properties.
ALEX "If a shape has 4 right angles, it must be a square. There is no other shape it could possibly be!"
BLAIR "Wait, Alex! Having 4 right angles only proves it is a rectangle. It might not have 4 equal sides."
Your Verdict & Reasoning:
5
Mystery Blueprint
Instructions: Use the specifications below to identify the shape. List ALL categories it belongs to (from general to specific).
SPECIFICATIONS
• Number of Sides: 4
• Opposite Sides: Parallel
• All Sides: Congruent (Equal)
• Angles: No right angles
Identify the specific shape:
Category Hierarchy Chain:
Shape Studio Answer Key Compact Final Answer Key
Shape Studio Lab | Compact Version
1. Triangle Drafting
A: Right angle with two equal sides (90-45-45).B: Impossible. Equilateral must be 60-60-60 (acute).C: Scalene with all angles < 90°.D: 90° angle with 3 different side lengths.
2. Property Audit
Square: Parallel?, Equal Sides?, Right Angles? - ALL YES.Rhombus: Parallel? Yes, Equal Sides? Yes, Right Angles? Not always.Trapezoid: Parallel? Yes (at least 1 pair), Equal Sides? No, Right Angles? No.Rectangle: Parallel? Yes, Equal Sides? No, Right Angles? Yes.
3. Hierarchy Vault
"Rhombuses are parallelograms because they meet the requirement of having 2 pairs of parallel sides. Parallelograms aren't always rhombuses because they don't always have 4 equal sides."
4. The Shape Debate
Winner: Blair. rectangle .
5. Mystery Blueprint
Identity: Rhombus
Categories: Quadrilateral → Parallelogram → Rhombus.
6. Impossible Challenge
Students should draw an irregular quadrilateral with zero parallel sides (like a non-trapezoid kite or a scalene quadrilateral). The defense should highlight that no sides are parallel.
Teacher Reference Copy
Shape Studio Worksheet Expanded Compact Final V2 Shape Studio Worksheet
Classification & Hierarchy Lab | Project #5-G-34
Architect:
Date:
1
Triangle Drafting
Instructions: Sketch each triangle described below. If a triangle is impossible to draw based on its properties, explain why in the provided lines.
A. Right Isosceles
Drafting Area
B. Obtuse Equilateral
Drafting Area
2
Property Audit
Instructions: Use your knowledge of shape categories. Mark an 'X' in the box if the property always applies to that shape category.
Shape Category At least 1 pair of parallel sides? All 4 sides are equal? Has 4 right angles? Square
|
|
| Rhombus |
|
|
|
| Trapezoid |
|
|
|
| Rectangle |
|
|
|
3
Hierarchy Vault
Claim: "Every rhombus is a parallelogram , but not every parallelogram is a rhombus ." Explain why this is true:
4
The Shape Debate
Instructions: Read the argument between the two architects. Defend your verdict for who is correct using shape definitions and properties.
ALEX "If a shape has 4 right angles, it must be a square. There is no other shape it could possibly be!"
BLAIR "Wait, Alex! Having 4 right angles only proves it is a rectangle. It might not have 4 equal sides."
Your Verdict & Reasoning:
5
Mystery Blueprint
Instructions: Use the specifications below to identify the shape. List ALL categories it belongs to (from general to specific).
SPECIFICATIONS
• Number of Sides: 4
• Opposite Sides: Parallel
• All Sides: Congruent (Equal)
• Angles: No right angles
Identify the specific shape:
Category Hierarchy Chain:
The Architect's Impossible Challenge
Instructions: Design a quadrilateral that is NOT a trapezoid and NOT a parallelogram. Defend your design in the response area.
Shape Studio Answer Key Compact Final V3 Answer Key
Shape Studio Lab | Compact Version V2
1. Triangle Drafting
A: Right angle with two equal sides (90-45-45).B: Impossible. Equilateral must be 60-60-60 (acute). An obtuse triangle cannot be equilateral.
2. Property Audit
Square: Parallel?, Equal Sides?, Right Angles? - ALL YES.Rhombus: Parallel? Yes, Equal Sides? Yes, Right Angles? Not always.Trapezoid: Parallel? Yes (at least 1 pair), Equal Sides? No, Right Angles? No.Rectangle: Parallel? Yes, Equal Sides? No, Right Angles? Yes.
3. Hierarchy Vault
"Rhombuses are parallelograms because they meet the requirement of having 2 pairs of parallel sides. Parallelograms aren't always rhombuses because they don't always have 4 equal sides."
4. The Shape Debate
Winner: Blair. rectangle .
5. Mystery Blueprint
Identity: Rhombus
Categories: Quadrilateral → Parallelogram → Rhombus.
6. Impossible Challenge
Students should draw an irregular quadrilateral with zero parallel sides (like a non-trapezoid kite or a scalene quadrilateral). The defense should highlight that no sides are parallel.
Teacher Reference Copy
Shape Studio Worksheet Super Compact Final V2 Shape Studio Worksheet
Classification & Hierarchy Lab | Project #5-G-34
Architect:
Date:
1
Triangle Drafting
Instructions: Sketch each triangle. If a triangle is impossible to draw, explain why.
A. Right Isosceles
Drafting Area
B. Obtuse Equilateral
Drafting Area
2
Property Audit
Instructions: Mark an 'X' if the property always applies to that shape category.
Shape Category At least 1 pair of parallel sides? All 4 sides are equal? Has 4 right angles? Square
|
|
| Rhombus |
|
|
|
| Trapezoid |
|
|
|
| Rectangle |
|
|
|
3
Hierarchy Vault
Claim: "Every rhombus is a parallelogram , but not every parallelogram is a rhombus ." Explain why:
4
The Shape Debate
Instructions: Read the debate and defend your verdict for who is correct using shape properties.
ALEX "If a shape has 4 right angles, it must be a square. There is no other shape it could be!"
BLAIR "Wait, Alex! Having 4 right angles only proves it is a rectangle. It might not have 4 equal sides."
Your Verdict & Reasoning:
5
Mystery Blueprint
Instructions: Use the specs below to identify the shape and its hierarchy chain.
SPECIFICATIONS
• Number of Sides: 4
• Opposite Sides: Parallel
• All Sides: Congruent (Equal)
• Angles: No right angles
Mystery Shape Identity:
Category Hierarchy Chain:
The Architect's Impossible Challenge
Instructions: Design a quadrilateral that is NOT a trapezoid and NOT a parallelogram. Defend your design.
Drafting Area
Defense Reasoning:
Shape Studio Refined Worksheet V3 Shape Studio Worksheet
Classification & Hierarchy Lab | Project #5-G-34
Architect:
Date:
1
Triangle Drafting
Instructions: Sketch each triangle. If a triangle is impossible to draw, explain why.
A. Right Isosceles
Drafting Area
B. Obtuse Equilateral
Drafting Area
2
Property Audit
Instructions: Mark an 'X' if the property always applies to that shape category.
Shape Category At least 1 pair of parallel sides? All 4 sides are equal? Has 4 right angles? Square
|
|
| Rhombus |
|
|
|
| Trapezoid |
|
|
|
| Rectangle |
|
|
|
3
Hierarchy Vault
Claim: "Every rhombus is a parallelogram , but not every parallelogram is a rhombus ." Explain why:
4
The Shape Debate
Instructions: Read the debate and defend your verdict for who is correct using shape properties.
ALEX "If a shape has 4 right angles, it must be a square. There is no other shape it could be!"
BLAIR "Wait, Alex! Having 4 right angles only proves it is a rectangle. It might not have 4 equal sides."
Your Verdict & Reasoning:
5
Mystery Blueprint
Instructions: Use the specs below to identify the shape and its hierarchy chain.
SPECIFICATIONS
• Number of Sides: 4
• Opposite Sides: Parallel
• All Sides: Congruent (Equal)
• Angles: No right angles
Mystery Shape Identity:
Category Hierarchy Chain:
The Architect's Impossible Challenge
Task: Design a quadrilateral that is NOT a trapezoid and NOT a parallelogram. Defend your design.
Drafting Area
Defense Reasoning:
