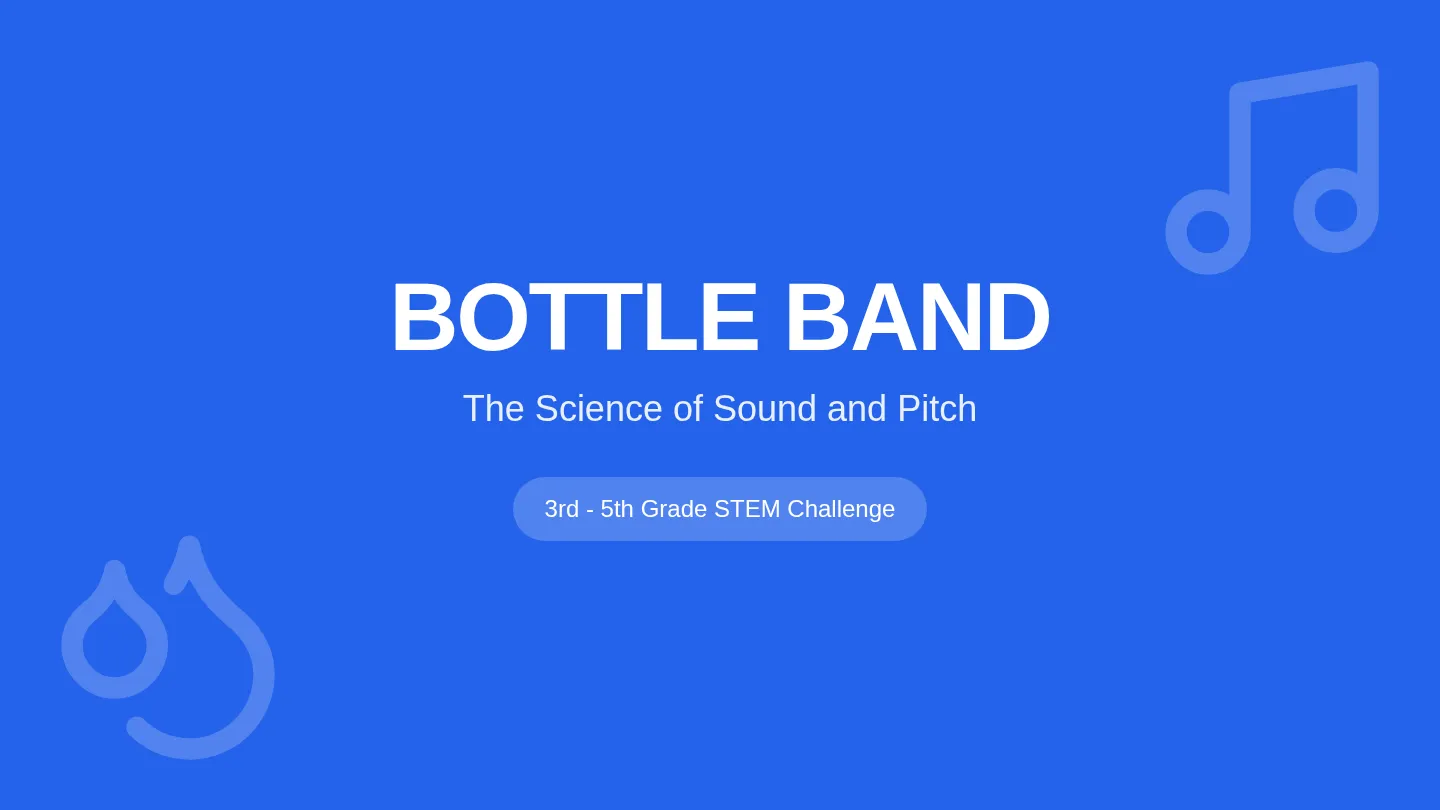

Bottle Band Slides
BOTTLE BAND
The Science of Sound and Pitch
3rd - 5th Grade STEM Challenge
Warm-up: The Scale
Let's listen to a simple musical scale. As we sing or listen, pay attention to how the notes move.
Do
Re
Mi
Fa
So
La
Ti
Do
What happens to the pitch as we move from left to right?
Higher Lower
"How will changing the amount of water in a bottle affect the sounds it makes?"
Make a prediction! Will more water make a higher sound or a lower sound?
Watch & Observe
Technique
Embedded media
The Secret Science
High Pitch
Less Water = Less Mass
The glass can vibrate fast. Fast vibrations create high frequencies and high pitches.
Low Pitch
More Water = More Mass
The extra weight slows down the vibrations. Slow vibrations create low pitches.
!
Tuning Challenge
1
Set Up: Line up 5 identical empty bottles.
2
Tune: Fill bottles until they play the correct notes. Use pipettes for fine-tuning!
3
Play: Use your sheet music to practice your performance.
Expert Tips
Be Gentle
Glass can break! Tap lightly with your spoon or striker. Never hit the bottles hard.
No Spills
Keep towels nearby. Even a small spill can change the bottle's pitch!
Fine-Tuning
Is the note too HIGH? Add a tiny bit of water to slow it down.
Is the note too LOW? Remove some water to speed it up!
Showtime!
Perform your song for the class. Good luck!
Live Performance

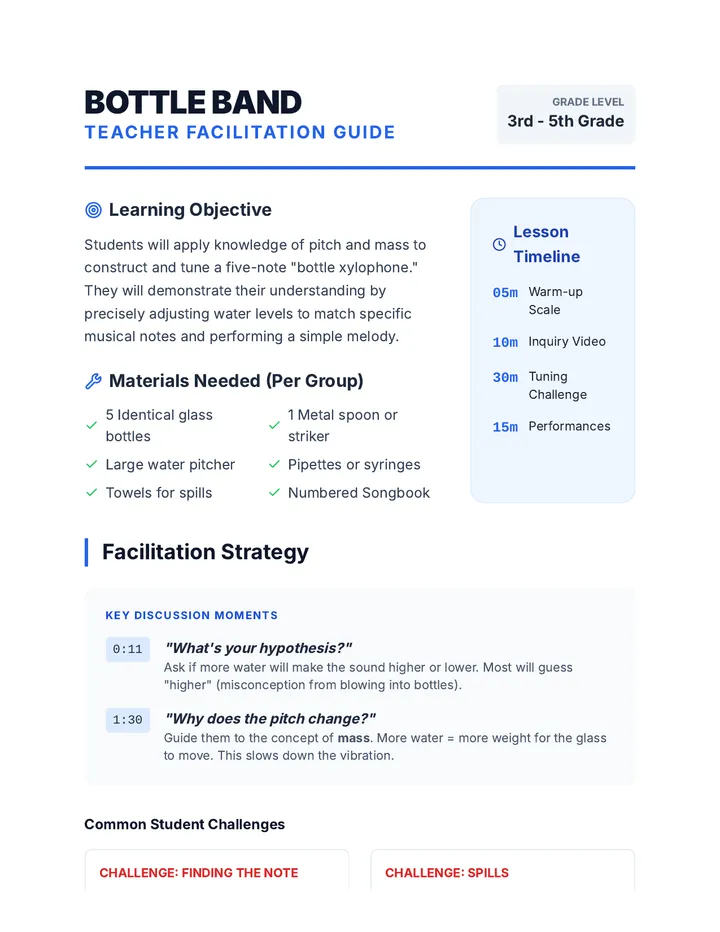

Bottle Band Teacher Guide
Bottle Band
Teacher Facilitation Guide
Grade Level
3rd - 5th Grade
Learning Objective
Students will apply knowledge of pitch and mass to construct and tune a five-note "bottle xylophone." They will demonstrate their understanding by precisely adjusting water levels to match specific musical notes and performing a simple melody.
Materials Needed (Per Group)
- 5 Identical glass bottles
- 1 Metal spoon or striker
- Large water pitcher
- Pipettes or syringes
- Towels for spills
- Numbered Songbook
Lesson Timeline
05m
Warm-up Scale
10m
Inquiry Video
30m
Tuning Challenge
15m
Performances
Facilitation Strategy
Key Discussion Moments
0:11
"What's your hypothesis?"
Ask if more water will make the sound higher or lower. Most will guess "higher" (misconception from blowing into bottles).
1:30
"Why does the pitch change?"
Guide them to the concept of mass. More water = more weight for the glass to move. This slows down the vibration.
Common Student Challenges
Challenge: Finding the Note
Students often add too much water too quickly. Encourage them to use 1:1 "comparisons" with the group next to them or a master piano app if needed.
Challenge: Spills
A single spill changes the water level and thus the pitch. Remind students that tuning is a delicate process that requires patience.
Performance Rubric
| Criteria | Proficient (3) | Developing (2) | Emerging (1) |
|---|
| Tuning Accuracy | All 5 bottles are tuned clearly and accurately to the scale. | 3-4 bottles are tuned correctly; some notes are "sour." | Bottles are untuned or pitch sequence is incorrect. |
| Scientific Explanation | Explains how water mass affects vibration speed and pitch. | Identifies that water changes pitch but lacks technical detail. | Unable to explain why the water levels matter. |
| Collaboration | Group worked cohesively to fill, tune, and play. | Most members participated; some minor friction. | One student did all the work or group could not agree. |
Pro-Tip
"For a visual aid, use food coloring! Each bottle can have a different color (Rainbow Scale). This makes it much easier to discuss 'The Red Bottle' vs 'Bottle 1' during instruction."

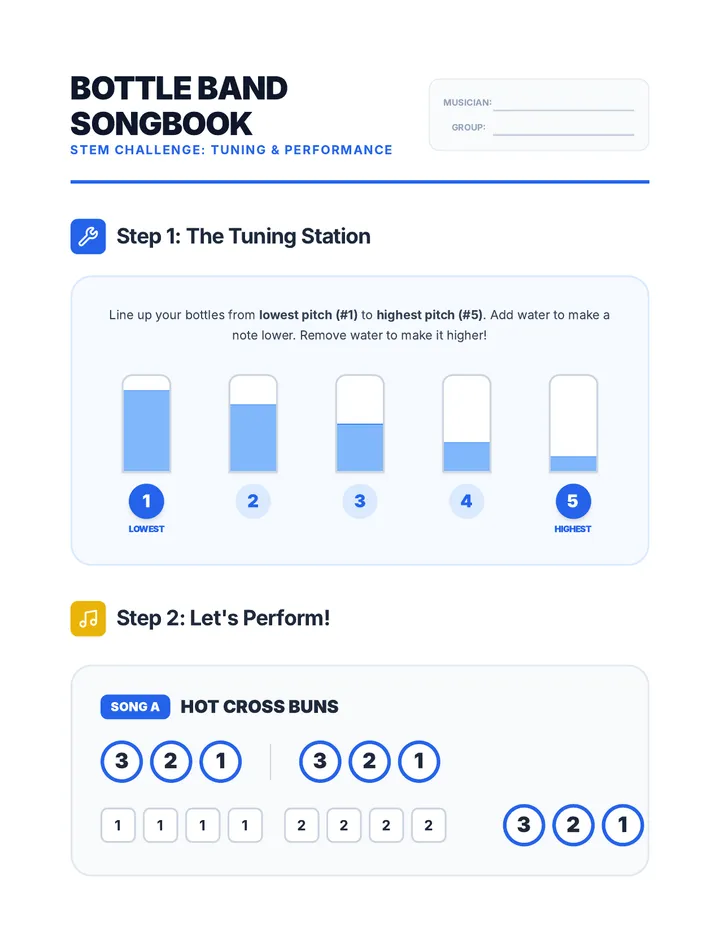

Bottle Band Songbook Worksheet
Bottle Band Songbook
STEM Challenge: Tuning & Performance
Musician:
Group:
Step 1: The Tuning Station
Line up your bottles from lowest pitch (#1) to highest pitch (#5). Add water to make a note lower. Remove water to make it higher!
1
Lowest
2
3
4
5
Highest
Step 2: Let's Perform!
SONG A HOT CROSS BUNS
3
2
1
3
2
1
1
1
1
1
2
2
2
2
3
2
1
SONG B MARY HAD A LITTLE LAMB
3
2
1
2
3
3
3
2
2
2
3
5
5
3
2
1
2
3
3
3
3
2
2
3
2
1
Scientific Reflection
1. Which note was the hardest to tune perfectly? Why do you think that is?
2. Finish the sentence: Adding more water to the bottle makes the pitch...
Higher
Lower
Music is Science You Can Hear
