Advanced Mechanical Energy Analysis

Calculus of Work and Kinetic Energy

Lesson 1: From Line Integrals to the Work-Energy Theorem

∫

The Hook: The Loop-the-Loop

A roller coaster car descends from a height \(h\) into a circular loop of radius \(R\).

The Challenge:

What is the minimum height \(h\) required so the car doesn't fall off the track at the very top of the loop?

Can we solve this using only Newton's Laws? Yes. Is there a more elegant way using Energy? Absolutely.

Work as a Line Integral

In introductory physics, we define work as \( W = Fd \cos \theta \). However, most real-world forces vary with position.

General Definition

\[ W = \int_C \vec{F} \cdot d\vec{r} \]

The Path (C)

The specific trajectory taken by the particle through space.

The Displacement (\(d\vec{r}\))

An infinitesimal step along the trajectory.

Deriving the Theorem: Stage 1

Starting from Newton's Second Law: \( \vec{F} = m \vec{a} = m \frac{d\vec{v}}{dt} \)

Substitute this into the Work integral:

\[ W = \int m \frac{d\vec{v}}{dt} \cdot d\vec{r} \]

The Substitution Trick:

Note that \( d\vec{r} = \vec{v} dt \). Let's use this to change the variable of integration from position to velocity.

Deriving the Theorem: Stage 2

\[ W = \int m \frac{d\vec{v}}{dt} \cdot (\vec{v} dt) \] \[ W = \int m \vec{v} \cdot d\vec{v} \]

Since \( \vec{v} \cdot d\vec{v} = v dv \) (the magnitudes), we integrate from initial speed \( v_i \) to final speed \( v_f \):

\[ W = \left[ \frac{1}{2}mv^2 \right]_{v_i}^{v_f} = \frac{1}{2}mv_f^2 - \frac{1}{2}mv_i^2 \]

The Work-Energy Theorem: \( W_{net} = \Delta K \)

Formal Definition

Kinetic Energy (K)

\[ K = \frac{1}{2} m v^2 \]

Kinetic energy is a scalar quantity.

It depends only on mass and speed (not direction).

Units: Joules (J) or \( \text{kg} \cdot \text{m}^2/\text{s}^2 \).

Example: Variable Force

A particle moves from \( (0,0) \) to \( (2,3) \) under a force:

\( \vec{F} = (3x^2)\hat{i} + (4y)\hat{j} \)

Calculate the work done by this force.

Solution Path:

\[ W = \int_0^2 3x^2 dx + \int_0^3 4y dy \]

\[ W = [x^3]_0^2 + [2y^2]_0^3 \]

\[ W = 8 + 18 = 26 \text{ J} \]

Key Takeaway

The total work is the sum of the work done by individual component forces along their respective displacement components.

System Visualizer

The Path Ahead

If the work done is independent of the path taken, the force is conservative.

This leads us to the concept of Potential Energy—our topic for the next session.

Question

Does the Work-Energy Theorem hold if friction is present?

Workshop

Let's solve the Roller Coaster problem on our worksheets.

Advanced Mechanical Energy Analysis

Calculus of Work and Kinetic Energy

Potential Energy Landscapes and Stability

Non-Conservative Forces and Dissipation

Rotational Kinetic Energy and Momentum

Coupled Oscillators and Normal Modes

Work Energy Slides

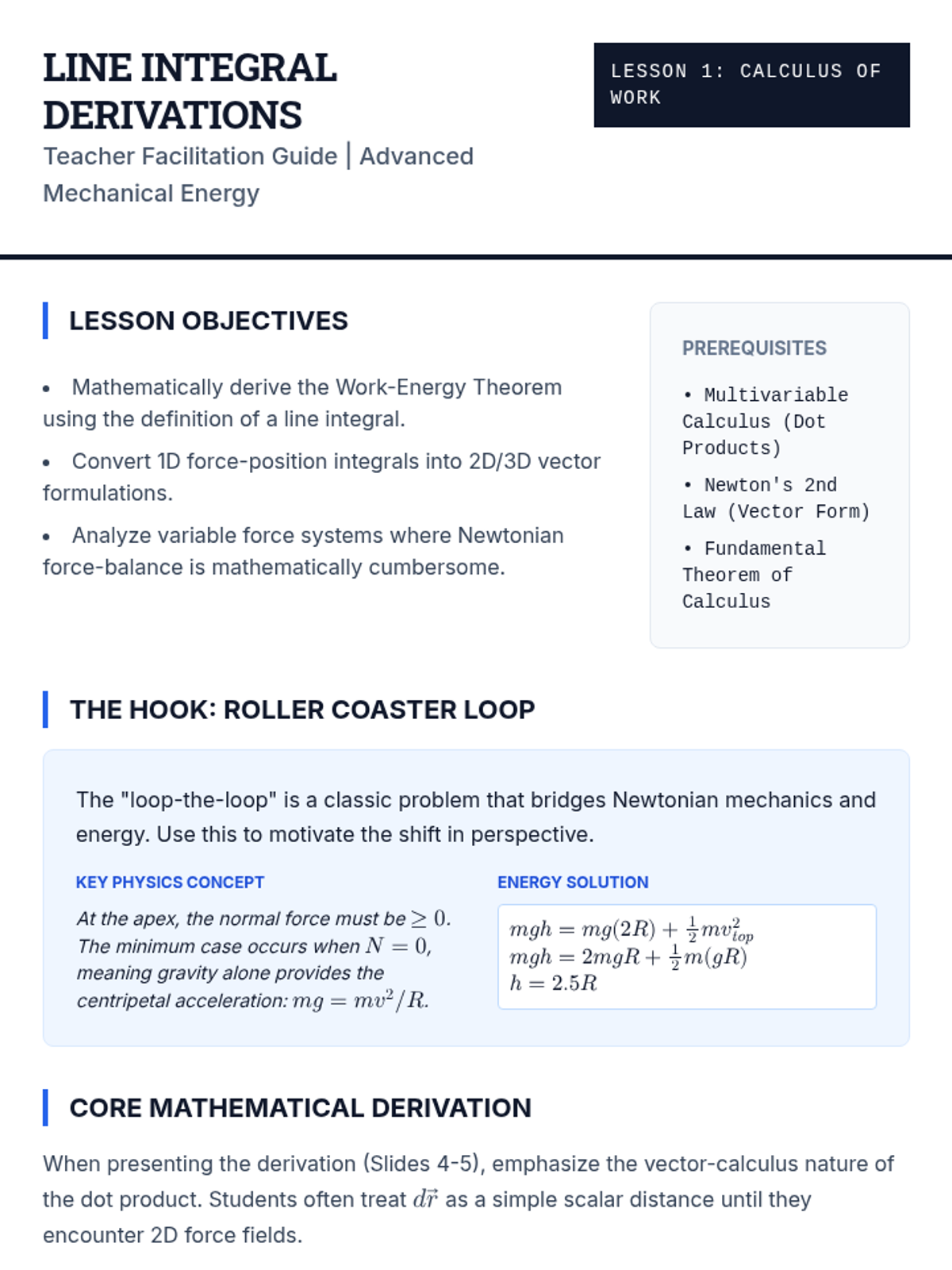

Line Integral Derivations Teacher Guide

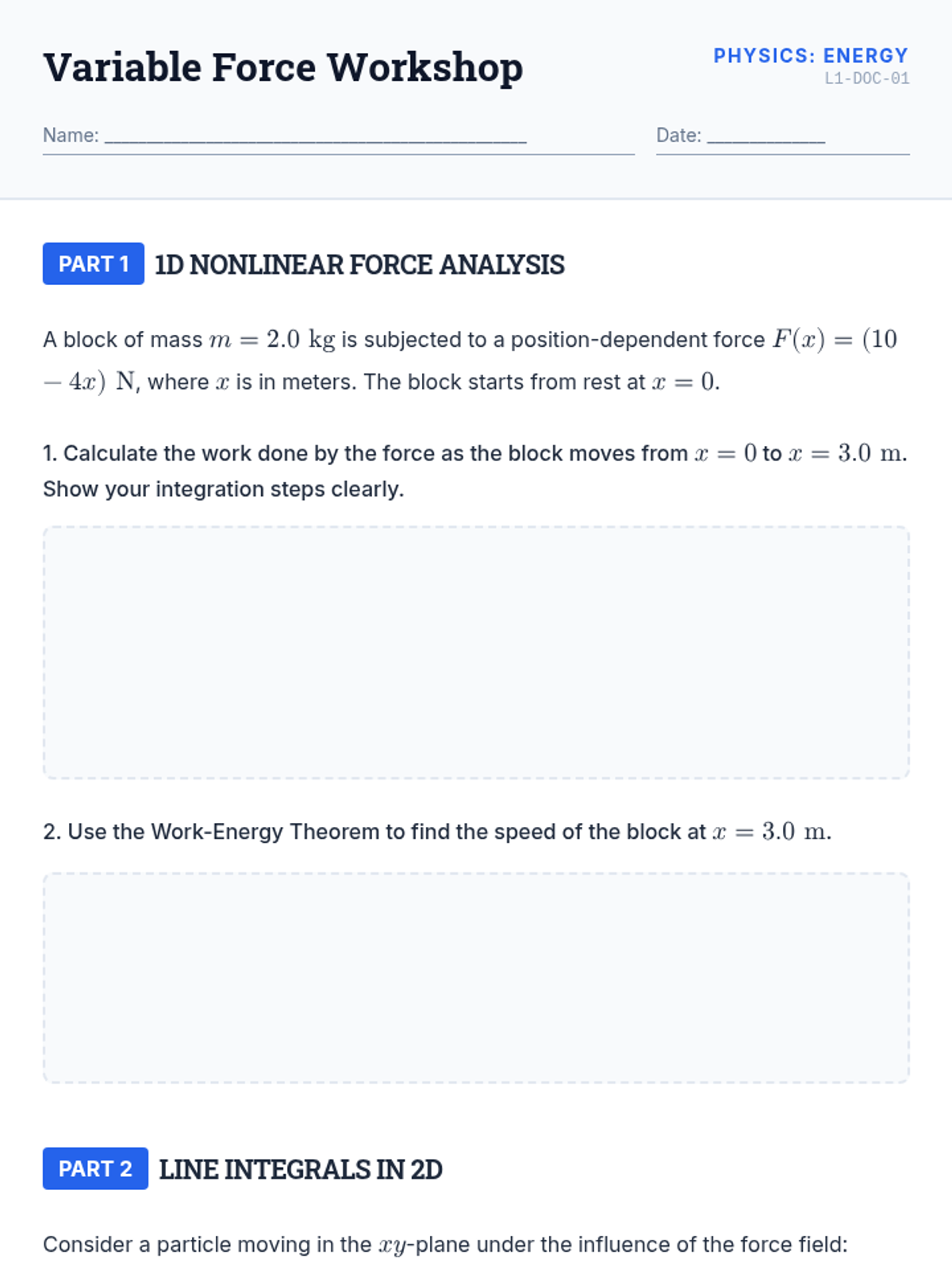

Variable Force Workshop

Stability Landscapes Slides

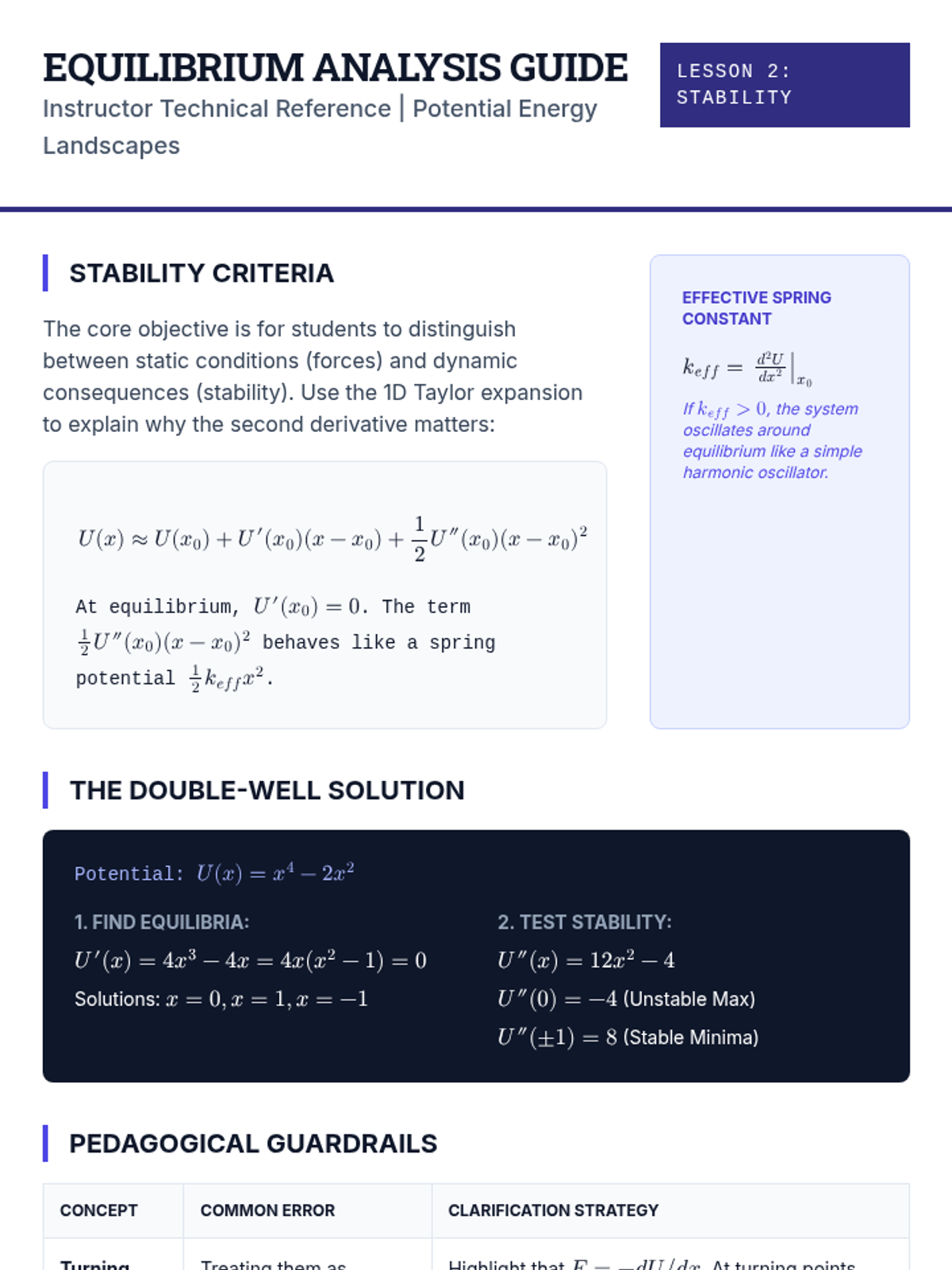

Equilibrium Analysis Guide

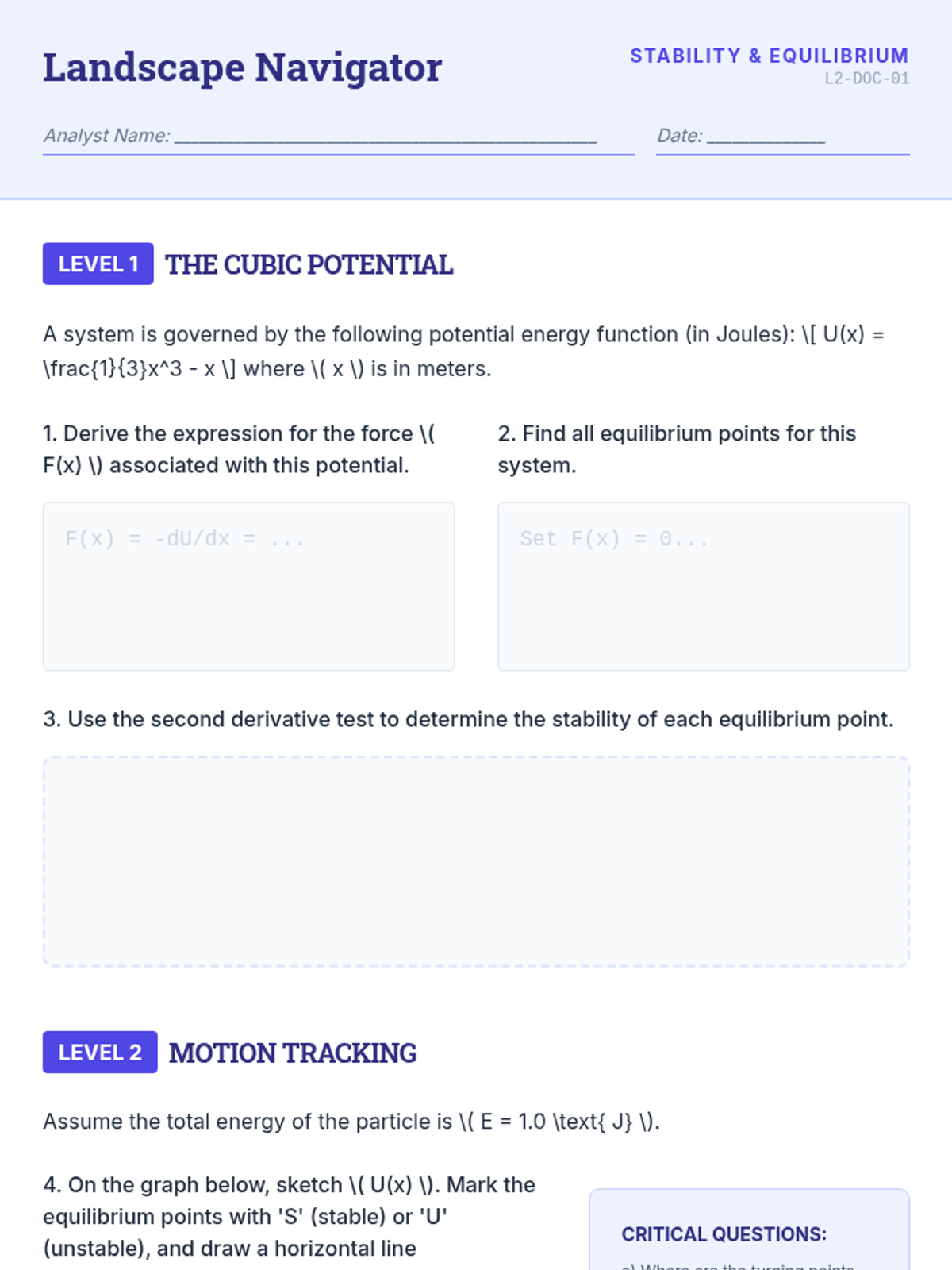

Landscape Navigator Activity

Dissipative Dynamics Slides

Forensic Physics Case Study

Friction and Drag Key

Rolling Energy Slides

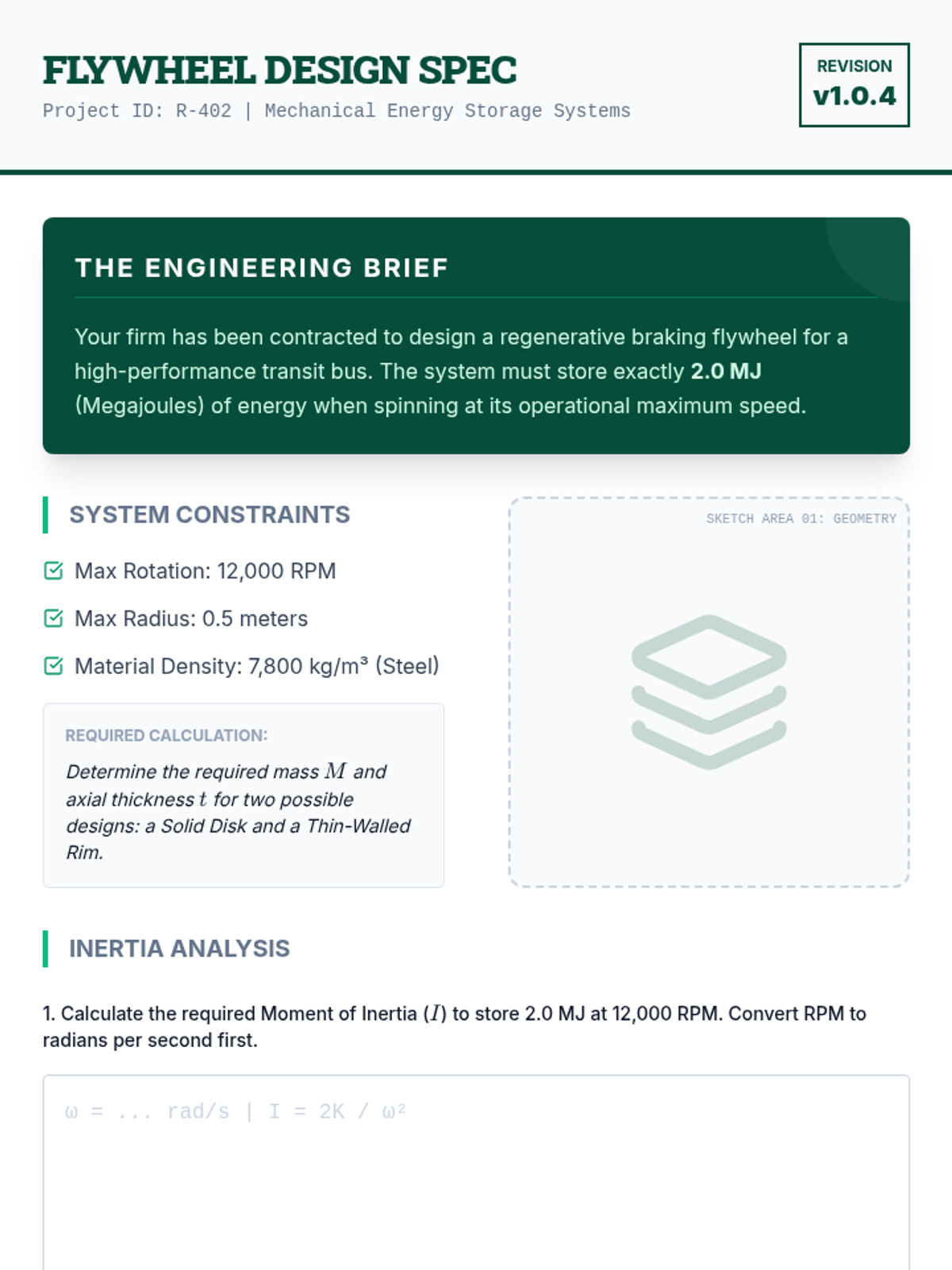

Flywheel Design Challenge

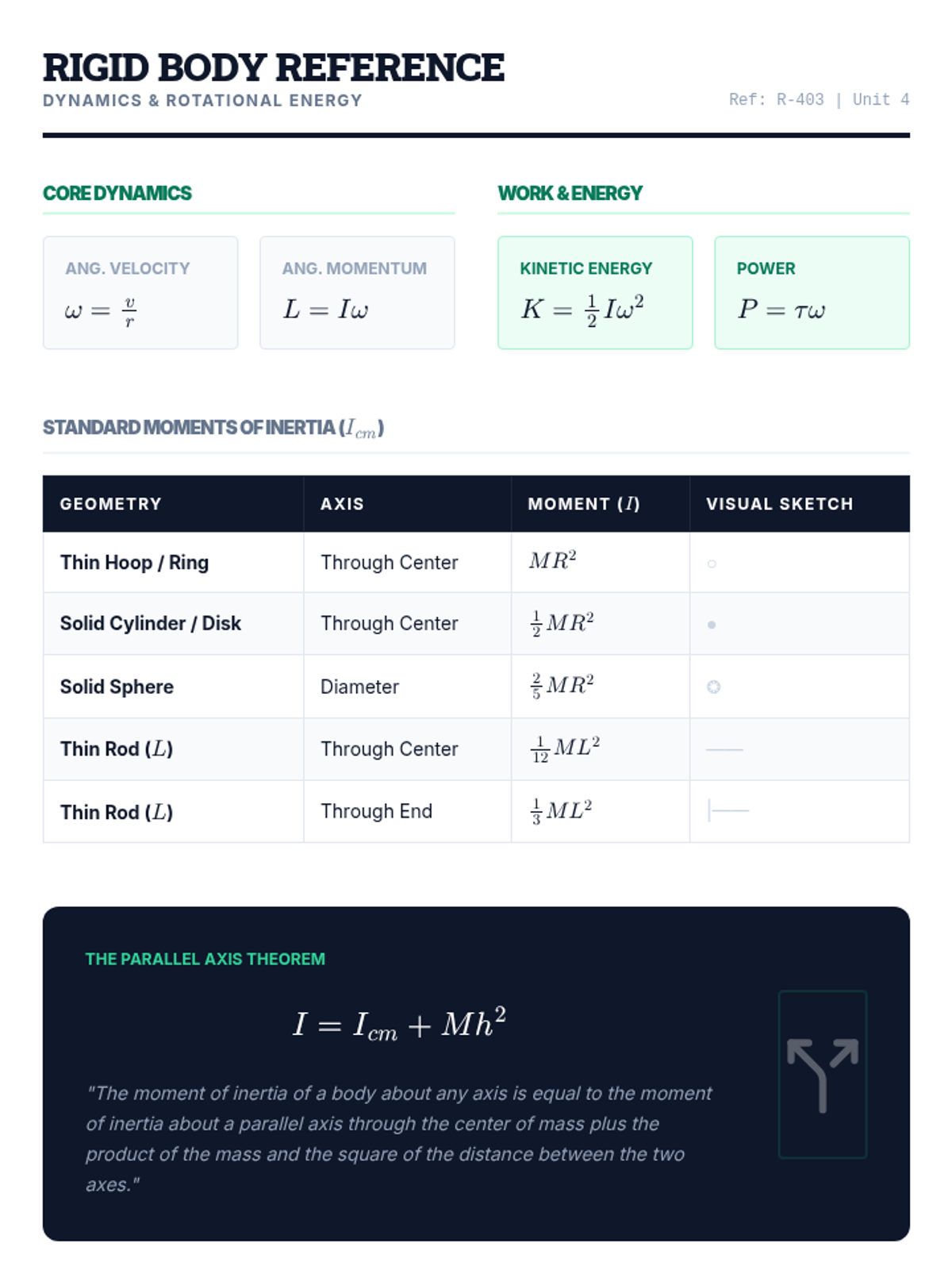

Rigid Body Reference Sheet

Mode Beating Slides

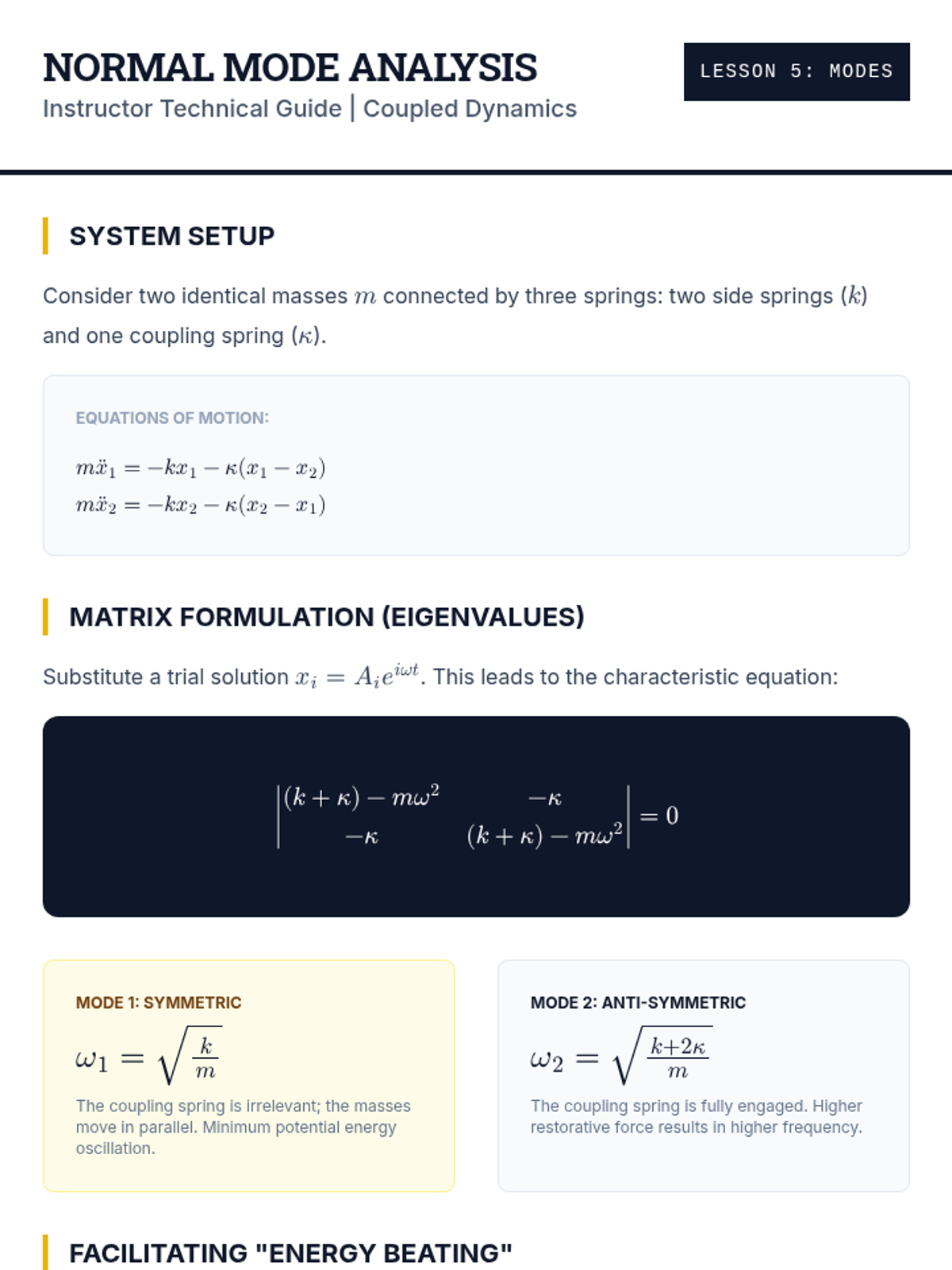

Normal Mode Analysis Guide

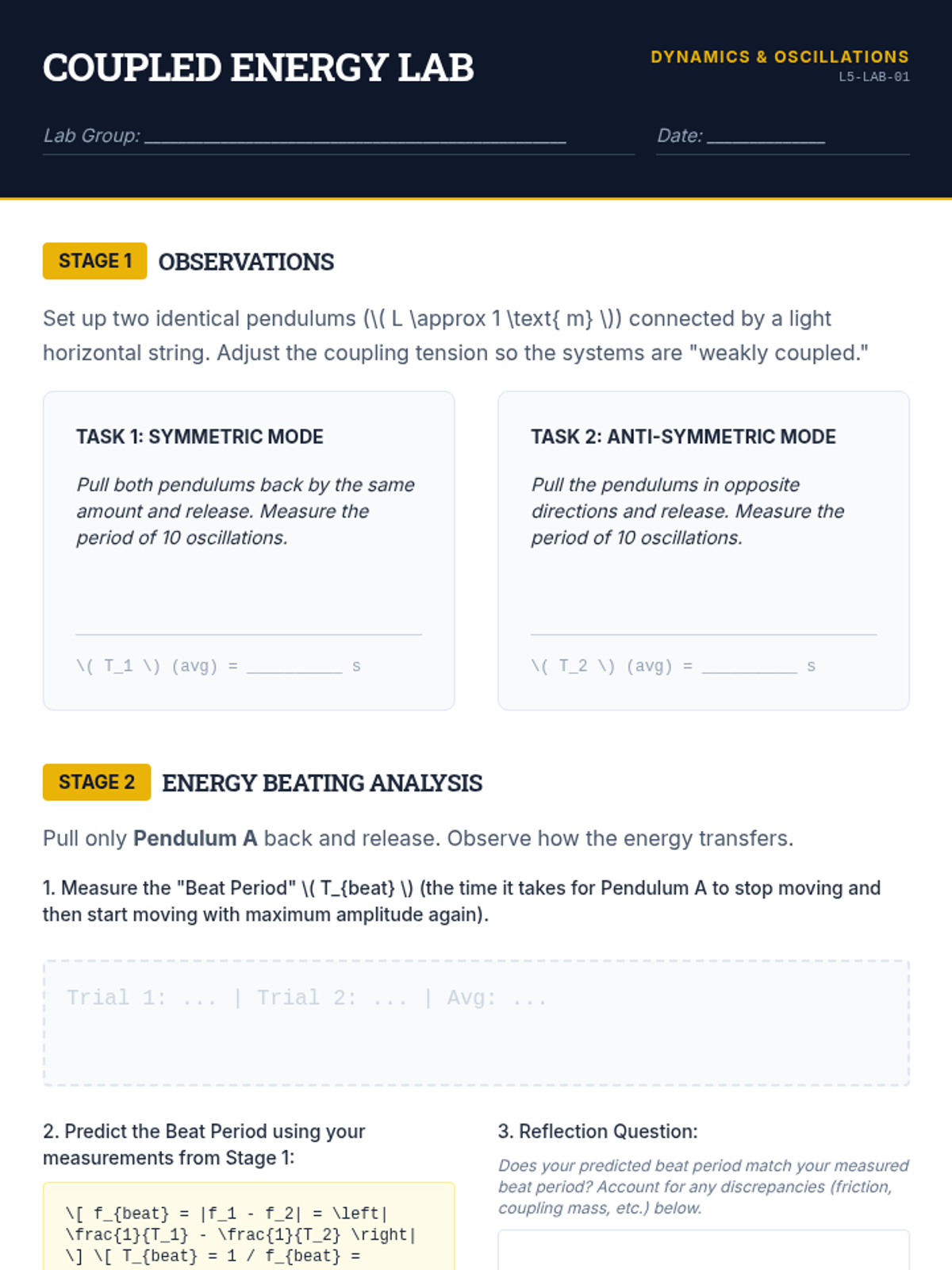

Pendulum Energy Lab
