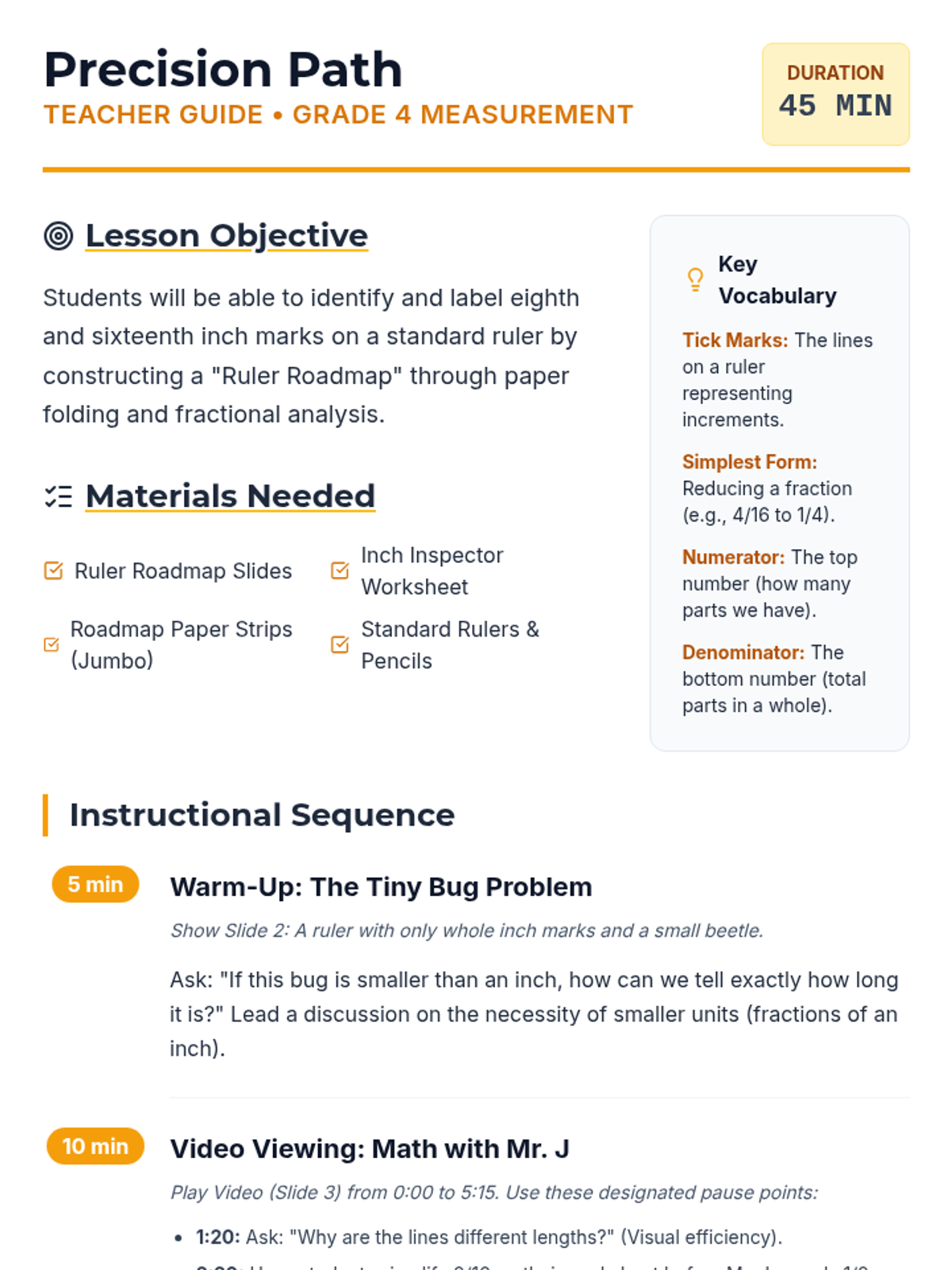

Precision Path Teacher GuidePrecision Path Teacher Guide • Grade 4 Measurement Duration 45 MIN Lesson Objective Students will be able to identify and label eighth and sixteenth inch marks on a standard ruler by constructing a "Ruler Roadmap" through paper folding and fractional analysis. Materials Needed Ruler Roadmap Slides Inch Inspector Worksheet Roadmap Paper Strips (Jumbo) Standard Rulers & Pencils Key Vocabulary Tick Marks: The lines on a ruler representing increments. Simplest Form: Reducing a fraction (e.g., 4/16 to 1/4). Numerator: The top number (how many parts we have). Denominator: The bottom number (total parts in a whole). Instructional Sequence 5 min Warm-Up: The Tiny Bug Problem Show Slide 2: A ruler with only whole inch marks and a small beetle. Ask: "If this bug is smaller than an inch, how can we tell exactly how long it is?" Lead a discussion on the necessity of smaller units (fractions of an inch). 10 min Video Viewing: Math with Mr. J Play Video (Slide 3) from 0:00 to 5:15. Use these designated pause points: 1:20: Ask: "Why are the lines different lengths?" (Visual efficiency). 2:20: Have students simplify 8/16 on their worksheet before Mr. J reveals 1/2. 5:15: Stop here for the activity. Briefly discuss the "Odd Numerator" pattern mentioned at 6:36. 20 min Activity: The Ruler Roadmap Students use the Roadmap Paper Strip to visualize the fraction hierarchy. Fold in half: Label the center line 1/2. Note it is the longest mark. Fold again (fourths): Label 1/4 and 3/4. Note these are slightly shorter. Fold again (eighths): Label 1/8, 3/8, 5/8, 7/8. Note the length hierarchy. Fold again (sixteenths): For advanced learners or as a challenge, label the smallest marks. 10 min Closure: Pinky Precision Students use their "Roadmap" to measure the width of their pinky finger. They must record it on their worksheet to the nearest 1/8th of an inch. Watch Out For! The "End of Ruler" Gap Many rulers have a small gap before the 0 mark. Remind students to align the object with the 0 line, not the physical edge of the plastic. Counting Every Line Students often count every tiny line for every measurement. Encourage identifying the "anchor" marks (1/2, 1/4) first to save time.

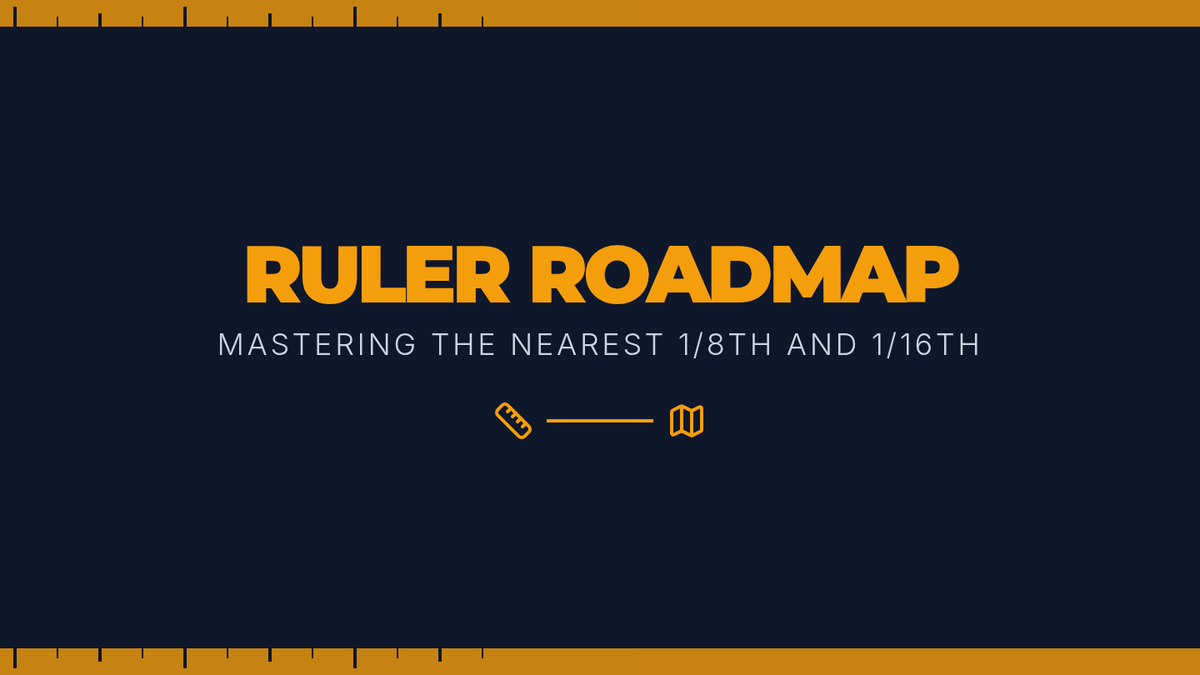

Ruler Roadmap SlidesRULER ROADMAP Mastering the Nearest 1/8th and 1/16th The Tiny Bug Problem How would you measure a bug that is smaller than an inch? "It's about... half-ish?" Why do we need smaller lines on a ruler? 0 1 2 🪲 Where does the beetle stop? Visualizing the Inch Pause at 1:20 & 2:20 Embedded media The Roadmap Challenge 1 Fold your strip in HALF. Label the mark 1/2. 2 Fold again into FOURTHS. Label 1/4 and 3/4. 3 Fold again into EIGHTHS. Label the new marks! Pro Tip The LONGER the line, the BIGGER the fraction part! PINKY PRECISION Use your new Ruler Roadmap to measure the width of your pinky finger. Record your answer on your worksheet to the nearest 1/8th inch!

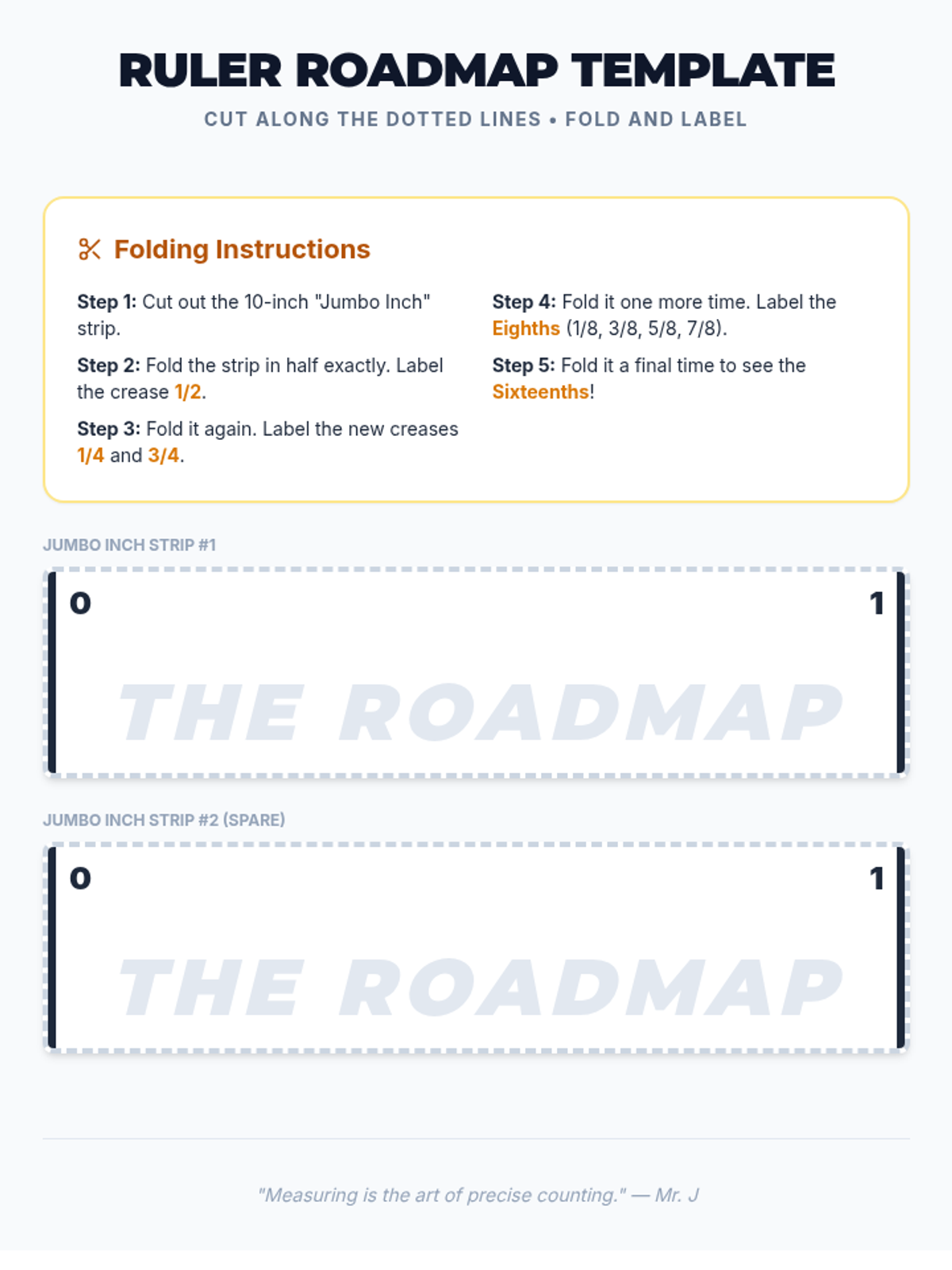

Ruler Roadmap TemplateRULER ROADMAP TEMPLATE Cut along the dotted lines • Fold and Label Folding Instructions Step 1: Cut out the 10-inch "Jumbo Inch" strip. Step 2: Fold the strip in half exactly. Label the crease 1/2. Step 3: Fold it again. Label the new creases 1/4 and 3/4. Step 4: Fold it one more time. Label the Eighths (1/8, 3/8, 5/8, 7/8). Step 5: Fold it a final time to see the Sixteenths! Jumbo Inch Strip #1 0 The Roadmap 1 Jumbo Inch Strip #2 (Spare) 0 The Roadmap 1 "Measuring is the art of precise counting." — Mr. J

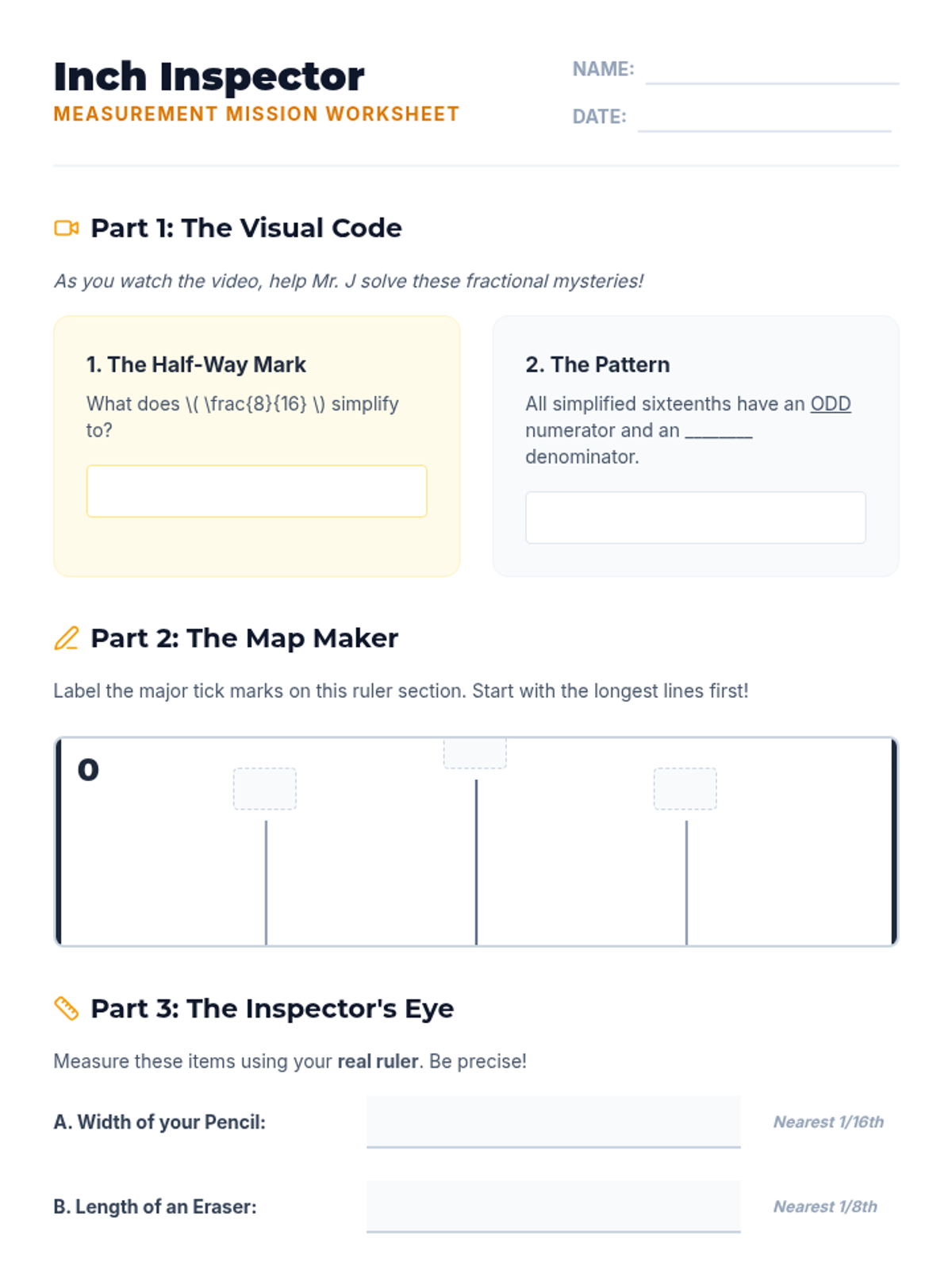

Inch Inspector WorksheetInch Inspector Measurement Mission Worksheet NAME: DATE: Part 1: The Visual Code As you watch the video, help Mr. J solve these fractional mysteries! 1. The Half-Way Mark What does \( \frac{8}{16} \) simplify to? 2. The Pattern All simplified sixteenths have an ODD numerator and an ________ denominator. Part 2: The Map Maker Label the major tick marks on this ruler section. Start with the longest lines first! 0 1 Part 3: The Inspector's Eye Measure these items using your real ruler. Be precise! A. Width of your Pencil: Nearest 1/16th B. Length of an Eraser: Nearest 1/8th MISSION: PINKY PRECISION Use your FOLDED ROADMAP strip. How wide is your pinky finger at the thickest part? My Pinky Measurement: inches

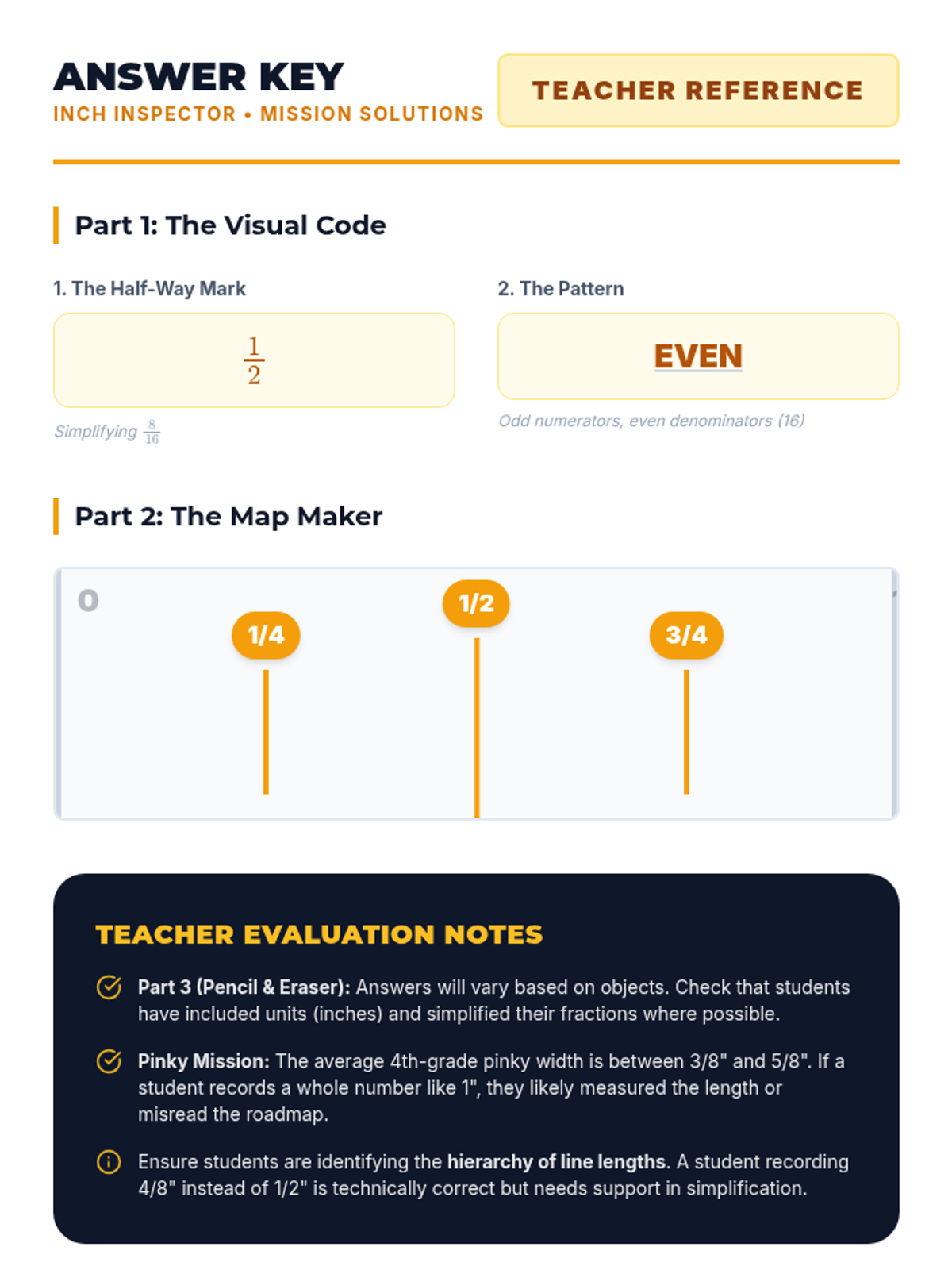

Inch Inspector Answer KeyAnswer Key Inch Inspector • Mission Solutions Teacher Reference Part 1: The Visual Code 1. The Half-Way Mark \( \frac{1}{2} \) Simplifying \( \frac{8}{16} \) 2. The Pattern EVEN Odd numerators, even denominators (16) Part 2: The Map Maker 0 1/4 1/2 3/4 1 Teacher Evaluation Notes Part 3 (Pencil & Eraser): Answers will vary based on objects. Check that students have included units (inches) and simplified their fractions where possible. Pinky Mission: The average 4th-grade pinky width is between 3/8" and 5/8". If a student records a whole number like 1", they likely measured the length or misread the roadmap. Ensure students are identifying the hierarchy of line lengths. A student recording 4/8" instead of 1/2" is technically correct but needs support in simplification.
