Area Odyssey Slides The Area Problem
From Geometry to Calculus
Lesson 1: Introduction
The Speed Trap
You are driving a car. You look at your speedometer graph over a 10-second interval.
The Challenge:
"Can you calculate exactly how far the car traveled just by looking at a curved line on its velocity graph?"
Recall: Distance = Velocity × Time. But what if velocity is changing every millisecond?
Constant Velocity (Pre-Calc)
If a car travels at a constant 60 mph for 2 hours :
Distance = 120 miles
Visually, this is the area of a rectangle:
AREA = DISTANCE
The Calculus Dilemma
How do we find this?
When velocity is variable (curved graph), the shape under the curve is no longer a simple rectangle.
Geometric Limits:
Standard geometry formulas (circles, triangles, trapezoids) only work for straight lines or specific shapes.
To solve this, we must "approximate" what we cannot yet "calculate."
Defining "Accumulation"
Area as Total Change
The area under a rate-of-change graph represents the total accumulation of the quantity.
Rate (Y-axis)
Velocity (m/s)
Accumulation (Area)
Distance (m)
Rate (Y-axis)
Flow Rate (L/s)
Accumulation (Area)
Volume (L)
The Great Approximation
"If you had to estimate the area under a curve using ONLY rectangles, how would you position them to get the best result?"
Idea 1
Few big rectangles?
Idea 2
Many tiny rectangles?
Idea 3
Positioning height?
Speed Trap Worksheet The Speed Trap Challenge
Calculus: Introduction to the Area Problem
Name: Date:
PART 1
The Constant Cruiser
A vehicle travels at a constant velocity of \(v(t) = 45\) miles per hour for \(t = 4\) hours.
Graph: \(v(t)\) vs \(t\)
45 4 0 Time (hr) Velocity (mph)
1. Calculate the total distance traveled using the distance formula \(d = r \cdot t\).
2. Calculate the area of the shaded rectangle on the graph. What do you notice?
PART 2
The Constant Accelerator
A rocket accelerates steadily from rest (\(v = 0\)) to a velocity of \(v = 100\) m/s over \(t = 10\) seconds. Its velocity function is \(v(t) = 10t\).
Graph: \(v(t) = 10t\)
100 10
3. Using basic geometry, find the area under the curve (the triangle) from \(t=0\) to \(t=10\).
4. Interpretation: In physics, distance is the average velocity times time. Is your area calculation consistent with this? Explain.
PART 3
The Calculus Frontier
A car's velocity is given by the curve \(v(t) = t^2 + 1\). We want to find the distance traveled from \(t=0\) to \(t=3\).
3
The dilemma:
"This is not a rectangle, a triangle, or a trapezoid. We don't have a formula for this 'curvy-bottomed' shape."
Brainstorm:
How could you use 3 rectangles to approximate this area? Where would you draw them? Sketch your idea on the graph above.
5. Why will any approximation using rectangles be slightly "wrong"? How could you make it more accurate?
Velocity Accumulation Guide Velocity Accumulation Guide
Teacher Resource • Lesson 1: Introduction to the Area Problem
Pacing
50 min
Instructional Intent
This lesson marks the transition from Differential Calculus (rates of change) to Integral Calculus (accumulation). The goal is to establish that "Area Under a Curve" isn't just a geometric curiosity—it is a physical representation of total change when the rate is varying.
Key Discussion Question:
"If your speed is never constant for even a second, how can we possibly use the distance formula (d=rt)?"
Learning Targets
Connect velocity-time graphs to total distance.
Identify "Area Under Curve" as accumulation.
Articulate why standard geometry fails for curves.
Speed Trap Worksheet Solutions
Part 1: The Constant Cruiser
1. Distance Calculation: \(45 \text{ mph} \times 4 \text{ hours} = 180 \text{ miles}\).
2. Area Calculation: \(45 (\text{height}) \times 4 (\text{width}) = 180 \text{ units}^2\). Observation: They are identical. The area represents the physical distance.
Part 2: The Constant Accelerator
3. Area of Triangle: \(A = \frac{1}{2}bh = \frac{1}{2}(10)(100) = 500 \text{ meters}\).
4. Interpretation: Yes, it is consistent. Average velocity is \(50 \text{ m/s}\). \(50 \text{ m/s} \times 10 \text{ s} = 500 \text{ m}\). This shows that even for changing rates (linear), geometry holds up.
Part 3: The Calculus Frontier
5. Approximation Error: Rectangles will either over-shoot or under-shoot the curve because their tops are flat while the curve is sloped. This creates "gaps" or "extra area."
The Big Idea:
"To make it more accurate, we should use MORE rectangles that are thinner."
Pedagogical Tips
The "Hook"
Ask students: "If you walk 1 mph for a second, then 2 mph for a second, then 3 mph... can you just multiply? No." Have them visualize the stairs-like shape of the velocity graph. This prepares them for the "rectangle" idea.
Common Misconception
Students often think the area under the curve is always "Distance." Remind them it is Accumulation of the Y-axis units . If Y is flow rate (L/s) and X is time (s), the area is Liters.
Rectangle Rescue Slides Rectangle Rescue
Approximating Area with Riemann Sums
Lesson 2: Finite Approximations
The Strategy
Since we can't find the area of a "curvy" shape directly, we chop the area into \(n\) vertical rectangles .
1. Width (\(\Delta x\))
Every rectangle has the same width: \(\frac{b-a}{n}\)
2. Height (\(f(x)\))
The height is determined by the function value at a specific point.
3. Sum
Add the areas of all \(n\) rectangles together.
Left Riemann Sum (LRAM)
Rule:
Use the height of the function at the left edge of each sub-interval.
If the function is increasing , LRAM will be an underestimate .
Right Riemann Sum (RRAM)
Rule:
Use the height of the function at the right edge of each sub-interval.
If the function is increasing , RRAM will be an overestimate .
Midpoint Riemann Sum (MRAM)
Rule:
Use the height of the function at the center of each sub-interval.
MRAM often provides a more balanced approximation, canceling out some over- and under-estimations.
Accuracy through Quantity
As the number of rectangles (\(n\)) increases, the width (\(\Delta x\)) decreases.
n = 4
Rough estimate
n = 100
Precise estimate
The ultimate goal: n → ∞

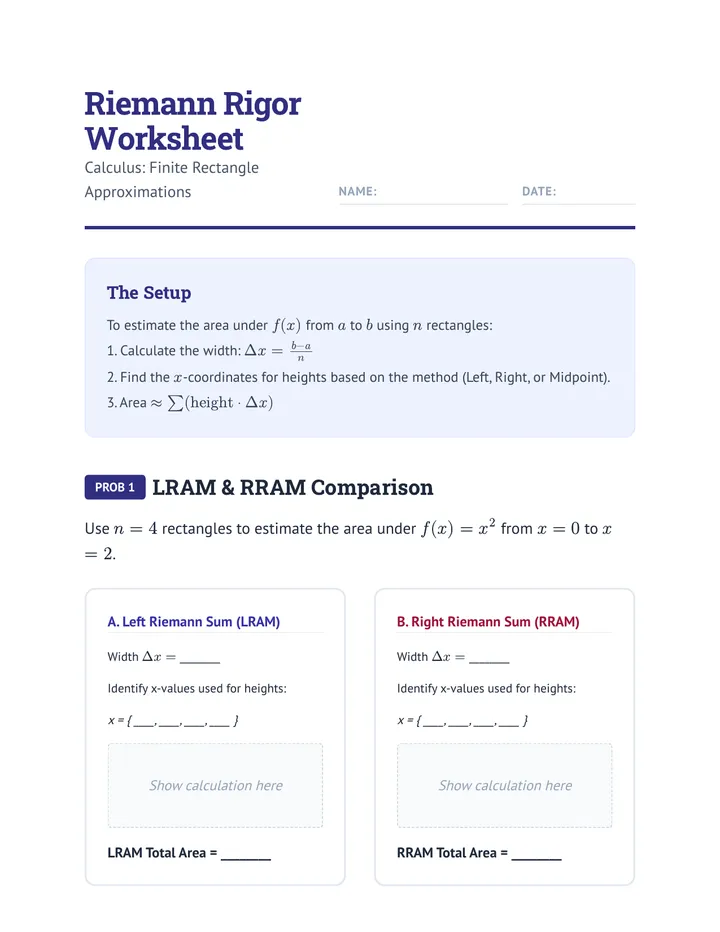

Riemann Rigor Worksheet Riemann Rigor Worksheet
Calculus: Finite Rectangle Approximations
Name: Date:
The Setup
To estimate the area under \(f(x)\) from \(a\) to \(b\) using \(n\) rectangles:
PROB 1
LRAM & RRAM Comparison
Use \(n = 4\) rectangles to estimate the area under \(f(x) = x^2\) from \(x = 0\) to \(x = 2\).
A. Left Riemann Sum (LRAM)
Width \(\Delta x = \) ________
Identify x-values used for heights:
x = { ____, ____, ____, ____ }
Show calculation here
LRAM Total Area = ________
B. Right Riemann Sum (RRAM)
Width \(\Delta x = \) ________
Identify x-values used for heights:
x = { ____, ____, ____, ____ }
Show calculation here
RRAM Total Area = ________
Analysis:
Since \(f(x) = x^2\) is increasing on \([0, 2]\), which method is an underestimate? ________
The actual area is \(2.667\). Which sum was closer? ________
PROB 2
Midpoint Accuracy
Estimate the area under \(f(x) = \sqrt{x} + 1\) from \(x = 0\) to \(x = 4\) using \(n = 2\) rectangles and MRAM .
1. Find \(\Delta x\):
2. Sub-intervals:
Interval 1: [____, ____] Interval 2: [____, ____]
3. Midpoints to use for \(f(x)\):
\(m_1 = \) ________ \(m_2 = \) ________
WORK SPACE
Final Result: MRAM Area ≈ ________
Critical Thinking:
If you use 1,000 rectangles instead of 4, what happens to the difference between your LRAM and RRAM values? Why?

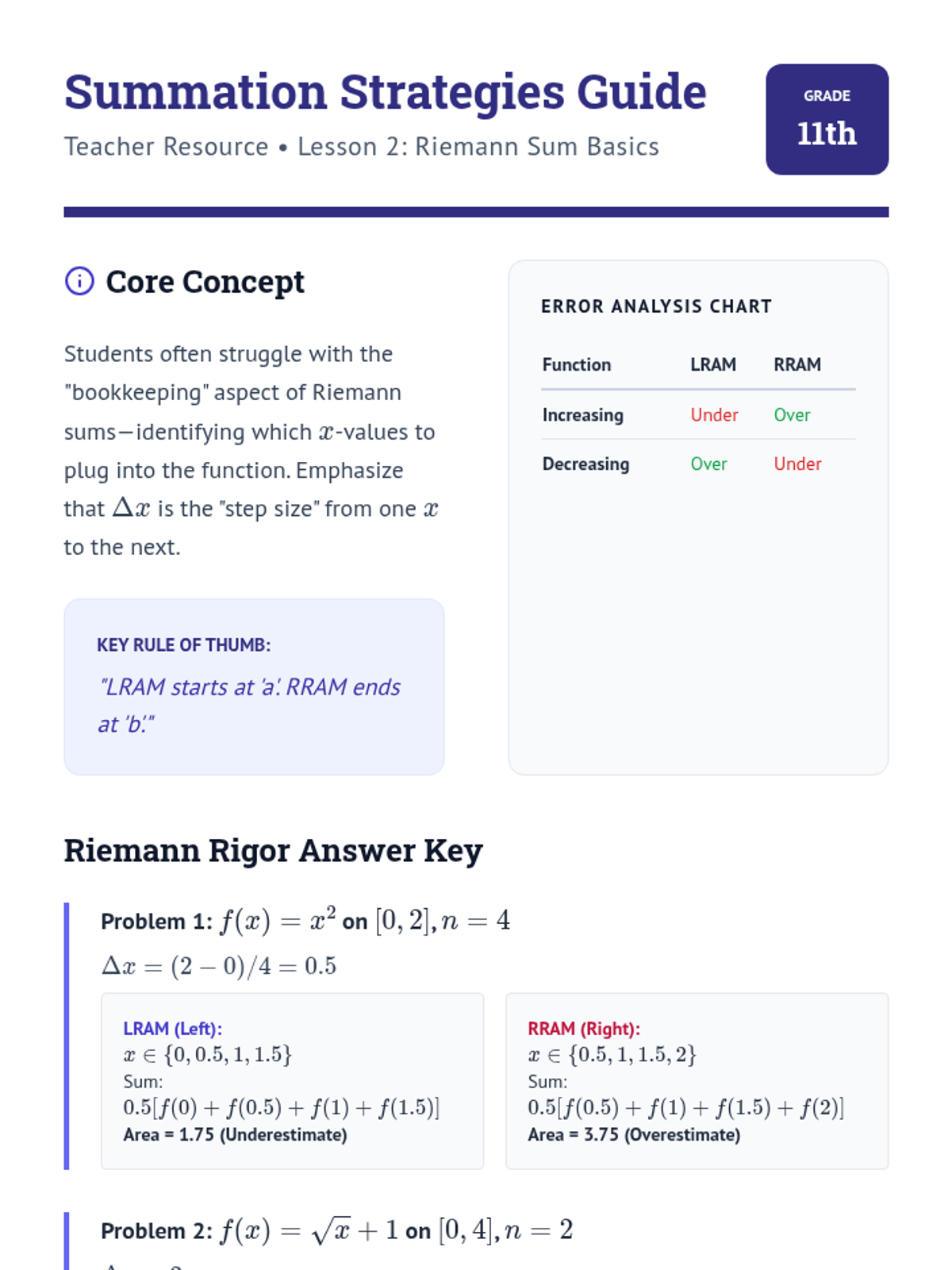

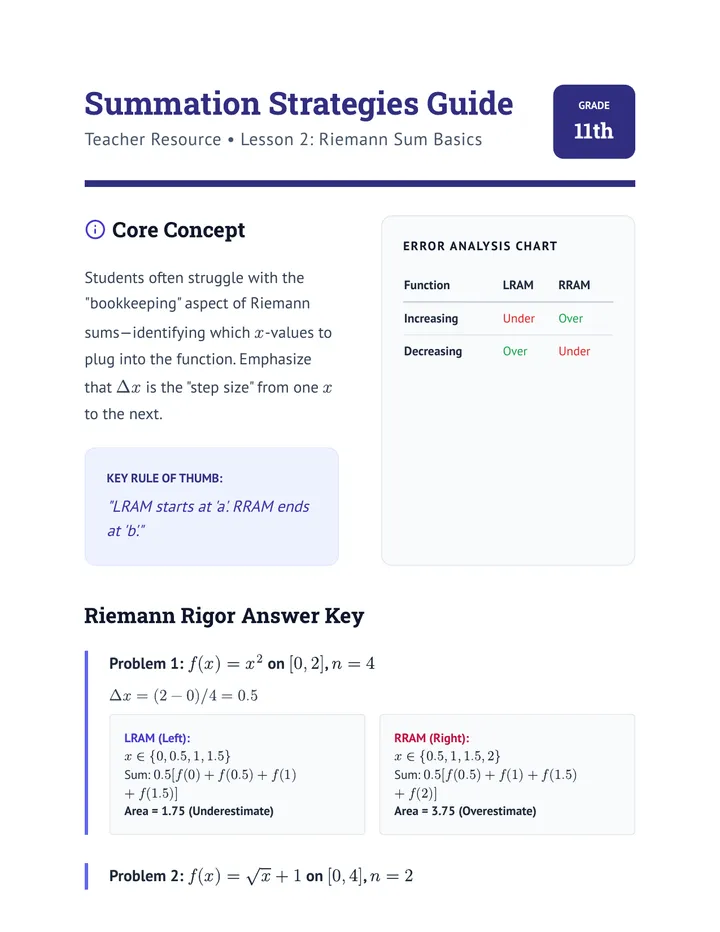

Summation Strategies Guide Summation Strategies Guide
Teacher Resource • Lesson 2: Riemann Sum Basics
Grade
11th
Core Concept
Students often struggle with the "bookkeeping" aspect of Riemann sums—identifying which \(x\)-values to plug into the function. Emphasize that \(\Delta x\) is the "step size" from one \(x\) to the next.
Key Rule of Thumb:
"LRAM starts at 'a'. RRAM ends at 'b'."
Error Analysis Chart
Function LRAM RRAM Increasing Under Over Decreasing Over Under
Riemann Rigor Answer Key
Problem 1: \(f(x) = x^2\) on \([0, 2]\), \(n=4\)
\(\Delta x = (2-0)/4 = 0.5\)
LRAM (Left):
\(x \in \{0, 0.5, 1, 1.5\}\)
Sum: \(0.5[f(0) + f(0.5) + f(1) + f(1.5)]\)
Area = 1.75 (Underestimate)
RRAM (Right):
\(x \in \{0.5, 1, 1.5, 2\}\)
Sum: \(0.5[f(0.5) + f(1) + f(1.5) + f(2)]\)
Area = 3.75 (Overestimate)
Problem 2: \(f(x) = \sqrt{x} + 1\) on \([0, 4]\), \(n=2\)
\(\Delta x = 2\)
Midpoints: \(1\) and \(3\).
Sum: \(2 \cdot [f(1) + f(3)] = 2 \cdot [(\sqrt{1}+1) + (\sqrt{3}+1)]\)
Area \(\approx 2 \cdot [2 + 2.732] = 9.464\)
Differentiation & Extension
For Struggling Students:
Have them draw the rectangles on a coordinate plane for every problem. Visualizing the heights helps them remember which \(x\)-value "touches" the curve.
Extension:
Ask: "If a function is neither increasing nor decreasing (it goes up and then down), can we guarantee LRAM is an underestimate?" (Answer: No, it depends on the net change).
Sigma Secret Slides Σ
Sigma Secrets
Mastering the Language of Summation
Lesson 3: Sigma Notation
The "Efficiency" Problem
Yesterday, we added 4 rectangles. No big deal.10,000 rectangles?
Area ≈ A1 + A2 + A3 + ... + A10,000
This takes too long to write.
Enter Sigma Notation (Σ) : The mathematical shorthand for "Add all of these up."
Anatomy of Sigma
Σ
n
Upper Limit (Where to stop)
i=1
Index / Lower Limit (Where to start)
ai
The "Argument" (The pattern to add)
The Riemann Translation
Geometric English:
"Sum of (Height × Width) for all rectangles from 1 to n."
Calculus Notation:
\[ \sum_{i=1}^{n} f(x_i) \Delta x \]
\(f(x_i)\) is the height of the \(i\)-th rectangle.one rectangle. The \(\Sigma\) adds them all.
Summation Cheat Codes
Sum of a Constant (\(c\))
\[ \sum_{i=1}^{n} c = c \cdot n \]
Sum of \(i\)
\[ \sum_{i=1}^{n} i = \frac{n(n+1)}{2} \]
Sum of \(i^2\)
\[ \sum_{i=1}^{n} i^2 = \frac{n(n+1)(2n+1)}{6} \]
The Goal:
"These formulas allow us to evaluate sums for ANY \(n\), even as \(n\) approaches infinity!"

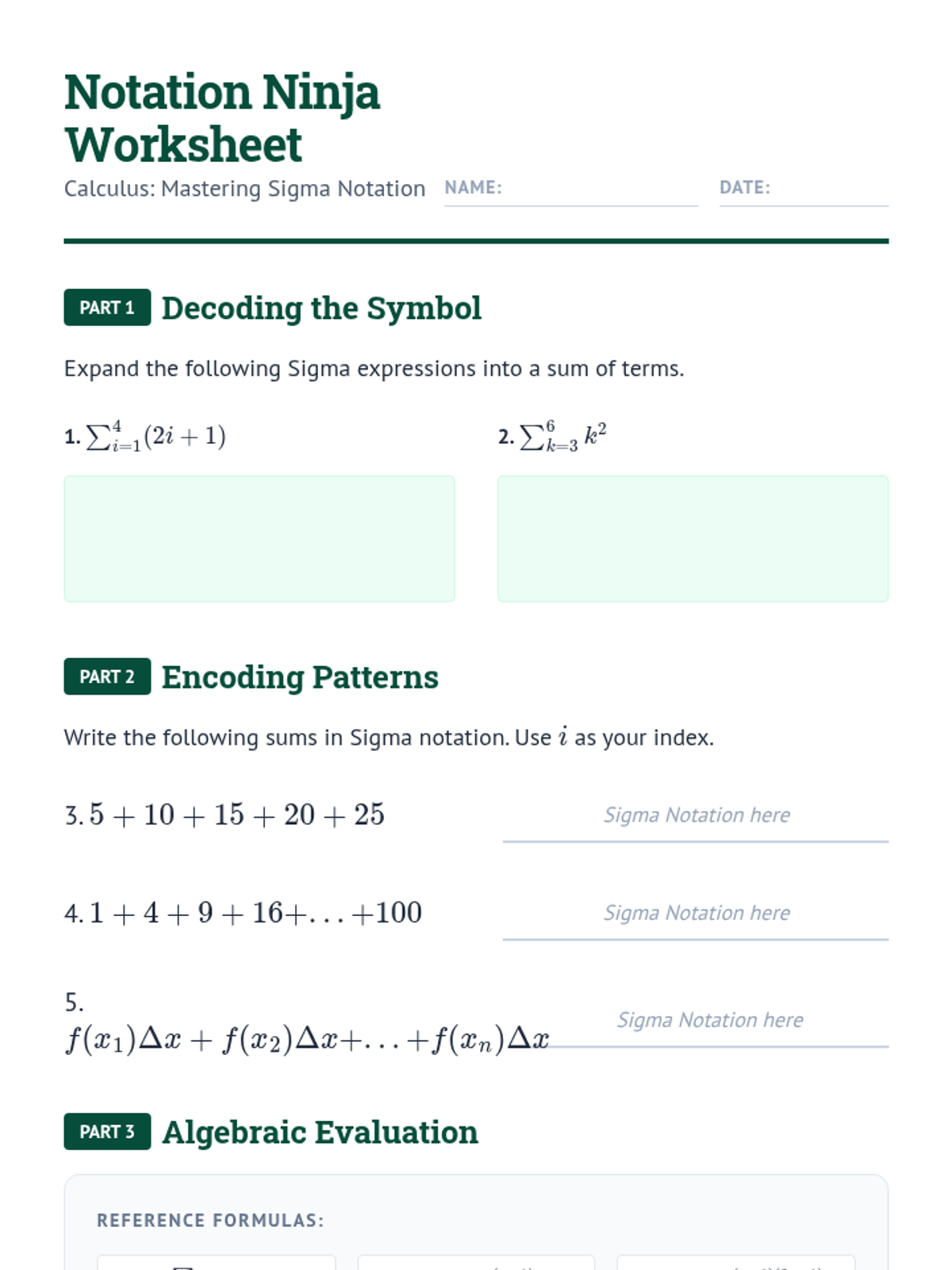

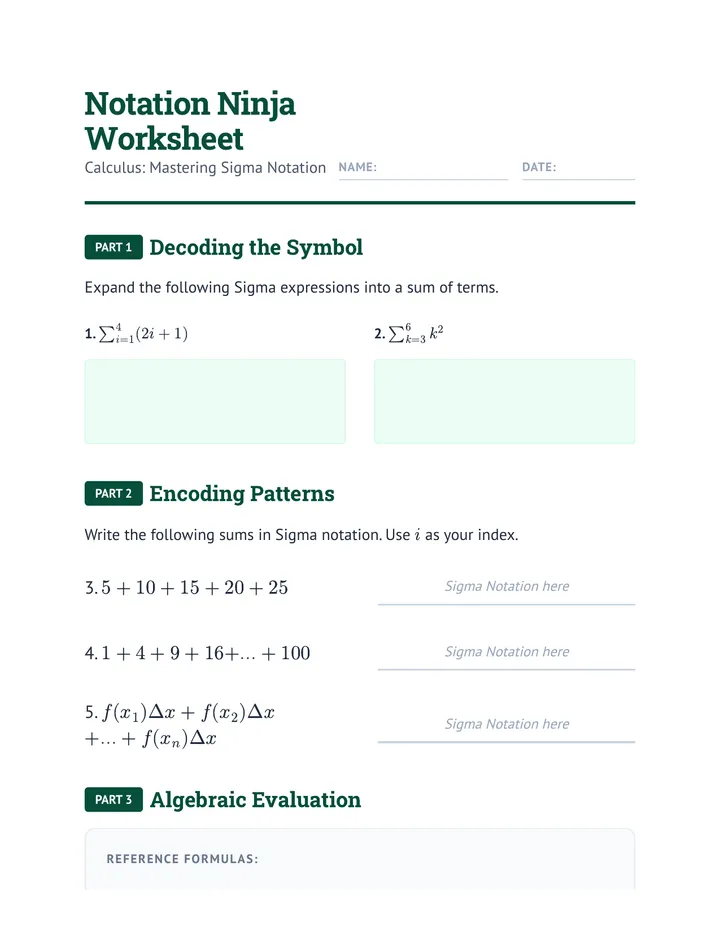

Notation Ninja Worksheet Notation Ninja Worksheet
Calculus: Mastering Sigma Notation
Name: Date:
PART 1
Decoding the Symbol
Expand the following Sigma expressions into a sum of terms.
1. \(\sum_{i=1}^{4} (2i + 1)\)
2. \(\sum_{k=3}^{6} k^2\)
PART 2
Encoding Patterns
Write the following sums in Sigma notation. Use \(i\) as your index.
3. \(5 + 10 + 15 + 20 + 25\)
Sigma Notation here
4. \(1 + 4 + 9 + 16 + ... + 100\)
Sigma Notation here
5. \(f(x_1)\Delta x + f(x_2)\Delta x + ... + f(x_n)\Delta x\)
Sigma Notation here
PART 3
Algebraic Evaluation
Reference Formulas:
\(\sum c = cn\)
\(\sum i = \frac{n(n+1)}{2}\)
\(\sum i^2 = \frac{n(n+1)(2n+1)}{6}\)
Evaluate the following sums for the given \(n\). Show your steps.
6. \(\sum_{i=1}^{50} 7\)
7. \(\sum_{i=1}^{20} i\)
8. Evaluate \(\sum_{i=1}^{n} (3i - 2)\) when \(n = 10\). (Hint: Use linearity: \(3\sum i - \sum 2\))
Σ
The Big Picture:
Why are we learning this? In the next lesson, we will find the area under a curve by taking the limit of a Sigma expression as \(n \to \infty\). If you can't write the sum in Sigma, you can't find the exact area!

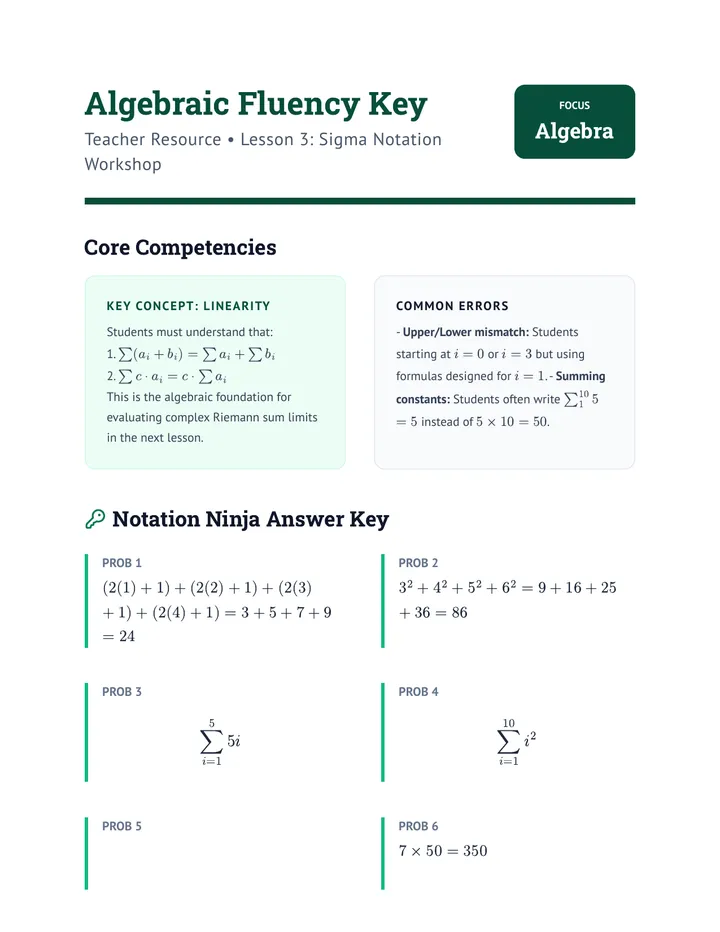

Algebraic Fluency Key Algebraic Fluency Key
Teacher Resource • Lesson 3: Sigma Notation Workshop
Focus
Algebra
Core Competencies
Key Concept: Linearity
Students must understand that:
Common Errors
- Upper/Lower mismatch: Students starting at \(i=0\) or \(i=3\) but using formulas designed for \(i=1\). - Summing constants: Students often write \(\sum_{1}^{10} 5 = 5\) instead of \(5 \times 10 = 50\).
Notation Ninja Answer Key
PROB 1
\( (2(1)+1) + (2(2)+1) + (2(3)+1) + (2(4)+1) = 3 + 5 + 7 + 9 = 24 \)
PROB 2
\( 3^2 + 4^2 + 5^2 + 6^2 = 9 + 16 + 25 + 36 = 86 \)
PROB 3
\[ \sum_{i=1}^{5} 5i \]
PROB 4
\[ \sum_{i=1}^{10} i^2 \]
PROB 5
\[ \sum_{i=1}^{n} f(x_i) \Delta x \]
PROB 6
\( 7 \times 50 = 350 \)
PROB 7
\( \frac{20(21)}{2} = 10 \cdot 21 = 210 \)
PROB 8
\( 3\sum_{1}^{10} i - \sum_{1}^{10} 2 \)
Class Discussion: The Infinite Sum
Close the workshop by asking: "If we let \(n\) grow larger and larger, do our summation formulas still work?"
Thought Prompt:
"If we add an infinite number of zero-width rectangles, will the sum be infinite or finite?"
Pedagogical Note:
This prepares them for Lesson 4 where we apply the Limit to these Sigma expressions.
Infinity Insight Slides Infinity Insights
The Limit Definition of Area
Lesson 4: Bridging the Gap
The "Jagged" Problem
No matter how many rectangles we use (4, 10, 100), our approximation has errors .
"The top of a rectangle is always flat, but the curve is always curved."
How do we get rid of the "jagged" excess area?
Zooming in on the Error
Making Rectangles Infinitely Thin
Number of Rectangles
\(n \to \infty\)
Width of Each
\(\Delta x \to 0\)
When the rectangles are infinitely thin , the sum of their areas becomes the exact area under the curve.
The Formal Definition
Exact Area =
\[ \lim_{n \to \infty} \sum_{i=1}^{n} f(x_i) \Delta x \]
1
The Sum adds the finite parts.
2
The Limit turns finite into infinite precision.
Visualizing the Result
As the width becomes infinitesimal, the 'rectangles' lose their jaggedness and simply become vertical line segments.
"The error goes to zero because the gap between the rectangle top and the curve disappears."
Next step: Developing a symbol that captures this entire process...

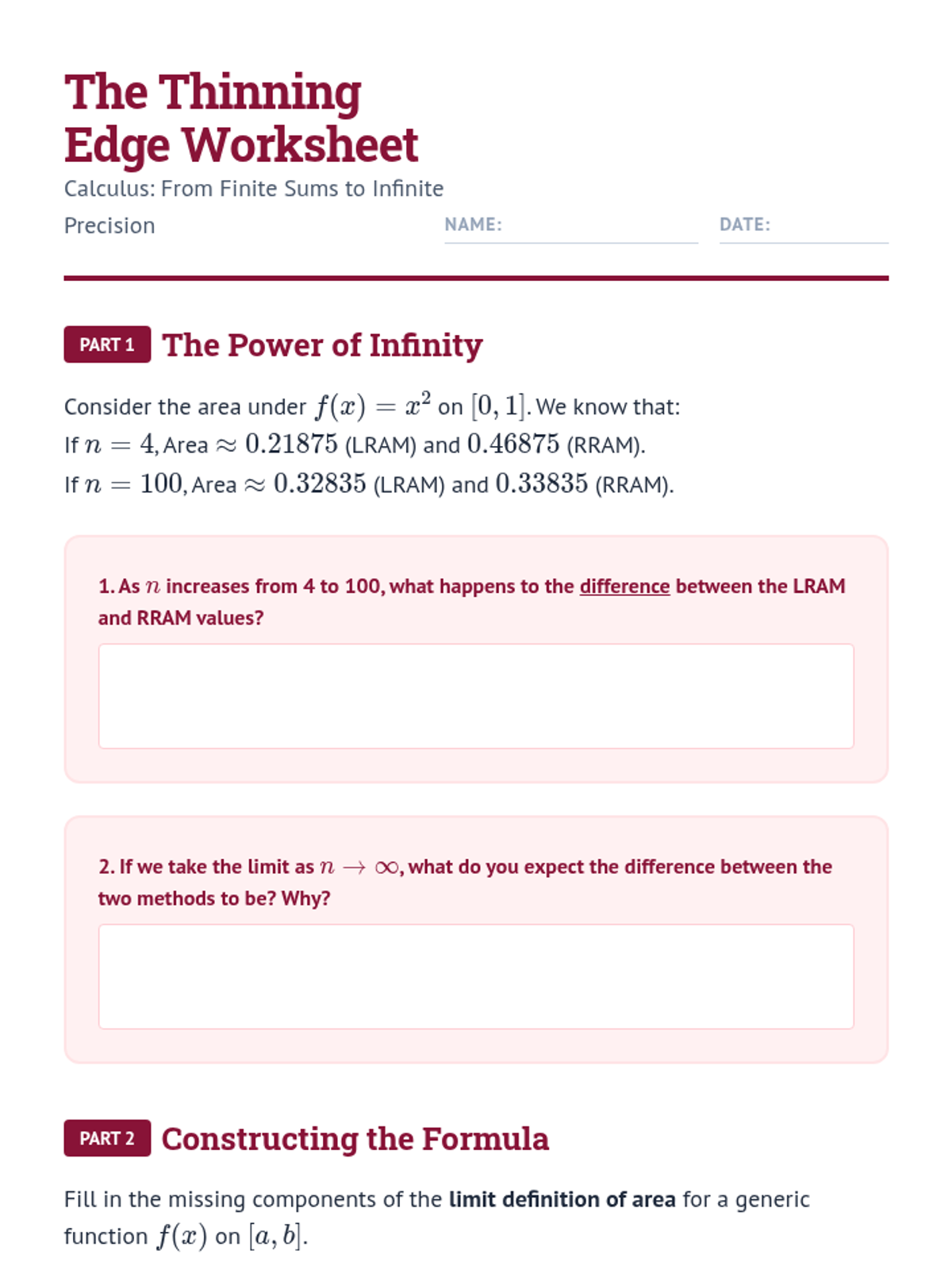

Thinning Edge Worksheet The Thinning Edge Worksheet
Calculus: From Finite Sums to Infinite Precision
Name: Date:
PART 1
The Power of Infinity
Consider the area under \(f(x) = x^2\) on \([0, 1]\). We know that:
1. As \(n\) increases from 4 to 100, what happens to the difference between the LRAM and RRAM values?
2. If we take the limit as \(n \to \infty\), what do you expect the difference between the two methods to be? Why?
PART 2
Constructing the Formula
Fill in the missing components of the limit definition of area for a generic function \(f(x)\) on \([a, b]\).
Area =
Limit Part
Sum Part
\(f(x_i) \cdot \Delta x\)
3. Define \(\Delta x\) in terms of \(a, b,\) and \(n\):
4. Define \(x_i\) for a Right Riemann Sum:
(Where do we start, and how many 'steps' do we take?)
PART 3
Concept Map
Draw lines to connect the following "Finite" concepts to their "Infinite" counterparts.
Sum (\(\Sigma\))
Width (\(\Delta x\))
Input (\(x_i\))
Infinitesimal width (\(dx\))
Continuous variable (\(x\))
Infinite Accumulator (\(\int\))
Final Reflection:
"If we are summing an infinite number of things, why doesn't the total area always equal infinity?"

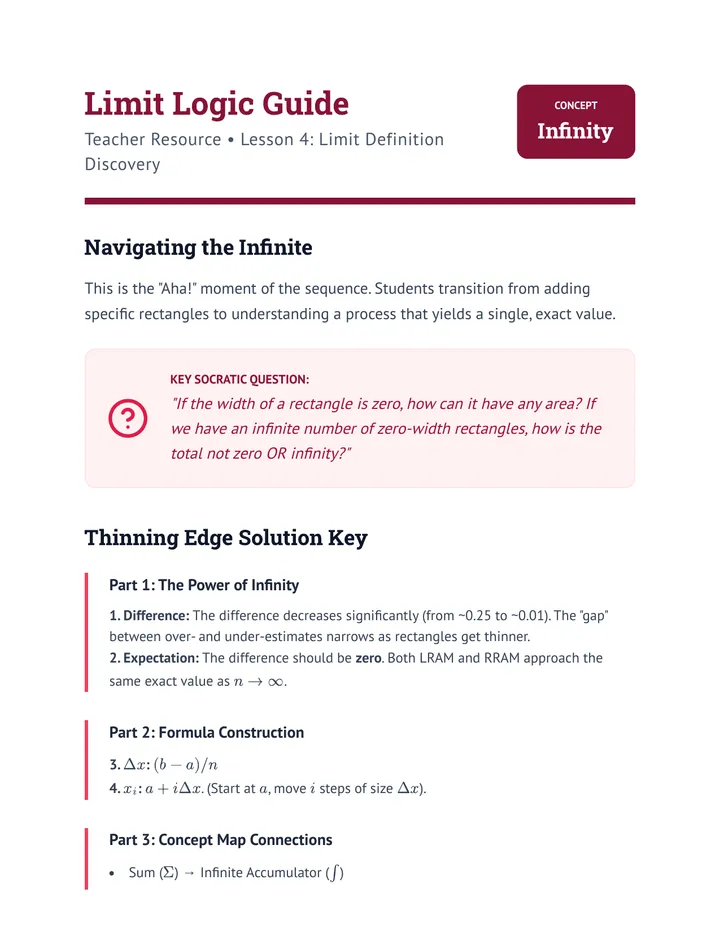

Limit Logic Guide Limit Logic Guide
Teacher Resource • Lesson 4: Limit Definition Discovery
Concept
Infinity
Navigating the Infinite
This is the "Aha!" moment of the sequence. Students transition from adding specific rectangles to understanding a process that yields a single, exact value.
Key Socratic Question:
"If the width of a rectangle is zero, how can it have any area? If we have an infinite number of zero-width rectangles, how is the total not zero OR infinity?"
Thinning Edge Solution Key
Part 1: The Power of Infinity
1. Difference: The difference decreases significantly (from ~0.25 to ~0.01). The "gap" between over- and under-estimates narrows as rectangles get thinner.
2. Expectation: The difference should be zero . Both LRAM and RRAM approach the same exact value as \(n \to \infty\).
Part 2: Formula Construction
3. \(\Delta x\): \((b-a)/n\)
4. \(x_i\): \(a + i\Delta x\). (Start at \(a\), move \(i\) steps of size \(\Delta x\)).
Part 3: Concept Map Connections
Sum (\(\Sigma\)) → Infinite Accumulator (\(\int\))
Width (\(\Delta x\)) → Infinitesimal width (\(dx\))
Input (\(x_i\)) → Continuous variable (\(x\))
The Convergence Paradox
In response to the final reflection: Students should conclude that while we have "infinite" things, each thing is "infinitely small."
"It's like cutting a piece of bread into infinite slices. You still have the same amount of bread, just thinner pieces. The total area is constrained by the function and the boundaries [a, b]."
Integral Icon Slides ∫
The Integral Icon
Defining the Definite Integral
Lesson 5: Formal Notation
The Stylized 'S'
In 1675, Gottfried Wilhelm Leibniz created the integral symbol (\(\int\)).
Summa
It is an elongated 'S' for 'Sum'.
He wanted a symbol that looked like a sum but felt like a continuous flow.
∫
Leibniz Notation
Anatomy of the Definite Integral
b ∫ a
f(x) dx
a, b
Limits of Integration (The start and stop points)
f(x)
Integrand (The height of the curve)
dx
Differential (The infinitesimal width)
The Rosetta Stone
Finite ↔ Infinite
Riemann Sum Limit
\[ \lim_{n \to \infty} \sum_{i=1}^{n} f(x_i) \Delta x \]
Definite Integral
\[ \int_{a}^{b} f(x) \, dx \]
The integral is just a shorthand for the entire limit process we've discovered this week.
The Great Mystery Remains...
"We have a symbol for the area (\(\int\)). We have a definition for the area (Limit). But is there a shortcut to calculate it without using limits?"
∫ f(x) dx = ?
Preview: The Fundamental Theorem of Calculus (Coming Soon...)

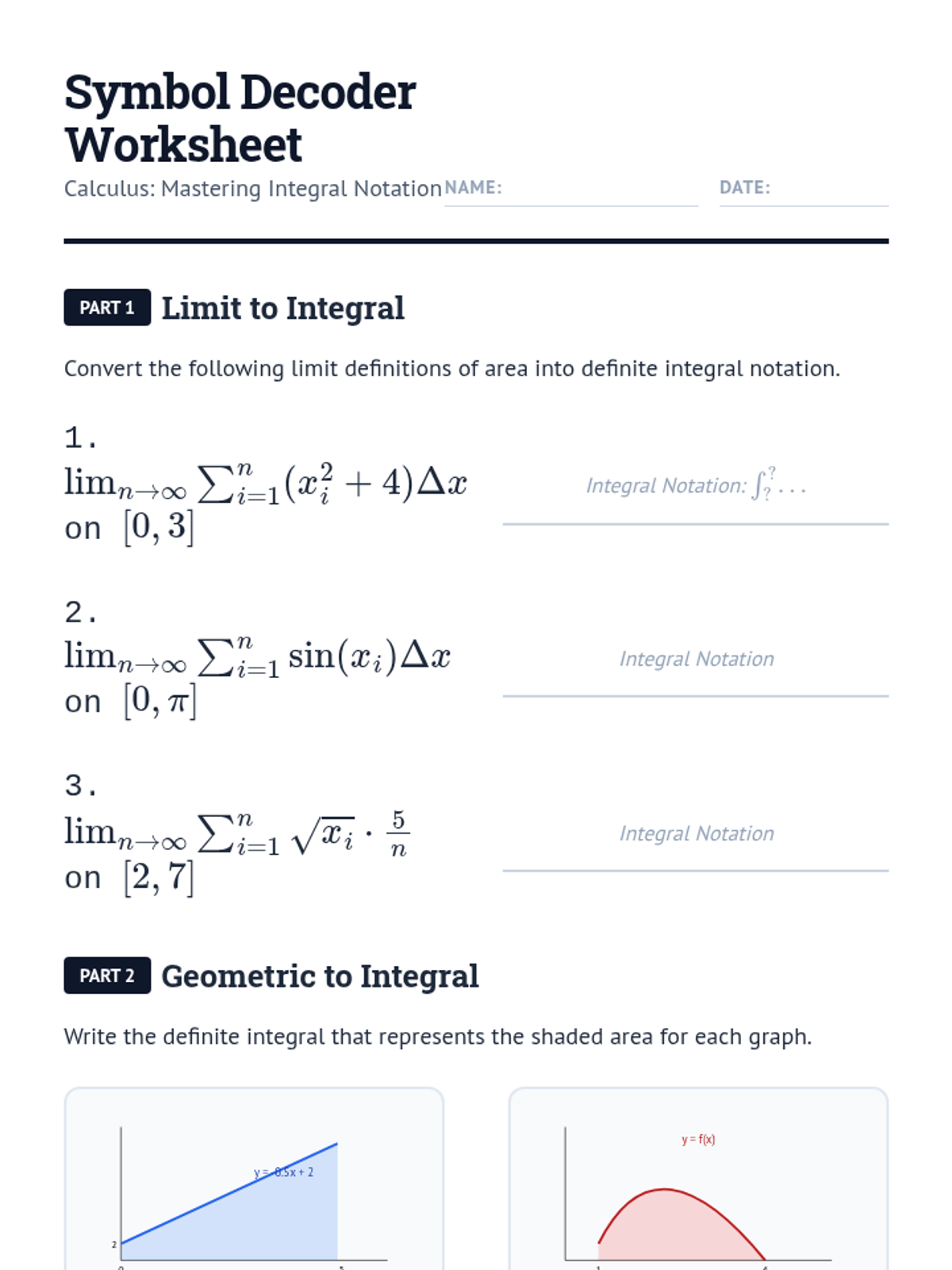

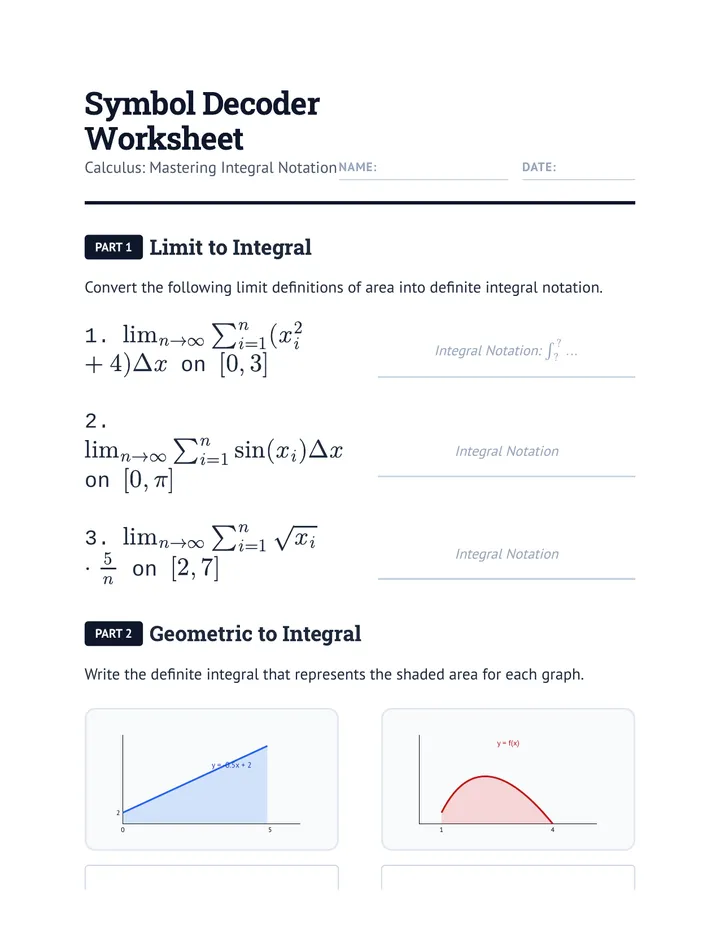

Symbol Decoder Worksheet Symbol Decoder Worksheet
Calculus: Mastering Integral Notation
Name: Date:
PART 1
Limit to Integral
Convert the following limit definitions of area into definite integral notation.
1. \(\lim_{n \to \infty} \sum_{i=1}^{n} (x_i^2 + 4) \Delta x\) on \([0, 3]\)
Integral Notation: \(\int_{?}^{?} ...\)
2. \(\lim_{n \to \infty} \sum_{i=1}^{n} \sin(x_i) \Delta x\) on \([0, \pi]\)
Integral Notation
3. \(\lim_{n \to \infty} \sum_{i=1}^{n} \sqrt{x_i} \cdot \frac{5}{n}\) on \([2, 7]\)
Integral Notation
PART 2
Geometric to Integral
Write the definite integral that represents the shaded area for each graph.
2 5 0 y = -0.5x + 2
1 4 y = f(x)
PART 3
Anatomy Review
Identify the specific role of each part in the expression: \(\int_{0}^{10} 3x^2 \, dx\)
5. What does the "10" represent?
6. What does the "3x²" represent?
7. What does the "dx" represent?
8. What is the geometric value of the result?
Final Synthesis:
Leibniz used the integral symbol as an "elongated S". Explain in your own words why he chose a symbol for "Sum" to represent the area under a curve.

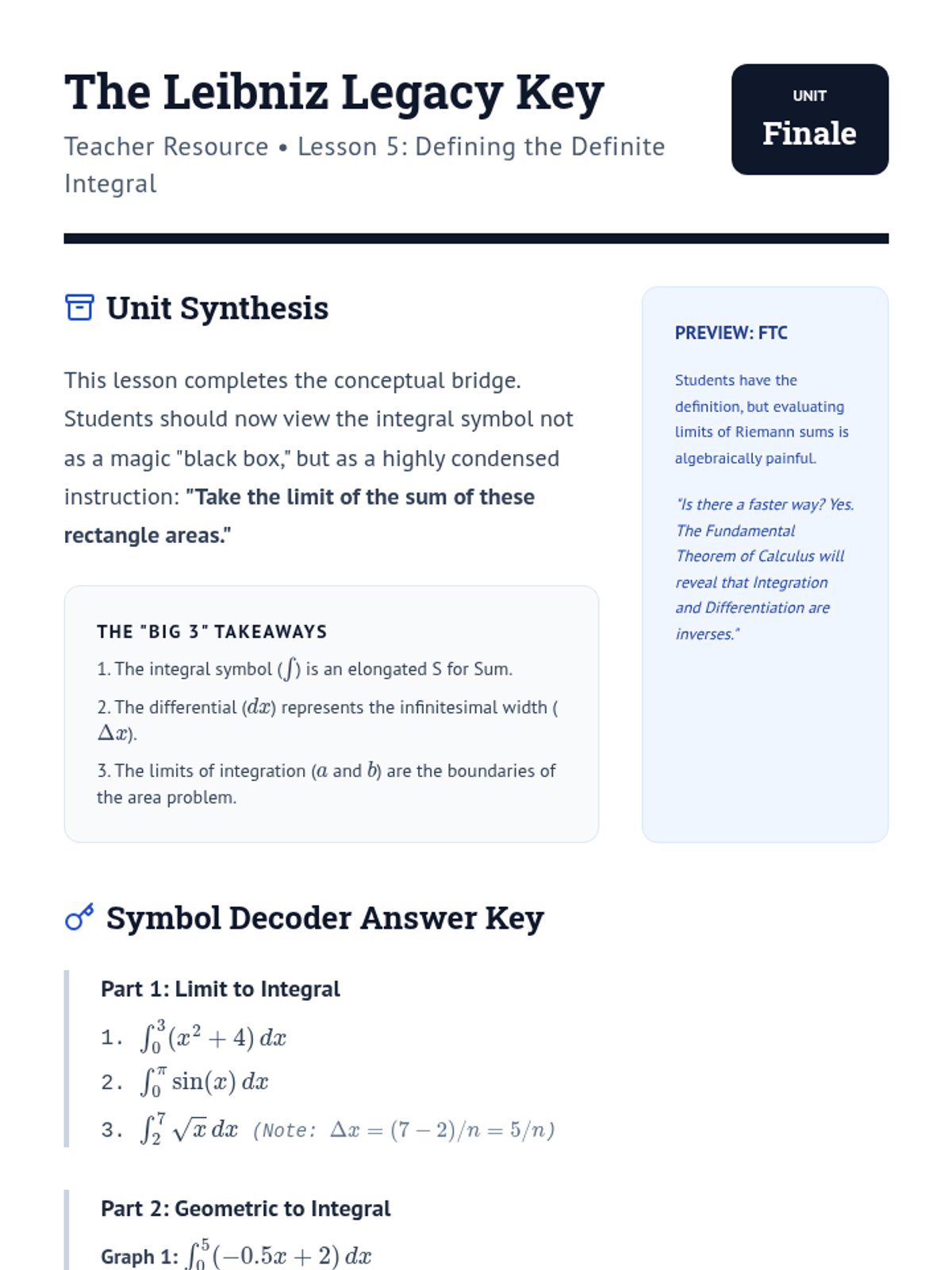

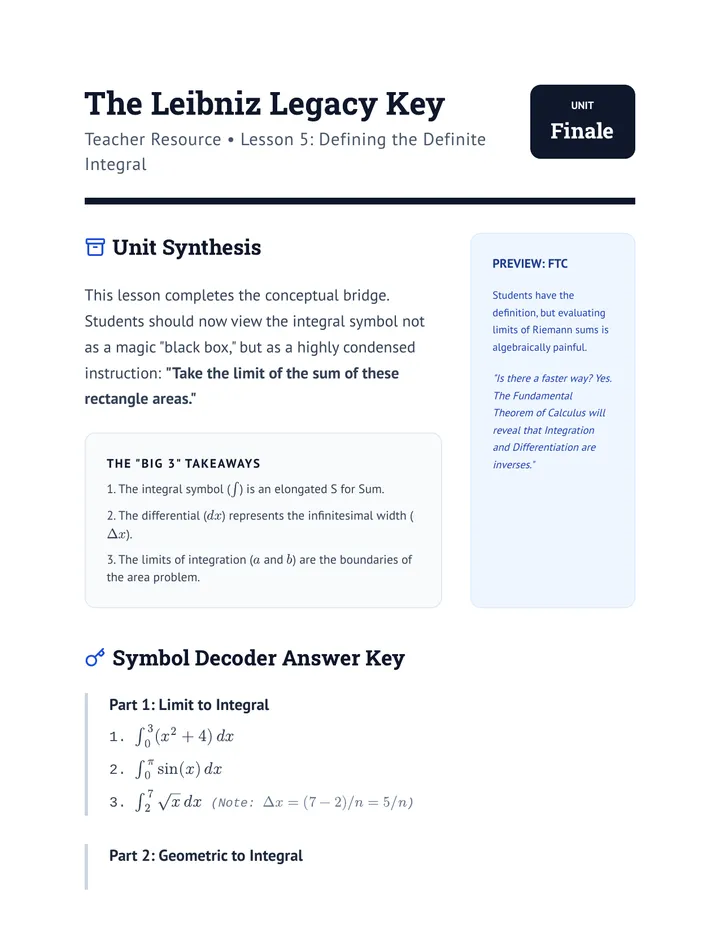

Leibniz Legacy Key The Leibniz Legacy Key
Teacher Resource • Lesson 5: Defining the Definite Integral
Unit
Finale
Unit Synthesis
This lesson completes the conceptual bridge. Students should now view the integral symbol not as a magic "black box," but as a highly condensed instruction: "Take the limit of the sum of these rectangle areas."
The "Big 3" Takeaways
The integral symbol (\(\int\)) is an elongated S for Sum.
The differential (\(dx\)) represents the infinitesimal width (\(\Delta x\)).
The limits of integration (\(a\) and \(b\)) are the boundaries of the area problem.
Preview: FTC
Students have the definition, but evaluating limits of Riemann sums is algebraically painful.
"Is there a faster way? Yes. The Fundamental Theorem of Calculus will reveal that Integration and Differentiation are inverses."
Symbol Decoder Answer Key
Part 1: Limit to Integral
1. \(\int_{0}^{3} (x^2 + 4) \, dx\)
2. \(\int_{0}^{\pi} \sin(x) \, dx\)
3. \(\int_{2}^{7} \sqrt{x} \, dx\) (Note: \(\Delta x = (7-2)/n = 5/n\))
Part 2: Geometric to Integral
Graph 1: \(\int_{0}^{5} (-0.5x + 2) \, dx\)
Graph 2: \(\int_{1}^{4} f(x) \, dx\)
Part 3: Anatomy Review
5. 10: Upper limit of integration (endpoint).
6. 3x²: The integrand (height of function at x).
7. dx: The differential (width of infinitesimal rectangle).
8. Geometric Value: The exact area under the curve \(y=3x^2\) from 0 to 10.
Closing the Loop
The "Sum" discussion: Leibniz chose the symbol because he viewed the area as a sum of "lines" (indivisibles). Though modern math uses the "limit of rectangles" approach, his notation captures the spirit of adding up infinite parts to create a whole.
End of Sequence
