Circle Blueprints

Deriving Equations from Locus Definitions

ANALYTIC ARCHITECTURE

Project No: 01-CIRC

Locus Definition

A circle is the locus of all points in a plane that are at a fixed distance (the radius, \(r\)) from a fixed point (the center, \((h, k)\)).

Student Name

Date

1

The First Blueprint: Derivation

Let \(P(x, y)\) be any point on a circle with center \(C(h, k)\) and radius \(r\). By definition, the distance from \(C\) to \(P\) must be exactly \(r\). Use the distance formula to show your derivation below.

Step 1: Apply Distance Formula

Recall: \(d = \sqrt{(x_2-x_1)^2 + (y_2-y_1)^2}\)

Step 2: Eliminate the Radical

Standard Equation of a Circle

After squaring both sides, we arrive at the standard form used by architects and engineers to model circular elements:

\((x - h)^2 + (y - k)^2 = r^2\)

\((h, k)\): Coordinates of the center.
\(r\): The radius of the circle.
Note: If the center is at the origin \((0, 0)\), the equation simplifies to \(x^2 + y^2 = r^2\).

2

Drafting Practice

PROJECT 1.1: Standard Form Identification ID: CIRC-STD-01

Given the following equation, identify the center and radius of the circle:

\((x + 4)^2 + (y - 7)^2 = 36\)

Center:

Radius:

Sketch Area

PROJECT 1.2: Construction from Constraints ID: CIRC-CON-02

An architect is designing a circular fountain. The center is located at \((3, -2)\) on the site map, and the fountain must pass through the point \((7, 1)\). Determine the standard equation of the fountain's edge.

1. Calculate Radius Squared (\(r^2\))

2. Final Standard Equation

// ARCHITECT'S NOTES
- Ensure coordinates are mapped correctly.
- Double-check distance calculation.
- Keep final form simplified but expanded in thought.
- Radius represents physical width in feet.

PROJECT 1.3: Implicit Geometry ID: CIRC-IMP-03

A circle is tangent to the y-axis and has its center at \((-5, 3)\). Write its equation.

Equation:

Analytic Architecture

Circle Blueprints

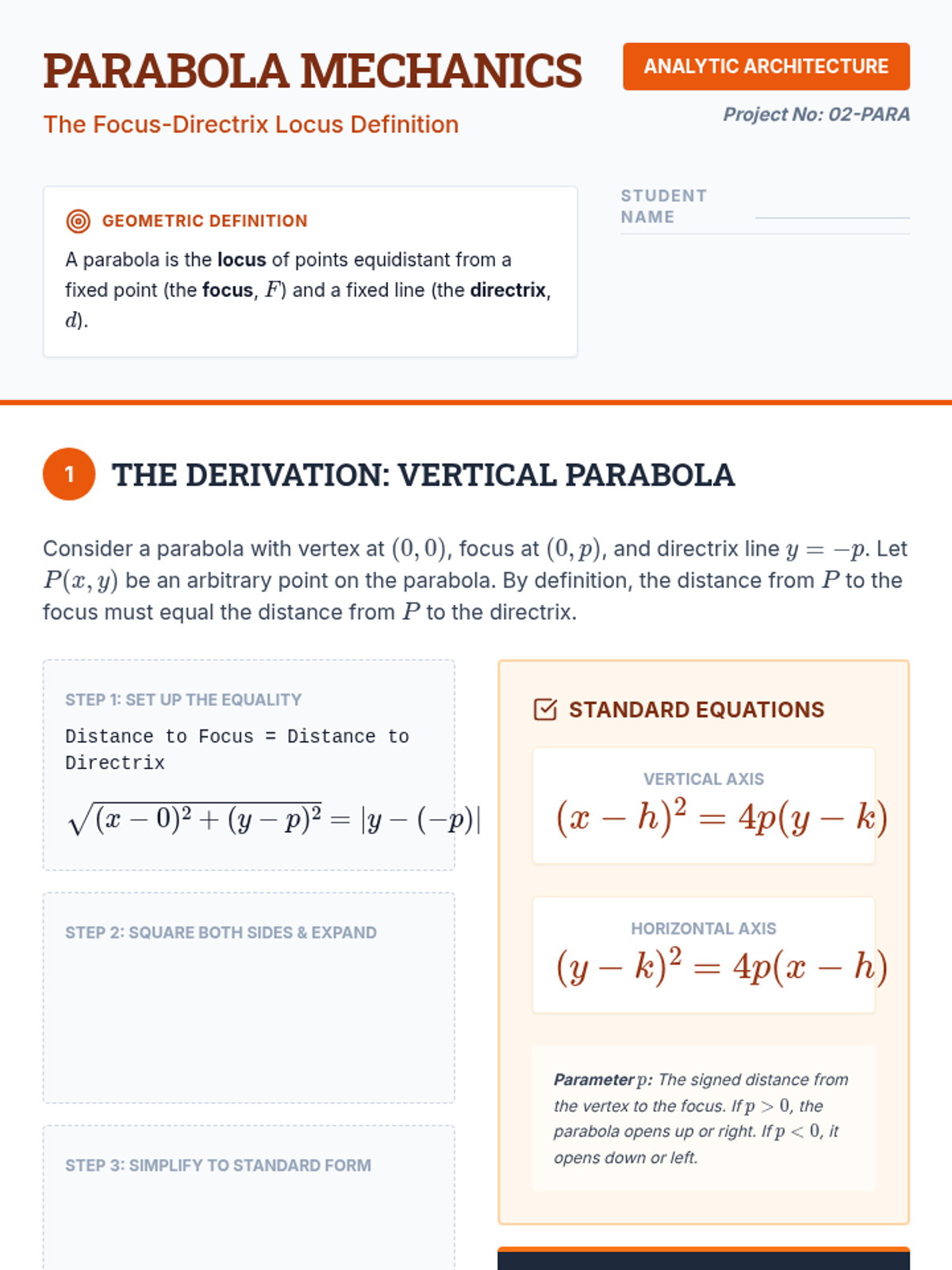

Parabola Mechanics

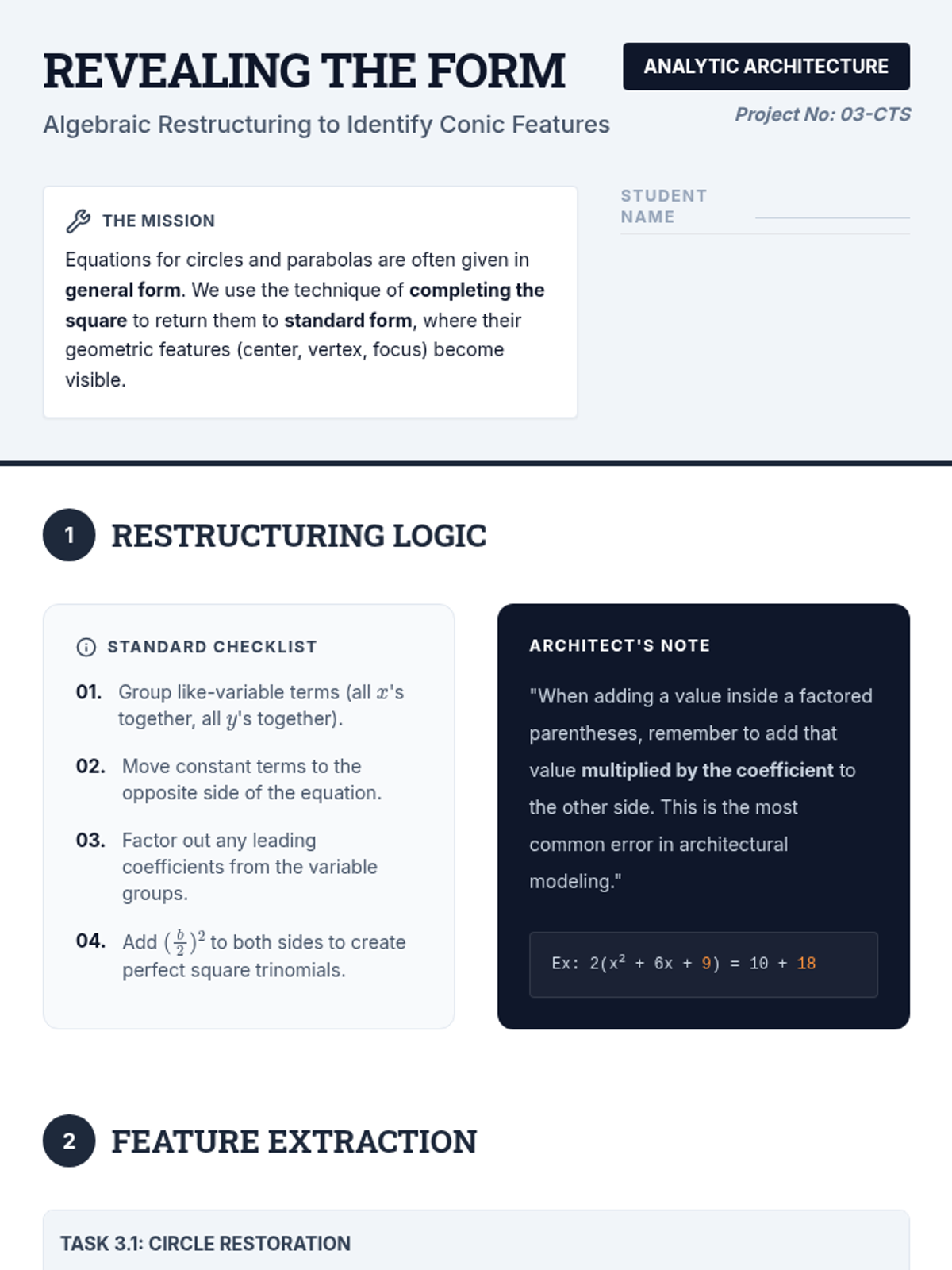

Revealing the Form

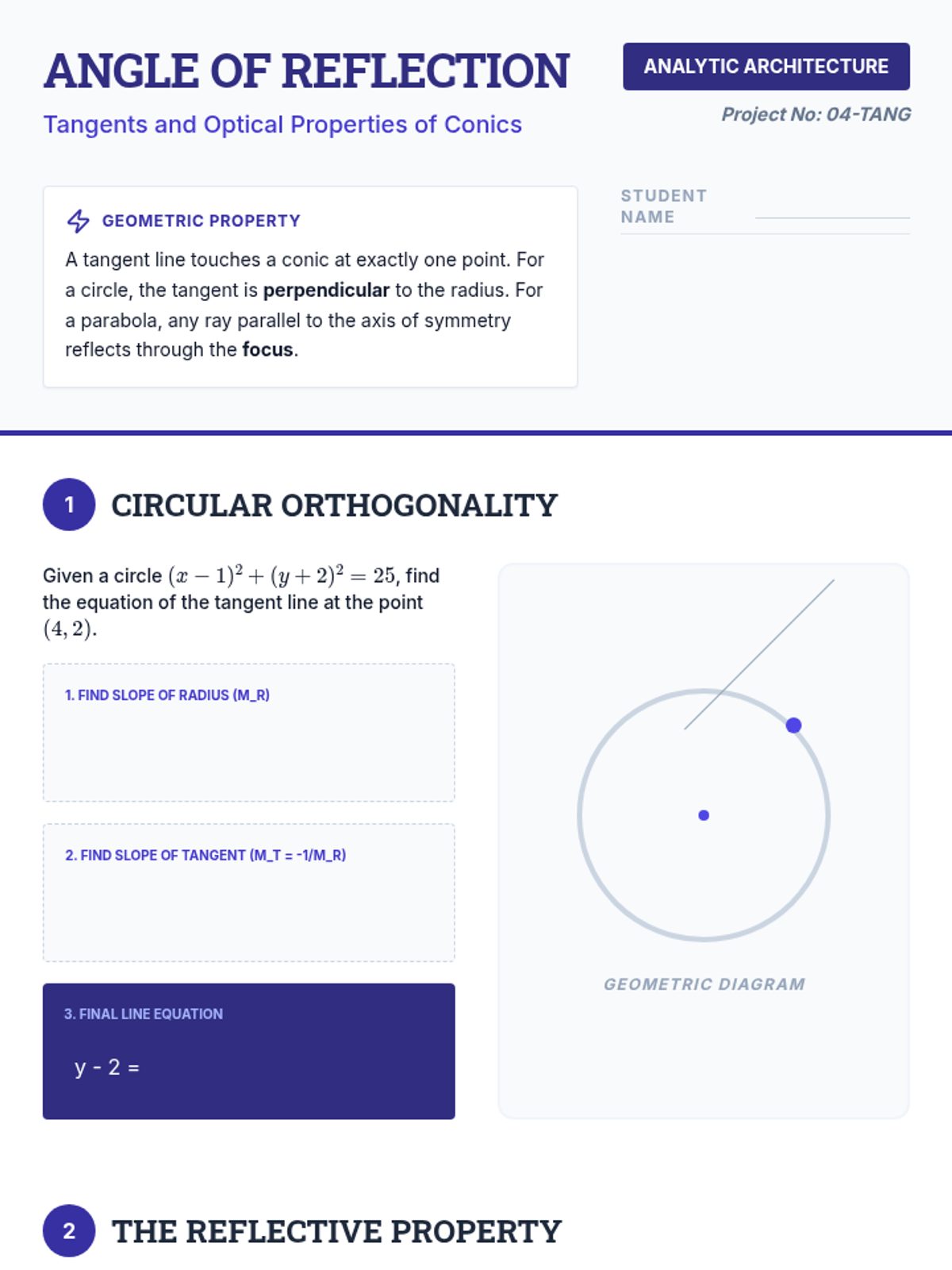

Angle of Reflection

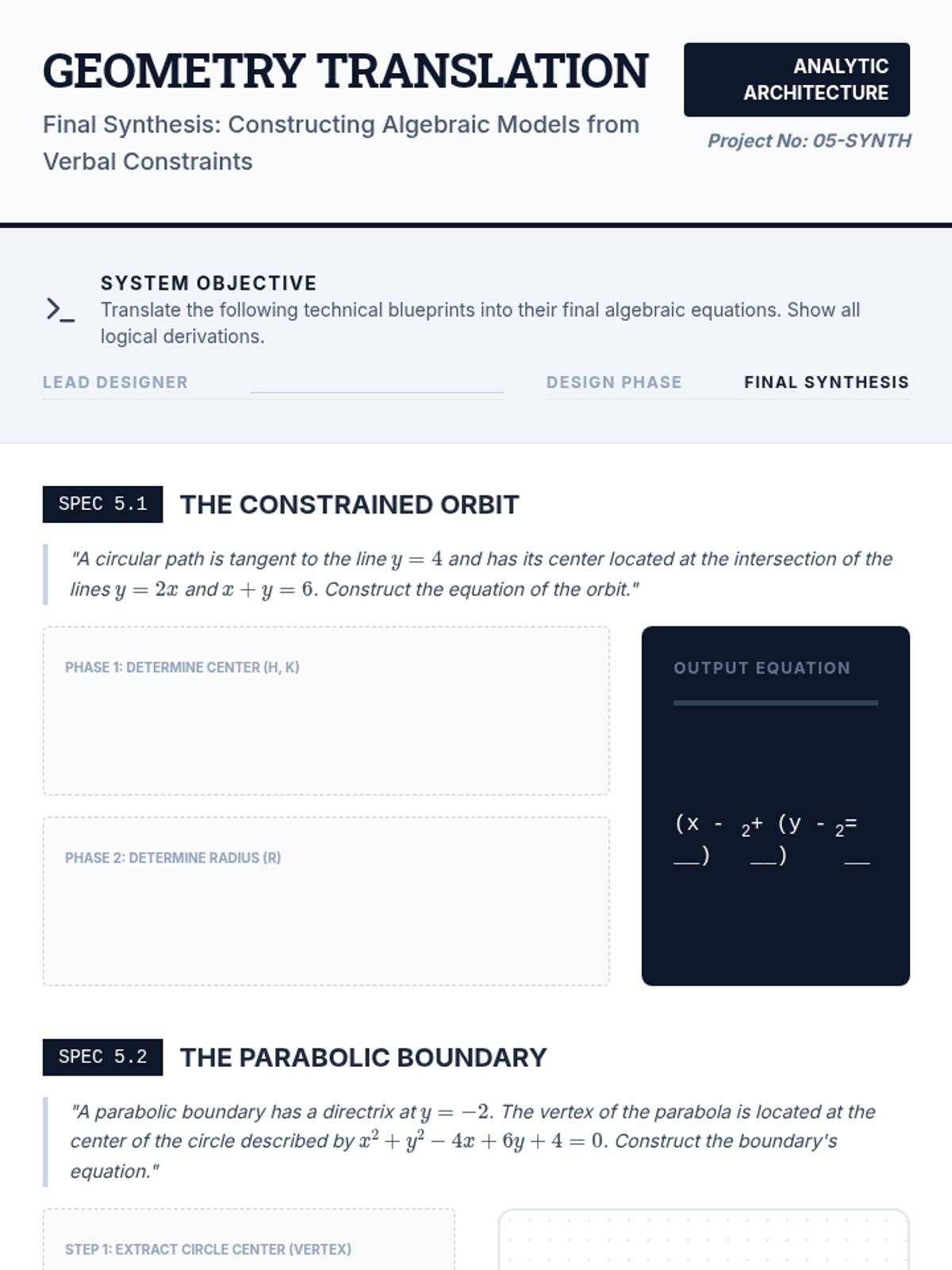

Geometry Translation

Circle Locus Worksheet

Circle Derivation Slides

Circle Pedagogy Guide

Parabola Locus Worksheet

Parabola Derivation Slides

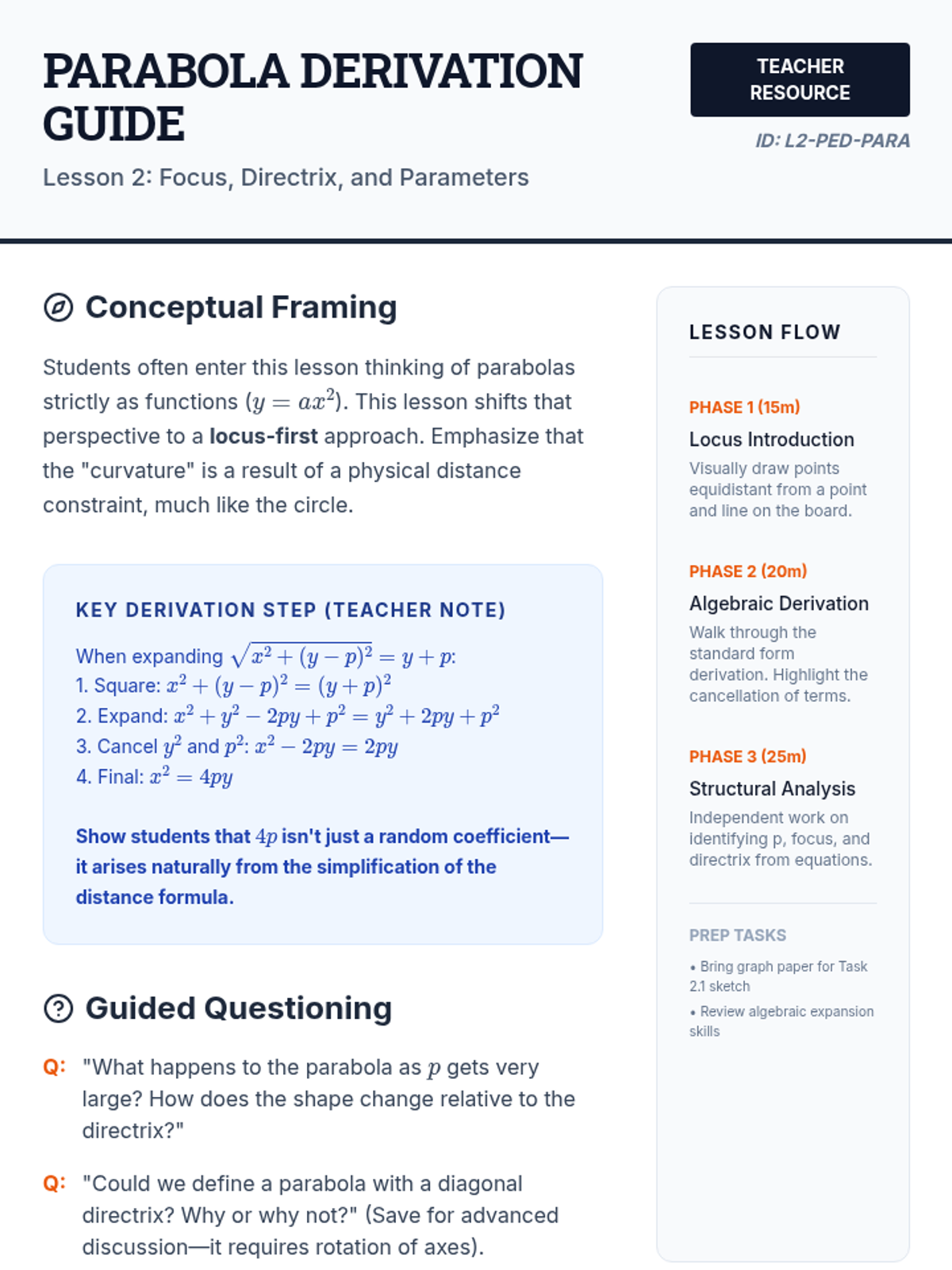

Parabola Derivation Guide

Standard Form Conversion Worksheet

Completing the Square Slides

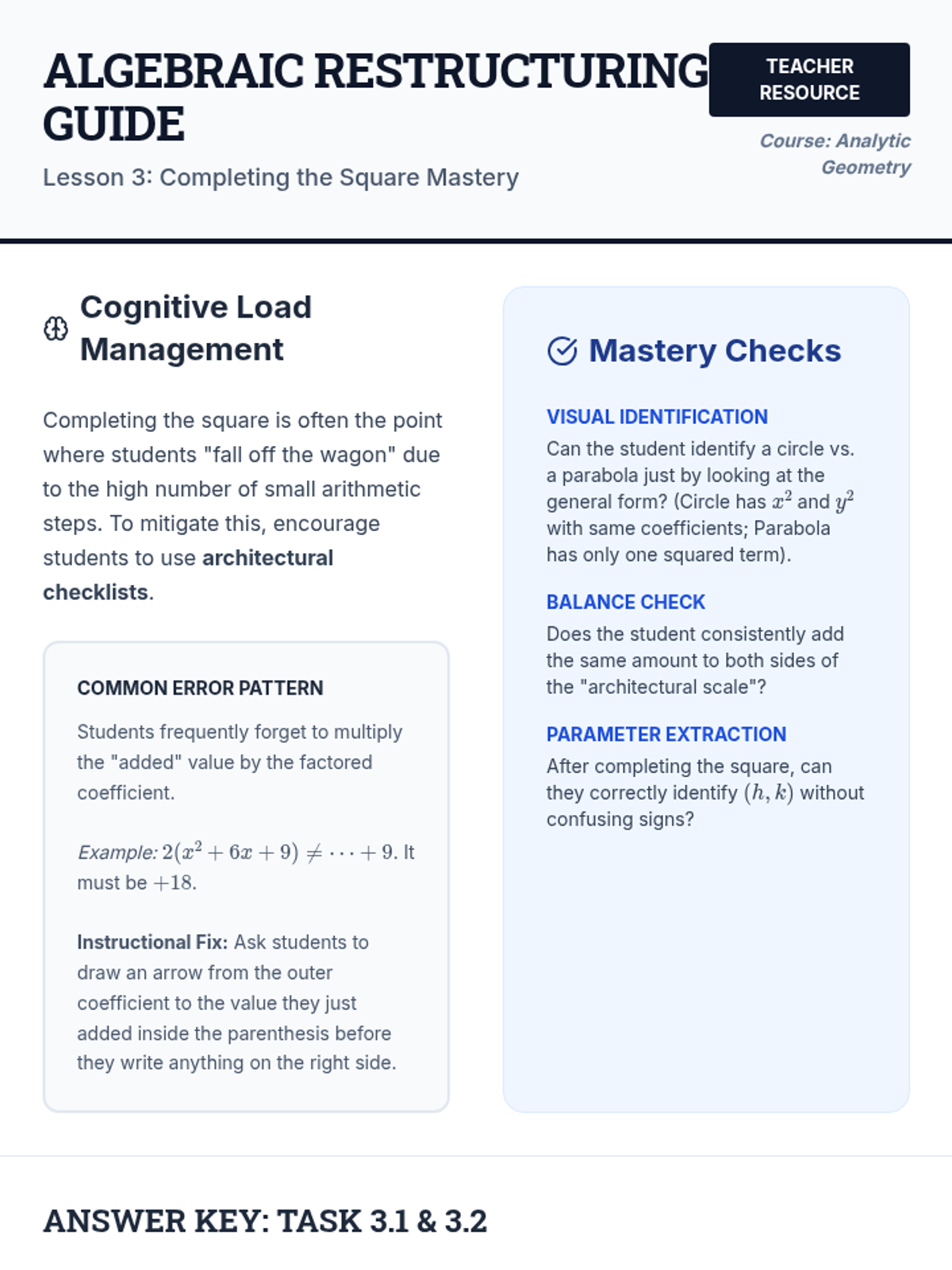

Algebraic Restructuring Guide

Tangent Properties Worksheet

Conic Tangents Slides

Reflective Geometry Guide

Blueprint Translation Challenge

Geometric Synthesis Slides

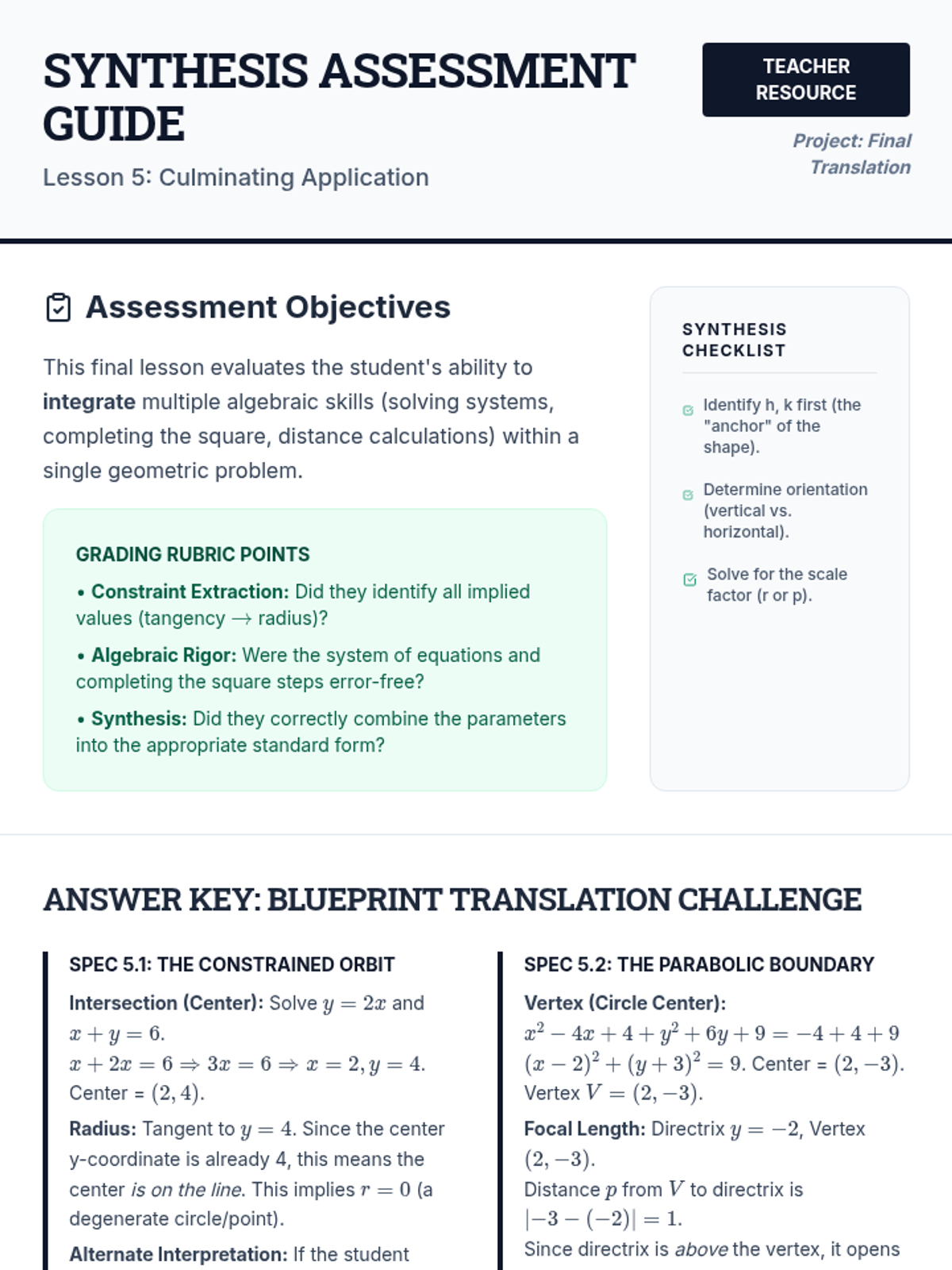

Synthesis Assessment Guide
