Midline Blueprints Slides Midline Blueprints
Lesson 1: Vertical Shifts & The Center Line
REF: TRIG-01
Architect's Goal
Today we identify how adding a constant d to our function shifts the entire structure up or down.
1
Locate the maximum and minimum points of a wave.
2
Calculate the average to find the Midline .
3
Determine the Vertical Shift (d) from the parent function.
f(x) = sin(x) + 2
"The midline is the equilibrium position of the wave."
Calculating the Shift
The Midline Formula
y = \frac{Max + Min}{2}
The midline is the vertical center of the function's range.
Upward Shift
f(x) + d
Where d > 0
Downward Shift
f(x) - d
Where d > 0
Example Scenario
Max Value: 8
Min Value: -2
y = (8 + (-2)) / 2
y = 6 / 2
Midline: y = 3
"The value of 'd' in our equation f(x) = sin(x) + d is exactly this midline value."
Midline Mastery Worksheet Midline Mastery
Architectural Worksheet: Vertical Shifts
Name:
Date:
TECHNICAL SPECS
The Parent Equation
f(x) = \sin(x)
Has a midline at y = 0.
The Transformation
f(x) = \sin(x) + d
The constant d shifts the midline to y = d.
Part 1: Identifying the Blueprint
Identify the maximum, minimum, and midline for each function shown below.
y=4 y=2 y=0
Max Value:
Min Value:
Midline (y=):
y=0 y=-4 y=-8
Max Value:
Min Value:
Midline (y=):
Part 2: Structural Calculations
Calculate the midline for the following periodic data points. Show your work using the formula: \(y = \frac{Max + Min}{2}\).
3
A wave has a maximum value of 15 and a minimum value of 5. Find the midline.
Result: y =
4
A tidal function reaches a high tide of 12 feet and a low tide of -2 feet. What is the average water level (midline)?
Result: y =
Part 3: Drafting the Shift
Sketch the graph of the function f(x) = \sin(x) - 3. Start by drawing the midline as a dashed line.
y=0
x-axis
Reflection Question:
How did the "-3" parameter change the position of the parent function \(f(x) = \sin(x)\)?
Midline Blueprints Teacher Guide Midline Blueprints
Teacher Facilitation Guide
Lesson 1 | Unit: Wave Blueprints
Learning Objective
Students will define the midline of a trigonometric function as its average vertical position and determine the vertical shift d from the parent function f(x) = sin(x).
The Hook: Blueprint Match (5-10 mins)
Present 4 graphs on the board. They should all be sine waves with the same "wave height" but centered at different y-values (e.g., y=0, y=2, y=5, y=-3). Ask: "If these were architectural floor plans, what is the 'ground level' for each wave?"
At a Glance
Pacing: 50 mins
Level: 10th Grade
Prior Knowledge: Parent Graphs
Key Vocabulary
Midline Vertical Shift Equilibrium
Instructional Sequence
01
Direct Instruction (15 mins)
Use the Midline Blueprints Slides . Emphasize that adding a constant d outside the function moves every single point on the graph up or down by that amount. Introduce the Midline Formula: y = (Max + Min) / 2.
02
Guided Practice (10 mins)
Work through Part 1 of the worksheet together. Ask students: "If the wave is perfectly balanced, where is the center point between the peak and the valley?"
03
Workshop (20 mins)
Students complete Parts 2 & 3 . Circulate and check for the common error of calculating range (Max - Min) instead of the average for the midline.
Misconception Alert
Students often confuse the Midline (y-value of the center) with the Amplitude (distance from center). Remind them: "The midline is a location (an address), amplitude is a distance (a measurement)."
Worksheet Answer Key (Quick-Ref)
Part 1: Visuals
Prob 1: Max: 3, Min: 1, Midline: y=2Prob 2: Max: 0, Min: -8, Midline: y=-4
Part 2: Calculations
Prob 3: (15+5)/2 = y=10Prob 4: (12+(-2))/2 = y=5
Support
Provide a physical ruler for students to find the exact middle of the printed graphs in Part 1.
Extension
Ask students to write an equation for a wave that spends exactly 50% of its time below the x-axis.
Volume Up Amplitude Slides Volume Up
Lesson 2: Amplitude & Stretches
REF: TRIG-02
What is Amplitude?
In sound, amplitude is volume . In math, it's the vertical distance from the midline to the peak.
y = A \cdot \sin(x)
|A|
Measuring the Height
The Formula
A = \frac{Max - Min}{2}
Subtract the minimum from the maximum, then divide by two.
Important Detail
Amplitude is always positive . If the equation has a negative sign, like y = -3 sin(x), the amplitude is still 3.
Visual Comparison
f(x) = 1 \sin(x)
f(x) = 3 \sin(x)
f(x) = 0.5 \sin(x)
Amplitude Arena Worksheet Amplitude Arena
Architectural Worksheet: Vertical Stretches
Name:
Date:
Technical Specification
y = A \sin(x)
"The value of |A| determines the vertical stretch. If |A| > 1, the wave is louder/taller. If |A| < 1, the wave is quieter/shorter."
Part 1: Equation Identification
Identify the amplitude for each given function. Remember: Amplitude is always the absolute value!
y = 4 \sin(x)
A =
y = -6 \cos(x)
A =
y = \frac{1}{2} \sin(x)
A =
y = -0.75 \cos(x)
A =
Part 2: Calculation Lab
A sound engineer records two different waves. Calculate the amplitude for each using the formula: \(A = \frac{Max - Min}{2}\).
Wave Alpha
Max Peak: 10 units
Min Trough: -10 units
Amplitude = _________
Wave Beta
Max Peak: 14 units
Min Trough: 2 units
Amplitude = _________
Part 3: Drafting Vertical Stretches
Graph the following two functions on the same coordinate plane. Use different colors or line styles (solid vs dashed) to distinguish them.
f(x) = \sin(x) (Parent Function)
g(x) = 2.5 \sin(x) (Transformed)
3
2
1
0
-1
-2
-3
Architect's Note:
"Notice that the amplitude change does NOT affect the points where the wave crosses the midline (x-intercepts). Why do you think this is?"

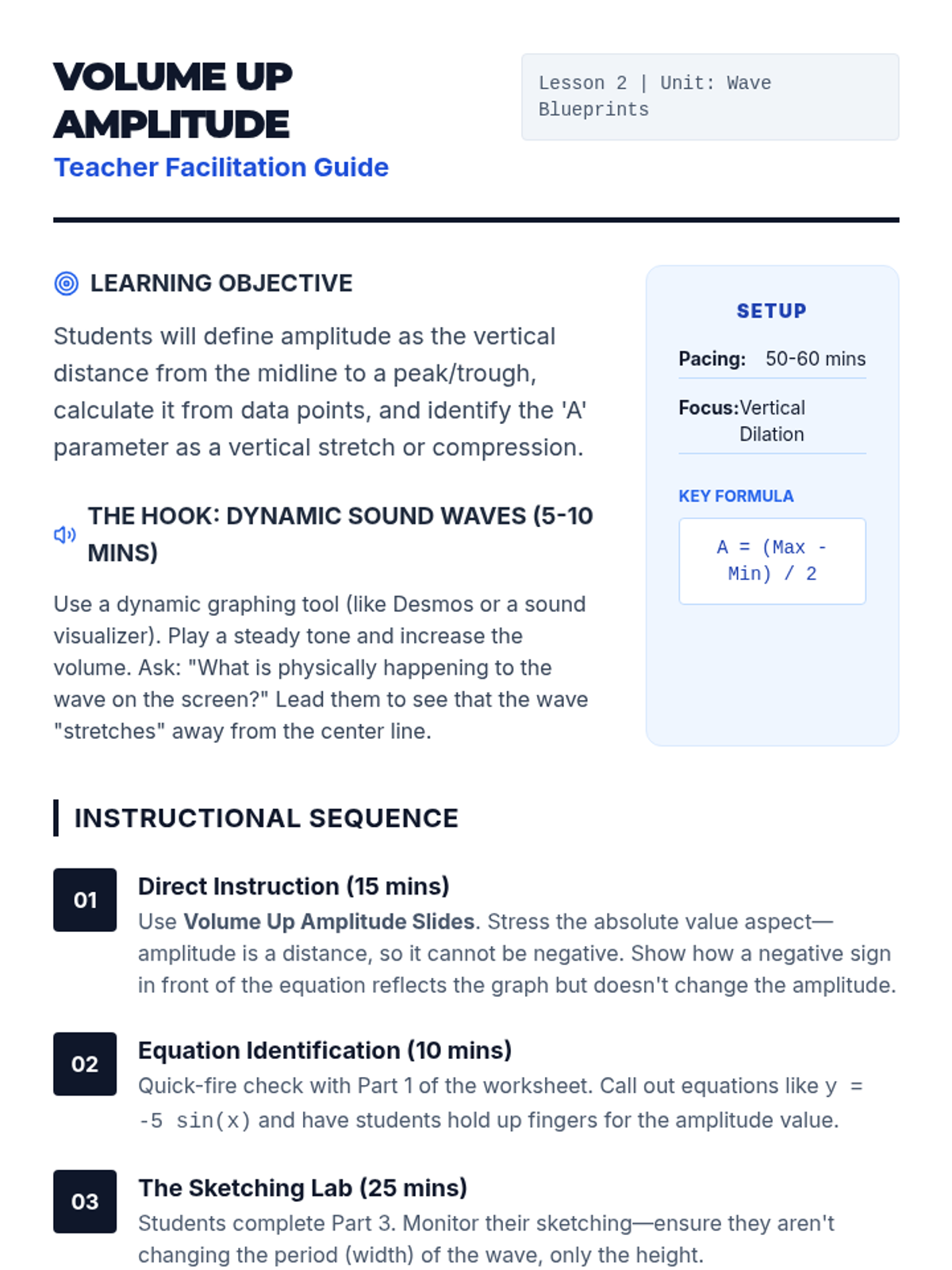

Volume Up Amplitude Teacher Guide Volume Up Amplitude
Teacher Facilitation Guide
Lesson 2 | Unit: Wave Blueprints
Learning Objective
Students will define amplitude as the vertical distance from the midline to a peak/trough, calculate it from data points, and identify the 'A' parameter as a vertical stretch or compression.
The Hook: Dynamic Sound Waves (5-10 mins)
Use a dynamic graphing tool (like Desmos or a sound visualizer). Play a steady tone and increase the volume. Ask: "What is physically happening to the wave on the screen?" Lead them to see that the wave "stretches" away from the center line.
Setup
Pacing: 50-60 mins
Focus: Vertical Dilation
Key Formula
A = (Max - Min) / 2
Instructional Sequence
01
Direct Instruction (15 mins)
Use Volume Up Amplitude Slides . Stress the absolute value aspect—amplitude is a distance, so it cannot be negative. Show how a negative sign in front of the equation reflects the graph but doesn't change the amplitude.
02
Equation Identification (10 mins)
Quick-fire check with Part 1 of the worksheet. Call out equations like y = -5 sin(x) and have students hold up fingers for the amplitude value.
03
The Sketching Lab (25 mins)
Students complete Part 3. Monitor their sketching—ensure they aren't changing the period (width) of the wave, only the height.
The "Why" Discussion
"If we multiply the whole function by A, why do the x-intercepts stay the same?"
Expected Answer: Because the x-intercepts happen when the y-value is 0. If you multiply 0 by any number A, the result is still 0.
Worksheet Answer Key (Quick-Ref)
Part 1: Equations
Prob 1: A = 4Prob 2: A = 6Prob 3: A = 1/2 or 0.5Prob 4: A = 0.75
Part 2: Calculations
Wave Alpha: (10 - (-10))/2 = 10Wave Beta: (14 - 2)/2 = 6
Support
Provide pre-drawn parent functions on tracing paper so students can literally "stretch" them over the grid.
Extension
Introduce Range . If a wave has a midline of 5 and an amplitude of 3, what is its range? [2, 8].

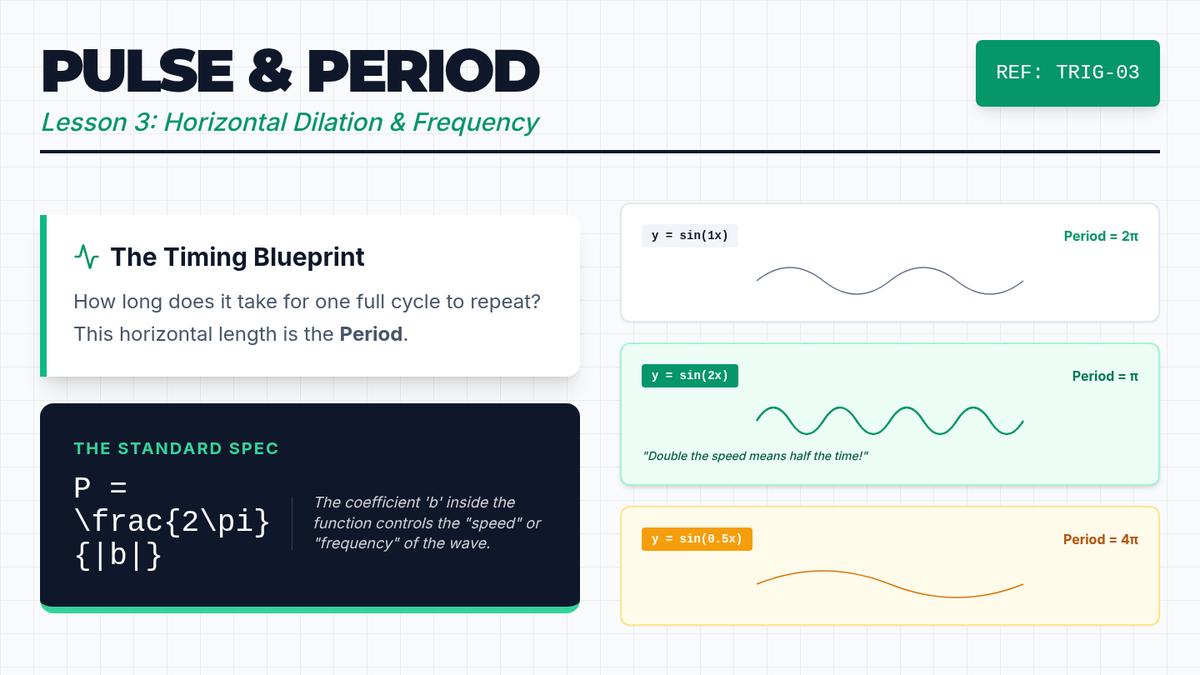

Pulse and Period Slides Pulse & Period
Lesson 3: Horizontal Dilation & Frequency
REF: TRIG-03
The Timing Blueprint
How long does it take for one full cycle to repeat? This horizontal length is the Period .
The Standard Spec
P = \frac{2\pi}{|b|}
The coefficient 'b' inside the function controls the "speed" or "frequency" of the wave.
y = sin(1x) Period = 2π
y = sin(2x) Period = π
"Double the speed means half the time!"
y = sin(0.5x) Period = 4π
Deriving the Coefficient
The Problem:
You are given a graph that repeats every 8 units. What value of b do you need for your equation?
Step 1: 8 = \frac{2\pi}{b}
Step 2: 8b = 2\pi
Step 3: b = \frac{2\pi}{8} = \frac{\pi}{4}
Pro-Tip for Architects
"When working with sine and cosine, your standard cycle is 2π. If your new period is P, the multiplier is simply: "
b = \frac{2\pi}{P}
Warning: The value 'b' is NOT the period. It is the factor that changes the period.

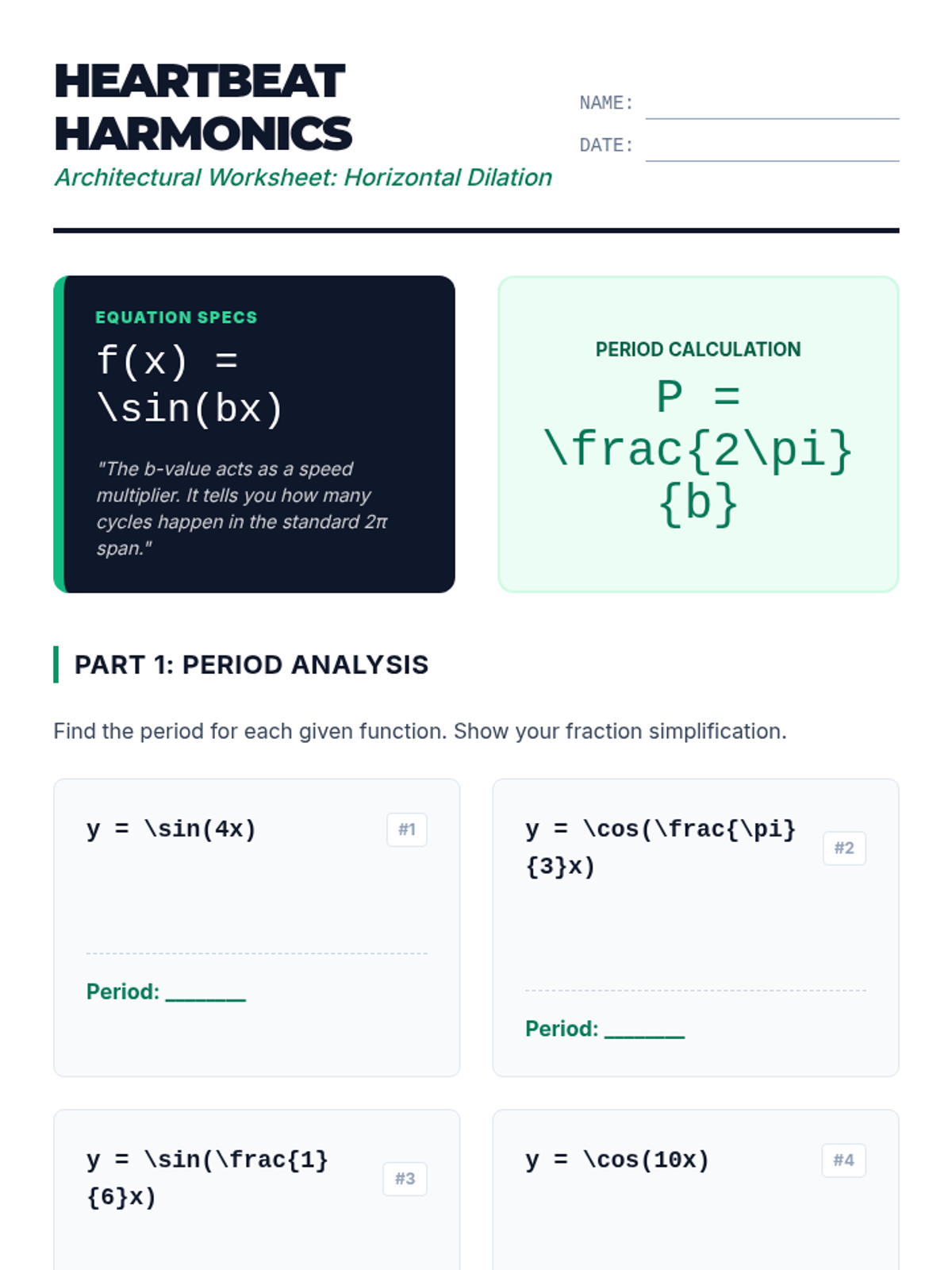

Heartbeat Harmonics Worksheet Heartbeat Harmonics
Architectural Worksheet: Horizontal Dilation
Name:
Date:
Equation Specs
f(x) = \sin(bx)
"The b-value acts as a speed multiplier. It tells you how many cycles happen in the standard 2π span."
Period Calculation
P = \frac{2\pi}{b}
Part 1: Period Analysis
Find the period for each given function. Show your fraction simplification.
y = \sin(4x) #1
Period: ________
y = \cos(\frac{\pi}{3}x) #2
Period: ________
y = \sin(\frac{1}{6}x) #3
Period: ________
y = \cos(10x) #4
Period: ________
Part 2: The Heartbeat Challenge
"An athlete's heart rate varies during a workout. We can model the pulse waves using trigonometric dilations."
Resting Pulse
The graph repeats every 4 seconds. Determine the value of b needed to model this heartbeat.
Equation: f(x) = \sin( ______ x)
Visual Reference
One Period (4s)
Sprint Pulse
During a sprint, the heart beats faster. The graph repeats every 0.5 seconds. Determine the new value of b.
Equation: f(x) = \sin( ______ x)
Visual Reference
Architect's Reflection
If the coefficient b is very large (e.g., b = 100), how does that change the physical appearance of the wave compared to the parent function? Use terms like compression or stretch .

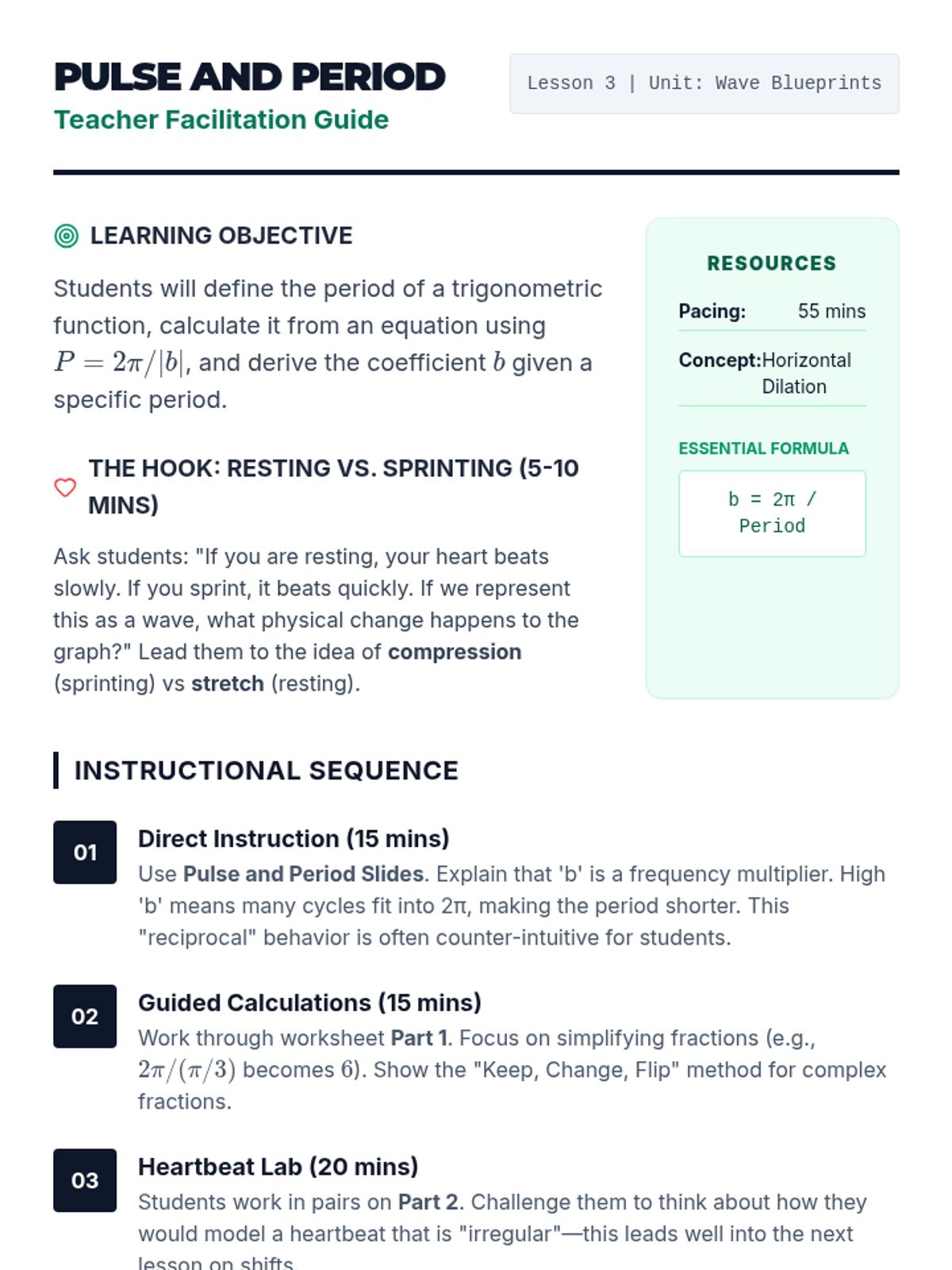

Pulse and Period Teacher Guide Pulse and Period
Teacher Facilitation Guide
Lesson 3 | Unit: Wave Blueprints
Learning Objective
Students will define the period of a trigonometric function, calculate it from an equation using \(P = 2\pi / |b|\), and derive the coefficient \(b\) given a specific period.
The Hook: Resting vs. Sprinting (5-10 mins)
Ask students: "If you are resting, your heart beats slowly. If you sprint, it beats quickly. If we represent this as a wave, what physical change happens to the graph?" Lead them to the idea of compression (sprinting) vs stretch (resting).
Resources
Pacing: 55 mins
Concept: Horizontal Dilation
Essential Formula
b = 2π / Period
Instructional Sequence
01
Direct Instruction (15 mins)
Use Pulse and Period Slides . Explain that 'b' is a frequency multiplier. High 'b' means many cycles fit into 2π, making the period shorter. This "reciprocal" behavior is often counter-intuitive for students.
02
Guided Calculations (15 mins)
Work through worksheet Part 1 . Focus on simplifying fractions (e.g., \(2\pi / (\pi/3)\) becomes \(6\)). Show the "Keep, Change, Flip" method for complex fractions.
03
Heartbeat Lab (20 mins)
Students work in pairs on Part 2 . Challenge them to think about how they would model a heartbeat that is "irregular"—this leads well into the next lesson on shifts.
Common Student Error
Students often think b is the period. For example, in \(y = \sin(4x)\), they say the period is 4. Correct them by asking: "How many cycles happen in 2π? 4 cycles. So how long is just ONE cycle?"
Worksheet Answer Key (Quick-Ref)
Part 1: Periods
#1: 2π / 4 = π/2#2: 2π / (π/3) = 6#3: 2π / (1/6) = 12π#4: 2π / 10 = π/5
Part 2: Heartbeats
Resting: b = 2π / 4 = π/2Sprint: b = 2π / 0.5 = 4π
Support
Provide a calculator for decimal divisions. Use the term "Cycles per 2π" for 'b' to help them visualize it.
Extension
Introduce Frequency in Hz (1/Period). Ask them to convert their heartbeat periods into beats-per-minute (BPM).

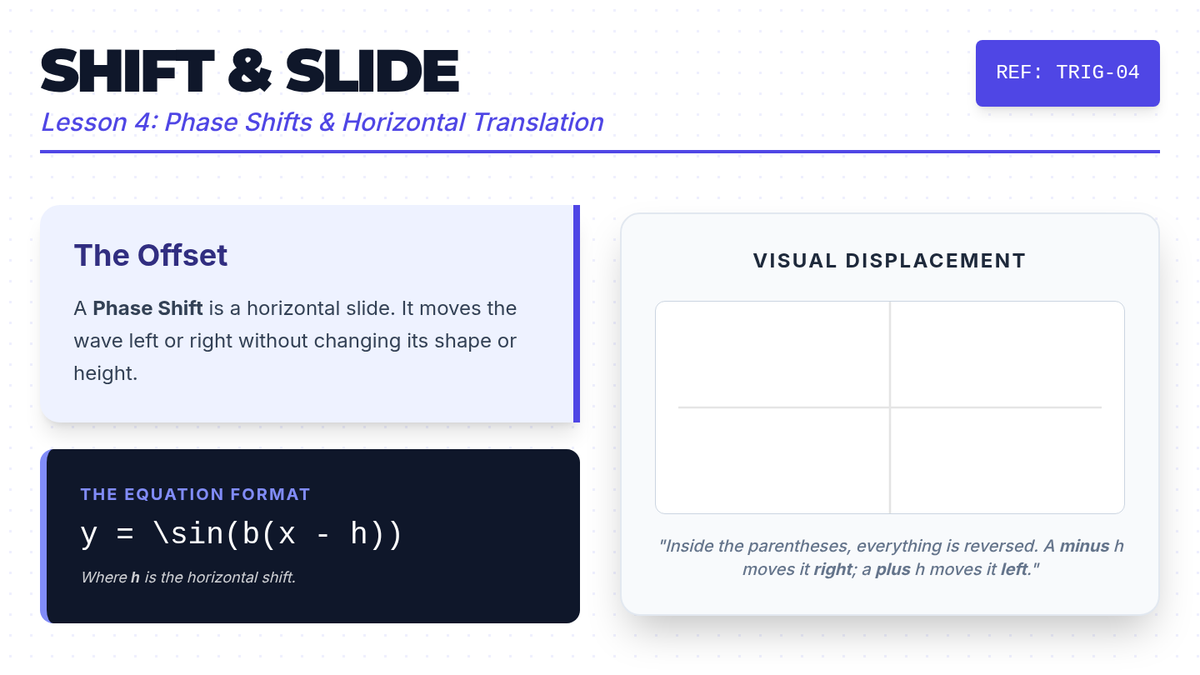

Shift and Slide Slides Shift & Slide
Lesson 4: Phase Shifts & Horizontal Translation
REF: TRIG-04
The Offset
A Phase Shift is a horizontal slide. It moves the wave left or right without changing its shape or height.
The Equation Format
y = \sin(b(x - h))
Where h is the horizontal shift.
Visual Displacement
"Inside the parentheses, everything is reversed. A minus h moves it right ; a plus h moves it left ."
The Great Secret
Did you know that sine and cosine are actually the exact same wave?
The Transformation
\cos(x) = \sin(x + \frac{\pi}{2})
They are just shifted by 90° or π/2 radians.
COSINE
SINE
"One is just a 'slide' away from the other."

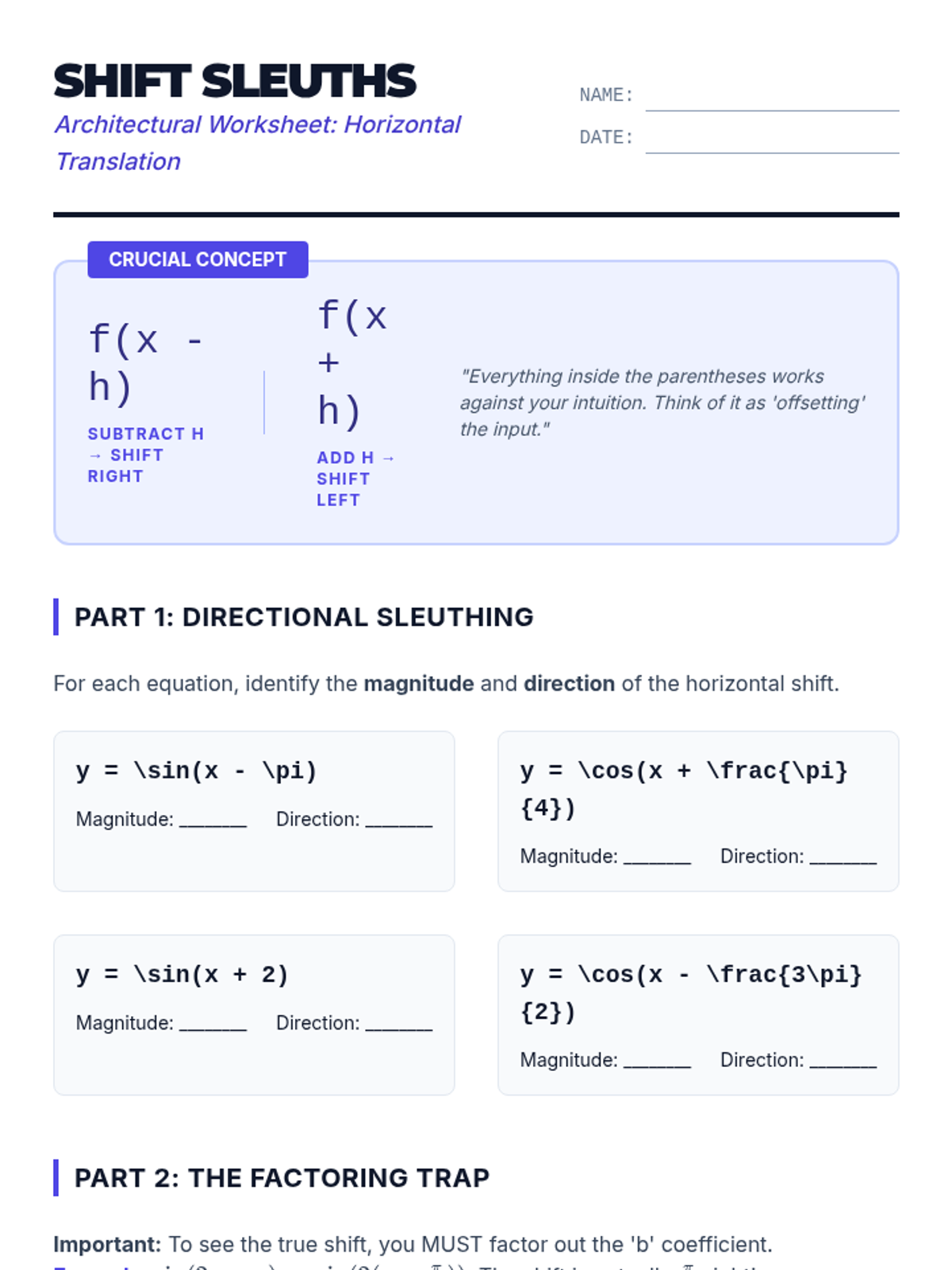

Shift Sleuths Worksheet Shift Sleuths
Architectural Worksheet: Horizontal Translation
Name:
Date:
Crucial Concept
f(x - h)
Subtract h → Shift Right
f(x + h)
Add h → Shift Left
"Everything inside the parentheses works against your intuition. Think of it as 'offsetting' the input."
Part 1: Directional Sleuthing
For each equation, identify the magnitude and direction of the horizontal shift.
y = \sin(x - \pi)
Magnitude: ________ Direction: ________
y = \cos(x + \frac{\pi}{4})
Magnitude: ________ Direction: ________
y = \sin(x + 2)
Magnitude: ________ Direction: ________
y = \cos(x - \frac{3\pi}{2})
Magnitude: ________ Direction: ________
Part 2: The Factoring Trap
Important: To see the true shift, you MUST factor out the 'b' coefficient.
5. Factor and find the shift for: \(y = \sin(4x + \pi)\)
True Phase Shift: ________________
6. Factor and find the shift for: \(y = \cos(\frac{1}{2}x - 2)\)
True Phase Shift: ________________
Part 3: Drafting the Offset
Graph one full cycle of the function: \(f(x) = \sin(x - \frac{\pi}{2})\). Draw the parent function \(f(x) = \sin(x)\) as a dashed line first for comparison.
-π/2 0 π/2 π 3π/2 2π 5π/2
Architect's Final Challenge:
"If the graph above were representing a cosine function instead of a sine function, what would its equation be? (Hint: Cosine starts at a maximum)."
y = _________________________________
Shift and Slide Teacher Guide Shift and Slide
Teacher Facilitation Guide
Lesson 4 | Unit: Wave Blueprints
Learning Objective
Students will identify horizontal phase shifts in trigonometric equations, account for the horizontal dilation factor (b) by factoring, and represent sine and cosine as shifted versions of each other.
The Hook: Sine or Cosine? (5-10 mins)
Show a graph that starts at its midline and goes up (Standard Sine). Then, show a graph that starts at its maximum (Standard Cosine). Overlay them. Ask: "Is there a way to describe the blue wave using the red wave's 'instructions'?" Introduce the idea of a slide .
Protocol
Pacing: 60 mins
Focus: Horizontal Shift
Equation Guide
y = sin(b(x - h))
Instructional Sequence
01
Direct Instruction (20 mins)
Use Shift and Slide Slides . Focus on the "Inside is Opposite" rule. Explain that the input 'x' has to "reach" the values of the parent function earlier or later due to the added constant.
02
The Factoring Workshop (15 mins)
Walk through Part 2 of the worksheet. This is the hardest part of the unit. Students MUST factor out 'b' before identifying the shift.
03
Individual Practice (25 mins)
Students complete Part 3. Check their starting points—sine should start at the shifted midline point, cosine at the shifted maximum.
The "Multiple Equivalence" Idea
"Is there only ONE correct equation for a wave? Could I describe a wave using a negative cosine or a shifted sine?"
Encourage students to see that because of periodicity, there are infinite ways to write the equation for a single graph.
Worksheet Answer Key (Quick-Ref)
Part 1: Basic Shifts
#1: π units, Right#2: π/4 units, Left#3: 2 units, Left#4: 3π/2 units, Right
Part 2: Factoring
#5: sin(4(x + π/4)) → π/4 Left#6: cos(0.5(x - 4)) → 4 Right
Support
Give students a "Parent Point Map" showing the coordinates of the 5 key points (min, mid, max) of sin(x) and cos(x).
Extension
Challenge students to write 3 DIFFERENT correct equations for the graph in Part 3.

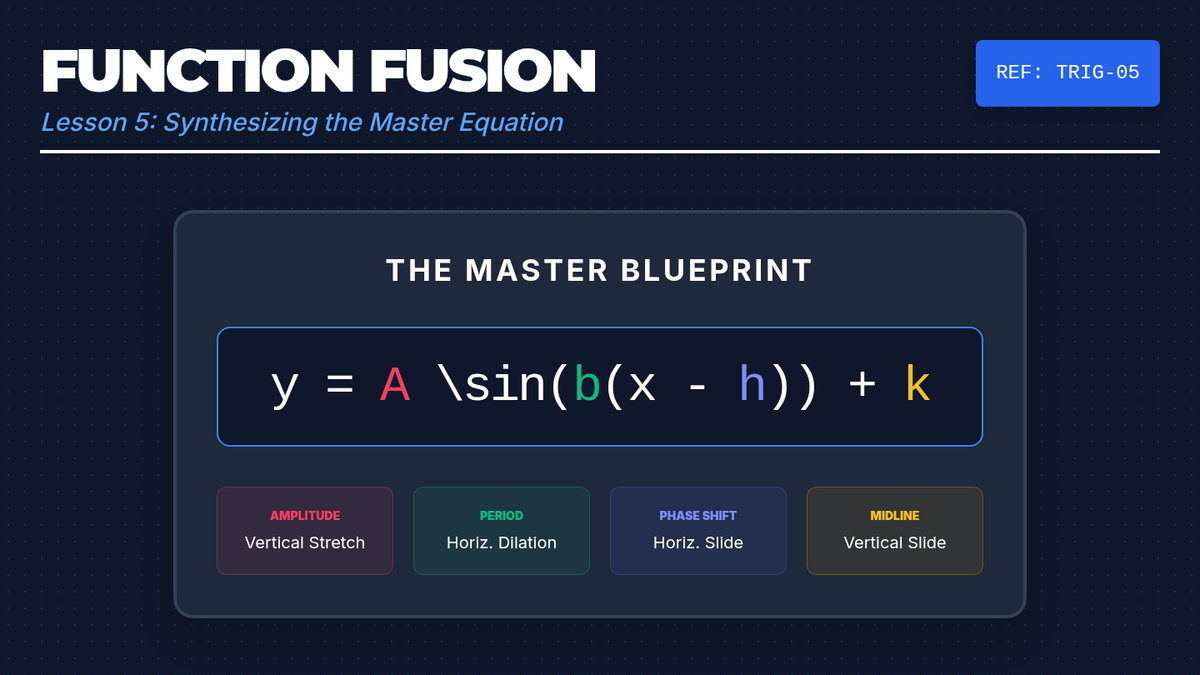

Function Fusion Slides Function Fusion
Lesson 5: Synthesizing the Master Equation
REF: TRIG-05
The Master Blueprint
y = A \sin(b(x - h)) + k
Amplitude
Vertical Stretch
Period
Horiz. Dilation
Phase Shift
Horiz. Slide
Midline
Vertical Slide
The Graph Decoder
Step-by-Step Build:
1
Midline (k)
2
Amplitude (A)
3
Period → Find (b)
4
Shift (h)
Example Challenge
Peak = 8 Trough = -4 Cycle = 100 units
k = (8 + -4) / 2 = 2
A = (8 - -4) / 2 = 6
P = 100 → b = 2π / 100 = π/50
Shift h = 0
y = 6 \sin(\frac{\pi}{50}x) + 2

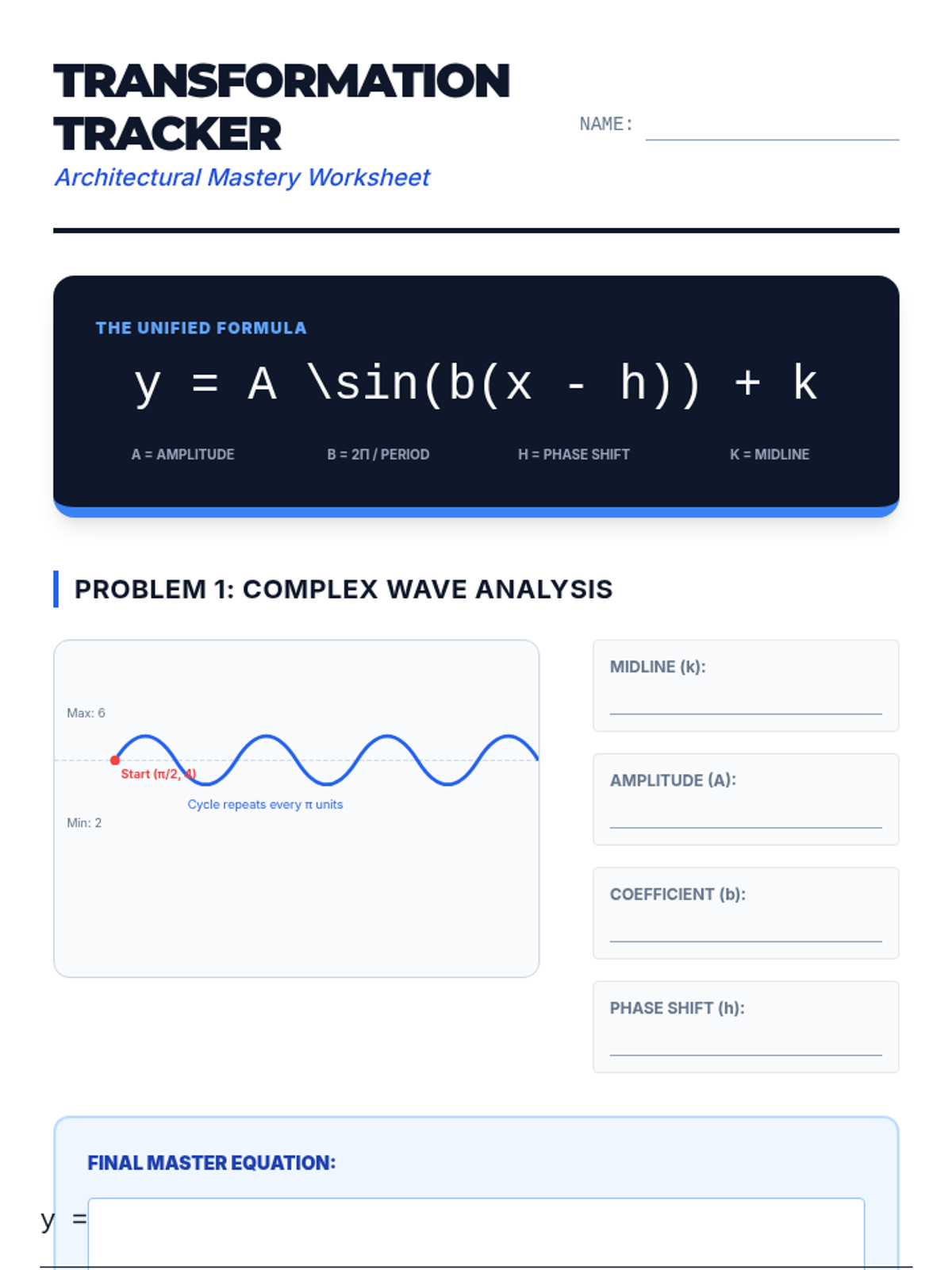

Transformation Tracker Worksheet Transformation Tracker
Architectural Mastery Worksheet
Name:
The Unified Formula
y = A \sin(b(x - h)) + k
A = Amplitude
b = 2π / Period
h = Phase Shift
k = Midline
Problem 1: Complex Wave Analysis
Start (π/2, 4) Max: 6 Min: 2 Cycle repeats every π units
MIDLINE (k):
AMPLITUDE (A):
COEFFICIENT (b):
PHASE SHIFT (h):
Final Master Equation:
y = _______________________________________________________
Problem 2: Reverse Engineering
Given the equation below, list all transformation specifications and sketch one full cycle.
y = -3 \cos(2(x + \frac{\pi}{4})) - 5
Amplitude: __________
Reflected? (Yes/No) __________
Period: __________
Phase Shift: __________
Vertical Shift: __________
Graph Workspace
Master Architect's Reflection
"When looking at a real-world tide chart that follows a periodic pattern, which of the four parameters (A, b, h, k) would be the easiest to find first, and why?"

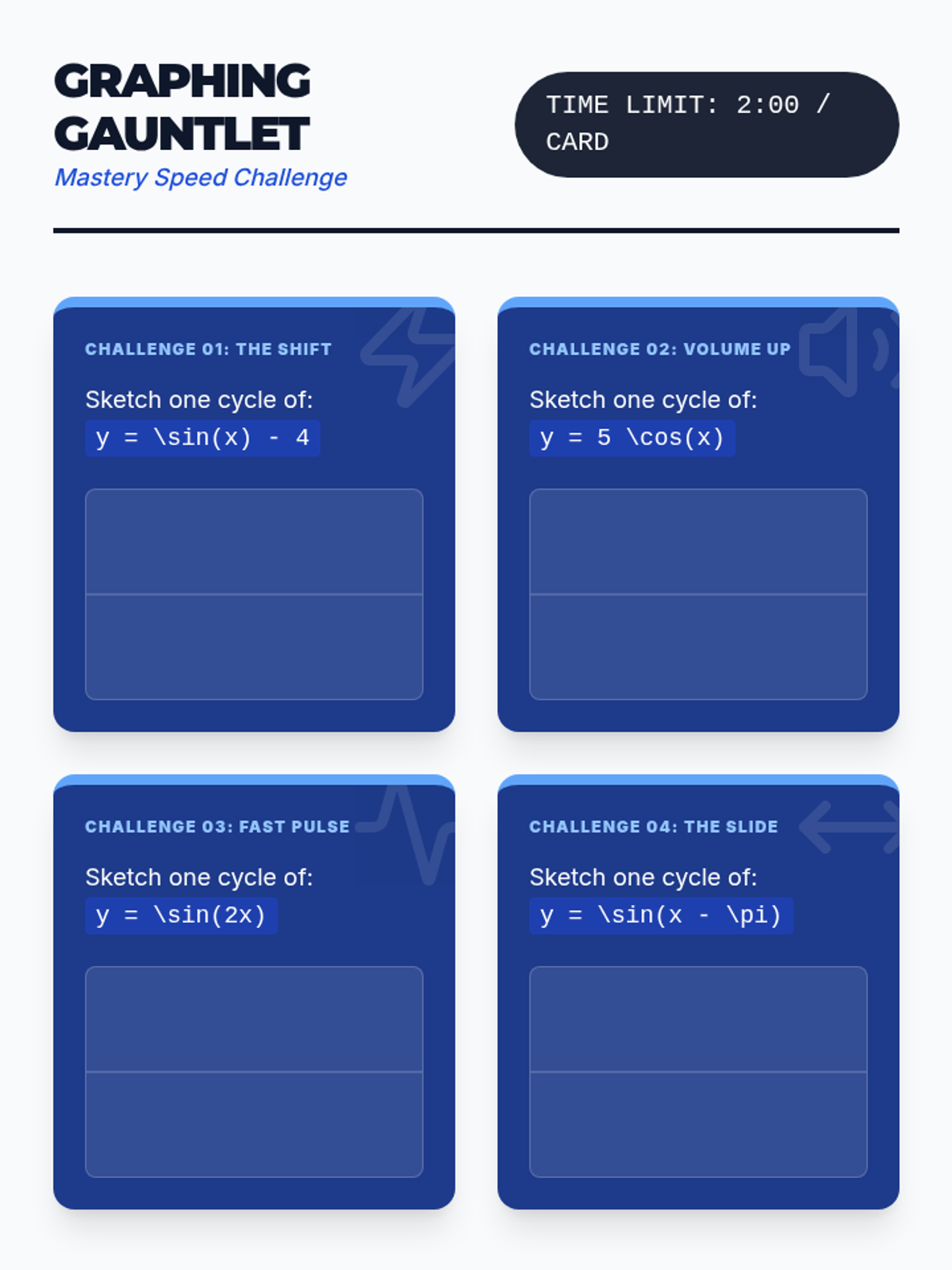

Graphing Gauntlet Activity Graphing Gauntlet
Mastery Speed Challenge
TIME LIMIT: 2:00 / CARD
Challenge 01: The Shift
Sketch one cycle of:
Challenge 02: Volume Up
Sketch one cycle of:
Challenge 03: Fast Pulse
Sketch one cycle of:
Challenge 04: The Slide
Sketch one cycle of:
Challenge 05: Fusion Level 1
Write equation for:
y = _____________________
Challenge 06: Fusion Level 2
Write equation for:
y = _____________________
Challenge 07: Reverse Eng.
Identify Period of:
Period = ________________
Challenge 08: THE MASTER
Write FULL equation for:
y = _____________________
Function Fusion Teacher Guide Function Fusion
Teacher Facilitation Guide
Lesson 5 | Unit: Wave Blueprints
Learning Objective
Students will synthesize all previous learning to model complex periodic behaviors by constructing full trigonometric equations from graphs and sketching functions with multiple simultaneous transformations.
The Hook: Function Pictionary (5-10 mins)
Pair students up. One student is the "Architect" (describes an equation using words: "A sine wave with a midline of 2 and an amplitude of 3"), and the other is the "Drafter" (sketches it). Rotate roles. The goal is to see how descriptive language translates to visual graphs.
Unit Finale
Pacing: 60-70 mins
Mastery Level: High
The Analysis Order
Midline (k)
Amplitude (A)
Period -> (b)
Phase Shift (h)
Instructional Sequence
01
Synthesis Review (15 mins)
Use Function Fusion Slides . Walk through the "Graph Decoder" strategy. Stress that finding the midline first makes finding amplitude much easier, as it gives you the horizontal "anchor" to measure from.
02
The Transformation Tracker (20 mins)
Students work on the Transformation Tracker Worksheet . Problem 1 is a "check for understanding" for the whole unit. Ensure they correctly identify the starting point for sine at (π/2, 4) in the example.
03
The Graphing Gauntlet (25 mins)
High-energy mastery activity. You can run this as a "Gallery Walk" or a competitive team challenge. Use a timer. Award "Master Architect" badges (or just verbal recognition) for accurate completions.
Pacing Support
If students are struggling with the Gauntlet, reduce the requirement to "Any 4 Cards." Focus on quality over quantity. Card 8 is the highest level of difficulty.
Key Reflection
"How does modeling with trig help us predict the future?"
Expected response: Periodic models allow us to calculate exactly where a repeating phenomenon (tides, heartbeats) will be at any time 't'.
Worksheet & Activity Answer Key
Tracker: Prob 1
k = 4
A = 2
P = π → b = 2
h = π/2 Right
y = 2 sin(2(x - π/2)) + 4
Gauntlet: Equations
#5: y = 4 sin(x) + 2#6: y = 1 sin(2x) - 5
