Signal Focus Slides Lesson 1: Parabolic Reflectors
Signal Focus
Harnessing the reflective power of the parabola in modern engineering.
The Geometry of Silence
Why are satellite dishes curved exactly that way?
If you were building a dish to catch weak signals from 22,000 miles away, where would you place the receiver?
The Parabolic Property:
Any ray entering parallel to the axis of symmetry is reflected directly to the focus.
Parallel Input Rays → Single Focal Point
The Locus Definition
A parabola is the set of all points in a plane that are equidistant from a fixed point (the focus) and a fixed line (the directrix).
1
Focus: \( F(h, k+p) \)
2
Directrix: \( y = k-p \)
3
Standard Form: \( (x-h)^2 = 4p(y-k) \)
// Engineering Context
The value p is the distance from the vertex to the focus. In engineering, this determines exactly where we bolt the receiver.
Case Study: The DirectTV Dish
The Specs:
• Diameter: 24 inches
• Depth: 4 inches
• Target: Place the receiver at the focus.
How do we model this?
1. Place vertex at \( (0,0) \).
2. Use form \( x^2 = 4py \).
3. Identify a known point: \( (12, 4) \).
4. Solve for \( p \).
\( 12^2 = 4p(4) \)
\( 144 = 16p \)
\( p = 9 \)
Place receiver 9" from vertex.
Beyond Satellites
Car Headlights
The inverse property! A light bulb at the focus creates a perfectly parallel beam of light for the road.
Parabolic Mics
Used on NFL sidelines to capture quarterback whispers from 50 yards away.
Solar Cookers
Focusing all the sun's energy into a single point to boil water or cook food without fuel.
Signal Strength Worksheet Signal Strength Analysis
Technical Problem Set: Parabolic Reflectors
Engineer Name
Draft Date
Engineering Task: You have been contracted to design three different parabolic reflective systems. For each system, you must determine the precise algebraic equation and the location of the focus relative to the vertex. Use the standard form \((x-h)^2 = 4p(y-k)\).
1
The Backyard Satellite
A satellite dish is 36 inches across and 6 inches deep at its center.
Part A: Modeling
Place the vertex at (0,0). What are the coordinates of the points at the outer edge of the dish?
Part B: Solve for \( p \)
Show your algebraic steps to find the focal distance.
Part C: The Equation
Part D: Placement
How many inches from the center should the receiver be bolted?
2
The Searchlight Reflector
A searchlight uses a parabolic reflector with a focus located 1.5 feet from the vertex. If the reflector has a total diameter of 4 feet, how deep is the light casing?
3
The Bridge Support Arch
A bridge has a parabolic arch support that spans 100 feet. The highest point of the arch (the vertex) is 40 feet above the ground.
Note: Set the ground level as the x-axis and center the arch so the vertex is on the y-axis.
Write the equation for this arch:
Determine the height of the arch at a point 20 feet from the center:
Critical Thinking
Why might an engineer use a parabolic arch for a bridge rather than a semi-circular arch? Consider the distribution of weight and the focal property.
Conic Facilitation Guide Teacher Resource Teacher Facilitation Guide
Unit: Modeling Physical Phenomena with Conic Sections
Sequence Narrative
This sequence moves students from abstract geometric definitions to concrete engineering applications. By framing each conic section as a solution to a physical problem, we shift the focus from "how to graph" to "why this curve exists."
Lesson 1-2
Reflective properties (Parabolas & Ellipses)
Lesson 3-4
Triangulation & Precision (Hyperbolas & Ellipsoids)
Lesson 5
Synthesis & Design Challenge
Common Misconceptions
Confusing a and c in Ellipses
Students often use \( c^2 = a^2 + b^2 \) for ellipses because they are used to the Pythagorean theorem. Emphasize that in an ellipse, the hypotenuse is the major axis semi-length (\( a \)).
The "Vertex" vs "Focus" in Parabolas
In satellite dishes, students often think the receiver goes at the bottom (vertex). Use the "Parallel Ray" diagram to show that the vertex is the dead zone for signal gathering.
Discussion Prompts
The "Why" Question:
"If we used a spherical dish instead of a parabolic one, why would the signal be blurry? What does 'focal point' mean for a sphere?" (Answer: Spherical aberration—rays don't meet at one point).
Ethics in Engineering:
"In Lesson 4, we saw how precise lithotripsy must be. Who should be held responsible if the math is wrong—the engineer who designed the machine or the doctor who placed the patient?"
Core Standard: HSG.GPE.A.3
"Derive the equations of ellipses and hyperbolas given the foci, using the fact that the sum or difference of distances from the foci is constant."
Lesson 2 focuses on:
Sum of distances (\( d_1 + d_2 = 2a \)) via whispering galleries.
Lesson 3 focuses on:
Difference of distances (\( |d_1 - d_2| = 2a \)) via LORAN navigation.
Whisper Chamber Slides Lesson 2: Elliptical Reflectors
Whisper Chambers
Exploring the geometric magic of the whispering gallery.
The Sound Secret
In Statuary Hall (Washington D.C.) or Grand Central Terminal, you can stand at a specific spot and hear a whisper from 100 feet away as if the person were standing right next to you.
How is this possible?
The Ellipse Reflective Property
Any signal originating at one focus will reflect off the curve and pass directly through the other focus.
The Blueprint of an Ellipse
Standard Form (Horizontal):
\[ \frac{(x-h)^2}{a^2} + \frac{(y-k)^2}{b^2} = 1 \]
• a: Half the length of the major axis.
• b: Half the length of the minor axis.
• c: Distance from center to focus.
The Pythagorean Connection
\( c^2 = a^2 - b^2 \)
To find where to stand (the foci), we must solve for \( c \).
Modeling Statuary Hall
The Problem:
A room is shaped like an ellipse. It is 100 feet long and 50 feet wide.
Step 1: Identify \( a \) and \( b \)
Length = 100 \(\rightarrow a = 50\)
Width = 50 \(\rightarrow b = 25\)
Step 2: Solve for \( c \)
\( c^2 = 50^2 - 25^2 \)
\( c^2 = 2500 - 625 \)
\( c = \sqrt{1875} \approx 43.3 \)
The "Whisper Spots" are 43.3 feet from the center of the room.
Not Just for Whispers
Engineers and doctors use this exact same math to save lives. If sound reflects this way, what happens when we use high-energy shockwaves?
Medical Imaging
Lithotripsy

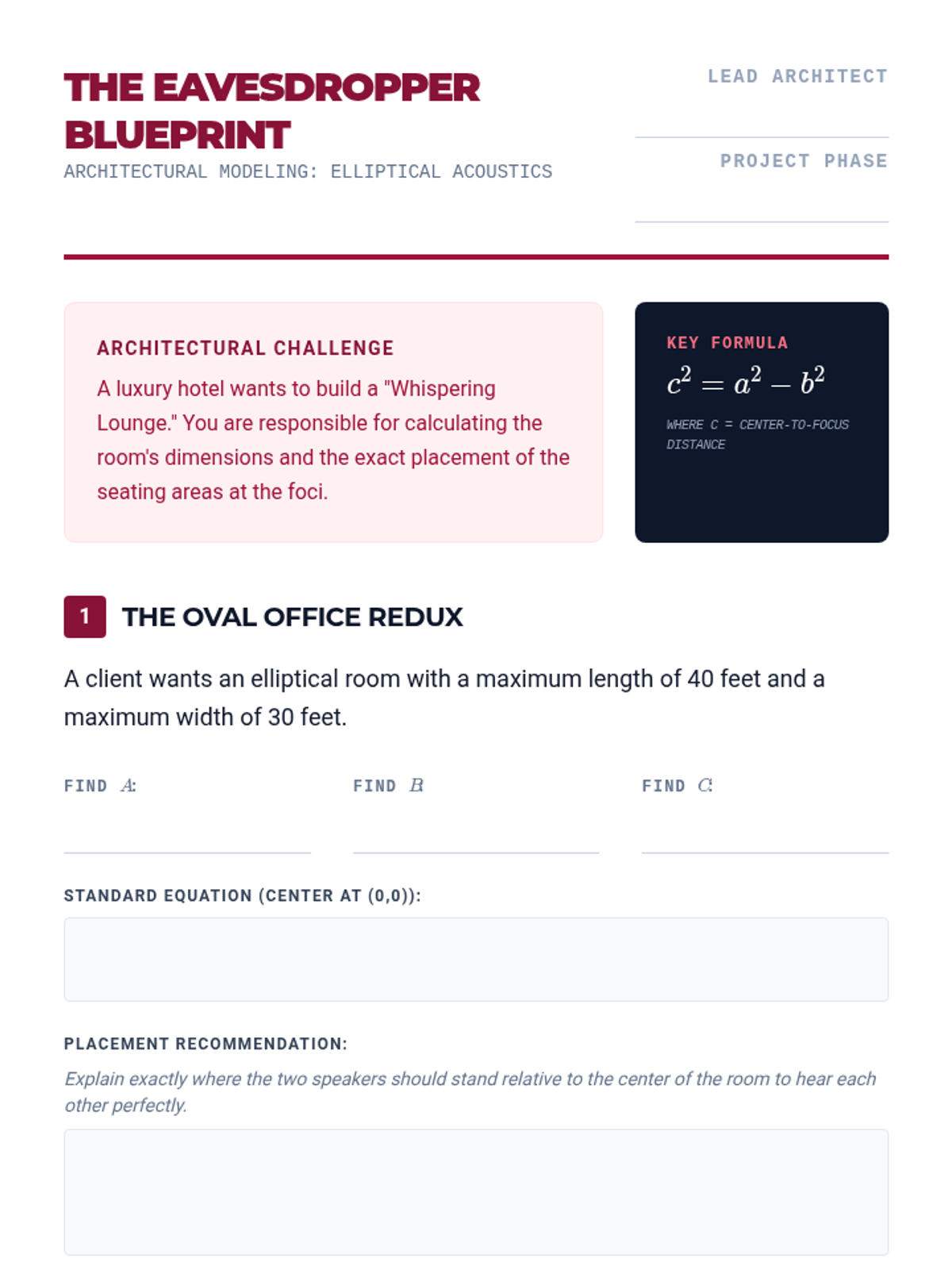

Eavesdropper Blueprint Worksheet The Eavesdropper Blueprint
Architectural Modeling: Elliptical Acoustics
Lead Architect
Project Phase
Architectural Challenge
A luxury hotel wants to build a "Whispering Lounge." You are responsible for calculating the room's dimensions and the exact placement of the seating areas at the foci.
Key Formula
\( c^2 = a^2 - b^2 \)
Where c = center-to-focus distance
1
The Oval Office Redux
A client wants an elliptical room with a maximum length of 40 feet and a maximum width of 30 feet.
Find \( a \):
Find \( b \):
Find \( c \):
Standard Equation (Center at (0,0)):
Placement Recommendation:
Explain exactly where the two speakers should stand relative to the center of the room to hear each other perfectly.
2
The Reverse Design
You are given a hall where the "whisper spots" are already marked 24 feet apart. If the room is 26 feet long, how wide must the room be for the reflective property to work?
Calculation Area
3
Obstruction Analysis
An elliptical room has foci at \( (-8, 0) \) and \( (8, 0) \). A person stands at \( (8, 0) \) and whispers. The path of the sound wave strikes the wall at the point \( (0, 6) \).
A) Calculate the sum of the distances from the wall point to the two foci.
B) Use this sum to find the value of \( a \).
C) Construct the final equation of this room:
Pathfinder Slides Lesson 3: Hyperbolic Navigation
Hyperbolic Paths
Finding your way through time-difference triangulation.
Lost at Sea
Before GPS, ships used radio towers on the coast to determine their position.
If you hear a signal from Tower A and a signal from Tower B, but Tower B's signal arrives slightly later, what does that tell you?
It means you are closer to Tower A. Specifically, you are on a path where the difference in distances to the two towers is constant.
Constant Difference = Hyperbola
The Locus Definition
A hyperbola is the set of all points where the absolute difference of the distances to two fixed points (foci) is constant.
// Horizontal Standard Form
\[ \frac{x^2}{a^2} - \frac{y^2}{b^2} = 1 \]
\[ c^2 = a^2 + b^2 \]
D
Constant Difference = \( 2a \)
In navigation, the towers are the foci.
LORAN Triangulation
1. Radio signal moves at 980 ft/µs.
Calculation:
Difference in Distance (\( 2a \)):
\( 980 \times 100 = 98,000 \text{ feet} \)
So, \( a = 49,000 \). The ship is on this specific hyperbola!
How to Fix the Point?
A single hyperbola is a line of position. To find the exact location, the ship needs a second pair of towers.
The intersection of two hyperbolas gives the ship's coordinates.
Navigation Summary
Property
Hyperbolas model the path of points where signal delay is constant.
Application
Ship/Plane tracking, lightning strike location, and even earthquake epicenters.
"Geometry is the map of the ocean."

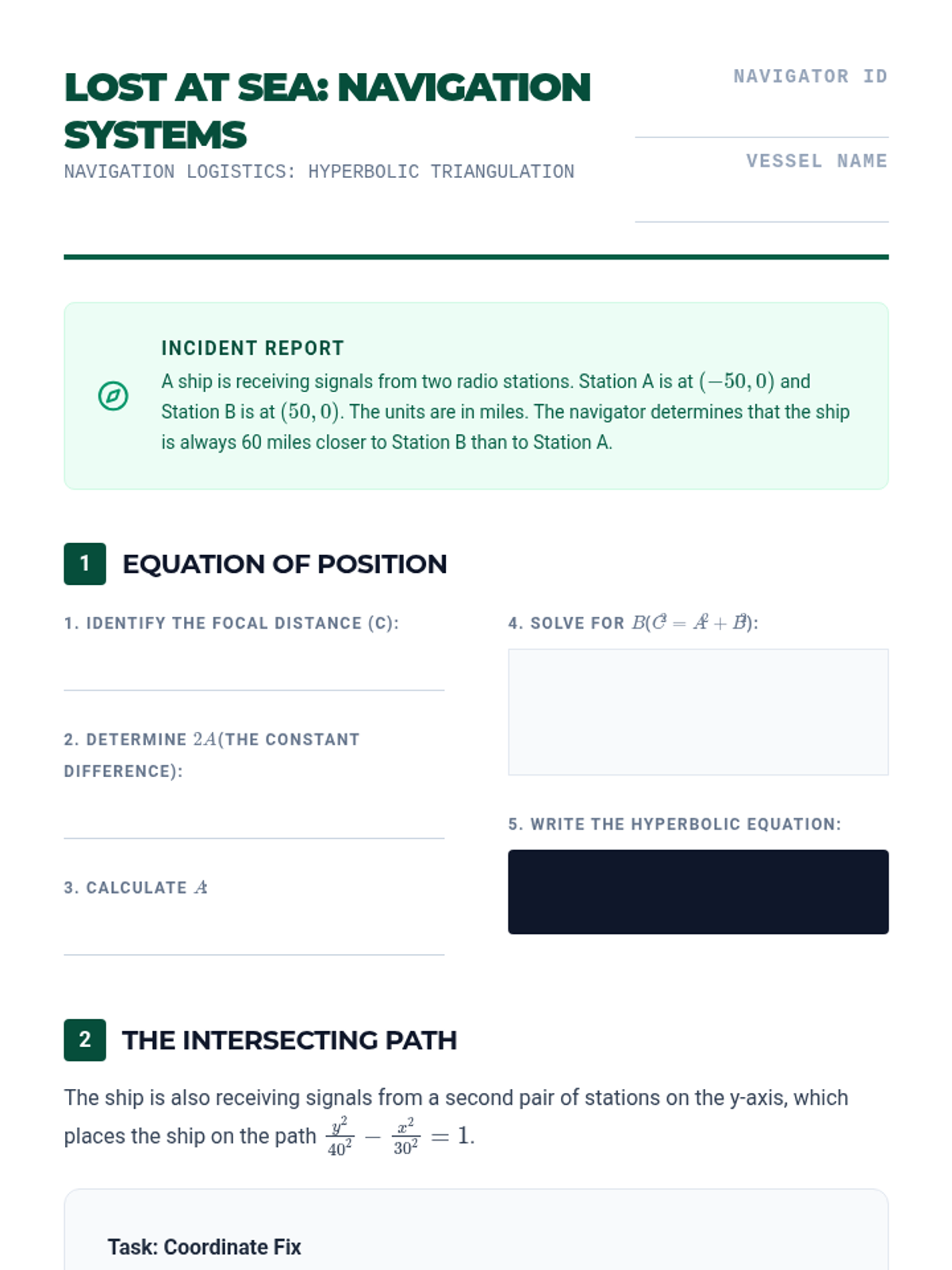

Lost at Sea Worksheet Lost at Sea: Navigation Systems
Navigation Logistics: Hyperbolic Triangulation
Navigator ID
Vessel Name
Incident Report
A ship is receiving signals from two radio stations. Station A is at \( (-50, 0) \) and Station B is at \( (50, 0) \). The units are in miles. The navigator determines that the ship is always 60 miles closer to Station B than to Station A.
1
Equation of Position
1. Identify the focal distance (c):
2. Determine \( 2a \) (the constant difference):
3. Calculate \( a \):
4. Solve for \( b \) (\( c^2 = a^2 + b^2 \)):
5. Write the Hyperbolic Equation:
2
The Intersecting Path
The ship is also receiving signals from a second pair of stations on the y-axis, which places the ship on the path \( \frac{y^2}{40^2} - \frac{x^2}{30^2} = 1 \).
Task: Coordinate Fix
Given that the ship is in the first quadrant, use substitution or a graphing method to estimate the ship's current \((x, y)\) coordinates.
Engineering Reflection
Why does a navigator need two sets of stations? What would happen if the ship only knew it was on a single hyperbola? Discuss the concept of "Lines of Position."

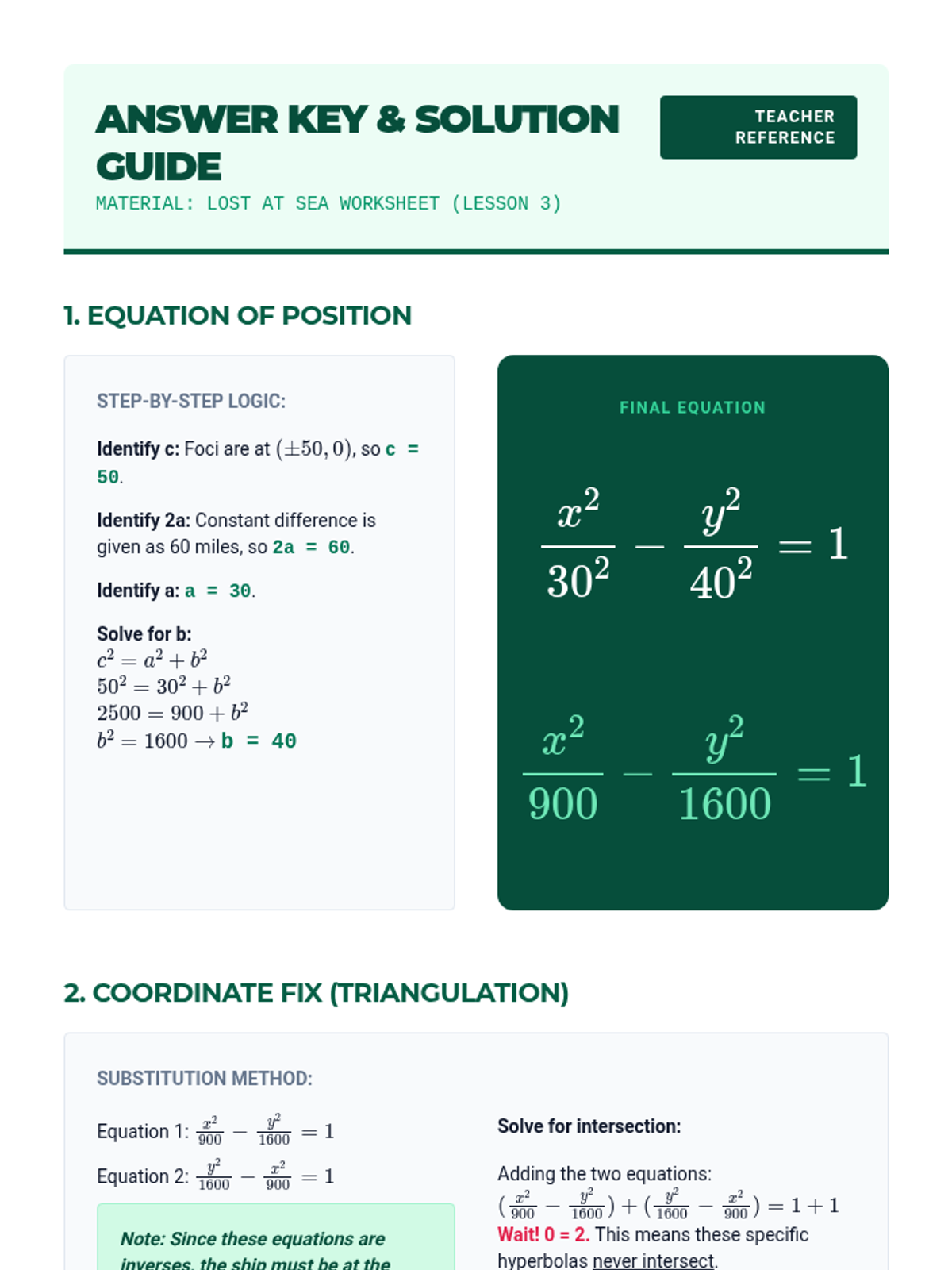

Pathfinder Answer Key Answer Key & Solution Guide
Material: Lost at Sea Worksheet (Lesson 3)
Teacher Reference
1. Equation of Position
Step-by-Step Logic:
Identify c: Foci are at \( (\pm 50, 0) \), so c = 50.Identify 2a: Constant difference is given as 60 miles, so 2a = 60.Identify a: a = 30.Solve for b:
Final Equation
\[ \frac{x^2}{30^2} - \frac{y^2}{40^2} = 1 \]
\[ \frac{x^2}{900} - \frac{y^2}{1600} = 1 \]
2. Coordinate Fix (Triangulation)
Substitution Method:
Equation 1: \( \frac{x^2}{900} - \frac{y^2}{1600} = 1 \)
Equation 2: \( \frac{y^2}{1600} - \frac{x^2}{900} = 1 \)
Note: Since these equations are inverses, the ship must be at the intersection where \( |x| = |y| \) is not necessarily true, but where the terms balance.
Solve for intersection:
Adding the two equations:
Teacher Guidance: This is a trick/critical thinking point. In LORAN, stations must be positioned such that hyperbolas intersect. If they don't, the navigation fix is impossible.
Extension Discussion
Visualizing
Have students plot these on Desmos. They will see one hyperbola opens left/right and the other up/down with the same asymptotes, so they never touch.
Real World
Engineers must carefully place LORAN towers so that the resulting grid has "good geometry"—intersections as close to 90 degrees as possible for best accuracy.
The Quadrant
Even if they did intersect, there would be 4 possible locations. The navigator uses the "approximate" direction of the signal to pick the correct quadrant.
Precision Pulse Slides Lesson 4: Medical Applications
Precision Pulses
Shattering stones with the geometry of the ellipsoid.
The Kidney Stone Dilemma
How do you break a rock inside a human body without making a single incision?
Solution: Lithotripsy
Using an ellipsoid reflector to focus sound energy with mathematical precision.
Extracorporeal Shock Wave Lithotripsy (ESWL)
The Geometry of Healing
Focus 1: The Source
An underwater electrode creates a high-energy shockwave (spark).
Focus 2: The Target
The shockwaves reflect off the ellipsoid and converge exactly at the kidney stone.
// Technical Specs
Every ray must travel the SAME total distance: \( 2a \)
This ensures the pulses arrive in perfect synchronization.
Precision Calculation
The Machine Dimensions:
• Semi-major axis (\( a \)) = 15 cm
• Semi-minor axis (\( b \)) = 9 cm
Goal:
Find the distance between the shockwave source and the kidney stone.
Step 1: Solve for \( c \)
\( c^2 = 15^2 - 9^2 \)
\( c = \sqrt{225 - 81} = 12 \)
Distance = \( 2c = 24 \text{ cm} \)
Conclusion: The patient's stone must be placed exactly 24 cm from the electrode.
The Margin for Error
If the doctor's geometric model is off by even 1 centimeter, the high-energy shockwave hits healthy tissue instead of the stone.
"In medicine, geometry isn't just a grade—it's safety."

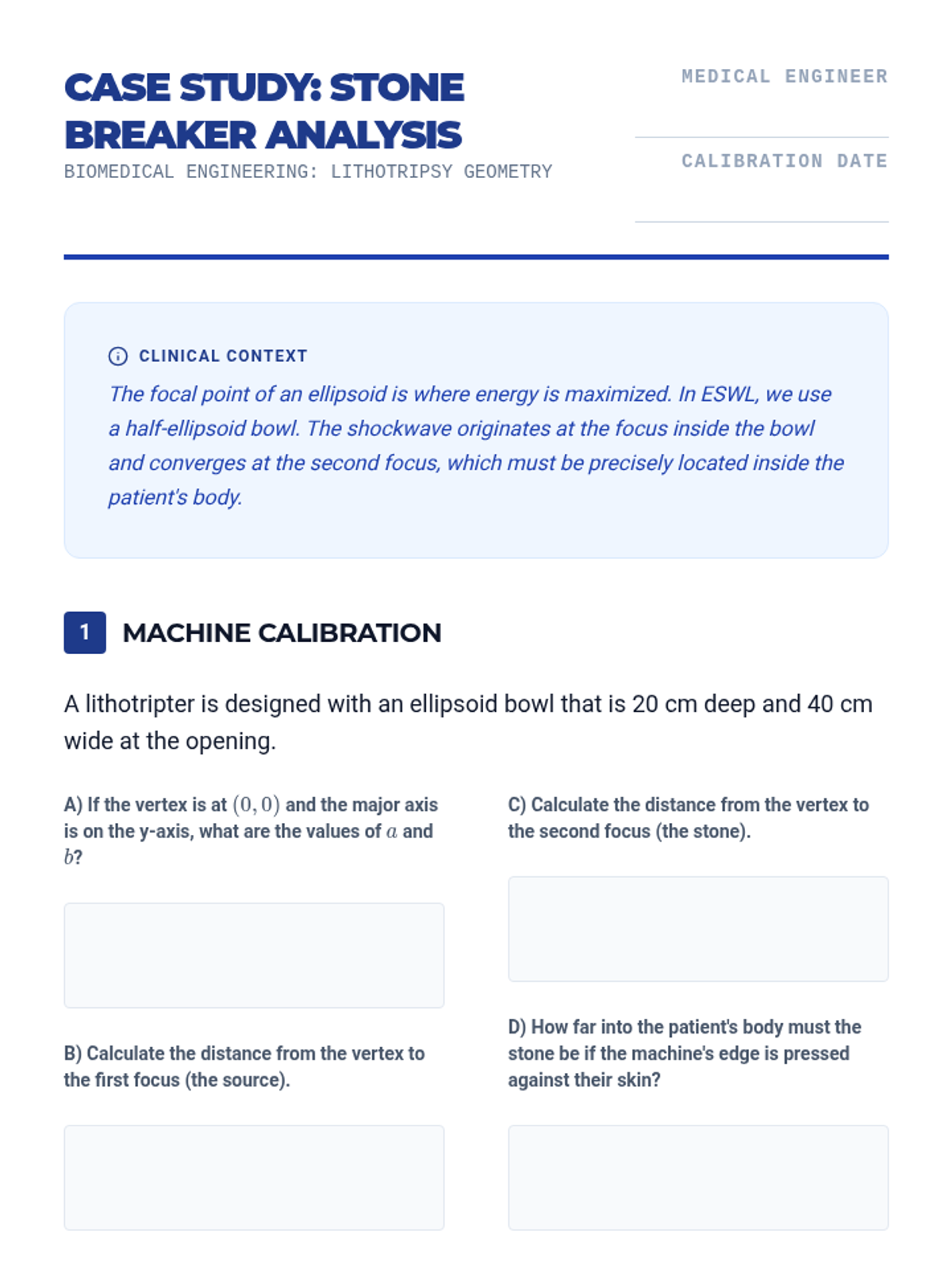

Stone Breaker Analysis Worksheet Case Study: Stone Breaker Analysis
Biomedical Engineering: Lithotripsy Geometry
Medical Engineer
Calibration Date
Clinical Context
The focal point of an ellipsoid is where energy is maximized. In ESWL, we use a half-ellipsoid bowl. The shockwave originates at the focus inside the bowl and converges at the second focus, which must be precisely located inside the patient's body.
1
Machine Calibration
A lithotripter is designed with an ellipsoid bowl that is 20 cm deep and 40 cm wide at the opening.
A) If the vertex is at \( (0, 0) \) and the major axis is on the y-axis, what are the values of \( a \) and \( b \)?
B) Calculate the distance from the vertex to the first focus (the source).
C) Calculate the distance from the vertex to the second focus (the stone).
D) How far into the patient's body must the stone be if the machine's edge is pressed against their skin?
2
Safety Buffer Analysis
The kidney stone has moved 2 cm closer to the machine since the last scan. If the engineer does not recalibrate the ellipsoid focus, calculate the coordinates of the current stone location relative to the intended focus.
Calculations & Geometric Proof
Bio-Medical Reflection
Explain why the reflective property of an ellipse is superior to a circle for this medical procedure. Mention the concepts of focal points versus centers.
Architectural Vision Slides Lesson 5: Summative Project
Architectural Vision
Designing the future with the curves of the ancient world.
The Master Design Challenge
You are the lead architect for a futuristic city. You must design one structure that utilizes the specific geometric properties of a conic section to solve a problem.
Choose Your Curve:
Parabola Ellipse Hyperbola
Solar Collector
Acoustic Hall
Signal Relay
Medical Pod
The Blueprint Specs
1. Visual Design
A technical drawing showing the vertex, foci, and axes of your structure. Include a scale!
2. Algebraic Proof
The standard form equation of your conic and the calculation of all key parameters (\( a, b, c, p \)).
3. Functional Essay
A 250-word justification of why this specific conic was chosen and how it solves the problem.
The Architect's Rubric
Criteria Expectation Points Mathematical Accuracy Equations perfectly match the dimensions and focal requirements. 40 Geometric Justification Deep connection made between the locus definition and the function. 30 Visual Clarity Drawing is professional, labeled, and accurately scaled. 20 Creativity Novel application or unique architectural vision. 10
Build the Impossible
Geometry isn't just a set of rules—it's the toolkit for building reality. Go create.
Master Architect Blueprint Packet Master Architect Blueprint
Design Challenge: Final Submission Packet
Chief Architect
Firm ID
I. Design Proposal
Structure Name:
Conic Section Selected:
Parabola
Ellipse
Hyperbola
Target Problem:
II. Mathematical Specifications
Define the physical dimensions and translate them into algebraic constants.
\( a \) or \( p \)
\( b \)
\( c \)
Center/Vertex
Final Standard Equation:
III. Technical Drawing
Use a ruler. Clearly label the foci, vertex, and axes. Include scale (e.g., 1 square = 5 meters).
Scale: 1 unit = ___________
IV. Proof of Functionality
Explain how the reflective or structural property of your chosen conic section allows this design to work. Why wouldn't a circle or a straight line work as well?
