DENSITY DRIVE

Packing Efficiency & Material Volume

The Boxed Fruit Paradox

How many oranges can you fit in a box before it's mathematically impossible to fit more?

No matter how you stack them, there will always be "air" (voids) between spheres.

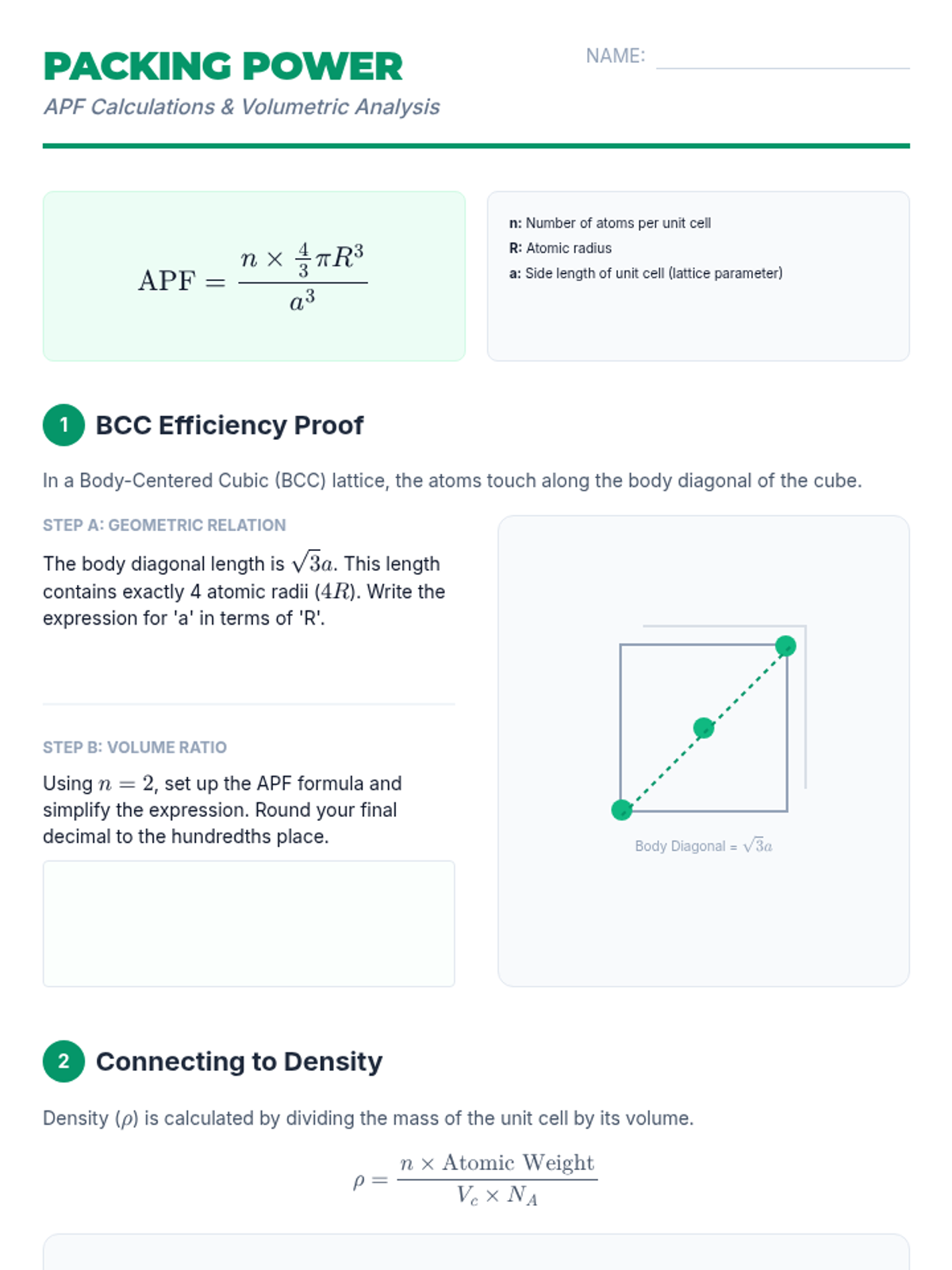

Atomic Packing Factor (APF):

The fraction of volume in a crystal structure that is occupied by atoms.

Void Space = Wasted Volume

\[ \text{APF} = \frac{n \times V_{\text{atom}}}{V_{\text{unit cell}}} \]

\[ \frac{4}{3} \pi R^3 \]

Standard sphere volume

\[ a^3 \]

Side length 'a' cubed

1

Side length a = 2R (atoms touch along edge)

2

Total Atoms n = 1

3

Calculate Ratio:

\[ \text{APF} = \frac{1 \times \frac{4}{3} \pi R^3}{(2R)^3} = \frac{\pi}{6} \approx 0.52 \]

Only 52% of the space is matter.
48% is empty space!

Simple Cubic

52%

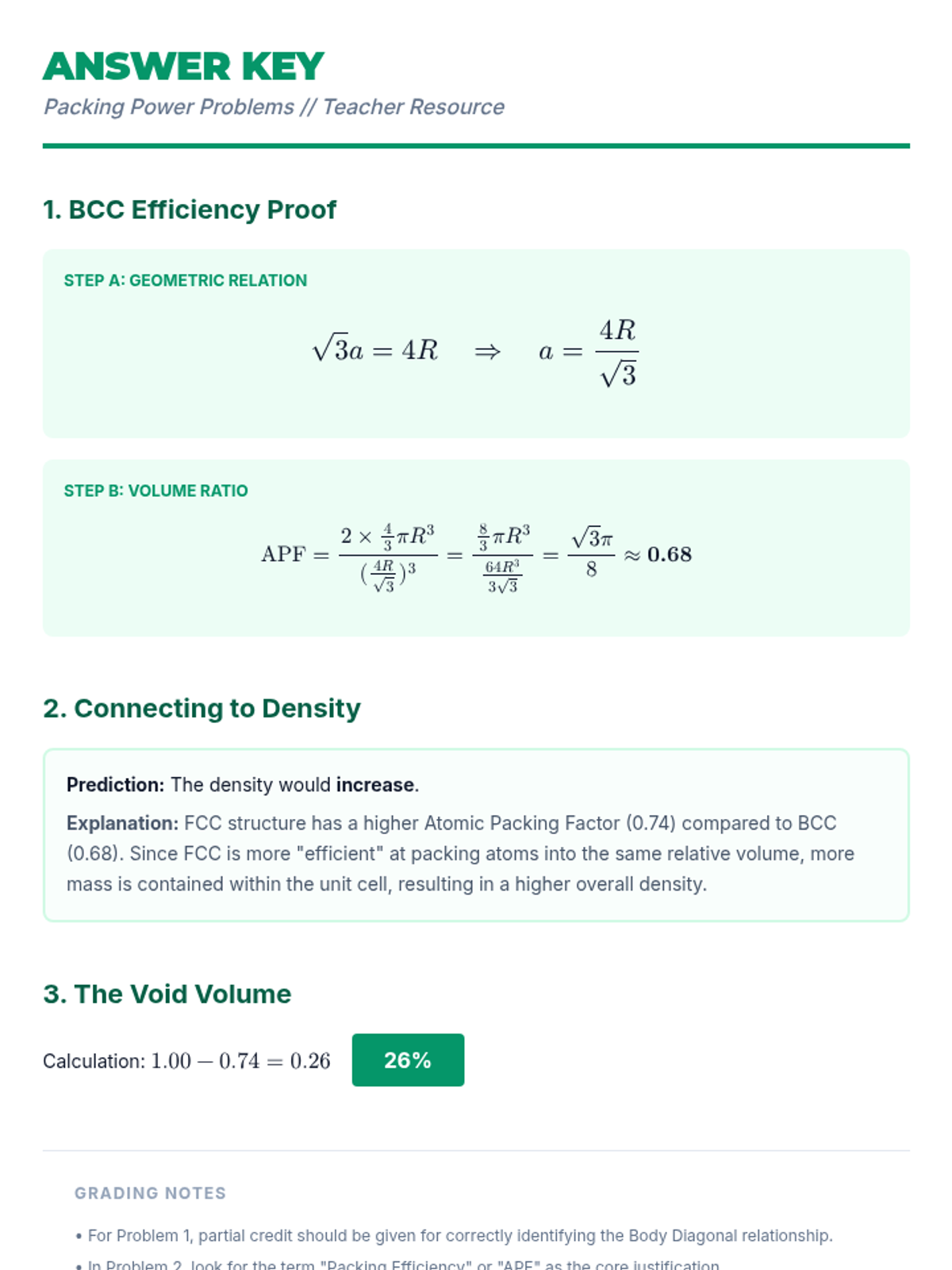

Body-Centered

68%

Face-Centered

74%

FCC and Hexagonal Close-Packed are the most efficient arrangements in nature.
